D-Link AirPlus G DWL-G710 User manual

Manual
Building Networks for People
D-Link AirPlusTM G
DWL-G710
802.11g Wireless Range Extender

2
Contents
PackageContents ................................................................................3
Introduction............................................................................................4
Connections..........................................................................................5
LEDs ....................................................................................................6
Features ...............................................................................................7
Wireless Basics....................................................................................8
InstallationConsiderations ..................................................................10
GettingStarted....................................................................................11
UsingtheConfigurationMenu..............................................................13
Networking Basics .............................................................................19
Troubleshooting...................................................................................34
TechnicalSpecifications ......................................................................41
ContactingTechnicalSupport ..............................................................44
Warranty..............................................................................................45
Registration ........................................................................................48

3
Contents of Package:

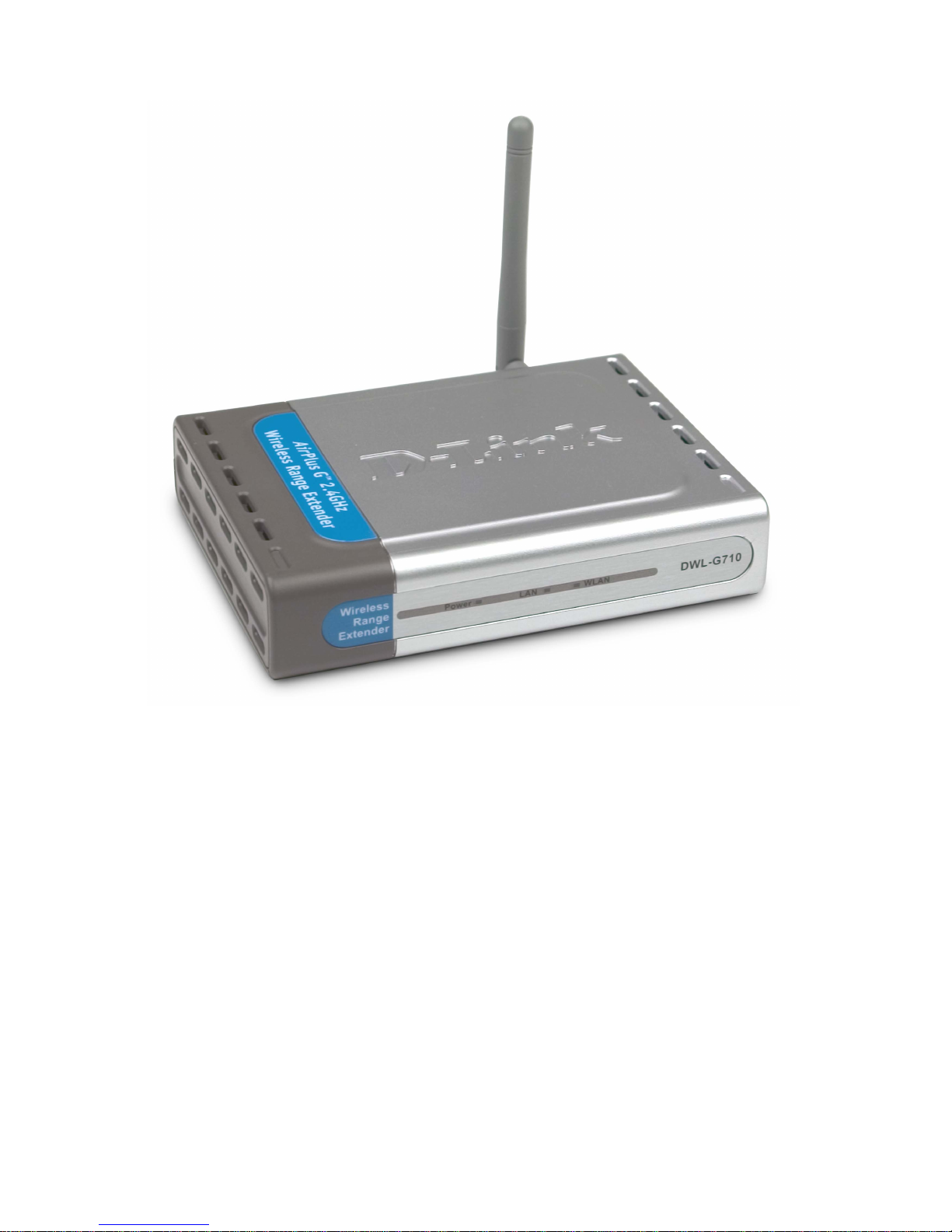

D-Link AirPlus G DWL-G710
802.11g WirelessRangeExtender
PowerAdapter-DC5V, 2.0A
ManualonCD
QuickInstallationGuide
EthernetCable
TM
InternetExplorerversion 6.0 or NetscapeNavigatorversion
7.0and above
Computers with Windows, Macintosh, or Linux-based
operating systems with an installed Ethernet adapter
Package Contents
Note:Usingapowersupply with a different voltage rating than the oneincludedwiththe
DWL-G710willcause damage and voidthewarrantyforthis product.
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:








4
Introduction
With a maximum wireless signal rate of up to five times the rate of previous wireless
devices(upto54Mbps*),youcanworkfasterandmoreefficiently,increasingproductivity.
With the DWL-G710, bandwidth-intensive applications like graphics or multimedia will
benefit significantly because large files are able to move across the network quickly.
The D-Link AirPlusTM G DWL-G710 Wireless Range Extender can repeat the wireless
signal of D-Link AirPlusTM G access points and wireless routers to extend the range of
yourwirelessnetwork.
The DWL-G710 is capable of a maximum wireless signal rate of up to 54Mbps when
used with other D-Link AirPlusTM G products such as the DWL-G510 Wireless PCI
Adapter, DWL-G630 Wireless CardbusAdapter,andtheDI-524WirelessRouter.
TheDWL-G710 iscompatiblewithmostpopularoperatingsystems, includingMacintosh,
Linux and Windows, and can be integrated into a large network.
*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will
vary. Network conditions and environmental factors lower actual data throughput rate.

5

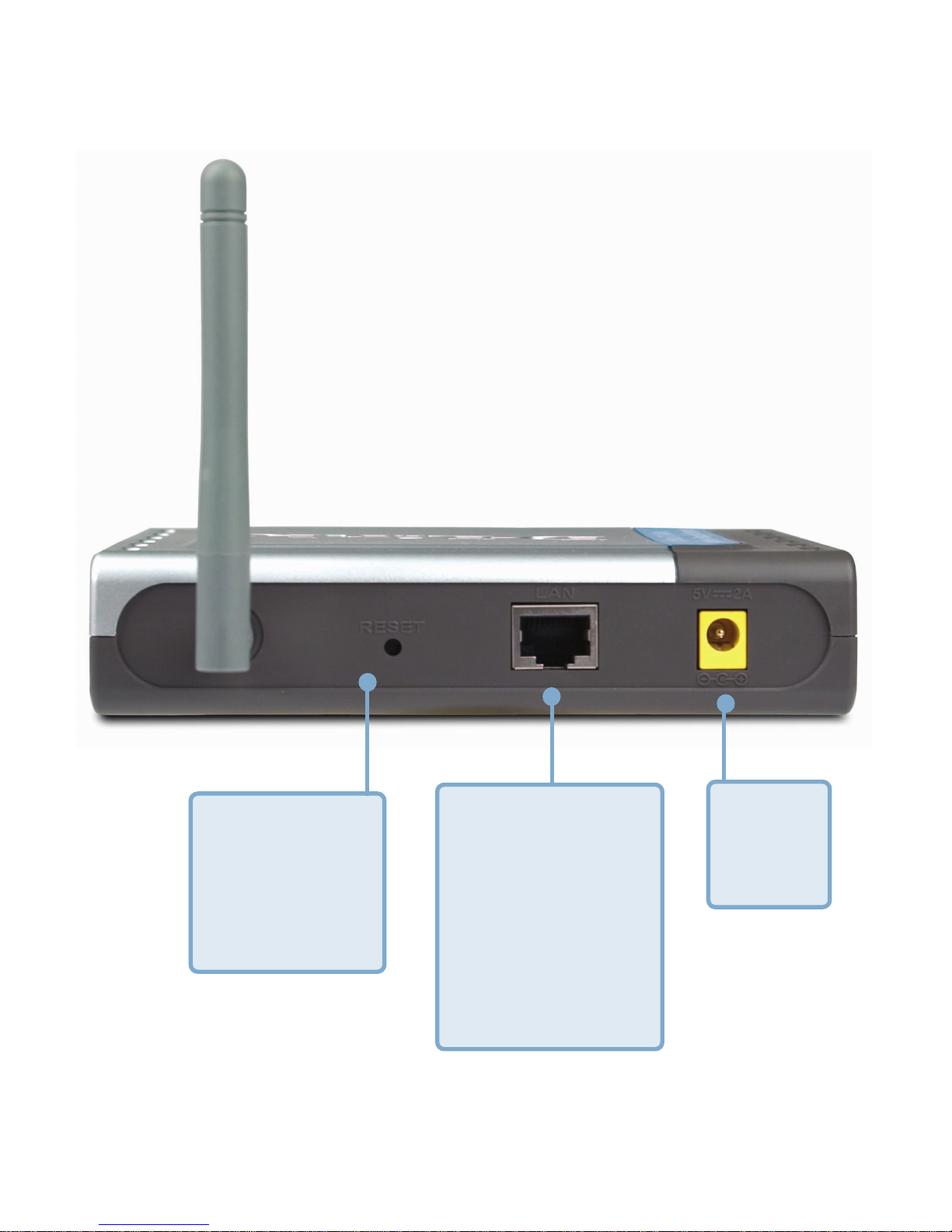

Connections
Receptor
forthe
Power
Adapter
Pressing the
Reset Button
restoresthe
DWL-G710 to its
originalfactory
defaultsettings.
The LAN Port is
Auto-MDI/MDIX.You
can insert either a
straight-throughora
crossoverEthernet
cable in this port in
order to connect the
DWL-G710tothe
localnetwork.

6

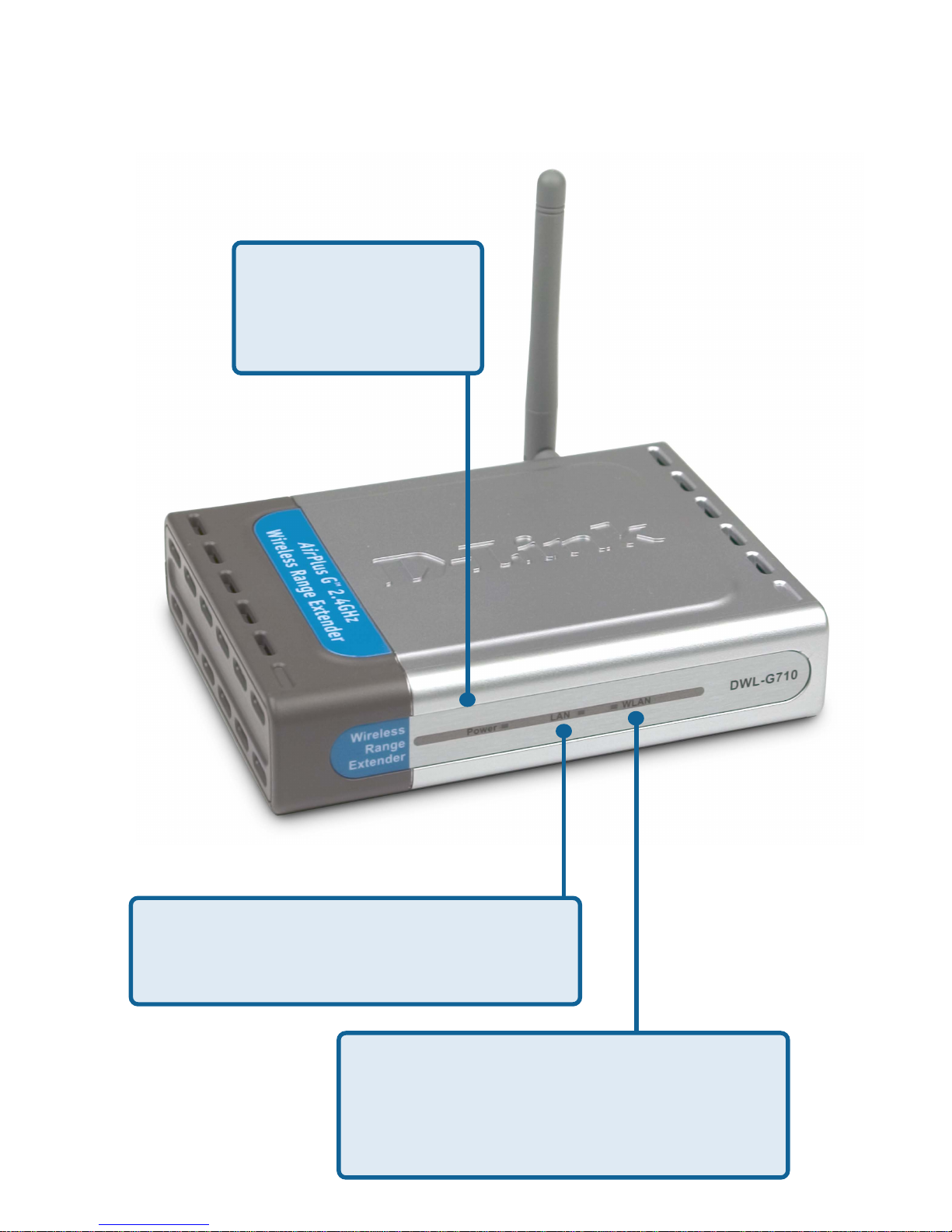

LEDs
LED stands for Light-Emitting Diode. The DWL-G710 Wireless Range Extender has 3
LEDsasshownbelow:
A steady green light indicates a good wireless
connection.Ablinking light indicates that the
DWL-G710is receiving/transmittingfrom/to
thewirelessnetwork.
WLAN:
Power:
Asteadygreenlight
indicatesaconnection to
apowersource.
A steadygreenlightindicatesa good Ethernet
connection.
LAN:

7
Extends the range of your wireless network.
Withamaximumwirelesssignal rate of up to 54Mbps* withAirPlus GProducts,
theDWL-G710 delivers media rich content such as digitalimages, videos, and
MP3files much faster than standard802.11b networks.
Fully 802.11b compatible – Fully compatible with the IEEE 802.11b standard
andinteroperablewith all existing 802.11b compliant devices.
Easy setup with the setup wizard.
Web-based interface for managing and configuring – Easy-to-use interface
independentoftheoperatingsystem.
Auto-MDI/MDIXEthernet port.
Features and Benefits






*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput
will vary. Network conditions and environmental factors lower actual data throughput rate.

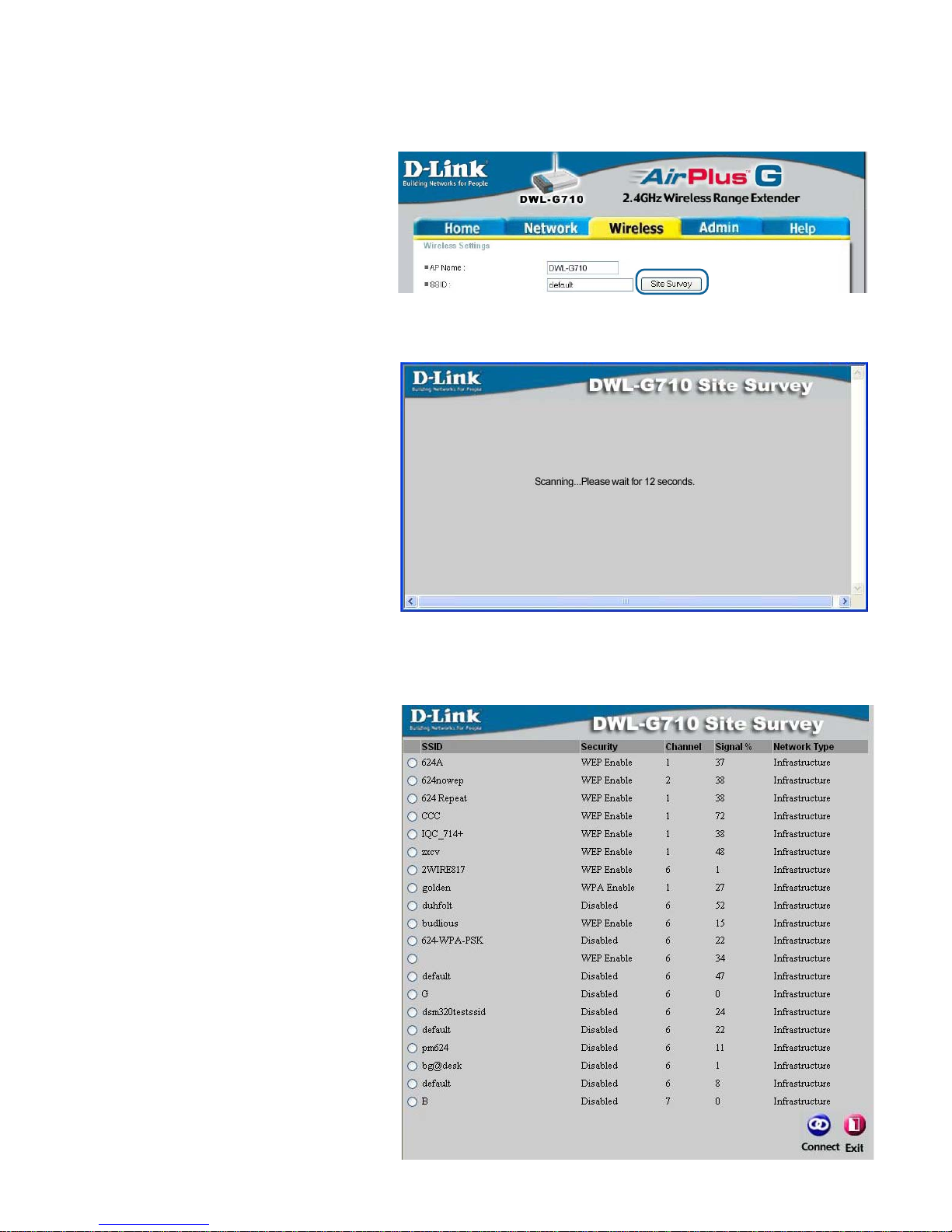

Simple configuration with the Site Survey tool. Just click on a network to
extend the range of an access point or router in that network. No MAC
addressesneeded.


8
Wireless Basics
Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernetadaptercards.
D-Link wireless products are based on industry standards to provide easy-to-use and
compatiblehigh-speed wirelessconnectivitywithinyourhome, businessorpublicaccess
wirelessnetworks.D-Link wireless products will allow you access to the data youwant,
whenandwhereyouwantit.Youwillbeabletoenjoythefreedomthatwirelessnetworking
brings.
Awirelesslocal areanetwork(WLAN)is acomputernetworkthat transmits andreceives
datawithradiosignalsinstead of wires. WLANs are used increasinglyinbothhomeand
office environments, and public areas such as airports, coffee shops and universities.
InnovativewaystoutilizeWLANtechnologyarehelping peopleto workandcommunicate
more efficiently. Increased mobility and the absence of cabling and other fixed
infrastructurehaveproventobebeneficial for many users.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-time
informationcansignificantlyimproveworkerefficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change and
relocate. Networks that frequently change can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and Network Expansion -Installinga WLAN system can be fastand
easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technologyallowsthenetwork to go where wires cannot go - even outside the home or
office.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventionalEthernetnetwork devices.
Scalability - WLANs can be configured in a variety of ways to meet the needs of
specific applications and installations. Configurations are easily changed and range
fromPeer-to-Peernetworks suitable for asmallnumberofusers to larger Infrastructure
networkstoaccommodate hundreds or thousands of users, depending on thenumber
ofwirelessdevicesdeployed.

9
Wireless Basics (continued)
Standards-Based Technology
TheDWL-G710WirelessRangeExtenderutilizesthe802.11bandthe 802.11gstandards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the
maximum wireless signal rate up to 54Mbps* within the 2.4GHz band, utilizing OFDM
technology.
Thismeansthatinmostenvironments,withinthespecifiedrangeof this device, you will
be able to transfer large files quickly or even watch a movie in MPEG format over your
network without noticeable delays. This technology works by transmitting high-speed
digitaldataoveraradiowaveutilizingOFDM(OrthogonalFrequencyDivisionMultiplexing)
technology. OFDM works by splitting the radio signal into multiple smaller sub-signals
thatare then transmitted simultaneouslyat differentfrequencies to the receiver. OFDM
reduces the amount of crosstalk (interference) in signal transmissions. The D-Link
DWL-G710 will automatically sense the best possible connection speed to ensure the
greatestspeedandrange possible.
The DWL-G710 is compatible, in default mode, with the following wireless products:
D-Link AirPlusTM G DWL-G510
Wireless PCIAdapter used with desktop computers
D-Link AirPlusTM G DWL-G630
WirelessCardbusAdapter used with laptop computers
D-Link AirPlusTM G DI-524
WirelessRouter
TheDWL-G710isalsointeroperablewithother 802.11gand802.11b
standards-compliantdevices.


*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will
vary. Network conditions and environmental factors lower actual data throughput rate.



10
Wireless Basics (continued)
Installation Considerations
The D-Link AirPlus G DWL-G710 lets you access your network, using a wireless
connection, from virtually anywhere within its operating range. Keep in mind, however,
that the number, thickness and location of walls, ceilings, or other objects that the
wirelesssignalsmustpassthrough, may limit the range.Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or
business. The key to maximizing wireless range is to follow these basic guidelines:
TM
Keepyourproductaway(at least 3-6 feet or 1-2 meters) from electrical devices
orappliances that generate RF noise.
4
KeepthenumberofwallsandceilingsbetweentheDWL-G710and othernetwork
devicestoaminimum-each wall or ceiling can reduce your DWL-G710’s range
from 3-90 feet (1-30 meters.) Position your devices so that the number of walls
or ceilings is minimized.
1
Beawareofthedirectlinebetweennetworkdevices.Awall that is 1.5 feet thick
(.5meters),ata45-degreeangleappearstobealmost3feet(1meter)thick.At
a2-degreeangleit looks over 42feet(14meters)thick!Position devices so that
thesignalwill travel straight through a wall or ceiling (instead of atan angle) for
betterreception.
2
Buildingmaterialscanimpedethewirelesssignal-asolidmetaldoororaluminum
studsmayhaveanegative effect on range. Try topositionwirelessdevicesand
computers with wireless adapters so that the signal passes through drywall or
opendoorwaysandnotother materials.
3

11
A laptop computer with a wireless adapter -
D-Link AirPlusTM G DWL-G630
A desktop computer with a wireless adapter -
D-Link AirPlusTM G DWL-G510
Acablemodem-D-Link DCM-201
Getting Started
On the following pages we will show you an example of an Infrastructure Network
incorporatingtheDWL-G710.
An Infrastructure network contains an access point or a wireless router. The
Infrastructure Network example shown on the following page contains the following
D-Linknetwork devices (your existing network may be comprisedof other devices):

A wireless router - D-Link AirPlusTM G DI-524
Awirelessrange extender -
D-Link AirPlusTM G DWL-G710




12
You will need broadband Internet access(acableorDSL-subscriberlineinto
yourhomeor office).
Consultwithyourcable or DSL provider forproperinstallationofthemodem.
Connect the cable or DSLmodem to the DI-524 router. (See the printed Quick
InstallationGuideincluded withyourrouter.)
Ifyouareconnectingadesktopcomputertoyournetwork,installtheD-LinkAirPlus
G DWL-G510 wireless PCI adapter into an available PCI slot on your desktop
computer.*
(SeetheprintedQuickInstallationGuideincludedwiththenetworkadapter.)
Installthe D-Link DWL-G630 wireless cardbus adapter intoalaptopcomputer.
(SeetheprintedQuickInstallationGuideincludedwiththeDWL-G630.)*
Getting Started (continued)

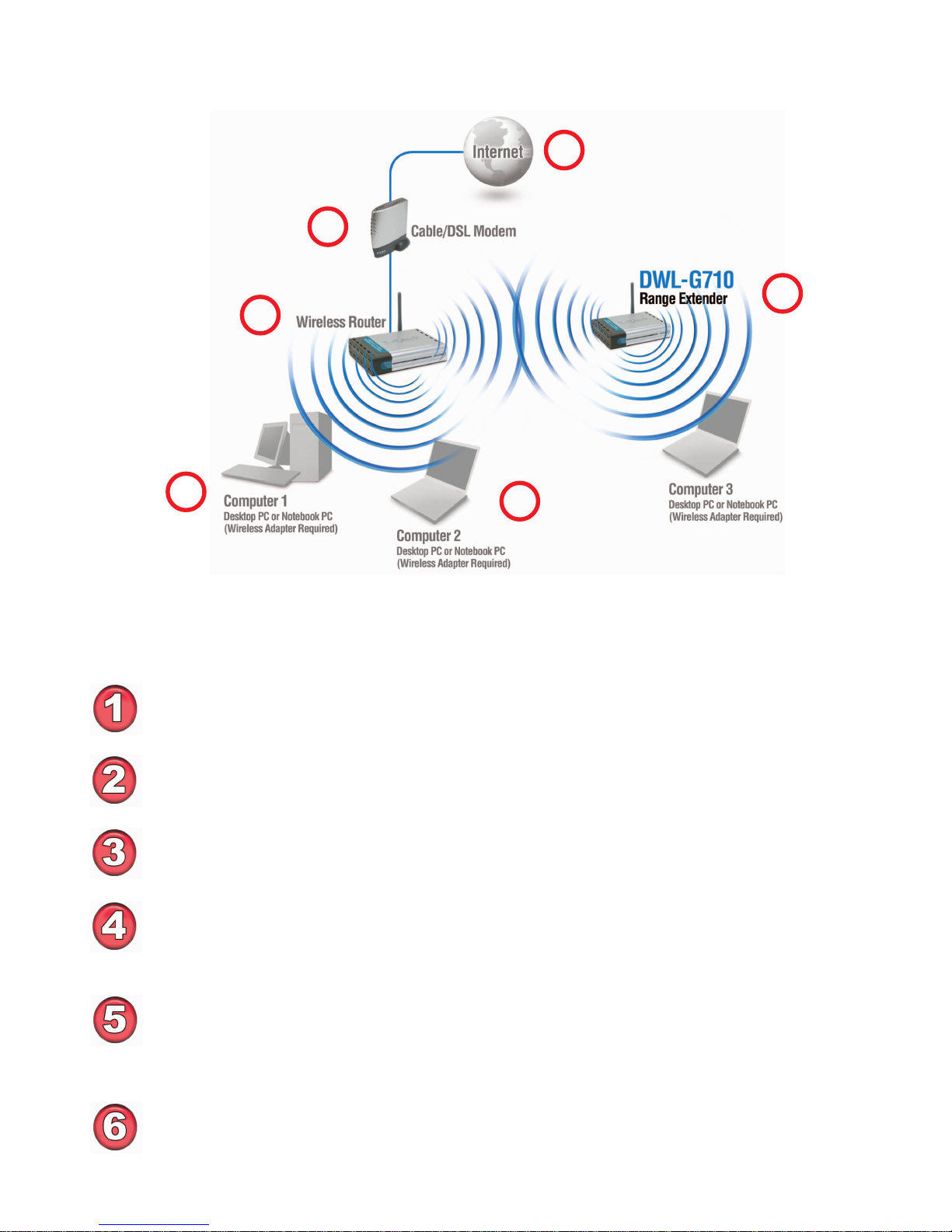

For a typical wireless setup at home (as shown above), please do the following:
An example of a wireless Infrastructure network
11
11
1
22
22
2
33
33
344
44
4
Configurethe DWL-G710tocommunicatewith theDI-524router.(Seetheprinted
QuickInstallationGuideincludedwiththeDWL-G710.)
66
66
6
55
55
5
TM
Please rememberthat D-Link AirPlus G wireless devices are pre-configured to
connect together, right out of the box, with their default settings.
TM
*Both DWL-G630 and DWL-G510 should be configured to
communicate with the DWL-G710, not the router.

13

Note: if you have changed the default IP address assigned to the DWL-G710, make sure to
enter the correct IP address.

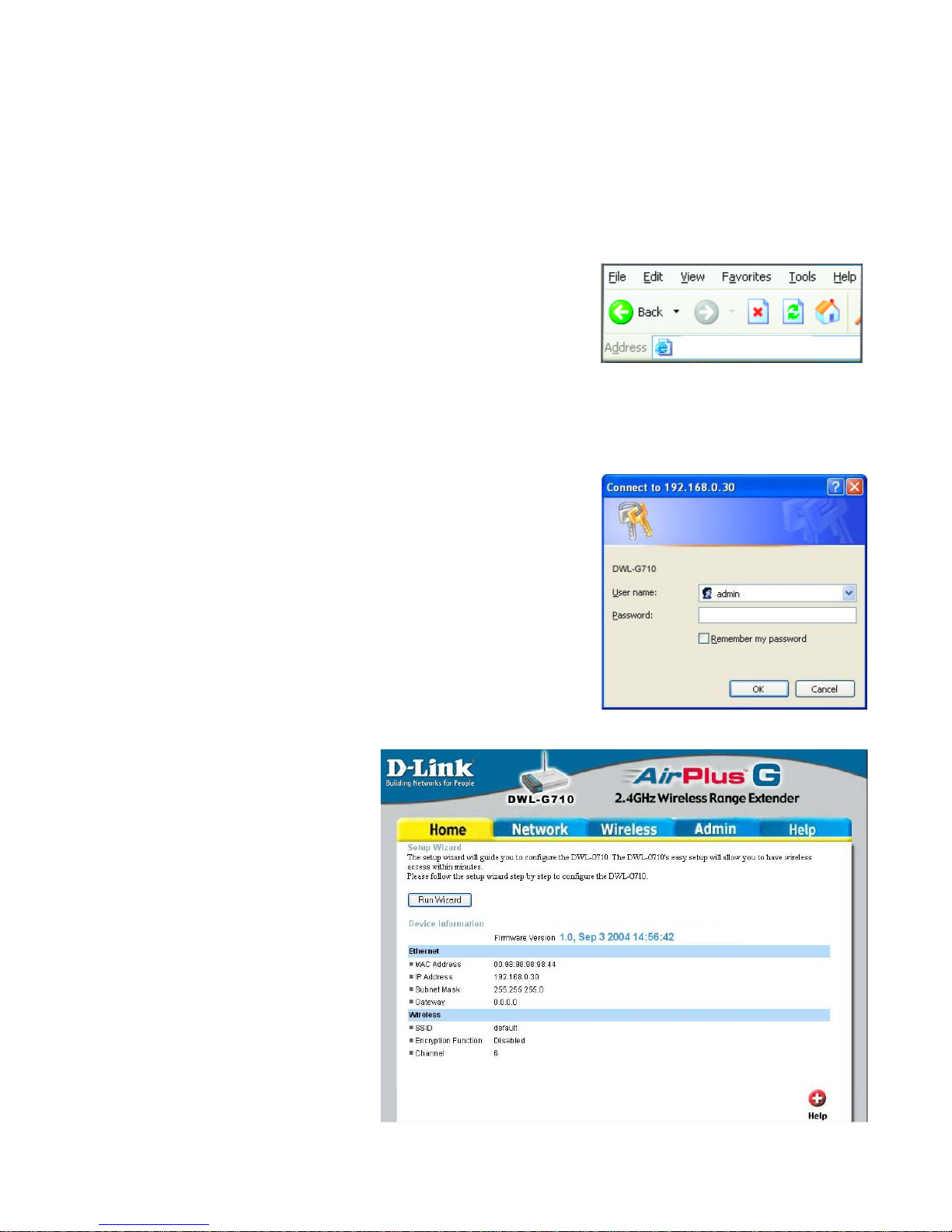

UsingtheConfigurationMenu
Home > Wizard
TheHome>Wizardscreen will
appear. Please refer to the
Quick Installation Guide for
moreinformationregarding the
Setup Wizard.
Afteryouhave completedtheSetup Wizard(pleasesee the QuickInstallationGuidethat
came with the product) you can access the Configuration menu at any time by opening
theWebbrowser andtypinginthe IP addressoftheDWL-G710. The DWL-G710default
IP address is shown below:


http://192.168.0.30


Type admin in the User name field.
LeavethePassword blank.
(However,if youhavechanged
thepassword,pleaseenter the
correctpassword.)
Click OK.
OpentheWebbrowser.
Type in the IP address of the
DWL-G710.

14

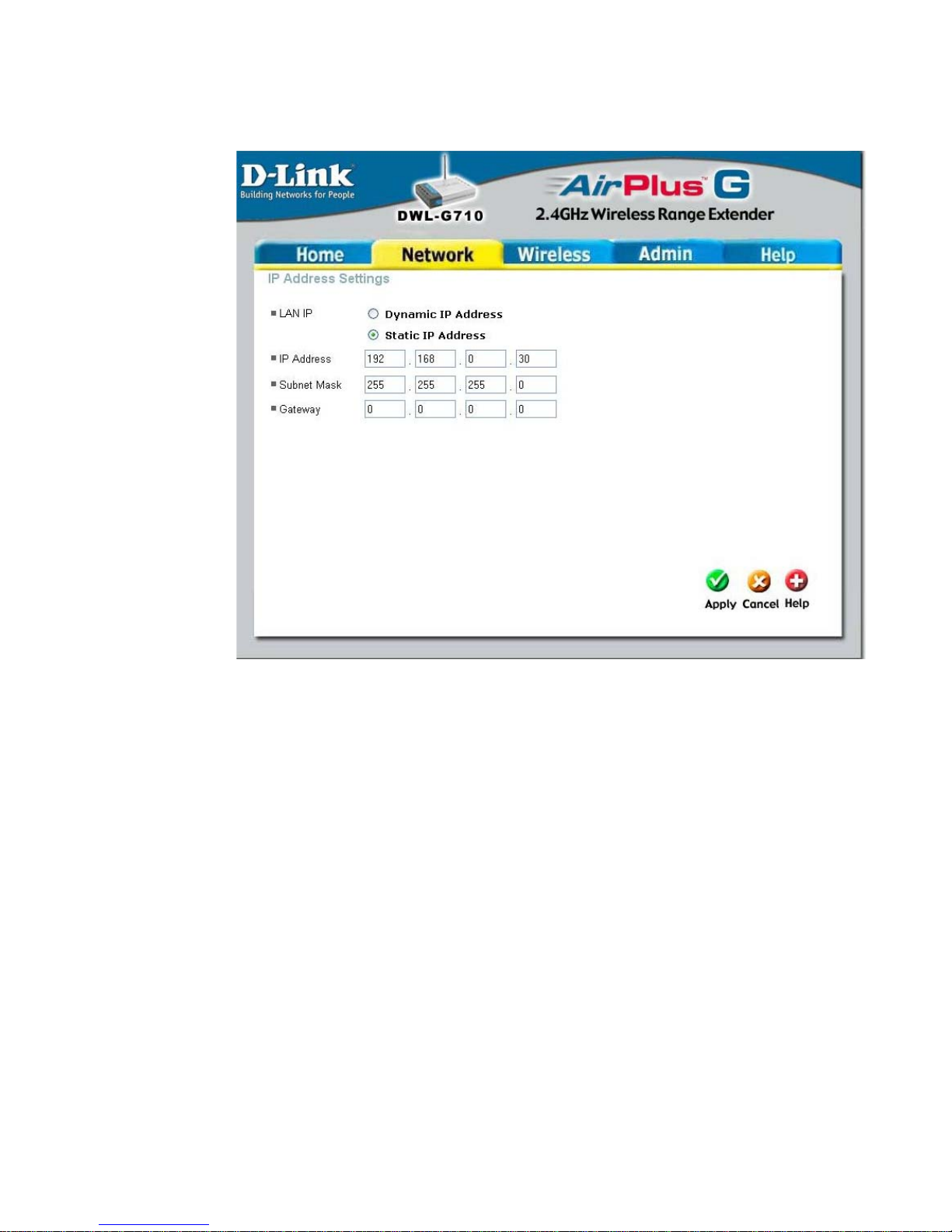

Using the Configuration Menu (continued)
Network
Gateway- Enter the IP address of the router in the network.
LAN IP- Select this option to receive a dynamic IP
addressfromtheDHCPserveronyournetwork.
IPAddress- When Static IP Address is selected, you will input the static IP
addressoftheDWL-G710into this field. The IP addressmustbewithin
the range of the IP addresses in your network.
Subnet
Mask- Enter the subnet mask.
Apply- Click Apply to save the changes.
Dynamic IP Address-
Static IP Address- Assign a static IP address to the DWL-G710.
This selection is recommended for ease of
networkconfiguration.

15
WEP-Foralevel of security, select Enable EncryptiontouseWEP (WiredEquivalent
Privacy) on the network.All devices on the network, and the access point, must share
the same WEP selection - either Enable or Disable.
Site Survey - Click Site
Survey to receive a list of
networks that are available for
connection. Please see the
screenonthe following page formoreinformationonthis feature.
SSID (Service Set
Identifier) -

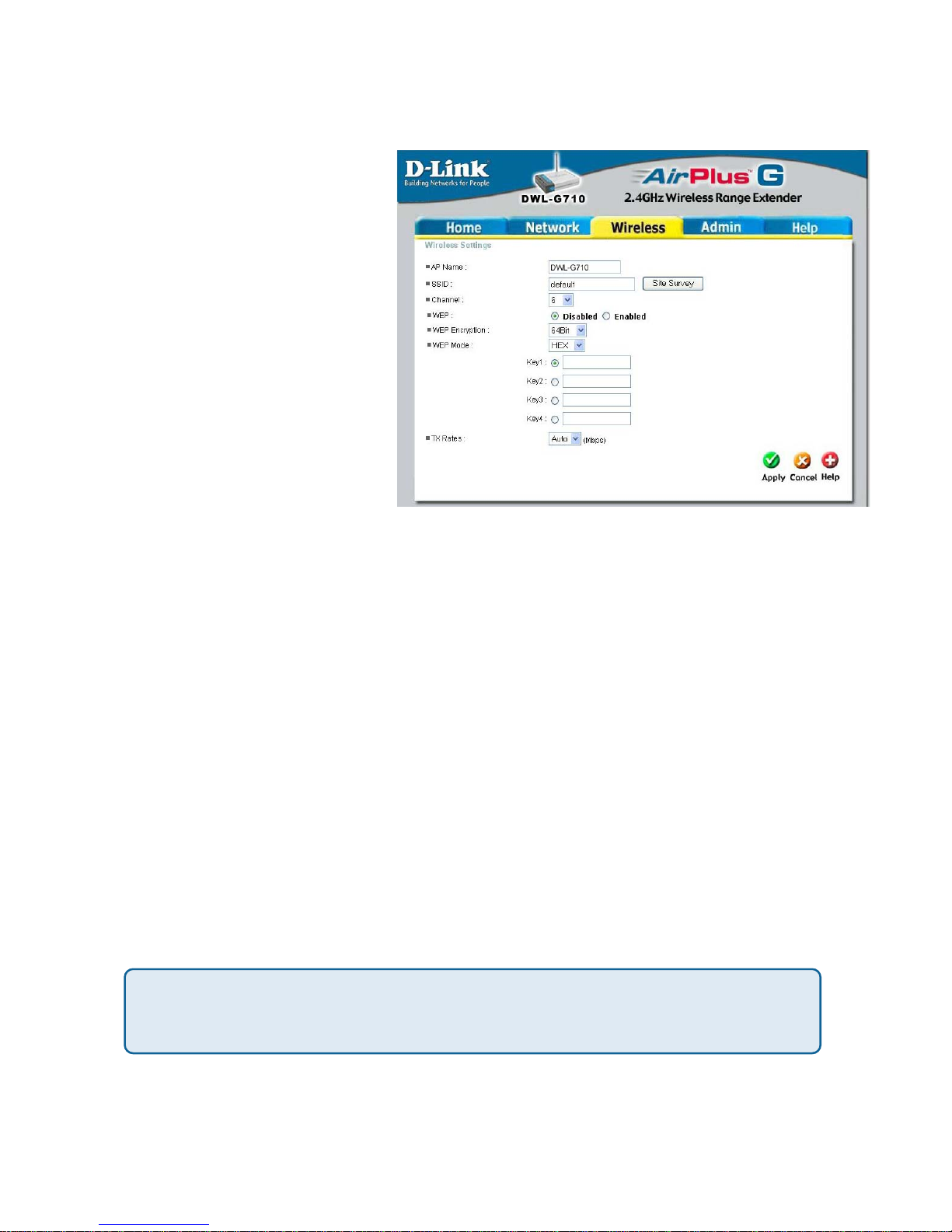

Using the Configuration Menu (continued)
Wireless
AP Name -
You may choose to rename
yourDWL-G710, especially if
youhavemore than one
DWL-G710onyournetwork.
WEP Encryption - Select either 64- or 128-bit length.
WEP Mode - Select ASCII or Hexadecimal mode and then input the appropriate
digits or letters into each Key field. You can create up to 4 keys. Select the key you
wish to use.
Enter the SSID of the network
you wish to repeat.
TX Rates - Select the transmission rate for the network.
Hexadecimal digits consist of the numbers 0-9 and the lettersA-F
ASCII (AmericanStandardCodeforInformationInterchange)isa code for
representingEnglishlettersasnumbersfrom 0-127
Apply - Click Apply to save the changes.
Channel - Select the channel from the pulldown menu.
All devices on the network must share the same channel in order to communicate.

16
Using the Configuration Menu (continued)
Site Survey
Click Site Survey in the
Wireless configuration screen
displayedonthe previouspage.
The DWL-G710 will scan the
network. Please wait a few
seconds for this process to
complete.
Scanning
Site Survey Completed
The Site Survey displays the
featuresofeachavailablenetwork
asfollows:
SSID- Displays the network
name.
Security- Displays the type of
securitybeingused,or indicates
that security is disabled.
Channel- Indicates the channel
the network is using.
Signal%- Displays the signal
strengthofthenetwork.
NetworkType- Indicatesthenet-
work type: Infrastructure or
Ad-Hoc.
The information shown here
allowsyoutoselecta network to
join,orgives you the information
you need to configure your
DWL-G710 for connection to a
specificnetwork.

17
Using the Configuration Menu (continued)

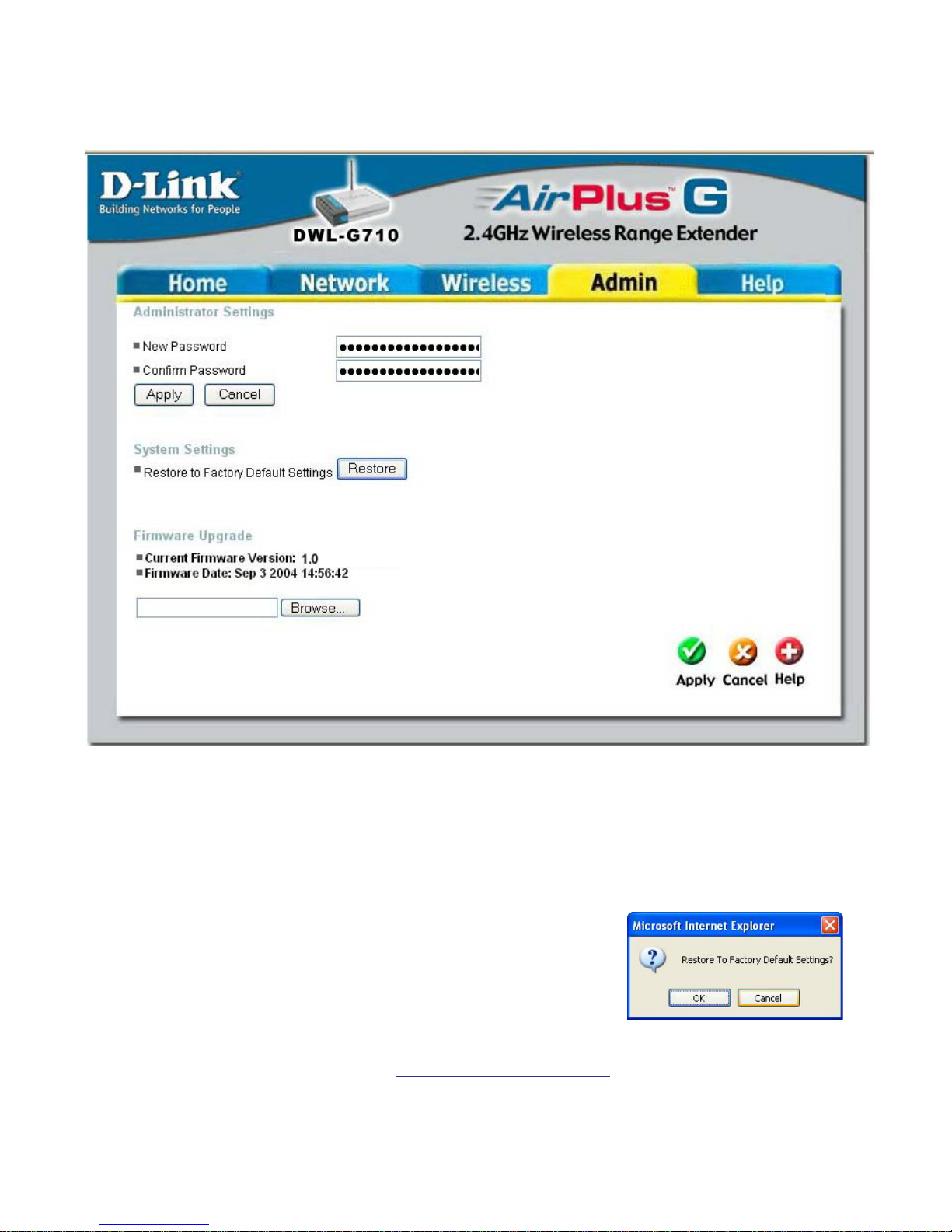

Admin
Apply - Click Apply if you have made any changes.
Administrator Settings - Change your password in this window. Re-enter the new
passwordtoconfirm.Itcanbeupto14charactersinlength.Pleasekeepacopyofyour
password in a safe place.
Click Apply, if you have made any changes. Click Cancel to clear the changes.
Restore to Factory Default Settings - ClickRestore to return to Factory Default
Settings. (You will lose the current settings.)
Firmware Upgrade - Upgradethefirmwarefor the DWL-G710. Find upgrades to the
firmwareontheD-Linkwebsite at http://support.dlink.com. Afteryou havedownloaded
a firmware upgrade to your local drive, click Browse. Select the firmware and click
Apply to complete the upgrade. Do not upgrade firmware from a computer with a
wireless connection. Doing so may damage the device.
WhenyouclickRestore,thedialogboxatrightwillappear.
ClickOK torestore tofactorydefaultsettingsor clickCancel
tocancel the procedure.

18
Using the Configuration Menu (continued)

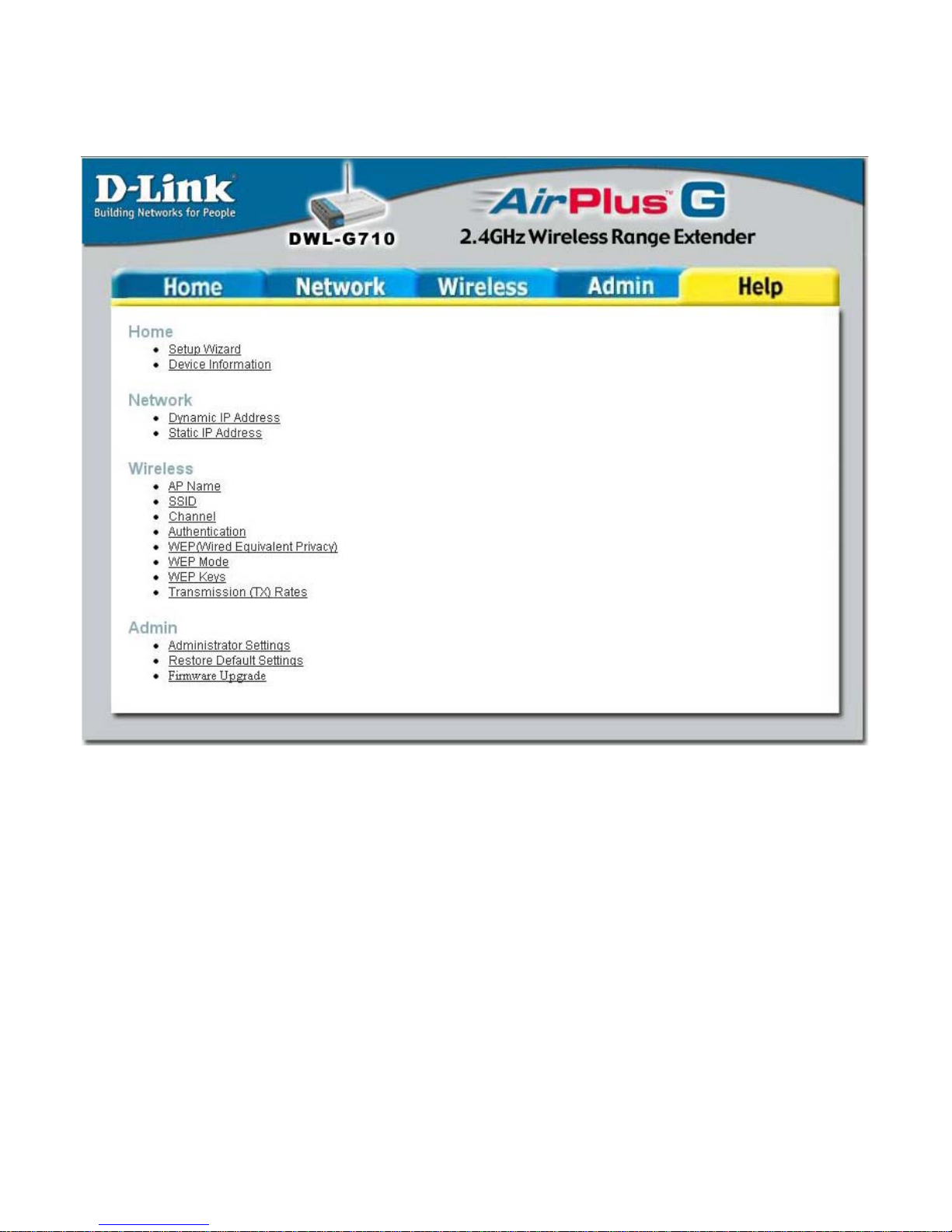

Help
Help Menu - Click on any item in the Help menu for more information.

19
Using the Network Setup Wizard in Windows XP
In this section you will learn how to establish a network at home or work, using
Microsoft Windows XP.
Note: Please refer to websites such as http://www.homenethelp.com
andhttp://www.microsoft.com/windows2000 for information aboutnetworking
computersusingWindows2000/Me/98SE.
Go to Start>Control Panel>Network Connections
Select Set up a home or small office network
Networking Basics
When this screen appears, click Next.

20

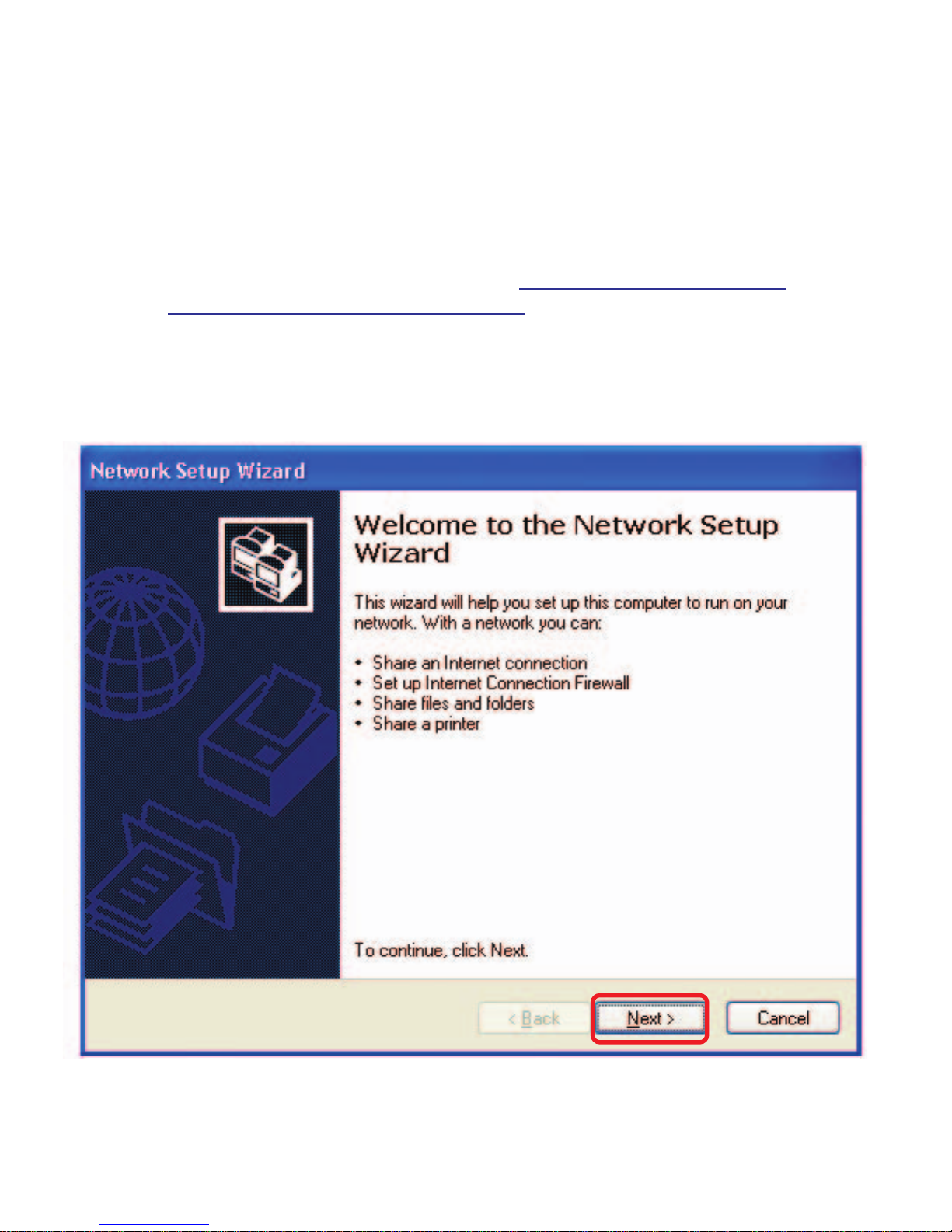

Please follow all the instructions in this window:
Networking Basics (continued)
Click Next.

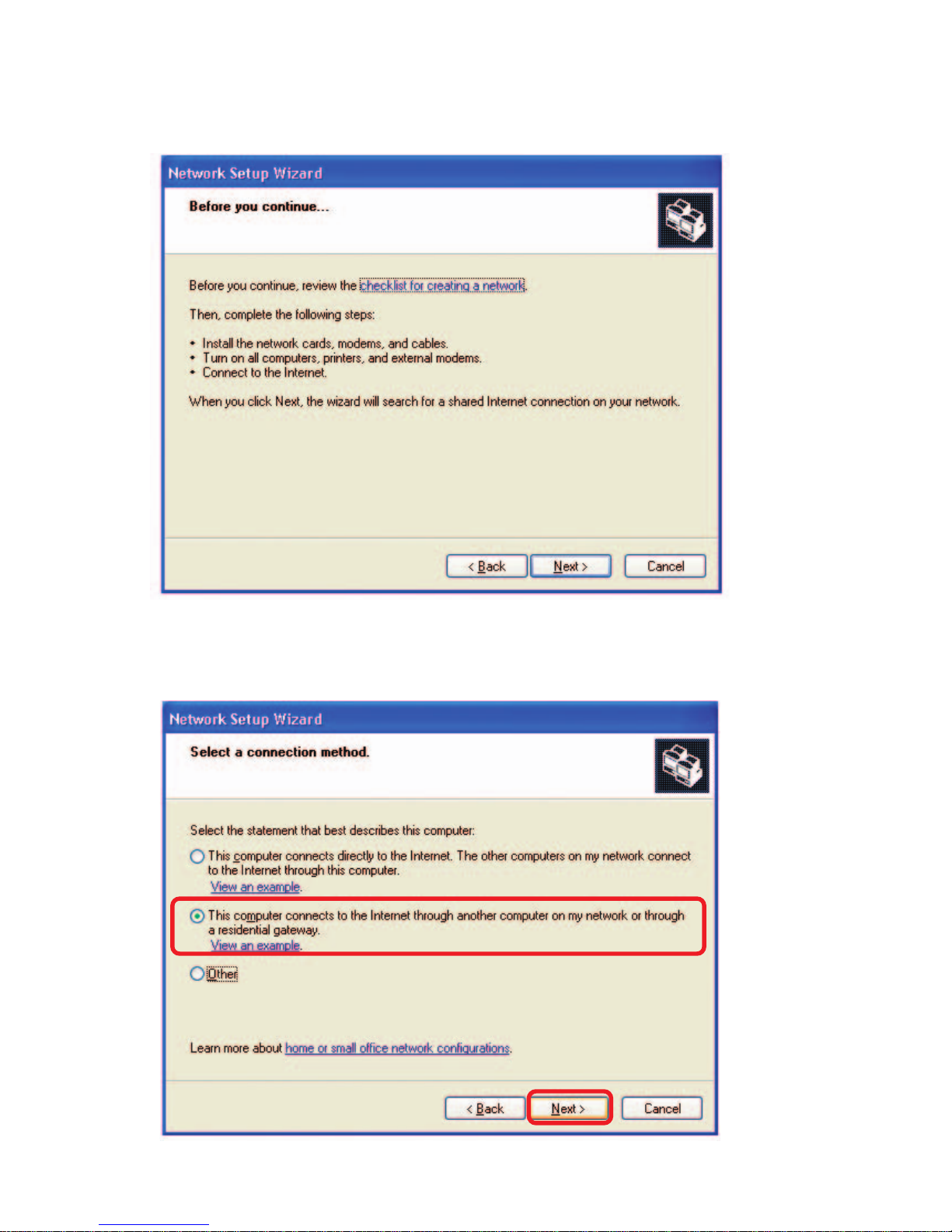

In the following window, select the best description of your computer. If your computer
connects to the Internet through a router, select the second option as shown.
Click Next.
