D-Link DAP-1330 User manual

DAP-1330
User Manual
N300 Wi-Fi Range Extender
Version 1.00 | February 9, 2016

iD-Link DAP-1330 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person
or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2016 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation.
Revision Date Description
1.00 February 9, 2016 • Initial release
Preface
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network Standby
mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.
Network Standby: 1.39 watts

iiD-Link DAP-1330 User Manual
Table of Contents
Preface................................................................................. i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features.................................................................................... 3
What is a Wireless Extender? ............................................ 4
Hardware Overview..................................................................... 5
Front .......................................................................................... 5
Status/WPS LED Indicator............................................. 6
Signal Strength Indicators............................................ 7
Bottom...................................................................................... 8
Back............................................................................................ 9
Installation .......................................................................10
Wireless Installation Considerations....................................10
Hardware Setup ..........................................................................11
Getting Started ................................................................12
WPS-PBC Conguration ...........................................................13

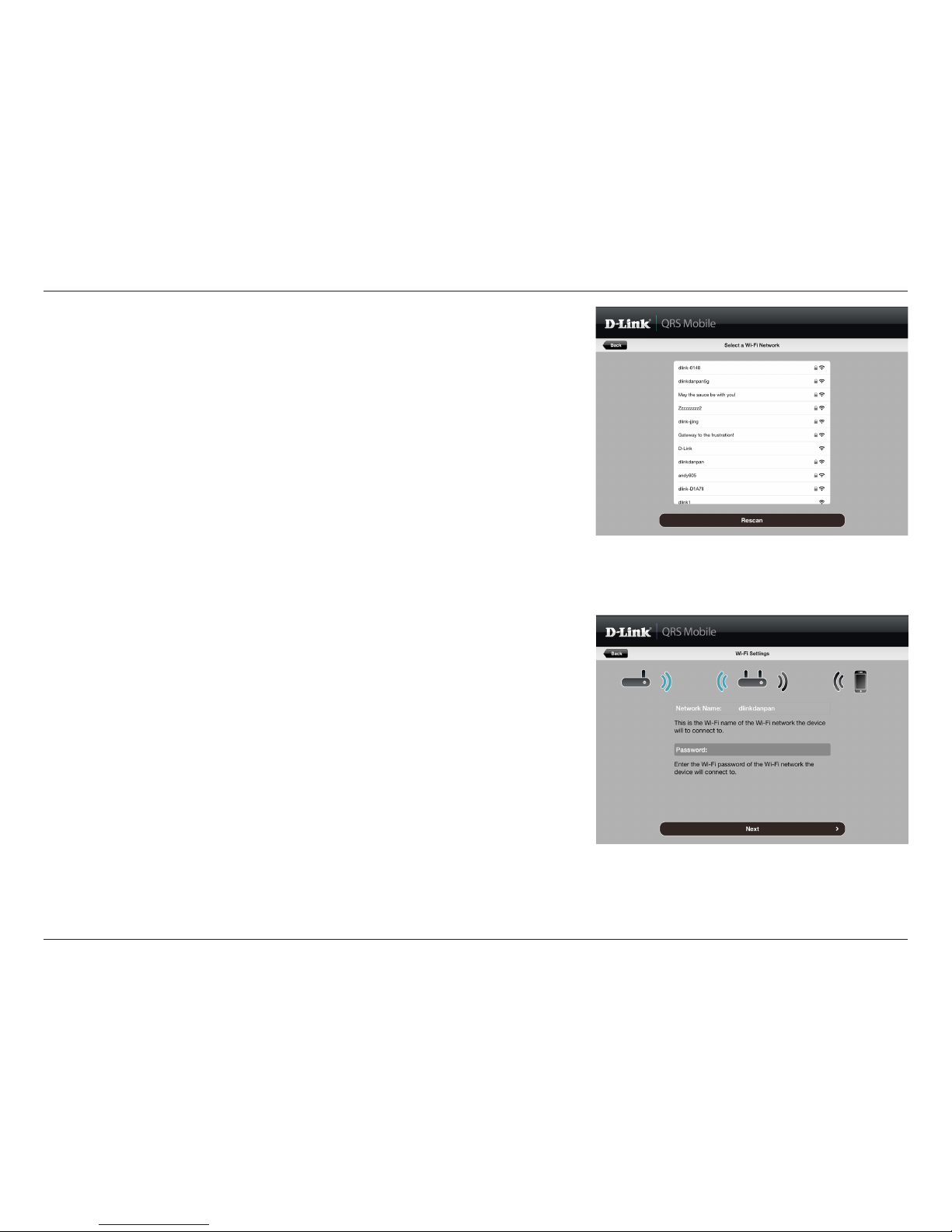

QRS Mobile App Setup.............................................................14
Web-based Setup.......................................................................19
Setup Wizard ................................................................................20
Connecting Your Device via WPS..................................21
WPS Successful ...............................................................22
WPS Unsuccessful..........................................................22
Extend an Existing Network............................................23
Add Wireless to Your Wired Network...........................26
Congure Administrator Password..............................28
Save Your Conguration...................................................29
Conguration...................................................................30
Home ..............................................................................................30
Settings ..........................................................................................32
Extender Settings ...............................................................32
Network Settings ................................................................33
Autoconguration (SLAAC/DHCPv6)......................34
Static IPv6 .........................................................................35
Link-local Only ................................................................36
Management................................................................................37
Admin .....................................................................................37
System ....................................................................................38
Upgrade .................................................................................39
Statistics .................................................................................40
Connecting Wireless Clients to the Extended Network....41
WPS Button...................................................................................41
Windows® 8...................................................................................42
WPA/WPA2 ............................................................................42
Windows® 7...................................................................................44
WPA/WPA2 ............................................................................44
Windows Vista®............................................................................47
WPA/WPA2 ............................................................................48
Table of Contents

iiiD-Link DAP-1330 User Manual
Table of Contents
Troubleshooting ..............................................................50
Wireless Basics .................................................................52
Tips...................................................................................................53
Technical Specications ..................................................54
GPL Code Statement........................................................55
Warranty...........................................................................70
Registration .....................................................................77

1D-Link DAP-1330 User Manual
Section 1 - Product Overview
Package Contents
Wi-Fi Conguration Note
If any of the above items are missing, please contact your reseller.
DAP-1330 N300 Wi-Fi Range Extender
Wi-Fi Conguration Card
Quick Installation Guide

2D-Link DAP-1330 User Manual
Section 1 - Product Overview
Network Requirements • A wireless router with an active Internet connection.
• IEEE 802.11n, 802.11g, or 802.11b wireless clients/devices.
Web-based Conguration
Utility Requirements
A Computer or Mobile Device with the following:
• Windows®, Apple® Mac OS®, or Linux-based operating system
• Wireless adapter or Wi-Fi functionality
• An Apple® iPhone®, iPod touch®, iPad®, or Android™ mobile
device
Browser Requirements:
• Internet Explorer® 9 or later
• Firefox® 20.0 or later
• Safari® 5.1 or later
• Google Chrome™ 25.0 or later
System Requirements

3D-Link DAP-1330 User Manual
Section 1 - Product Overview
Introduction
Features
Easily Extend Your Existing Network
The DAP-1330 N300 Wi-Fi Range Extender lets you easily extend a secure wireless network with a press of a button. Connect the
DAP-1330 to a router viaWi-Fi or Ethernet and share your high-speed Internet access in more places throughout your home or small
oce.
High-speed Wireless Performance With Wireless 802.11n Technology
Thanks to the latest Wireless N technology, the DAP-1330 provides a wireless connection at up to 300 Mbps* with other 802.11n
wireless devices. This feature lets you participate in real-time activities online, such as video streaming, online gaming, and real-time
audio with smooth performance.
Simple Setup
All it takes is a press of a button to connect compatibleWPS devices to the DAP-1330. Its easy-to-use web interface lets you quickly and
easily connect the DAP-1330 to an uplink router, congure the extended wireless network, and manage the administrative settings.
The setup wizard will even guide you through the setup process, getting your extended wireless network up and running in no time.
Alternatively, connect an Ethernet cable to your existing network infrastructure to quickly and easily create a wireless network.
Compatibility
The DAP-1330 is fully compatible with now only the latest 802.11n standard, but is also backwards compatible with IEEE 802.11g/b
wireless devices, so you can use your existing devices without sacricing performance.
Latest Wireless Network Security and Encryption
The DAP-1330 supports wireless security features to prevent unauthorized access from the wireless network. Support forWPA/WPA2
standards ensure that you’ll be able to use the best possible encryption methods with your compatible wireless devices.
* Maximum wireless signal rate derived from standard IEEE specications. Actual data throughput will vary. Network conditions and environmental factors, including volume
of network trac, building materials and construction, and network overhead may lower actual data throughput rate. Environmental conditions will adversely aect wireless
signal range.

4D-Link DAP-1330 User Manual
Section 1 - Product Overview
What is a Wireless Extender?
The DAP-1330 acts as a repeater to extend the range of an existing wireless network to provide a better signal for parts of your home or
oce that may have poor or no reception.Your existing wireless signal will be re-broadcast by the DAP-1330, allowing you to reach the
farthest corners of your home or oce. The extended network can simply use the same network credentials as the existing network,
or you can specify a dierent network name and password, giving you the exibility to control network access. You may also use the
DAP-1330 as a wireless access point by connecting an Ethernet cable.

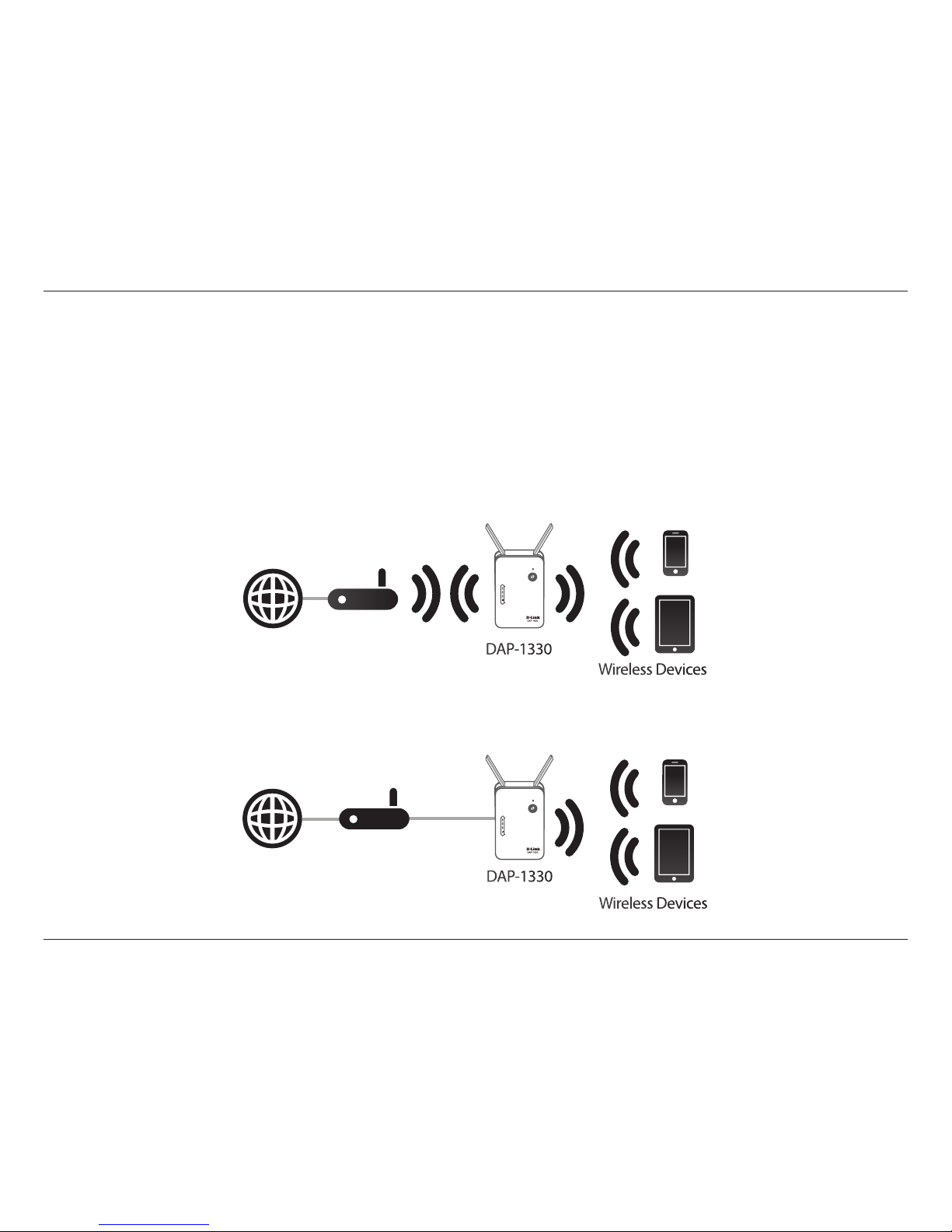

Extend Your Wireless Network using Wi-Fi
Extend Your Wireless Network using Ethernet
Router
Internet DAP-1330
Wireless Devices
Router
Internet DAP-1330
Wireless Devices

5D-Link DAP-1330 User Manual
Section 1 - Product Overview

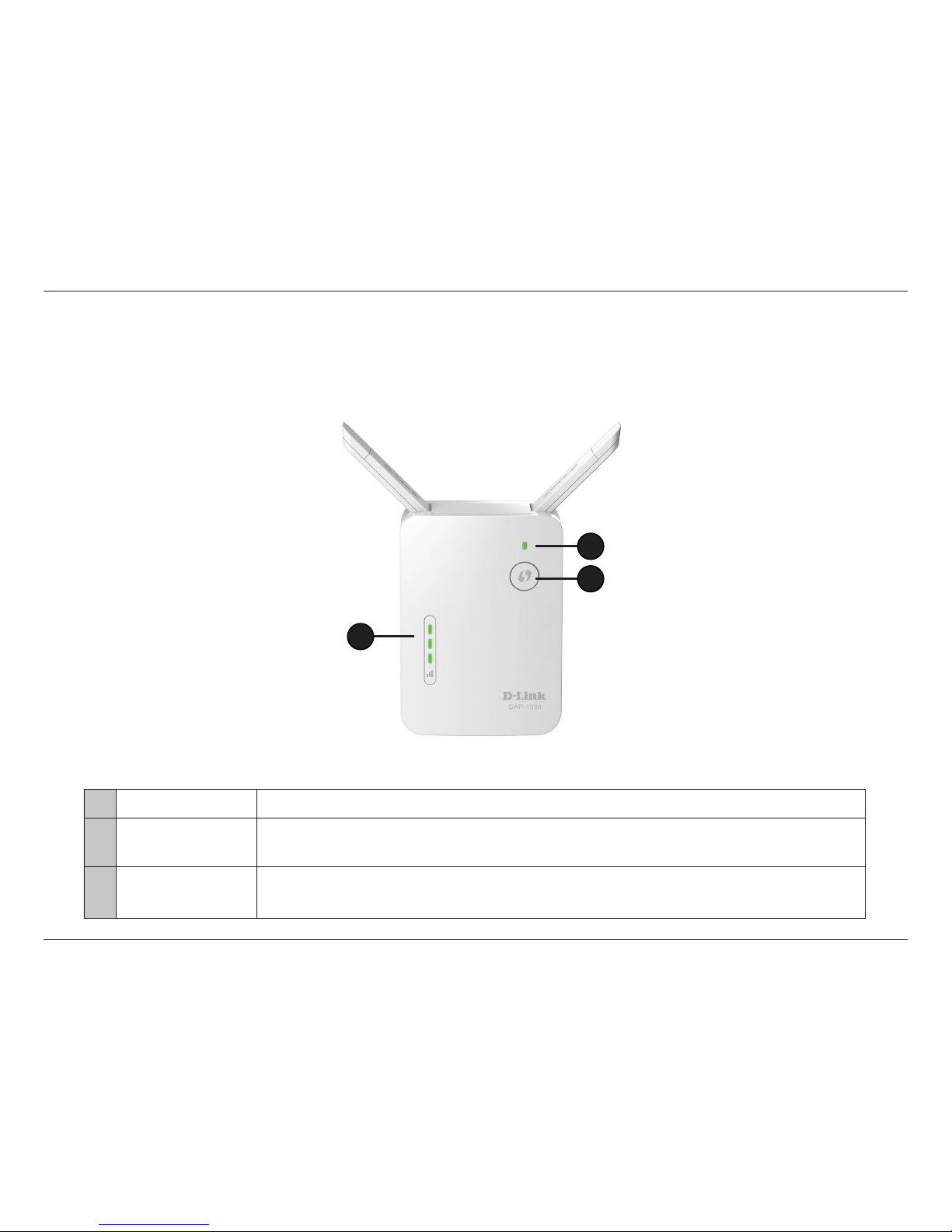

Hardware Overview
Front
1
2
3
1Status/WPS LED This LED indicates the current status of the DAP-1330, as detailed on the next page.
2WPS Button Press to establish a connection with another WPS compatible device. See page “WPS Button” on page 41
for more information.
3Signal Indicator
LED
The more lit green bars on the Signal Indicator LED, the better the wireless signal to the host network. A
single solid amber LED indicates a weak Wi-Fi signal.

6D-Link DAP-1330 User Manual
Section 1 - Product Overview

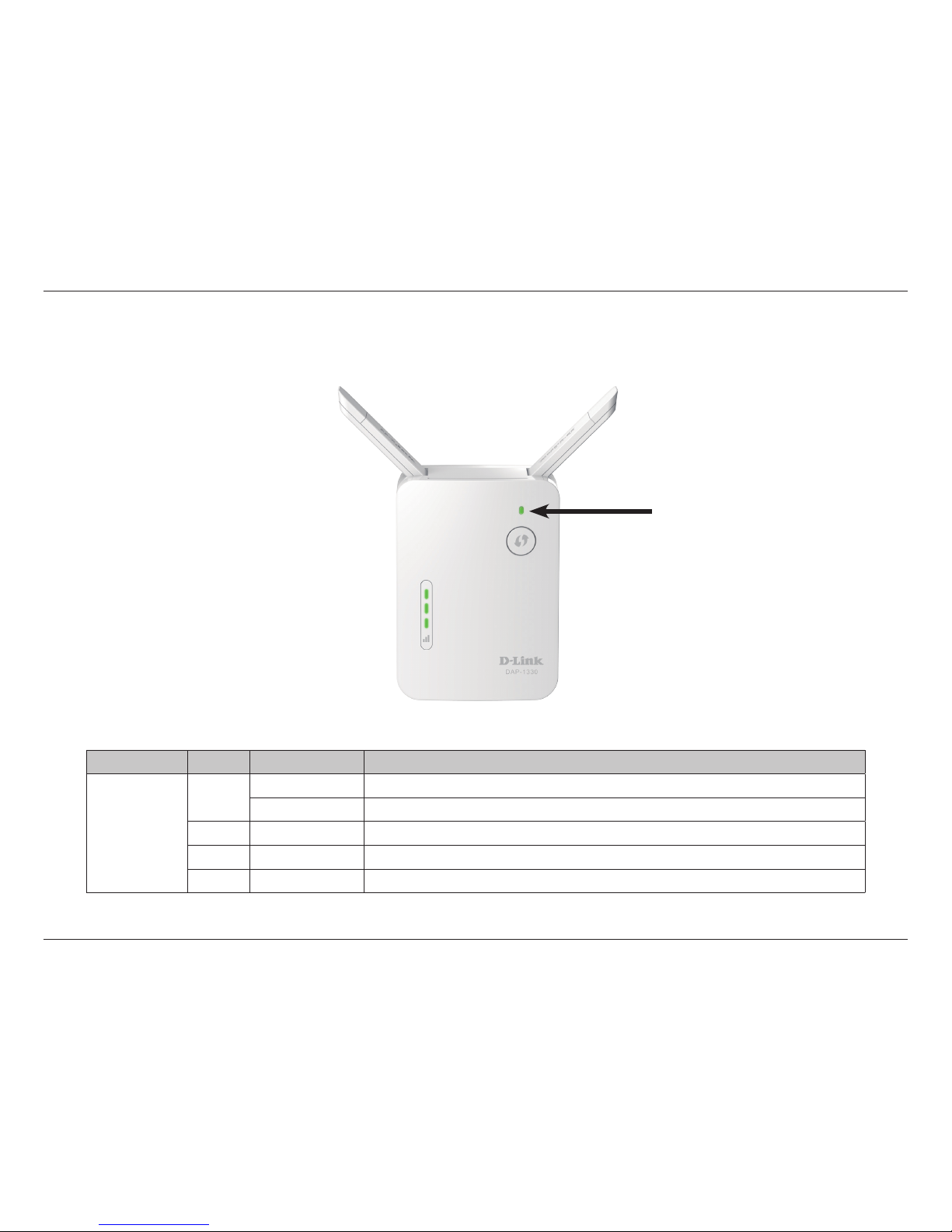

LED Indicator Color Status Description
Power/Status
Green Solid The DAP-1330 is receiving power and connected to a host network.
Blinking WPS mode is active.
Red Solid The DAP-1330 is booting or an error has occurred.
Amber Blinking The DAP-1330 is not connected to a host network.
None O Device is not receiving power. Check the power outlet.
Status/WPS LED Indicator
Status/WPS LED Indicator

7D-Link DAP-1330 User Manual
Section 2 - Installation

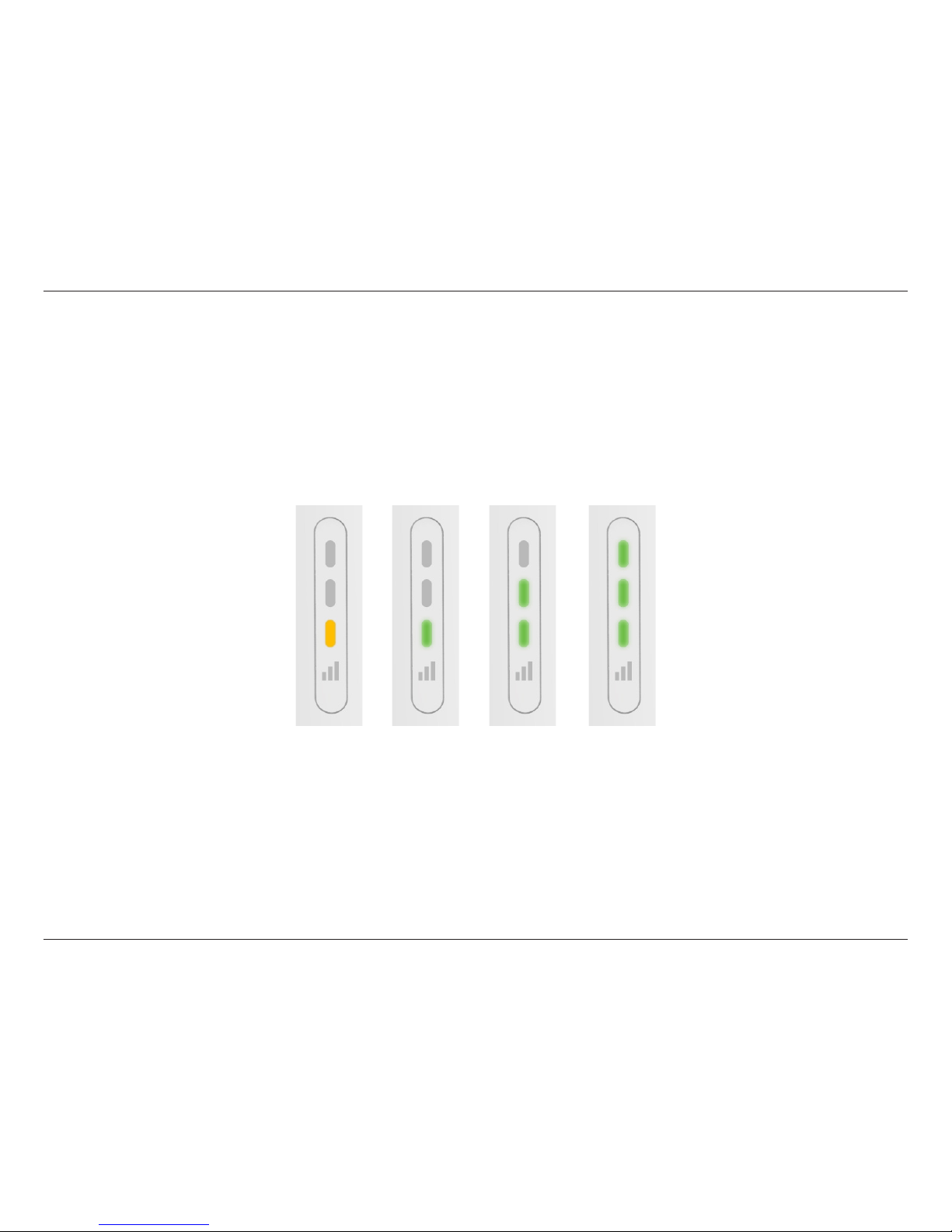

The Status/WPS LED will turn solid green when the DAP-1330 has connected successfully to an uplink wireless network and is extending
that network. If the Signal Indicator LED has a single amber bar after the connection process has nished, the DAP-1330 has established
a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve the connection
quality, the DAP-1330 should be relocated closer to the source wireless router.
Very
Poor
Poor Good Best
Signal Strength Indicators

8D-Link DAP-1330 User Manual
Section 1 - Product Overview

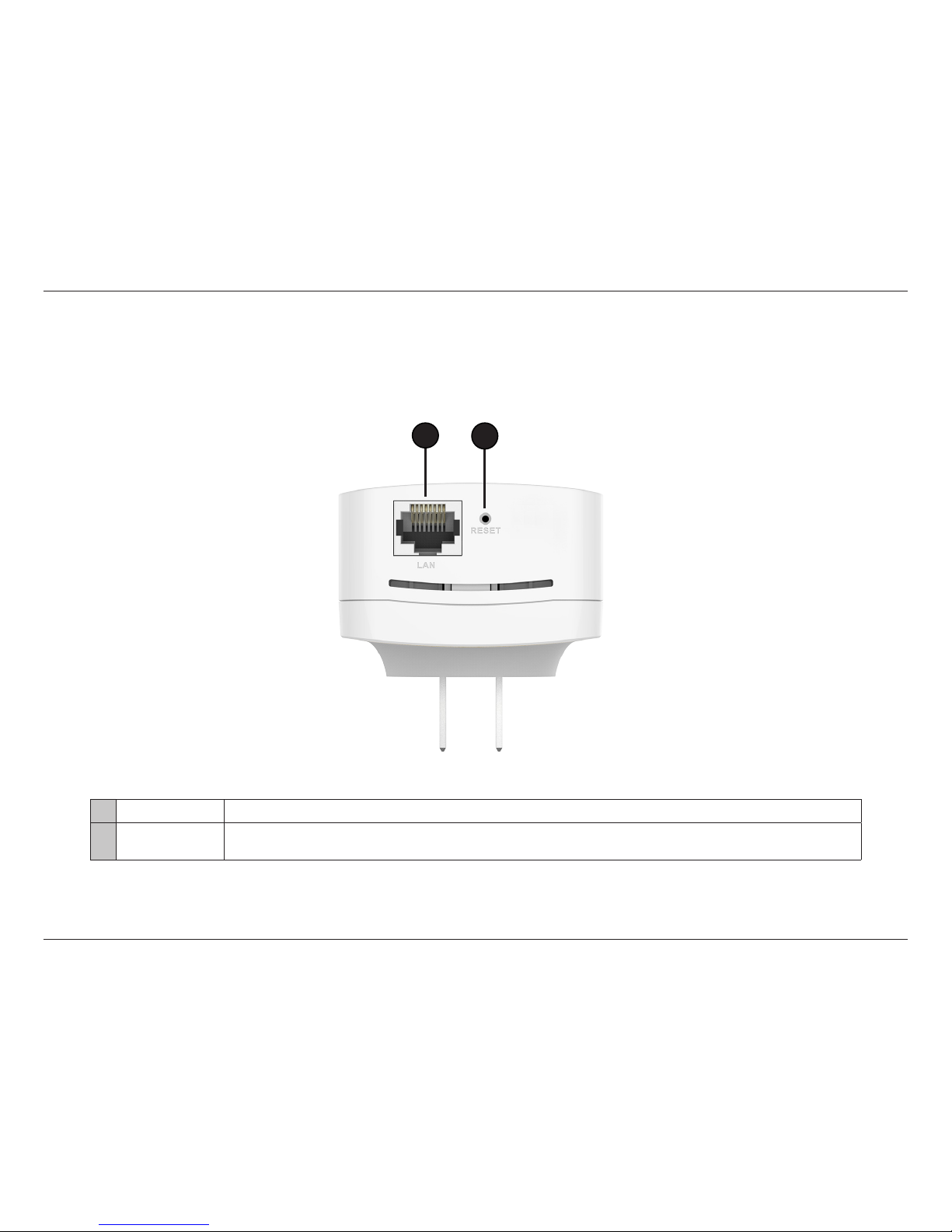

Bottom
12
1LAN Connect an Ethernet cable if you are adding wireless to wired network.
2Reset Button Use an unfolded paperclip to press and hold the reset button on the bottom of DAP-1330 for 10 seconds
to reset the extender back to the factory default settings.

9D-Link DAP-1330 User Manual
Section 2 - Installation
The Wi-Fi name (SSID) and password for your DAP-1330 is printed on the specication sticker on the back of the device.You will need
this information to connect your computer or mobile device to the default network (SSID) of your DAP-1330. This information is also
provided on the Wi-Fi conguration card.

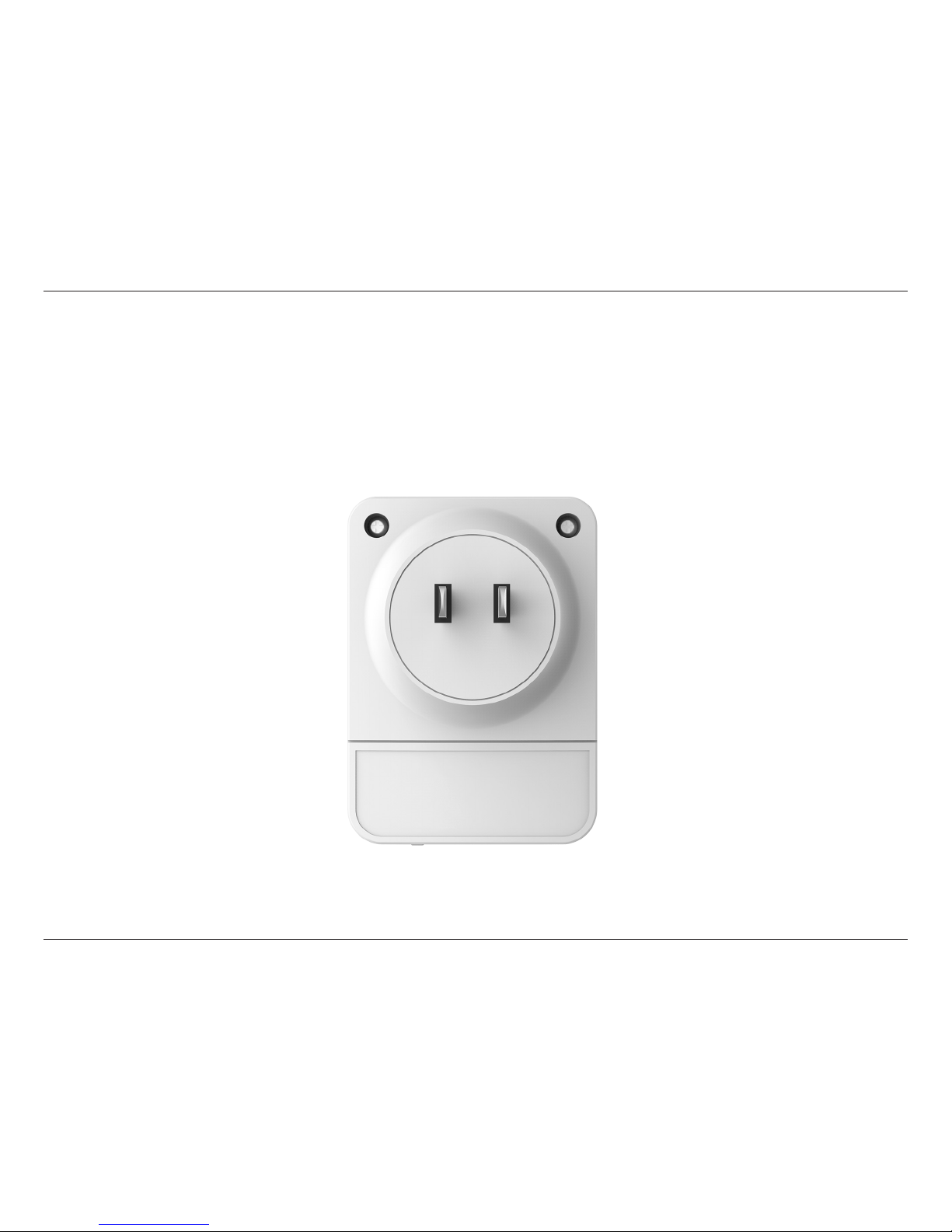

Back

10D-Link DAP-1330 User Manual
Section 2 - Installation
Installation
Wireless Installation Considerations
The DAP-1330 lets you extend your existing wireless network’s coverage as long as it is within range of the uplink network. Keep in
mind that the DAP-1330’s extension network’s range may be limited by the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through.Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link extender and other network devices to a minimum
- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position extenders, access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

11D-Link DAP-1330 User Manual
Section 2 - Installation

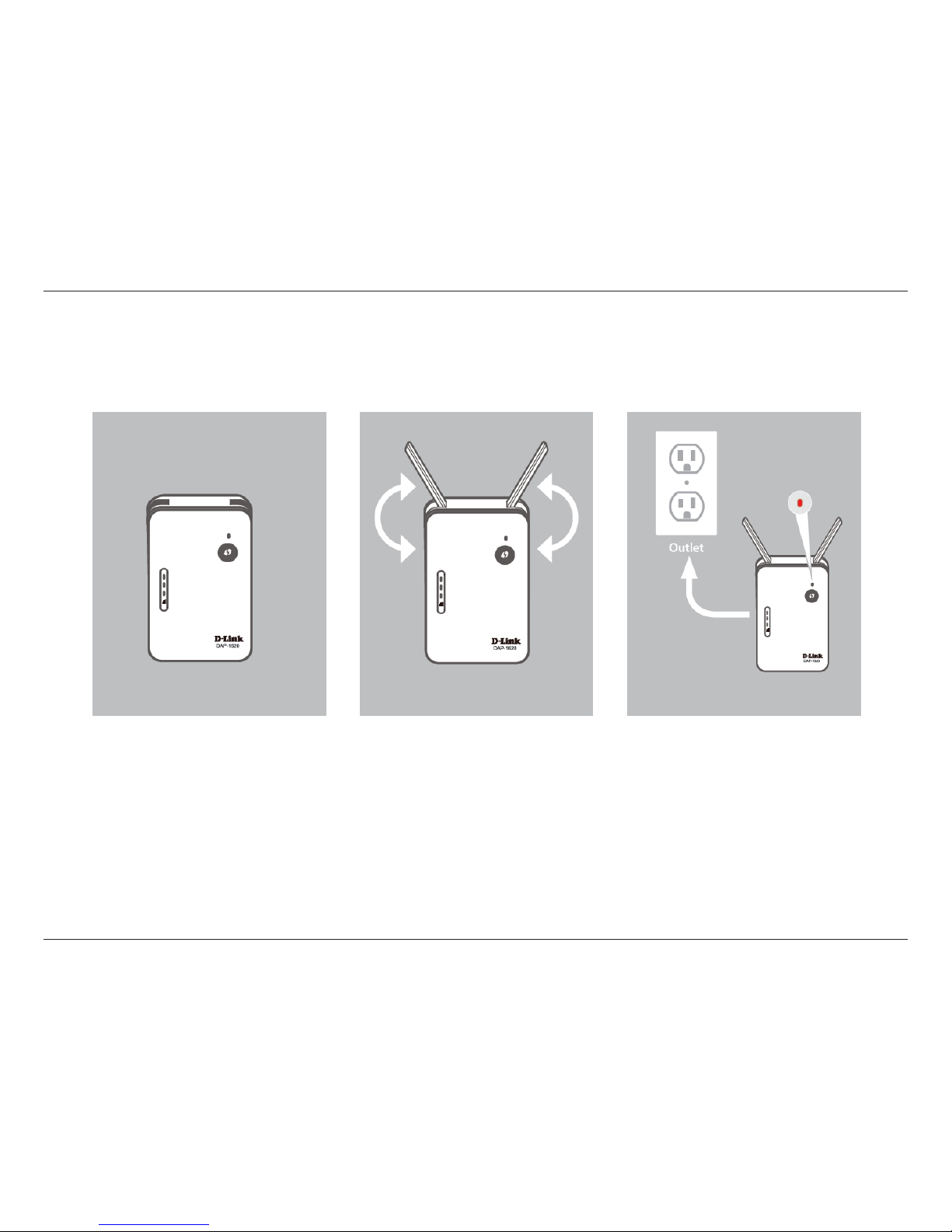

Hardware Setup
1. Find a location 2. Position Antennas 3. Plug in Extender
Locate an outlet in between your
router and the area you want to
extend your wireless signal to.
Move the antennas to their upward
position before plugging in the
extender.
Plug in the DAP-1330 to an outlet or
power strip.The WPS/Status LED will
immediately activate to indicate the
device is booting up.

12D-Link DAP-1330 User Manual
Section 3 - Conguration
There are several conguration tools you can use to set up your DAP-1330.
• WPS PBC - To easily extend an existing wireless network refer to “WPS-PBC Conguration” on page 13 for setup
instructions.
• QRS Mobile App - Use your Android device or iPhone, iPad, or iPod touch to congure your extender. Refer to “QRS
Mobile App Setup” on page 14 for setup instructions.
• D-Link Setup Wizard - This wizard will launch when you log into the Extender’s web conguration utility for the rst
time. Refer to ”Setup Wizard” on page 20 for setup instructions.
• Manual Conguration - Advanced users who wish to manually setup extender or adjust its settings may refer to
“Conguration” on page 30 for more information.
Getting Started

13D-Link DAP-1330 User Manual
Section 3 - Conguration

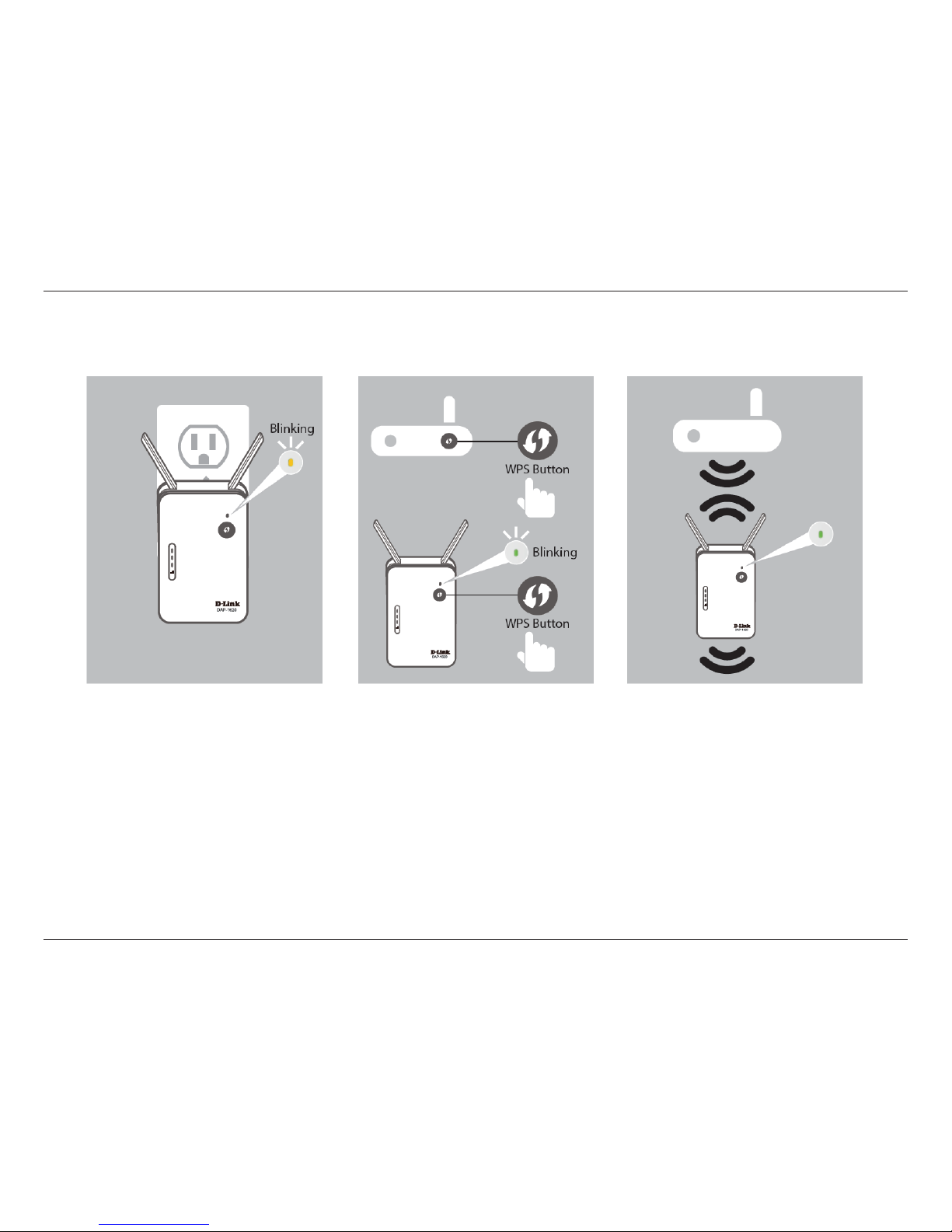

WPS-PBC Conguration
The device is ready to connect to an
uplink network once theWPS/Status
LED is blinking amber.
Press the WPS buttons on both the
source wireless router/AP and the
DAP-1330. The Status/WPS LED
on the DAP-1330 will start to blink
green. Allow up to two minutes for
the process to nish.
The Status/WPS LED will turn solid
green once the DAP-1330 has
connected successfully to the uplink
network. The new extension network
will be named:
(Source SSID)-EXT
The password be the same as the
source network’s.

14D-Link DAP-1330 User Manual
Section 2 - Installation
QRS Mobile App Setup
The DAP-1330 can be set up from your iPhone, iPod touch, iPad, or Android smartphone or tablet device using the QRS Mobile app.
Step 2
Once your app is installed, you may now congure your extender. Connect to the
router wirelessly by going to your wireless utility on your device. Scan for the Wi-Fi
name (SSID) as listed on the supplied conguration card. Select and then enter your
Wi-Fi password.
Step 3
Once wirelessly connected to the extender, launch the QRS Mobile app from the
Home screen of your device.
Note: The following steps show the iOS interface of the QRS Mobile app. If you are using
an Android device, the appearance may be a little dierent, but the process is the same.
Step 1
Search for the free QRS Mobile App on the Apple App Store or Google Play.
Note: The screenshots may be dierent depending on your mobile device’s OS version.

15D-Link DAP-1330 User Manual
Section 3 - Conguration
Click Start to continue.
Click Next to continue.

16D-Link DAP-1330 User Manual
Section 3 - Conguration
Enter a password for the existing Wi-Fi network. Click Next to continue.
QRS Mobile will rst detect your DAP-1330, then scan for available Wi-Fi
networks. Select the network you wish to extend.Tap Rescan if your network
doesn’t show up the rst time.
