D-Link DAP-1330 User manual

N300 WI-FI RANGE EXTENDER
DAP-1330
QUICK
INSTALLATION
GUIDE

DAP-1330
1
ENGLISH
WI-FI CONFIGURATION CARD
N300 WI-FI RANGE EXTENDER
DAP-1330
If any of these items are missing from your packaging,
contact your reseller.
INTRODUCTION
The DAP-1330 extends the wireless coverage of an existing AP (access point) or
wireless router, via wireless or Ethernet port, allowing you to reach more parts of your
home with wireless.

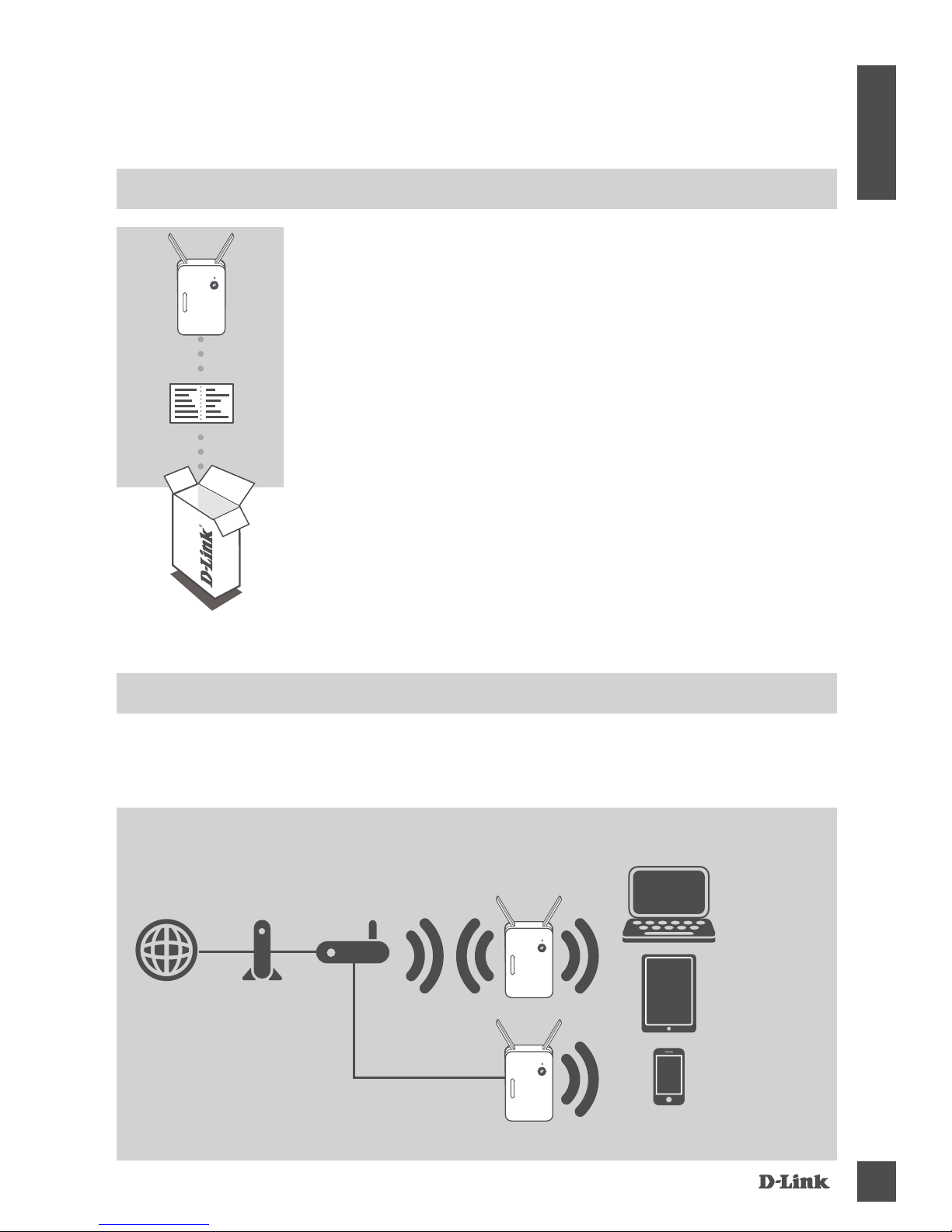

Extend the wireless coverage of another AP or wireless router.
Smartphone
Internet Modem
Computer
Router DAP-1330
Tablet
CONTENTS OF
PACKAGING

DAP-1330
2
ENGLISH
PRODUCT SETUP
SETUP
SETTING UP THE DAP-1330 USING WI-FI PROTECTED SETUP (WPS)
NOTE: To connect to a wireless router or AP and extend the Wi-Fi network in your
home, please make sure the source router or AP features a WPS Button.

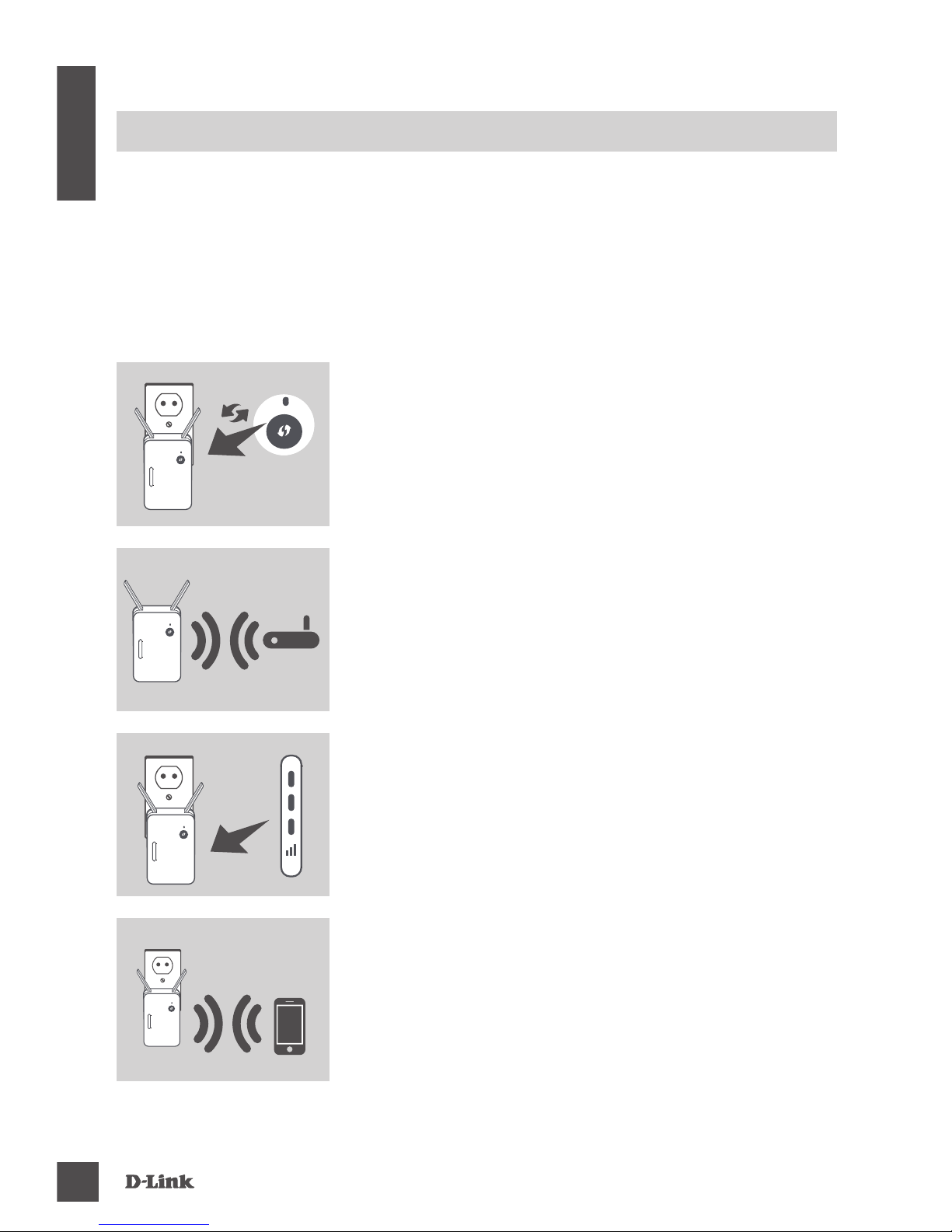

Plug the DAP-1330 into a wall outlet and wait until the
Status/WPS LED is blinking amber. Push the WPS
button on the source wireless router or AP, and then
push the WPS button on the DAP-1330. The Status/
WPS LED will start to ash green.
The DAP-1330 is now ready to share the extended
Wi-Fi network with your PCs and mobile devices.
Connect to the extension network created by the
DAP-1330 using the following network name (SSID):
• 2.4 GHz: (Your router’s SSID)-EXT
Please use your router's usual password.
Please allow up to two minutes for the process to nish.
The Status/WPS LED will turn solid green when the
DAP-1330 has connected successfully to the source
wireless router or AP.
SELECT YOUR METHOD
There are three methods available for setting up the DAP-1330 - using WI-FI Protected
Setup (WPS) (recommended), the QRS Mobile App, or a web browser.
If the Signal Indicator LED has a single amber bar after
the connection process has nished, the DAP-1330 has
established a poor quality connection. To improve the
connection quality, the DAP-1330 should be relocated to
a wall outlet closer to the source wireless router or AP.
The more lit bars on the Signal Indicator LED, the better
the wireless signal.

DAP-1330
3
ENGLISH
PRODUCT SETUP
SETUP
TROUBLESHOOTING
SETUP AND CONFIGURATION PROBLEMS
1. HOW DO I RESET MY DAP-1330 AC1200 WI-FI RANGE EXTENDER TO FACTORY
DEFAULT SETTINGS?
- Ensure the product is powered on.
- Using a paperclip, press and hold the reset button on the bottom of the device for 5
seconds.
Note: Resetting the product to the factory default will erase the current conguration
settings. The default Wi-Fi network name (SSID) and password are printed on
the DAP-1330's Wi-Fi Conguration Card.
SET UP DAP-1330 WITH QRS MOBILE APP
The DAP-1330 can be congured using your smartphone. Search for "D-Link QRS
Mobile" on the Apple App Store or Google Play, and download the app. Next, connect
your smartphone to the DAP-1330 and follow the helpful in-app prompts, or refer to
the product manual for more information.
SET UP DAP-1330 WITH A WEB BROWSER
The DAP-1330 can also be congured using a web browser. Once you have plugged
the DAP-1330 into a wall outlet within wireless range of your router, open the
wireless utility on your computer, select the name (SSID) of the DAP-1330 network,
and enter the password (both of these are found on your Wi-Fi Conguration Card).
Next, open a web browser (e.g. Internet Explorer, Firefox, Safari, or Chrome)
and enter http://dlinkap.local./ or if you have multiple DAP-1330’s, enter http://
dlinkapwxyz.local./ and replace wxyz with the last 4 digits of the MAC address of the
DAP-1330 you wish to congure.
2. HOW DO I CONNECT A PC OR OTHER DEVICE TO THE DAP-1330 IF I HAVE FORGOTTEN
MY WI-FI NETWORK NAME (SSID) OR WI-FI PASSWORD?
- If you haven't changed the extended Wi-Fi network's settings, you can use the
network name (SSID) and Wi-Fi password on the Wi-Fi Configuration Card.
- If you did change the network name (SSID) or Wi-Fi password and you did not
record this information on the Wi-Fi Configuration Card or somewhere else, you must
reset the device as described in Question 1 above.
- It is recommended that you make a record of this information so that you can easily
connect additional wireless devices in the future. You can use the included Wi-Fi
Configuration Card to record this important information for future use.
TECHNICAL SUPPORT support.dlink.com.au
