D-Link AC1200 User manual

DAP-1610
User Manual
AC1200 Mesh Wi-Fi Range Extender
Version 1.00 | 2021/04/15

iD-Link DAP-1610 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Hardware Revision Date Description
B1 v1.00 20 November, 2020 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App StoreSM is a service
mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2021 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation.
Preface
Power Usage
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save
energy.
Network Standby: 3.7072 watts

iiD-Link DAP-1610 User Manual
Table of Contents
Preface................................................................................. i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features.................................................................................... 3
What is a Wireless Extender? ............................................ 4
Hardware Overview..................................................................... 5
Front .......................................................................................... 5
Status/WPS LED Indicator.................................................. 6
Bottom...................................................................................... 7
Back............................................................................................ 8
Installation ......................................................................... 9
Wireless Installation Considerations...................................... 9
Hardware Setup ..........................................................................10
Getting Started................................................................11
WPS-PBC Conguration ...........................................................12

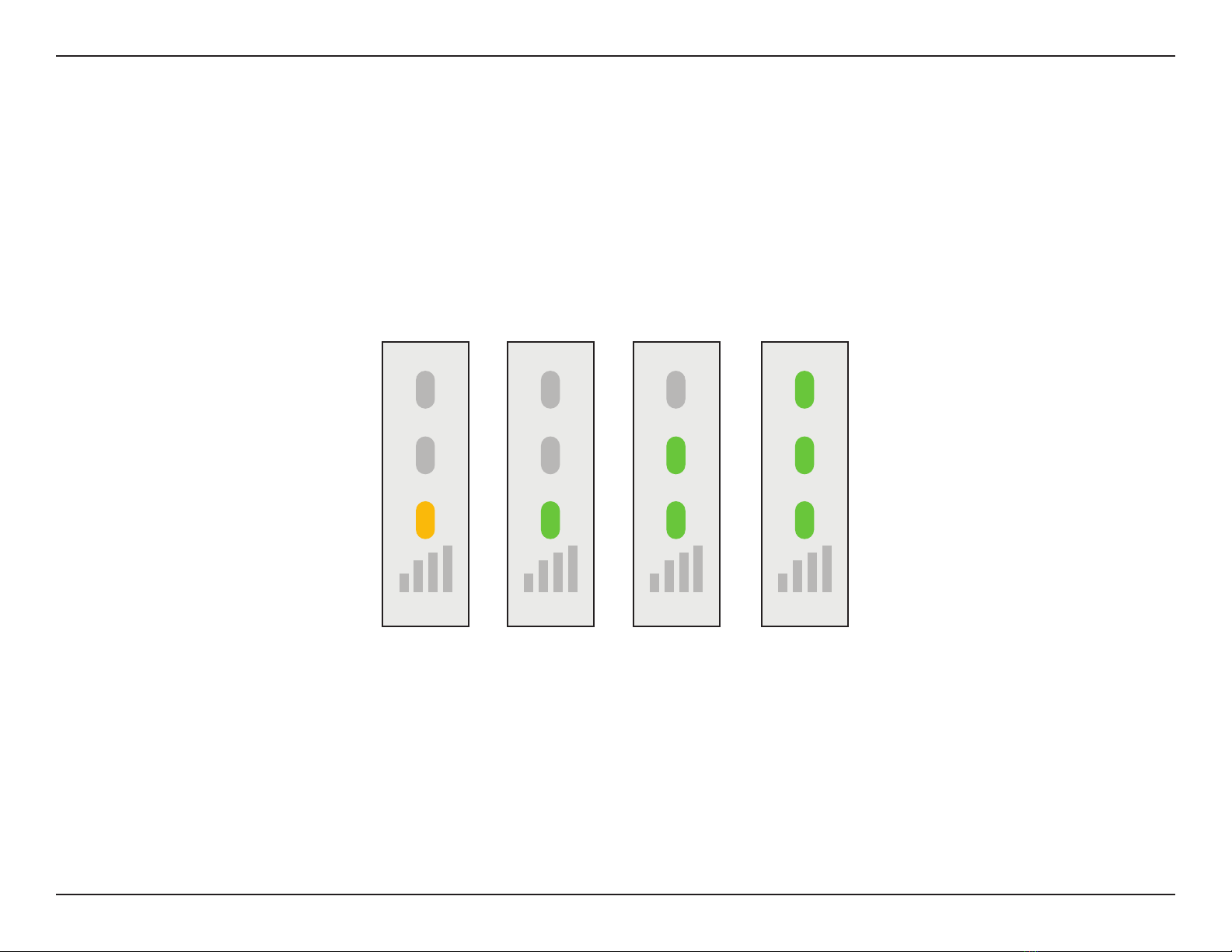

Assessing Uplink Signal Strength .........................................13
D-Link Wi-Fi App .........................................................................14
Wireless Setup Wizard...............................................................16
Access Point Mode Settings....................................................23
Conguration...................................................................24
Home ..............................................................................................24
Settings ..........................................................................................27
Extender Settings ...............................................................27
Existing Network............................................................28
Smart Connect................................................................29
Network Settings ................................................................31
Management................................................................................33
Time.........................................................................................33
Admin .....................................................................................34
System ....................................................................................35
Upgrade .................................................................................36
Statistics .................................................................................37
Connecting Wireless Clients to the Extender ................38
WPS Button...................................................................................38
Windows® 10 ................................................................................39
Windows® 8 - WPA/WPA2.........................................................40
Troubleshooting ..............................................................42
Wireless Basics .................................................................44
Tips...................................................................................................45
Technical Specications ..................................................46
Table of Contents

1D-Link DAP-1610 User Manual
Section 1 - Product Overview
If any of the above items are missing, please contact your reseller.
DAP-1610
AC1200 Mesh Wi-Fi Range Extender Simple Setup Guide
Product Overview
Package Contents
Quick Installation Card
QIC

2D-Link DAP-1610 User Manual
Section 1 - Product Overview
Network Requirements
• A wireless router with an active Internet connection.
• IEEE 802.11ac, 802.11n, 802.11g, 802.11b, or 802.11a
wireless clients/devices
Web-based Conguration
Utility Requirements
A Computer or Mobile Device with the following:
• Windows®, Apple® Mac OS®, or Linux-based operating system
• Wireless adapter or Wi-Fi functionality
• An Apple® iOS® or Android™ device
Browser Requirements:
• Internet Explorer® 10 or later
• Firefox® 28 or later
• Safari® 6.0 or later
• Google Chrome™ 28 or later

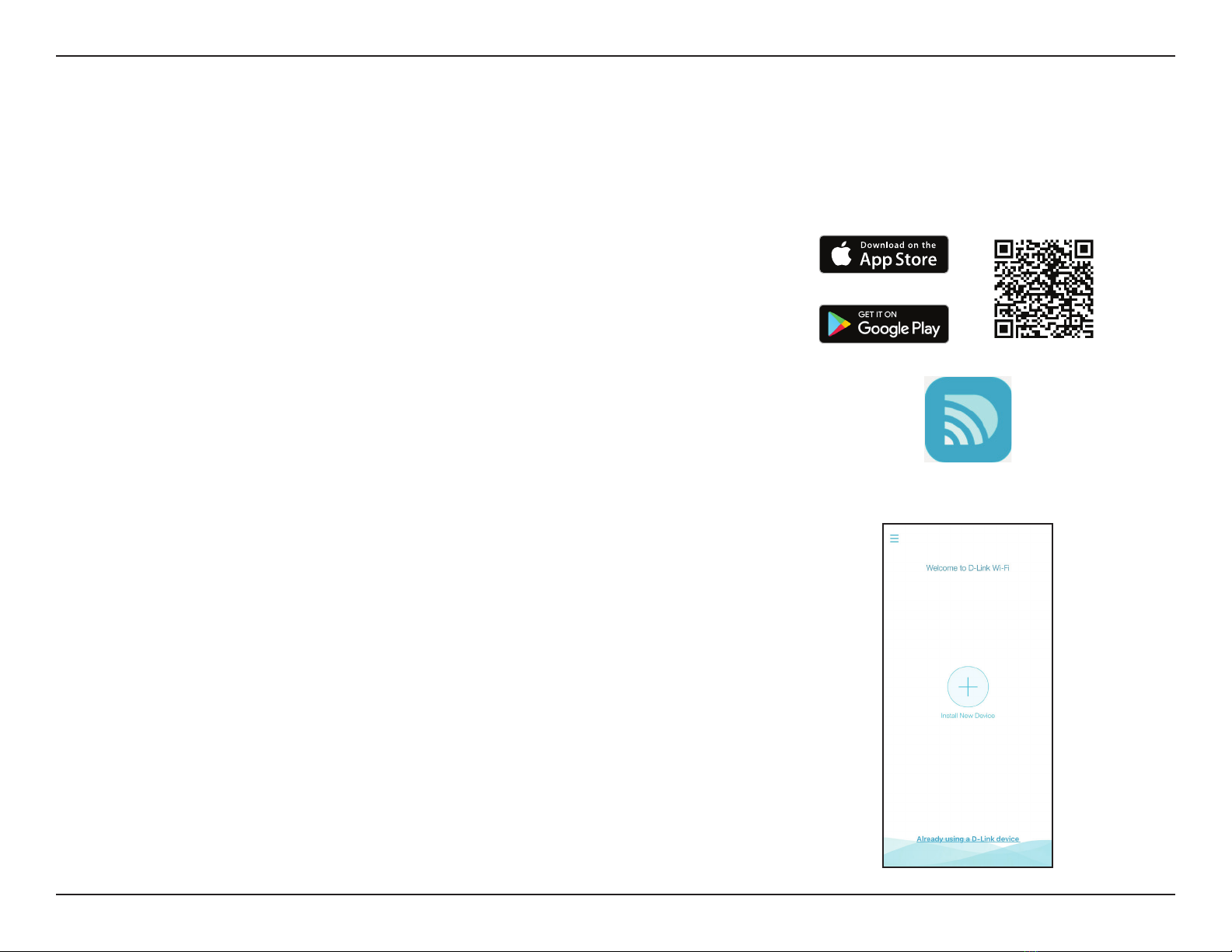

D-Link Wi-Fi App
Requirements
• iOS® or Android™ device (Please refer to the app’s store page to
check whether your device is compatible.)
System Requirements

3D-Link DAP-1610 User Manual
Section 1 - Product Overview
Introduction
Features
High-speed Wireless Performance With Wireless 802.11ac Technology
Thanks to the latest wireless AC technology, the DAP-1610 provides a wireless connection at up to 1200 Mbps* with other 802.11ac wireless
devices. This feature lets you participate in real-time activities online, such as video streaming, online gaming, and real-time audio with
smooth performance.
Compatibility
The DAP-1610 is fully compatible with the latest 802.11ac standard, but is also backwards compatible with IEEE 802.11n/g/b/a wireless
devices, so you can use your existing devices without sacricing performance.
Compact, Convenient Design
The DAP-1610 is a compact device that is ideal for use at home or a small oce, as it does not take up much space and is ready to use by
simply plugging it in. The bright Signal Indicator LED makes nding a suitable location a cinch. Its diminutive wall-plug design easily saves you
the hassle of dealing with a power cord.
Latest Wireless Network Security and Encryption
The DAP-1610 supports wireless security features to prevent unauthorized access from the wireless network. Support for WPA/WPA2/WPA3
standards ensure that you’ll be able to use the best possible encryption methods with your compatible wireless devices.
Easy to Set Up, Easy to Use
Setting up the AC1200 Mesh Wi-Fi Range Extender is simple. You can use the supported D-Link Wi-Fi app on your compatible iOS or Android
device to utilize the built in set up wizard. The DAP-1610 can also receive automatic over-the-air rmware updates, which ensures the best
protection and the latest features for your device.
* Maximum wireless signal rate derived from standard IEEE specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac,
building materials and construction, and network overhead may lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.

4D-Link DAP-1610 User Manual
Section 1 - Product Overview

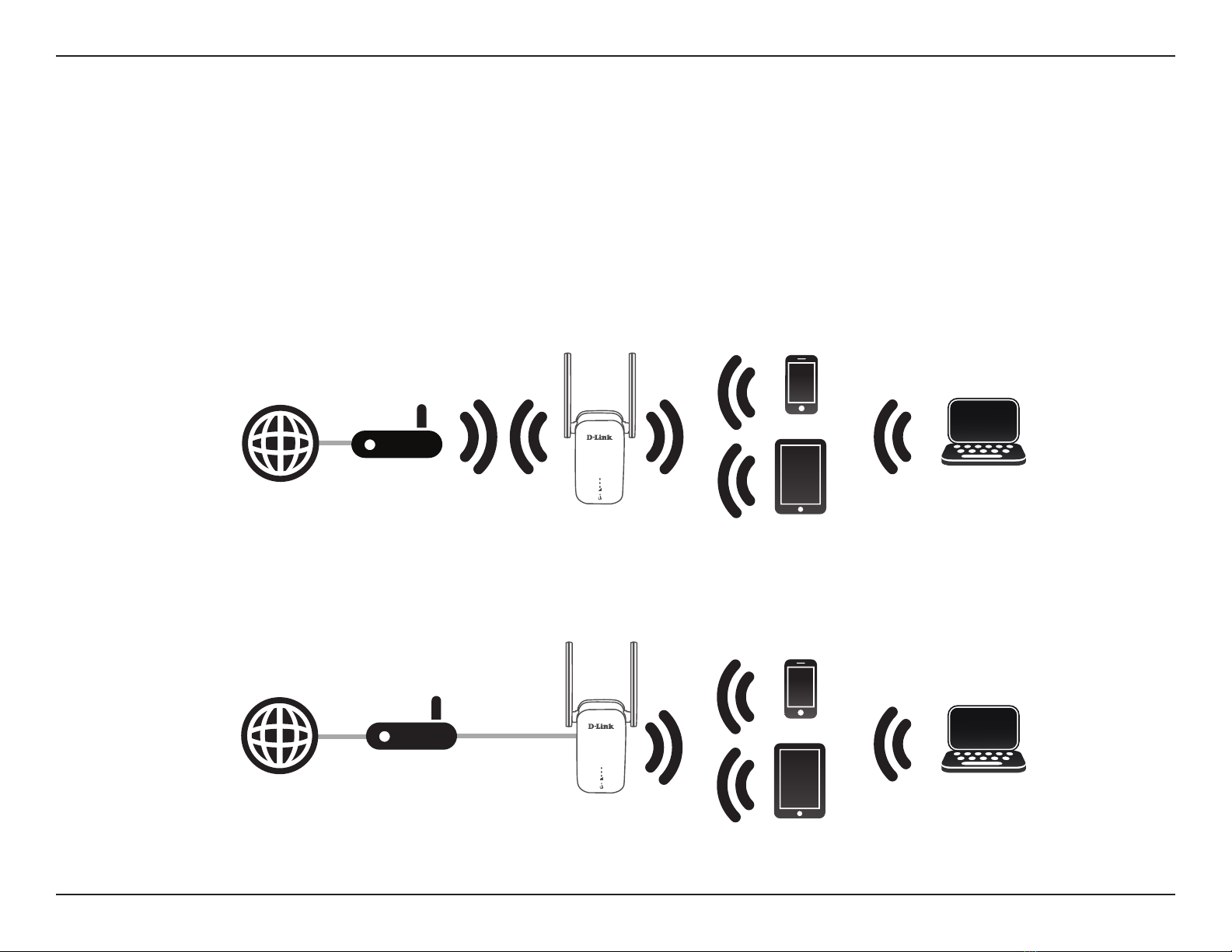

What is a Wireless Extender?
The DAP-1610 acts as a repeater to extend the range of an existing wireless network to provide a better signal for parts of your
home or oce that may have poor or no reception. Your existing wireless signal will be re-broadcast by the DAP-1610, allowing
you to reach the farthest corners of your home or oce. The extended network can simply use the same network credentials as the
existing network, or you can specify a dierent network name and password, giving you the exibility to control network access.
You may also use the DAP-1610 as a wireless access point by connecting an Ethernet cable.
Extend Your Wireless Network using Wi-Fi
Router
Internet DAP-1610
Extender
Wireless Devices
Computer
Create a Wireless Network using Ethernet
Router
Internet DAP-1610
Extender
Wireless Devices
Computer

5D-Link DAP-1610 User Manual
Section 1 - Product Overview

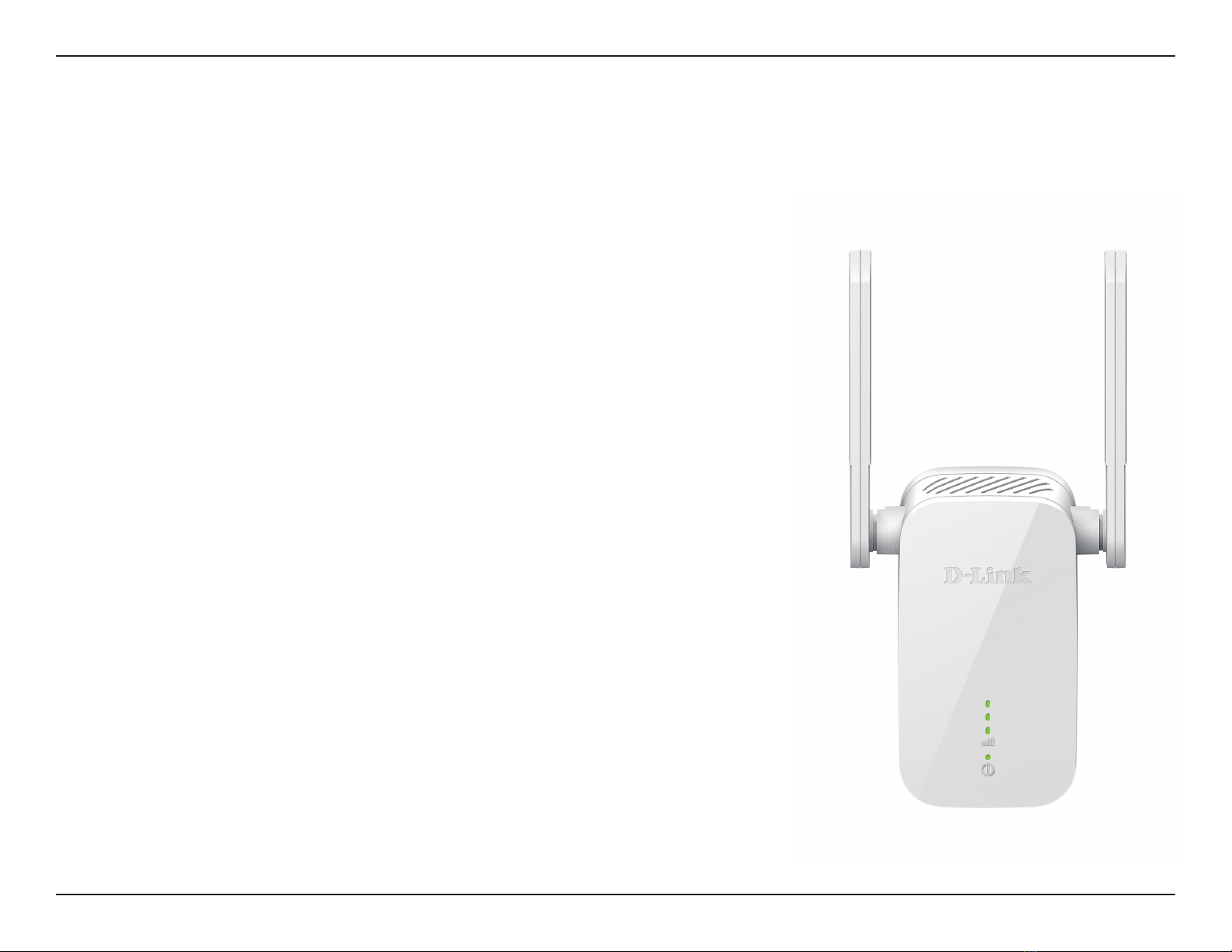

Hardware Overview
Front
1Status/WPS LED This LED indicates the current status of the DAP-1610, as detailed on the next page.
2Signal Indicator
LED
The more lit green bars on the Signal Indicator LED, the better the wireless signal to the host network. A
single solid orange LED indcates a weak Wi-Fi signal.
2
1

6D-Link DAP-1610 User Manual
Section 1 - Product Overview

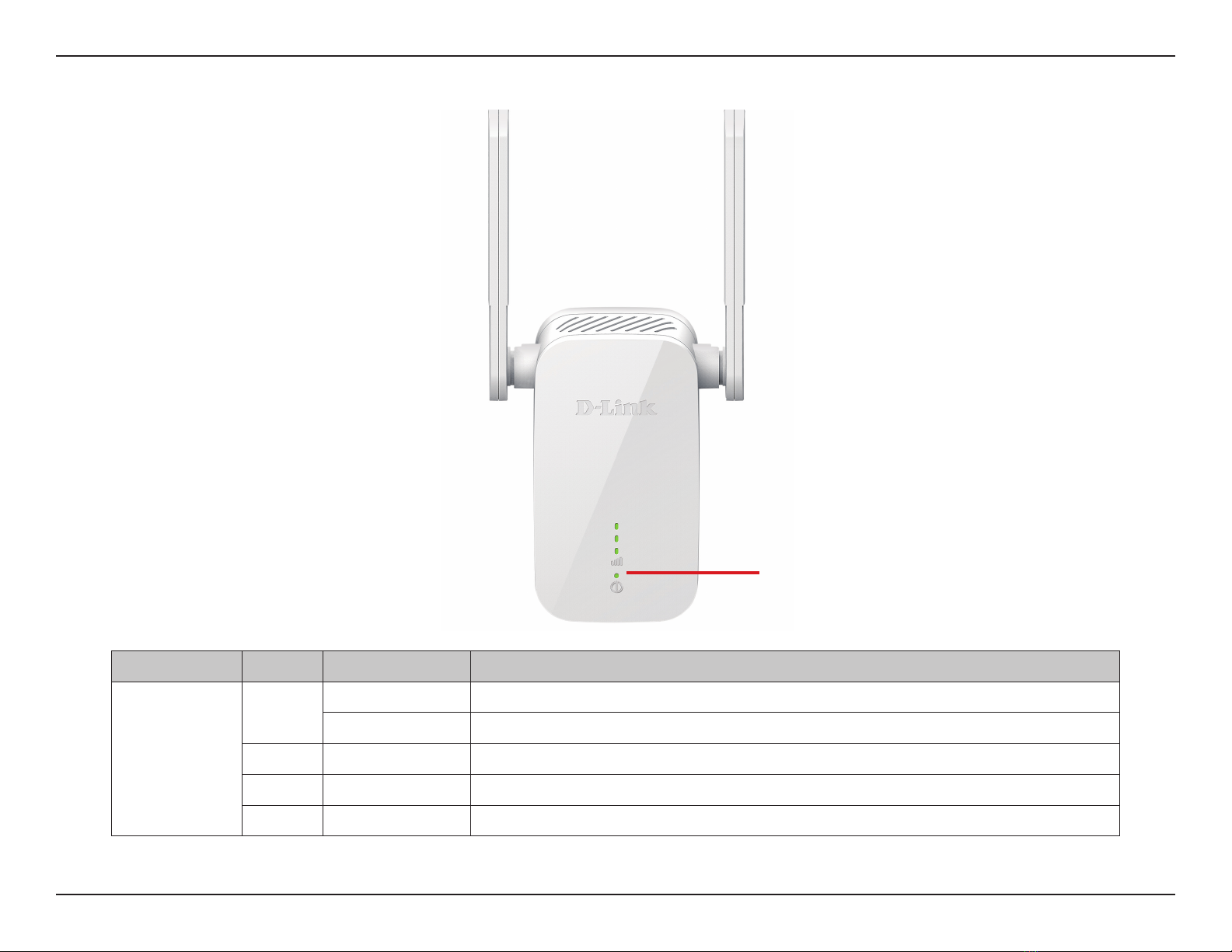

LED Indicator Color Status Description
Power/Status
Green Solid The DAP-1610 is receiving power and connected to a host network.
Blinking WPS mode is active and is searching for another WPS device.
Red Solid The DAP-1610 is booting or an error has occurred.
Orange Blinking The DAP-1610 is not connected to a host network.
None O Device is not receiving power. Check the power outlet.
Status/WPS LED Indicator
Status/WPS LED Indicator

7D-Link DAP-1610 User Manual
Section 1 - Product Overview

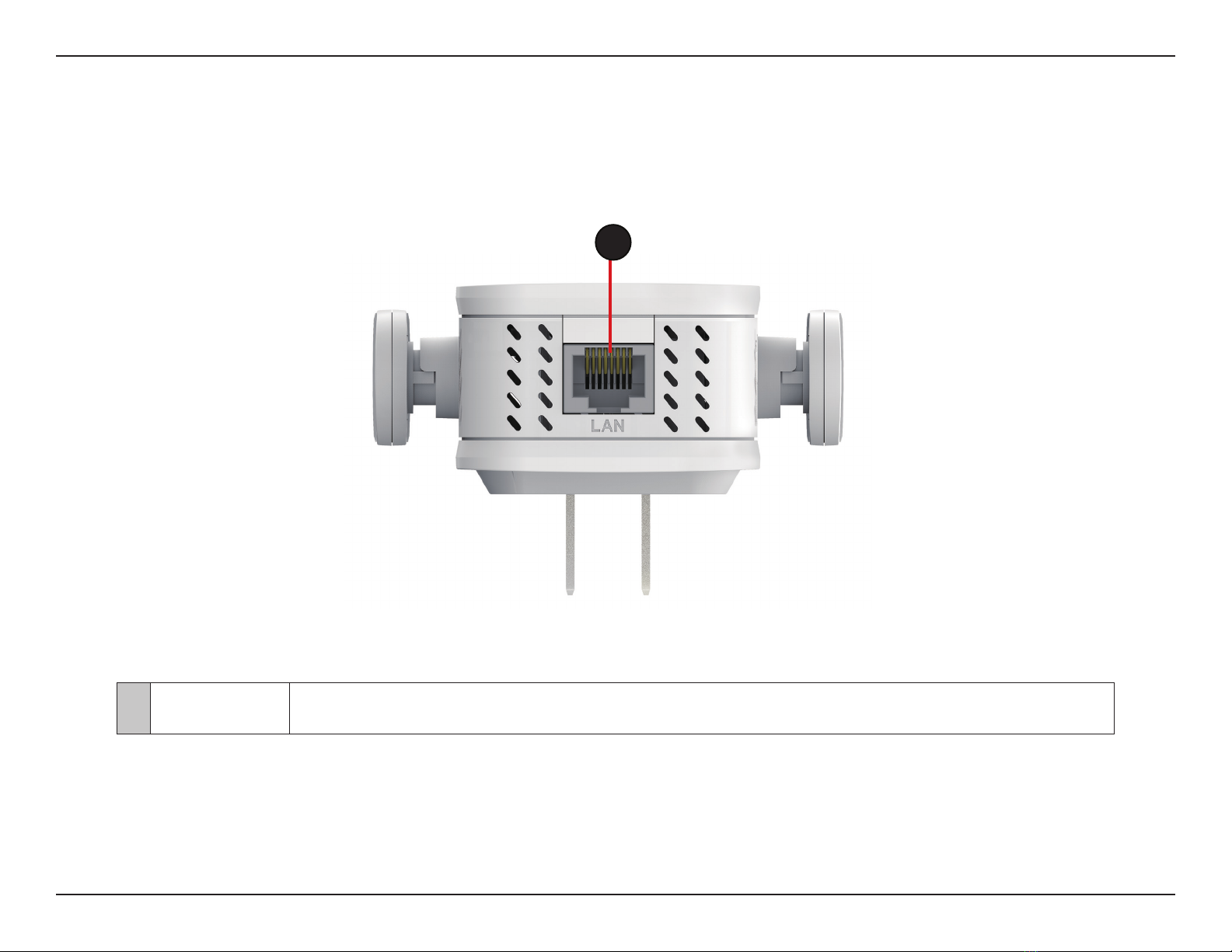

Bottom
1LAN The LAN port can be used to either connect an Ethernet enabled device to the wireless extender or connect
to an existing network allowing it to function as an Access Point (AP).
1
2WPS Button Press to establish a connection with another WPS compatible device. See page “WPS Button” on page 38
for more information.
2Reset Button Use an unfolded paperclip to press and hold the reset button on the bottom of DAP-1610 for 10 seconds
to restore the factory default settings.

8D-Link DAP-1610 User Manual
Section 2 - Installation

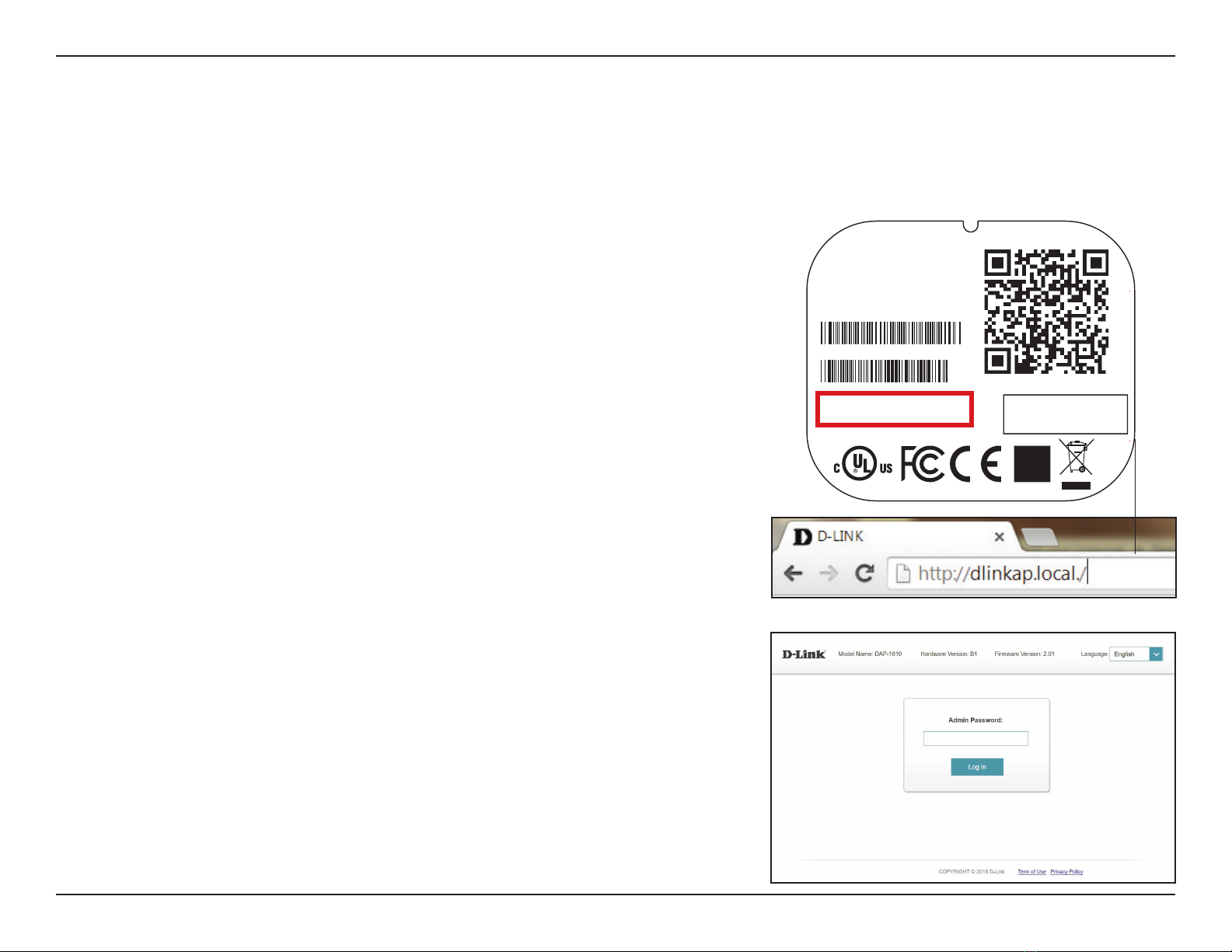

You may locate the Wi-Fi name (SSID) and password for your DAP-1610. This information is printed on the specication sticker on
the back of the device. You will need this information to connect your computer or mobile device to the default network (SSID) of
your DAP-1610. This information is also provided on the Quick Installation Card.

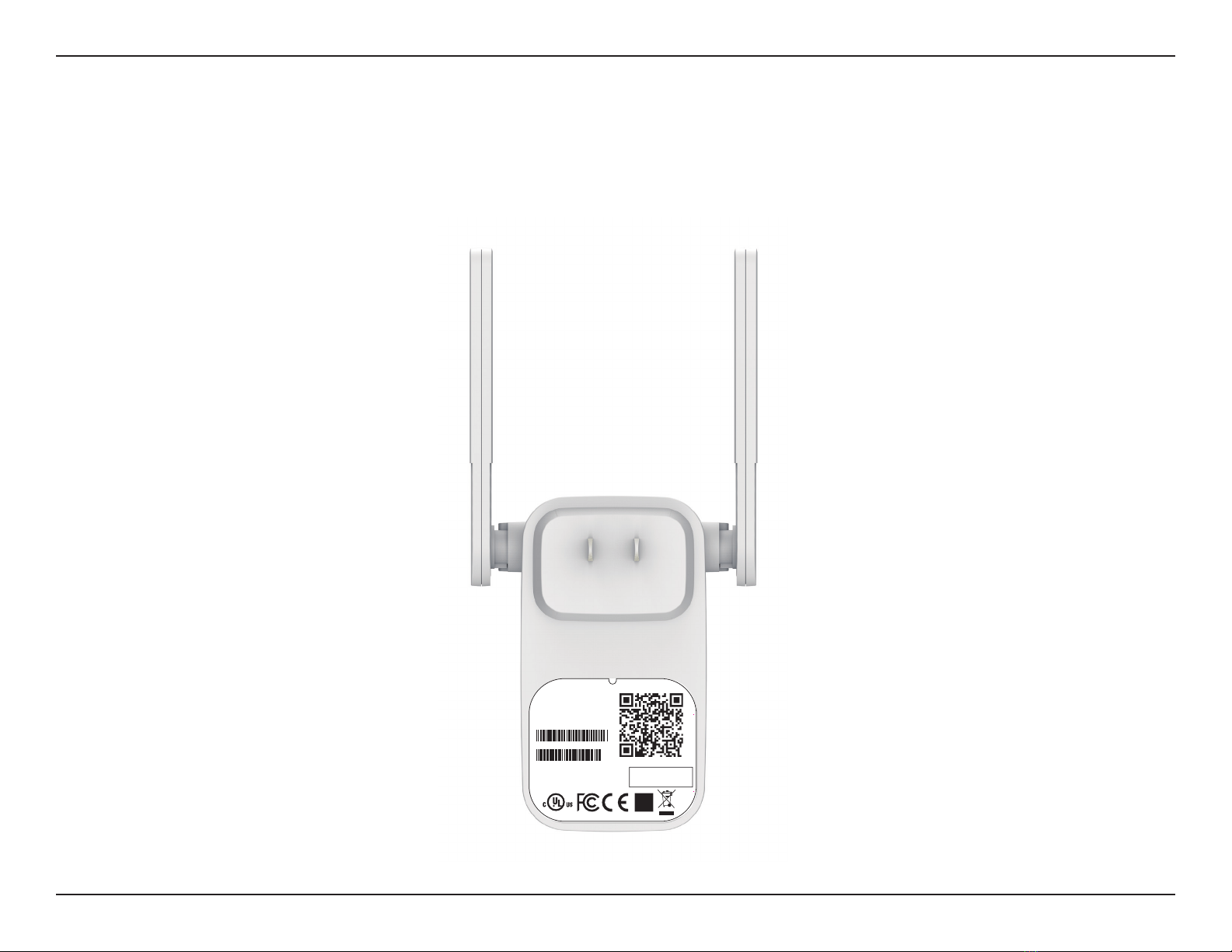

Back
FCC ID :KA2AP1610B1
I C:4216A-AP1610B1
M/N:DAP-1610B1
CAN ICES-3 (B)/NMB-3(B)
P/N: CAP1610LCA....B1
S/N: S81P1YMXXXXXX
MAC ID: XXXXXXXXXXXX
H/W Ver.: B1 F/W Ver.: XXXX
Wi-Fi Name(SSID): dlink-xxxx
Wi-Fi Password: XXXXXXXX
DAP-1610
Input: 100-240Vac, 50/60 Hz, 0.3A Max
http://dlinkapwxyz.local./
Username: Admin
Device Password: password
Made In China

9D-Link DAP-1610 User Manual
Section 2 - Installation
Installation
Wireless Installation Considerations
The DAP-1610 lets you extend your existing wireless network’s coverage as long as it is within range of the uplink network. Keep in
mind that the DAP-1610’s extension network’s range may be limited by the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through.Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link extender and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position extenders, access points, wireless routers, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or Bluetooth (speaker, headset, printer, mice, keyboards), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as
far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.

10D-Link DAP-1610 User Manual
Section 2 - Installation

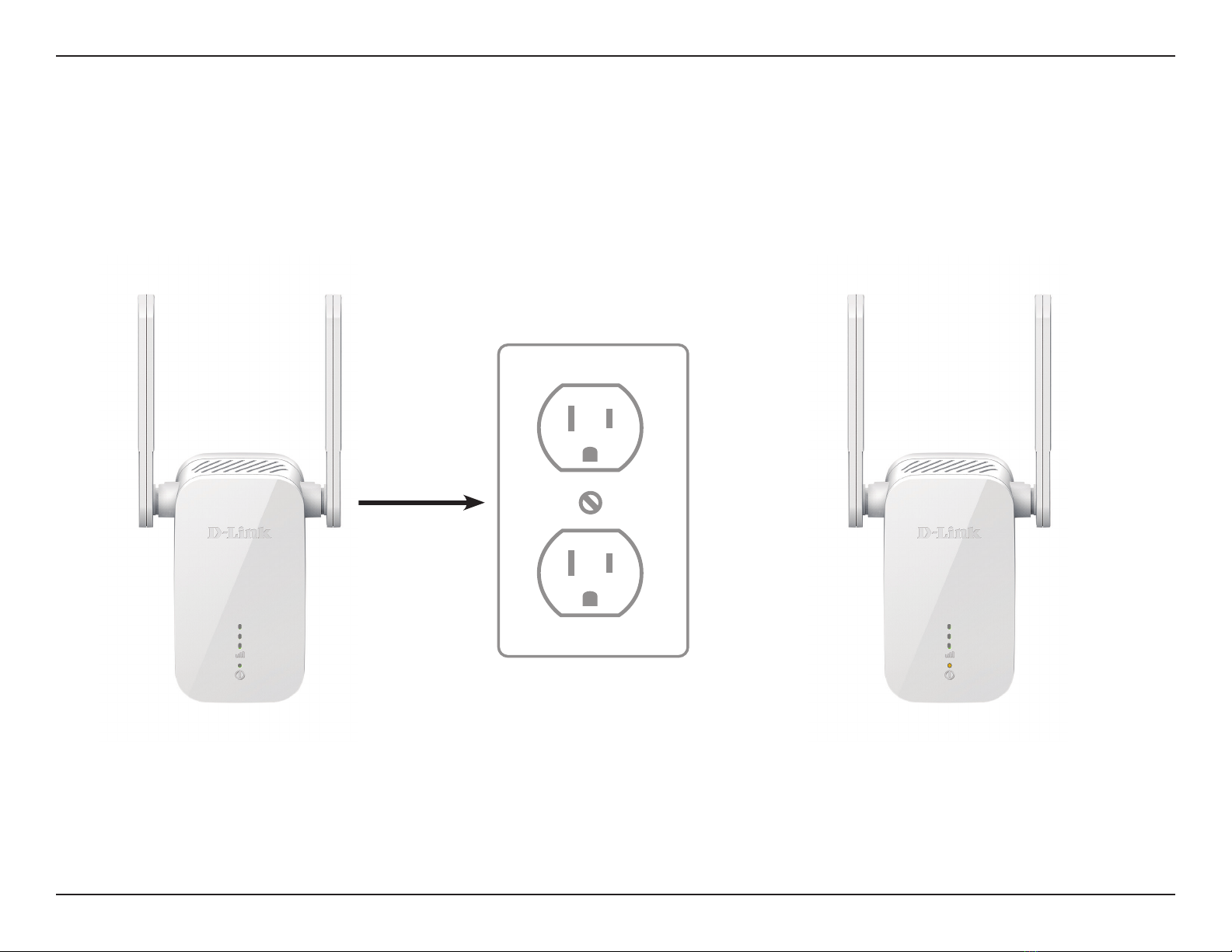

Hardware Setup
Plug in the DAP-1610 to a power outlet. Verify that the power LED is blinking orange before continuing with conguration.
OUTLET

11D-Link DAP-1610 User Manual
Section 3 - Conguration
There are several conguration tools you can use to set up your DAP-1610.
• WPS PBC - To easily extend an existing wireless network refer to “WPS-PBC Conguration” on page 12 for setup
instructions.

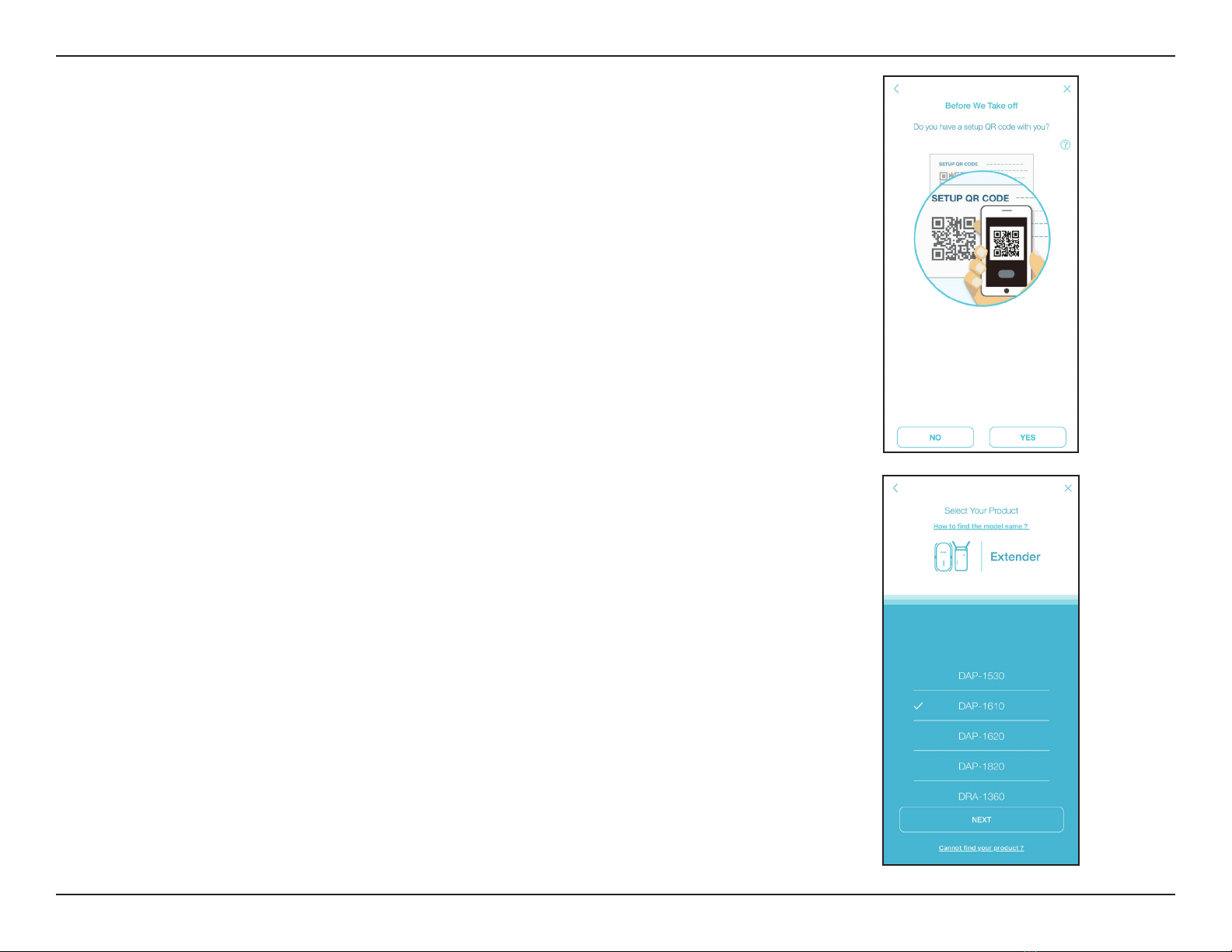

• D-Link Wi-Fi App - Use your Android device, iPhone or iPad to congure your extender. Refer to “D-Link Wi-Fi App” on
page 14 for setup instructions.

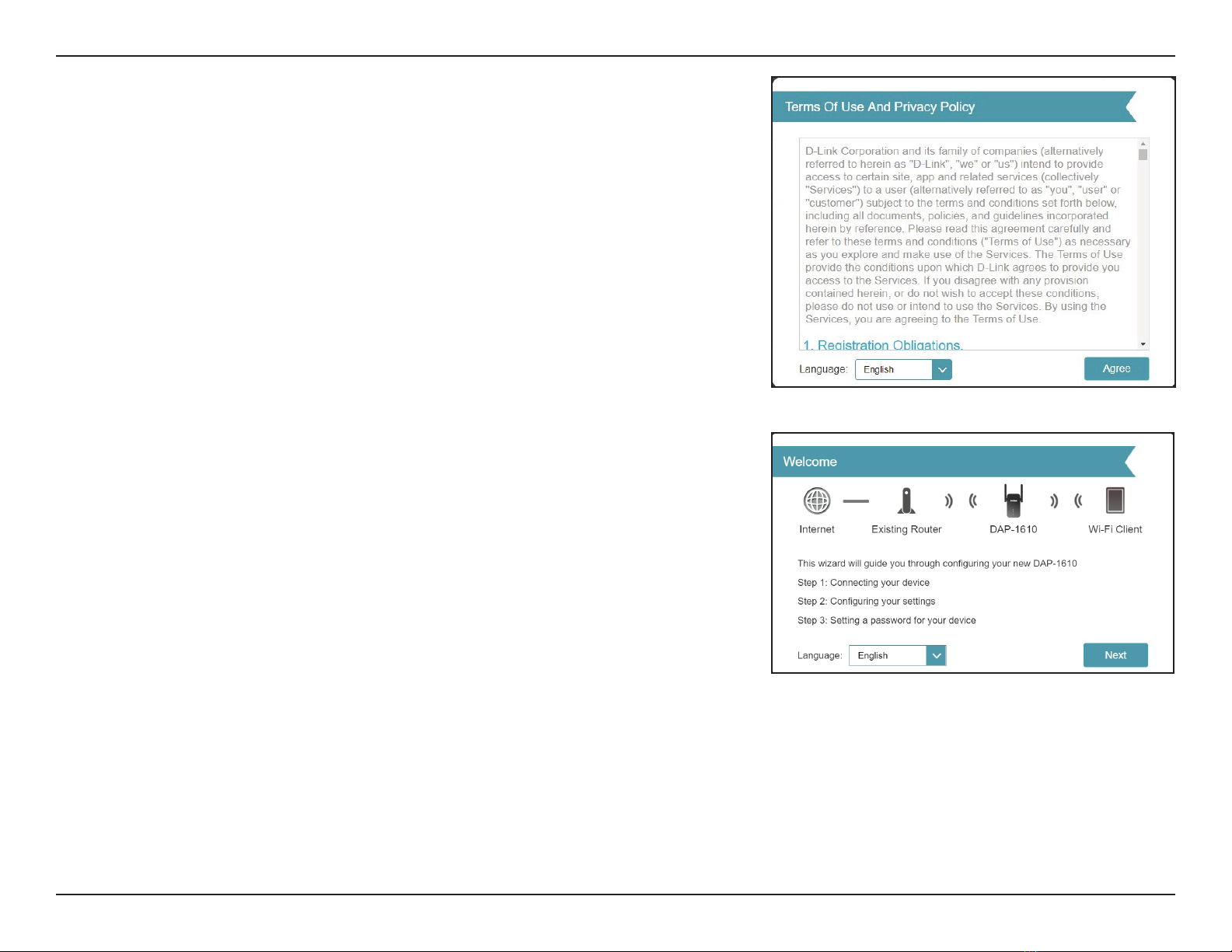

• Web-based Wireless Setup Wizard - This wizard will launch when you log into the extender’s web conguration utility
for the rst time. Refer to “Wireless Setup Wizard” on page 16 for setup instructions.
• Access Point Mode Settings- This section will go through how to setup your extender as an access point. Refer to“Access
Point Mode Settings” on page 23.
Getting Started

12D-Link DAP-1610 User Manual
Section 3 - Conguration
WPS-PBC Conguration
Step 1 - Initiate WPS Mode
While the Status/WPS LED is blinking orange, push the WPS button on the source
wireless router or AP, and then push the WPS button on the DAP-1610. The
Status/WPS LED will start to ash green. Please allow up to two minutes for the
process to nish. The Status/WPS LED will turn solid green when the DAP-1610
has connected successfully to the source wireless router or access point.
Step 2 - Connecting Devices to the DAP-1610
The DAP-1610 is now ready to share the extended Wi-Fi network with your PCs
and mobile devices. The network name (SSID) and password will be the same as
your source wireless router or AP.
The Smart Connect feature will present a single wireless network. When
connecting clients to the extended network, they will be automatically added to
the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz SSIDs, refer to“Extender Settings”on
page 27.
Wireless Protected Setup (WPS) makes connecting your DAP-1610 easy. To use WPS, rst make sure the source router or access point
features a WPS Button or has a virtual WPS Button.

13D-Link DAP-1610 User Manual
Section 2 - Installation
Assessing Uplink Signal Strength
Poor Ok Good Best
The Status/WPS LED will turn solid green when the DAP-1610 has connected successfully to a wireless network and is extending
that network. If the Smart Signal LED has a single orange bar after the connection process has nished, the DAP-1610 has
established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve the
connection quality, the DAP-1610 should be relocated closer to the source wireless router. Using the 5 GHz extension network
is recommended in order to achieve the fastest wireless speeds. If the extender has been congured as an Access Point and is
connected via Ethernet cable to an uplink network, the Smart Signal LED will not be lit.

14D-Link DAP-1610 User Manual
Section 2 - Installation
D-Link Wi-Fi App
The DAP-1610 can be set up from your iPhone, iPad, or Android smartphone or tablet device using the D-Link Wi-Fi app.
Note: The screenshots may be dierent depending on your mobile device’s OS version.
Step 1
Search for the free D-Link Wi-Fi App on the Apple App Store or Google Play and
install. You can also scan the QR code on the right, which will take you to the
respective D-Link Wi-Fi app store page directly.
Step 2
Launch the D-Link Wi-Fi App from the Home screen of your device.
Step 3
Click on the Install New Device button at the middle of the screen (or click on
the Menu button on the top left corner of the app to do the same).
D-Link Wi-Fi

15D-Link DAP-1610 User Manual
Section 3 - Conguration
Step 5
Slide the product options to Extender and select DAP-1610 from the list of
available devices. Click Next to continue.
Step 6
You will now be guided through a step-by-step process for setting up your
device. Simply follow the on-screen instructions to complete the installation and
DAP-1610 conguration process.
Step 4
Click Yes if you have the setup QR code with you to scan the QR code and
proceed to step 6. If not, click No and proceed to step 5.

16D-Link DAP-1610 User Manual
Section 3 - Conguration
Wireless Setup Wizard
To access the setup utility for the DAP-1610 AC1200 Mesh Wi-Fi Range Extender-
on your PC, rst connect to the DAP-1610 wirelessly using the Wi-Fi name (SSID)
and password located on the back of your DAP-1610. Then open a web browser
and enter http://dlinkap.local./ in your browser’s URL eld. You may also enter
the IP address* of the DAP-1610.
* The default IP address is 192.168.0.50. Once your DAP-1610 connects to the host network,
it will be assigned a new IP address based on your network’s DHCP settings. You will need
to log in to your router to see what IP address is assigned to your DAP-1610. For multiple
DAP-1610s, go to http://dlinkapxxxx.local. as shown on the included Quick Installation
Card, with “xxxx” being the last four digits of the DAP-1610’s MAC address.
If this is your rst time logging into the extender, you will be asked to enter a
password, the default password is“password”. If you have previously set up the
extender, enter the password you have created.
The setup wizard is designed to guide you through a step-by-step process to congure your new DAP-1610
AC1200 Mesh Wi-Fi Range Extender to extend your wireless network and connect to the Internet via a wireless setup process. To set
your DAP-1610 using an ethernet cable, please refer to“Access Point Mode Settings”on page 23.
FCC ID :KA2AP1610B1
I C:4216A-AP1610B1
M/N:DAP-1610B1
CAN ICES-3 (B)/NMB-3(B)
P/N: CAP1610LCA....B1
S/N: S81P1YMXXXXXX
MAC ID: XXXXXXXXXXXX
H/W Ver.: B1 F/W Ver.: XXXX
Wi-Fi Name(SSID): dlink-xxxx
Wi-Fi Password: XXXXXXXX
DAP-1610
Input: 100-240Vac, 50/60 Hz, 0.3A Max
http://dlinkapwxyz.local./
Username: Admin
Device Password: password
Made In China

17D-Link DAP-1610 User Manual
Section 3 - Conguration
This wizard will guide you through conguring your new DAP-1610 by wireless
means.
Click Next to begin.
Agree to the Terms of Use and Privacy Policy to continue.
