D-Link DHP-347AV User manual

2D-Link DHP-347AV User Manual
Table of Contents
Product Overview.............................................................. 3
Package Contents......................................................................... 3
System Requirements................................................................. 3
Introduction ................................................................................... 4
Features............................................................................................ 4
DHP-306AV Hardware Overview.............................................5
LEDs ........................................................................................... 5
Connection ............................................................................. 6
DHP-346AV Hardware Overview.............................................7
LEDs ........................................................................................... 7
Connection ............................................................................. 8
DHP-346AV Ethernet Port Trac Priority ............................. 9
Hardware Installation .....................................................10
Push Button Security.......................................................11
Using the Setup Wizard...................................................12
Conguration...............................................................................13
Security ..........................................................................................15
Troubleshooting ..............................................................17
DHP-346AV Technical Specications .............................18
DHP-306AV Technical Specications .............................19
Contacting Technical Support ........................................20
Warranty...........................................................................21
Registration .....................................................................26
Table of Contents

3D-Link DHP-347AV User Manual
Section 1 - Product Overview
One D-Link DHP-306AV PowerLine AV Network Adapter
One D-Link DHP-346AV PowerLine AV 4-Port Switch
Two CAT5 Ethernet Cable
CD-ROM with Software and User Manual
Power Cord
Quick Install Guide
System Requirements
Product Overview
Package Contents
• Windows® 7, Windows Vista®, XP (with Service Pack 3)
• PC with 233MHz Processor, 64MB Memory
• Ethernet Adapter (100Mbit/s)

4D-Link DHP-347AV User Manual
Section 1 - Product Overview
Introduction
Features
• Provides Ethernet to PowerLine Connection
• Fast Data Transfer Rate of up to 200Mbps*
• Four 10/100 Ethernet Ports (DHP-346AV)
• One 10/100 Ethernet Port (DHP-306AV)
• Plug & Play, Easy Installation
• Easy to use Management Utility
• Firmware Upgrade Support
• Push Button Security
• Power Saving mode
* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac and network
overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect the performance of this
product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that do not follow the HomePlug AV standard.
D-Link announces the PowerLine AV 4-Port Switch Starter Kit which uses the electrical wiring that’s already in your house to provide fast, reliable
speeds of up to 200Mbps* to any room in the house. Simply connect one adapter into an existing power outlet, connect it to your home network
router, and plug another adapter into any other room in your house to get instant shared network connections. With 4 Ports, you can connect more
devices per room and get blazing speeds in each room without tripping over tangled, messy wires. It’s cable management at its best.

5D-Link DHP-347AV User Manual
Section 1 - Product Overview

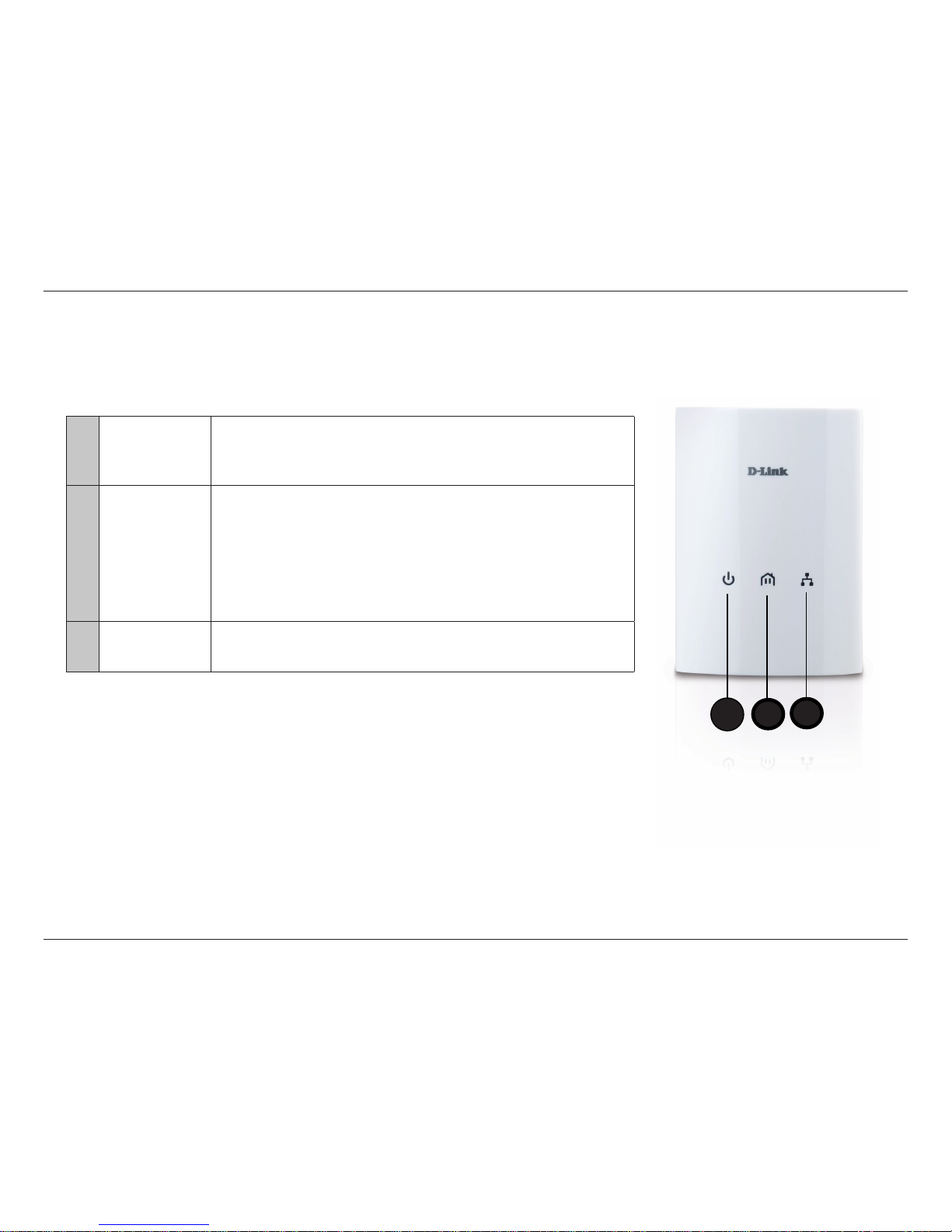

DHP-306AV Hardware Overview
LEDs
1Power LED
• Solid - Indicates that the device is receiving electrical power.
• Blinking - Indicates that the device is setting itself up after reset or when the security
button was pressed or power saving mode enabled.
• O - The device is not receiving electrical power.
2Home Plug
• Solid - The device is connected to a PowerLine network.
• Blinking - The device is transmitting data.
• O - The device has not found any other compatible PowerLine devices using the
same encryption key.
The color indicates the PowerLine link rate:
• Green - The PowerLine link rate is faster than 80 Mbps.
• Amber - The PowerLine link rate is between 50 Mbps and 80 Mbps.
• Red - The PowerLine link rate is less than 50 Mbps.
3Ethernet LED
• Solid - The Ethernet port is linked but there is no data trac.
• Blinking - The device is transmitting data.
• O - There is no Ethernet connection.
1
123

6D-Link DHP-347AV User Manual
Section 1 - Product Overview

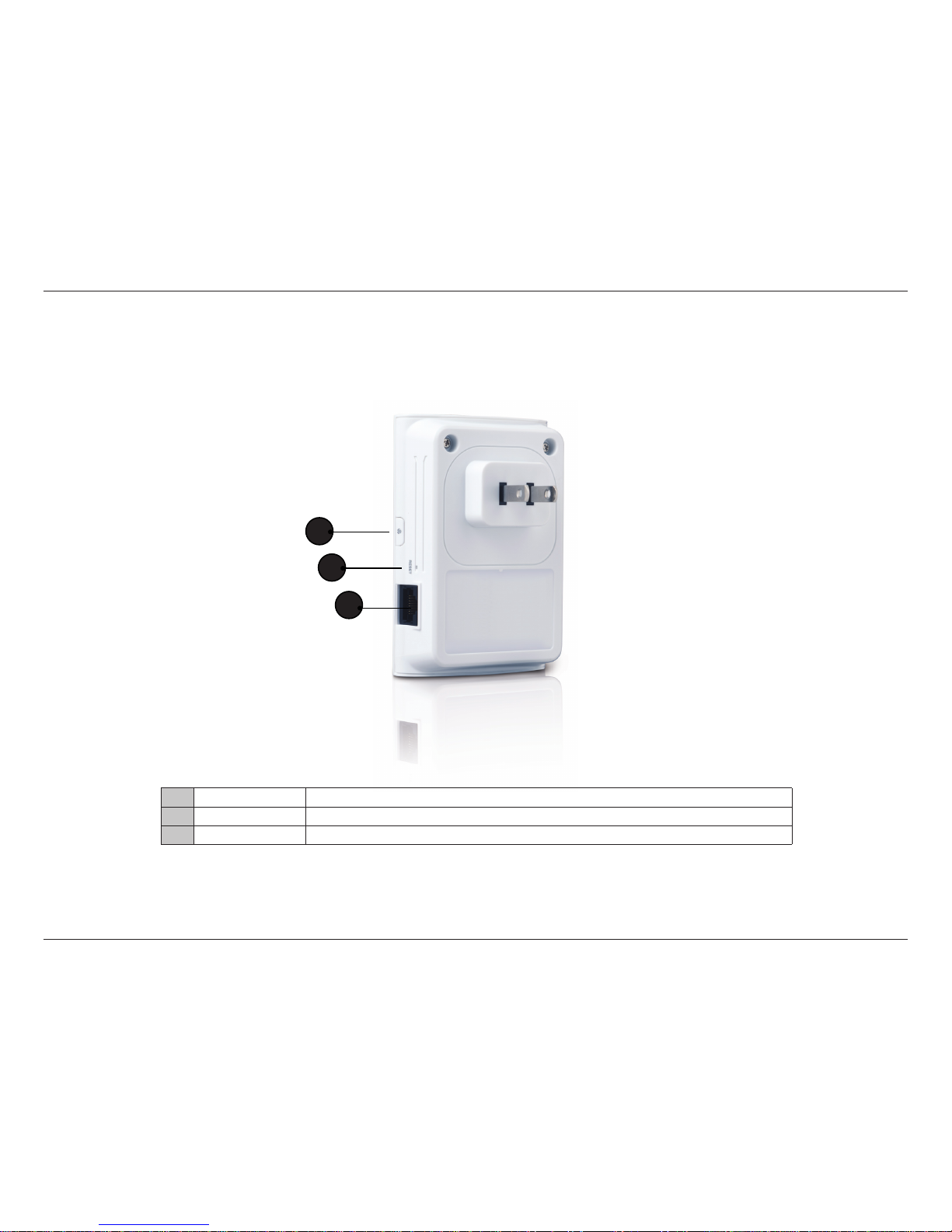

DHP-306AV Hardware Overview
Connection
3
1Security Button Press to secure your network. Refer to page 8 for more information.
2Reset Button Press and hold the button for one second to reset to factory default.
3Ethernet Port Connect the CAT5 Ethernet cable to the DHP-306AV Ethernet port.
2
1

7D-Link DHP-347AV User Manual
Section 1 - Product Overview

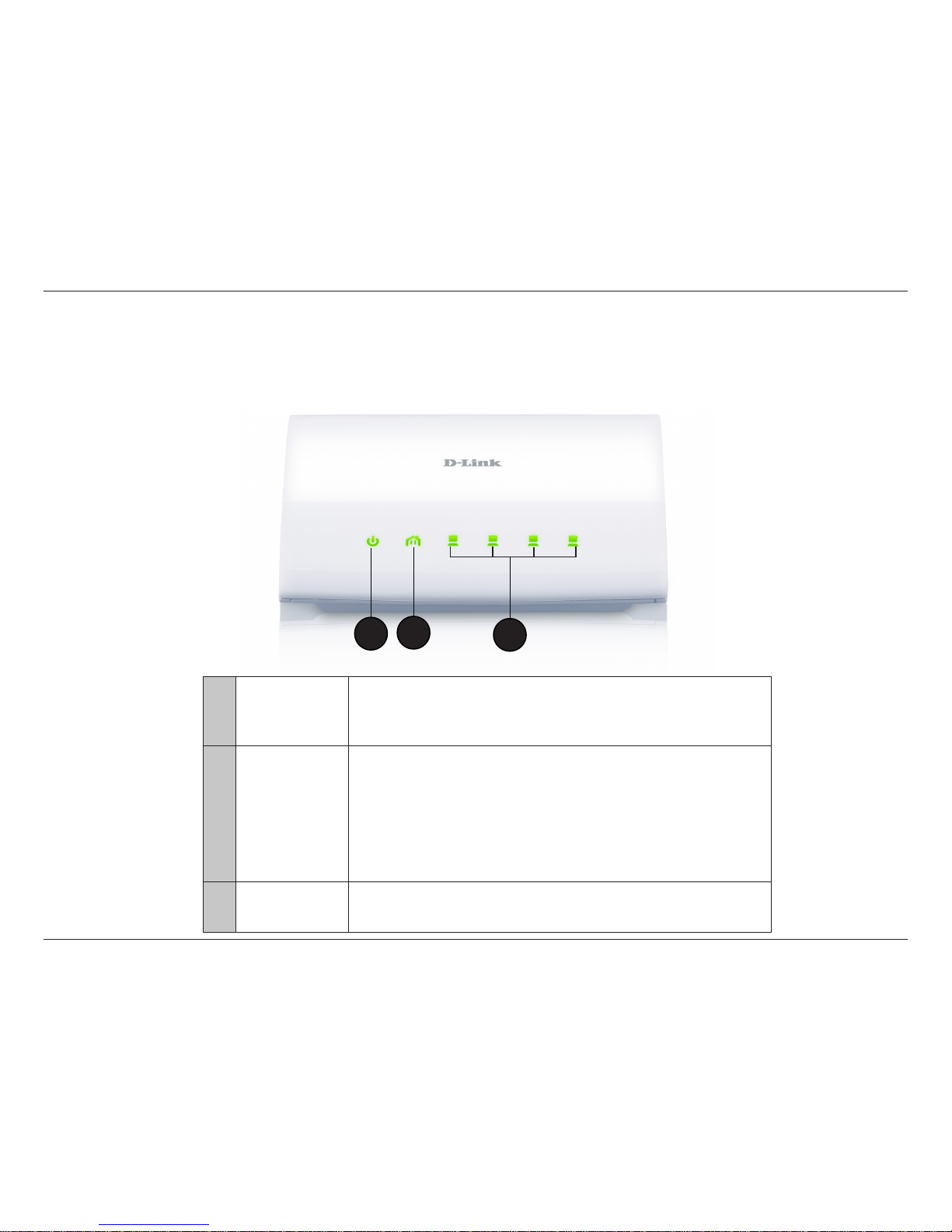

DHP-346AV Hardware Overview
LEDs
1Power LED
• Solid - Indicates that the device is receiving electrical power.
• Blinking - Indicates that the device is setting itself up after reset or security button
was pressed or power saving mode enabled.
• O - The device is not receiving electrical power.
2PowerLine LED
• Solid - The device is connected to a PowerLine network.
• Blinking - The device is transmitting data.
• O - The device has not found any other compatible PowerLine devices using the
same encryption key.
The color indicates the PowerLine link rate:
• Green - The PowerLine link rate is faster than 80 Mbps.
• Amber - The PowerLine link rate is between 50 Mbps and 80 Mbps.
• Red - The PowerLine link rate is less than 50 Mbps.
3LAN LEDs (1-4)
• Solid - The Ethernet port is linked but there is no data trac.
• Blinking - The device is transmitting data.
• O - There is no Ethernet connection.
123

8D-Link DHP-347AV User Manual
Section 1 - Product Overview

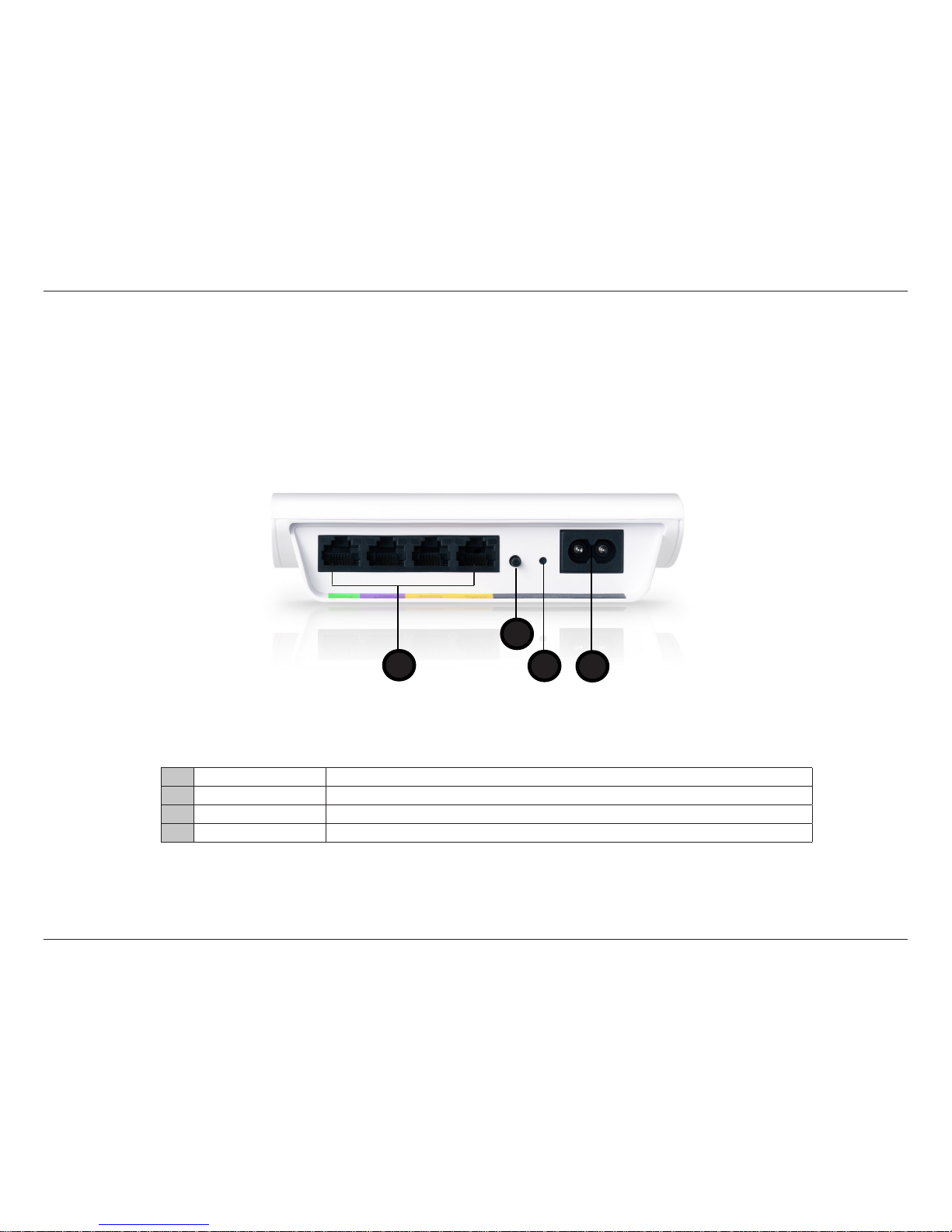

DHP-346AV Hardware Overview
Connection
1Ethernet Ports (1-4) Connect the CAT5 Ethernet cable to the selected Ethernet port in accordance to priority.
2Security Button Press to secure your network. Refer to page 8 for more information.
3Reset Button Press and hold the button for one second to reset to factory default.
4Power Receptor Receptor for the supplied power cord.
3
1
2
4

9D-Link DHP-347AV User Manual
Section 2 - Installation

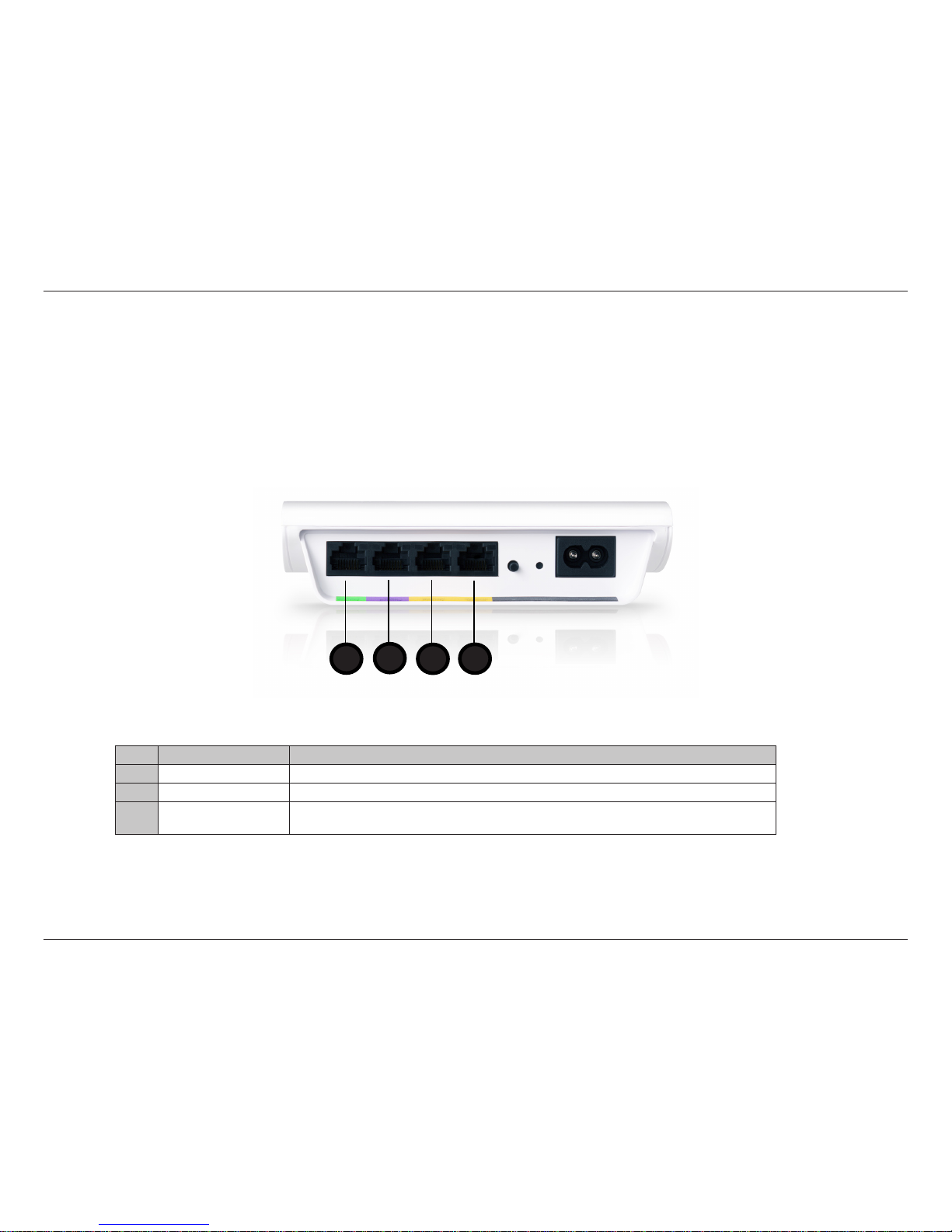

DHP-346AV Ethernet Port Trac Priority
When connecting devices to your ethernet ports, be aware of the Quality of Service (QoS) priorities assigned to each port.
1
2
43
Port Color Description
1 & 2 Yellow Both ports have medium priority and are best for networking data devices such as printers.
3Purple Has a high priority. You can connect devices such as game consoles to this port.
4Light Green Has the highest priority and gives uninterrupted service to the connected devices such as media
players or Internet TV.

10D-Link DHP-347AV User Manual
Section 2 - Installation
5V---3A
1 2 LAN 3 4 INTERNET USB
RESET
INTERNET

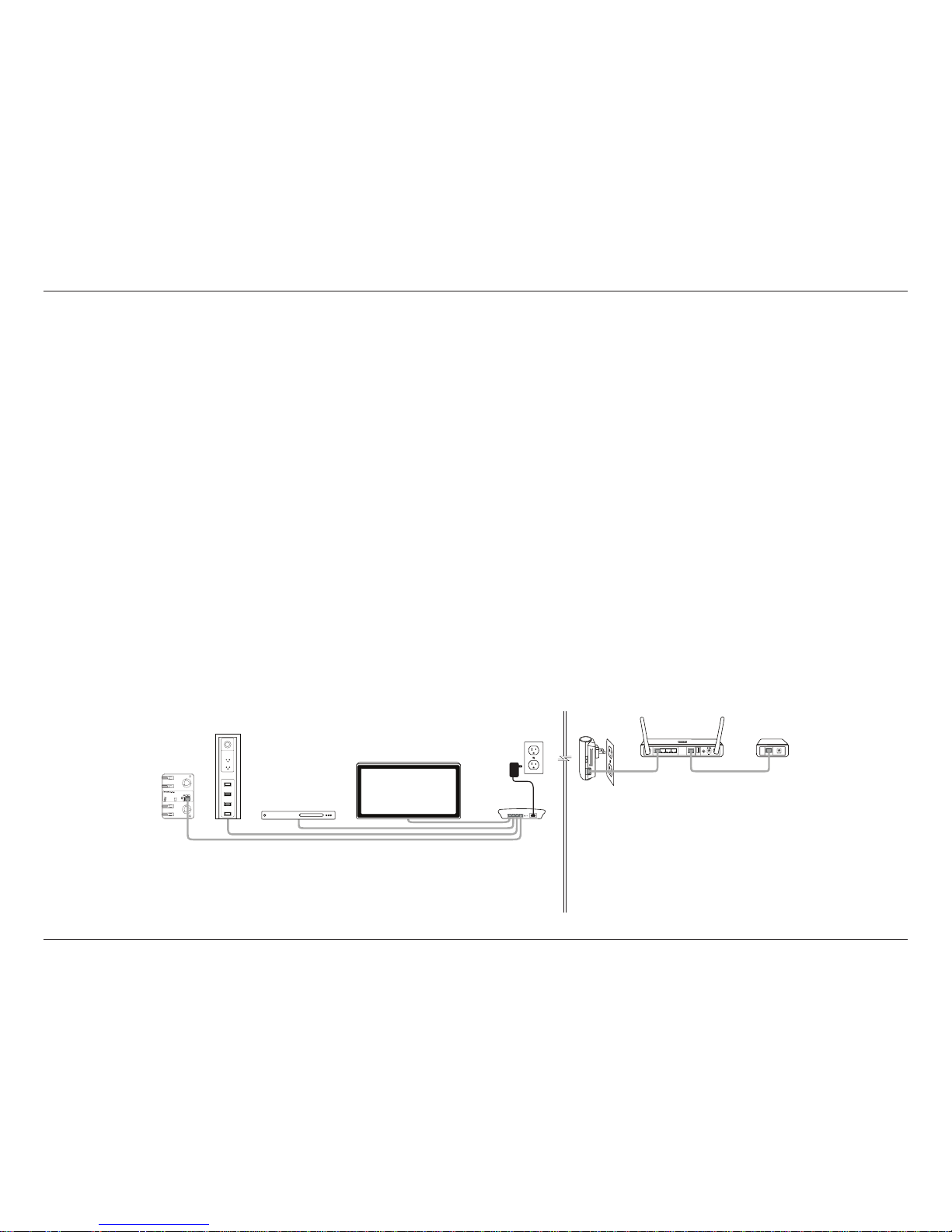

Hardware Installation
Step 1
Plug the PowerLine AV Network Adapter (DHP-306AV) into an AC Wall outlet. Connect the included Ethernet cable to the network cable connector
located on the PowerLine AV Network Adapter and attach the other end of the Ethernet cable to the network devices (e.g. Router).
Step 2
Connect the supplied power cord into the power receptor located on the back of the PowerLine AV 4-Port Switch.
Note: Power source is conrmed when the green LED Power Indicator on both the PowerLine AV 4-Port Switch and the PowerLine AV Network
Adapter are illuminated.
Step 3
Connect the included Ethernet cable to the network cable connector located on the PowerLine AV 4-Port Switch (DHP-346AV) and attach the other
end of the Ethernet cable to the game console, media player, Internet TV or Computer.
Note: Network Connectivity is conrmed when the PowerLine and Ethernet LED indicators on the PowerLine AV 4-Port Switch are illuminated.
Wireless Router Cable/ DSL
Modem
TV
Blu-ray DVD Player
Game Console
NAS Storage
DHP-346AV
Network Diagram
DHP-306AV

11D-Link DHP-347AV User Manual
Section 2 - Installation

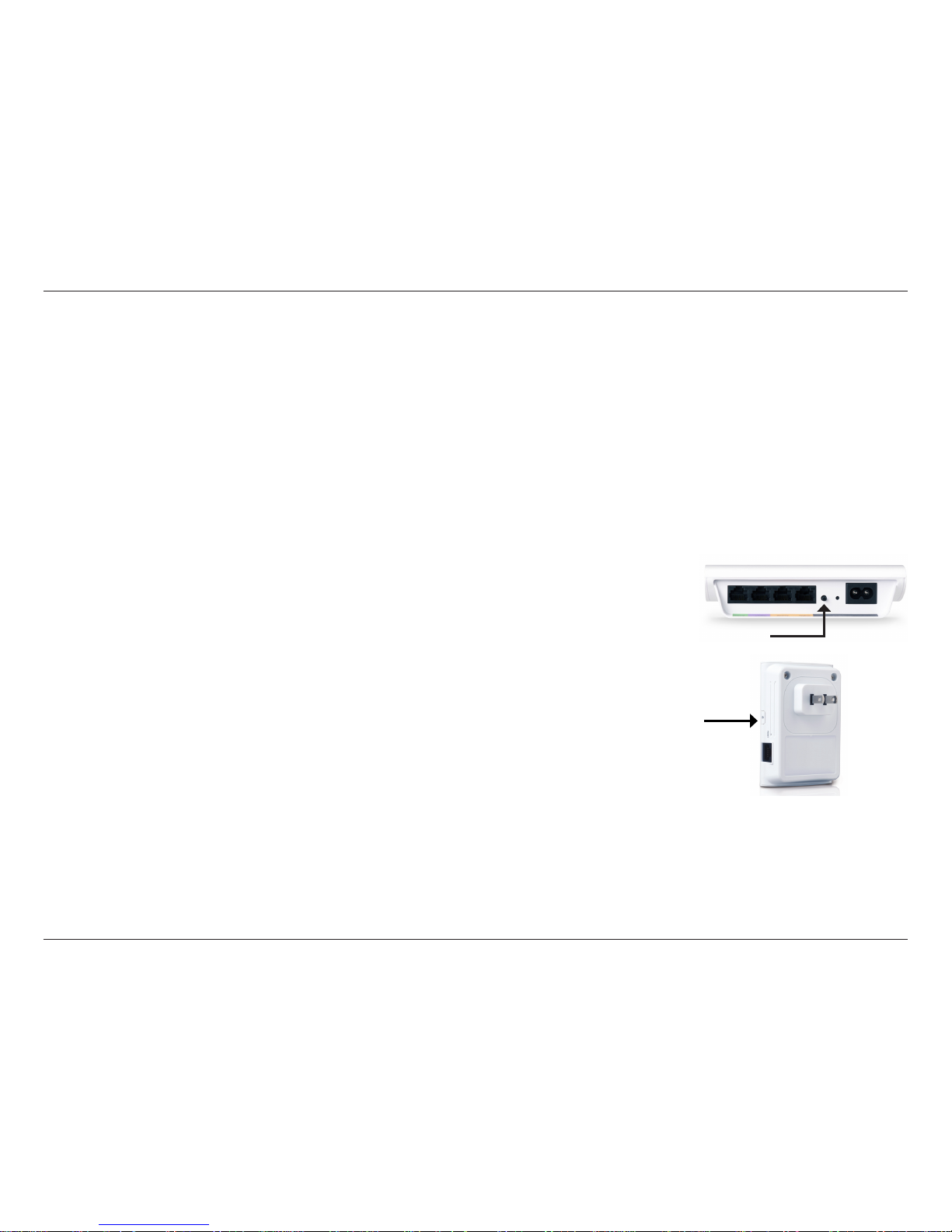

Push Button Security
Understanding PowerLine AV Network Security
The PowerLine AV 4-Port Switch Starter Kit must use an identical encryption key for the network. The default encryption key for each PowerLine AV
4-Port Switch Starter Kit is HomePlugAV. All PowerLine AV 4-Port Switch Starter Kits with a default encryption key can communicate with each other.
It is recommended to create a private encryption key for network security purpose. The private encryption key allows you to protect your network
from unauthorized access via the PowerLine network. To create a private encryption key instead of the default encryption key, please follow below
steps:
1. PowerLine AV 4- Port Switch
Press the Security button located on the back of the PowerLine AV 4-Port Switch for no more than two seconds.
The Power LED will start blinking after you release the button. The Switch will create a private, randomly
generated encryption key that the PowerLine AV 4-Port Switches in your network will use.
2. PowerLine AV Network Adapter
Within two minutes of pushing the Security button of the PowerLine AV 4-Port Switch, press the Security
Button on the PowerLine AV Network Adapter for no more than two seconds. The Power LED will start blinking
after you release the button.
Note: Both Security buttons must be pressed within two minutes.
3. PowerLine Network
After the above network security setup steps, your PowerLine network will be securely congured with the
same network encryption key. The PowerLine AV 4-Port Switch and the PowerLine AV Network Adapter will
memorize the security settings even if they are unplugged.
Note: To change the private encryption key, please reset the adapter back to its default value by pressing the
Reset button for two seconds and then follow the security setup procedure above.

12D-Link DHP-347AV User Manual
Section 3 - Conguration
Using the Setup Wizard
Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process. Insert the D-Link DHP-347AV CD into
your CD-ROM drive. If the CD Autorun function does not automatically start on your computer, click Start > Run. In the Run command box type
“D:\autorun.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed to the next screen.
Click on Install to begin.

13D-Link DHP-347AV User Manual
Section 3 - Conguration

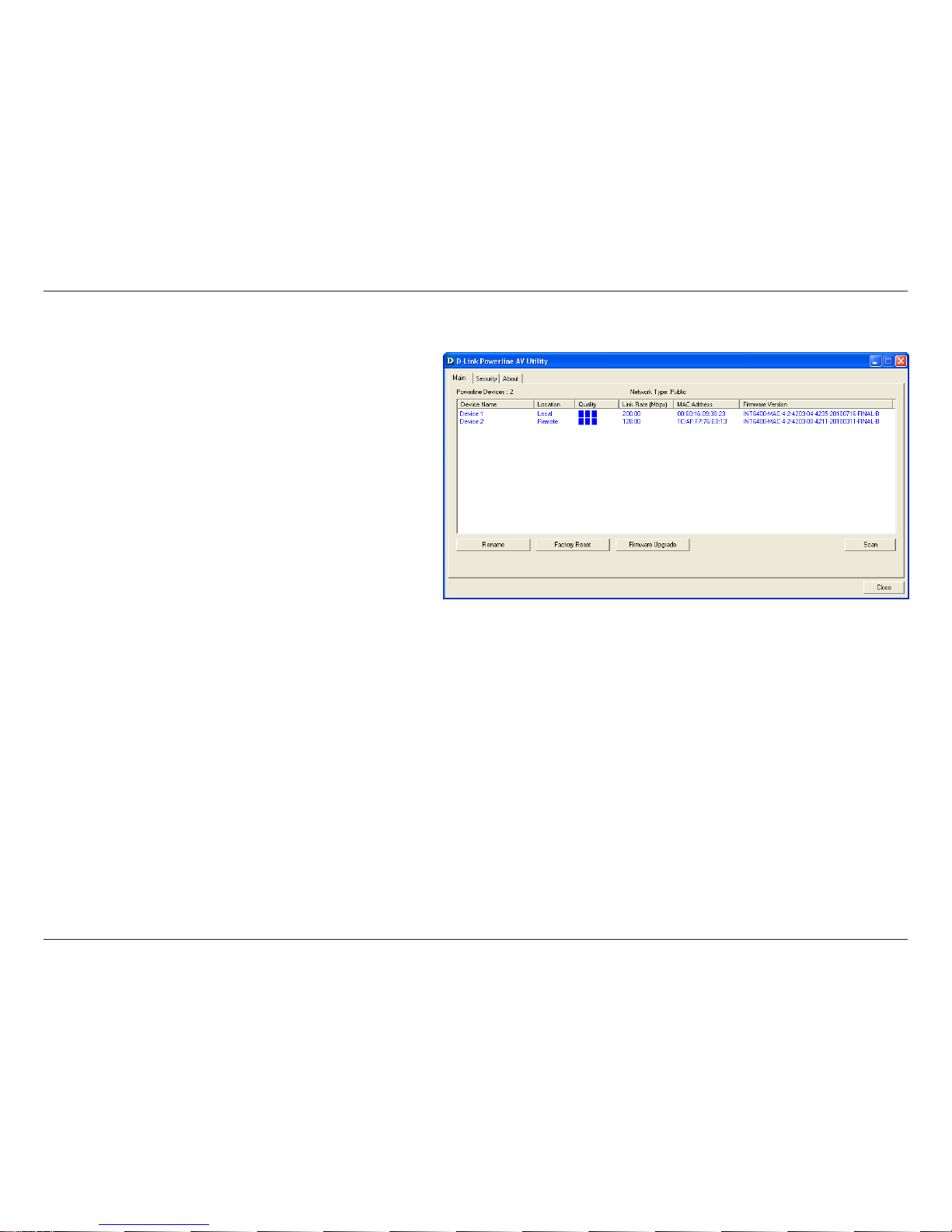

Conguration
After you have completed the D-Link PowerLine AV Utility installation wizard, double-click the D-Link PowerLine AV Utility icon on your desktop to
start the conguration of the DHP-347AV.
The D-Link PowerLine AV Utility provides you the option of setting your own PowerLine network and the network information for the connected
PowerLine devices.

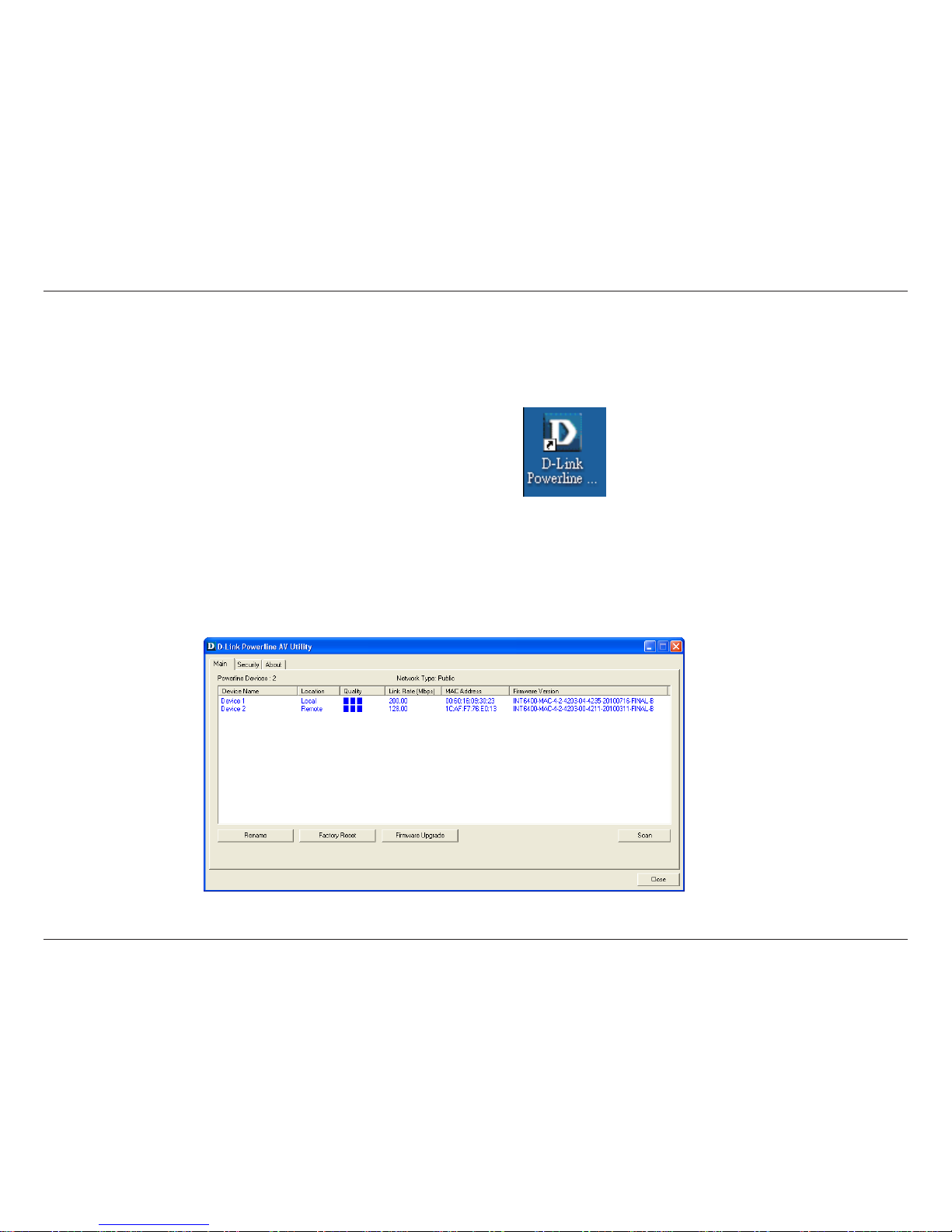

Double-click the D-Link PowerLine AV Utility icon

14D-Link DHP-347AV User Manual
Section 3 - Conguration
Shows the name of the devices that have been discovered.
The device’s name is initially set by the utility itself.
Shows if the device is local or remote.
Shows the network connection quality of the connected
device.
• Three squares - Suitable for HD video stream connection.
• Two squares - Suitable for SD video stream connection.
• One square - Suitable for data and Internet activity
connection.
Shows the link rate of the connected to the PowerLine device.
Shows the MAC address of the connected PowerLine device.
Shows the rmware version of the connected PowerLine
device.
Device Name:
Location:
Quality:
Link Rate:
MAC Address:
Firmware
Version:

15D-Link DHP-347AV User Manual
Section 3 - Conguration

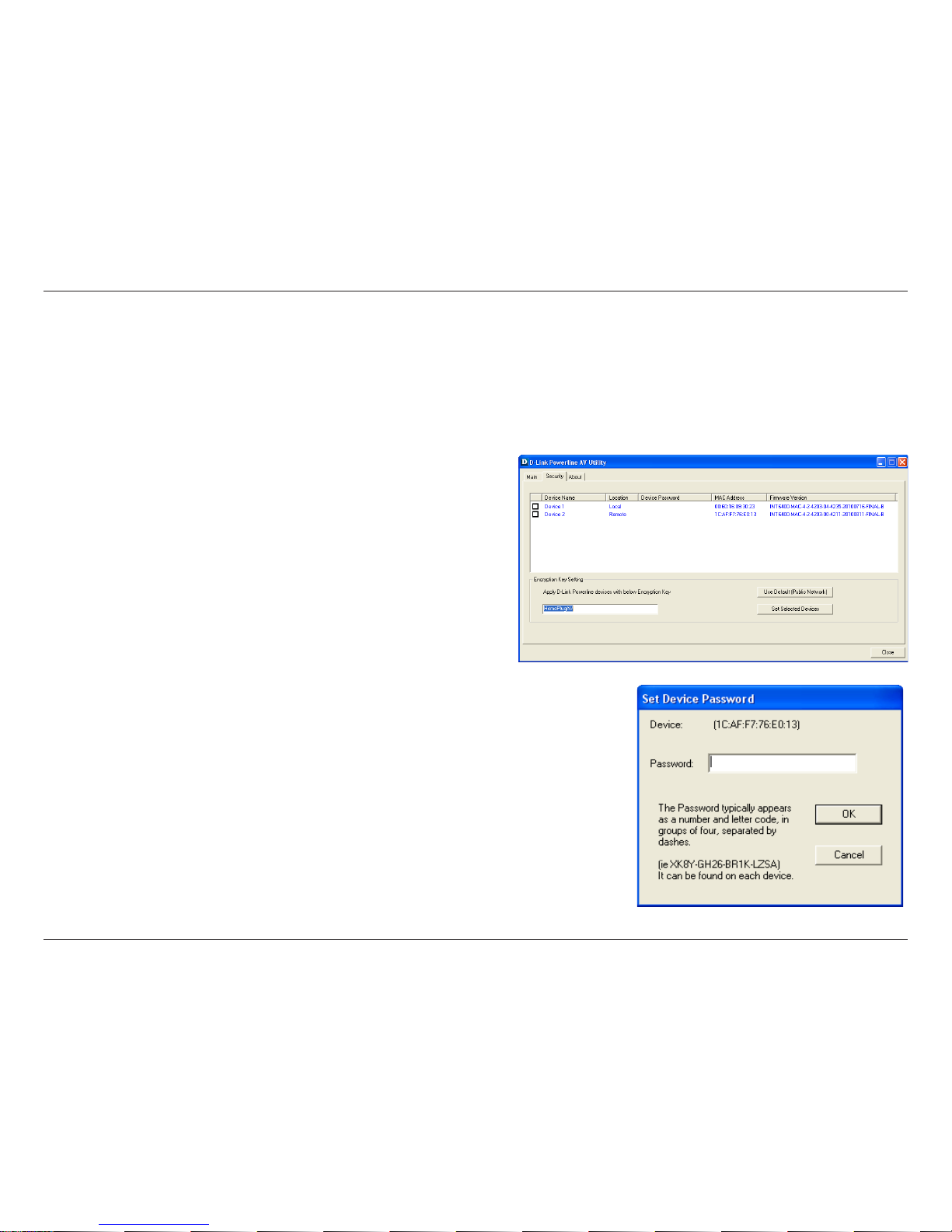

Security
Setting your private Encryption Key
1. Enter the device’s password before changing the encryption key:
• Local Device: You do not need to enter the device’s password before
changing the encryption key.
• Remote Device: You must enter the device’s password before changing
the encryption key.
Note: Each device has a unique device password on the device label.
2. Select the remote device and then enter the device’s password into the
Set Device Password window. Then click OK.
3. Select the PowerLine devices that you would like to apply the encryption
key setting. Then, type your private encryption key into the Encryption
Key Setting eld and click Set Selected Devices. The utility will show a
message once the setting has been completed.
The PowerLine devices on the same network must use an identical encryption key. The default encryption key for each PowerLine device is
HomePlugAV. All devices with a default encryption key can communicate with each other. It is recommended to create a private encryption key for
network security purpose. The private encryption key allows you to protect your network from unauthorized access via the PowerLine network.
Understanding the Encryption Key setting:

16D-Link DHP-347AV User Manual
Section 3 - Conguration
Adding a Device to your PowerLine Network
If you use the default encryption key within the existing PowerLine Network and the new device retains the default encryption key, you can just
plug the new device into a power outlet. Then all the devices will be able to communicate with each other.
If the encryption key within the existing PowerLine network has been customized, you have two ways to add the new device to your PowerLine
Network.
1. You can use the PowerLine AV Utility to apply the customized encryption key in your record to the new device. Then all devices can communicate
with each other by using the customized encryption key.
2. You can use PowerLine AV Utility to set all devices within the existing PowerLine Network and the new device back to the rst default encryption
key. Then follow the 1 to 4 steps of “Setting your private Encryption Key”. Your PowerLine network will be securely congured with a customized
encryption key and all devices will be able to communicate with each other after your setting.

17D-Link DHP-347AV User Manual
Section 3 - Conguration
Troubleshooting
• PowerLine AV utility does not start correctly:
Reinstall the utility.
• PowerLine AV utility does not detect the PowerLine AV 4-Port Switch and PowerLine AV Network Adapter :
Please make sure your PowerLine AV 4-Port Switch and your PowerLine AV Network Adapter are correctly plugged and connected to the computer
or network device.
• I can’t congure any parameters on the PowerLine AV 4-Port Switch and the PowerLine Network Adapter. An error is shown when I try
to congure it:
Please make sure you have not unplugged the PowerLine AV 4-Port Switch and the PowerLine Network Adapter while conguring it.
• I changed the connection cable to another Network adapter and now the utility does not work correctly:
Please restart the utility each time you disconnect the connection cable.
• I’m having a lot of problems conguring my network:
If you are having problems conguring your network with two or more PowerLine devices, please reset all of the PowerLine devices and start
conguring the adapters again.

18D-Link DHP-347AV User Manual
Appendix C - Technical Specications
DHP-346AV Technical Specications
Network Ports
• Four 10/100 Ethernet ports
EMC
• FCC Part 15 Class B
• CE Class B
• C-Tick
AC Input
• 100 ~ 240VAC, 50/60Hz
Safety
• UL, CE LVD
Power Consumption Compliance
• EuP (Energy Using Product Directive)
• CoC (Code of Conduct on Energy Consumption of Broadband Equipment)
Encryption
• 128 bit AES
Operation Temperature
• 0°C ~ 40°C
Storage Temperature
• -10°C ~ 70°C
Humidity
• Operation: 10% ~ 90% RH
• Storage: 5% ~ 95% RH

19D-Link DHP-347AV User Manual
Appendix C - Technical Specications
DHP-306AV Technical Specications
Network Ports
• One 10/100 Ethernet ports
EMC
• FCC Part 15 Class B
• CE Class B
• C-Tick
AC Input
• 100 ~ 240VAC, 50/60Hz
Safety
• UL, CE LVD
Power Consumption Compliance
• EuP (Energy Using Product Directive)
• CoC (Code of Conduct on Energy Consumption of Broadband Equipment)
Encryption
• 128 bit AES
Operation Temperature
• 0°C ~ 40°C
Storage Temperature
• -10°C ~ 70°C
Humidity
• Operation: 10% ~ 90% RH
• Storage: 5% ~ 95% RH

20D-Link DHP-347AV User Manual
Appendix D - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DHP-347AV)
• Hardware Revision (located on the label on the bottom of the product (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the product).
You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.
For customers within the United States:
Phone Support:
[phone]
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
[phone]
Internet Support:
http://support.dlink.ca
