DNS-120 User’s Manual
D-Link Systems, Inc.
Table of Contents
Table of Contents
Package Contents ............................................................................ 3
Introduction ..................................................................................... 4
Features and Benefits ....................................................................... 5
Hardware Overview .......................................................................... 6
Getting Started ................................................................................. 8
Hardware Installation ....................................................................... 9
Mapping a Drive ............................................................................. 10
Using the Easy Search Utility ......................................................... 13
Using the Configuration Utility ....................................................... 14
Setup Wizard ............................................................................ 15
IP Settings ................................................................................ 18
Device Settings ......................................................................... 19
User Creation ............................................................................ 20
Network Access ........................................................................ 21
FTP Server ................................................................................ 23
Admin Password ....................................................................... 27
Time Server .............................................................................. 28
System Settings ........................................................................ 29
Upgrade Firmware .................................................................... 30
Device Information ................................................................... 31
Help Screen .............................................................................. 32
Download Scheduling ............................................................... 33
Scheduling Status ..................................................................... 36
Networking Basics ......................................................................... 37
Troubleshooting ............................................................................. 43
Technical Specifications ................................................................. 44
Contacting Technical Support ........................................................ 45
Warranty ........................................................................................ 46
Registration ................................................................................... 50

3
DNS-120 User’s Manual
D-Link Systems, Inc.
Package Contents
Note: Using a power supply with a different voltage than the one included with
the DNS-120 will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Package Contents
 D-Link DNS-120
Network Storage Adapter
 CD-ROM with Manual and Software
 Ethernet (CAT5 UTP/Straight-Through) Cable
 5V 2.5A Power Supply
Minimum System Requirements
 Computer with Windows® XP or 2000
 Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above
 USB Hard Drive(s)
 An available Ethernet port on the network

4
DNS-120 User’s Manual
D-Link Systems, Inc.
Introduction
Introduction
The D-Link DNS-120 Network Storage Adapter connects USB drives* to the network,
and provides authorized users access to their files. You can connect up to two standalone
USB 2.0 hard drives or flash drives and instantly have access to all stored files.
The DNS-120 Network Storage Adapter can be configured so that your USB 1.1 or
USB 2.0 drives are accessible over the Internet, making it convenient to access your
files, even when you’re away.
With its built-in backup function, schedule full or incremental backups of important
information on the network. You can set up PC-to-drive or drive-to-drive backups. Either
way, an extra copy of your data remains on the USB drive connected to the DNS-120
and ready to take on the road at anytime.
The DNS-120 Network Storage Adapter does not require you to reboot the system
when adding USB drives to the network, thus eliminating downtime. You can also
prevent any data loss by safely removing the USB drives using the “Disconnect” button
on the back of the DNS-120.
Through plug and play setup, installing the DNS-120 Network Storage Adapter into
your network has never been easier. Simply connect the DNS-120 to a Fast Ethernet
port on your network router or switch, and plug in USB hard drives or flash drives.
Additional setup options can be configured using the built-in Web-based admin
utility including firmware upgrade, user account management, folder management,
scheduled downloads, and DHCP/manual network settings. Using the Easy Search
utility, discover all DNS-120 units on the network and easily create shortcuts to their
USB drives.
The DNS-120 Network Storage Adapter is a fast, simple, and cost-effective way to
connect and share storage on the network.
* USB drives sold separately.

5
DNS-120 User’s Manual
D-Link Systems, Inc.
Features and Benefits
Features and Benefits
Connect USB 2.0/1.1
Drives on the Network
Built-in FTP Server
Backup Function
Safely Add and
Remove USB Drives
Plug & Play
Web-based
Configuration Utility
Add extra storage space to your network! Connect up to
two stand-alone USB 1.1 or 2.0 hard drives or flash drives
to the DNS-120 and easily have access to all stored files.
The DNS-120 can be configured so that your USB drives
are accessible over the Internet, making it convenient to
access your files, even when you’re away.
You can schedule the DNS-120 to automatically create full
or incremental backups of important information on the
network.
The DNS-120 does not require you to reboot the system
when adding USB drives to the network, thus eliminating
downtime. You can also prevent any data loss by safely
removing the USB drives using the Disconnect button on
the back of the DNS-120.
Through plug and play setup, installing the DNS-120 into
your network has never been easier. Simply connect the
DNS-120 to a 10/100 Fast Ethernet port on your network
router or switch, plug in USB hard drives or flash drives,
and configure additional setup options using the
Web-based configuration utility.
Additional setup options can be configured using the
built-in Web-based configuration utility including firmware
upgrade, user account management, folder management,
scheduled downloads, and DHCP/manual network settings.

6
DNS-120 User’s Manual
D-Link Systems, Inc.
Hardware Overview
Front Panel
Ethernet LED
Solid green indicates an Ethernet
connection. Blinking green indicates
activity on the Ethernet network.
Power LED
Solid green indicates
a good power source
connection.
USB LED
Blinking green indicates when an
USB drive is initially connected to the
DNS-120. Solid green indicates the
USB drive is ready for use.
Hardware Overview

7
DNS-120 User’s Manual
D-Link Systems, Inc.
Hardware Overview

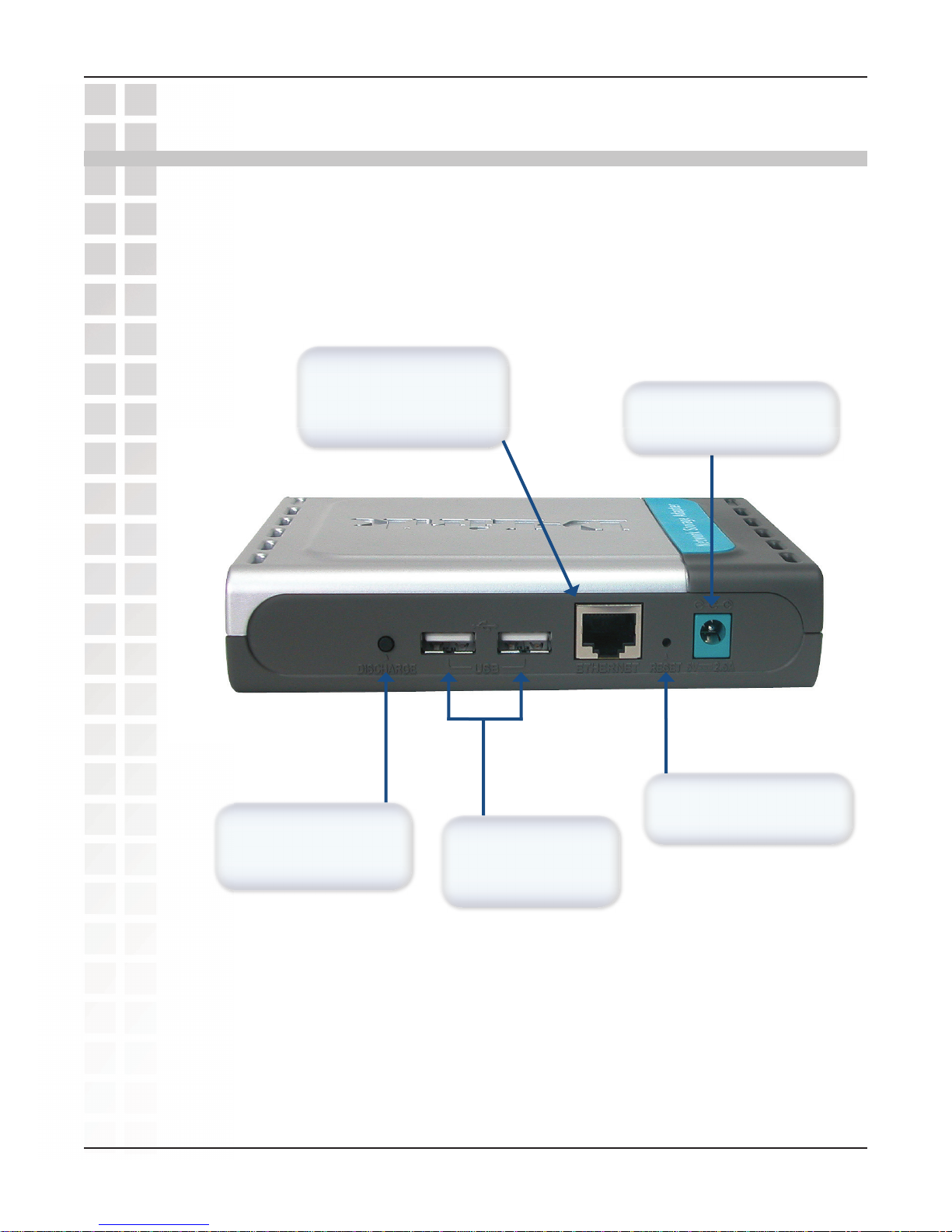

Rear Panel
Disconnect Button
Press this button to safely
disconnect USB drives
from the DNS-120.
Ethernet Port
Connects to your router or
switch using the included
Ethernet cable.
Power Receptor
Receptor for the provided
power adapter.
Reset Button
This button will restore the
factory default settings.
USB Ports
Connects your USB
1.1 or 2.0 drives to the
DNS-120.
Hardware Overview

8
DNS-120 User’s Manual
D-Link Systems, Inc.
Getting Started

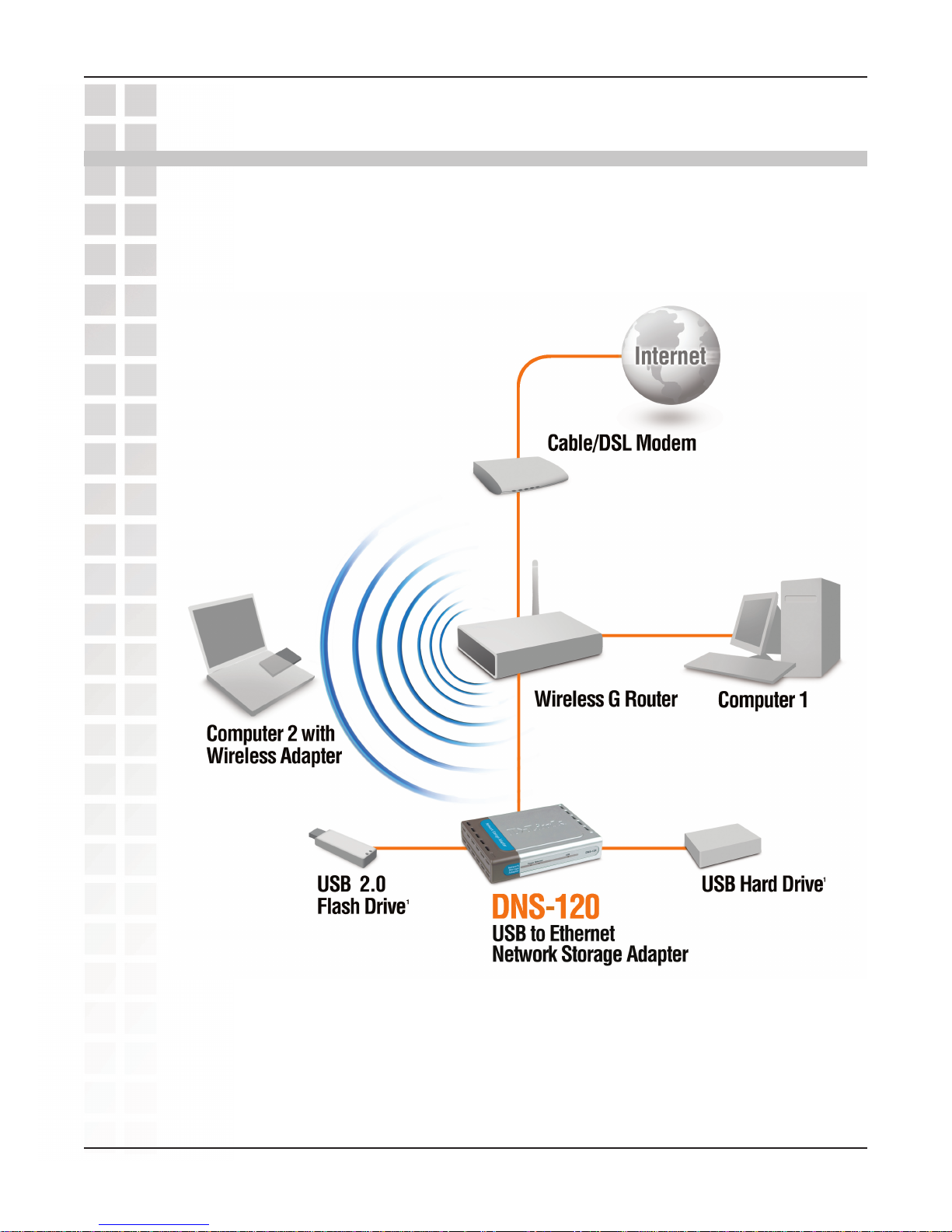

When you have completed the steps in this Quick Installation Guide, your connected
network may look similar to this:
Getting Started

9
DNS-120 User’s Manual
D-Link Systems, Inc.
Hardware Installation
Attach the provided Ethernet cable to the Ethernet port on the rear panel.
1
Attach the other end of the Ethernet cable to an available Ethernet port on
your router or switch.
2
Plug the AC adapter into the receptor located on the back of the device. Plug
the other end of the AC Adapter into a power strip or wall outlet.
3
Attach your USB drive(s) to the USB port(s) on the rear panel of the DNS-120.
The USB LED on the front panel will blink until the drive has been installed.
Once the USB LED is solid green, your USB drive is ready for use.
4
Hardware Installation

10
DNS-120 User’s Manual
D-Link Systems, Inc.
Mapping a Drive
Mapping a Drive

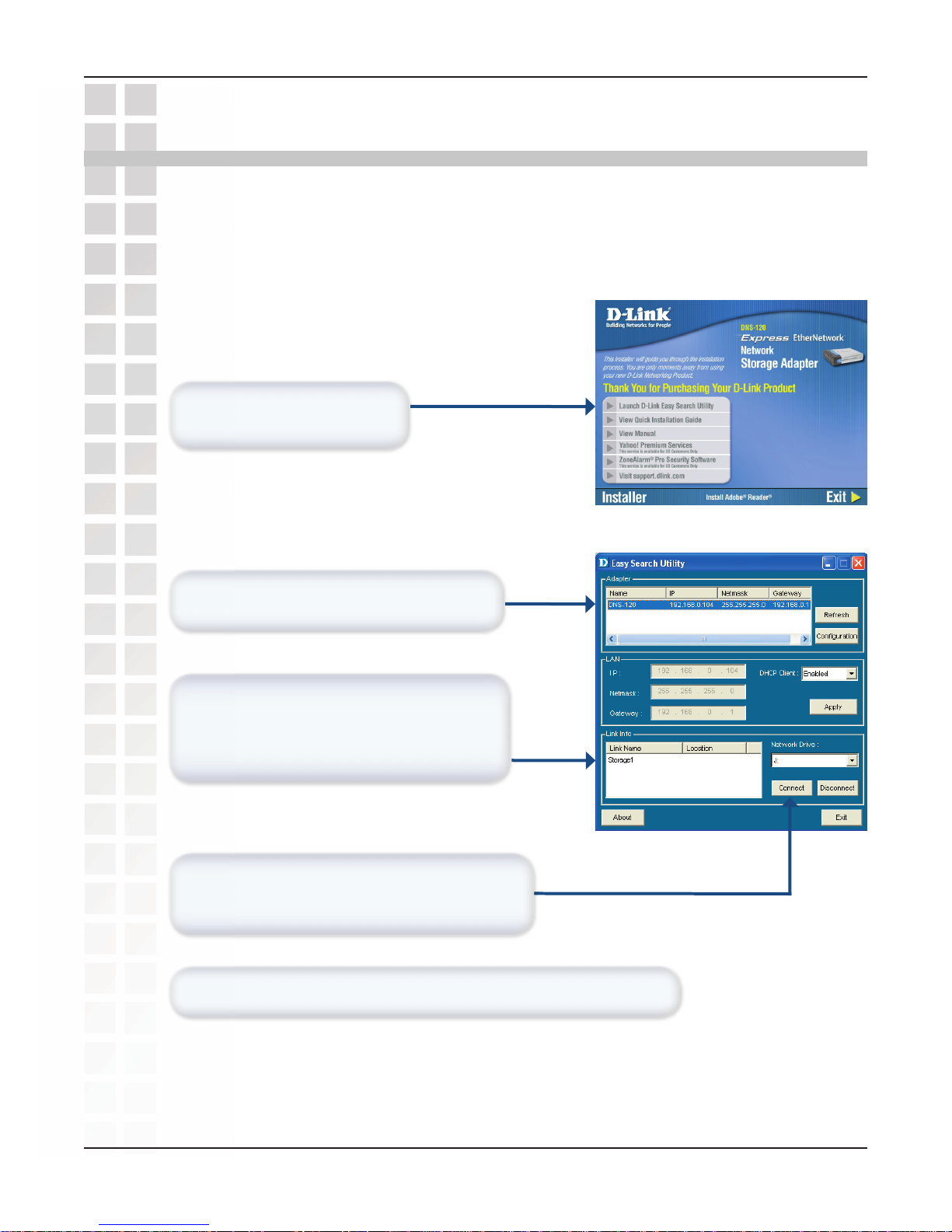

You can use the D-Link Easy Search Utility to map drives to your computer.
Insert the DNS-120 CD into your
CD-ROM drive.
Click Launch D-Link
Easy Search Utility.
Highlight an available DNS-120.
Available shares will be displayed
under Link Info. Highlight the share
you want to map.
Select an available drive letter from the
drop-down menu and click Connect.
Click Disconnect to remove the selected mapped drive.
Once connected, your mapped drive(s) will appear in My Computer. From your
desktop, double-click the My Computer icon and then double-click your mapped
drive to access the fi les and folders.

11
DNS-120 User’s Manual
D-Link Systems, Inc.
\\DNS-120\Shared folder

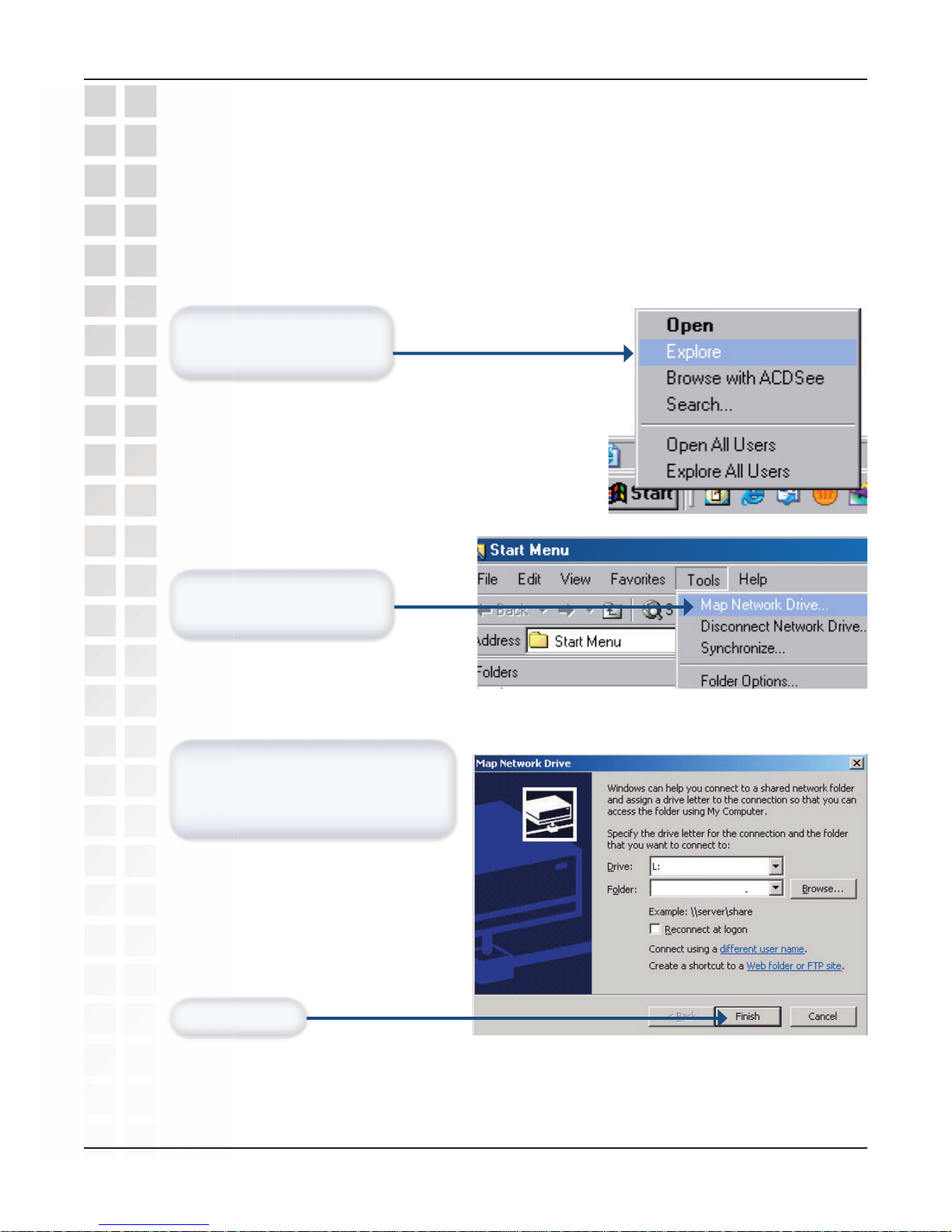

As an alternate method, you can access the DNS-120’s USB drive(s) by mapping the
shared folders as drives in Windows. Please see the following instructions for mapping
a USB drive so that it is accessible from the My Computer screen.
Mapping a Drive (continued)
You will fi nd the DNS-120 shared
folder under the Workgroup Name
that you entered into the Setup
Wizard or in the Home>LAN screen
in the Confi guration Utility.
Click Finish
Right-click Start
and click Explore.
Click Tools and click
Map Network Drive.
Select an available drive letter
and click Browse to locate your
shared DNS-120 folder.
Mapping a Drive

12
DNS-120 User’s Manual
D-Link Systems, Inc.
Mapping a Drive (continued)
Mapping a Drive
Double-click the My Computer
icon on your desktop.
Once connected, all shared folders will appear in My Computer.
Double-click on the mapped
drive to access the fi les and
folders.

13
DNS-120 User’s Manual
D-Link Systems, Inc.

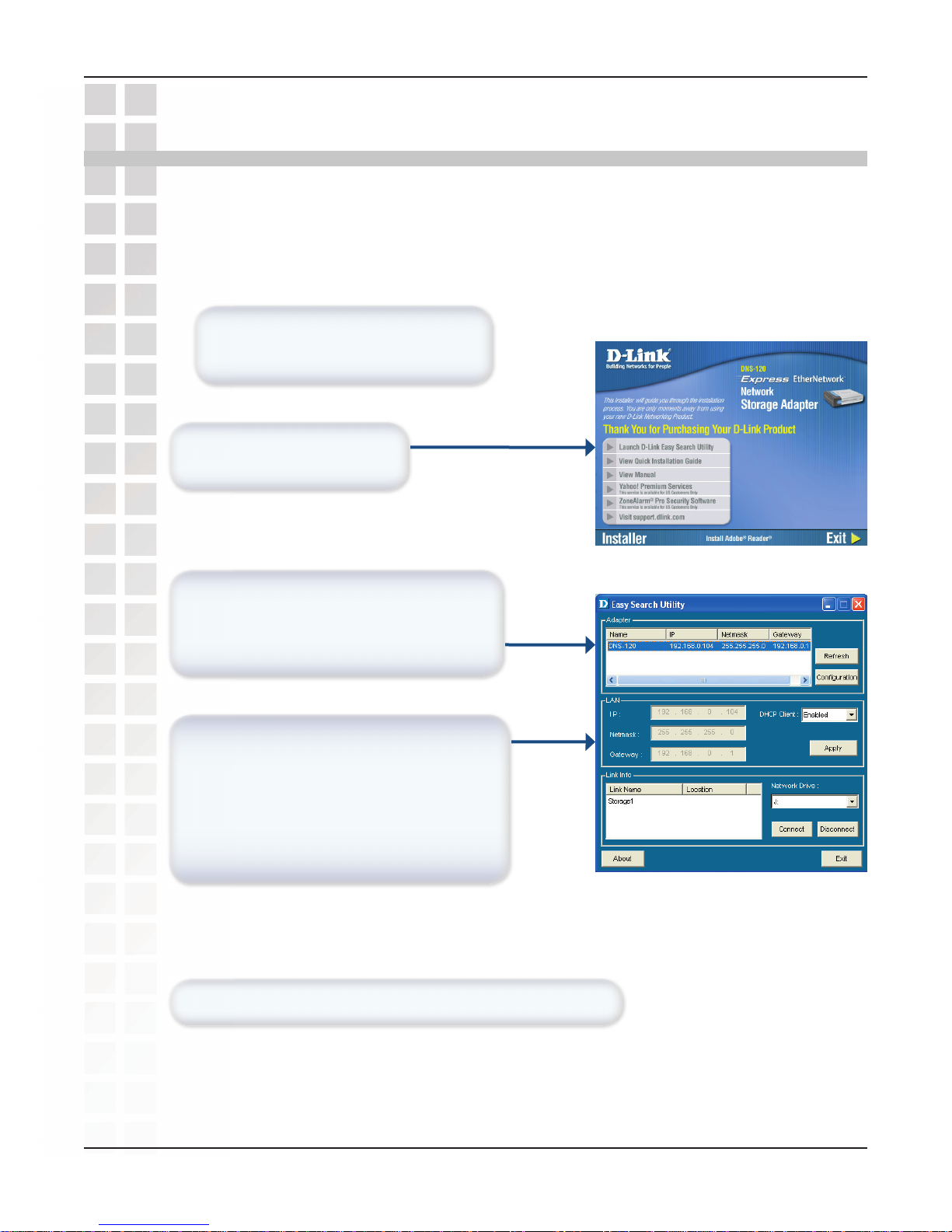

The D-Link Easy Search utility will allow you to connect to the web-based
confi guration utility, assign IP address settings to the DNS-120, and map drives to
your computer.
Using the Easy Search Utility
Using the Easy Search Utility
Insert the DNS-120 CD into your
CD-ROM drive.
Click Lauch D-Link
Easy Search Utility.
Highlight an available DNS-120 and
click Confi guration to access the
web-based utility.
To assign a static IP, highlight the
DNS-120 and select Disabled from
the DHCP Client drop-down menu.
Enter the new IP address and network
settings. Click Apply to save the
settings.
Refer to page 10 for Mapping a Drive instructions.

14
DNS-120 User’s Manual
D-Link Systems, Inc.
Using the Confi guration Utility
Using the Confi guration Utility

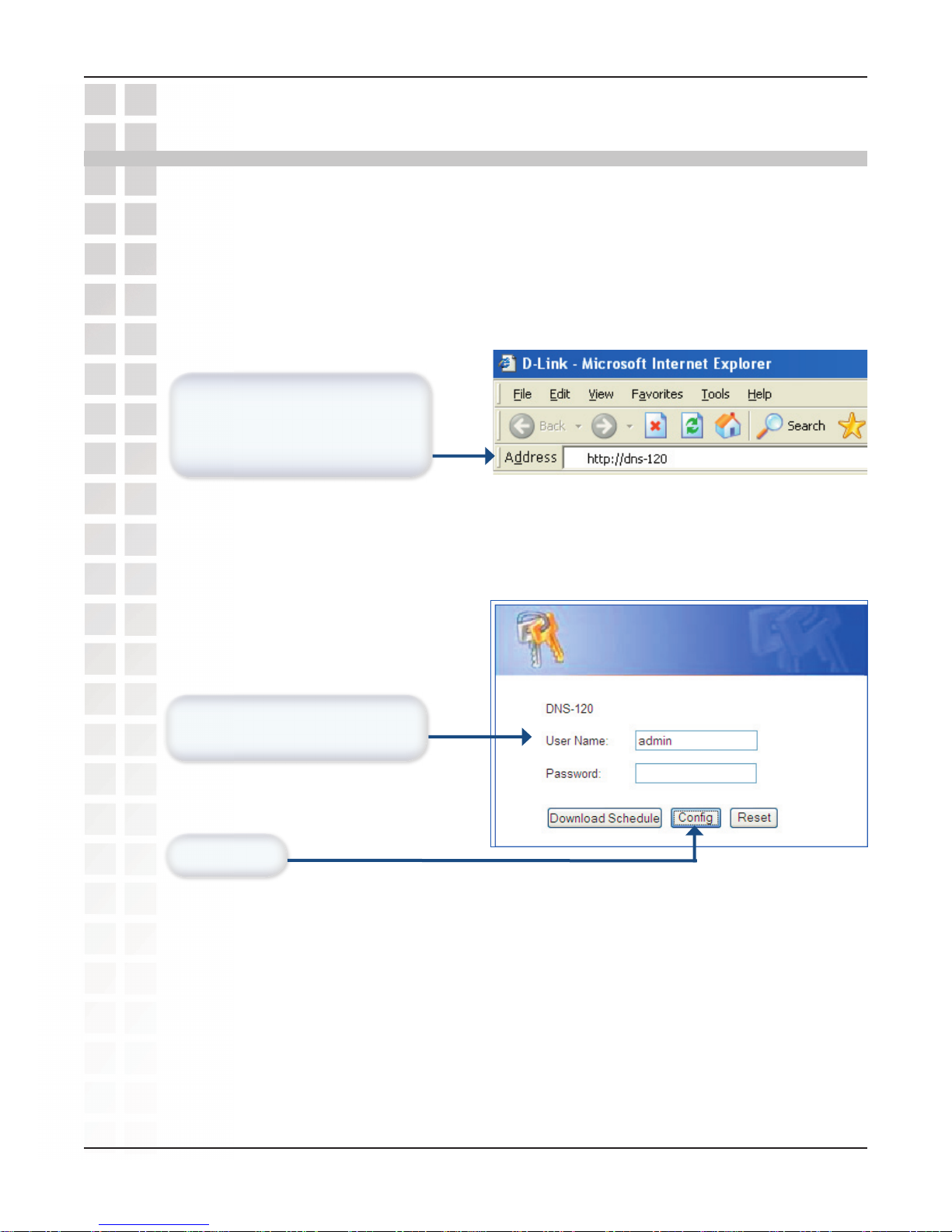

To log into the web-based confi guration of the DNS-120, you may run the Easy Search
Utility included on your CD or type http://DNS-120 into a web browser.
Once you have logged in, the Home screen, shown on the next page, will appear.
Type admin for the username and
leave the password fi eld blank.
Click Confi g
Open your Web browser and type
http://DNS-120 into the URL
address box and then press the
Enter or Return key.
The logon screen will appear.

15
DNS-120 User’s Manual
D-Link Systems, Inc.

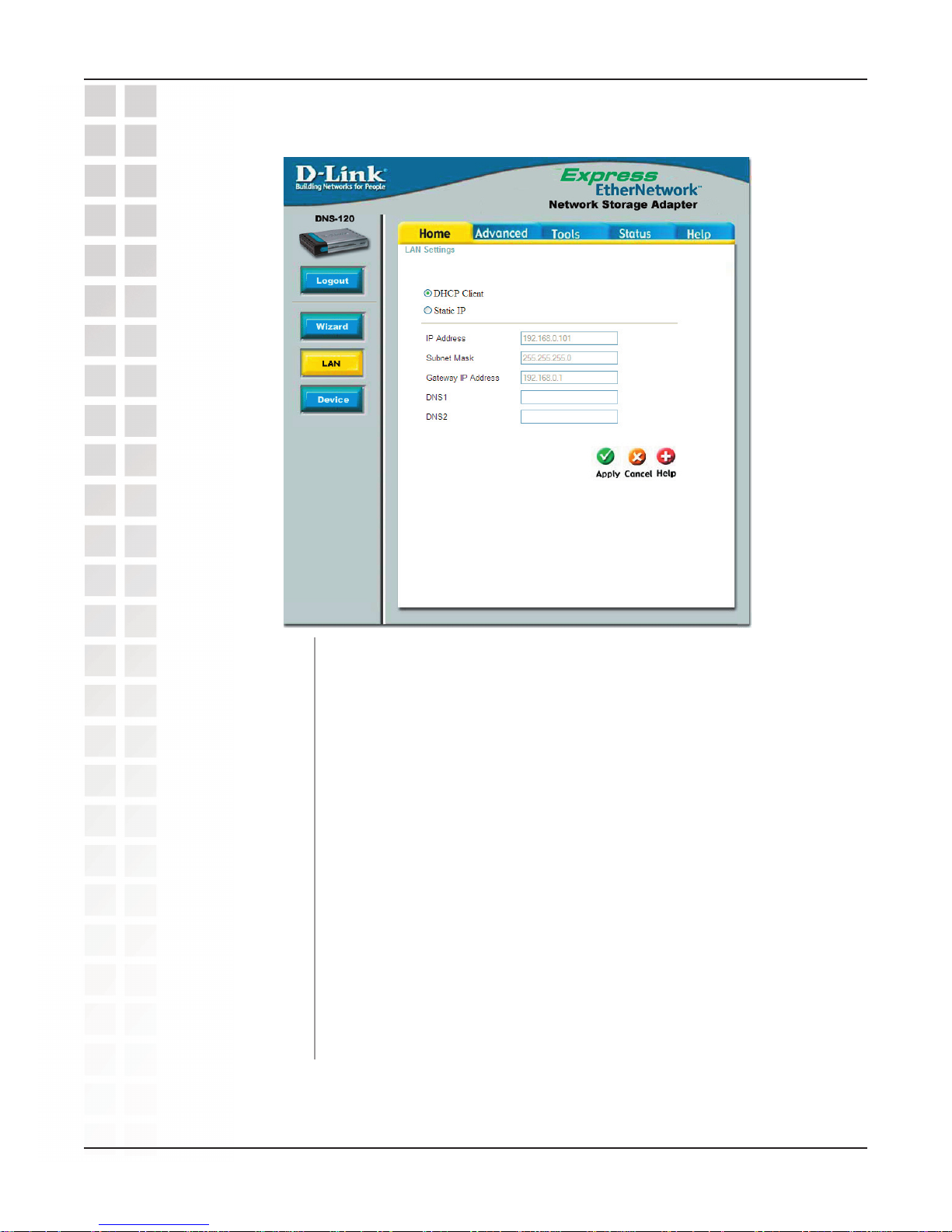

Using the Configuration Utility

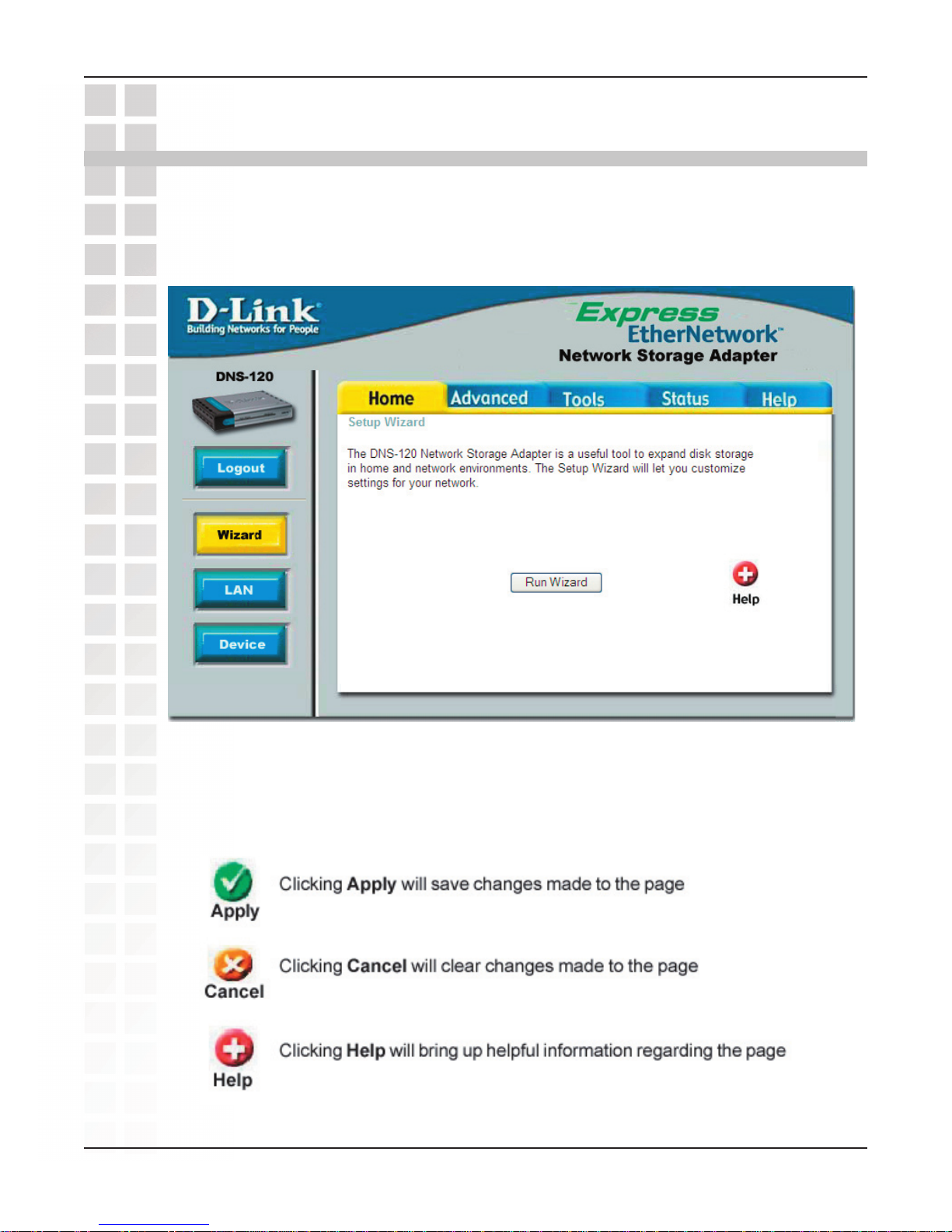

The Home>Wizard screen will appear. Click Run Wizard and the Setup Wizard will
guide you through the basic configuration. For a tour of the Wizard, please see the
following pages in this section.
Home > Wizard
These buttons appear on most of the configuration screens in this section. Please
click on the appropriate button at the bottom of each screen after you have made a
configuration change.

16
DNS-120 User’s Manual
D-Link Systems, Inc.

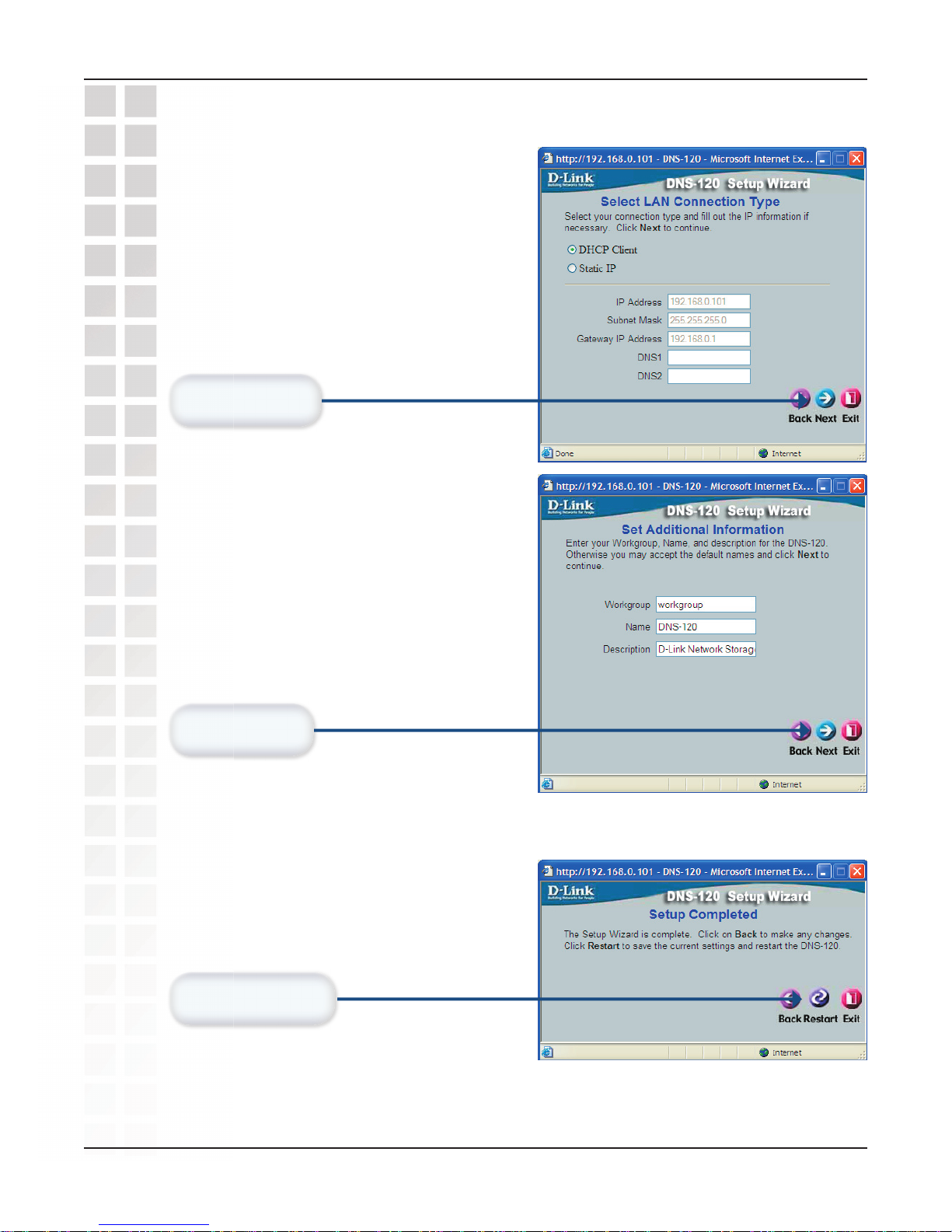

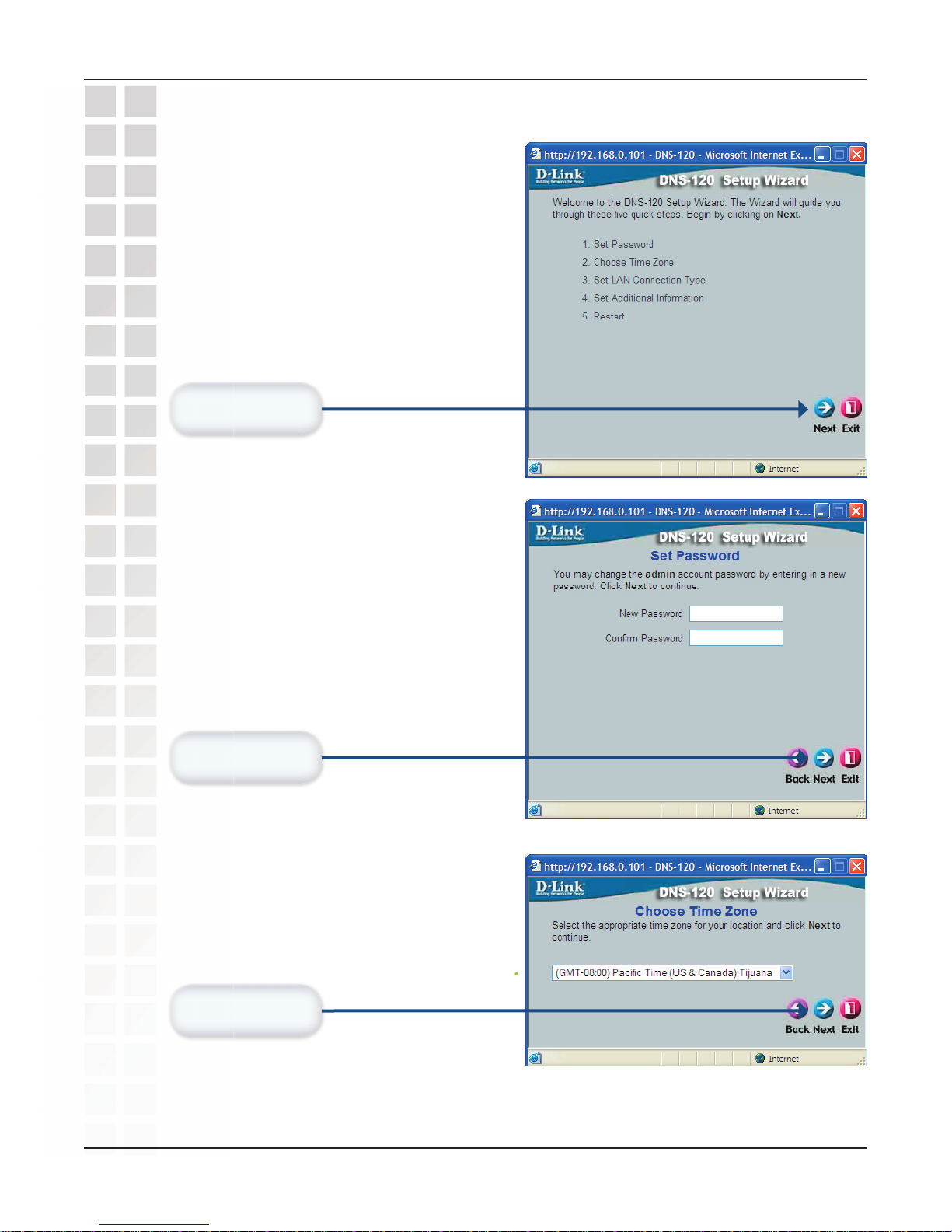

Using the Setup Wizard
Using the Confi guration Utility
The Wizard will guide you through
fi ve steps:
- Password
- Time Zone
- LAN Connection
- Additional settings
Click Next
Click Next
Click Next
Create a new password for your
DNS-120.
Select your Time Zone from the
drop-down menu.

17
DNS-120 User’s Manual
D-Link Systems, Inc.
Using the Setup Wizard (continued)
Using the Confi guration Utility
Click Next
Click Next
Click Restart
Leave DHCP Client enabled if your
network contains a DHCP server or
router. If not, select Static IP and enter
the IP address information to be used.
The IP address must be in the same
range as your network.
Enter the workgroup name of your
network. Enter a name and a description
for the DNS-120.
You have completed the basic confi guration of the
DNS-120 using the setup wizard!

18
DNS-120 User’s Manual
D-Link Systems, Inc.
Using the Configuration Utility
Home > LAN
Select either DHCP Client (default) if you have a DHCP server or
router on your network, or Static IP if you want to assign the network
settings manually.
Enter the IP address of the DNS-120 here, when Static IP is
selected.
Enter the subnet mask here, when Static IP is selected.
Enter the gateway address here, when Static IP is selected. This is
normally the LAN address of your router.
DNS (Domain Name System) is an Internet service that translates
domain names into IP addresses. Enter a DNS address here. If you
are using a router in your network, you can usually enter the router’s
LAN IP address as the DNS address.
Click Apply to save the changes.
DHCP Client/
Static IP:
IP Address:
Subnet Mask:
Gateway Address:
DNS1/DNS2:
Apply:

19
DNS-120 User’s Manual
D-Link Systems, Inc.
Home > Device
Using the Configuration Utility
Workgroup:
Name:
Description:
Enter the name of the workgroup of your network.
Enter a name for the DNS-120 device. This is useful if you have
more than one DNS-120 devices on the network.
Enter a description of the DNS-120.

20
DNS-120 User’s Manual
D-Link Systems, Inc.
Advanced > User
Using the Configuration Utility
Enter a user name.
Enter a password for the user.
Enter the password again for confirmation.
Click Apply to save your settings.
User Name:
Password:
Comfirm Password:
Apply:
Users you create will be listed under User List.
To change a current user’s password, click the icon next to a
user listed under User List. Click Apply to save any changes.
To delete a user, click the icon next to a user listed under User
List. Click Apply to save any changes.
You will need to create users when assigning permissions, using FTP, and using the downloading
feature.
