D-Link DHN-1000 User manual

DHN-1000
HomeLink PhoneLine
to Ethernet Bridge
User's Manual

Table of Contents for the DHN-1000
HomeLink Phoneline to Ethernet Bridge
Introduction i
Contents of Package ii
Ethernet Technology 1
Networking with DHN-1000 2
Getting to Know your DHN-1000 3
Installation 4
Troubleshooting 10
Networking Basics 13
Technical Support 40
Specifications 41
Warranty 47
Registration 50

i
Thank you for purchasing D-Link's DHN-1000 HomeLink
Phoneline to Ethernet Bridge.
The DHN-1000 simplifies Ethernet to Home phone line net-
working.
Being compatible with HPNA 2.0, Internet sharing has never
been easier through your Broadband Cable/xDSL modems.
A stand-alone device, the DHN-1000 is completely inde-
pendent of any Operating system.
The DHN-1000 has one RJ-45 10/100 NWay, and one RJ-11
HPNA 2.0 connection.
You simply connect both ends, and you're in business!
There is no software to configure.
The DHN-1000 is targeted for the home or small office.
INTRODUCTION

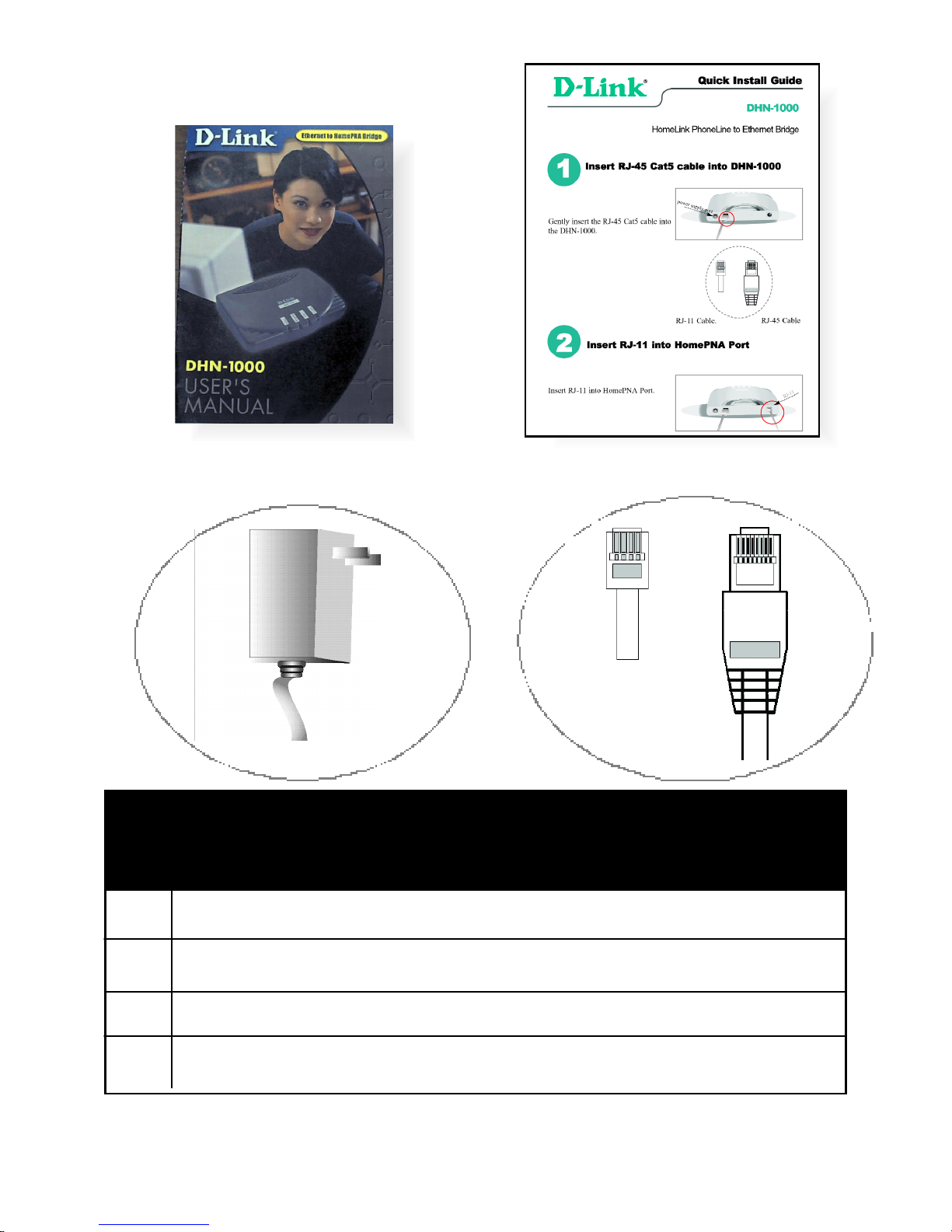

CONTENTS OF PACKAGE
ii
DHN-1000 HomeLink PhoneLine
to Ethernet Bridge
APower Supply
BCables: RJ-45; RJ-11
CUser’s Manual
DQuick Install Guide
A
DC
B

ETHERNET TECHNOLOGY
Networking today has opened a whole new world in data communi-
cations. Networking is simply connecting individual computers in a
way so that they can share resources such as files, applications,
and peripherals connected to the Local Area network (LAN).
The most popular and cost efficent type of network is an “Ethernet”
network, which has created a large abundance of Ethernet prod-
ucts on the market today.
A Local Area Network is the most convenient way to share infor-
mation and resources. A LAN is a network that covers a “local”
area, like a floor or building. It let’s you easily transfer files
between PCs, share printers, and share a Cable or DSL modem
among several users.
The basic components of a network are: PC’s, Cables, Network
Interface Cards (NICs), Hubs or Switches, and Network Operating
Systems (NOS).
Functions and Features:
One RJ-45 NWAY Auto sensing Ethernet port
One RJ-11 HomePNA port
Power Adapter
1

DI-704
Residential Gateway
Cable or DSL Modem
10Mb HPNA 2.0
Phoneline LAN
DHN-120
(USB HPNA Adapter)
DHN-520
(HPNA PCI Adapter)
Printer
Phone jack
DFE-680TX
PCMCIA Adapter
DFE-530TX+
PCI 10/100 Adapter
Cat5 Cable
Cat5 Cable
Cat5 10/100 Ethernet Cable
DHN-1000
(HPNA to Ethernet Bridge)
2

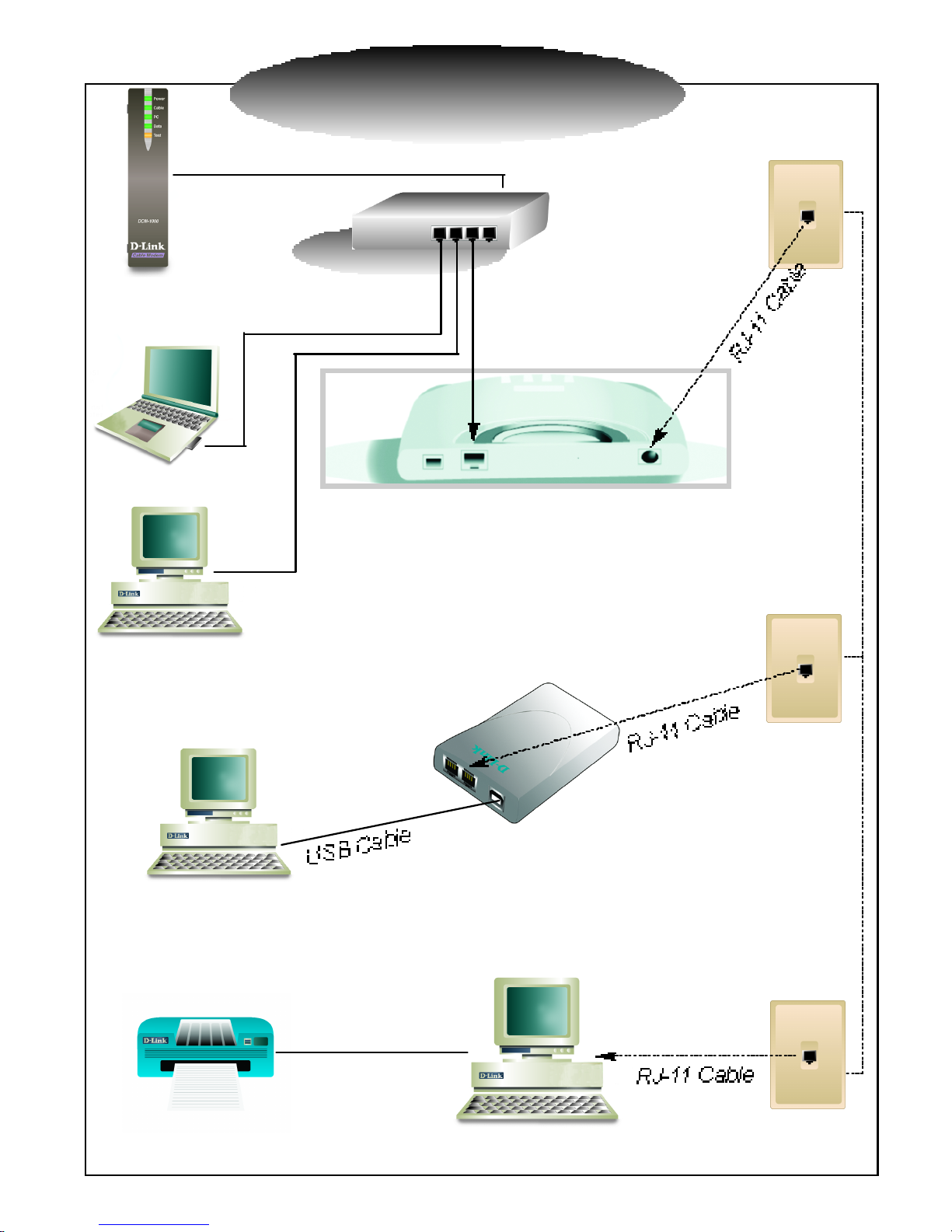

Networking with DHN-1000

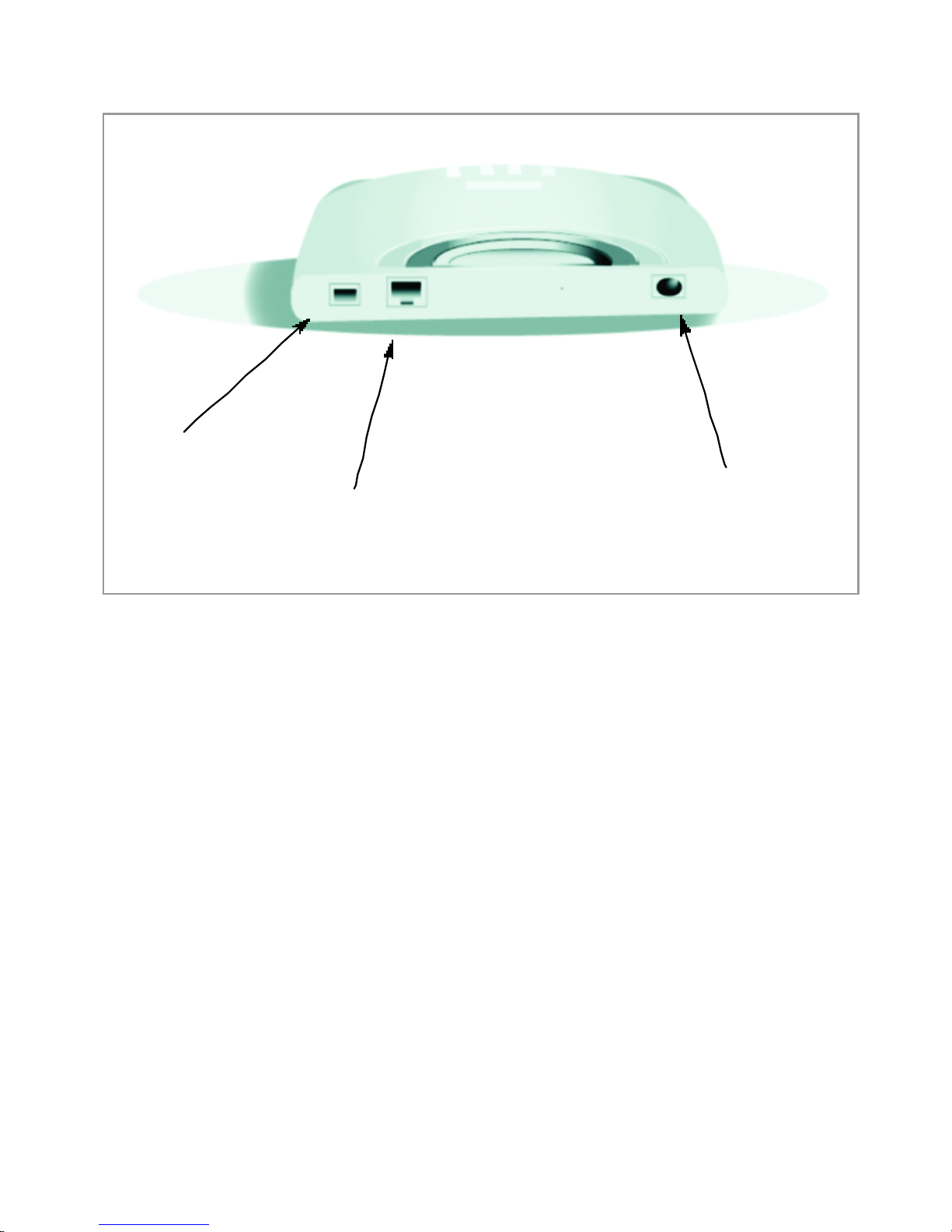

GETTING TO KNOW YOUR DHN-1000 HPNA 10 Mb BRIDGE
3
HPNA 2.0 HPNA 2.0 RJ-11 port. Connect to your RJ-11 tele
phone line outlet.
LAN Connect to an Ethernet PC or Residential Gateway
10/100Mb RJ-45 port.
Power Connect your power suply to your DHN-1000
Bridge
Power Supply
Port RJ-45 Port
10/100 Mb Ethernet Switch
RJ-11 Port
(HPNA)

INSTALLATION
4

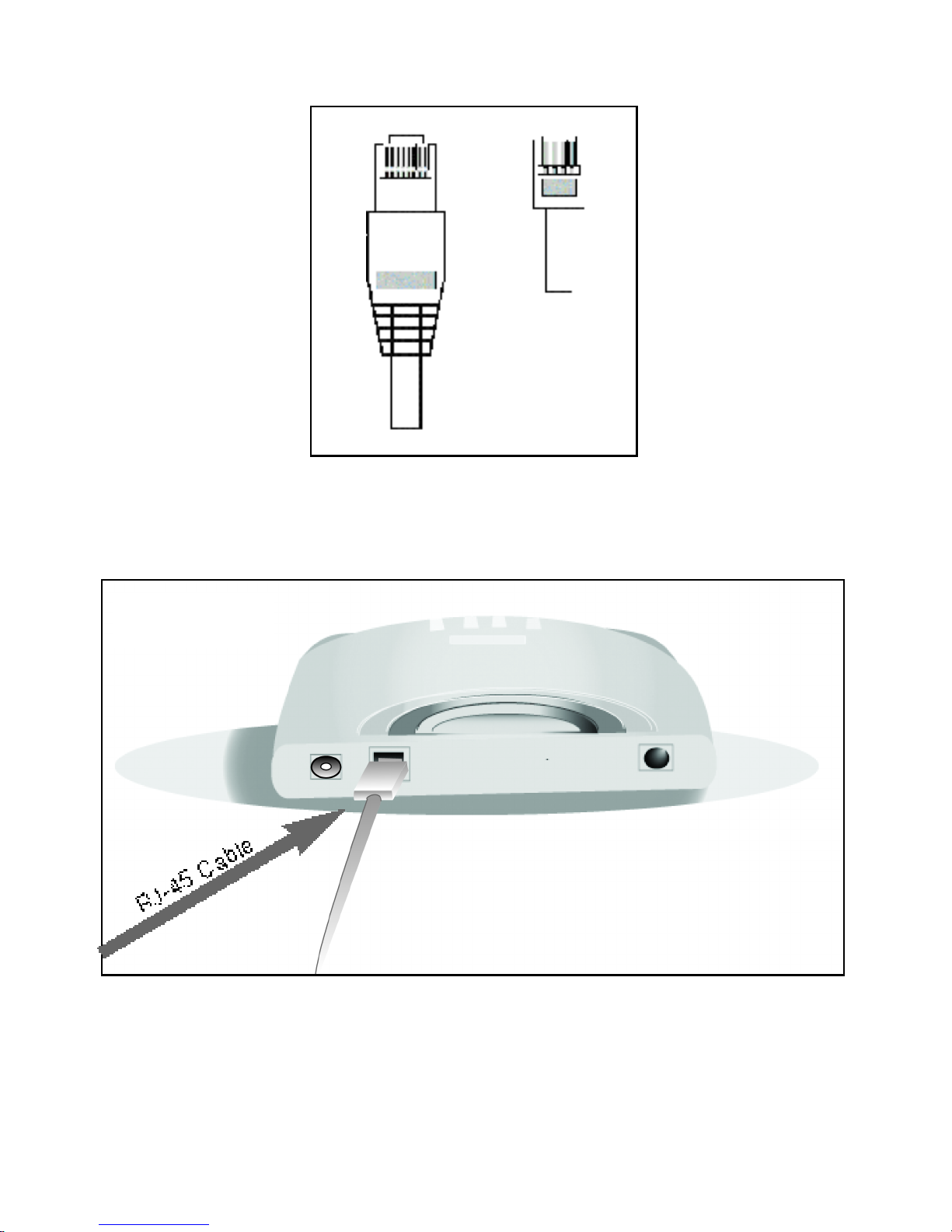

Figure 1 - Gently insert the RJ-45 Cat5 cable into DHN-1000
RJ-11 Cable
(telephone)
RJ-45 Cable
(Ethernet)
Step 1:

INSTALLATION continued
5

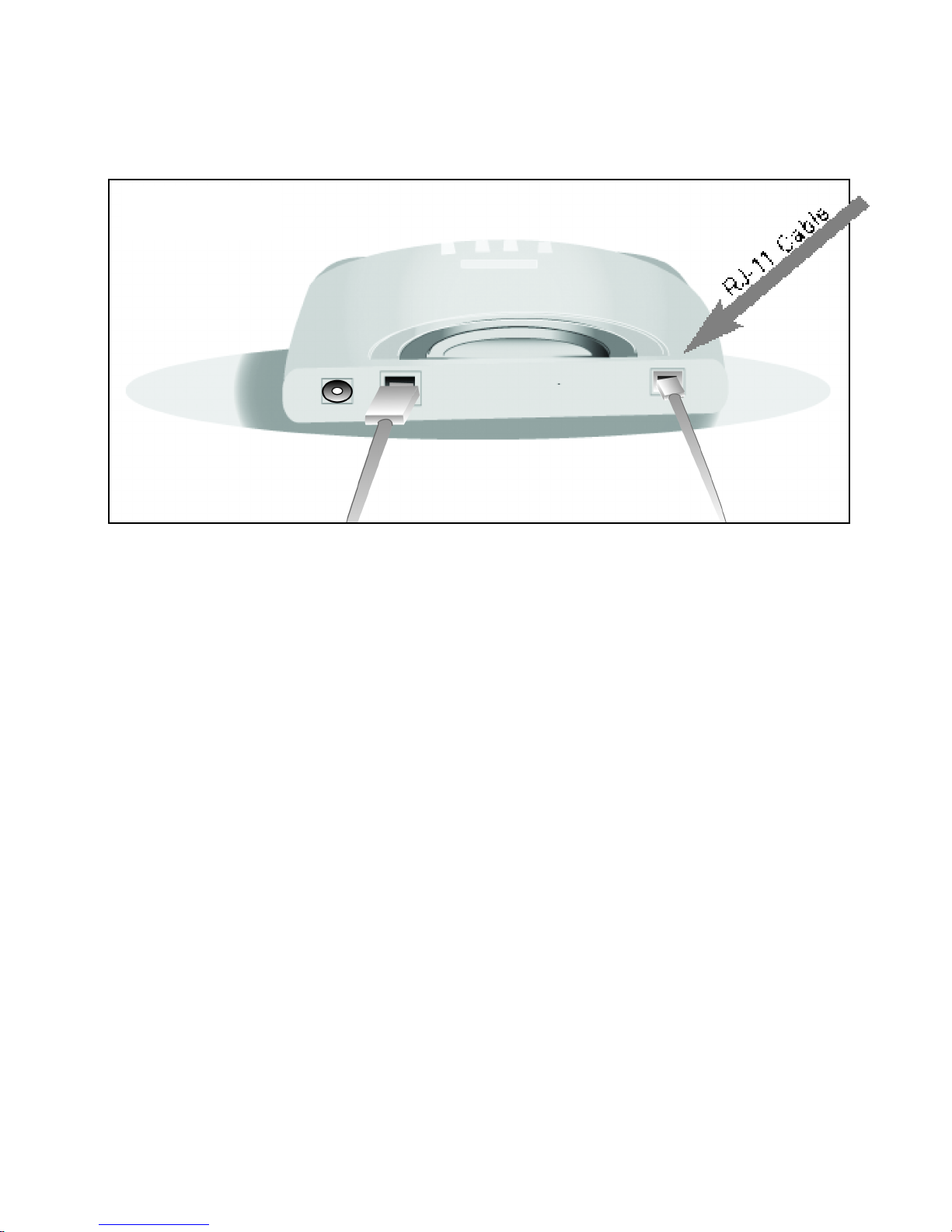

Figure 2 - Insert RJ-11 into HomePNA Port
Step 2:

INSTALLATION continued
6

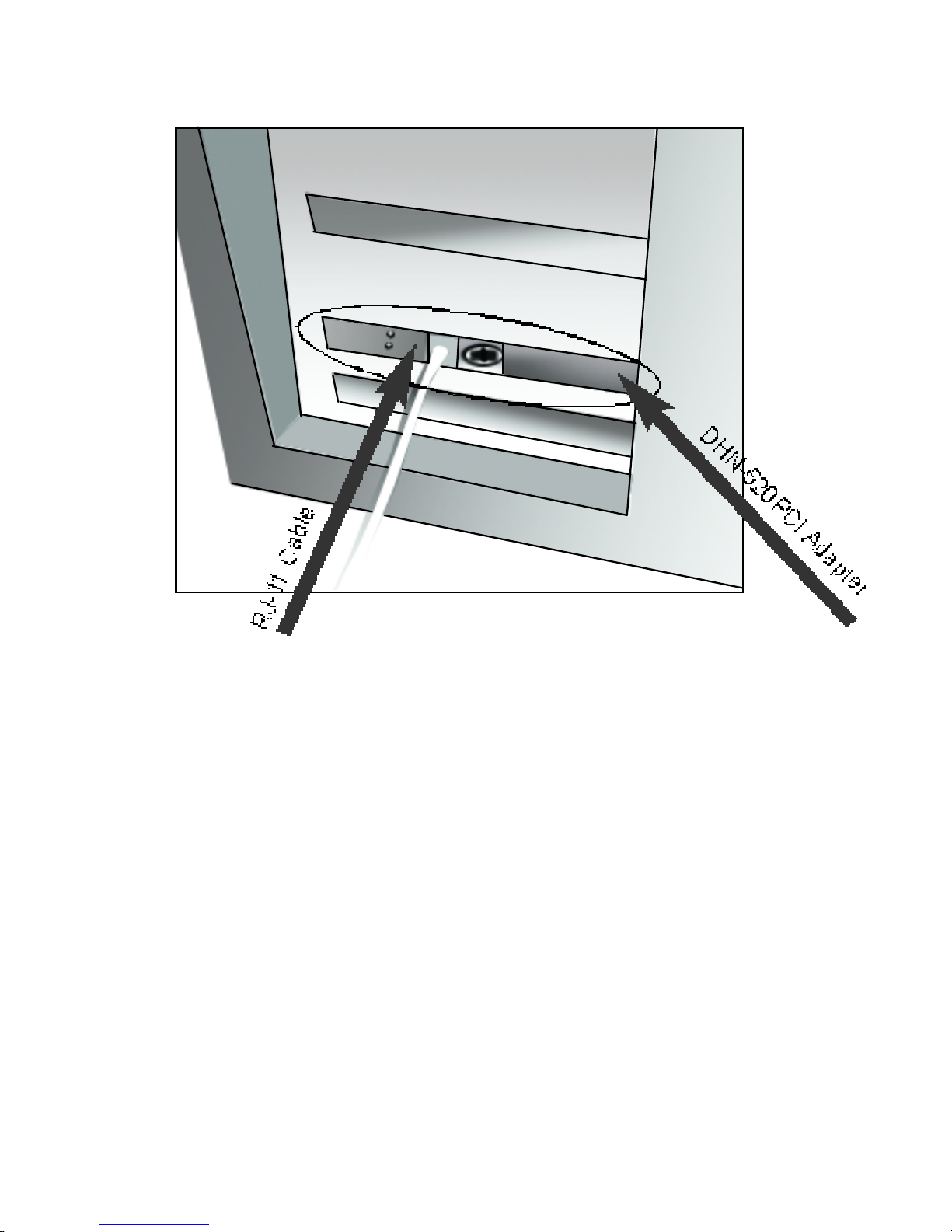

Figure 3 - Install DHN-520 HomePNA adapter into the PC
and connect RJ-11
Step 3:

7
INSTALLATION continued

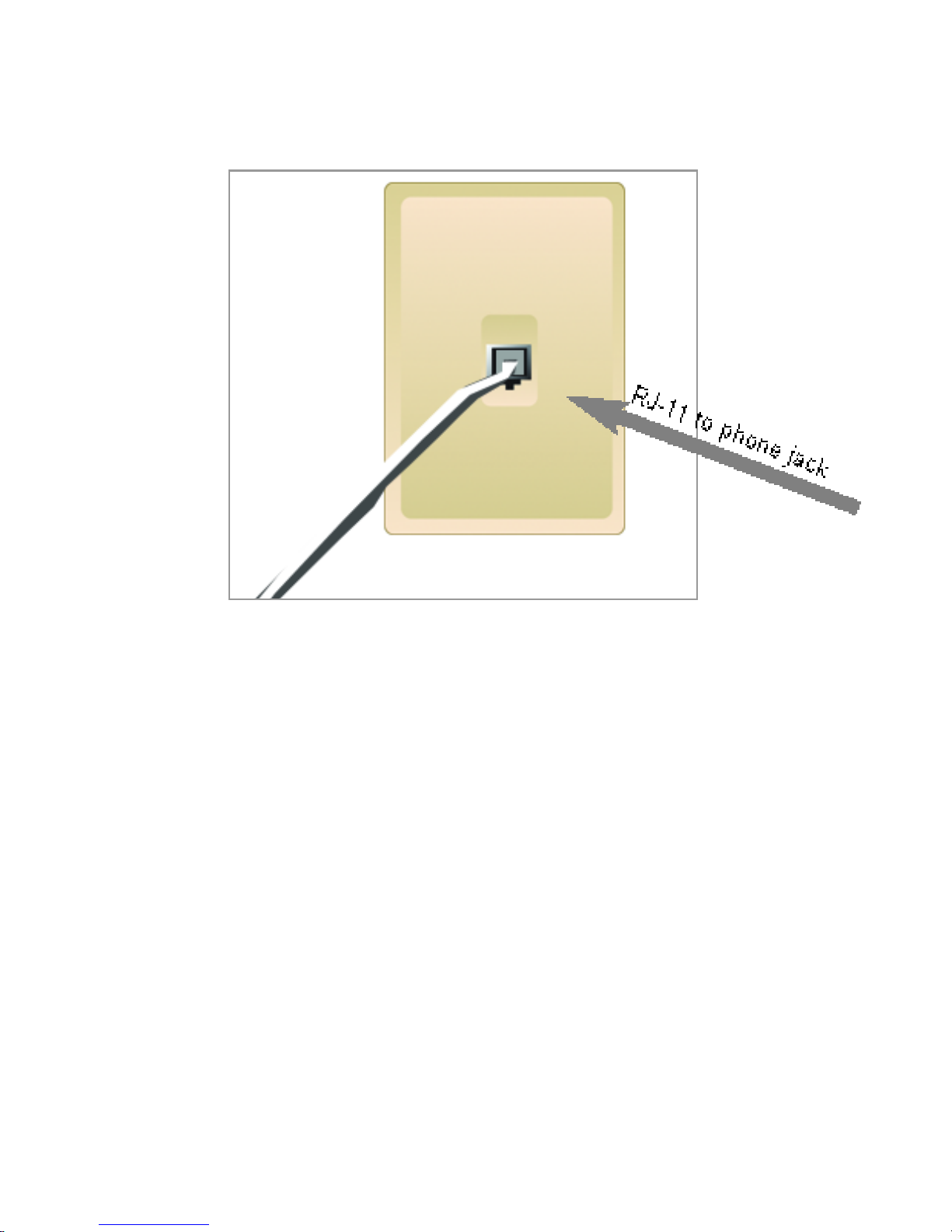

Figure 4 - Connect the RJ-11 phone line from your DHN-1000
to your existing phone line outlet.
Step 4:

8
INSTALLATION continued

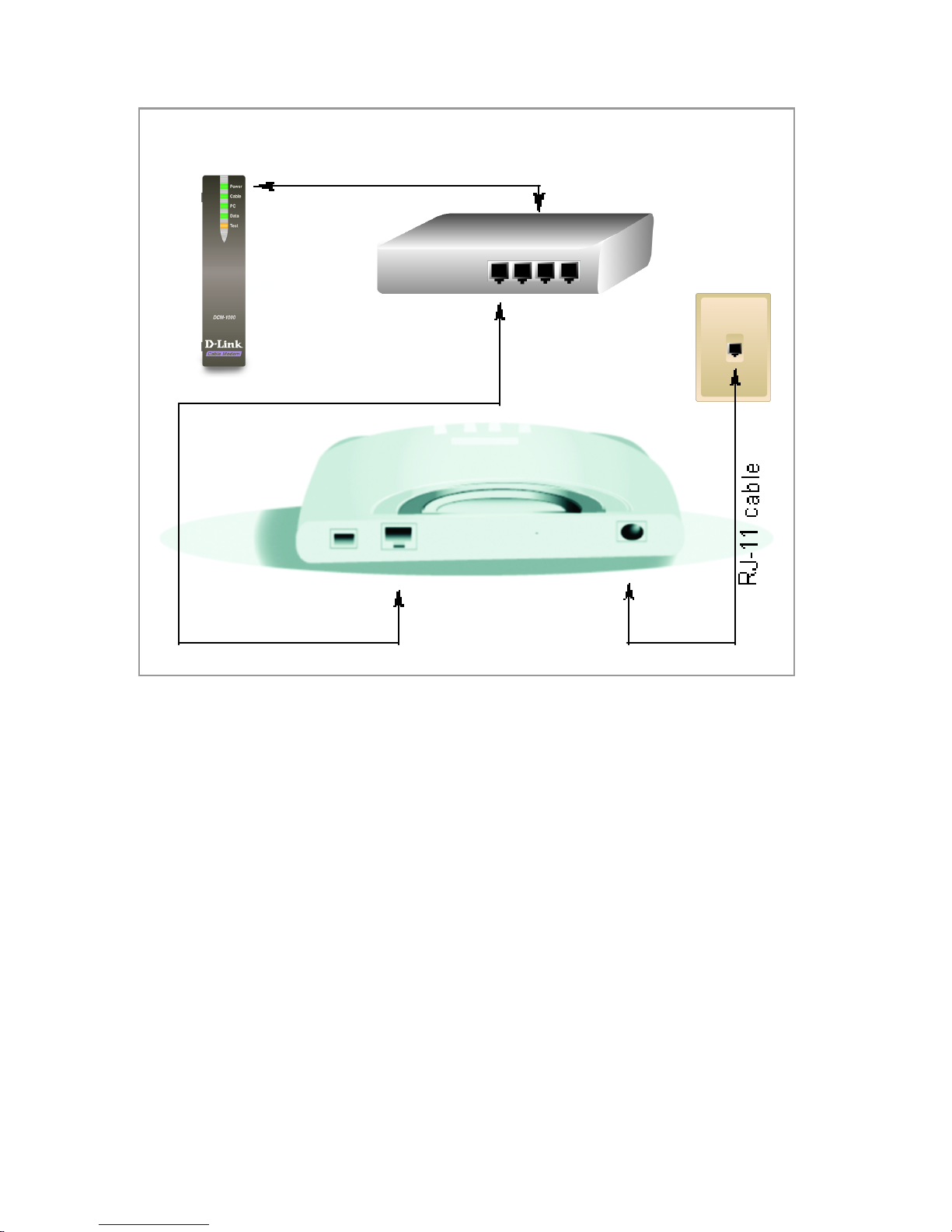

Figure 5- Connect the DHN-1000 Ethernet port to a DI-704
Residential Gateway.
Step 5:
RJ-45 cable
Residential Gateway
DHN 1000

INSTALLATION continued
lPower indicator
lEthernet port indicator
lHPNA HomePNA port
lActivity indicator,
(when blinking it shows network activity)
9

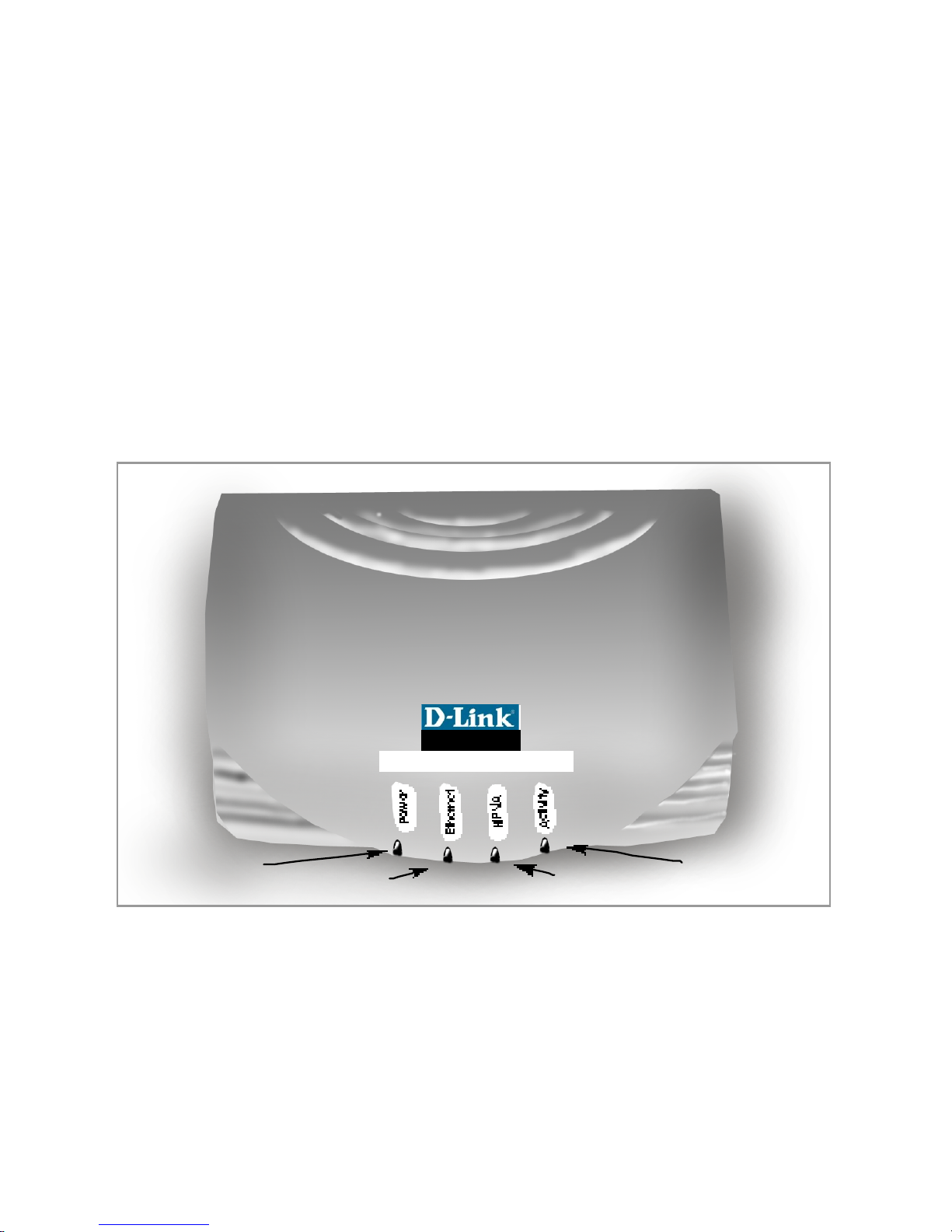

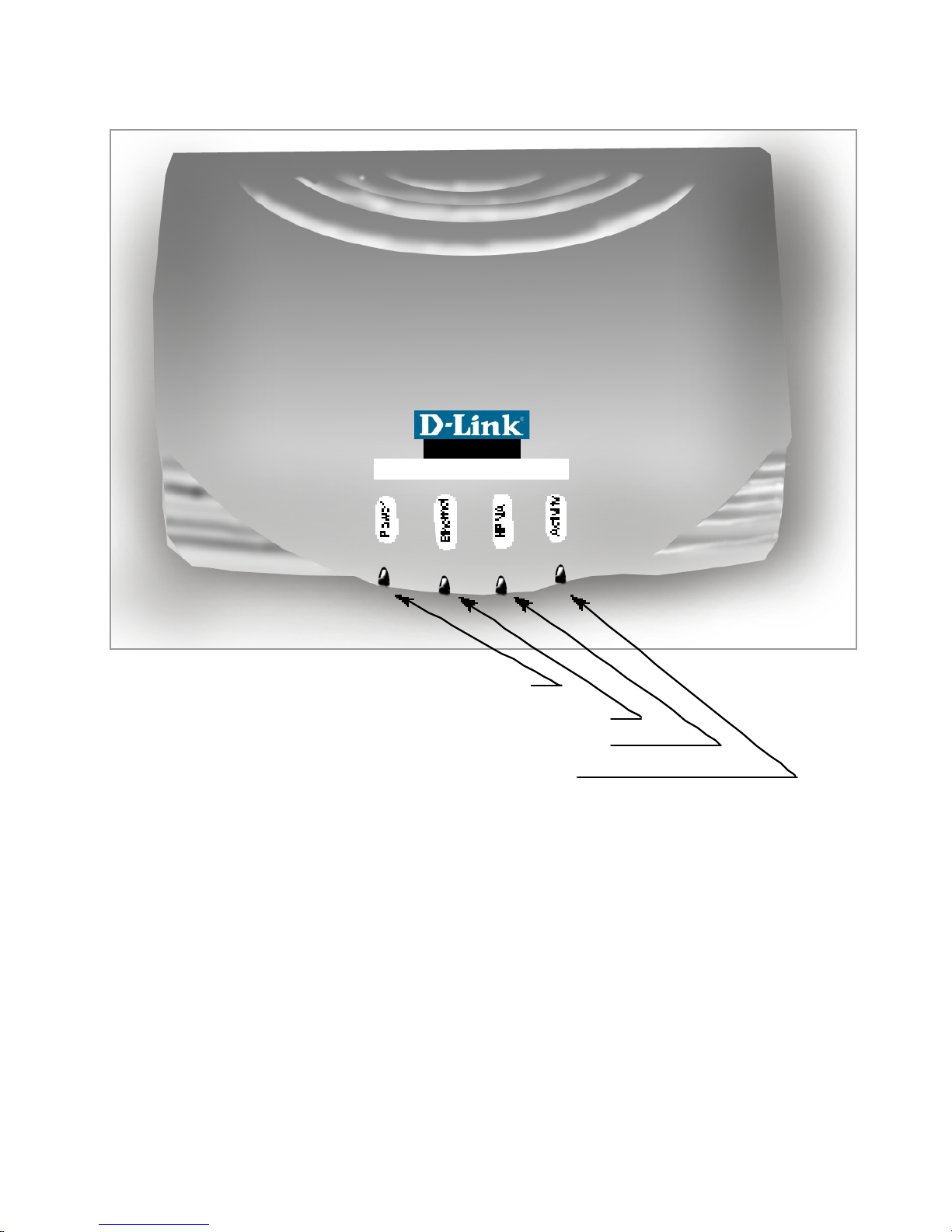

Figure 6 - DHN-1000 Indicator lights
DHN-1000
HomePNA Ethernet Bridge

TROUBLESHOOTING
Computer Networking can be easy to install and maintain, giving the
user the ability to share and transfer files. Occasionally, network prob-
lems arise and the user is faced with having to troubleshoot the net-
work problem. Taking the best approach to trouble shooting a network
problem is to start at the very simplest level and work your way up.
On the following pages we have covered common troubleshooting sit-
uations. Please read the following section. (Please see the disclaimer
on page 43).
UNDERSTANDING INDICATORS
10
Indicator Lights:
Power The power LED will light up when DHN-1000 is
powered up.
Ethernet Will light up when corresponding port is sending
data over the network.
HPNA Will light when HPNA to Ethernet is being bridged.
Activity Will light up when there is network activity.
Power Ethernet HPNA Activity
DHN-1000
HomePNA Ethernet Bridge

11
Problem 1: The LEDs on my DHN-1000 are not lighting up.
Solutions
·lMake sure the DHN-1000 bridge is plugged into
a power strip.
·lMake sure that your HPNA network does not
exceed 1,000 feet. If your HPNA PC's are more
than 1,000 feet apart, your network performance
may be diminished, which may result in data
loss.
·lMake sure that your RJ-45 cable is properly
inserted into the DHN-1000's Ethernet port as
well as your Gateway or Switch.
Problem 2: My DHN-1000 is not working.
Solutions
·lMake sure the Cat5 cable from the Gateway to
the DHN-1000 is in good condition.
·lWhen connecting the bridge to your PC, Switch
or Gateway, make sure all your network
devices are powered down. Connect all cables
to your devices, then power on.
Problem 3: Cannot get connected to the LAN network
using only a 10/100Mb Ethernet NIC card and HPNA 2.0
PCI or USB adapters.
Solutions
lMake sure that your Cat5 cable is in good working
order.
lCheck for proper configuration of your 10/100
and DHN-520 adapters in your Network
Neighborhood properties.
TROUBLESHOOTING

TROUBLESHOOTING
12
Problem 4: What if I can't connect to the network and
suspect a faulty RJ-11 cable.
Solution
lYou may wish to plug a standard phone into an
active phone jack to test both the line and the cable.
Note: Theoretically, 30 PC’s are the maximum accommodated on
the network, with the entire length of cable not exceeding 150
meters (500 feet). However, due to phone line conditions, D-
Link recommends 5 to 10 PC’s on your HPNA network.
Note: After installing a 10/100 NIC card, make sure that the
card and hub both have “link lights” when connected.
Check for proper installation of HPNA PCI and HPNA USB
adapters in your Operating System.
Problem 3:continued
Solutions
(Please refer to the Network basics for proper configuration)
lRefer to pages 14 & 15 under Computer
Identification and Workgroup name.
lRefer to pages 27 thru 39 for configuring both
dynamic and static addresses for TCP/IP.
Note: A “cross-over” or “straight-through” cable can be used
on the DHN-1000 Ethernet port. The DHN-1000 will auto-detect
a “straight-through” or “cross-over” cable, and make the
appropriate connections.

NETWORKING BASICS
You may have had some ideas about how to use your new
network prior to installing this kit - sharing files, printing from an
computer on the network, or accessing the Internet on multiple
computers with one connection. This section will help you get
started on those ideas or even give you some new ones.
However, this section is not intended to be a comprehensive
guide to networking, it is just an outline of a few networking
basics.
If you are interested in learning more about networking, we
have identified some Internet resources that may be of interest:
D-Link Systems, Inc.
http://www.dlink.com
D-Link is one of the largest manufacturers of Ethernet products
in the world. D-Link’s technological expertise and dedication
to providing quality products at a low price makes D-Link a
good place to watch for the newest in networking innovations.
Or, you may want to get the newest drivers available for your
Network Adapters.
13

NETWORKING BASICS
Computer Identification
If you had previously given your Windows 98 computers
names or if you are using Windows 98, you may need to
verify that each computer has a unique name and common
workgroup name.

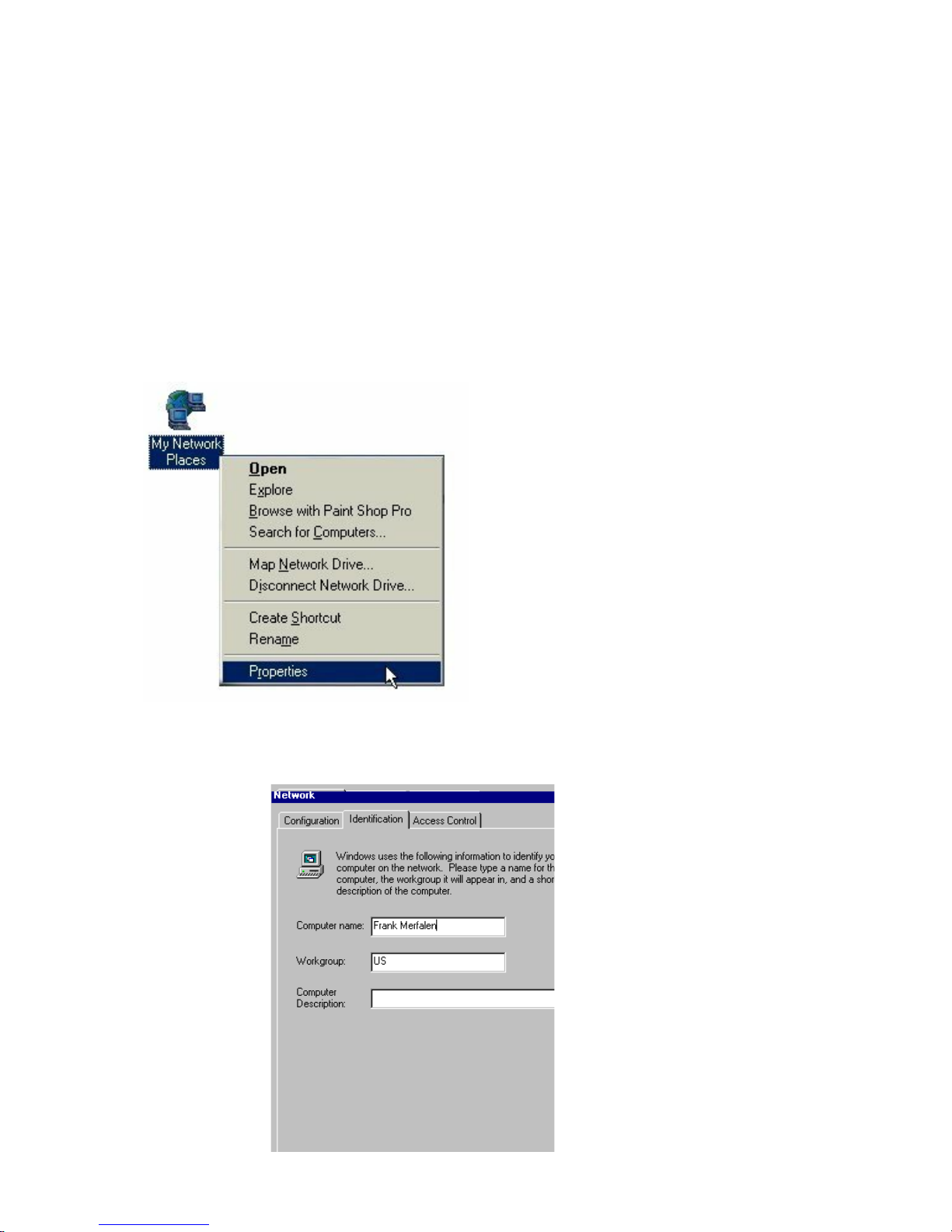

A. On your Desktop, right-click the icon "Network
Places" and select "Properties" from the context menu.
B. Click the "Identification" tab on the top of the dialog box.
14

NETWORKING BASICS
Computer Identification
C. Type a unique, identifying name for this particular computer
in the "Computer name:" box. This will be the name that other
computers on your network will use to communicate with this
computer. Each computer’s name must be unique on a
particular network or confusion will result. (The computer’s
name should be 15 or fewer characters with no spaces.)
D.Type the workgroup name this computer will be a part of in
the "Workgroup:" box. All of the computers on your network
should have an identical Workgroup name.
E. The "Computer Description:" box is optional. You may enter
a description that will help you identify this computer on your
network. Then click "Close".
F. Repeat this process for each computer on your network to
ensure that they all have a unique "Computer Name" and
identical "Workgroup".
15

NETWORKING BASICS
Sharing Files
With your computers connected together on a network, you
may now open and save files on another computer. You will
be able to specify particular folders or disk drives to "share"
and even password protect them. The steps below will enable
you to share specific files and folders with other computers on
your network.

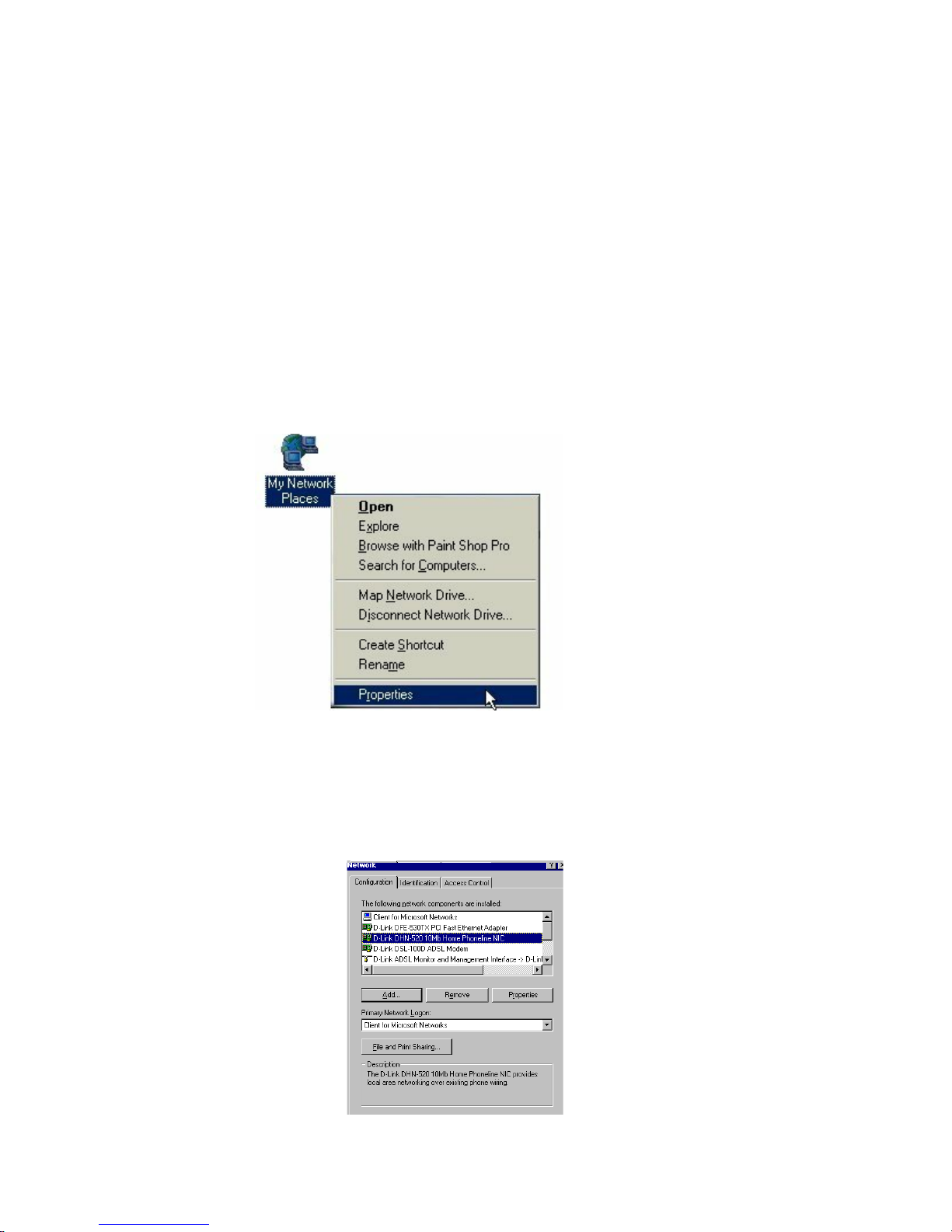

A. On your Desktop, right-click the icon "Network
Places" and select "Properties" from the context menu.
B. This dialog box is where you will come to configure most
of your computers network settings. It is also available through
the "Network" icon in the Control Panel.
C. Click the "File and Print Sharing·" button.
16
