D-Link DVG-6004S User manual

©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DVG-6004S FXO
VoIP Router
Before You Begin
You must have at least the following:
‧ A subscription with bundled service provider included in this package
‧ A Computer with a CD-ROM drive and an Ethernet port running a Windows
‧ Ethernet based broadband modem
Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
This product can be set up using Internet
Explorer or Netscape Navigator, 6.x or
above, with Javascript enabled DVG-6004S
FXO
VoIP Route
r
DVG-6004S FXO VoIP Router
Phone Cord
CAT5 Ethernet Cable
CD-ROM
12V DC Power Adapter
Using a power supply
with a different voltage rating
will damage this product and
void the warranty

2

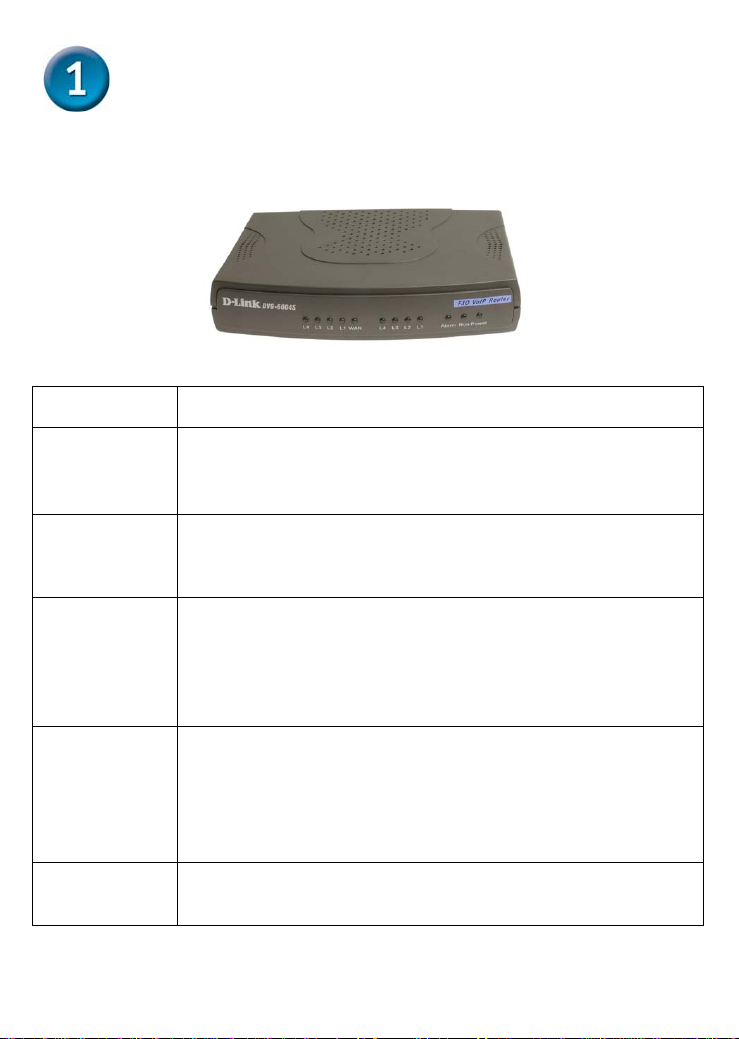

Front Panel
Power LED Indicates the unit is powered on.
Run
The Run LED will flash when performing a self-
test/booting up and light solid green if the self-test or
bootup fails.
Alarm
The Alarm LED will light solid red if the self-test or
bootup fails. The Alarm will flash red when the system is
registering with the service provider or register fails.
WAN LED
When a connection is established the 10 or 100 LED will
light up solid. The LED will blink to indicate activity. If the
10 or 100 LED does not light up when a cable is
connected, verify the cable connections and make sure
your devices are powered on.
LAN LEDs
When a connection is established the 10 or 100 LED will
light up solid on the appropriate port. The LEDs will blink
to indicate activity. If the 10 or 100 LED does not light up
when a cable is connected, verify the cable connections
and make sure your devices are powered on.
Line LEDs
Light on means the line is in use (off-hook), and vice
versa.
Hardware Overview

3

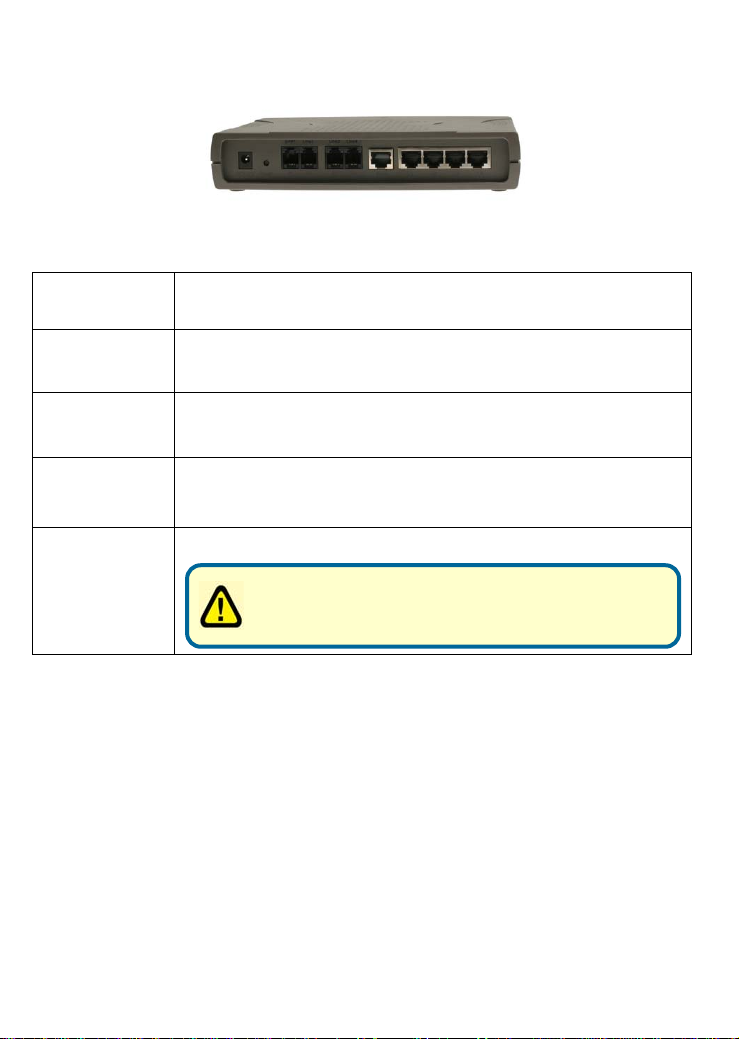

Rear Panel
Line Ports
Connect to your original telephone line on the wall jack
with RJ-11 cable.
LAN Port
Connect to your Ethernet enabled computers using
Ethernet cabling.
WAN Port
Connects to your broadband modem using an Ethernet
cable.
Reset
This is used to reset the unit to the factory default
settings.
DC 12V
The power adapter attaches here.
Using a power supply with a different voltage rating will
damage this product.

4

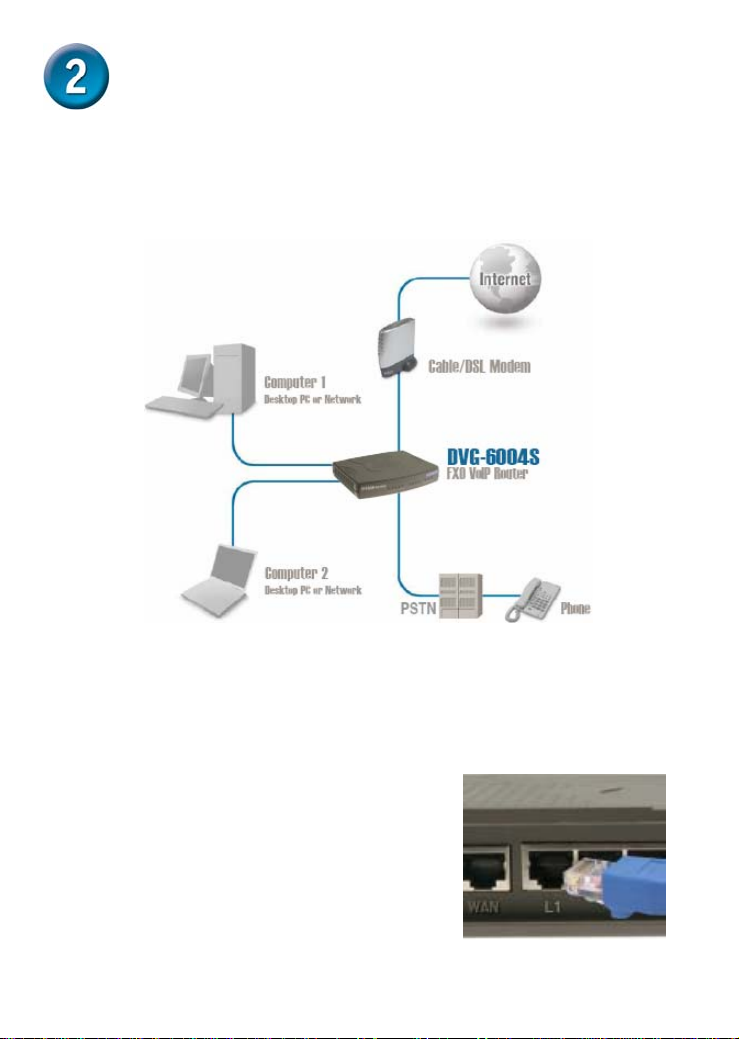

Connecting the DVG-6004S directly
to a Modem and Computer
If your computer connects directly to a DSL or Cable modem and does
not connect to a router, follow the steps below to install your DVG-6004S.
For any other configuration, please refer to the user manual located on
the CD-ROM. After the steps are completed, your setup should look
similar to the diagram below.
a. Turn off your Computer.
b. Disconnect the power to your Cable/DSL Modem (Unplug or turn off
the power switch).
c. Unplug the existing Ethernet cable that is connected to your
Cable/DSL Modem’s LAN or Ethernet
port. Leave the other end of this cable
attached to your PC.
d. Plug the Ethernet cable connector that
you just removed from the modem into
one of the four LAN ports on the back of
the DVG-6004S. The other end remains
attached to the PC.

5
zIf your ISP registers your computer’s MAC address, see the section labeled MAC
Cloning for Connections in the user manual on the CD-ROM.
zPPPoE Users, please continue to the next page for additional configuration steps.

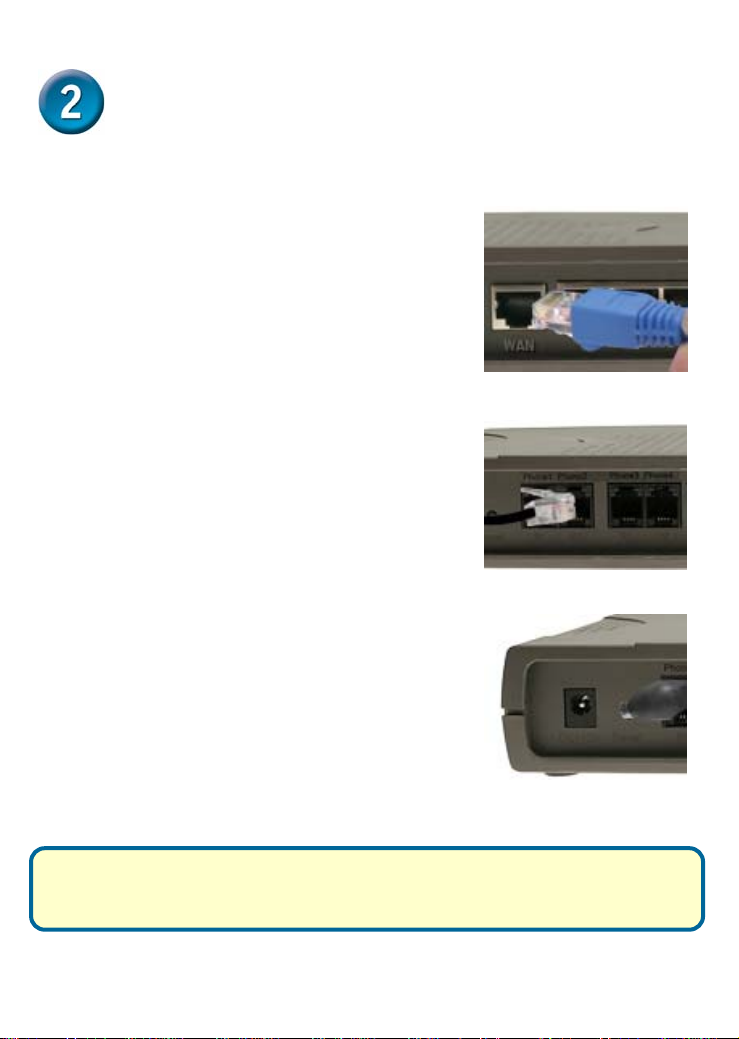

e. Attach one end of the Ethernet Cable provided in this package to the
LAN or Ethernet Port on the Cable/DSL Modem.
f. Attach the other end of the provided
Ethernet Cable to the WAN Port of the
DVG-6004S.
g. Attach one end of the provided phone cable to your original
telephone line on the wall jack.
h. Attach the other end of the phone cable to
the line port on the rear panel of the DVG-
6004S.
i. Reconnect the power to the Cable/DSL Modem (Plug in or turn on
the power switch).
j. Connect the Power Adapter to the Power
Connecter on the DVG-6004S.
k. Connect the other end of the Power
Adapter to an available electrical outlet
(Wall Socket or Surge Protector).
l. Restart your PC.
Hardware configuration is complete! If your VoIP service is already activated, you
can make phone calls now.
Connecting the DVG-6004S directly to
a Modem and Computer
(
continued
)

6

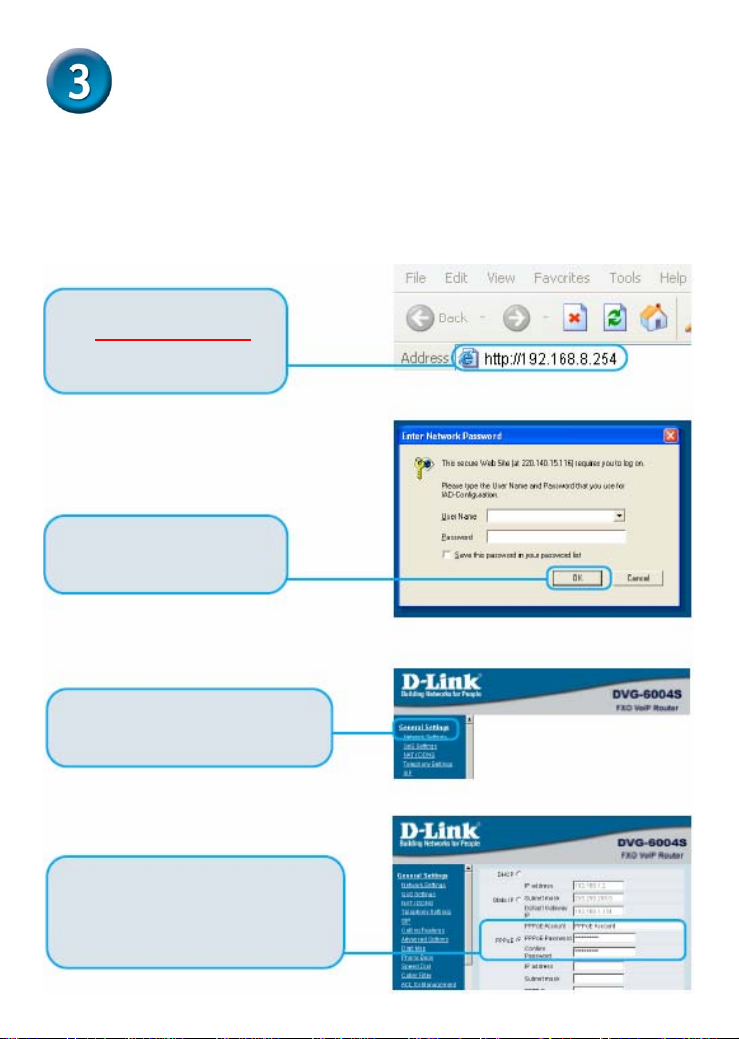

PPPoE Configuration
Some Internet Service providers use PPPoE as their method of
connecting clients. If you have a PPPoE connection, you must follow the
steps below to complete the configuration of your hardware. If you are
unsure of your connection type or do not know your username and
password, please check with your Internet Service Provider.
Open your Web browser and
type http://192.168.8.254 into
the URL address box. Press
the Enter or Return Key
Click OK to enter Web Site.
Click Network Settings.
Click PPPoE.
Enter PPPoE Account, Password
and Confirm Password.

7

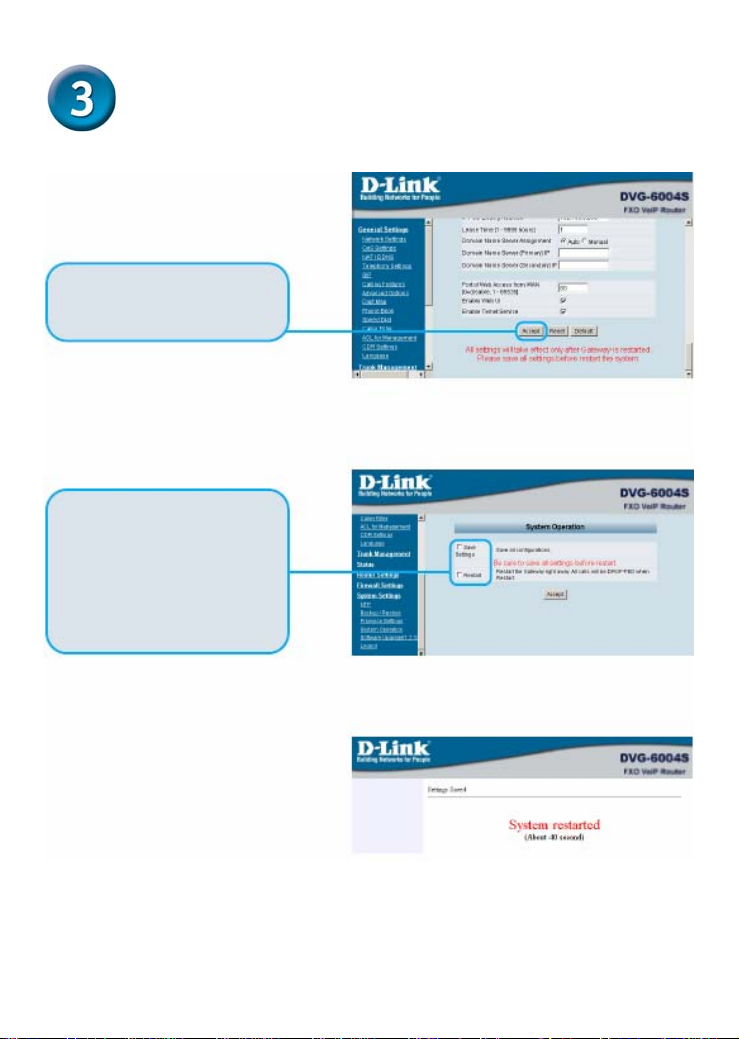

PPPoE Configuration (continued)
Click Accept at the bottom of
this page.
Click System Operation at left
menu.
Select Save Settings and
Restart.
Click Accept.
Once the unit reboots you will see
the message. Check to see if the
status LED light goes from
blinking green to solid green on
the front panel of the DVG-6004S.
The information found on the
Device Information page is
necessary for VoIP service
registration
