D-Link DCS-1820LM User manual

DCS-1820LM
User’s Manual
Version 0.1
Jun 21th, 2018

Table of Contents
1. PRODUCT DESCRIPTION..................................................................................3
2. APPEARANCE .....................................................................................................3
3. APPLICATIONS...................................................................................................7
4. INSTALLATIONS................................................................................................7

1. PRODUCT DESCRIPTION
Smart Home, Made Brilliant
DCS-1820LM 4G LTE Camera is a compact wireless network battery camera suitable for day-time and night-time outdoor environments. It features
cellular data connectivity, night vision, human motion detection1, and a free mobile app —feel at ease when you’re away from home.
Compact Design, Simple Setup
The DCS-1820LM is designed to be compact and unobtrusive, it can fit in with any decor, no matter where you put it. You can mount it
anywhere, indoors or out. It’s weather resistant so it can withstand outdoor weather. Setting upthe camera is also a breeze with the free mydlink
app.To getstarted,simply install the app on your mobile device and with a few taps the app will guide you through the entire setup process.
Versatile Feature Set
Despite its small size, the DCS-1820LM has all the features you need for monitoring your home. Onboard 4G/LTE and Wi-Fi provides extended
range and higher bandwidth for smooth 1080p Full HD video streams on any device without interruption. The DCS-1820LM together with the
mydlink™appsupports simultaneousliveviewing,recording3,andplaybackforuptofourchannelswiththeadditionofoptional cameras.
Built-in IVA human detection will automatically trigger notifications to your mobile device. as well as automatically record snapshots to cloud
storage. Night-time monitoring is possible with the built-in infrared LED which allows for night-time viewing of up to 5 meters (16 feet), so you
canrelax knowing you have 24/7 monitoring of your home or small office.The camera is powered by a powerful lithium
-ion battery allowing its use for a long period without the need charge it.
Access Anywhere Using the Mobile App
With the mydlink™ app, you have an easy and convenient way for you to look after your family or to monitor your home or office. Stay up-to-
date with notifications and check in on those you love at any time. Using the mydlink™ mobile app you can view and manage your camera
using your mobile device. Interact with what you’re watching with two-way audio. Enjoy instant control over your home surveillance with the
ability to manually trigger video recording, no matter where you are.
Automated Video Clip StorageThrough mydlink™ Cloud Recording
With a mydlink™ cloud recording subscription, you can have peace of mind with automated storage of your video recordings on a cloud
server. Play back recordings in the cloud or download video clips on your mobile device anywhere, anytime through the Internet. Access
real-time views of your cameras and set automated schedules using the mydlink™ mobile app. With mydlink™ Pro, your phone or tablet
becomes your surveillance command center.

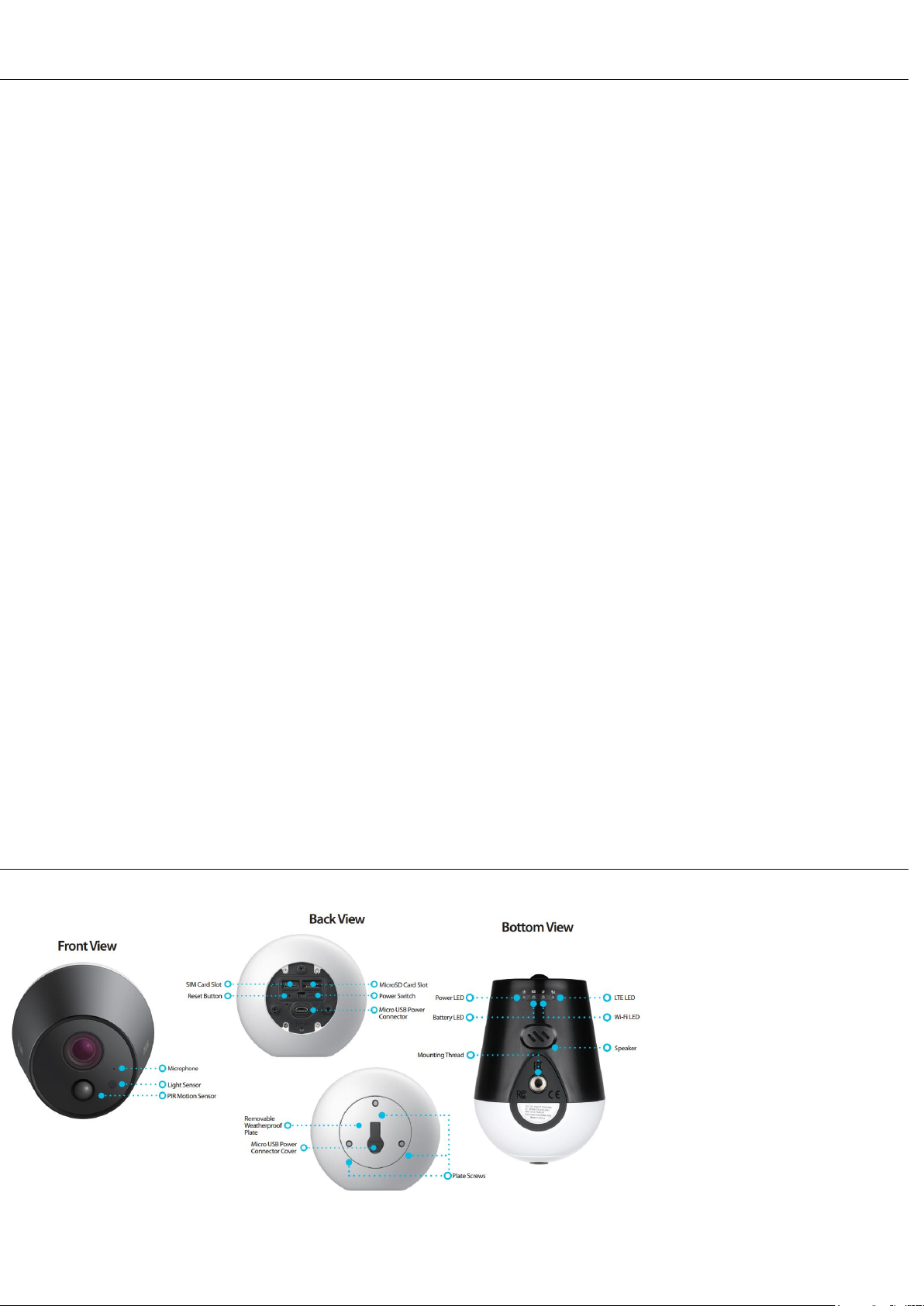

2. APPEARANCE
DCS-1820LM Camera

Technical Specifications
Camera
Hardware Profile
• 1/2.9”2 megapixel progressive CMOS sensor
• Minimum illumination:
• Low lux with IR LEDs on: 20 lux
• Lens focal length: 2.8 mm
• Aperture: F1.85
• Digital zoom
• 5 m (16 ft) IR illumination distance
• Built-in lightsensor
• Angleof view(16:9):
• Horizontal: 113°
• Vertical: 62.2°
• Diagonal:131.9°
• Built-in microphone
• Built-inspeaker
• Nano-SIM (4FF)
• 1/4x20 UNF mountingthread
Video Compression
• H.264 compression
• JPEG for stillimages
Video Resolution
• 1080p (1920 x1080)
• 720p (1280 x720)
Video Frame Rate
• Up to 30 fps
Audio Support
• Opus 1.2.1
• Sample Rate:16kHz
Network
Wireless Connectivity
• 2.4 GHz: 802.11n/g/b Wi-Fi
• WPA2 and WPA-PSKencryption
• Bluetooth 4.2(BLE)
Wi-Fi Throughput
• 2.4 GHz
• Up to 72 Mbps6
Mobile Network Support
• North America
• LTE B2/4/13
• Europe
• LTE B1/3/7/8/20
• UMTS/HSPA /HSPA+/DC-HSPAB1/8, 900/2100 Mhz
Cellular Data Throughput
• LTEThroughput
• NA/EU: Up to 75 Mbps down/50 Mbps up
• DC-HSPAThroughput
• EU: Up to 42 Mbps down/5.76 Mbps up (HSUPA)
Network Protocols
• RTP/RTSP/RTCP

DCS-1820LM D-Link Corporation
Page 5
General
Buttons
• Power Switch
• Reset Button
LEDs
• Power
• Battery
• Wi-Fi
• LTE
System Integration
Event Management
• IVA humandetection
• Cloud recording
• Push notifications
• Manuallytaken snapshots & video clips are saved to mobile
device, microSD card5, or the cloud
• Motion detection
• Sound detection
Mobile Support
• mydlink™ apps for iPhone, iPad, iPod touch,
and Android devices
Physical
Environment
• For Indoor/OutdoorUse
IP Rating
• IP65
• Weather resistantexterior
Weight
• 456 g (16.08 oz) ± 5%
Battery
• 23.5W, 3.6V, 6500 mAh Lithium ion battery
Power Adapter
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 5 V DC 2 A
• 3 mMicro-USB cable
Power Consumption
• Standby state:
• < 19mW
• Active state:
• < 1,600 mW (Day mode)
• < 1,800 mW (Night mode)
Temperature
• Operating: -20 to 45 °C (-4 to 113 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• FCC
• UL
• CE
• IC
Dimensions ( H x W x D)
• 62 x 121 x 82 mm (2.44x 4.76 x 3.23 in)
Specifications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners.
© 2018 D-Link Corporation. All rights reserved.

DCS-1820LM D-Link Corporation
Page 6

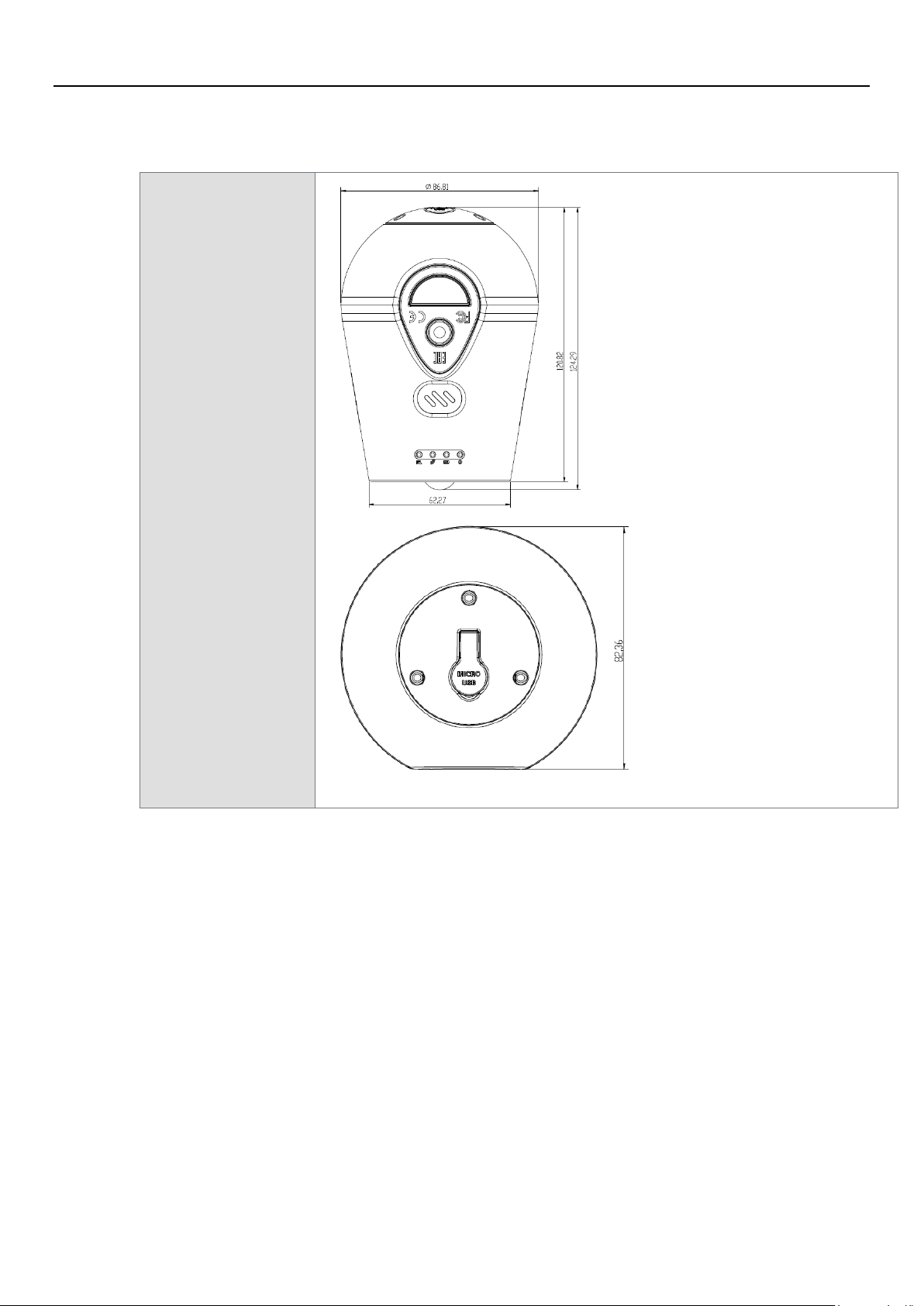

Diagram

DCS-1820LM D-Link Corporation
Page 7

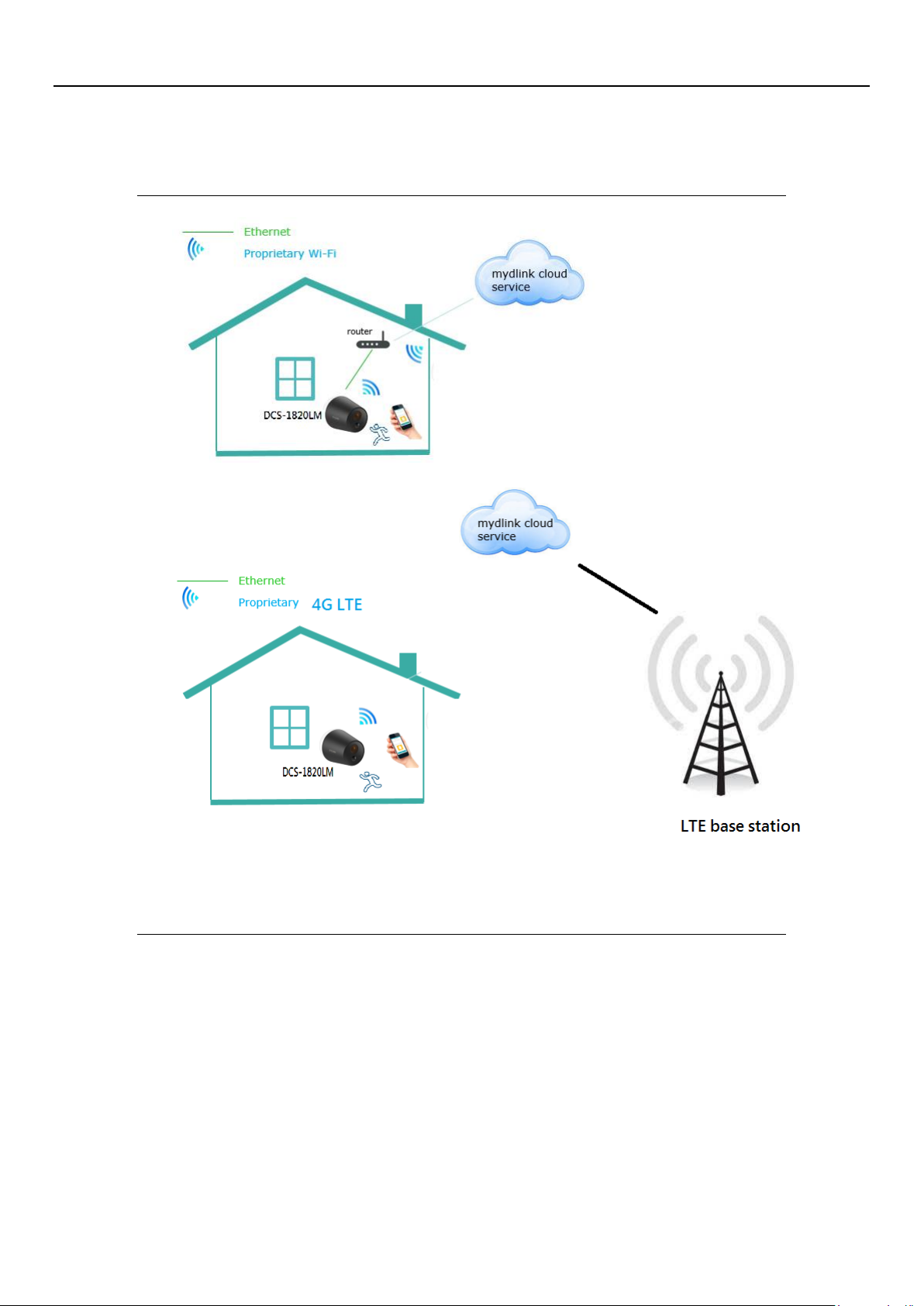

3. APPLICATIONS
4. INSTALLATIONS

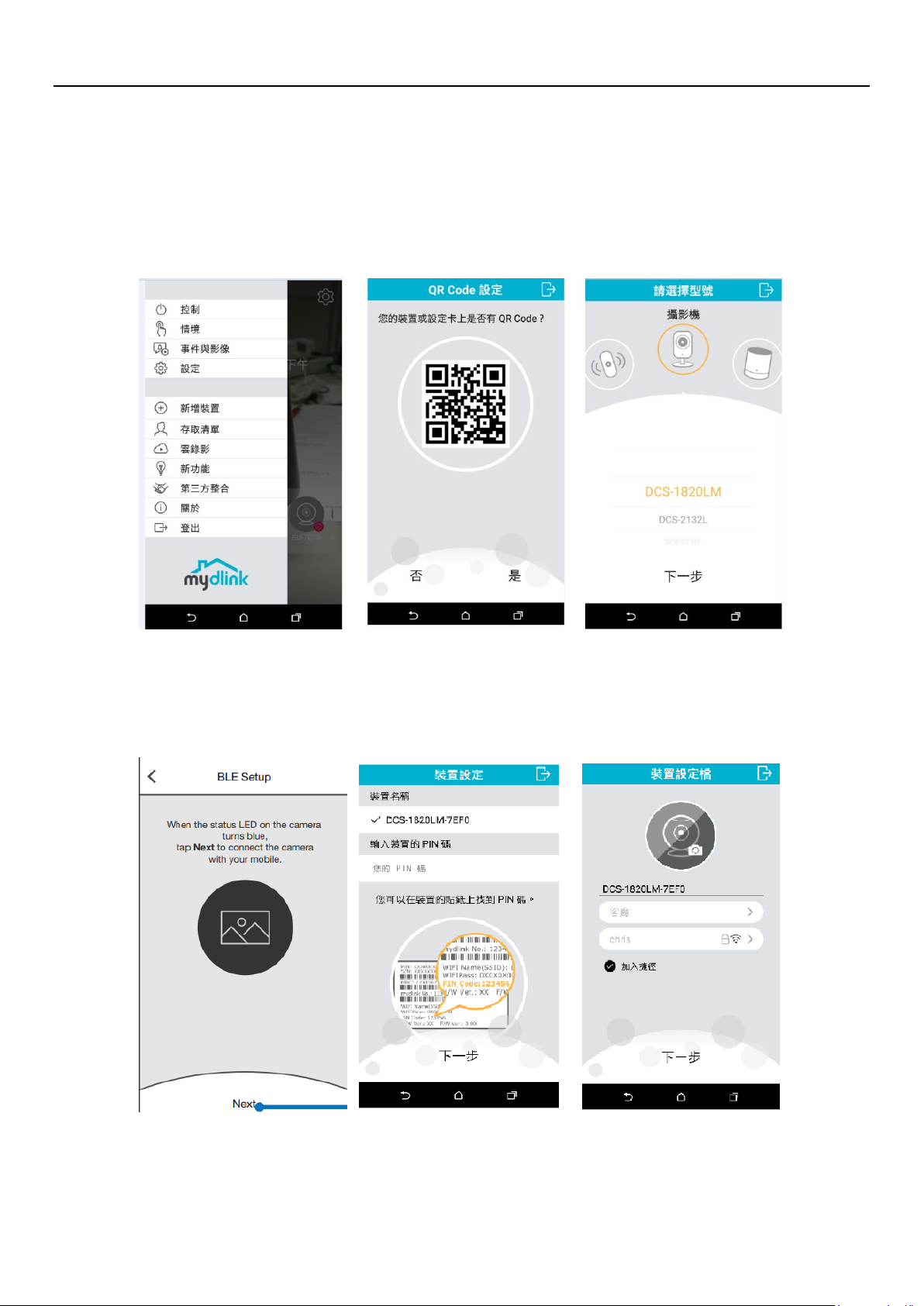

Step 1 Download mydlink App to your smart phone and register an account to login.
Step 2 Install DCS-1820LM: scan the QR code on device label of DCS-1820LM or
directly select model DCS-1820LM on the menu of App.
or

DCS-1820LM D-Link Corporation
Page 8

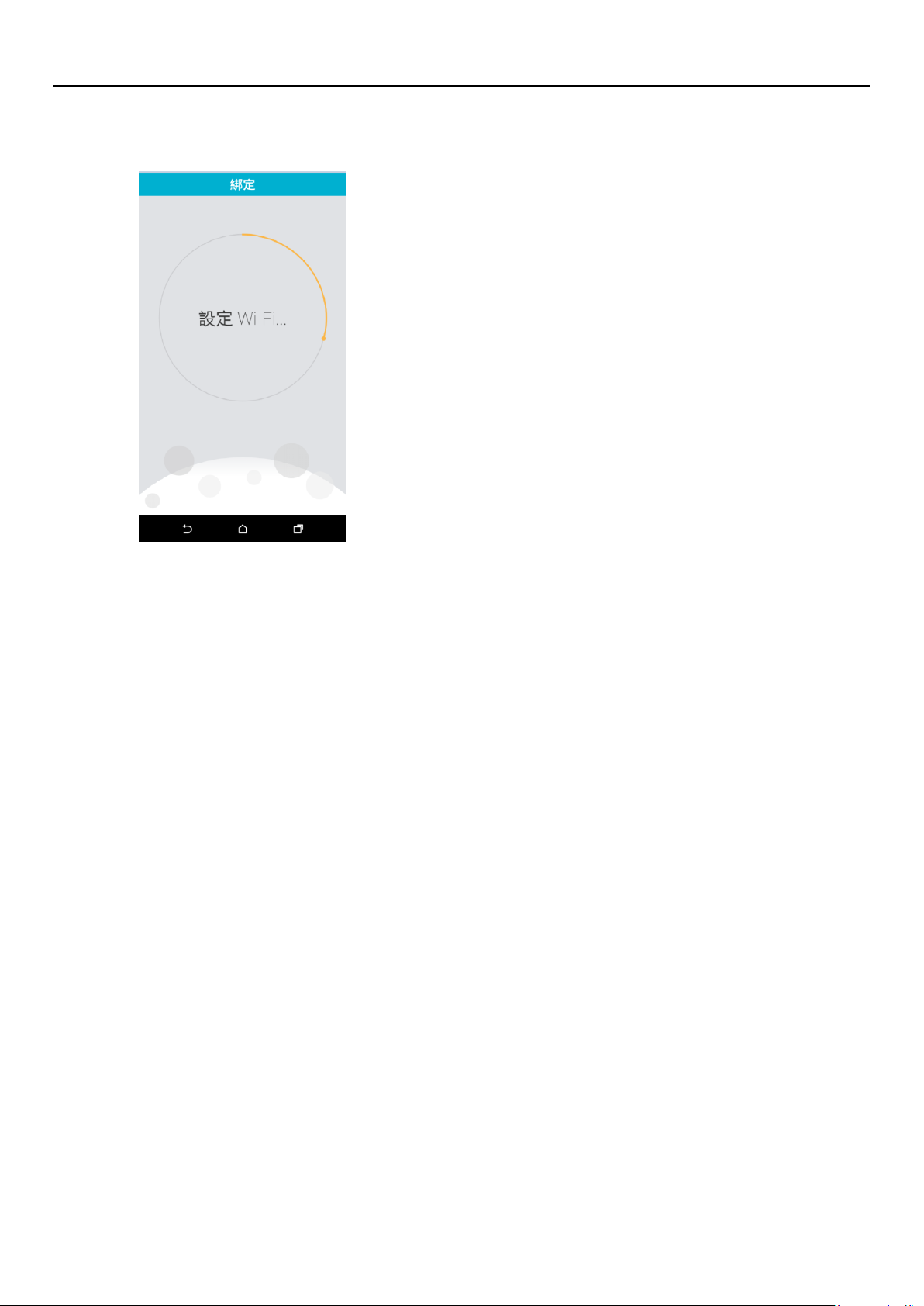

Step 3 Follow the instructions shown on the App to set up DCS-1820LM.
Step 4 Add Camera: follow app instruction.
Step 5 Follow the instructions shown on the App to set up DCS-1820LM cameras (up
to 4 cams can be added per hub.)

DCS-1820LM D-Link Corporation
Page 9

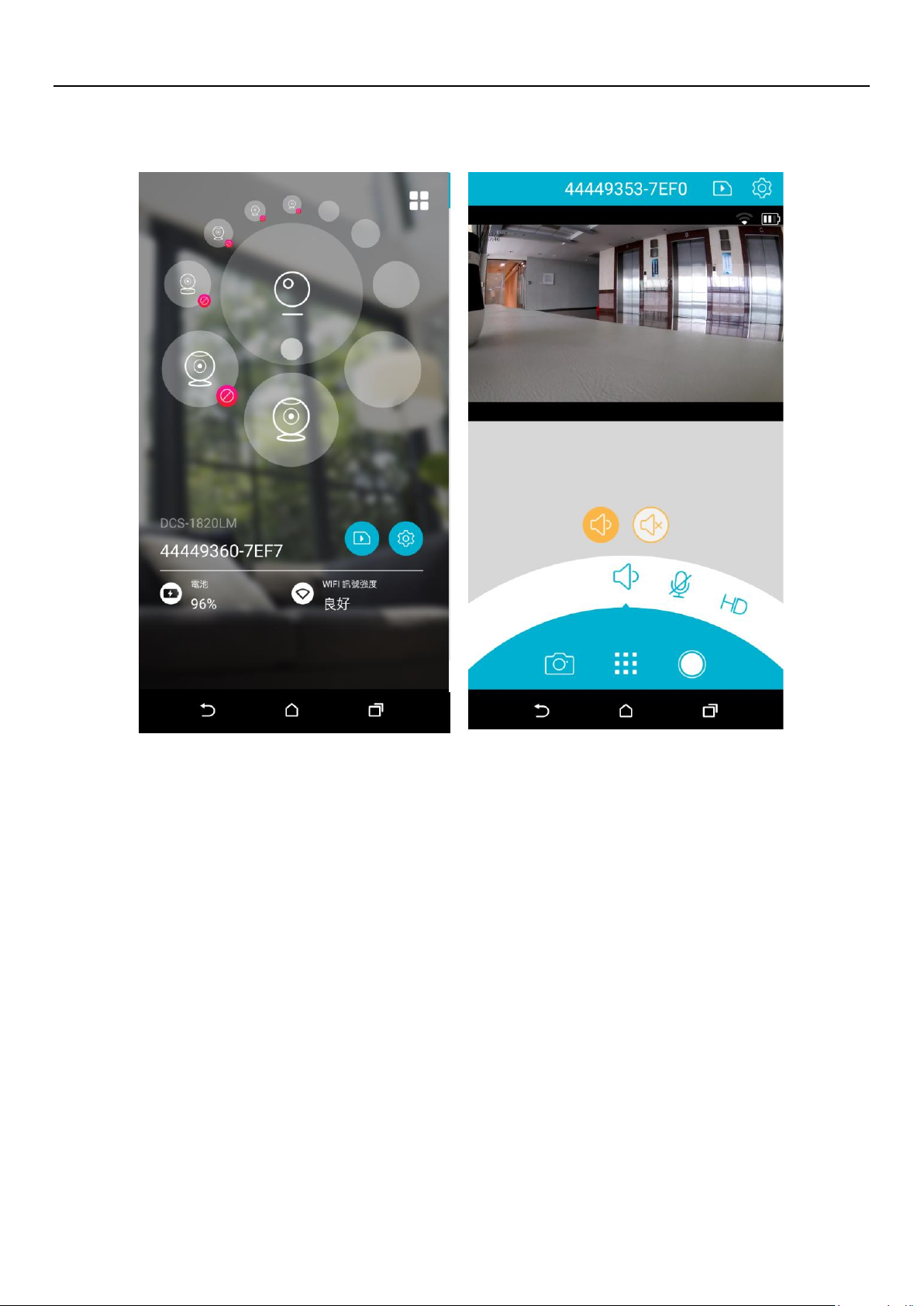

Step 6 Functionalities of Camera

DCS-1820LM D-Link Corporation
Page 10

DCS-1820LM D-Link Corporation
Page 11

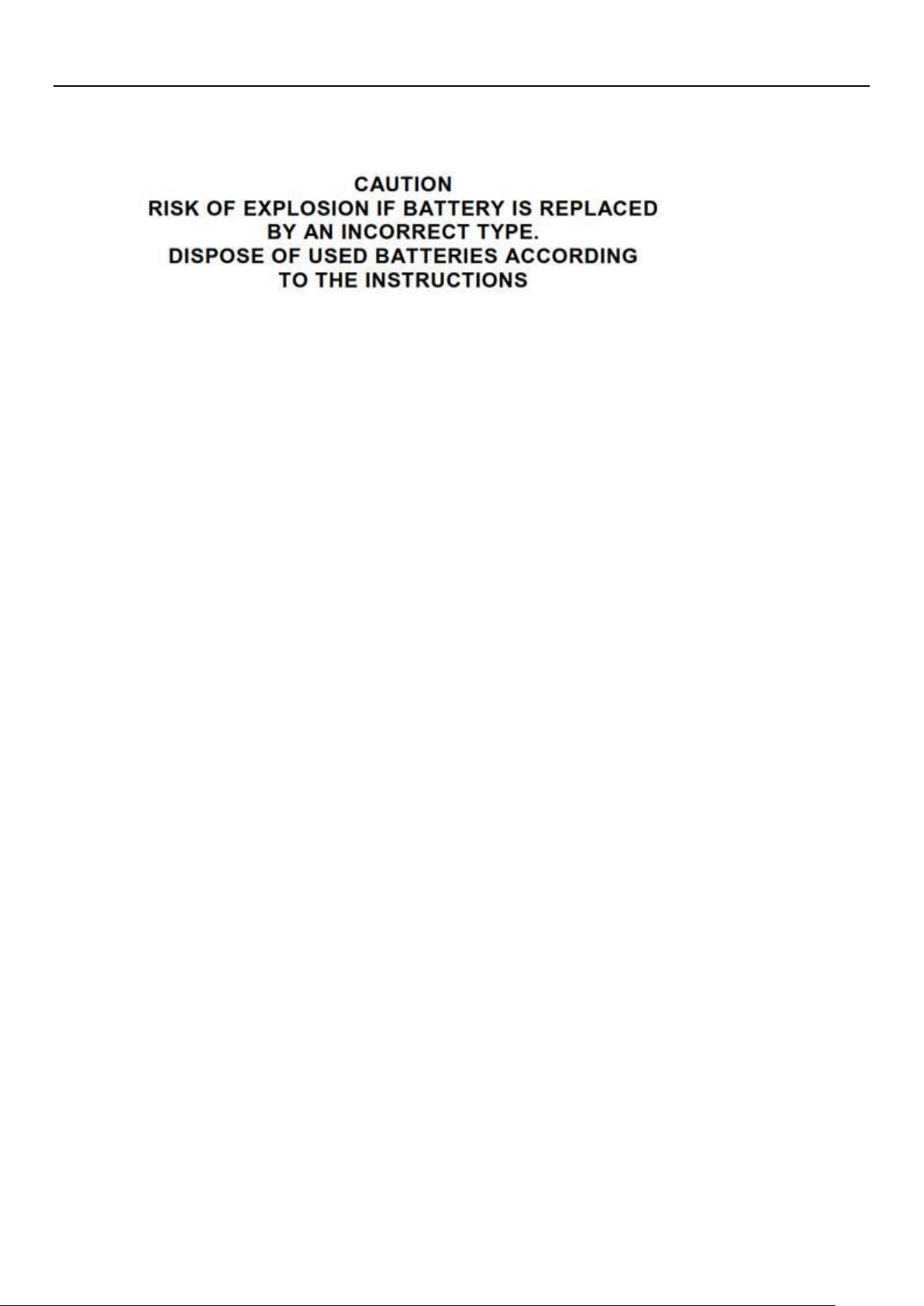

Federal Communication Commission Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Note: The country code selection is for non-US model only and is not available to all
US model. Per FCC regulation, all WiFi product marketed in US must fixed to US
operation channels only.

DCS-1820LM D-Link Corporation
Page 12
Industry Canada statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1)this device may not cause interference, and
2)this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:
1)l'appareil ne doit pas produire de brouillage, et
2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme àla norme NMB-003 du
Canada.
This device complies with RSS-310 of Industry Canada. Operation is subject to
the condition that this device does not cause harmful interference.
Cet appareil est conforme à la norme RSS-310 d'Industrie Canada. L'opération
est soumise à la condition que cet appareil ne provoque aucune interférence
nuisible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter, except tested built-in radios.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en
conjonction avec une autre antenne ou un autre émetteur, exception faites des
radios intégrées qui ont été testées.
The County Code Selection feature is disabled for products marketed in the US/
Canada.
La fonction de sélection de l'indicatif du pays est désactivée pour les produits
commercialisés aux États-Unis et au Canada.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

DCS-1820LM D-Link Corporation
Page 13
