D-Link DCS-3110 - SECURICAM Fixed Network Camera User manual

2D-Link DCS-3110 Quick Install Guide
System Requirements
• Windows®XPorWindowsVista®
• Atleast256MBofmemory(512MBrecommended)
• InternetExplorer6.xorhigher
• VGAcardresolution:800x600orabove
• CPU:1.7GHzorabove
• AnavailableEthernetconnection
CAT5EthernetCable
Package Contents
DCS-3110
MegapixelPoENetwork
Camera
Minimum System Requirements
If any of the above items are missing, please contact your reseller.
CD-ROMwithManual
andSetupWizard PowerAdapter
Camera Stand
Note: Using a power supply with a different voltage than the one included with your
product will cause damage and void the warranty for this product.

3 D-Link DCS-3110 Quick Install Guide
HardwareOverview
Hardware Overview
Connections
Rear View
Audio Out Connector:
UsetheAudioOutconnectorfor
2-wayaudioconnection.Speakers
(notincluded)maybeconnected
tothecamerafor2-wayaudio
communication.
Reset Button
Reset is initiated
whentheresetbutton
ispressedonceand
held 30 seconds
untilthepowerLED
flashesthroughits
cycletwice.
Power Receptor
Receptor for the
supplied power
adapter.
DI/DO:
TheDCS-3110providesageneralI/Oterminalblock.TheI/O
connectorsprovidethephysicalinterfacetosendandreceive
digitalsignalstoandfromavarietyofexternaldevices.
DC12V output :
Supportforexternaldevice(likeIRlight)
RS485:
Portisdesignedforexternalpan/tilt/zoomdevices.
Ethernet Port (PoE)
ConnecttheNetworkCameratoyournetwork
usingaCAT5Ethernetcable.Thisport
supportstheNWayprotocol,allowingthe
networkcameratoautomaticallydetector
negotiate the transmission speed of the
network.
TheEthernetportcanalsobeusedtopower
thecamerabyusingaPoEswitch.
Status LED
Blinking Red:indicatespoweris
beingsuppliedtothecamera.
Solid Green: indicates that a
connectionhasbeenestablished
viaEthernetport.
Blinking Green: indicates traffic
movementinthecamera.
IftheEthernetconnectionisnot
established the Status LED will
notglow.
Mic On/Off Switch:
Select to turn the
microphoneOnorOff.
Microphone Connector: The
camerahasaninternalbuilt-in
microphone.Touseanexternal
microphone,plug it into the
microphoneconnector.

4D-Link DCS-3110 Quick Install Guide
HardwareOverview
Interfaces
Front View
ICR and Built-in Microphone
Compact Flash Card Slot
Built-inMicrophone
IR-Cut Removable (ICR)
Sensor
The IR-Cut removable
sensorwill judge the
lightconditionsandthen
switchesfrom colorto
B/Waccordingly.
CF card slot
CompactFlash(CF)isamassstoragedeviceformatusedinportable
electronicdevices.TheCFcardslotcanbeseenatthesideofthe
networkcamera.
Note: Ensure to remove the rubber strip before using it.

5D-Link DCS-3110 Quick Install Guide
HardwareInstallation
Hardware Installation
Connect the Ethernet Cable
Connect an Ethernet cable to the network cable
connectorlocatedontheNetworkCamera’sback
panelandattachittothenetwork.
Connect Using Power-Over-Ethernet
OnceyouconnectanEthernetcabletoyourPoE
switchoradapter,thePowerLEDontheDCS-3110
willturngreentoindicateaproperconnection.
Attach the External Power Supply
Attachthe external powersupply to theDC power
inputconnector located on theNetwork Camera’s
backpanel(labeledDC12V)andconnecttheother
endtoanACpoweroutlet.
Note: The LED on the network camera will turn green, when you have a proper
connection. The light might go on and off and your computer may show an
intermittent loss of connectivity, this is normal until you have congured
your Network Camera.

6D-Link DCS-3110 Quick Install Guide
HardwareInstallation
Thepackagecomeswithacamerastandwithaswivelballscrewheadthat
canbe attached tothe Network Camerabottom socket cavity.Attach the
camerastandtotheNetworkCameraandstationitforyourapplication.There
areholeslocatedinthebaseofthecamerastandallowingthecameratobe
mountedtotheceiling,oranywallsecurely.

7D-Link DCS-3110 Quick Install Guide
SoftwareInstallation
TurnonthecomputerandinserttheD-LinkDCS-3110CDintotheCD-ROM
drive. The following step-by-stepinstructions displayed are shown when
usingWindowsVista®operatingsystem.Thestepsandscreensaresimilar
whenusingotherWindows®operatingsystems.
Software Installation
Click Nexttocontinue.
Click I Agree to accept the License
Agreement.
Click Next
Click I Agree
Click Installation Wizard

8D-Link DCS-3110 Quick Install Guide
SoftwareInstallation
Click Finish to complete the
installation.
Tostart the installationclick
Install.
Note: The installation may take
several minutes to complete.
Click Install
Click Finish

9 D-Link DCS-3110 Quick Install Guide
Conguration
Conguring Your Camera with
the Installation Wizard
ClickontheD-Link Installation WizardiconthatwascreatedinyourWindows
Startmenu.
TheInstallation Wizard willappear andshow the MACaddress of your
DCS-3110andanIPAddress(whichmayormaynotbecorrectdepending
onwhatyouhaveyourDCS-3110connectedto).IfyouhaveaDHCPserver
onyournetwork,therewillbeavalidIPAddressdisplayedhere.
Note: A DHCP server is a device that supplies the same IP address.
Click Manual Setup
EntertheadminIDandpassword.
Note: The default Admin ID is admin with
the password left blank.
Click Next

10D-Link DCS-3110 Quick Install Guide
Conguration
Anewwindowwillpopuptoaskifyou
wanttosetupaPPPoEforthedevice.
Click Nofor quick setup. For further
informationrefer to the usermanual
fordetails.
Checkthe Get IP by DHCP Server
automaticallyboxtoobtainanewIP
addressevery time thecamerastarts
up.ClickNexttocontinue.
Select UPnP Port Forwardingifyour
routersupportsthisfunction.Ifnot,
chooseManual to manuallyenter
yourport numbers. Click Next to
continue.
Click Next
Click Next

11 D-Link DCS-3110 Quick Install Guide
Conguration
Awindowwillpopupaskingyouifyou
wanttoaccesstheDCS-3110viamobile
phone.Clicking Yes willsetthevideo
resolutionto176x144.
Click Applytoapplythesettingslisted
inthewindowtothedevice.Application
maytakeafewminutestoprocess.
Click Apply
Click Next
Click Nexttocontinue.

12D-Link DCS-3110 Quick Install Guide
Conguration

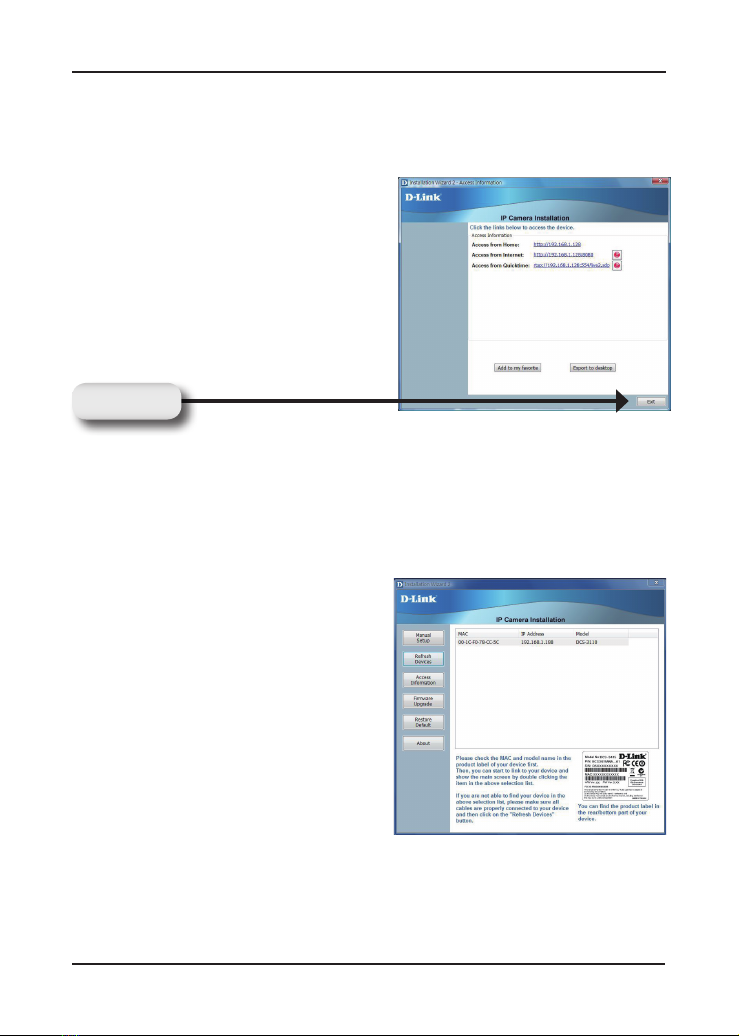

Anewwindowwillpopupdisplayingthe
links/addressestoaccessyourdevice.
Click Add to my favoriteto save the
addressandthenclickExittocomplete
theinstallation.
Awindow will popup to conrm thatthe application wassuccessfully
congured.ClickOKtocontinue.
Click Exit
Double-clicktheDCS-3110tolaunchthecamera’swebcongurationpage.
Note: Please refer to the user manual for more information.

13 D-Link DCS-3110 Quick Install Guide
Conguration

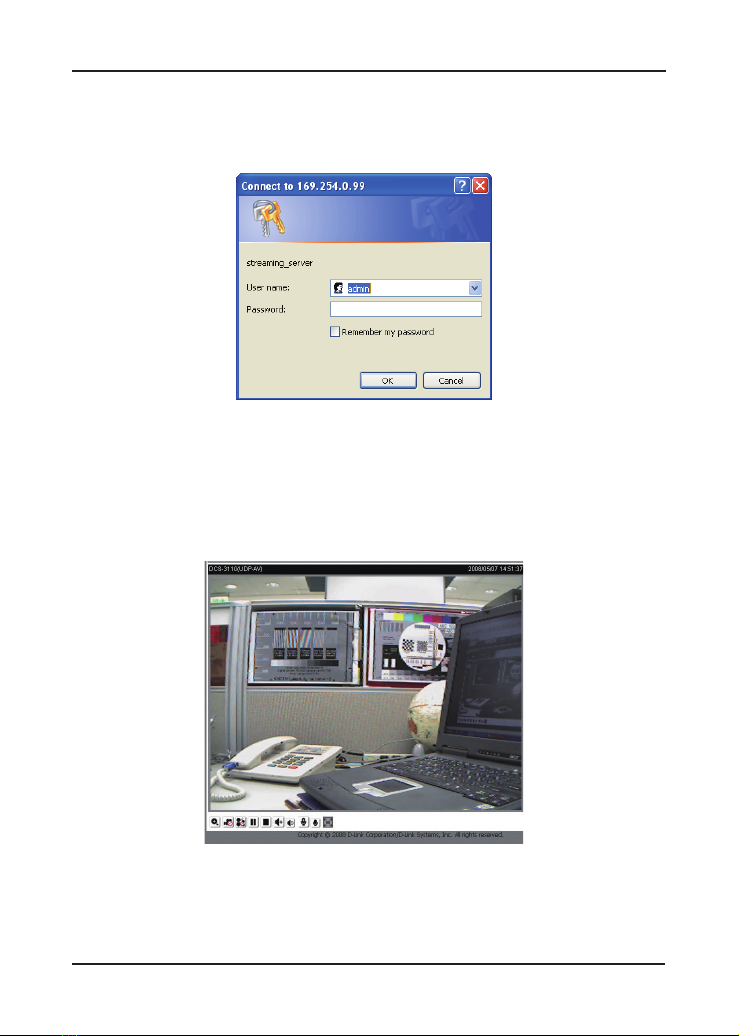

Enteradminasthedefaultusernameandleavethepasswordblank.Click
OKtocontinue.
Thissectionshowsyourcamera’slivevideo.Youcancontrolyoursettings
usingthebuttonsatthebottom.Formoreinformationonusing the web
conguration,pleaserefertotheusermanual.

14D-Link DCS-3110 Quick Install Guide
Notes
Notes

15 D-Link DCS-3110 Quick Install Guide
Notes
Notes

16D-Link DCS-3110 Quick Install Guide
Technical Support
D-Link’swebsitecontainsthelatestuserdocumentationandsoftware
updatesforD-Linkproducts.
U.S.andCanadiancustomerscancontactD-LinkTechnicalSupport
throughourwebsiteorbyphone.
United States
Telephone
(877)354-6555
World Wide Web
http://support.dlink.com
Canada
Telephone
(877)354-6560
World Wide Web
http://support.dlink.ca
Version2.0
January5,2010
