This document will guide you through the basic installation
process for your new D-Link Network Camera.
DCS-3511/DCS-3530
Quick Install Guide
HD Network Camera

D-Link DCS-3511/DCS-3530 Quick Install Guide
2
DCS-3511/DCS-3530
Quick Install Guide
This installation guide provides basic instructions for installing the DCS-3511/DCS-3530
Network Camera on your network. For additional information about how to use the camera,
please see the User Manual which is available on the CD included in this package or from
http://support.dlink.com.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
 DCS-3511/DCS-3530 HD Network Camera
 Camera Stand
 Wireless Antenna (DCS-3530 only)
 Manual and Software on CD-ROM
 CAT5 Ethernet Cable
 Mic/Speaker Combo Cable
 Power Adapter
 Quick Install Guide
 Lens Ring Fixture
 Allen Wrench
If any of the above items are missing, please contact your reseller.

D-Link DCS-3511/DCS-3530 Quick Install Guide 3
ETHRNET(PoE)
RESET
AUDIO
IN/OUT
12V 1.5A
ETHERNET (PoE)
RESET
AUDIO
IN/OUT
12V 1.5A

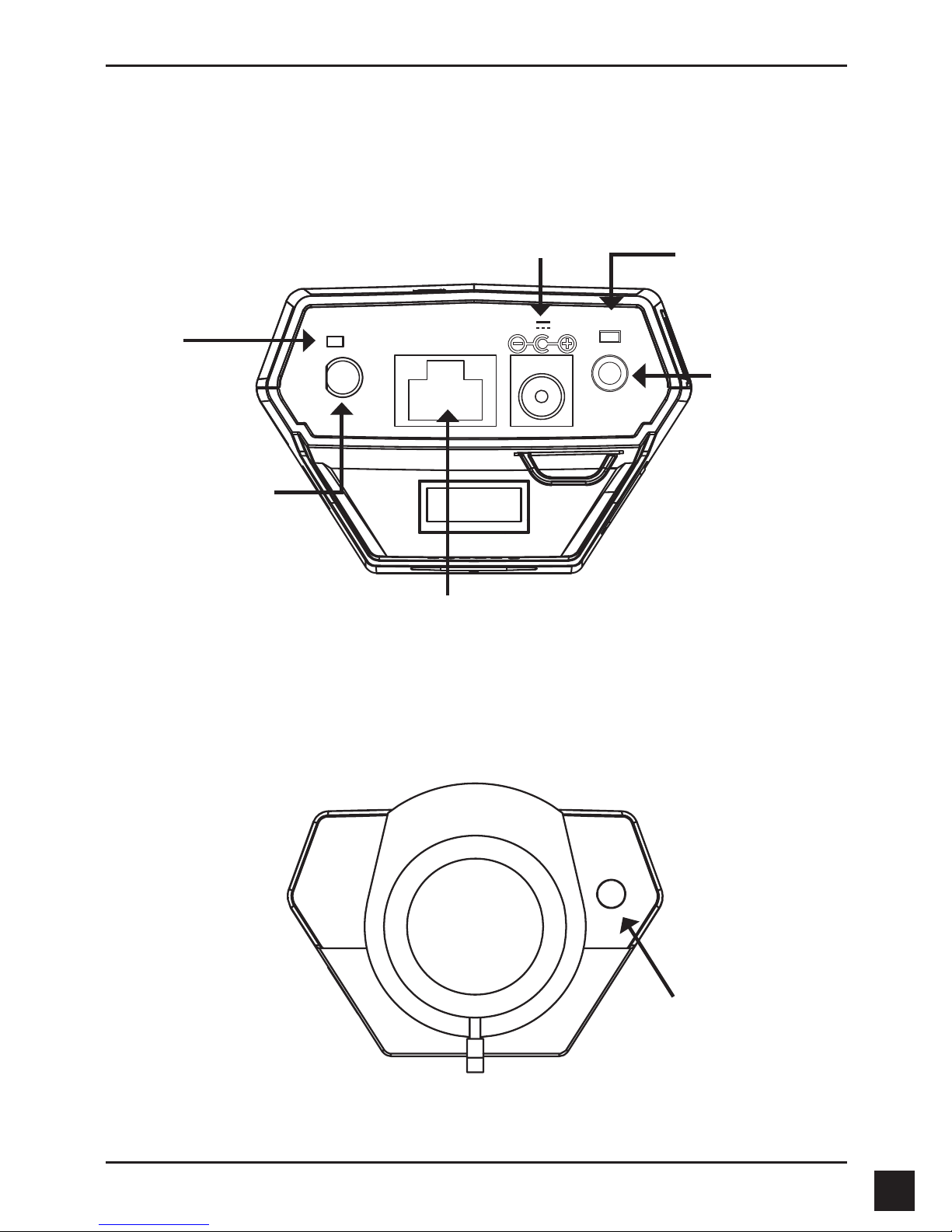

2. Hardware Overview
Rear Panel
DC Power
12V DC
Ethernet (PoE)
RJ-45 connector for Ethernet which can also
be used to power the camera using PoE
(PoE only available on the DCS-3511)
Reset
Press and hold this button
for 10 seconds to reset the
camera back to the factory
default settings
Audio Input/Output
Use to connect an
external microphone
and/or speaker
LED
Power and
network indicator
Antenna connector
(DCS-3530 only)
Front Panel
ICR Sensor
The IR-Cut Removable sensor
judges lighting conditions and
switches from color to infrared
accordingly

D-Link DCS-3511/DCS-3530 Quick Install Guide
4
microSD Card Slot
Insert a microSD card for storing
recorded images and video
DC-Iris Connector
Connector for DC iris lens

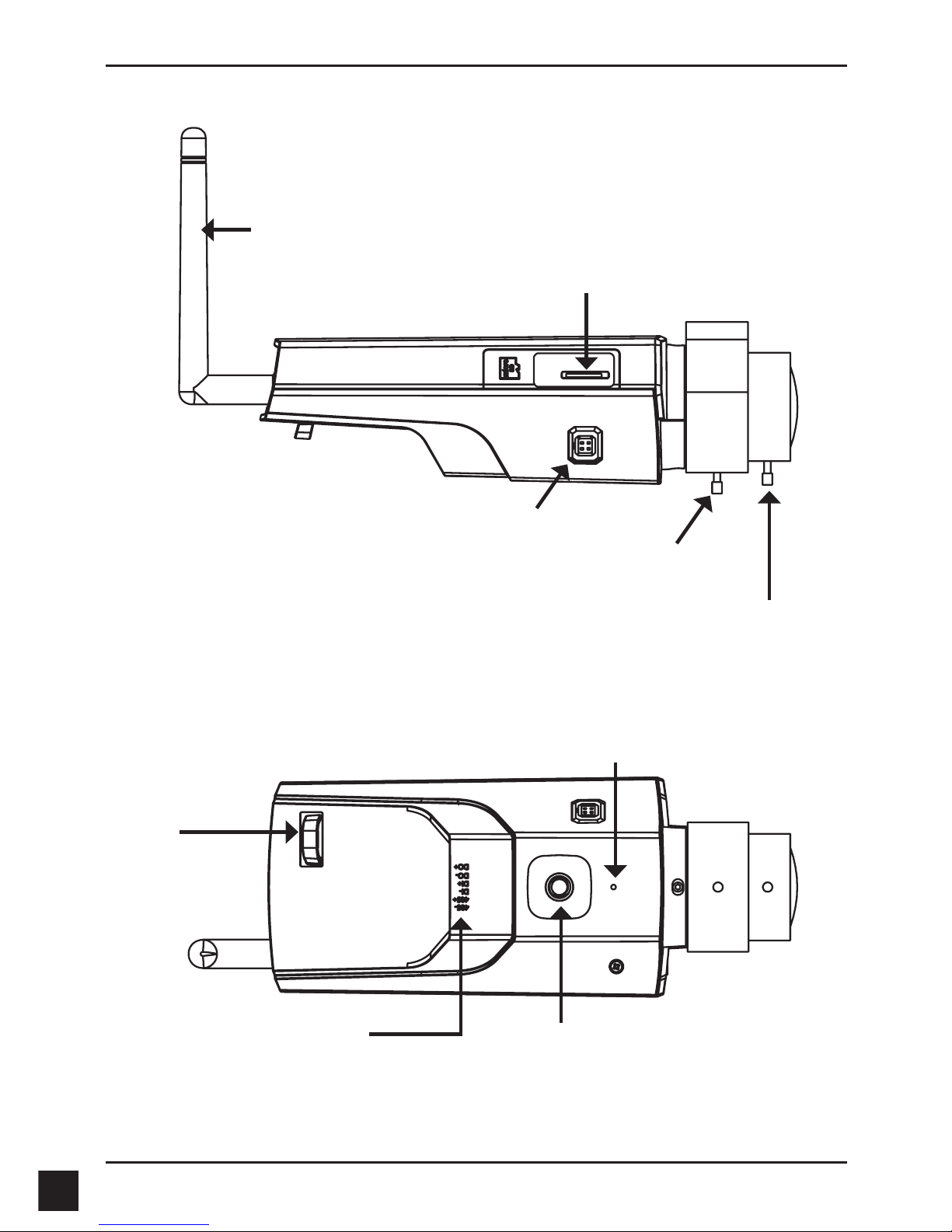

Side panel
Button panel
Mounting Nut
1/4' x 20 nut for afxing camera to
mounting bracket
Wireless Antenna
(DCS-3530 only)
Built-in Mic
Internal microphone
I/O Connector
I/O connectors for external devices
Wire Clip
Cable Management
Focal Length
Manually adjust the
focal length
Focus
Manually adjust
focus

D-Link DCS-3511/DCS-3530 Quick Install Guide 5

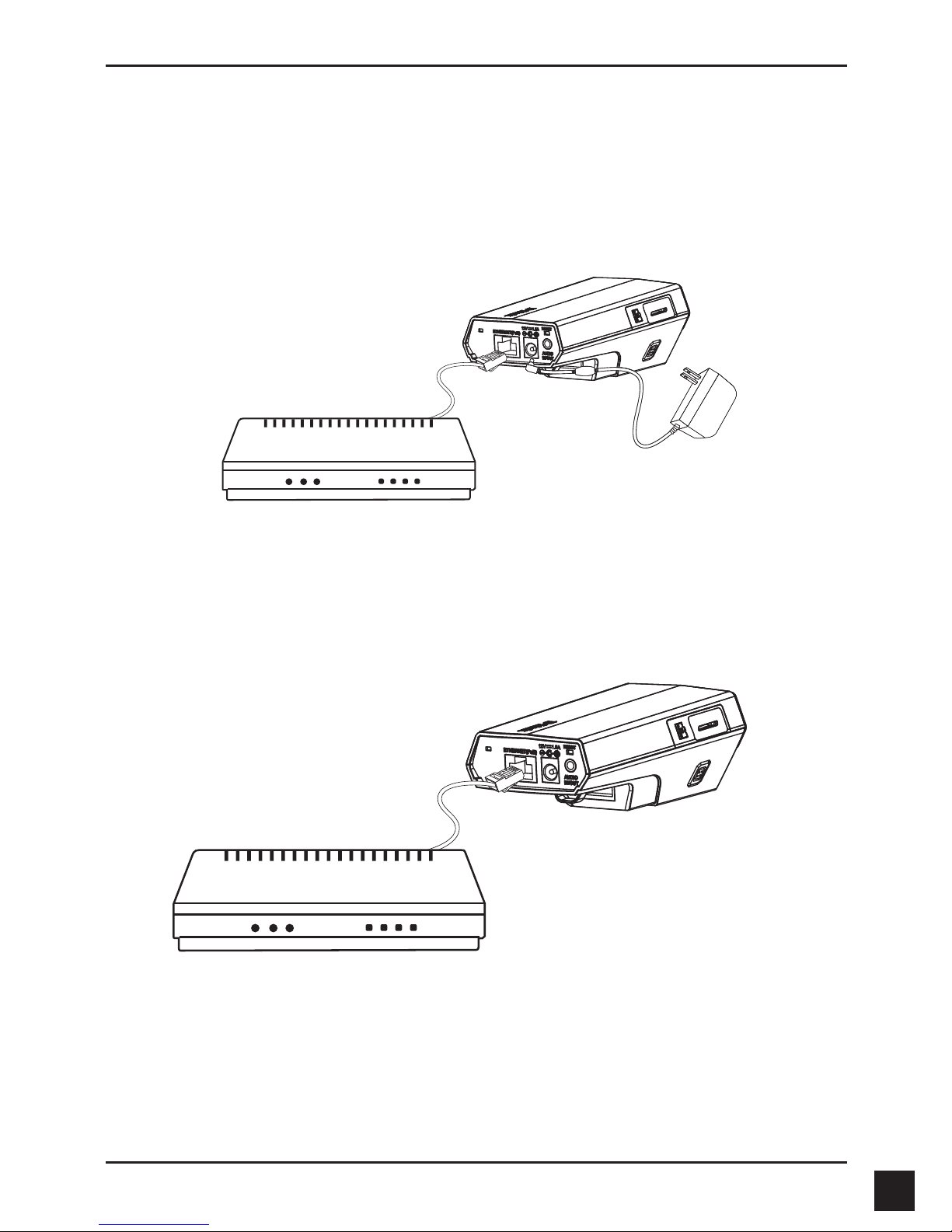

3. Hardware Installation
Basic Connection (without PoE)
Connect the camera to your switch or router via Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection Using a PoE Switch
If you are using a PoE switch, connect the network camera via Ethernet cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has
obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-3511/DCS-3530 Quick Install Guide
6

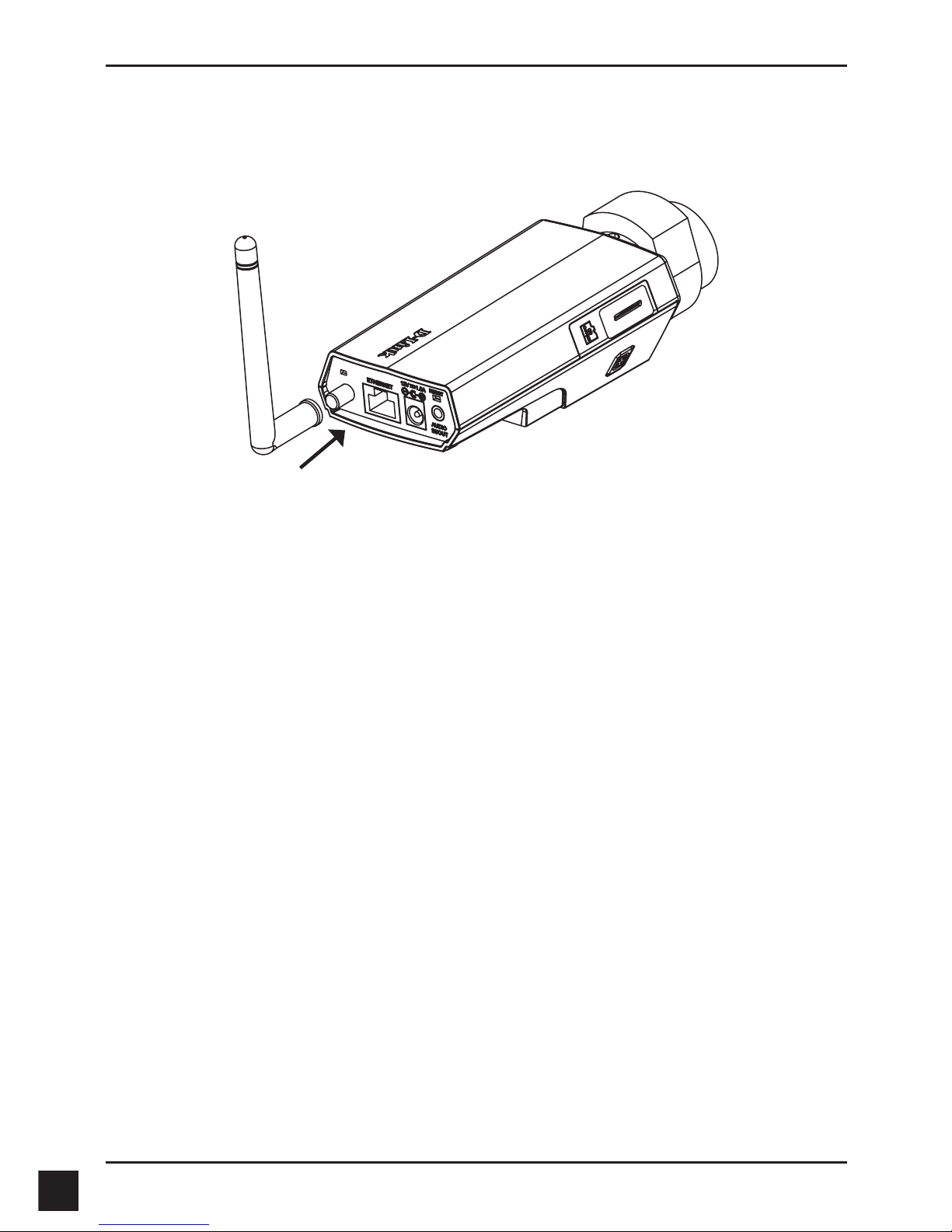

Attach the Antenna (DCS-3530 only)
Locate the antenna included with your DCS-3530 and attach it to the antenna connector
located on the back of the DCS-3530.

D-Link DCS-3511/DCS-3530 Quick Install Guide 7

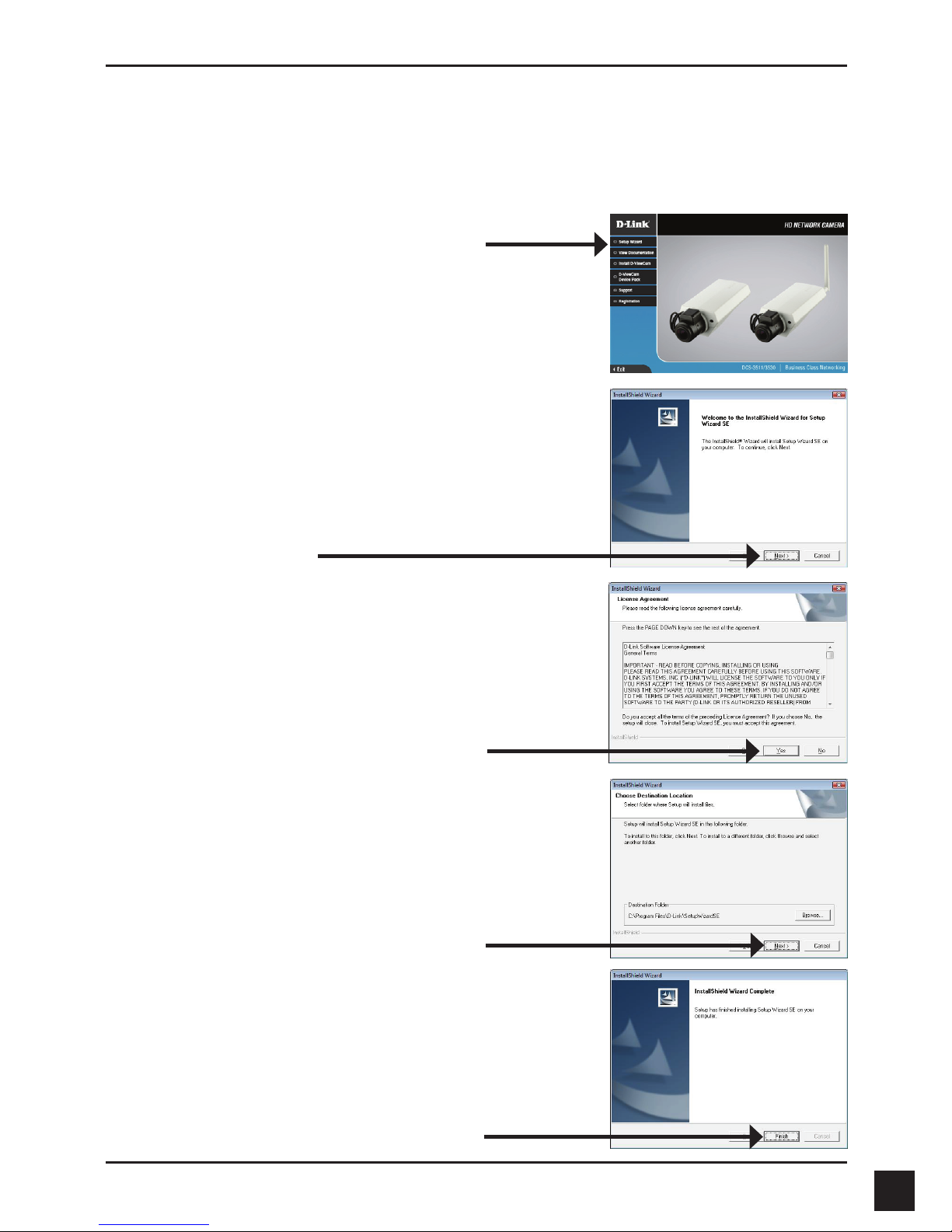

4. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-3511/DCS-3530 CD into your computer's CD-ROM drive to begin
the installation. If the autorun function on your computer is disabled, or if the D-Link
launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D:
represents the drive letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-3511/DCS-3530 Quick Install Guide
8

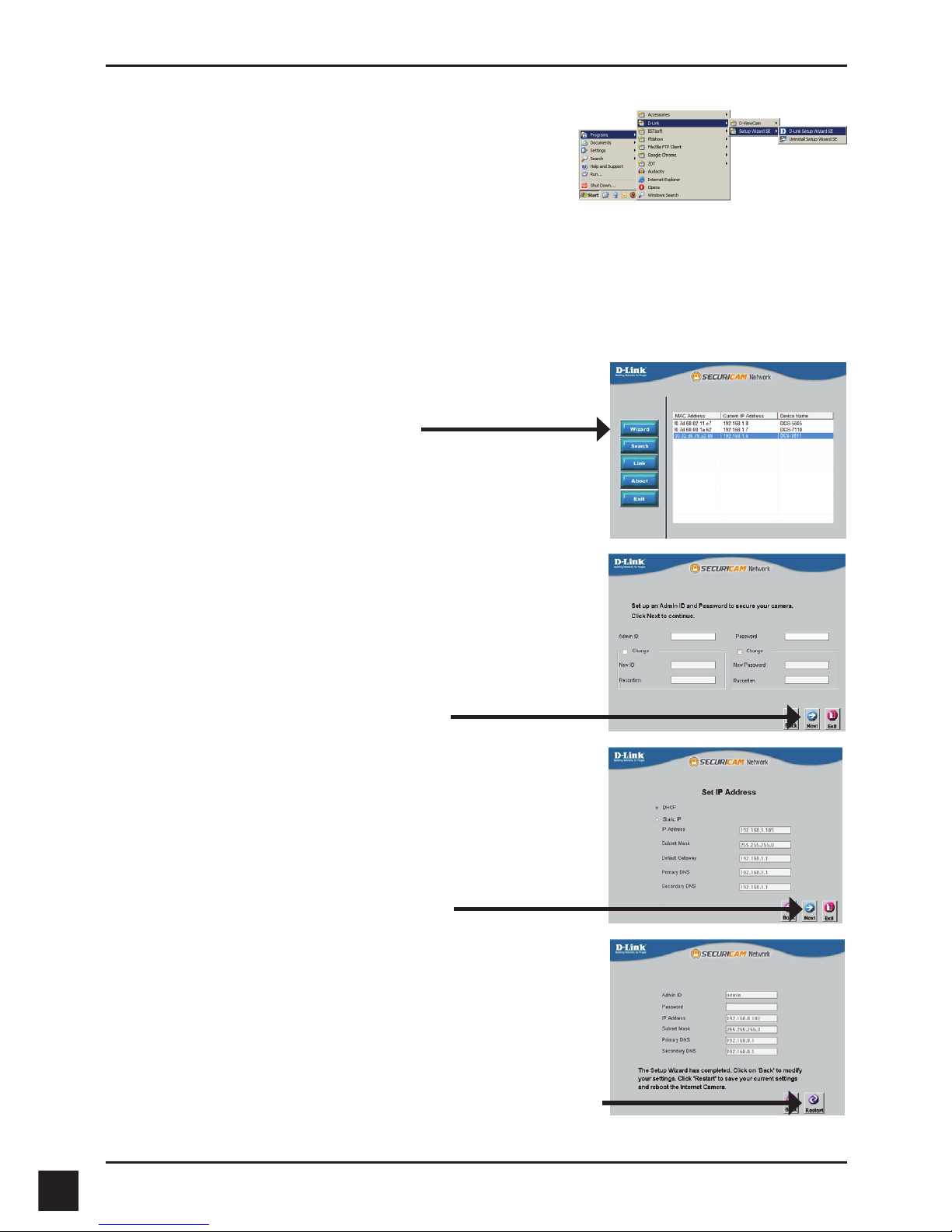

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if you want the camera to obtain an IP
address automatically from your router or DHCP server
or select Static IP to manually assign the camera's IP
settings.
Click Next to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next to proceed to the next page.
The Setup Wizard will appear and display the MAC address
and IP address of your camera(s). If you have a DHCP
server (i.e., router) on your network, a valid IP Address will
be displayed. If your network does not use a DHCP server,
the network camera's default static IP 192.168.0.20 will be
displayed.
Click the Wizard button to continue.

D-Link DCS-3511/DCS-3530 Quick Install Guide 9

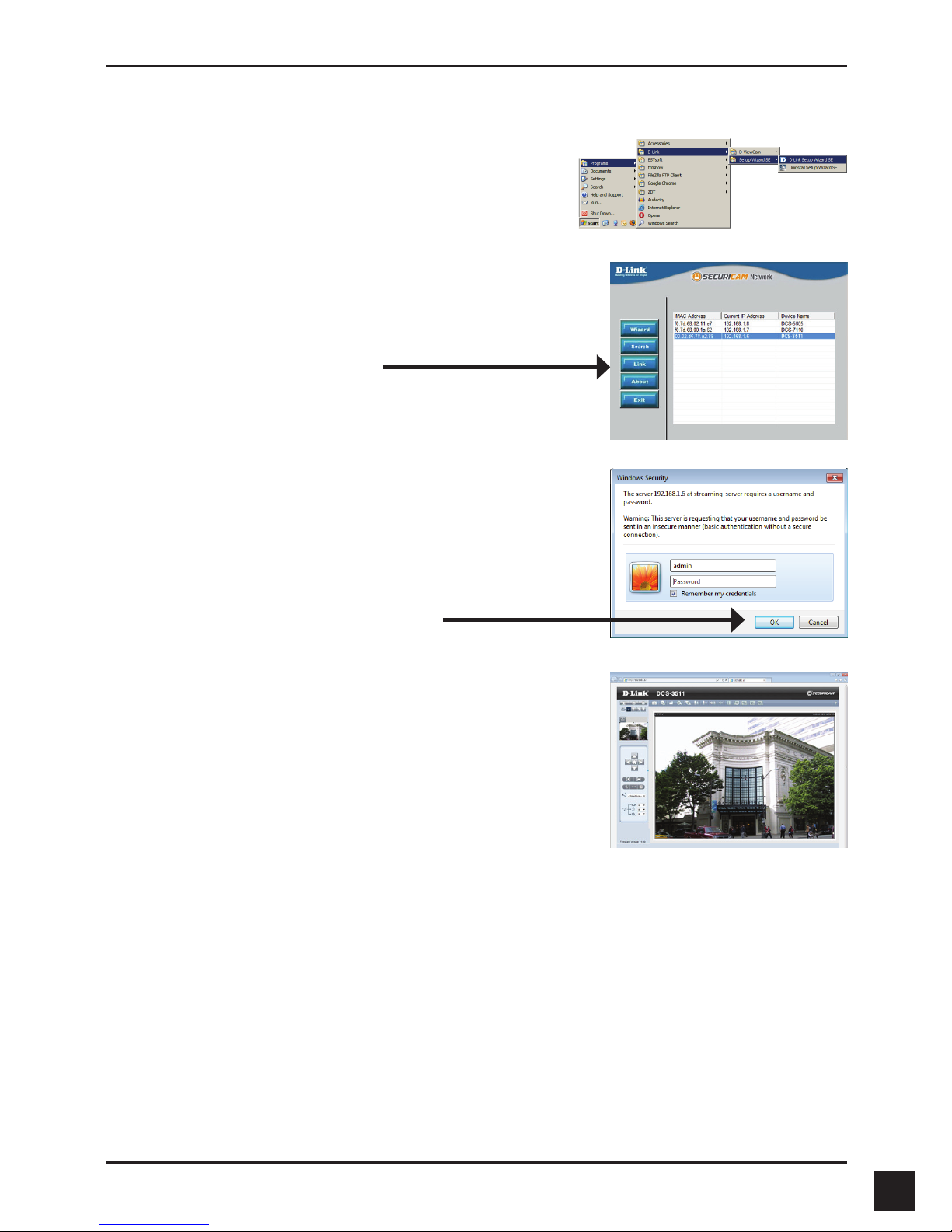

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.

D-Link DCS-3511/DCS-3530 Quick Install Guide
10
Notes

D-Link DCS-3511/DCS-3530 Quick Install Guide 11
Notes

D-Link DCS-3511/DCS-3530 Quick Install Guide
12
Notes

D-Link DCS-3511/DCS-3530 Quick Install Guide 13
Notes

D-Link DCS-3511/DCS-3530 Quick Install Guide
14
Notes

D-Link DCS-3511/DCS-3530 Quick Install Guide 15
Notes

Copyright ©2013 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link
logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other
countries. Other trademarks are the property of their respective owners. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trafc, building materials
and construction, and network overhead lower actual data throughput rate. Product specications, size
and shape are subject to change without notice, and actual product appearance may differ from that
depicted on the packaging. Visit www.dlink.com for more details.
Version 1.0
October 15, 2013
