D-Link DES-1008F User manual

Before Your Begin
This Quick Installation Guide gives step-by-step instructions for setting up the D-Link
DES-1008F 10/100M Fast Ethernet Switch. The model you have purchased may
appear slightly different from those shown in the illustrations.
Check Your Package Contents
These are the items included with your DES-1008F purchase:
If any of the above items are missing, please contact your reseller.
©2009 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice.
• DES-1008F 10/100M Fast Ethernet Switch
• Quick Installation Guide
• Power Adapter
Using a power
supply with a
different voltage rating
will damage and void
the warranty for this
product.
DES-1008F
10/100M Fast Ethernet Switch

2
Setup The DES-1008F
10/100M Fast Ethernet Switch
The setup of the Switch can be performed using the following steps:
A. Install the DES-1008F in a fairly cool and dry place. See Technical
Specification for the acceptable operation temperature and humidity
ranges.
B. Install the Switch in a site free from strong electromagnetic source, vibration,
dust, and direct sunlight.
C. Leave at least 10cm of space at the left and right hand side of the Switch
for ventilation.
D. Visually inspect the DC power jack and make sure that it is fully secured to
the power adapter.

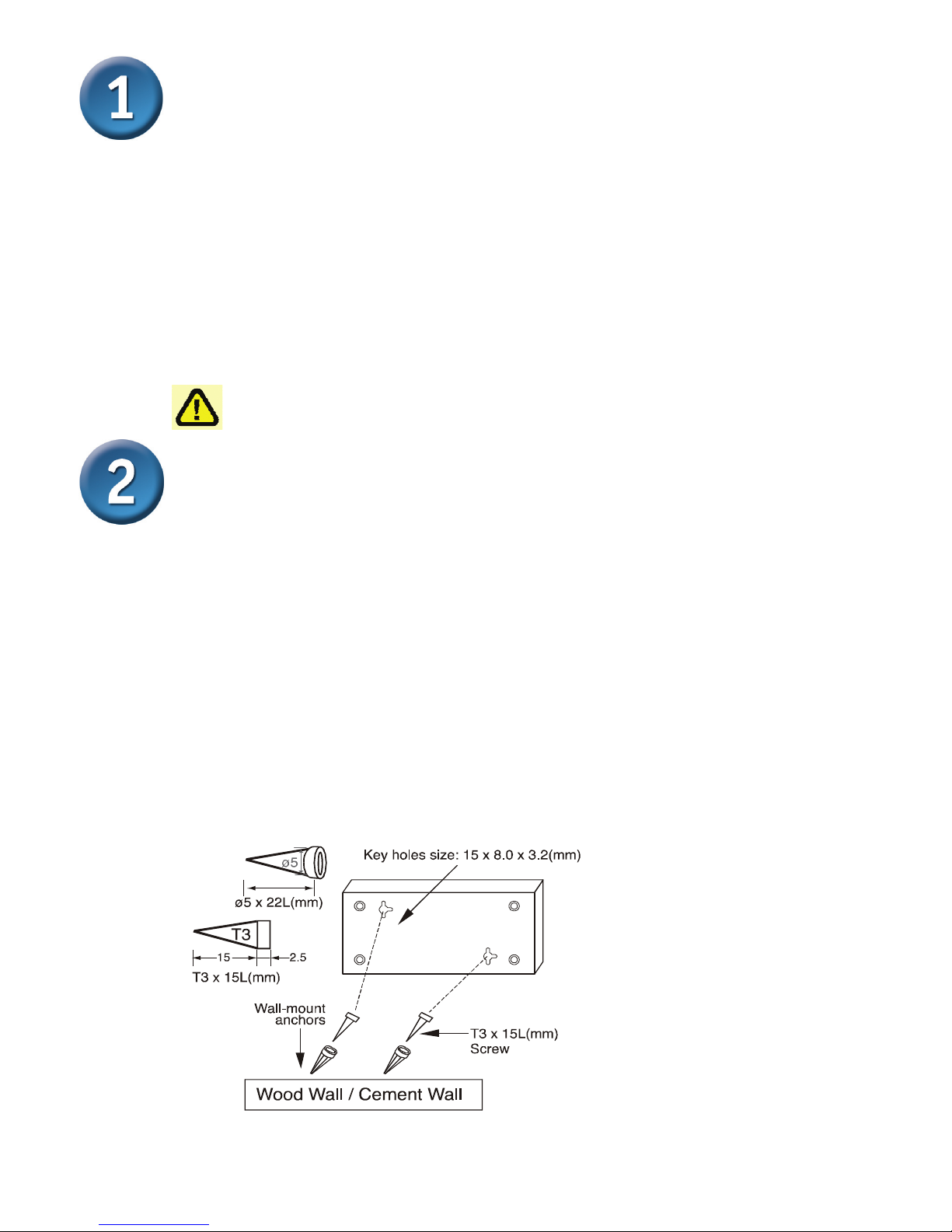

Mounting the Switch on a Wall
The DES-1008F can also be mounted on a wall. Two mounting slots are
provided on the bottom of the switch for this purpose. Please make sure that
the front panel is exposed in order to view the LEDs. Please refer to the
illustration below:
A. Mounting on a cement wall
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws; you have
completed the wall-mount.
B. Mounting on a wood wall
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws; you have
completed the wall-mount.
(1) 3/4 inch minimum
for wood wall
(2) 3 inch minimum
for cement wall.
Do not stack any device on the Switch.

3
Connecting The DES-1008F
To Your Network

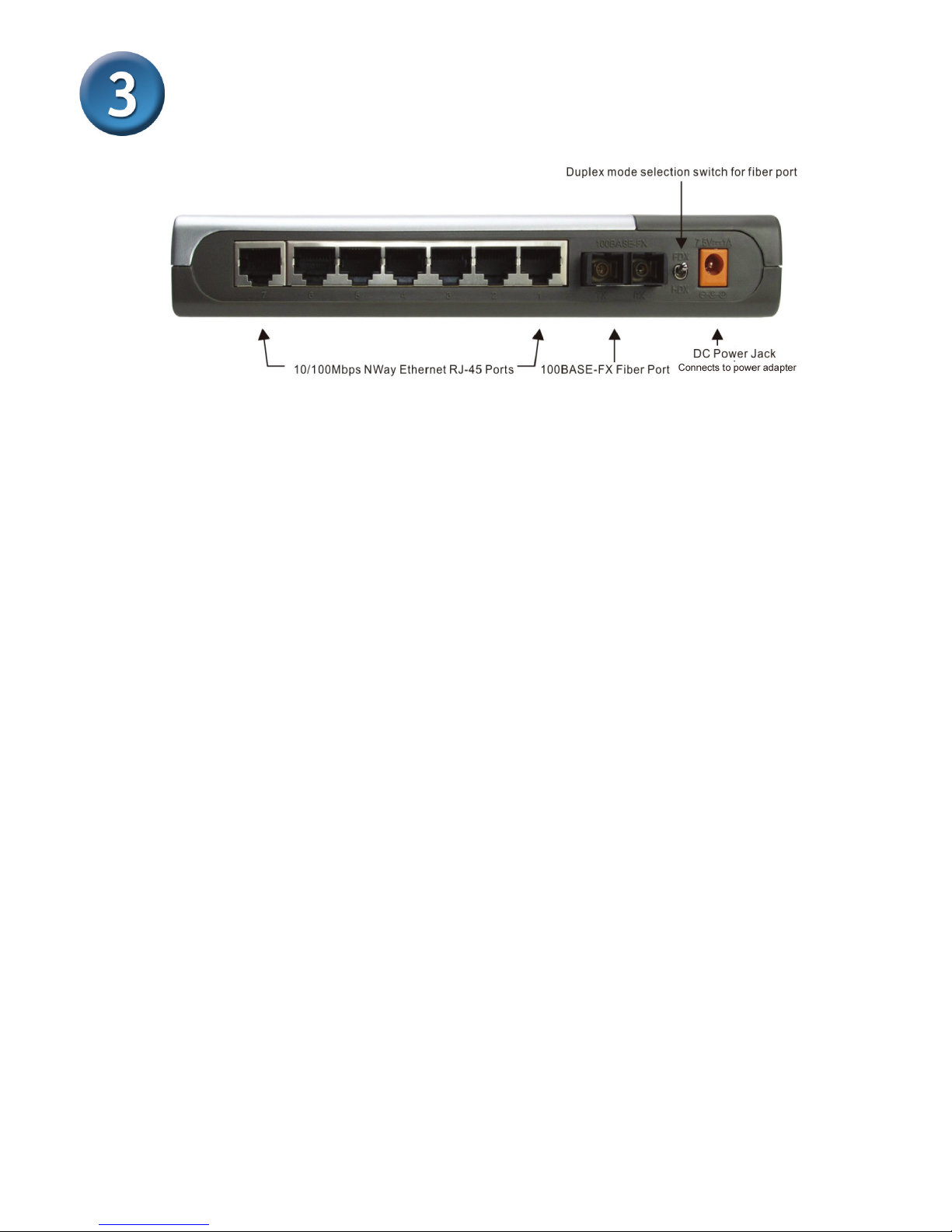

DC Power Jack: Power is supplied through an external AC power adapter.
Since the switch does not include a power switch, plugging its power adapter
into a power outlet will immediately power it on.
Auto-MDI-X Function ports: Use these jacks (port1 ~ port-7) for DES-1008F
to connect stations to the hub. An Auto-MDI-X function will automatically detect
if a crossover is required and make the swap of TX pair and Rx pair internally.
With this function, straight-through cable can be used for any connection. MDI
to MDI-X connection rule is not necessary anymore. In the switches, all TX
ports are equipped with this function. You can use just straight-through type
cables for all your connections.
100BASE-FX Fiber Port: The DES-1008F Fiber port supports a 100BASE-FX
Duplex SC connector for a 1310 nm Multi-mode fiber link of up to 2 km.
Duplex Mode Switch: The switch is to select the operation mode either to run
in full or half duplex mode for 100BASE-FX. When turning the switch to FDX,
the fiber port will run at full duplex or turn to HDX, the fiber will run at half
duplex.
DES-1008F
(Spec & Color may vary by region)

4

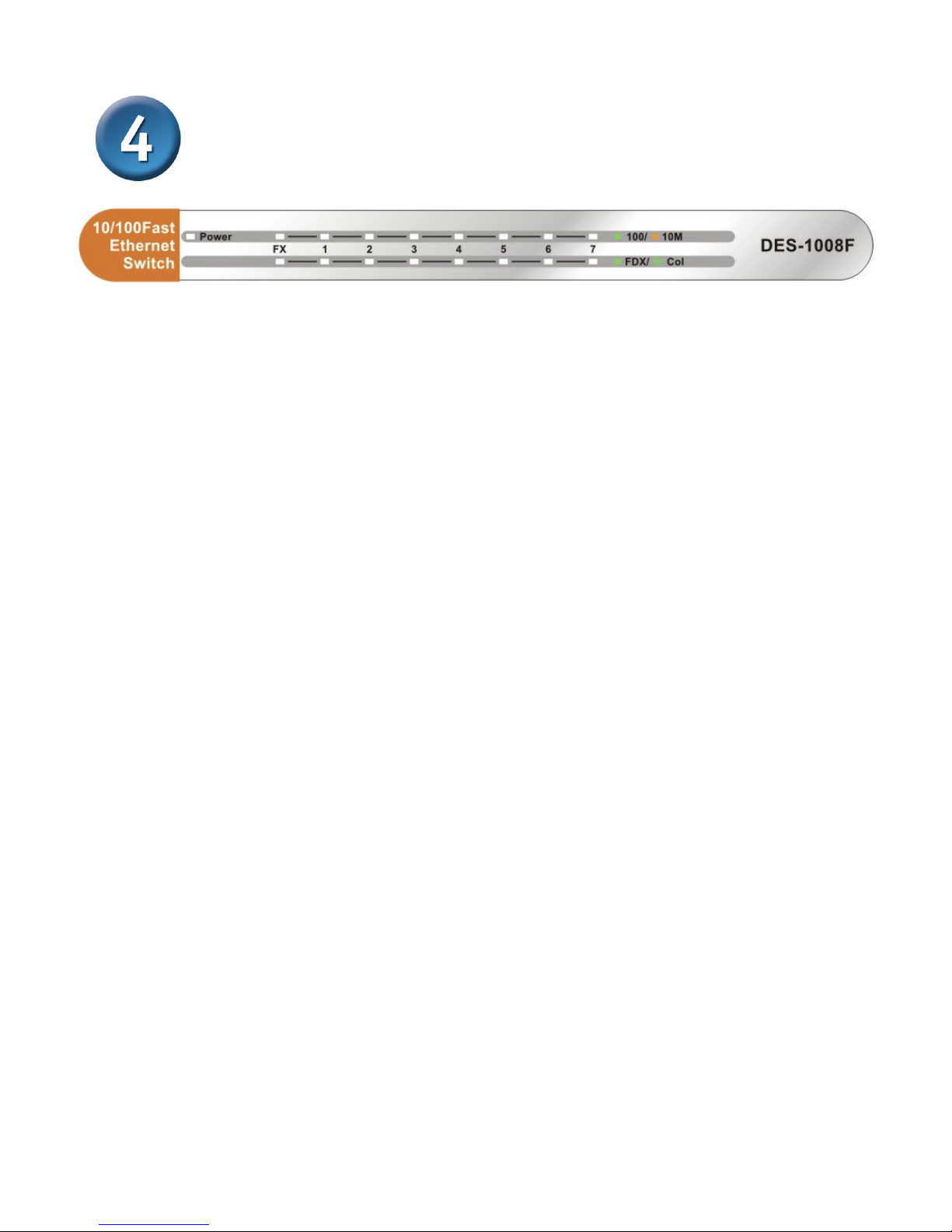

LED Indicators
Power
This LED indicator lights green when the switch is receiving power,
otherwise, it is off.
FDX/Col (Full-Duplex/Collision)
This LED indicator lights green when a respective port is in full duplex
(FDX) mode. Otherwise, it is blinking when collisions are occurring on the
respective port.
100M LINK/ACT(green), 10M LINK/ACT(amber)
This LED indicator lights green when the port is connected to a 100Mbps
Fast Ethernet station, if the indicator blinking green will be transmission or
received data on the 100Mbps network. Otherwise, if the indicator lights
amber when the port is connected to a 10Mbps Ethernet station, if the
indicator blinking amber will be transmission or received data on the
10Mbps network.

5
Technical Support
You can find software updates and user documentation on the D-Link website.
Tech Support for customers in
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [e-mail]
India:
Tel: [phone] (MTNL & BSNL Toll Free)
[phone] (GSM, CDMS & Others)
Web: www.dlink.co.in
E-Mail: [email protected]o.in
[e-mail]
Indonesia, Malaysia, Singapore and Thailand:
Tel: [phone] (Indonesia)
Tel: [phone] (Malaysia)
Tel: [phone] (Singapore)
Tel: [phone] (Thailand)
24/7, for English Support only
Web: http://www.dlink.com.sg/support/
E-mail: [email protected]om.sg
Korea:
Tel: [phone]
Monday to Friday 9:00am to 6:00pm
Web: http://www.d-link.co.kr
E-mail: [e-mail]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: supp[email protected]z

6
Technical Support
You can find software updates and user documentation on the D-Link website.
Tech Support for customers in
Egypt:
Tel: [phone]
Sunday to Thursday 9:00am to 5:00pm
Web: http://support.dlink-me.com
E-mail: [e-mail]
Iran:
Tel: [phone],19
Saturday to Thursday 9:00am to 5:00pm
Web: http://support.dlink-me.com
E-mail: [e-mail]
[email protected]
Israel:
Magshimim 20, Petach Tikva 49348
Main Tel: [phone]
Customer Support Tel: [phone]
Web: www.dlink.co.il
Pakistan:
Tel: [phone]
[phone]
Monday to Friday 10:00am to 6:00pm
Web: http://support.dlink-me.com
E-mail: [e-mail]
South Africa and Sub Sahara Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South Africa Time
Web: http://www.d-link.co.za
E-mail: [e-mail]
Turkey:
Tel: [phone]
Monday to Friday 9:00am to 6:00pm
Web: http://www.dlink.com.tr
E-mail: [e-mail]
U.A.E and North Africa:
Tel: [phone] (U.A.E)
Sunday to Thursday 9.00AM to 6.00PM GMT+4
Web: http://www.dlink-me.com
E-mail: support.[email protected]m
Saudi ARABIA (KSA):
Tel: [phone]
Fax: [phone]
Saturday to Wednesday 9.30AM to 6.30PM
Thursdays 9.30AM to 2.00 PM
E-mail: [e-mail]

7
Техническая поддержка
Обновления программного обеспечения идокументация
доступны на Интернет-сайте D-Link.
D-Link предоставляет бесплатную поддержку для клиентов
втечение гарантийного срока.
Клиенты могут обратиться вгруппу технической поддержки
D-Link по телефону или через Интернет.
Техническая поддержка D-Link:
[phone]
Техническая поддержка через Интернет
http://www.dlink.ru
e-mail: [email protected]

8
SOPORTE TÉCNICO
Usted puede encontrar actualizaciones de softwares o firmwares y documentación
para usuarios a través de nuestro sitio www.dlinkla.com
SOPORTE TÉCNICO PARA USUARIOS EN LATINO AMERICA
Soporte técnico a través de los siguientes teléfonos de D-Link
PAIS NUMERO HORARIO
