D-Link AirPremier DWL-7700AP User manual

2

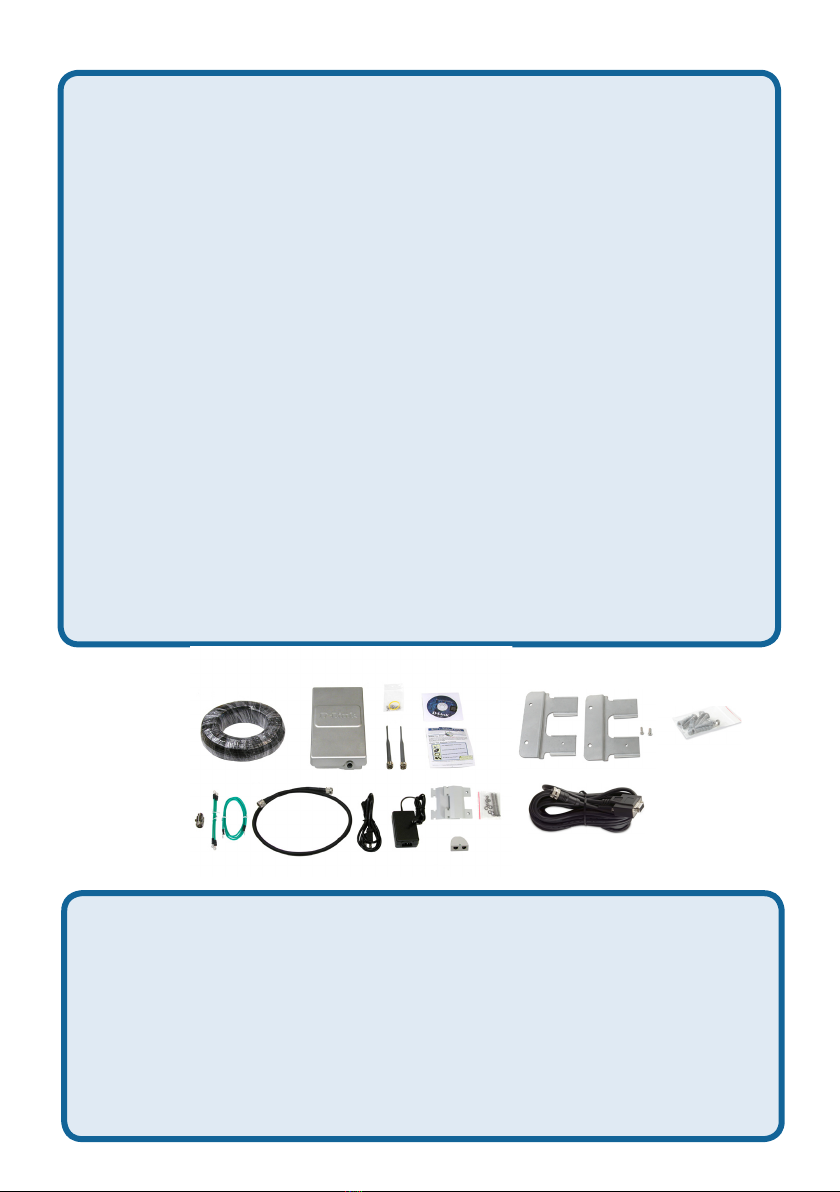

• 30m Ethernet cable
• Power Adapter
• Grounding Wire
• Power Cord
• RF Jumper Cable
• 8 Screws and Rubber Ring
Package Contents
• PoE Base Unit
• Two Dipole Antennas
• DWL-7700AP 802.11A/G Outdoor Wireless AP/ Bridge
• CD-ROM (with Product Documentation)
• Surge Arrestor
System Requirements
• Computer with Windows, Macintosh, or Linux-based operating
system with an Ethernet adapter installed
• Internet Explorer version 6.0 or Netscape version 7.0 and
above
• 2 Mounting Kits
• Console Cable

3
This product should ONLY be installed by an experienced installer
who is familliar with local building and safety codes and where ever
applicable, is licensed by the appropriate authorities. Failure to do so
may void the D-Link product warranty and may expose the end user
or the service provider to legal and financial liabilities. D-Link and its
resellers or distributors are not liable for injury, damage, or violation of
regulations associated with the installation of outdoor units or antennas.
A safety grounding system is necessary to protect your outdoor installation
from lightning strikes and the build-up of static electricity. Direct grounding
of the antenna mast, Outdoor AP, and Surge Arrester is very important.
When mounting the Outdoor AP on the antenna mast, you have to connect
the Outdoor AP to the same grounding system with the AC wall outlet. The
grounding system must comply with the National Electrical Code and safety
standards that apply in your country. Always check with a qualified electrician
if you are in doubt as to whether your outdoor installation is properly grounded.
Important Information
It’s best to use a computer (with an Ethernet adapter) connected to a switch
to configure the DWL-7700AP.The default IP address for the DWL-7700AP
is 192.168.0.50 with a subnet mask of 255.255.255.0 on the wired Ethernet
side.You will need to assign your computer a static IP address within the
same range as the DWL-7700AP’s IP address for the purpose of configuring
the DWL-7700AP. If you need assistance assigning a static IP address
to your network adapter, please refer to the manual on the CD-ROM.
Before You Begin

4

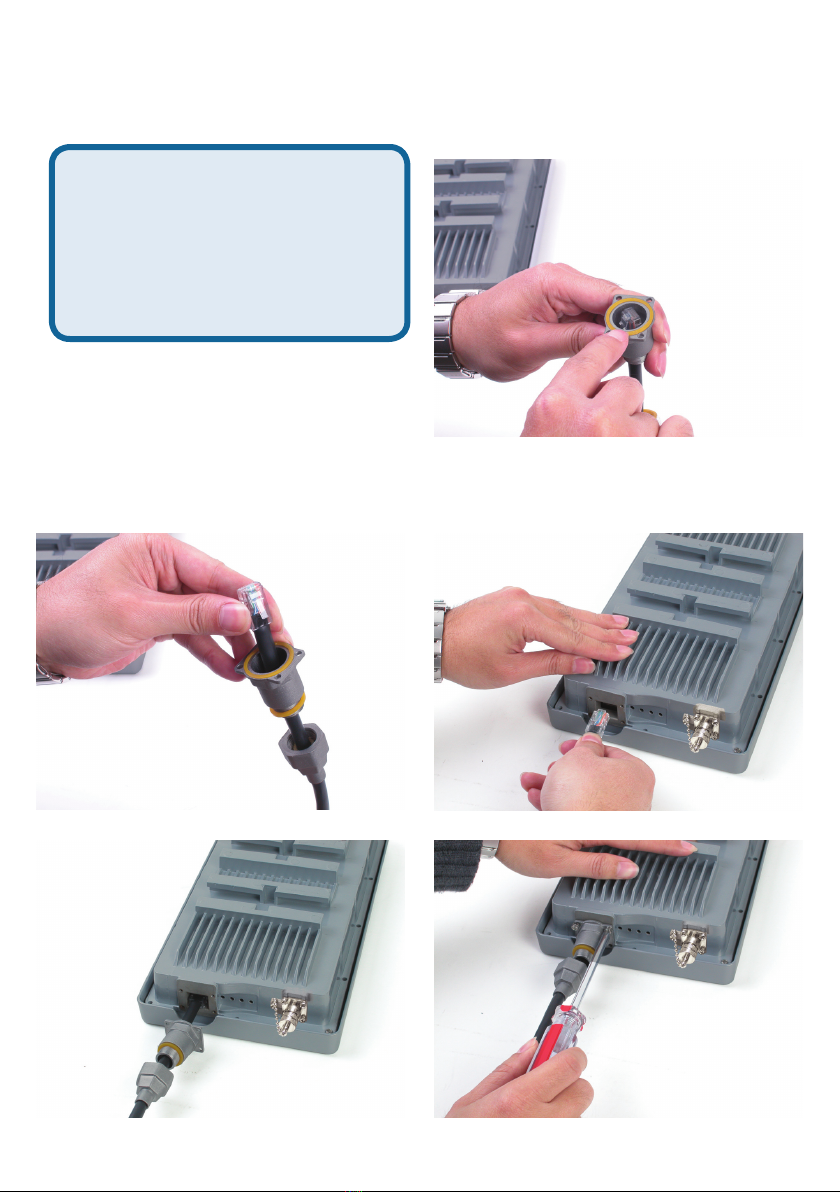

Step 1: Connect the
supplied Ethernet cable with
the waterproof enclosure
to the Ethernet port on the
DWL-7700AP and attach the
grounding wire.
Physical Installation

5

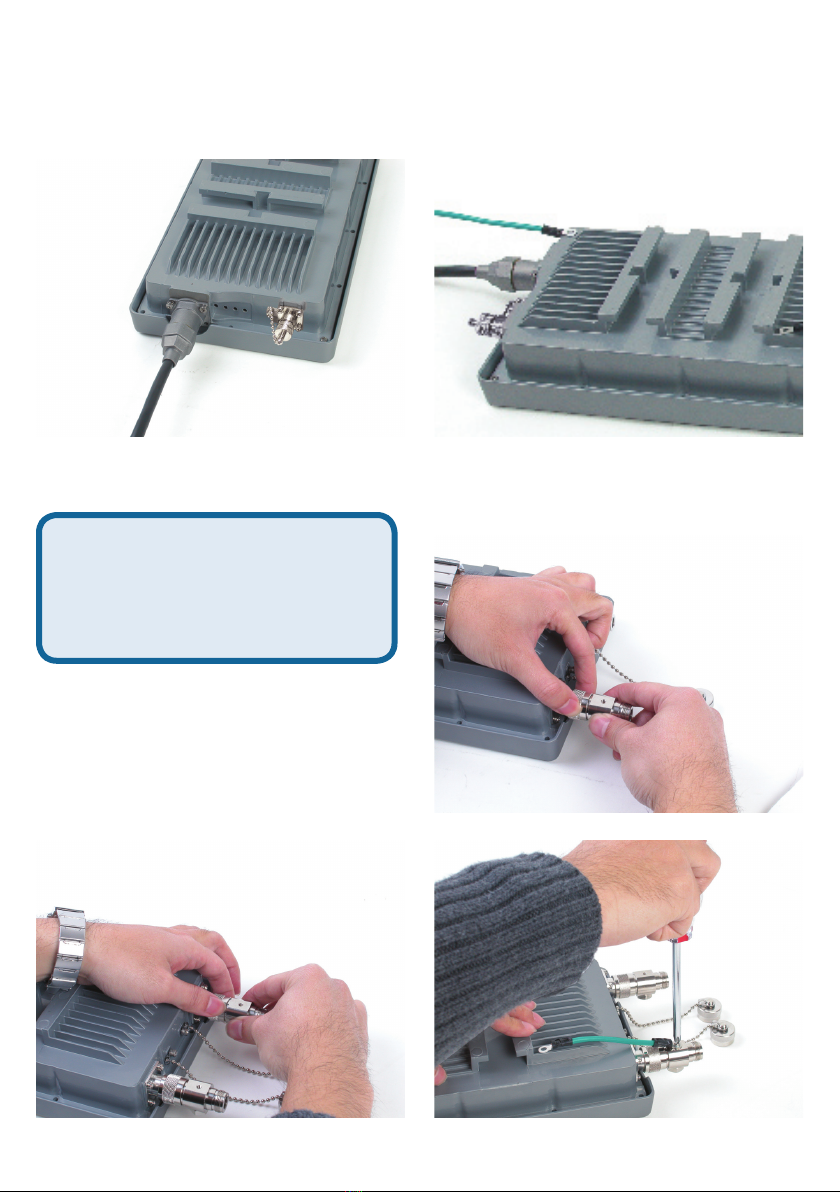

Step 2: Install the two dipole
antennas to the antenna
connector and attach the
grounding wires.

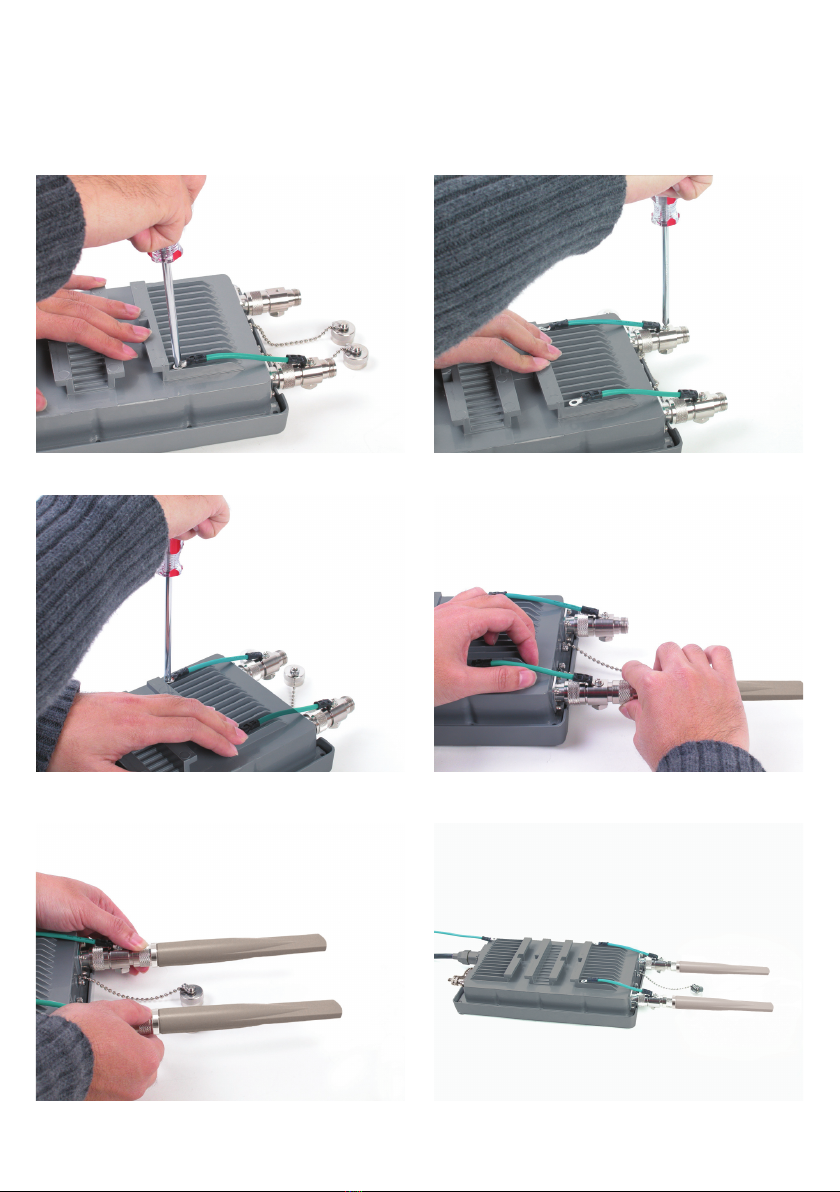

Physical Installation (continued)

6
Physical Installation (continued)

7

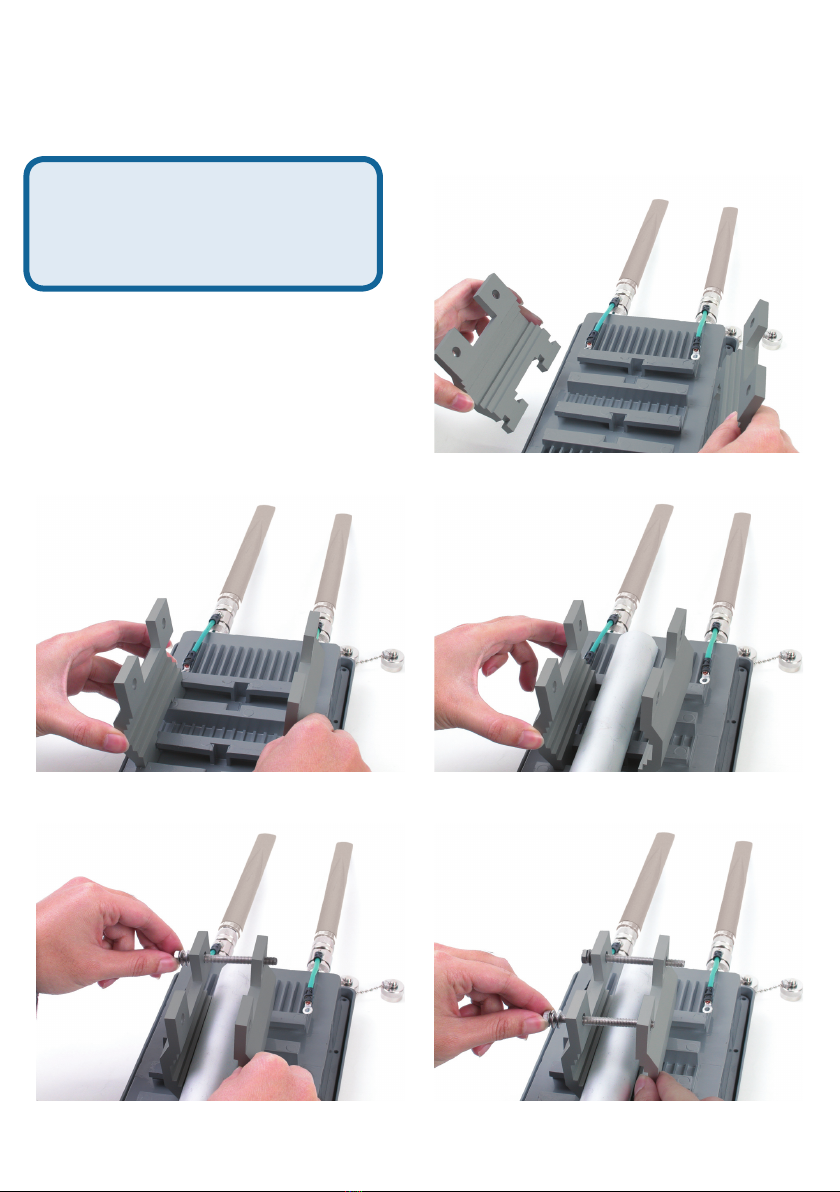

Step 3: Install the mounting
kits. You can select between
two mounting options.
Physical Installation (continued)

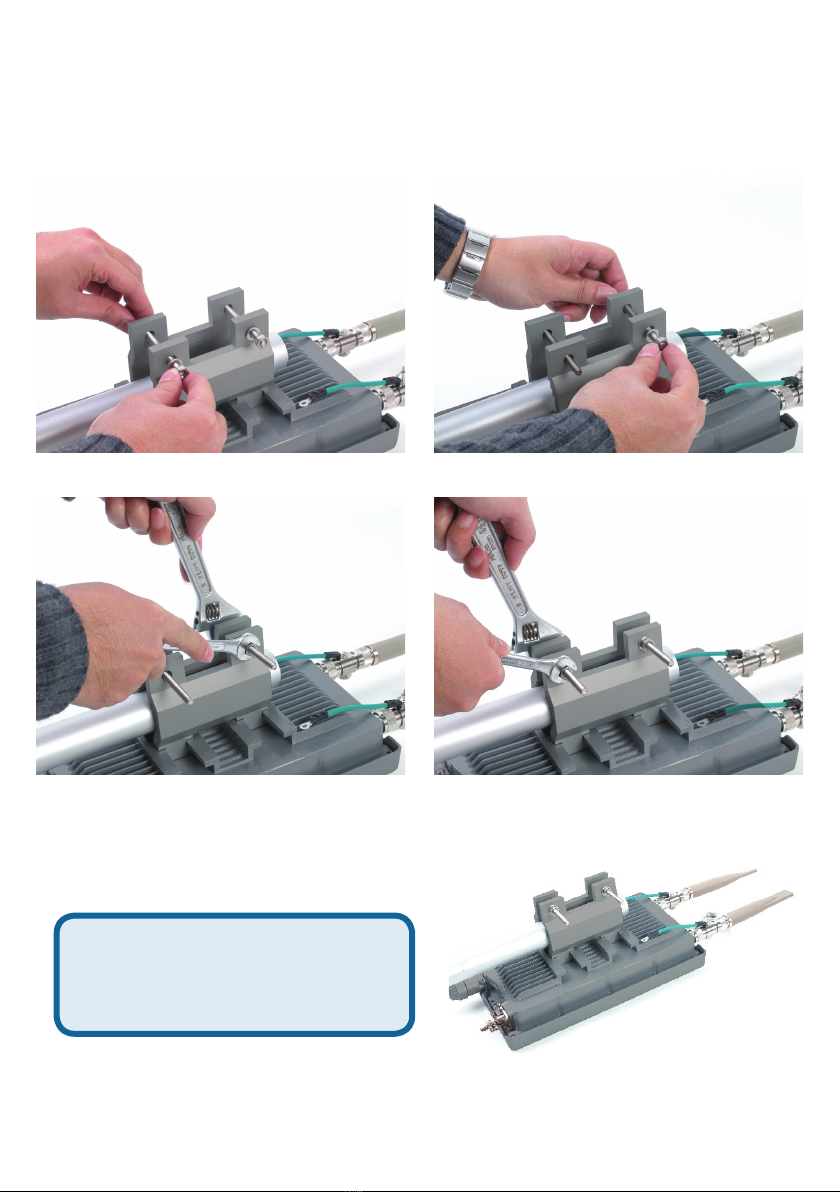

Mounting Option A:

8
Physical Installation (continued)
A complete DWL-7700AP with
Mounting Option A should look
like this.

9

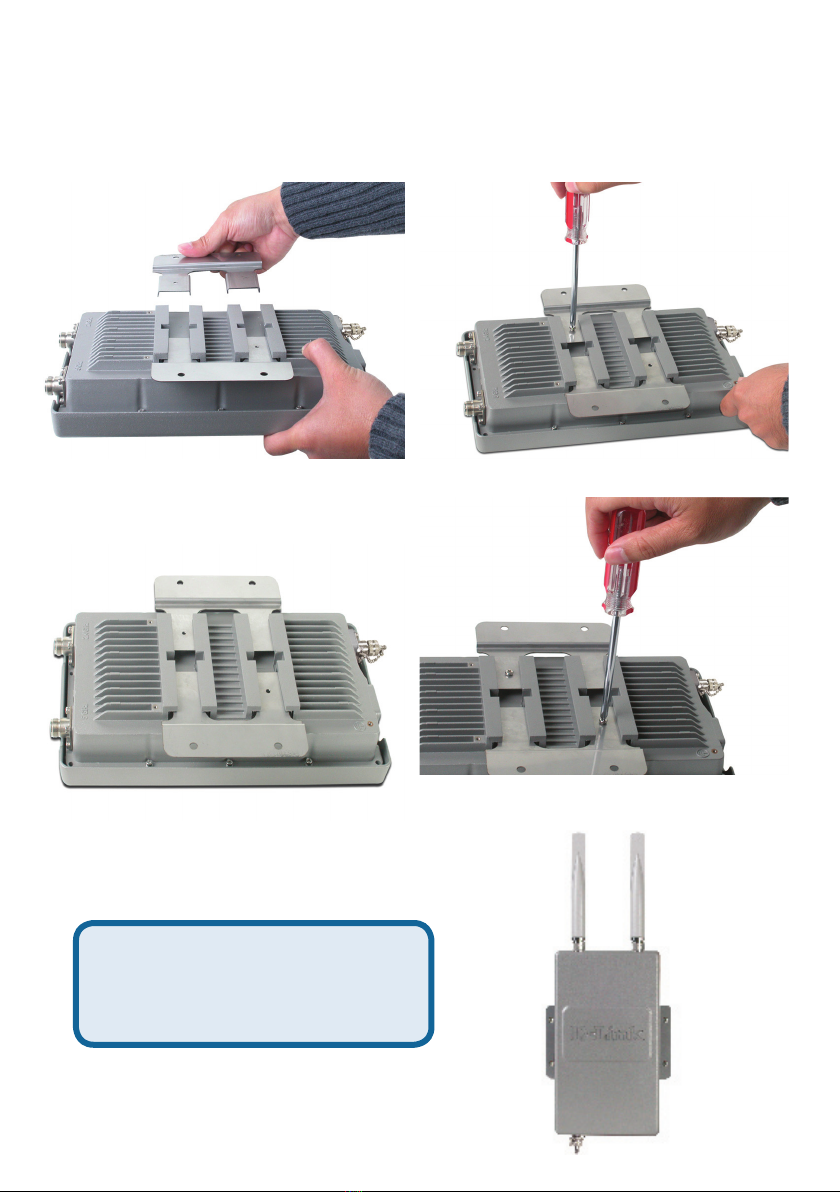

Mounting Option B:
A complete DWL-7700AP with
Mounting Option B should look
like this.
Physical Installation (continued)

10

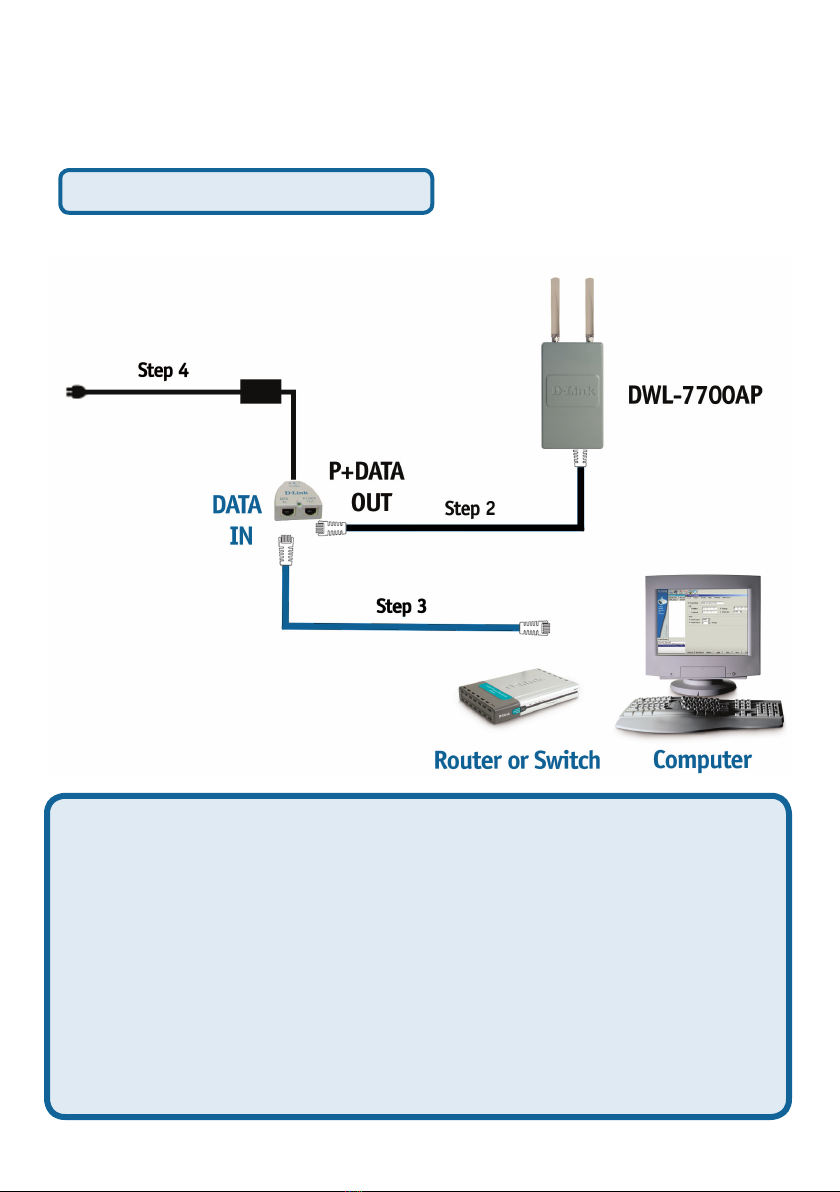

Step 1: Complete the Physical Installation first.
Step 2: Connect the remaining end of the supplied Ethernet cable (connected to
the DWL-7700AP in Step 1 on page 4) to the P+ DATA OUT port on the PoE base
unit.
Step 3: Connect an Ethernet cable from a router/switch or PC to the DATA IN port
on the PoE base unit.
Step 4: Attach the power adapter to the connector labeled POWER IN on the PoE
base unit. Attach the power cord to the power adapter and into an electrical outlet.
Connecting the DWL-7700AP Wireless Access
Point to Your Network
Hardware Installation Overview

11

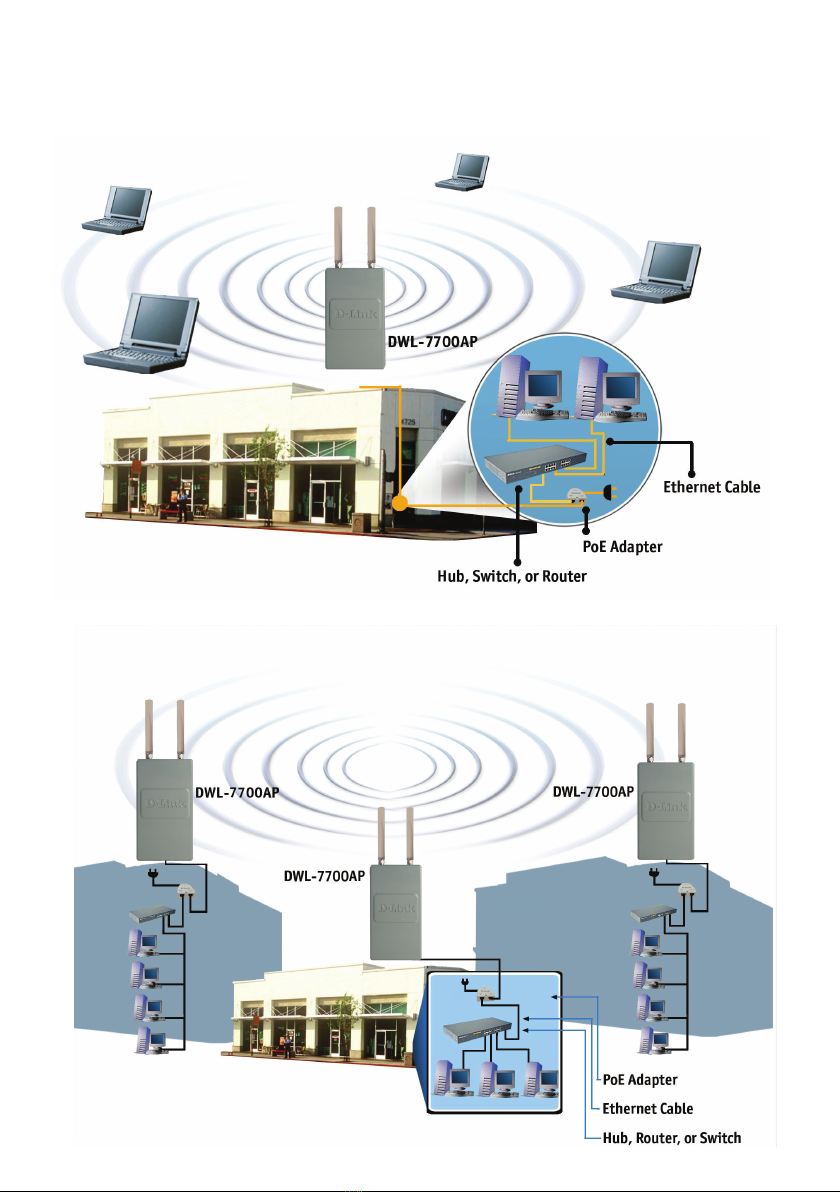

Your Setup is Complete!
AP Mode:
Bridging Mode:

Technical Support
You can nd software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our
website or by phone.
