D-Link DWL-7100AP User manual

2D-Link DWL-7100AP User Manual
Table of Contents
Product Overview ........................................................5
Package Contents....................................................5
System Requirements ............................................. 5
Introduction..............................................................6
Features and Benefits..............................................7
Hardware Overview .................................................8
LEDs ..................................................................8
Installation....................................................................9
Connect to Your Network .........................................9
Installation Considerations.....................................10
Configuration............................................................. 11

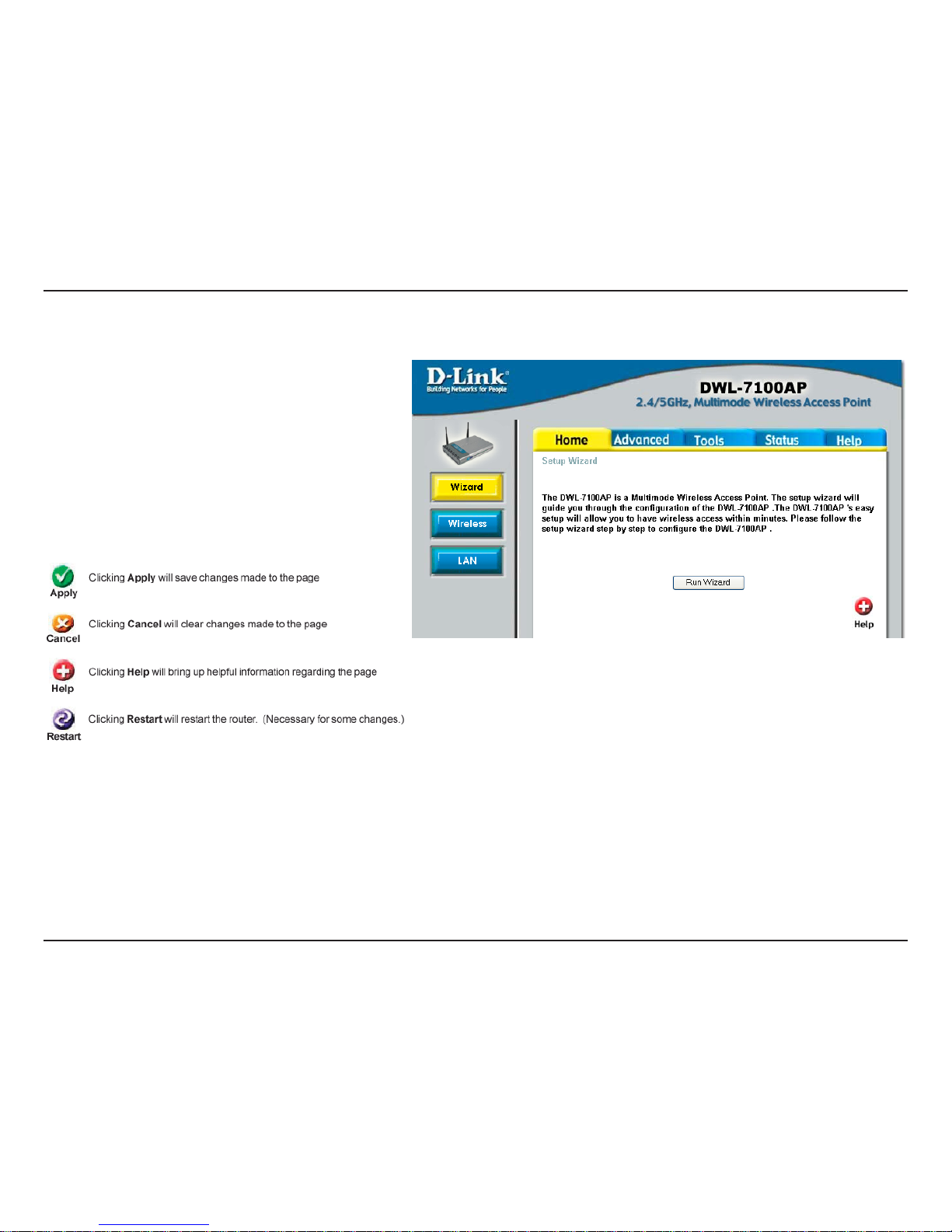

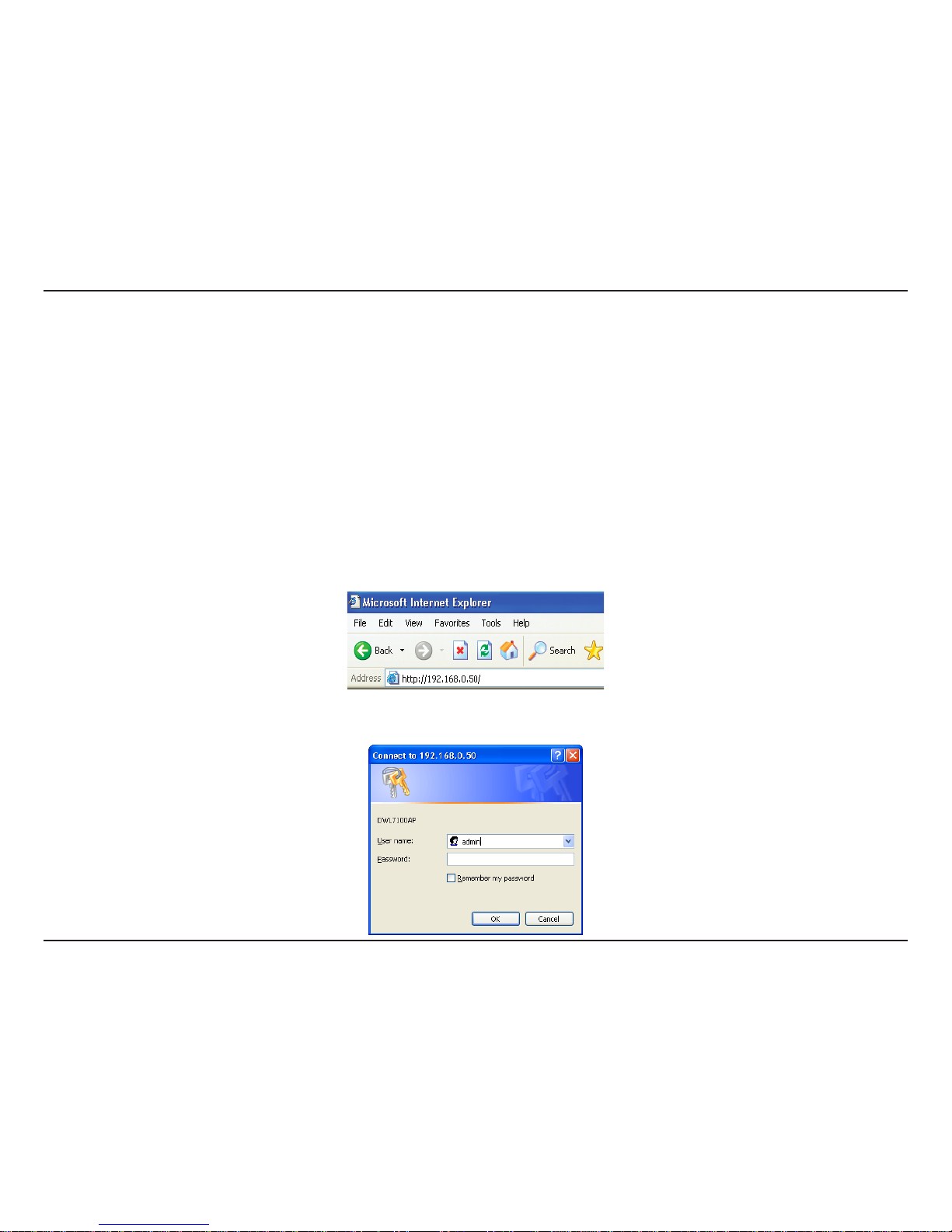

Web Configuration Utility ....................................... 11
Home ...............................................................12
Wireless Modes ............................................... 13

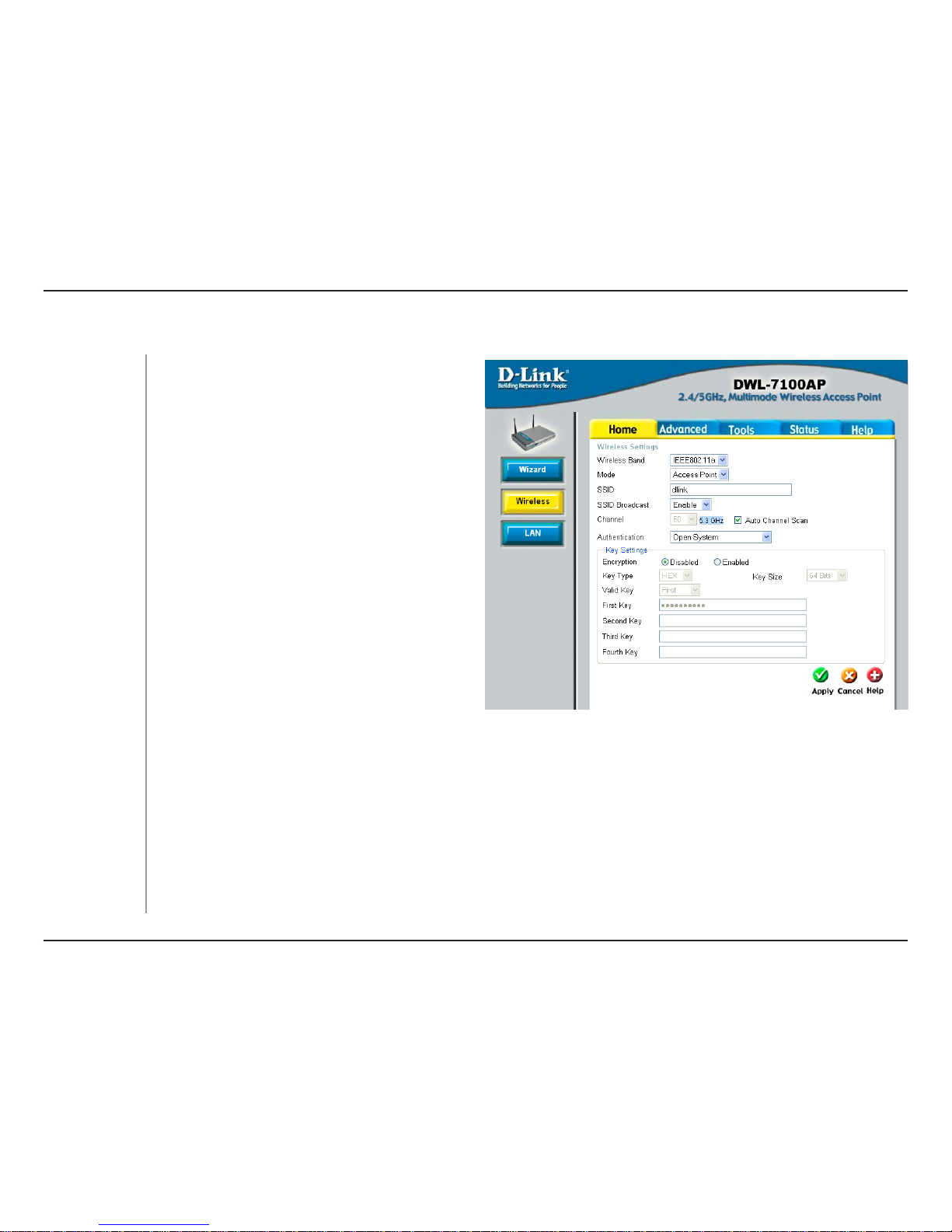

Access Point Mode......................................14

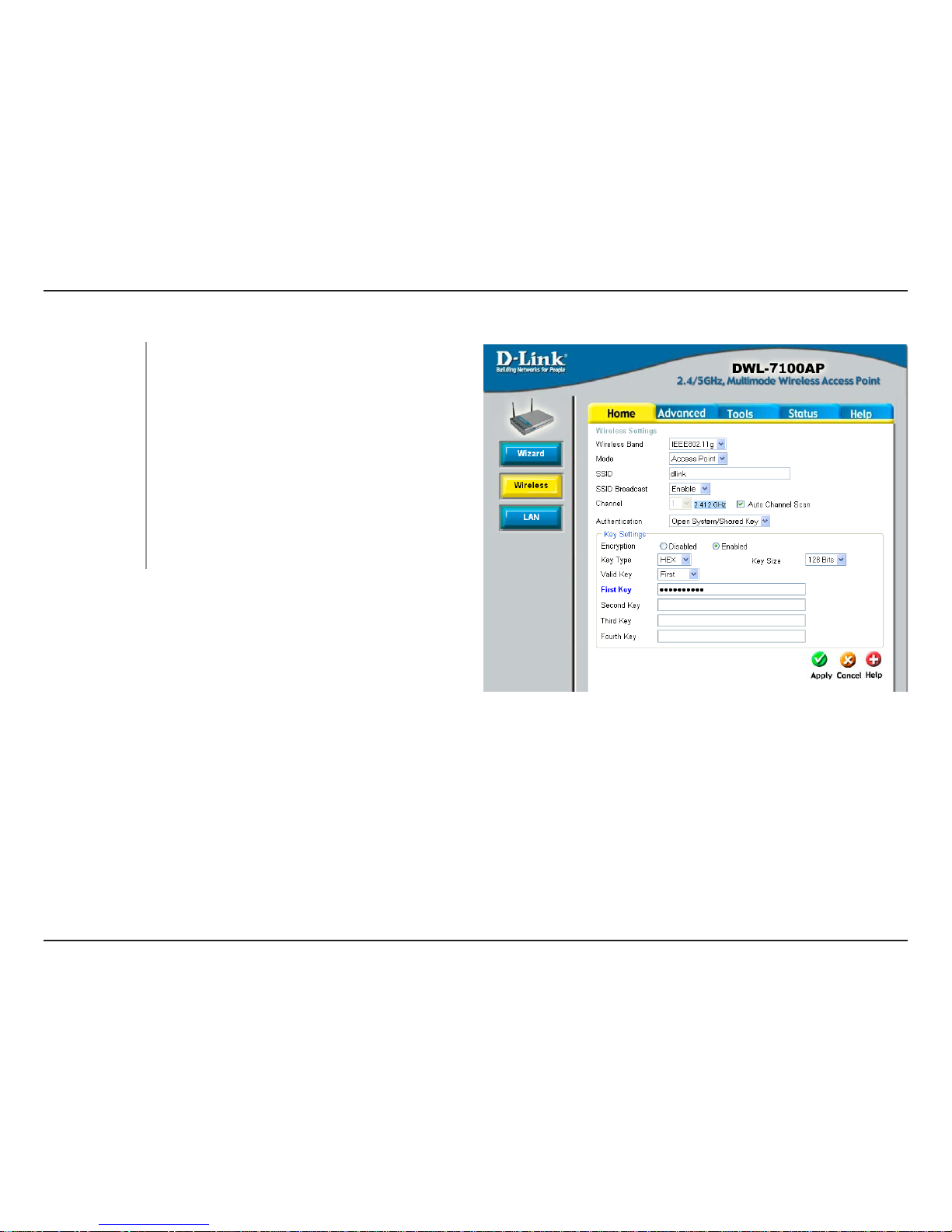

Access Point (WEP) .................................... 16

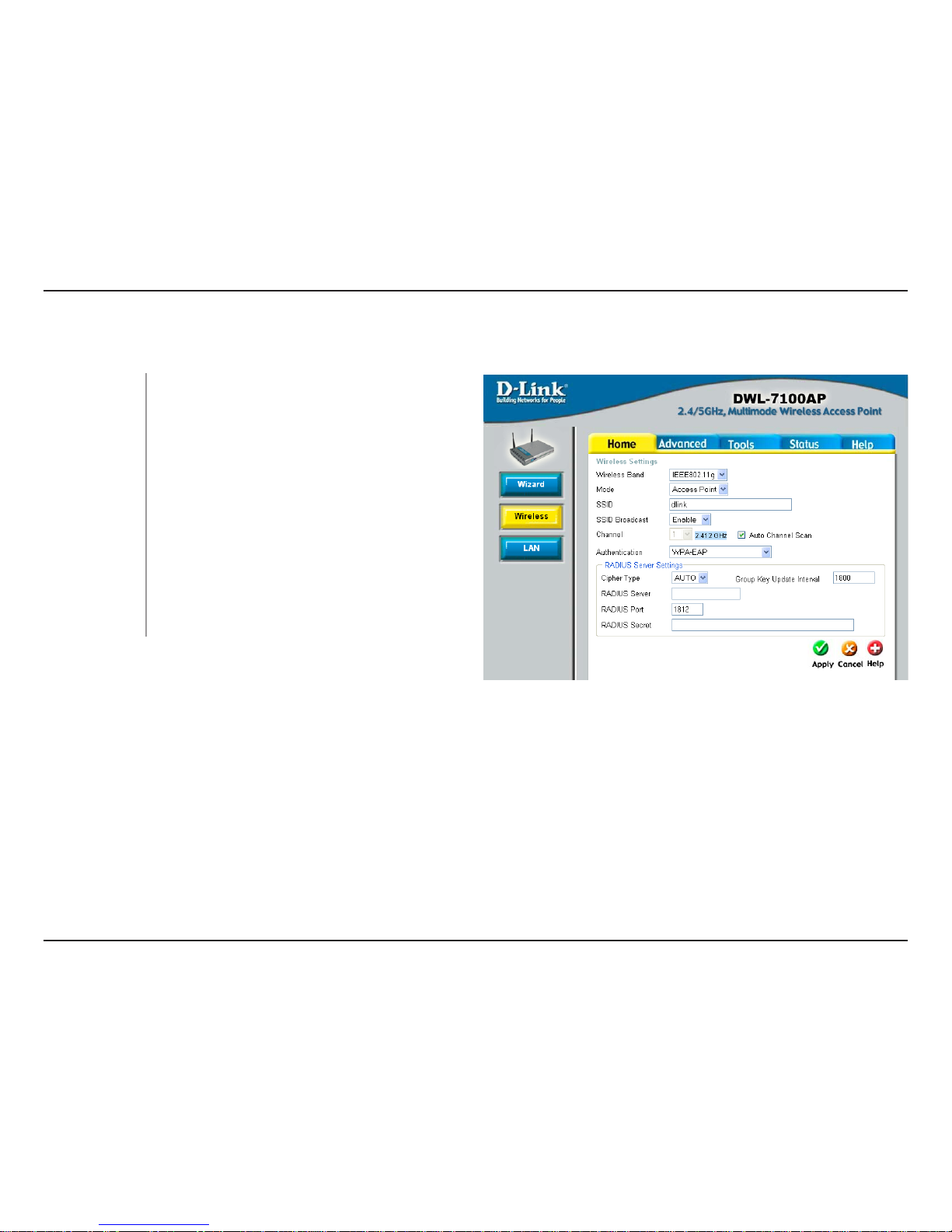

Access Point (WPA-EAP/WPA2-EAP) .........17

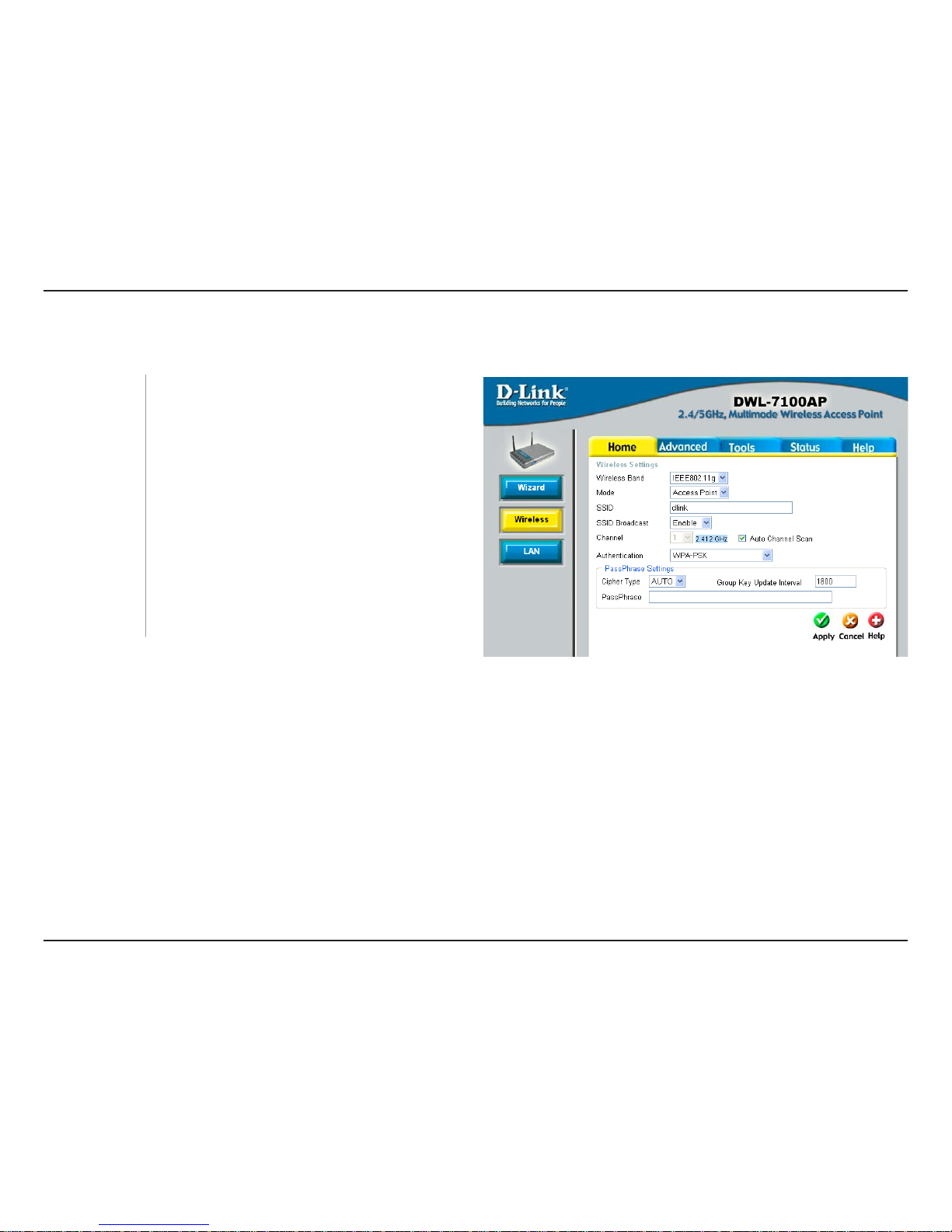

Access Point (WPA-PSK/WPA2-PSK) .........18

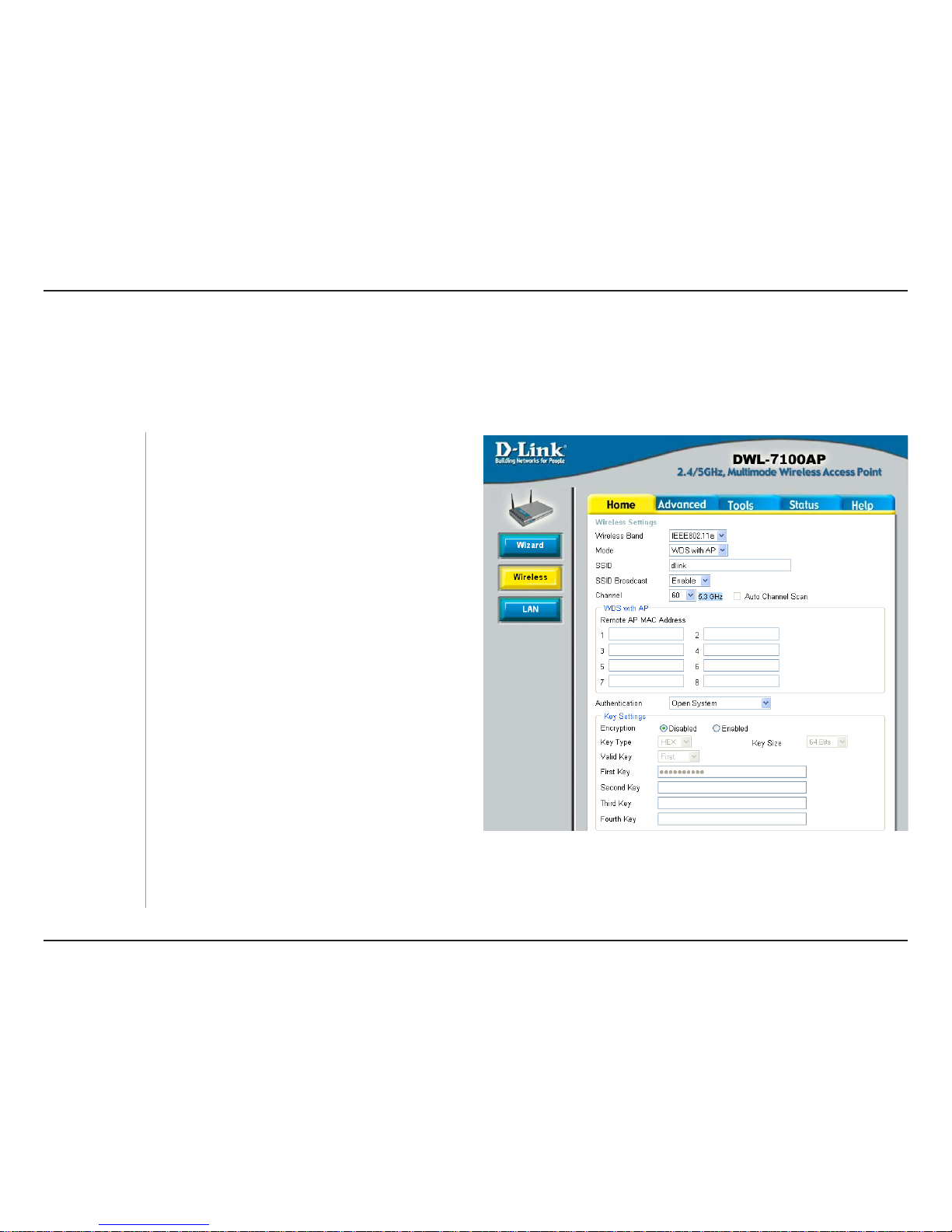

WDS with AP...............................................19
WDS with AP (WEP) ...................................21
WDS ............................................................22
WDS (WEP).................................................24
AP Repeater................................................25
AP Repeater (WEP) ....................................26
AP Client......................................................27
AP Client (WEP)..........................................28
AP Client (WPA-PSK/WPA2-PSK)...............29
LAN Settings.................................................... 30
Static IP Address......................................... 30
Dynamic IP Address....................................31
Advanced Performance Settings...................... 32
Filters ...............................................................34
Wireless Access Settings ............................34
WLAN Partition............................................35
Grouping...................................................... 36
DHCP Server ...................................................37

3D-Link DWL-7100AP User Manual
Dynamic Pool Settings ................................37
Static Pool Settings .....................................39
Current IP Mapping List............................... 41
Admin Settings................................................. 42
System Settings............................................... 43
Upgrade Firmware ........................................... 44
Configuration File............................................. 45
Telnet Settings .................................................47
Device Information ...........................................48
Stats................................................................. 49
Client Information............................................. 50
Help .................................................................51
Using the AP Manager...........................................52
Discovering Devices ........................................ 52
Device Configuration........................................53
General........................................................ 54
Wireless Settings ............................................. 56
Security............................................................ 58
WEP Encryption .......................................... 59
WPA-EAP/WPA2-EAP/ WPA-Auto-EAP....... 60
WPA-EAP/WPA2-EAP/ WPA-Auto-EAP....... 61
Filters ...............................................................62
AP Mode .......................................................... 63
WDS with AP............................................... 64
WDS ............................................................65
AP Repeater................................................ 66
AP Client......................................................67
DHCP Server ...................................................68
Client-Info.........................................................69
Log................................................................... 70
Configuration Files........................................... 71
Firmware.......................................................... 72
System Settings............................................... 73
Setup Wizard ................................................... 74
Refresh ............................................................78
About ...............................................................78

4D-Link DWL-7100AP User Manual
Networking Basics .................................................... 79
Checking the IP Address in Windows®XP............. 79
Assigning a Static IP Address in XP/2000............. 80
Troubleshooting......................................................... 84
Technical Specifications...........................................87
Contacting Technical Support..................................89
Warranty .....................................................................90
Registration................................................................96

5D-Link DWL-7100AP User Manual
System Requirements
Product Overview
• D-Link DWL-7100AP Access Point
• Power Supply
• Manual and Software on CD
• CAT5 Ethernet Cable
• Quick Installation Guide
• A computer with Windows®, Macintosh, or Linux-based operating system with an installed Ethernet
adapter.
• Internet Explorer, Netscape Navigator (version 6.0 or higher), or Firefox with JavaScript enabled.
• At least 128MB of RAM memory and a 500MHz processor
Note: Using a power supply with a different voltage than the one included with
the DWL-7100AP will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Package Contents

6D-Link DWL-7100AP User Manual

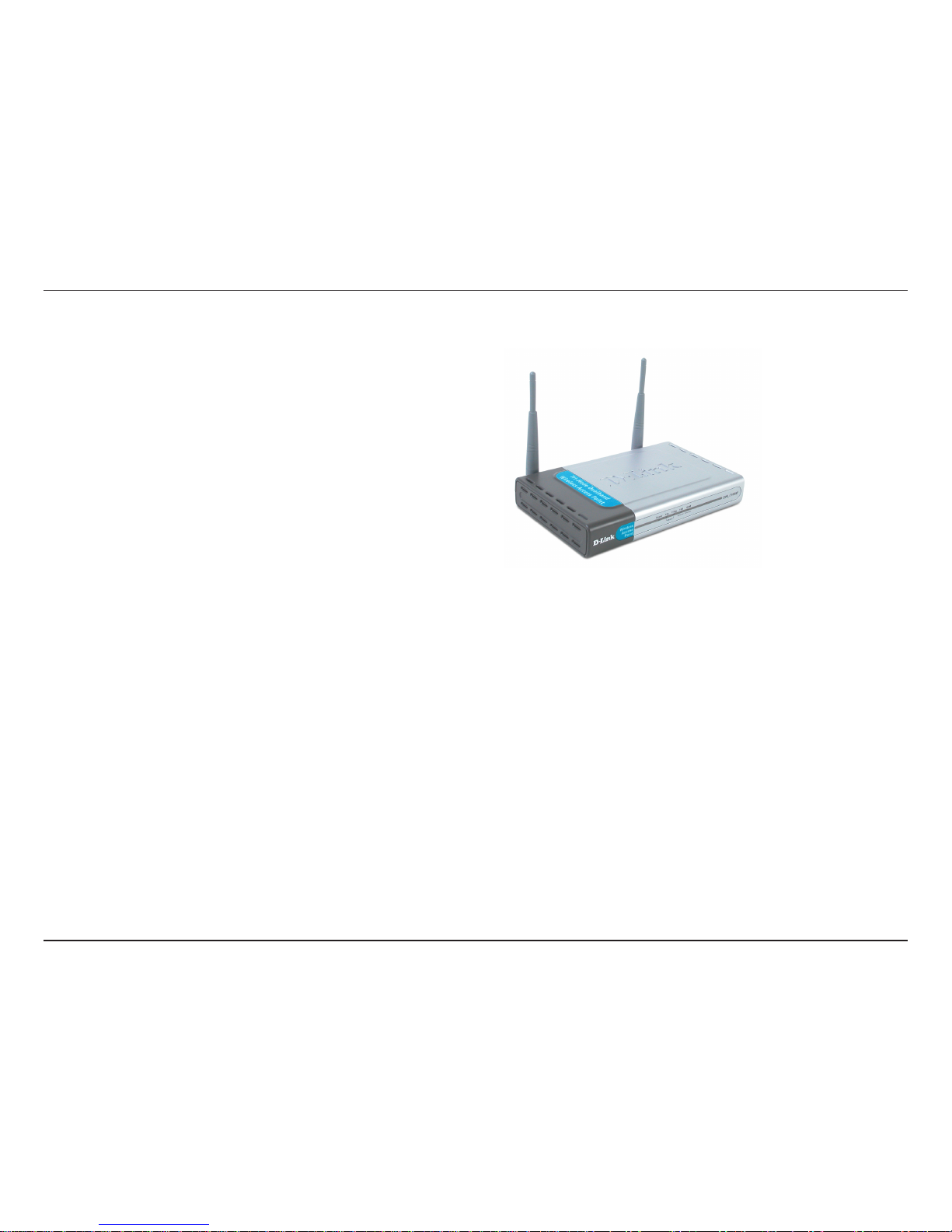

Introduction
D-Link, the industry pioneer in wireless networking, introduces a performance breakthrough in wireless connectivity –The D-Link AirPremier
AG™ DWL-7100AP Access Point, designed for multimode network deployments capable of up to delivering 15x faster data rates than
standard 802.11b in both 802.11a and 802.11g bands.
The DWL-7100AP is an ideal solution for creating a wireless backbone infrastructure or for extending an existing wireless network. For
advanced configuration, network administrators can deploy multimode operation such as using the DWL-7100AP as a 5GHz 802.11a
wireless bridge while simultaneously providing Access Point functionality for 2.4GHz 802.11b/g networks. The DWL-7100AP can operate
as an Access Point, WDS, WDS with AP, Repeater or an AP Client. For compatibility with other D-Link AirPremier AG hardware, the DWL-
7100AP uses Wireless Distribution System (WDS) technology when running in Repeater mode.
The DWL-7100AP provides maximum wireless security by supporting WPA (Wi-Fi Protected Access), 802.1x, and three levels of WEP
Encryption (64/128/152-bit). Other security features include MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast,
and support for Advanced Encryption Standard (AES) Encryption.
The DWL-7100AP delivers extremely fast wireless performance with maximum wireless signal rates reaching up to 108Mbps* when set
in Turbo mode for both 802.11g and 802.11a networks, while still remaining backwards compatible to 802.11b. With the ability to deliver
blazing transfer speeds, network administrators have ample bandwidth to distribute amongst multiple workgroups and avoid network
bottlenecks.
Network administrators can manage the DWL-7100AP settings via its Web-based configuration utility or though Telnet. For advanced
network management, administrators can use D-Link’s AP Manager or D-View SNMP management module to configure multiple access
points from a single location.
With versatile dualband operation modes, solid security features, and extremely fast data transfer speeds, the D-Link AirPremier AG
DWL-7100AP Wireless Access Point offers a high return on investment and provides SMB and Enterprise network administrators an ideal
solution for establishing a new wireless network or for extending the range of an existing one.
* Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will
adversely affect wireless signal range.

7D-Link DWL-7100AP User Manual
Features and Benefits
Up to 108Mbps* with D-Link 108AG
Technology
Using D-Link 108AG Technology, transfer rates reach up to 15x the speed of
previous 802.11b wireless devices. Large data packets or bandwidth-intense
files can now be transferred smoothly without interruption. With 4x the number of
non-overlapping channels than a standard 802.11g device, you can increase the
total amount of aggregated user bandwidth.
Assign Users to 2.4GHz or 5GHz
Frequency Bands
For advanced configuration, the DWL-7100AP concurrently operates in both the
2.4GHz and 5GHz frequency band; network administrators can deploy multimode
wireless settings such as using the DWL-7100AP as an 802.11a wireless bridge
while simultaneously providing access point functionality to 802.11b/802.11g
networks.
Strong Security with WPA, AES, and
152-bit WEP Encryption
Clients accessing the DWL-7100AP can securely connect using 802.1x and
WPA for wireless user authentication. For increased data protection, the
Advanced Encryption Standard (AES) and 152-bit WEP Encryption protocols are
supported.
Multimode Operation for Versatility in
Setup
The DWL-7100AP can operate in more than one mode: Access Point,
WDS with AP, WDS, AP Client and AP Repeater. In repeater mode, the WDS
feature allows users to freely roam about the location without having to change
wireless settings.
Advanced Network Management Options
Users can manage the DWL-7100AP using anyWeb browser (e.g.Internet Explorer
6.0) or via Telnet. For advanced network management, D-Link’s AP Manager and
D-View’s SNMP network management software are comprehensive management
utilities designed to manage your entire wireless network features and options.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b and 802.11g specifications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data
throughput rate.

8D-Link DWL-7100AP User Manual
Hardware Overview
LEDs
LED LED Activity
Power A steady light indicates a connection to a power source
LAN (10/100) A steady light indicates a connection to the Ethernet port;
a blinking light indicates activity
WLAN
(802.11a and 802.11b or 802.11g)
A blinking light indicates activity in the respective wireless mode:
802.11a and/or 802.11b/802.11g

9D-Link DWL-7100AP User Manual
Installation
It’s best to use a computer (with an Ethernet adapter) that is connected to a switch or router for configuring the DWL-7100AP. The default
IP address for the DWL-7100AP is 192.168.0.50 with a Subnet Mask of 255.255.255.0.
You will need to assign your computer a Static IP address within the same range as the DWL-7100AP’s IP address for the purpose of
configuring the DWL-7100AP. See the Appendix if you need assistance in assigning a Static IP address for your network adapter.
A. First, connect the power adapter to the receptor at the back panel of the DWL-7100AP and then plug the other end of the power adapter
to a wall outlet or power strip. The Power LED will turn ON to indicate proper operation.
B. Insert one end of the cable to the Ethernet port on the back panel of the DWL-7100AP and the other end of the cable to your network
(switch or router).
Note:You also have the option of connecting the DWL-7100AP directly to the computer that will be used for configuration.The Link
LED light will illuminate to indicate a proper Ethernet connection.(Note:The Ethernet Port on the DWL-7100AP is Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover Ethernet cable to connect to the Ethernet port on the
DWL-7100AP.)
C. The DWL-G650 Wireless Cardbus Adapter and the DWL-G520 Wireless PCI Adapter will connect, out of the box, with the DWL-7100AP,
using their default wireless settings. Computers with 802.11b wireless adapters can also connect to the DWL-7100AP.
Connect to Your Network

10D-Link DWL-7100AP User Manual
Installation Considerations
D-Link lets you access your network from anywhere you want. However, keep in mind, that range is limited by the number of walls, ceilings,
or other objects that the wireless signals must pass through. Typical ranges vary depending on the types of materials and background RF
noise in your home or business. The key to maximizing range is to follow these basic principles:
1. Keep the number of walls and ceilings to a minimum - Each wall or ceiling can rob your D-Link Wireless product of 3-90
ft. of range. Position your Access Points, Residential Gateways, and computers so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between access points, routers, and computers - A wall that is 1.5 feet thick, at a 45 degree angle,
appears to be almost 3 feet thick. At a 2-degree angle it looks over 42 feet thick. Try to make sure that the access point and
adapters are positioned so that the signal will travel straight through a wall or ceiling for better reception.
3. Building materials make a difference - A solid metal door or aluminum studs may have a negative effect on range. Try to
position access points, routers, and computers so that the signal passes through drywall or open doorways and not other
materials.
4. Make sure that the antenna is positioned for best reception by using the software signal strength tools included with your
product.
5. Keep your product away (at least 3-6 feet) from electrical devices that generate RF noise, like microwaves, monitors, electric
motors, UPS units, etc.
6. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems),
your wireless connection will degrade dramatically or drop completely. Anything using the 2.4Ghz frequency will interfere with
your wireless network.

11D-Link DWL-7100AP User Manual
To configure the DWL-7100AP, use a computer which is connected to the DWL-7100AP with an Ethernet cable.You may use the web-based
configuration or the AP Manager software to configure your access point. Please refer to page 52 to use the AP Manager software.
Web Configuration Utility
First, disable the Access the Internet using a proxy server function. To disable this function, go to Control Panel > Internet Options >
Connections > LAN Settings and uncheck the enable box.
Open your web browser program such as Internet Explorer. Type the IP address of the DWL-7100AP in the address field (http://192.168.0.50)
and press Enter. Make sure that the IP addresses of the DWL-7100AP and your computer are in the same subnet.
Configuration
After the connection is established, Enter your user name (admin) and your password (leave blank by default). Click OK to continue.

12D-Link DWL-7100AP User Manual
The Home > Wizard screen will appear. Please refer
to the Quick Installation Guide for more information
regarding the Setup Wizard.
These buttons appear on most of the configuration
screens in this section. Please click on the appropriate
button at the bottom of each screen after you have
made a configuration change.
Home

13D-Link DWL-7100AP User Manual
Access Point
WDS with AP
WDS
AP Repeater
AP Client
Open System
Shared Key
Open System/Shared Key
WPA-EAP
WPA-PSK
WPA2-EAP
WPA2-PSK
WPA-Auto-EAP
WPA-Auto-PSK
Open System
Shared Key
Open System/Shared Key
WPA-PSK
WPA2-PSK
WPA-Auto-PSK
Open System
Shared Key
Open System/Shared Key
WPA-PSK
WPA2-PSK
WPA-Auto-PSK
Open System
Shared Key
Open System
Shared Key
WPA-PSK
WPA2-PSK
AP Mode Authentication Available
Wireless Modes

14D-Link DWL-7100AP User Manual
Access Point Mode
Access Point is selected from the drop-down
menu.
Service Set Identifier (SSID) is the name designated
for a specific wireless local area network (WLAN).
The SSID’s factory default setting is dlink.The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network.
Enable or Disable SSID broadcast. Enabling this
feature broadcasts the SSID across the network.
Auto Channel Scan is enabled by default. All
devices on the network must share the same
channel.
The radio frequency will vary depending on the
wireless channel that is chosen.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings.
Select Open System/Shared Key to allow either form of data encryption.
Select WPA-EAP to secure your network with the inclusion of a RADIUS server.
Select WPA-PSK to secure your network using a password and dynamic key changes (No RADIUS server required).
Select WPA2-EAP to secure your network with the inclusion of a RADIUS server and upgrade the encryption of data with
the Advanced Encryption Standard (AES).
Mode:
SSID:
SSID Broadcast:
Channel:
Authentication:
Wireless Band: Select IEEE802.11a or IEEE802.11g.

15D-Link DWL-7100AP User Manual
Select WPA2-PSK to secure your network using a password and dynamic key changes. No RADIUS server required
and encryption of data is upgraded with the Advanced Encryption Standard (AES).
Select WPA-Auto-EAP to allow the client to either use WPA-EAP or WPA2-EAP.
Select WPA-Auto-PSK to allow the client to either use WPA-PSK or WPA2-PSK.

16D-Link DWL-7100AP User Manual
Access Point (WEP)
Select IEEE802.11a or IEEE802.11g.
Select Disabled or Enabled.
Select HEX or ASCII.
Select 64-bit, 128-bit, or 152-bit.
Select the 1st through the 4th key to be the active
key.
Input up to four keys for encryption. You will select
one of these keys in the valid key field.
Wireless Band:
Encryption:
Key Type:
Key Size:
Valid Key:
First through Fourth
keys:

17D-Link DWL-7100AP User Manual
Access Point (WPA-EAP/WPA2-EAP)
Select IEEE802.11a or IEEE802.11g.
When you select WPA-EAP, WPA2-EAP or
WPA-Auto-EAP , you must select AUTO, AES,
or TKIP from the drop-down menu.
Select the interval during which the group key will
be valid. 1800 is the recommended value. A lower
interval may reduce transfer data rate.
Enter the IP address of the Radius server.
Enter the Radius port.
Enter the Radius secret.
Wireless Band:
Cipher Type:
Group Key Update
Interval:
Radius Server:
Radius Port:
Radius Secret:

18D-Link DWL-7100AP User Manual
Access Point (WPA-PSK/WPA2-PSK)
Select IEEE802.11a or IEEE802.11g.
Select AUTO, AES, or TKIP from the drop-down
menu.
Select the interval during which the group
key will be valid. The default value of 1800 is
reommended.
Enter a passphrase. The passphrase is an
alpha-numeric password between 8 and 63
characters long. The password can include
symbols (!?*&_) and spaces. Make sure you enter
this key exactly the same on all other wireless
clients.
Wireless Band:
Cipher Type:
Group Key Update
Interval:
PassPhrase:

19D-Link DWL-7100AP User Manual
WDS with AP
In WDS with AP mode, the DWL-7100AP wirelessly connects multiple networks, while still functioning as a wireless AP. WDS (Wireless
Distribution System) allows access points to communicate with one another wirelessly in a standardized way. It can also simplify the
network infrastructure by reducing the amount of cabling required. Basically the access points will act as a client and an access point at
the same time.
Select IEEE802.11a or IEEE802.11g.
WDS with AP is selected from the drop-down
menu.
Service Set Identifier (SSID) is the name
designated for a specific wireless local area
network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed
to connect to an existing wireless network or to
establish a new wireless network.
Wireless Band:
Mode:
SSID:
Enable or Disable SSID broadcast. Enabling this
feature broadcasts the SSID across the network.
6is the default channel for IEEE 802.11g. All
devices on the network must share the same
channel.
Note: The wireless adapters will automatically scan
and match the wireless setting.
This option is unavailable in WDS with AP
mode.
Enter the MAC addresses of the APs in your
network that will serve as bridges to wirelessly
connect multiple networks.
SSID Broadcast:
Channel:
Auto Channel Scan:
Remote AP MAC
Address:

20D-Link DWL-7100AP User Manual
Authentication: Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings.
Select Open System/Shared Key to allow either form of data encryption.
Select WPA-PSK, WPA2-PSK, or WPA-Auto-PSK to secure your network using a password and dynamic key changes
(No RADIUS server required).
Note: WDS is not completely specified in WiFi or IEEE standards. Communication with other vendor´s access points is not guaranteed.
