DWL-3200AP Install GuideSystem Requirements
D-Link Air PremierTM DWL-3200AP
Managed Wireless Access Point
Using a power adapter with a different
voltage rating will damage and void the
warranty of this product.
Power Cord Power over Ethernet base unit
Ethernet Cable
Power Adapter-DC 48V, 0.4A
Mounting Plate
CD-ROM with Manual
System Requirements:
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows, Macintosh, or Linux-based operating systems
• Installed Ethernet Adapter Internet Explorer version 6.0 or Netscape
Navigator version 7.0 and above

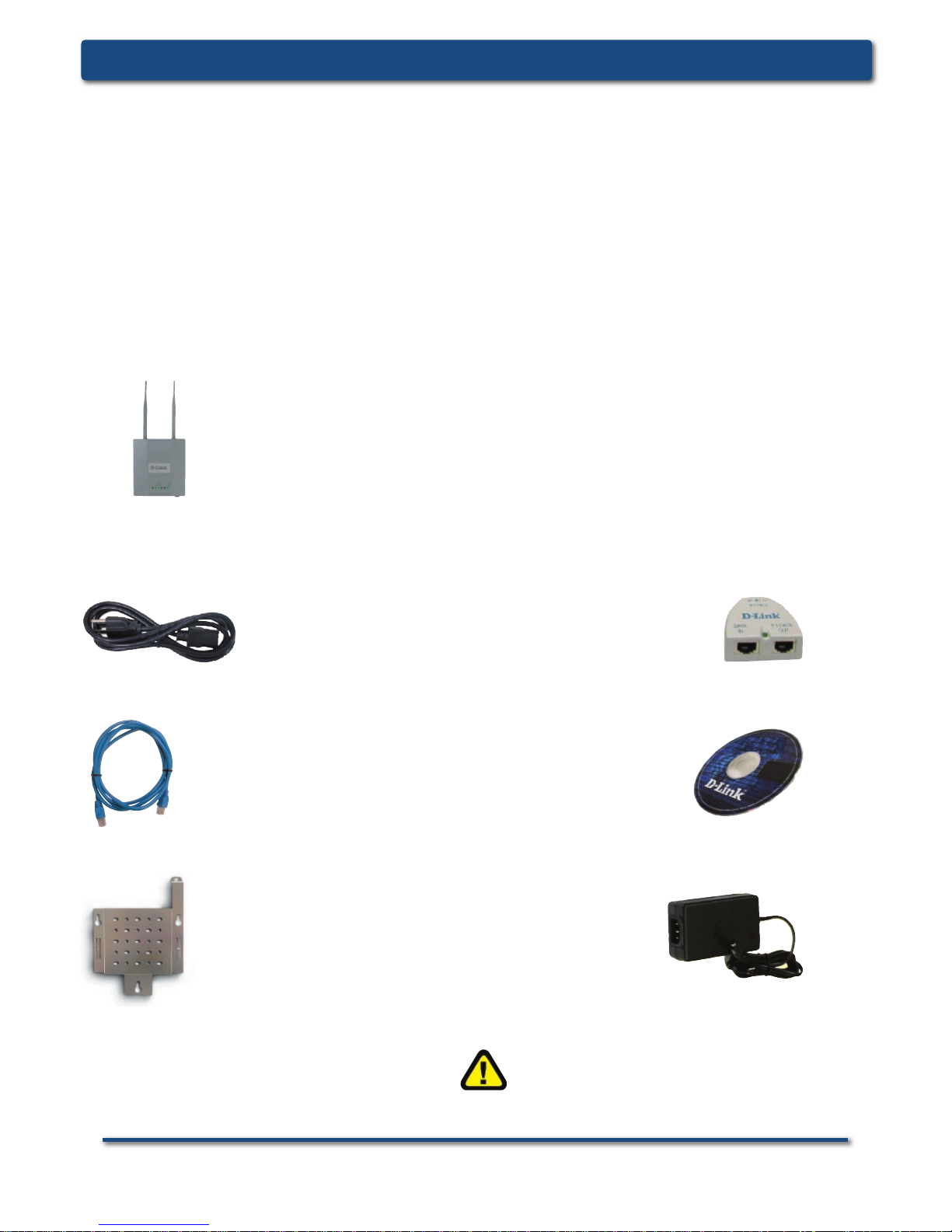

Package Contents

D-Link Systems, Inc. 3
DWL-3200AP Install Guide Installing the Hardware
Installing the Hardware
Step 1
Step 2

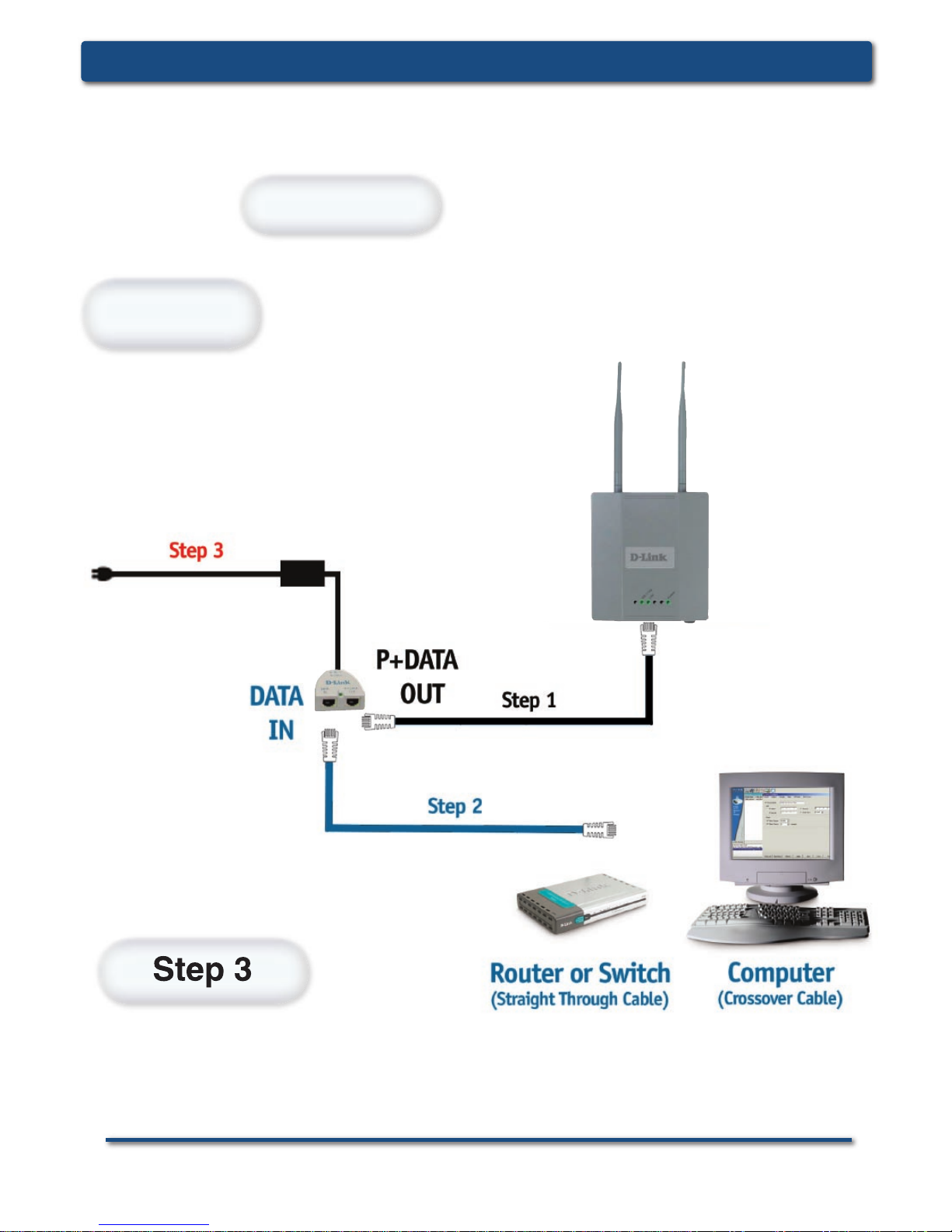

Connect one end of an Ethernet cable
(included with your package) to the
LAN port on the DWL-3200AP and the
other end of the Ethernet cable to the
port labeled P+DATA OUT on the PoE
base unit.
Connect another Ethernet cable from
the DATA IN port on the PoE base unit
to your router/switch or to a PC.
Attach the power adapter to the connector
labeled POWER IN on the PoE base unit.
Attach the power cord to the power adapter
and into an electrical outlet.
Step 3
Step 3

4 D-Link Systems, Inc.
DWL-3200AP Install GuideThe Setup Wizard

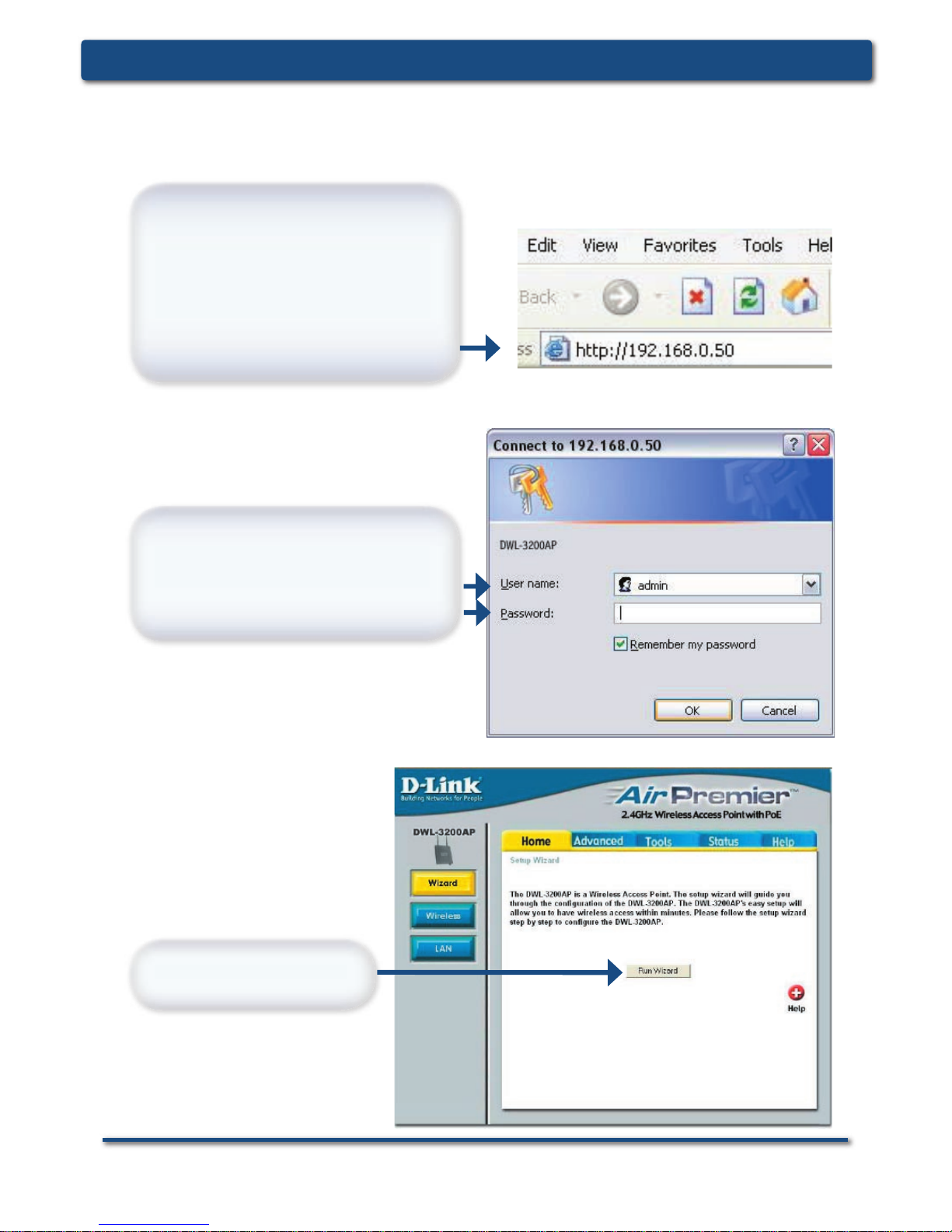

Open your Web browser
and type http://192.168.0.50
into the URL address box.
Then press the Enter or
Return key.
Click Run Wizard
The logon pop-up screen will
appear.
Type admin
for the username and leave
the password fi eld blank.
Once you have logged in, the
Home screen will appear.
Using the Setup Wizard

D-Link Systems, Inc. 5
DWL-3200AP Install Guide The Setup Wizard

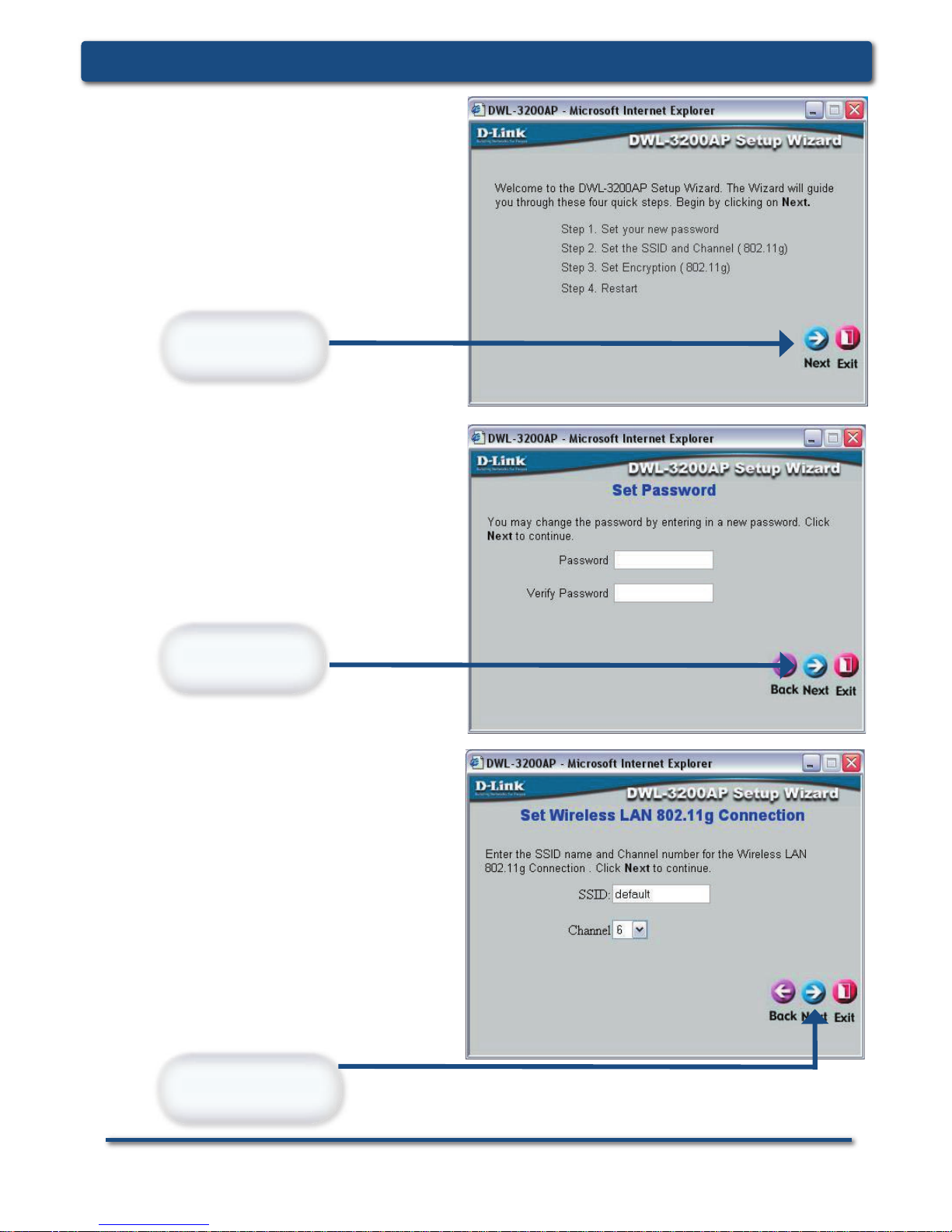

You will see the following
screens.
Click Next
Step 1 - Setup your new
password. You have the
option to establish a password.
Click Next
Step 2 - Set Wireless LAN
Connection.
By default the
DWL-3200AP SSID is set
to default with a Channel
setting of 6.
For 802.11g networks please
do the following:
Click Next

6 D-Link Systems, Inc.
DWL-3200AP Install GuideThe Setup Wizard
For 802.11g networks please
continue as follows:
Click Next
Click Restart
Your Setup is complete!

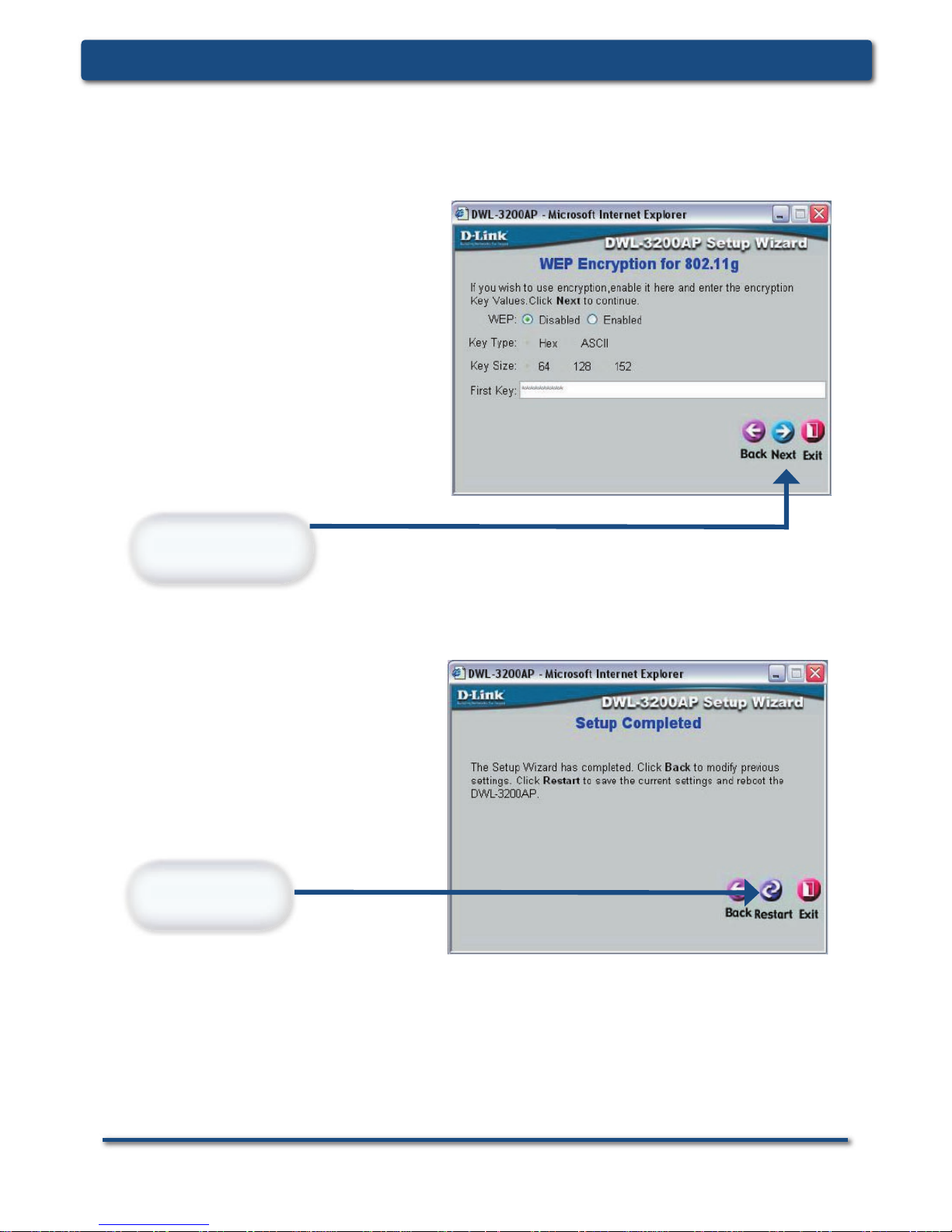

Step 3 - Encryption
The DWL-3200AP is capable of
three levels of wireless encryption:
64-, 128-, 152-bit, using either
Hexadecimal or ASCII key type.
By default encryption is disabled.
You can change the encryption
settings for more secure wireless
communication.

D-Link Systems, Inc. 7
DWL-3200AP Install Guide The Setup Wizard

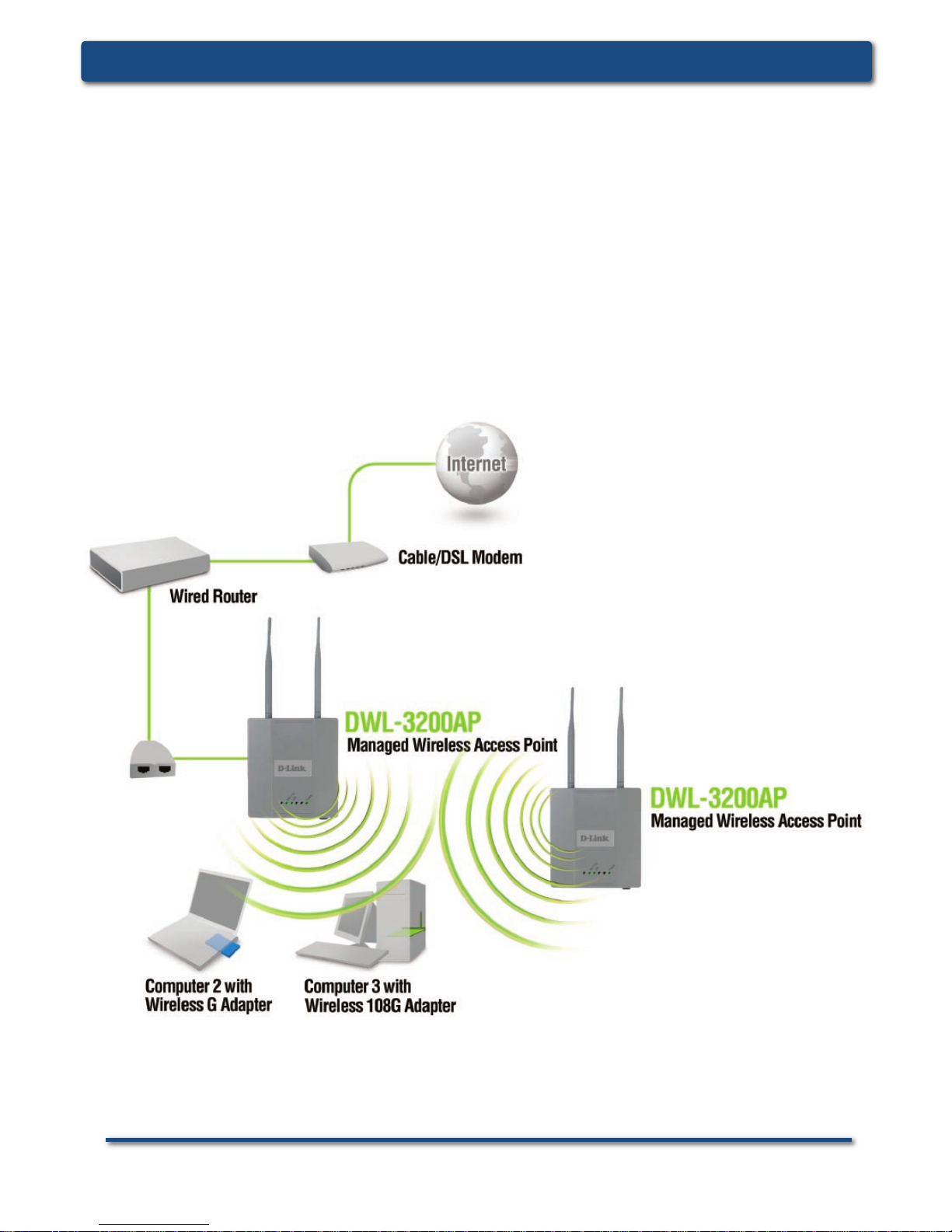

When you have completed the steps in this Quick Installation Guide,
your connected network should look similar to this:
Your Setup is Complete!

8 D-Link Systems, Inc.
DWL-3200AP Install GuideNotes
Technical Support
D-Link’s website contains the latest user documentation and software
updates for D-Link products.
D-Link provides free technical support for customers within the United States
and Canada for the duration of the product’s warranty period.
U.S. and Canadian customers can contact D-Link Technical Support through
our website or by phone.
United States
Telephone
[phone]
Monday to Friday 6:00am - 6:00pm
World Wide Web
http://support.dlink.com
E-mail
suppor[email protected]
Canada
Telephone
[phone]
Monday through Friday, 7:30am to 12:00am EST.
World Wide Web
http://support.dlink.ca
E-mail
suppor[email protected]
Version 1.0
Revised 01/21/05
