DAP-1160
WIRELESS

DAP-1160
Wireless G Access Point
Install Guide

2
System Requirements
Package Contents
Open the DAP-1160 package and check to see that you have all of the following
items inside:
• DAP-1160 Wireless G Access Point
• Detachable antenna
• Power adapter
• Cat. 5 Ethernet cable
• CD-ROM containing the User’s Manual
and this Quick Installation Guide
If any of the above item is missing or damaged, contact immediately the
reseller from whom you purchased this package.
The DAP-1160 Wireless G Access Point operates with computers equipped with
Windows®, Macintosh®, or Linux-based operating systems.
To congure this Wireless G Access Point, you need a computer with an Ethernet
interface and an Internet browser such as Microsoft Internet Explorer 6.0 or above,
Netscape Navigator 7.0 or above, or FireFox 1.5 or above.
Setting Up the DAP-1160
Step 1: Connect the Power Adapter.
Check the AC voltage of your AC power outlet against the AC power input of
the power adapter. Connect the power adapter supplied with the DAP-1160 to
the power socket on the back of this device rst, then plug it to your AC power
outlet. Check to see that the Power LED on the front panel of the DAP-1160 is
turned ON.

3

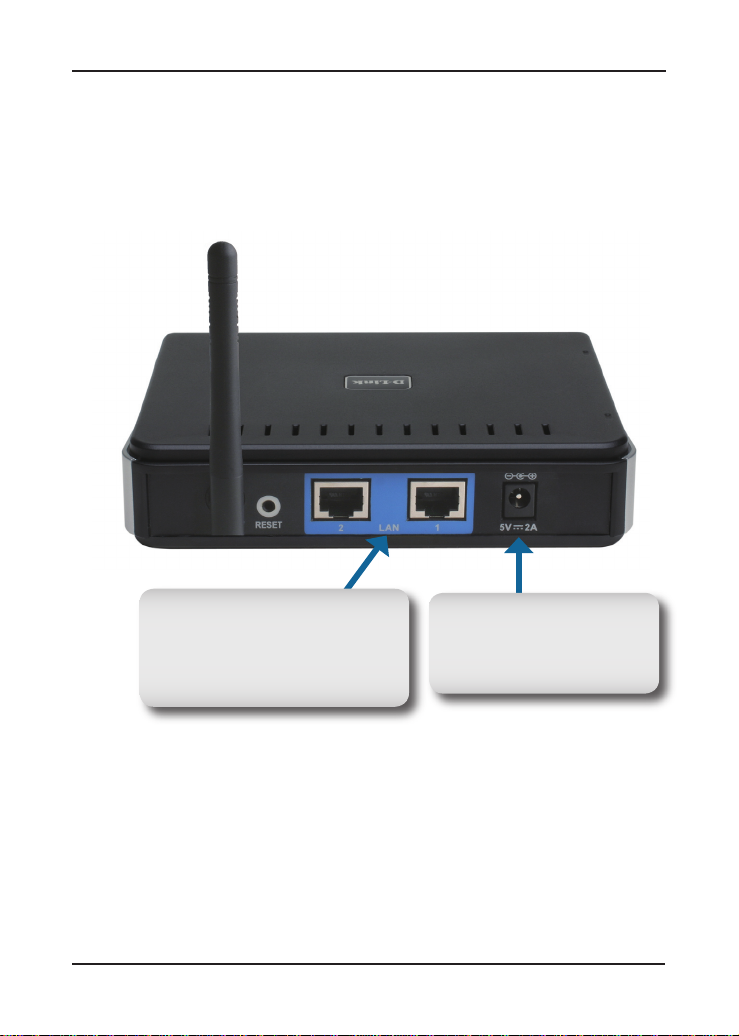

Ethernet LAN Ports
Can be connected to Ethernet ports
of computers, or to an Ethernet
switch or LAN port of a router.
Power Socket
Connect to a 5VDC 2A power
adapter.
WARNING! The DAP-1160’s power output is 5 volts DC, 2 Ampere. Use only
the power adapter supplied with this DAP-1160 or one with the same power
specications. Using a power adapter with a different voltage or plugging your
DAP-1160 to a wrong AC voltage outlet will damage this device and will void
the warranty for this product.

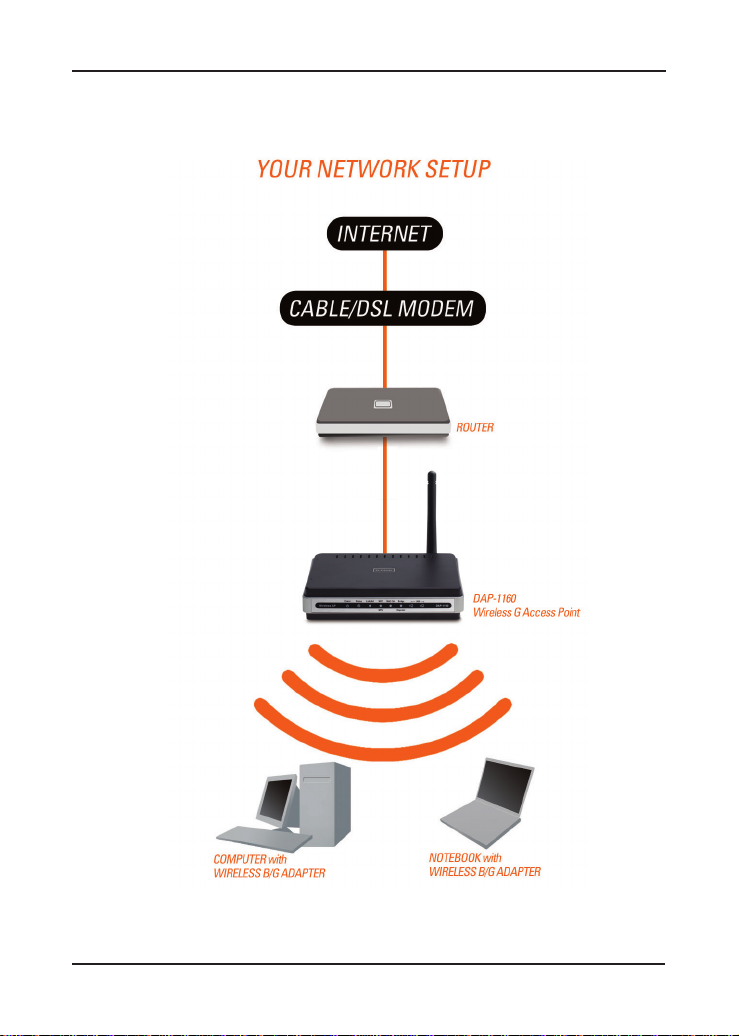

Step 2: Connect the Antenna and Ethernet Cable.
Connect the antenna to the antenna connector on the back of the DAP-1160.
Connect one end of the Ethernet cable to either one of the two LAN ports on the
back panel of the DAP-1160, and the other end of this cable to your computer’s
Ethernet port. If your computer is connected to an Ethernet network via an Ethernet
switch, connect this end of the cable the switch’s port.

4

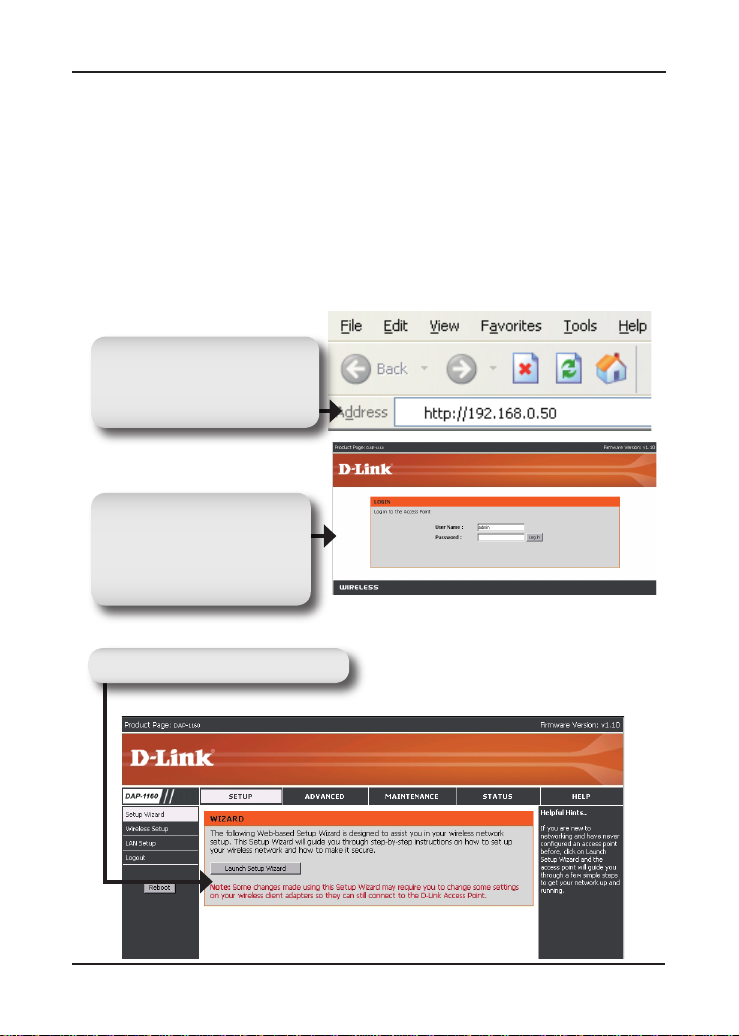

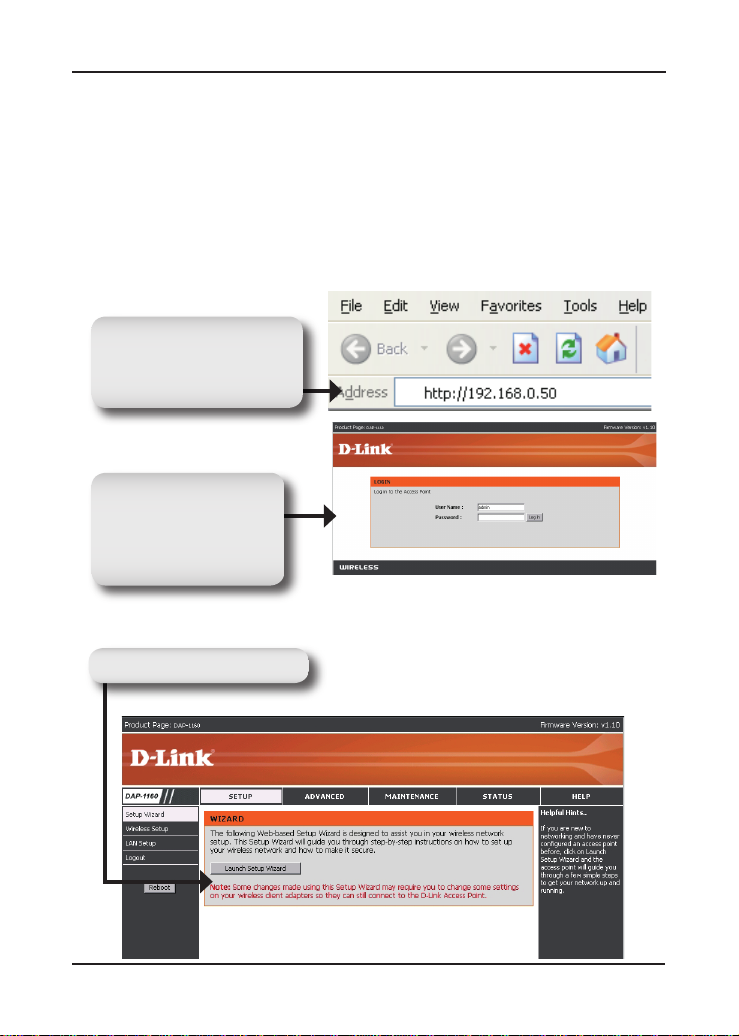

In the Address eld, type
in the default IP address
http://192.168.0.50
Type Return.
In the User Name field,
type in the default name
admin
Leave the Password
eld blank.
Once you have logged in, the following Setup screen will appear:
Click Launch Setup Wizard
Step 3: Begin Conguring your DAP-1160.
This configuration step presumes that you will use the DAP-1160’s default
factory setting of operation mode of AP (access point). This mode allows
computers and devices equipped 802.11g standard wireless LAN interfaces
to communicate with other wireless computers and devices through the
DAP-1160. In addition, the default factory setting provides no wireless security.
To set the DAP-1160 to another operation mode and to set its wireless security,
refer to its User’s Manual.
Run a web browser on your computer.
The following login screen will appear:

5

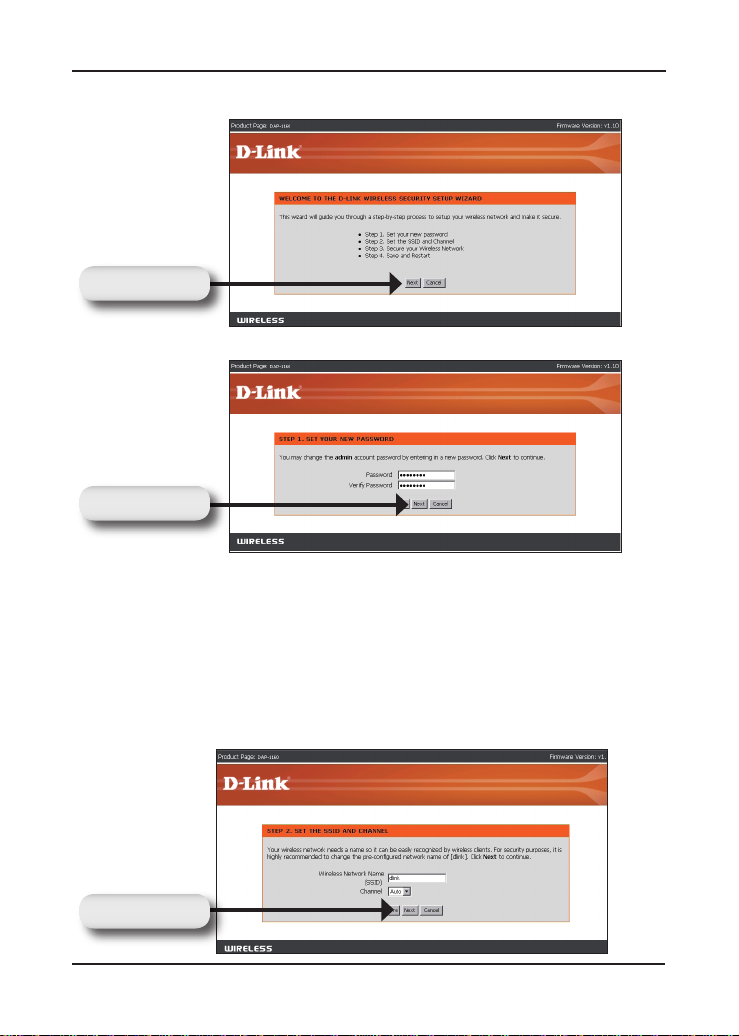

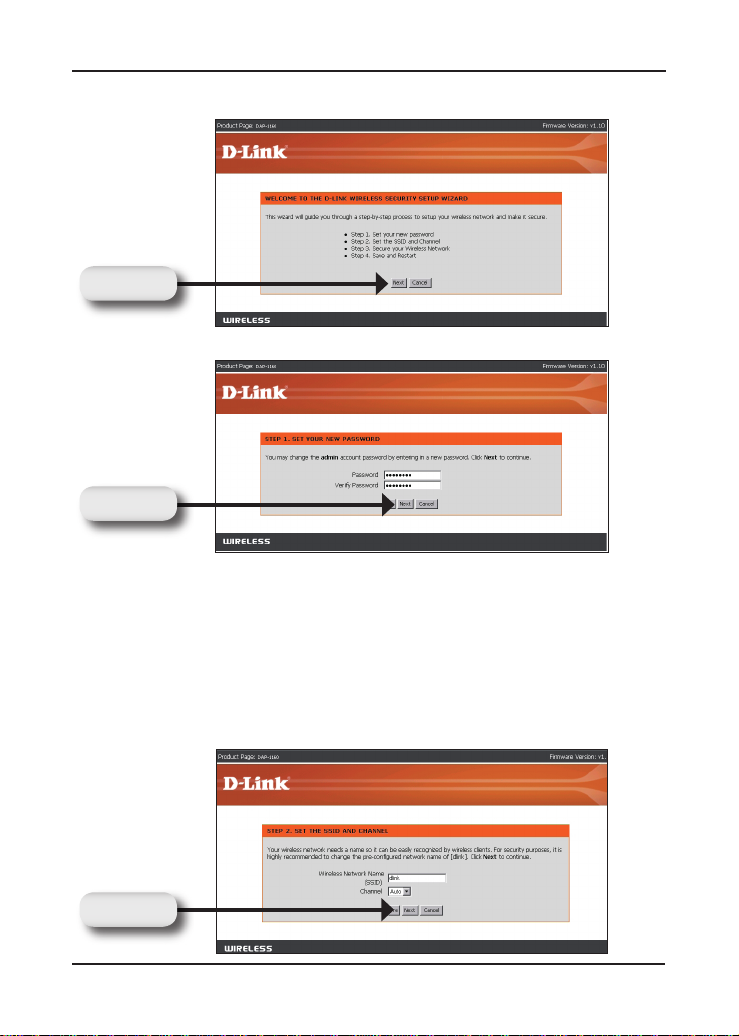

Click Next
The following Wizard screen will appear:
Customize your own password:
Click Next
For the Wireless Network Name (SSID), type in a name for your
network, which can be up to 32 alpha-numeric characters in length.
Note that these characters are upper and lower case-sensitive.
In the Channel eld, select a channel number. The default selection
is Auto, which means the DAP-1160 will automatically select the least
used available channel for your network.
Click Next

6

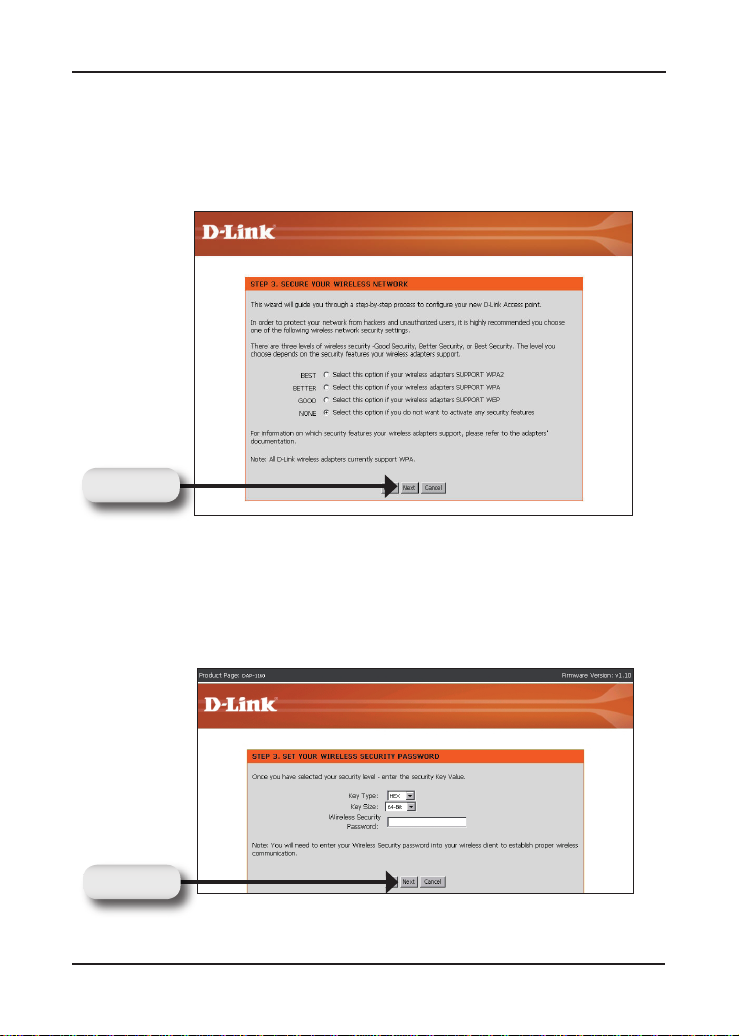

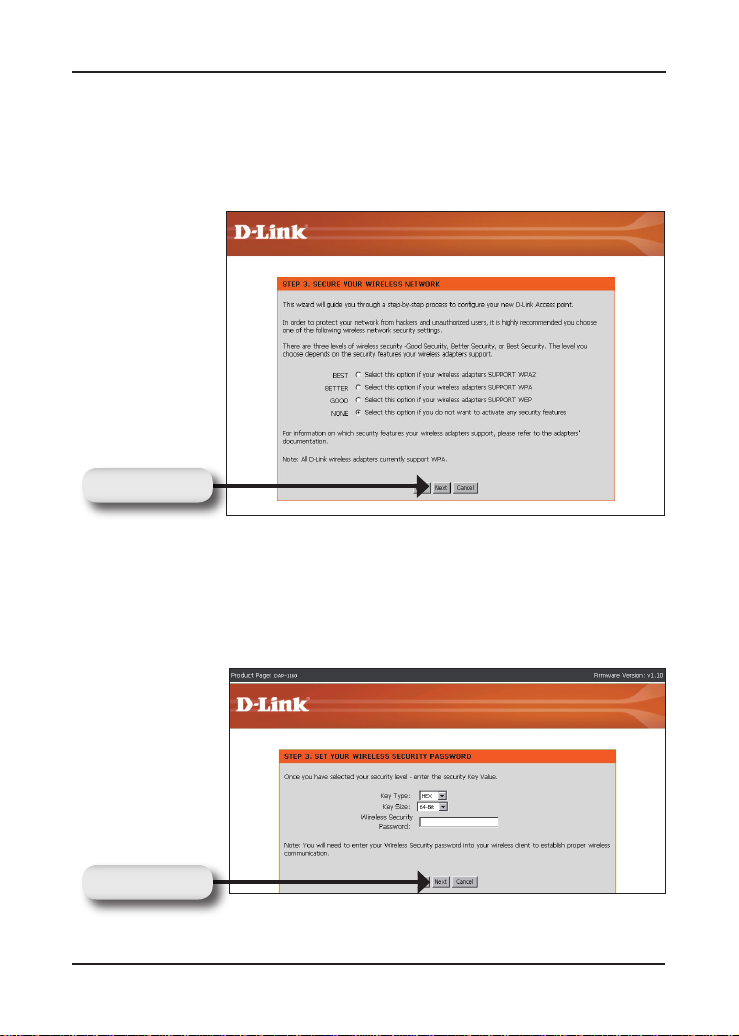

Select a level of security for your wireless network:
Click Next
• Best - WPA2 Authentication
• Better - WPA Authentication
• Good - WEP Encryption
• None - No Security
If you select Good (WEP) for security,the following screen will appear.
Select the key type, Hex (A-F, 0-9) or ASCII (all numbers and letters) and
the level of encryption (64-bit or 128-bit):
Click Next

7

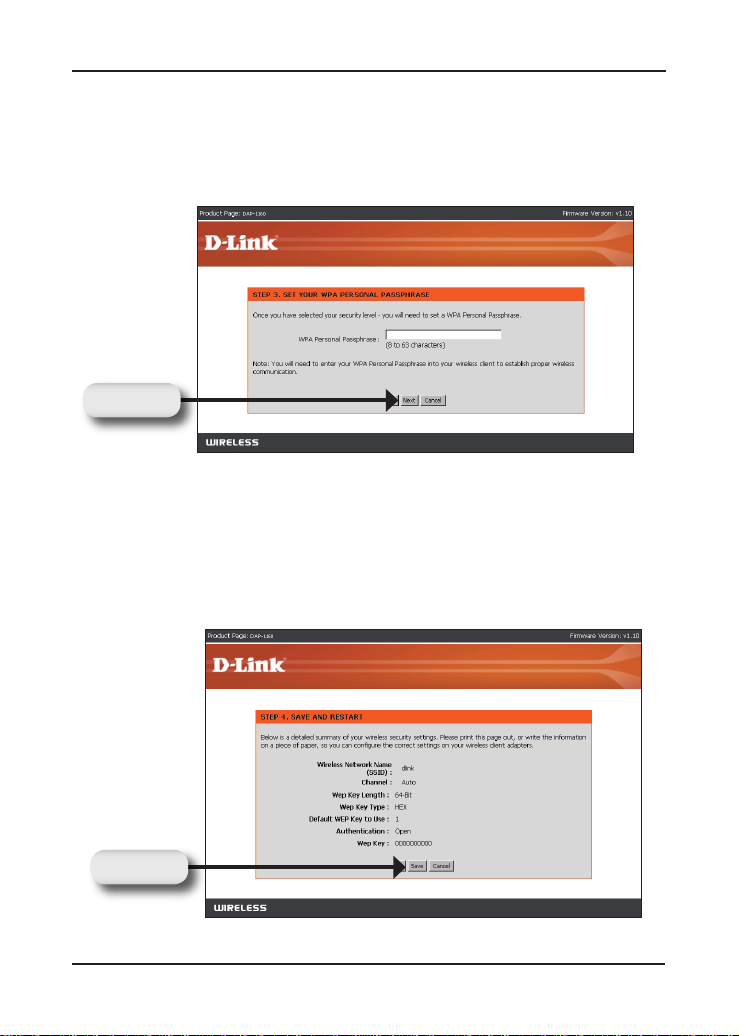

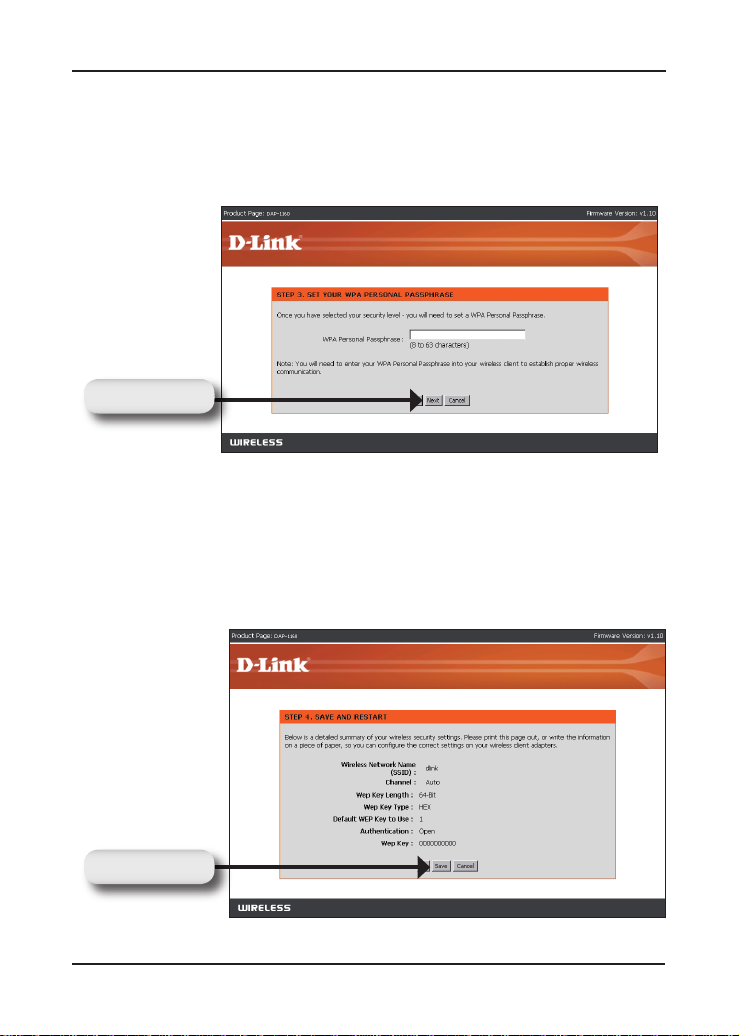

If you select Good for security, the following screen will show your WEP
key. This key should be used by wireless to clients connect to the wireless
network:
Click Save
If you select Better or Best (WPA or WPA2) for security, the following screen
will appear. Enter a wireless security password, which can be between
8 and 63 characters in length:
Click Next

8

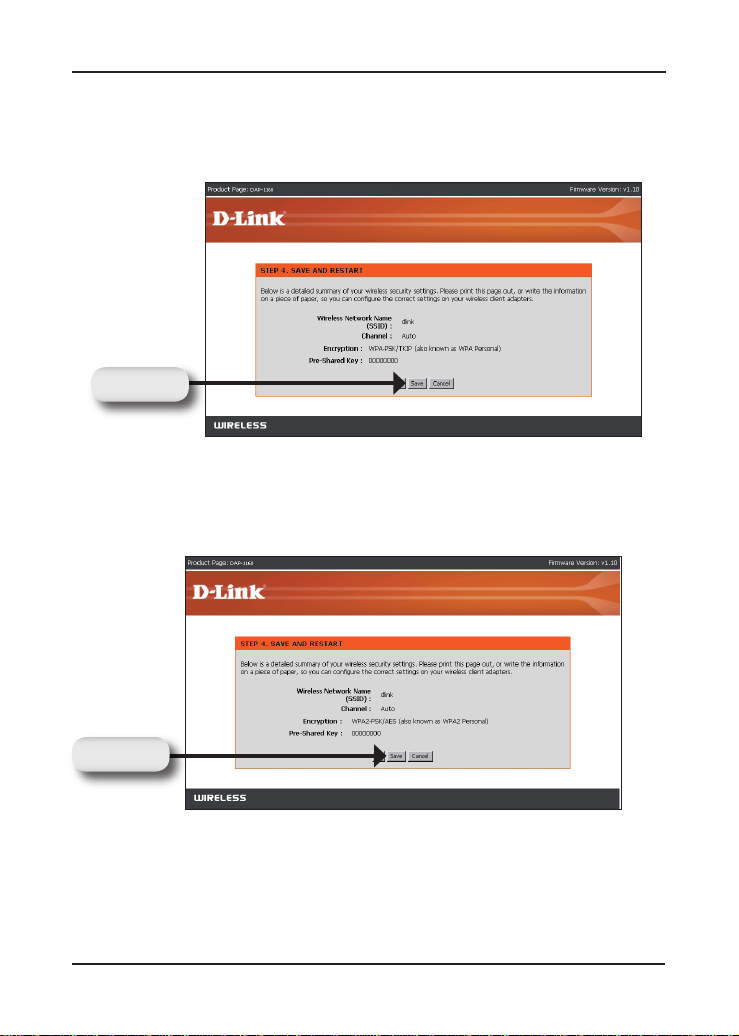

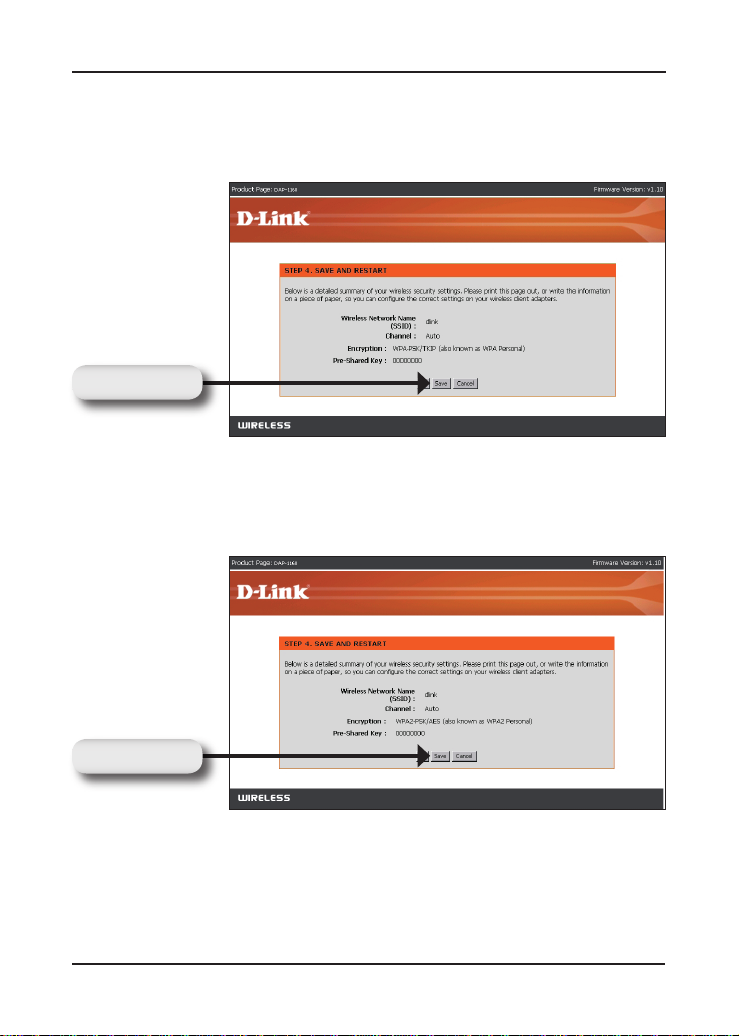

If you select Best for security, the following screen will show your
Pre-Shared Key. This key will be used by wireless clients to connect to
the wireless network:
Click Save
If you select Better for security, the following screen will show your
Pre-Shared Key. This key will be used by wireless clients to connect to
the wireless network:
Click Save
Step 4: Reboot the DAP-1160.
Click Save to save your conguration in the DAP-1160. Upon saving the
conguration, your DAP-1160 will automatically reboot itself and become ready
for access by computers equipped with 802.11g standard wireless interfaces.
