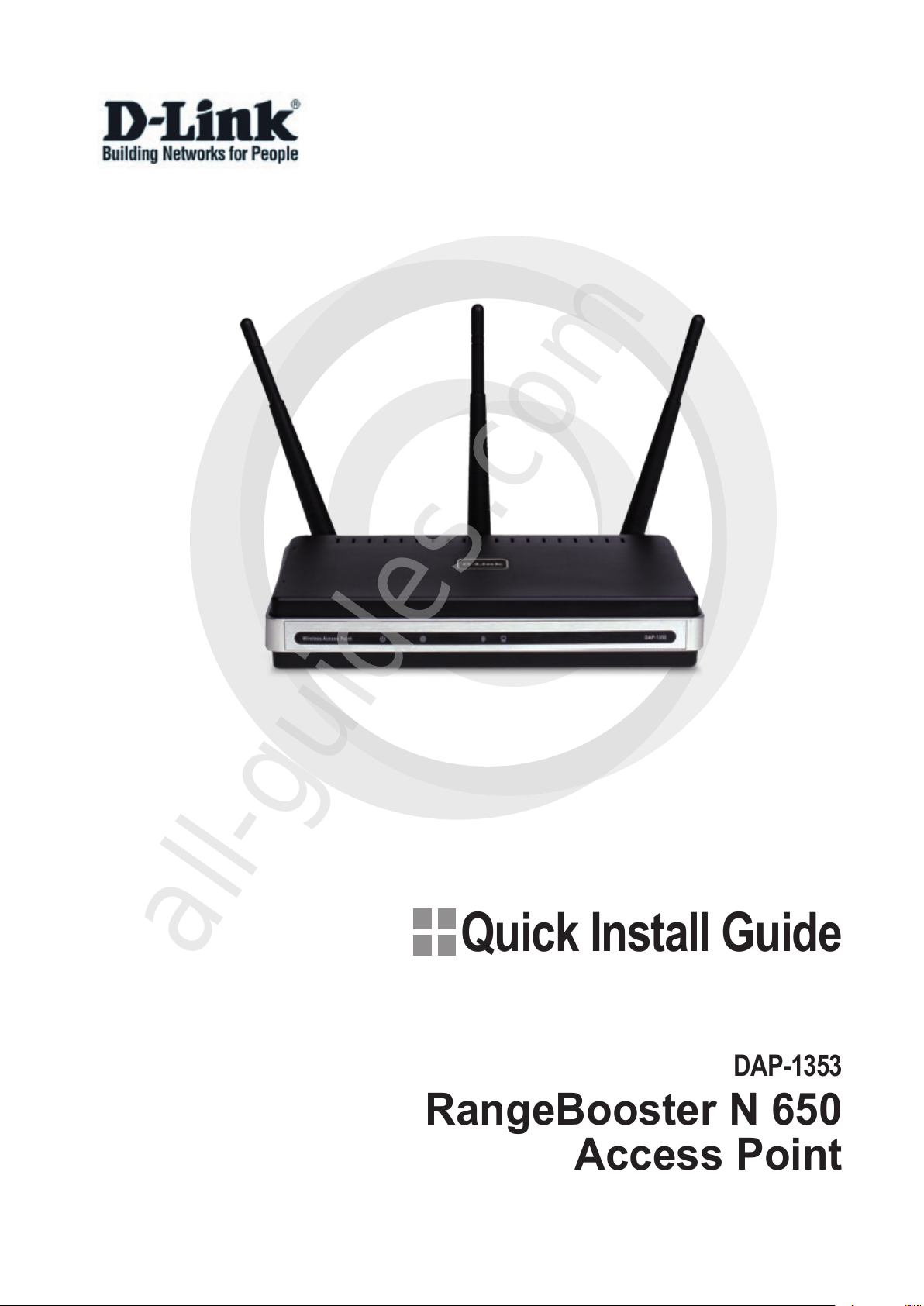

D-Link Rangebooster N 650 Access Point DAP-1353 User manual

Quick Install Guide
DAP-1353
RangeBooster N 650
Access Point
All manuals and user guides at all-guides.com
all-guides.com

2D-Link DAP-1353 Quick Install Guide

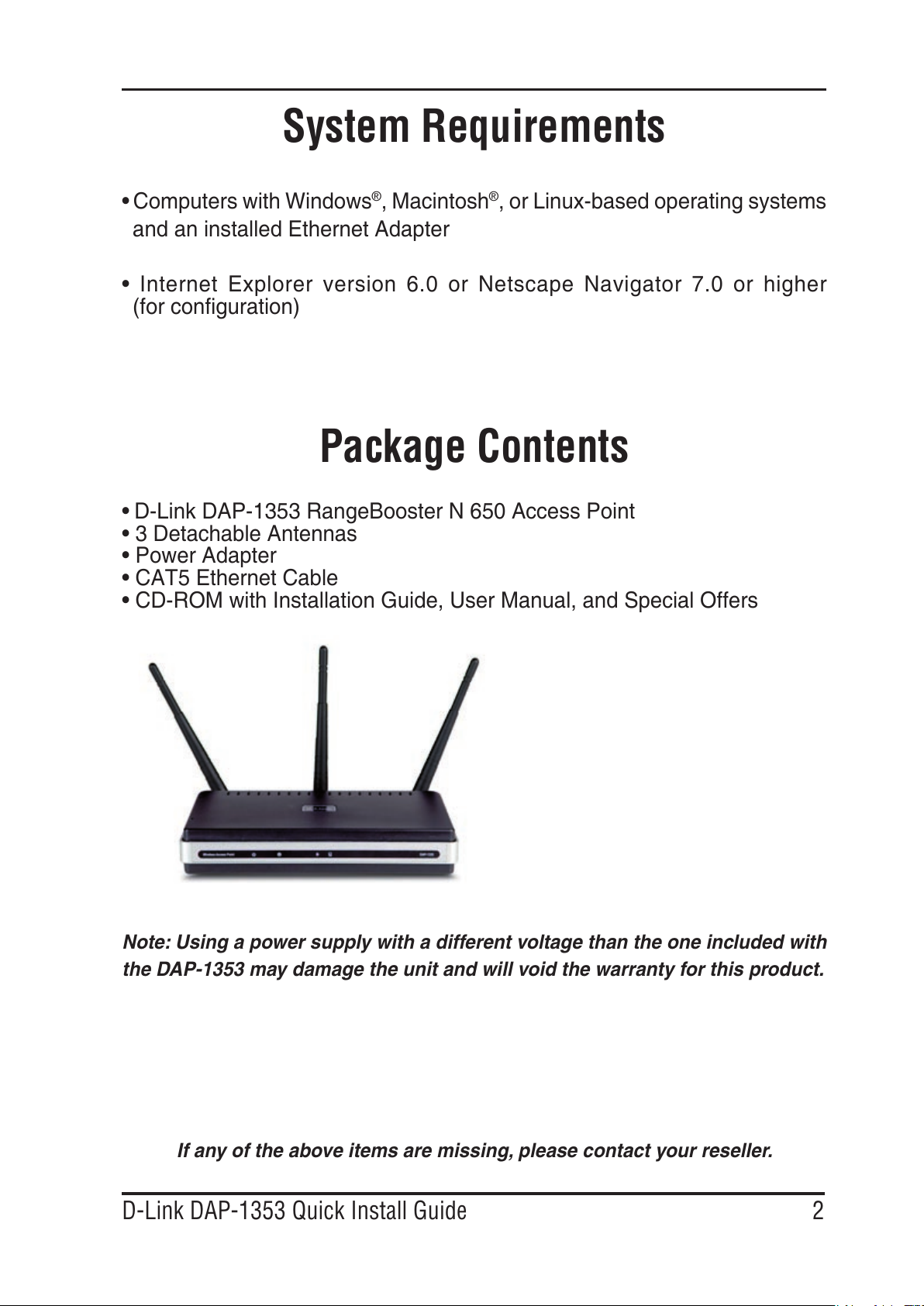

Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
• Computers with Windows®, Macintosh®, or Linux-based operating systems
and an installed Ethernet Adapter
• Internet Explorer version 6.0 or Netscape Navigator 7.0 or higher
(for conguration)
• D-Link DAP-1353 RangeBooster N 650 Access Point
• 3 Detachable Antennas
• Power Adapter
• CAT5 Ethernet Cable
• CD-ROM with Installation Guide, User Manual, and Special Offers
Note: Using a power supply with a different voltage than the one included with
the DAP-1353 may damage the unit and will void the warranty for this product.
All manuals and user guides at all-guides.com

3 D-Link DAP-1353 Quick Install Guide

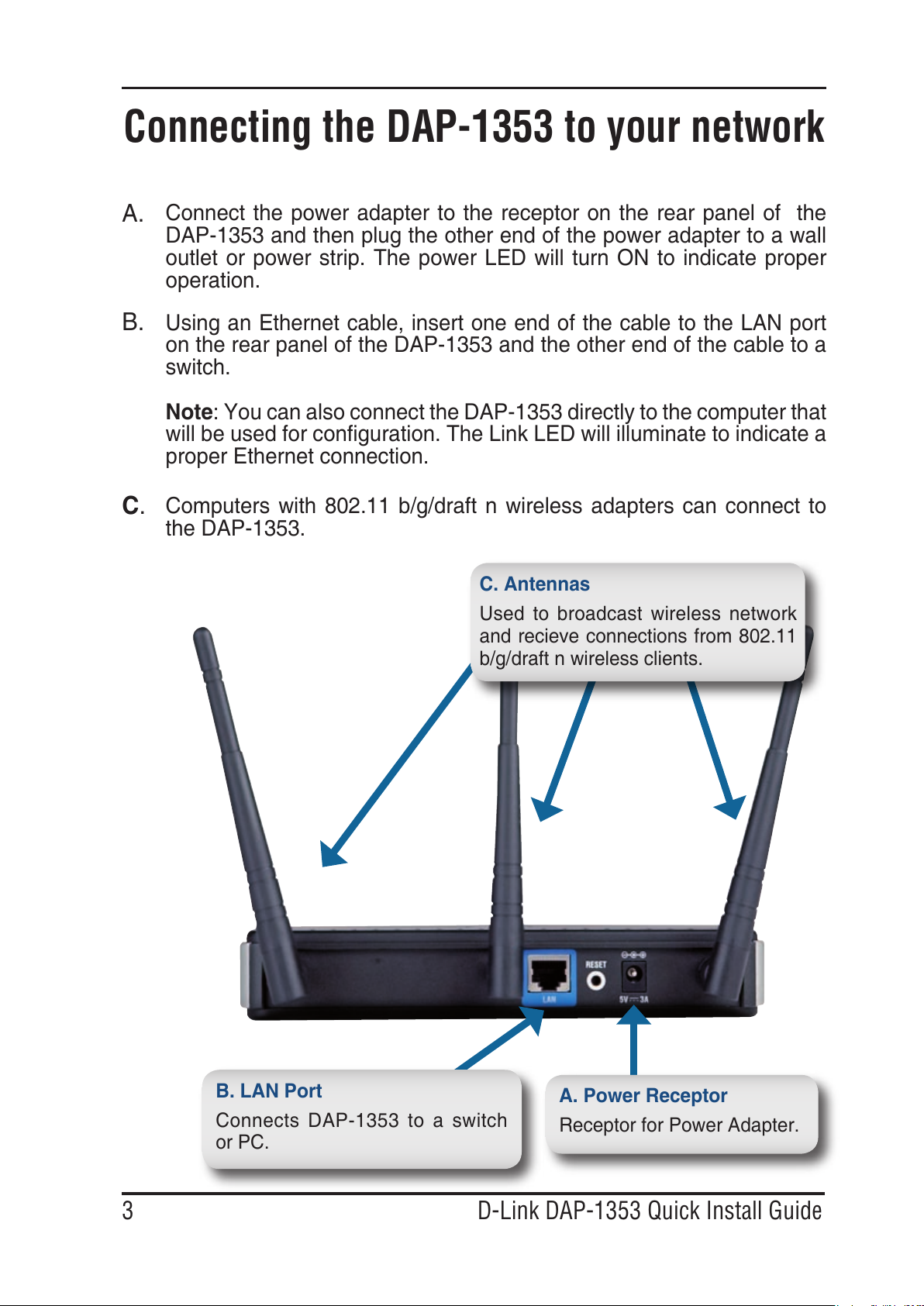

Connecting the DAP-1353 to your network
C. Antennas
Used to broadcast wireless network
and recieve connections from 802.11
b/g/draft n wireless clients.
B. LAN Port
Connects DAP-1353 to a switch
or PC.
A. Connect the power adapter to the receptor on the rear panel of the
DAP-1353 and then plug the other end of the power adapter to a wall
outlet or power strip. The power LED will turn ON to indicate proper
operation.
B. Using an Ethernet cable, insert one end of the cable to the LAN port
on the rear panel of the DAP-1353 and the other end of the cable to a
switch.
Note: You can also connect the DAP-1353 directly to the computer that
will be used for conguration. The Link LED will illuminate to indicate a
proper Ethernet connection.
A. Power Receptor
Receptor for Power Adapter.
C.Computers with 802.11 b/g/draft n wireless adapters can connect to
the DAP-1353.
All manuals and user guides at all-guides.com

4D-Link DAP-1353 Quick Install Guide

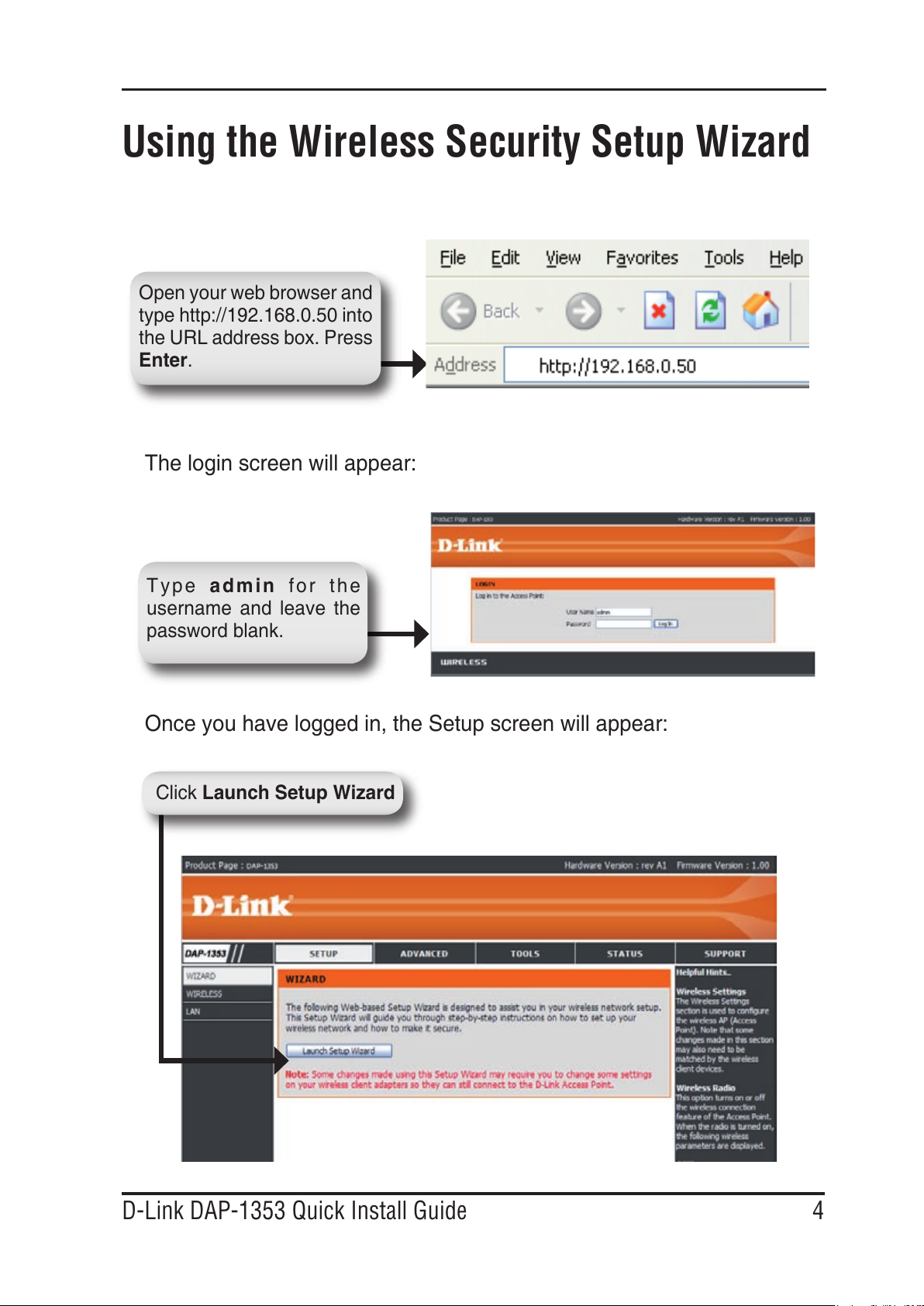

Using the Wireless Security Setup Wizard
Open your web browser and
type http://192.168.0.50 into
the URL address box. Press
Enter.
Type a d m i n f o r the
username and leave the
password blank.
The login screen will appear:
Once you have logged in, the Setup screen will appear:
Click Launch Setup Wizard
All manuals and user guides at all-guides.com

5 D-Link DAP-1353 Quick Install Guide

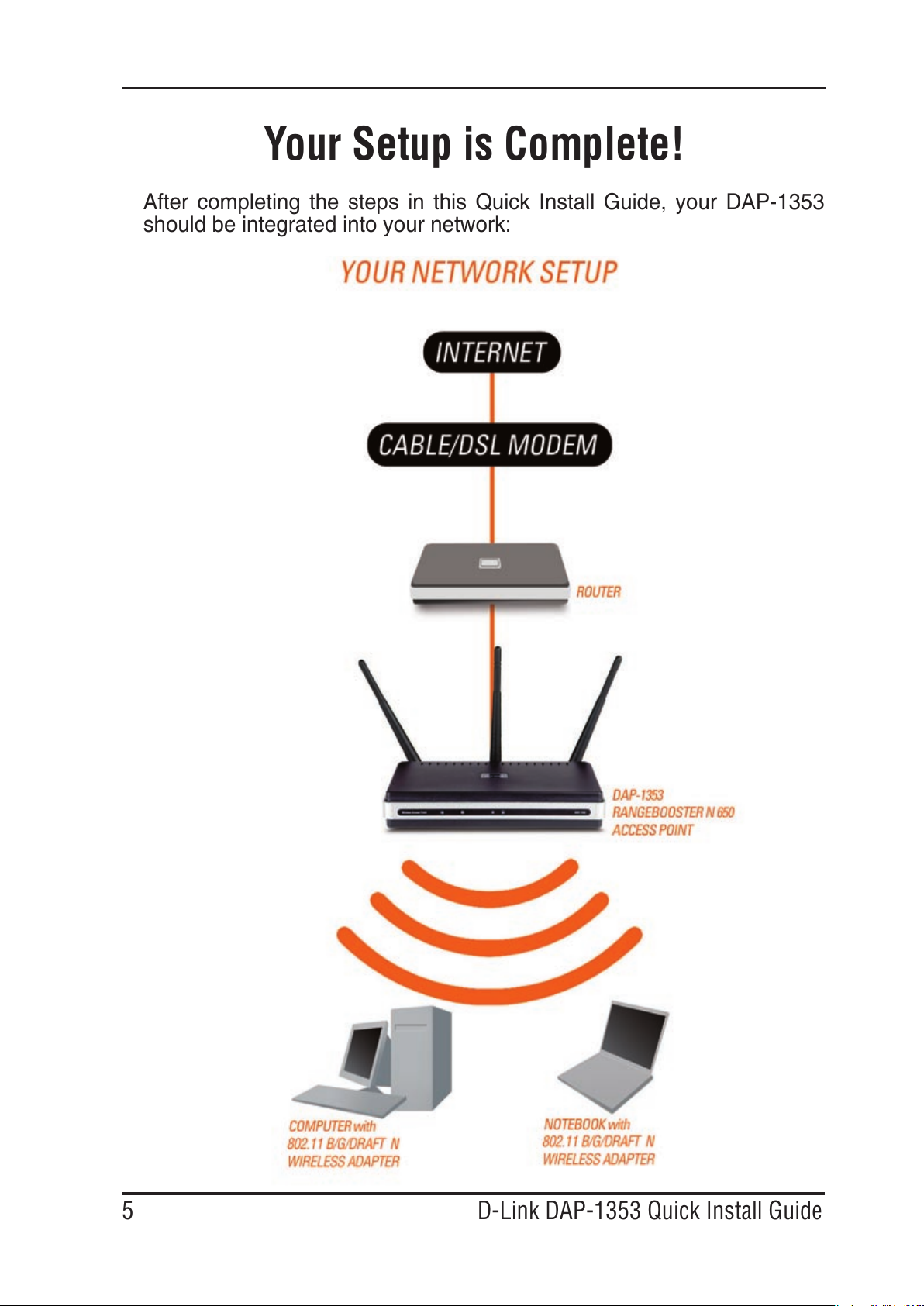

After completing the steps in this Quick Install Guide, your DAP-1353
should be integrated into your network:
Your Setup is Complete!
All manuals and user guides at all-guides.com

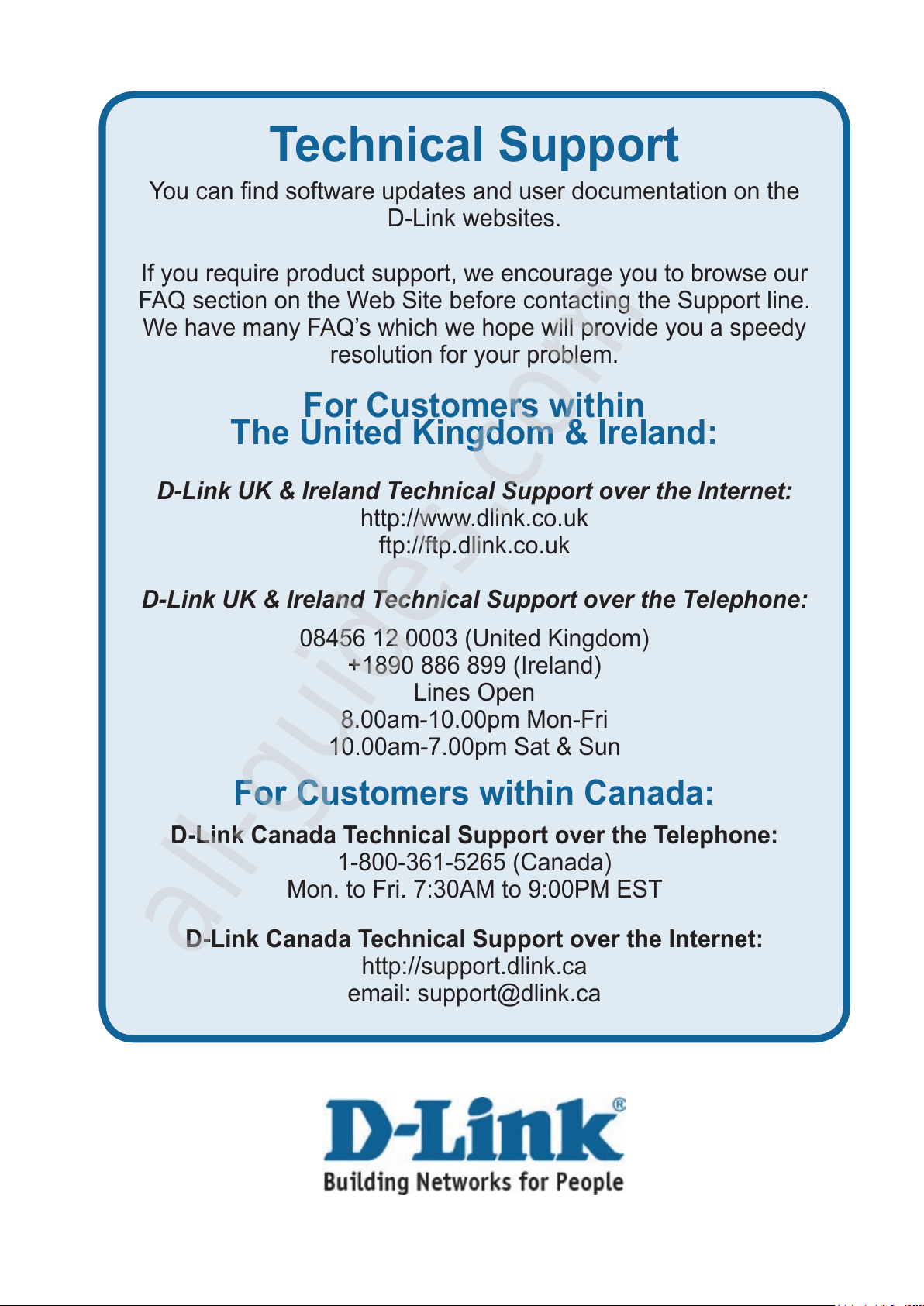

Technical Support
You can nd software updates and user documentation on the
D-Link websites.
If you require product support, we encourage you to browse our
FAQ section on the Web Site before contacting the Support line.
We have many FAQ’s which we hope will provide you a speedy
resolution for your problem.
For Customers within
The United Kingdom & Ireland:
D-Link UK & Ireland Technical Support over the Internet:
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk
D-Link UK & Ireland Technical Support over the Telephone:
08456 12 0003 (United Kingdom)
[phone] (Ireland)
Lines Open
8.00am-10.00pm Mon-Fri
10.00am-7.00pm Sat & Sun
For Customers within Canada:
D-Link Canada Technical Support over the Telephone:
1-800-361-5265 (Canada)
Mon. to Fri. 7:30AM to 9:00PM EST
D-Link Canada Technical Support over the Internet:
http://support.dlink.ca
email: [email protected]
