D-Link DAP-3315 User manual

User Manual
Version 1.00 | 07/27/2018
DAP-3315
Wireless N Exterior Access Point

2D-Link DAP-3315 User Manual
Table of Contents
Product Overview.............................................................. 4
Package Contents......................................................................... 4
System Requirements................................................................. 5
Introduction ................................................................................... 6
Features............................................................................................ 8
Hardware Overview..................................................................... 9
Connections ........................................................................... 9
LEDs.........................................................................................10
Installation .......................................................................11
Wireless Installation Considerations....................................13
Conguration...................................................................14
Web-based Conguration Utility..........................................14

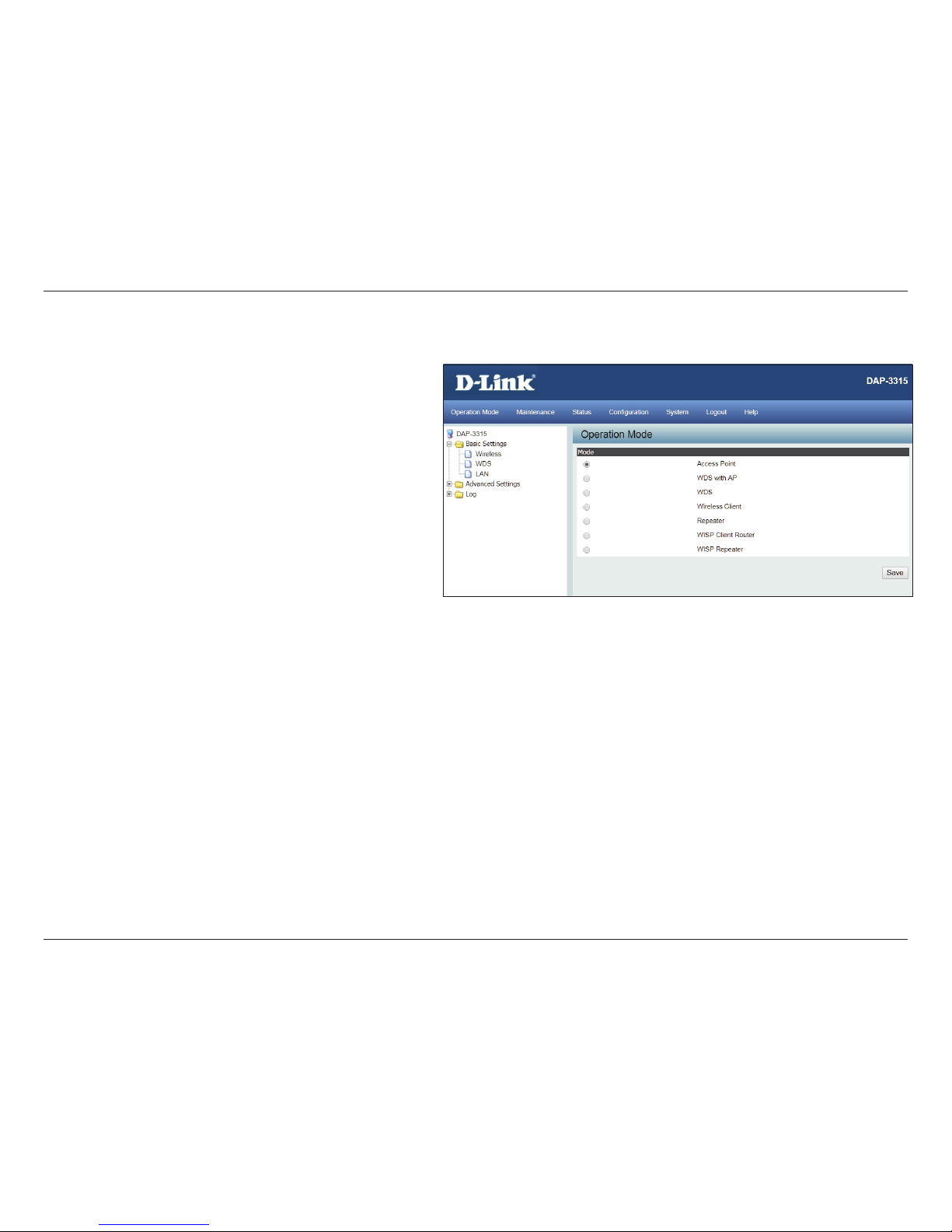

Operating Modes........................................................................15
Basic Settings ...............................................................................16

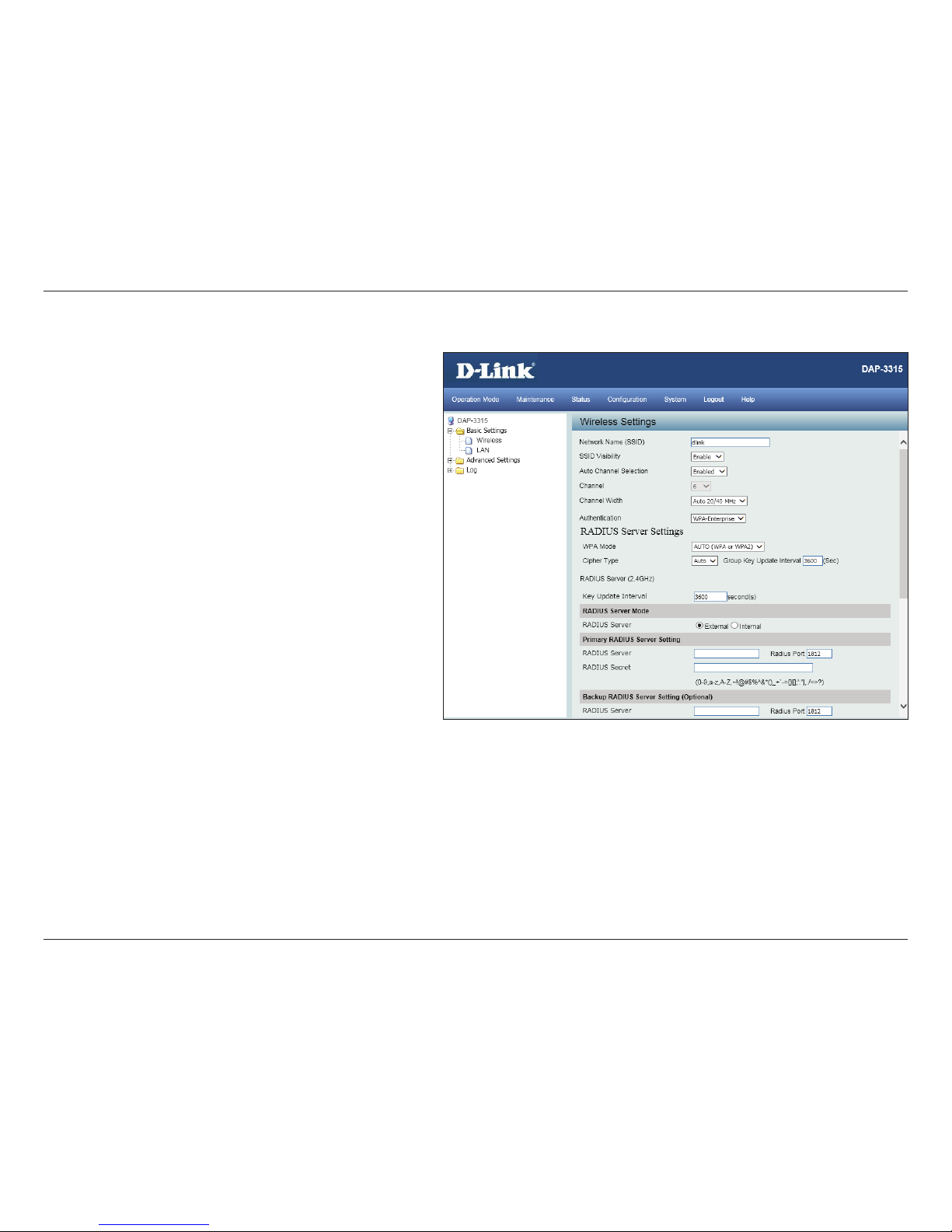

Wireless Settings.................................................................17
WDS .........................................................................................22
Wireless LAN Settings(Repeater mode)......................23
LAN Settings.........................................................................24
Advanced Settings ....................................................................25
Performance.........................................................................25
Wireless Resource...............................................................28
Multi-SSID..............................................................................30
VLAN........................................................................................31
Port List..............................................................................32
Add/Edit VLAN ................................................................33
PVID Settings...................................................................34
Intrusion.................................................................................35
Schedule ................................................................................36
DHCP Server .........................................................................37
Dynamic Pool Settings.................................................37
Static Pool Settings .......................................................38
Current IP Mapping List...............................................39
Filter.........................................................................................40
MAC Address ACL ..........................................................40
WLAN Partition ...............................................................41
View Log.................................................................................42
Log Settings..........................................................................43
DMZ ....................................................................................44
Virtual Server...................................................................45
Port Forwarding .............................................................46
Parental Control..............................................................47
IP Routing .........................................................................48
Maintenance ................................................................................49
Administration Settings ...................................................49
Firmware and SSL Certication Upload......................50
Conguration File ...............................................................51
Time and Date......................................................................52
Status ..............................................................................................53
Device Information ............................................................53
Client Information ..............................................................54
Ethernet Information.........................................................55
WLAN Information .............................................................56
Conguration...............................................................................57
Table of Contents

3D-Link DAP-3315 User Manual
Table of Contents
Save and Activate ..........................................................57
Discard Changes ............................................................58
System ............................................................................................59
Help .................................................................................................60
Troubleshooting ..............................................................61
Technical Specications..................................................64
Antenna Pattern ..............................................................67

4D-Link DAP-3315 User Manual
Section 1 - Product Overview
Note: Using a PoE Injector with a dierent voltage rating or PoE injector than the one included with the DAP-3315 will cause
damage and void the warranty for this product.
Package Contents
DAP-3315 Wireless N Exterior Access Point
Quick Installation Guide
Power Over Ethernet Injector
Power cord
Wall Mount

5D-Link DAP-3315 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet-based Network
• IEEE 802.11n/g wireless clients (AP Mode)
• IEEE 802.11n/g wireless network (AP Mode)
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 11 and higher
• Mozilla Firefox 28 and higher
• Google™ Chrome 33 and higher
• Apple Safari 7 and higher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.

6D-Link DAP-3315 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry leader in networking, introduces the new D-Link DAP-3315Wireless N Exterior Access Point.With the ability
to transfer les with a maximum wireless signal rate of up to 300 Mbps1, the DAP-3315 gives you ability to add high-speed
wireless network access to places outside of your internal networking environment. Additional operation modes such as WDS
and WISP also make the DAP-3315 perfect for those needing to span longer distances wirelessly.
The DAP-3315 is Wi-Fi IEEE 802.11n compliant, meaning that it can connect and interoperate with other 802.11n compatible
wireless client devices.The DAP-3315 is also backwards compatible with 802.11b/g devices.With its SetupWizard, the DAP-3315
ensures that you will be up and running a wireless network in just a matter of minutes.
The DAP-3315 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless
data communications. The DAP-3315 also includes additional security features to keep your wireless connection safe from
unauthorized access.
1 Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network
overhead, lower actual data throughput rate.

7D-Link DAP-3315 User Manual
Section 1 - Product Overview
Ultimate Performance
The D-Link Wireless N Exterior Access Point (DAP-3315) is an 802.11n compliant device that delivers real world performance of up to 300
Mbps2, much faster than an 802.11g wireless connection (also faster than a 100 Mbps wired Ethernet connection). Create a secure wireless
network to share photos, les, music, video, printers, and network storage outside of your normal internal networking environment.
Built to withstand harsh environments, the DAP-3315 also excels in connecting separate networks that cannot be joined physically using
traditional medium. The built-in 10dBi sector antenna is designed to deliver high powered performance, ensuring that wireless
coverage will cover even hard to reach locations.
Multiple Operation Modes
The DAP-3315 features seven dierent operation modes, allowing it to adapt to any situation. As a standard wireless access
point (AP) the DAP-3315 can connect to a wide range of devices that are 802.11 n/g/b compliant. In wireless distribution system
(WDS) mode it can expand current wireless coverage without the need for a wired backbone link. As a wireless client it can
connect to an existing AP, and expand the network physically with the two built-in 10/100 Ethernet ports. Repeater mode will
extend current wireless coverage eliminating dead spots and weak signals.
Also built into the DAP-3315 is WISP mode, which expands functionality for long range communications by including the
ability to function as a client or repeater. In WISP Repeater mode, the AP wirelessly connects to a WISP (Wireless Internet
Service Provider) AP and repeats the signal received from the WISP. In this mode, the AP also acts as a router for both wireless
and wired clients on your LAN. In WISP Client Router mode, the AP wirelessly connects to a WISP (Wireless Internet Service
Provider) AP and acts as a router for wired clients on the LAN, to allow the client to still access the Internet even though it is
using wireless technology.
Total Security
The DAP-3315 supports 64/128-bit WEP data encryption andWPA/WPA2 security functions. In addition, it provides MAC Address
Filtering to control user access, and the Disable SSID Broadcast function to limit unauthorized access to the internal network.
Network administrators have multiple options for managing the DAP-3315, including Web (HTTP) or Secured Web (HTTPS).
For advanced network management, administrators can use SNMP v1, v2c, v3 to congure and manage access points.
2Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.

8D-Link DAP-3315 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-3315 provides an up to 300 Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online
gaming, and real-time audio.
• Compatible with IEEE802.11g Devices - The DAP-3315 is still fully compatible with the 802.11g standards, so it can
connect with existing 802.11g adapters.
• Built-in High Gain Sector Antenna - The DAP-3315 comes equipped with a high powered 12 dBi antenna that helps
to provide better wireless coverage and increases signal strength.
• Convenient Installation - The DAP-3315 features a wall/pole mount in the rear for easy setup on poles or walls.
• Rugged Construction - The DAP-3315 is built to withstand harsh environments, and is compliant with the Waterproof
IPx5 Standard.3
3 IPx5 standard means the device is protected from low pressure jets of water from all directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weather-proof
box when in severe weather environment.
Features

9D-Link DAP-3315 User Manual
Section 1 - Product Overview

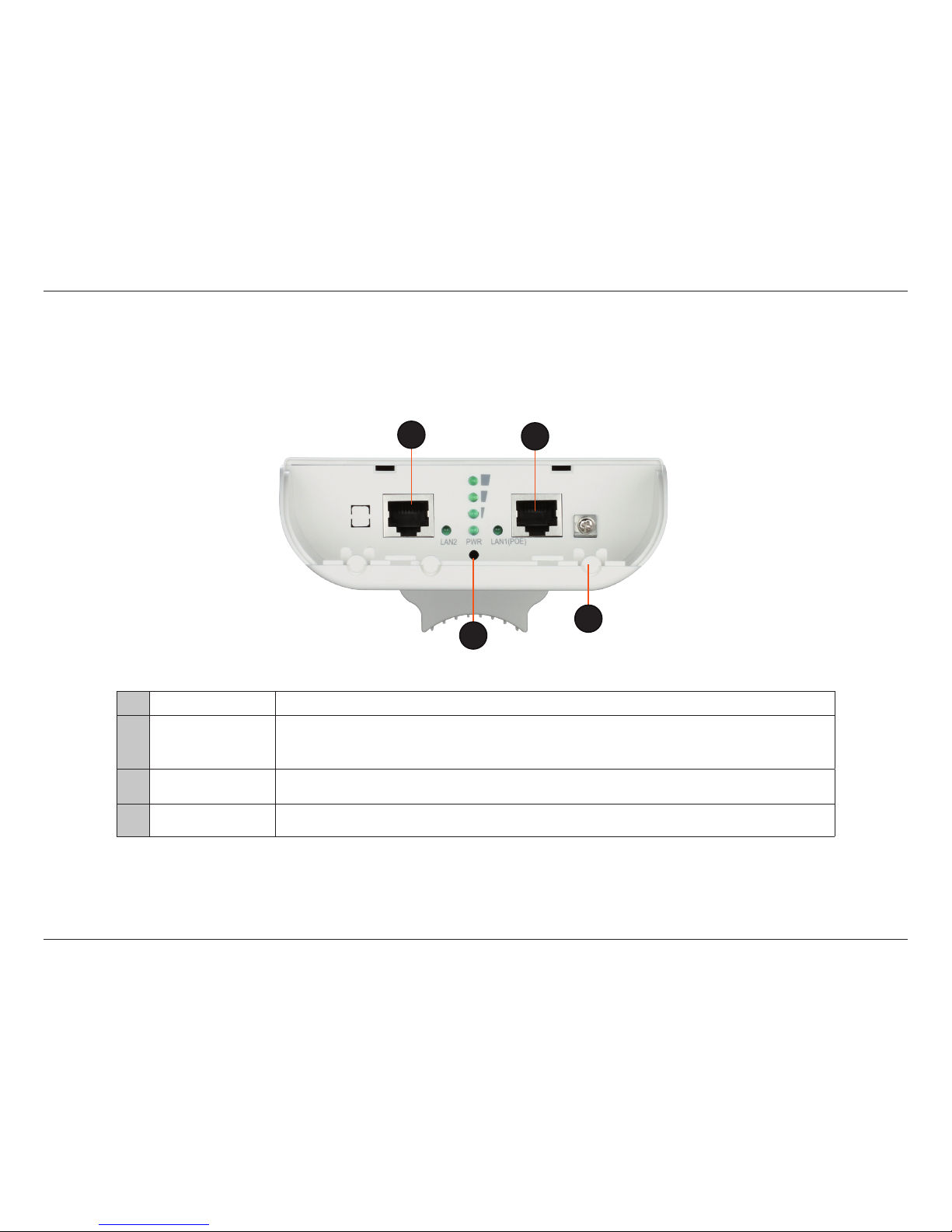

Hardware Overview
Connections
1 LAN Port Connects to 10/100 Ethernet devices such as computers, switches, and hubs.
2 LAN (PoE) Port
Power is supplied through the LAN cable connected in this port via the Power over Ethernet
Injector. Please see “Installation” on page 11 for more details on how to correctly power the
DAP-3315 and connect to other networking devices.
3 Reset Button Hold the reset button for at least 5 seconds to reset the device back to the factory default
settings. All the LEDs will turn on for 2 second and then begin the reboot process.
4Grounding Wire
Connector Connects to a grounding wire.
12
34
Note: The DAP-3315 uses a proprietary PoE injector which is needed to function correctly. Only use the included PoE
injector as other power sources such as 3rd party PoE injectors or PoE switches or hubs may damage the DAP-3315 or
cause it to operate unreliably, and will also void the warranty.

10D-Link DAP-3315 User Manual
Section 1 - Product Overview
Hardware Overview

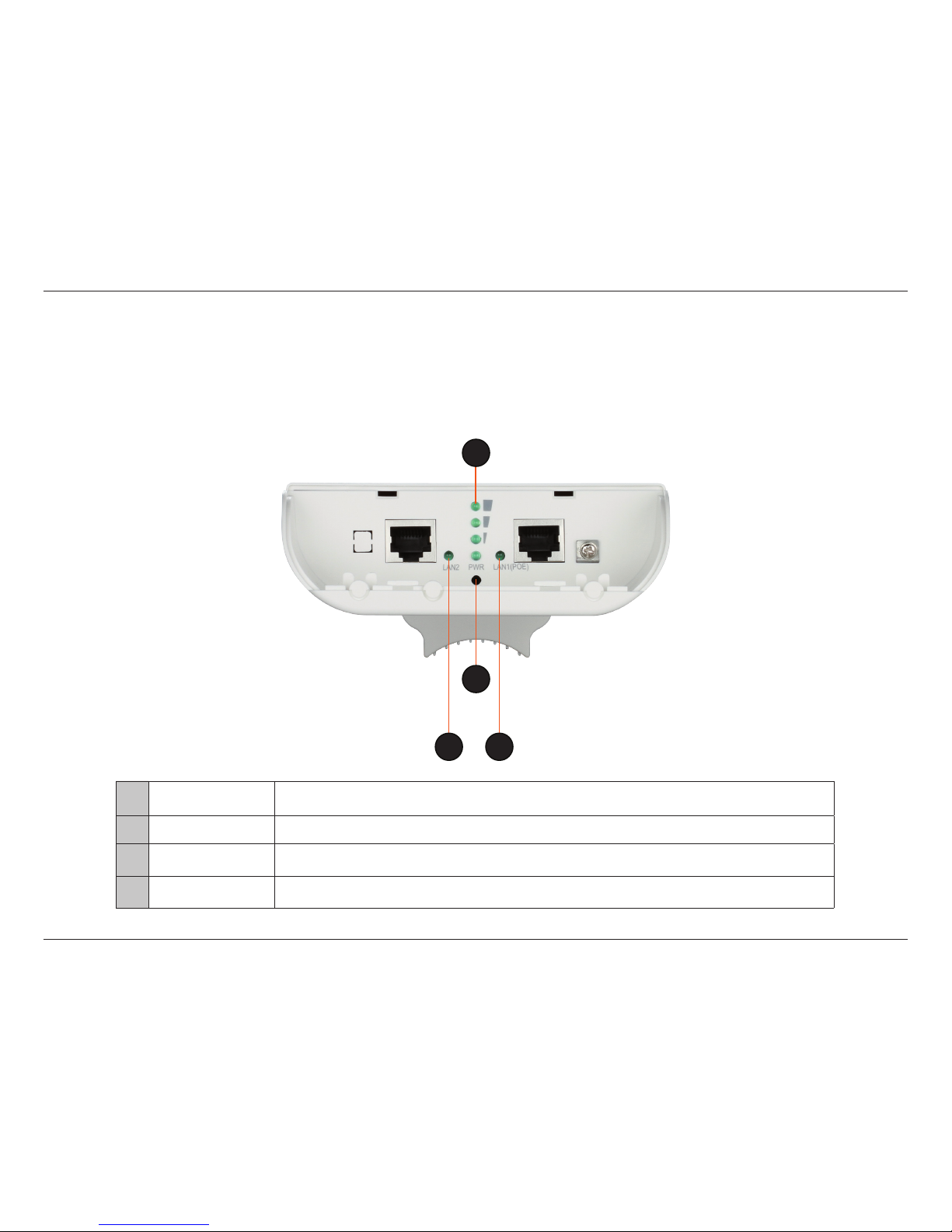

LEDs
1
1Wireless Signal
Strength LED
Shows dierent signal strength levels.
(Only supported in Wireless Client, Repeater, WDS, and WISP mode)
2 Power LED A solid green light indicates the device is powered and ready.
3 LAN LED A solid green light indicates the LAN port connection is OK. A blinking green light indicates
that the unit is transmitting data over that port.
4 LAN LED (PoE) A solid green light indicates the LAN port (PoE) connection is OK. A blinking green light
indicates that the unit is transmitting data over that port.
3 4
2

11D-Link DAP-3315 User Manual
Section 2 - Installation
Installation
First, you will need to congure the DAP-3315 with a computer connected directly to the unit. The following pages explains
how to set up the DAP-3315 in order to be properly congured and then tested to work as desired.
The DAP-3315 acts as a central connection point for any device (client) that has a 802.11n or backward-compatible 802.11g
wireless network interface and is within range of the AP. Clients must use the same SSID (wireless network name) and channel
as the AP in order to connect. If wireless security is enabled on the AP, the client will need to enter a password to connect to
the AP. In Access Point mode, multiple clients can connect to the AP at the same time.

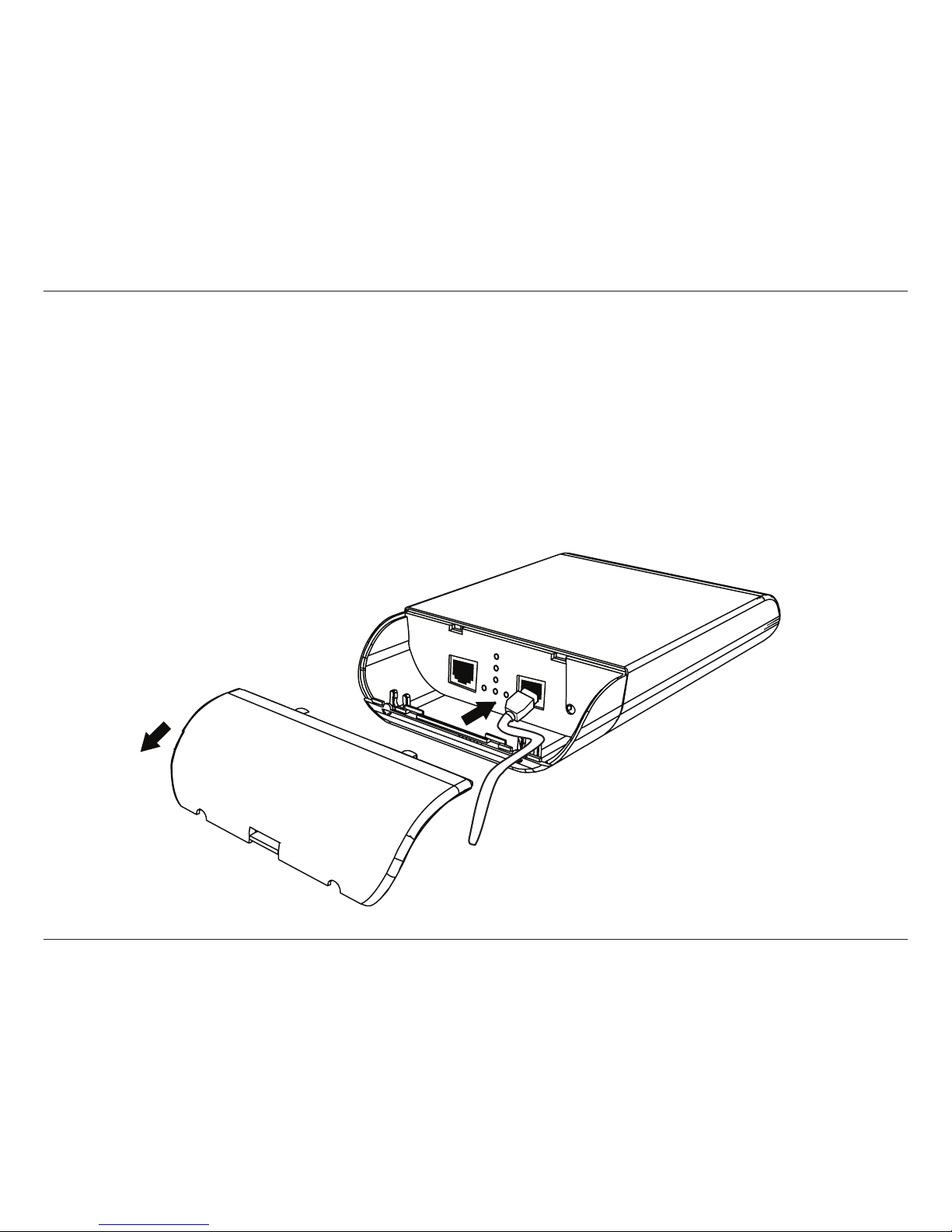

STEP 1: Connect an Ethernet Cable to the LAN (PoE) Port on the AP.
The port connection cover can be
removed using a a small amount of force
so that it pops o. It can be reattached
by snapping it back into place.

12D-Link DAP-3315 User Manual
Section 2 - Installation

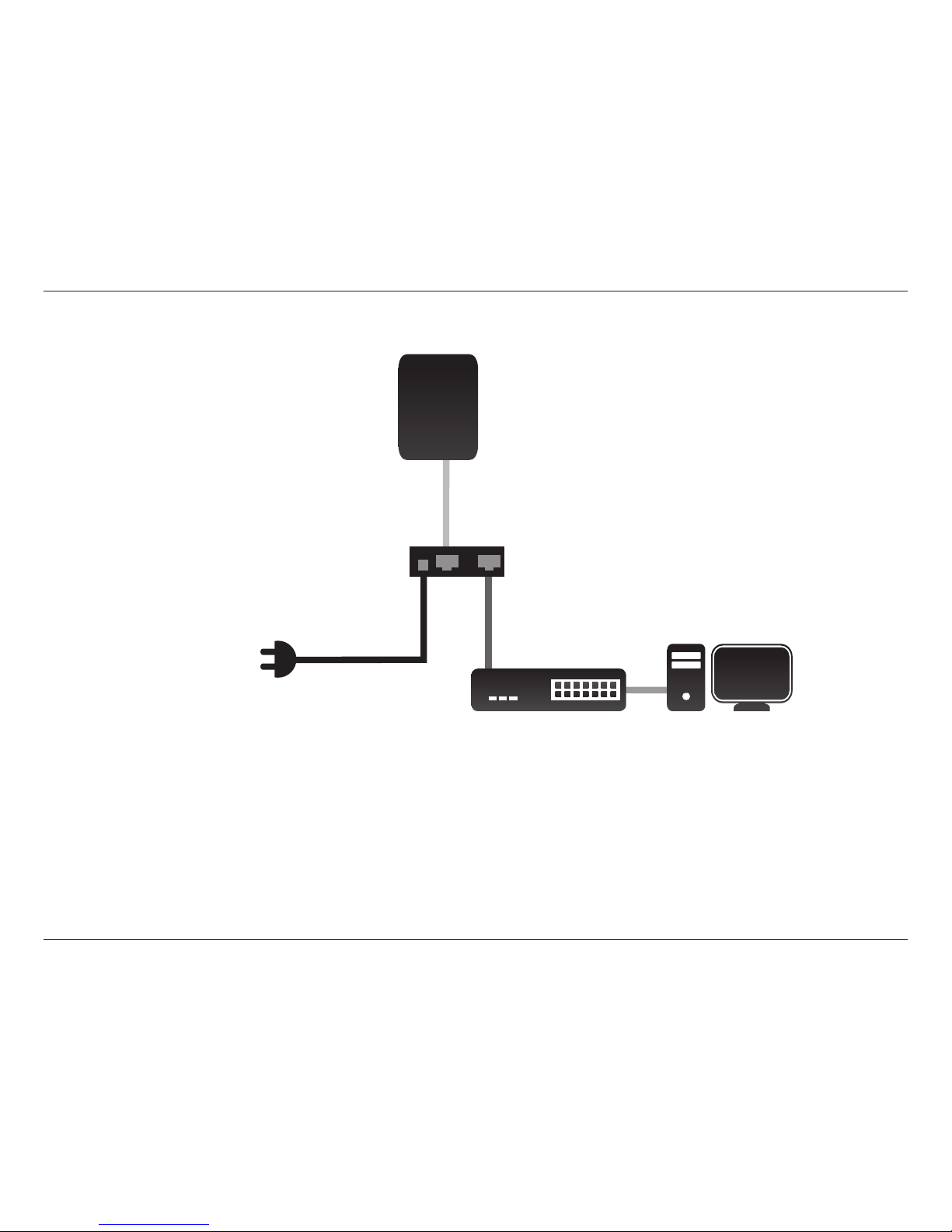

A. Connect the Ethernet cable that is connected to the AP from STEP 1 to the POE port on the PoE Injector.
B. Connect an Ethernet cable from a router, switch, or PC to the LAN port on the PoE Injector.
C. Attach the power cord to connect PoE injector, and plug it into an electrical outlet.
1 This product uses a proprietary PoE design and can only be used with the included PoE injector.
STEP 2: Connect the AP to Your Network
A
CB
POE
LAN
PoE Injector1
POWER IN
Router or Switch Computer
AP
LAN (PoE)1

13D-Link DAP-3315 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless N Exterior Access Point lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on
the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless access points, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 Hz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

14D-Link DAP-3315 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-LinkWireless N Exterior Access Point using the web-based conguration
utility.
Web-based Conguration Utility
If you wish to change the default settings or optimise the
performance of the DAP-3315, you may use the web-based
conguration utility.

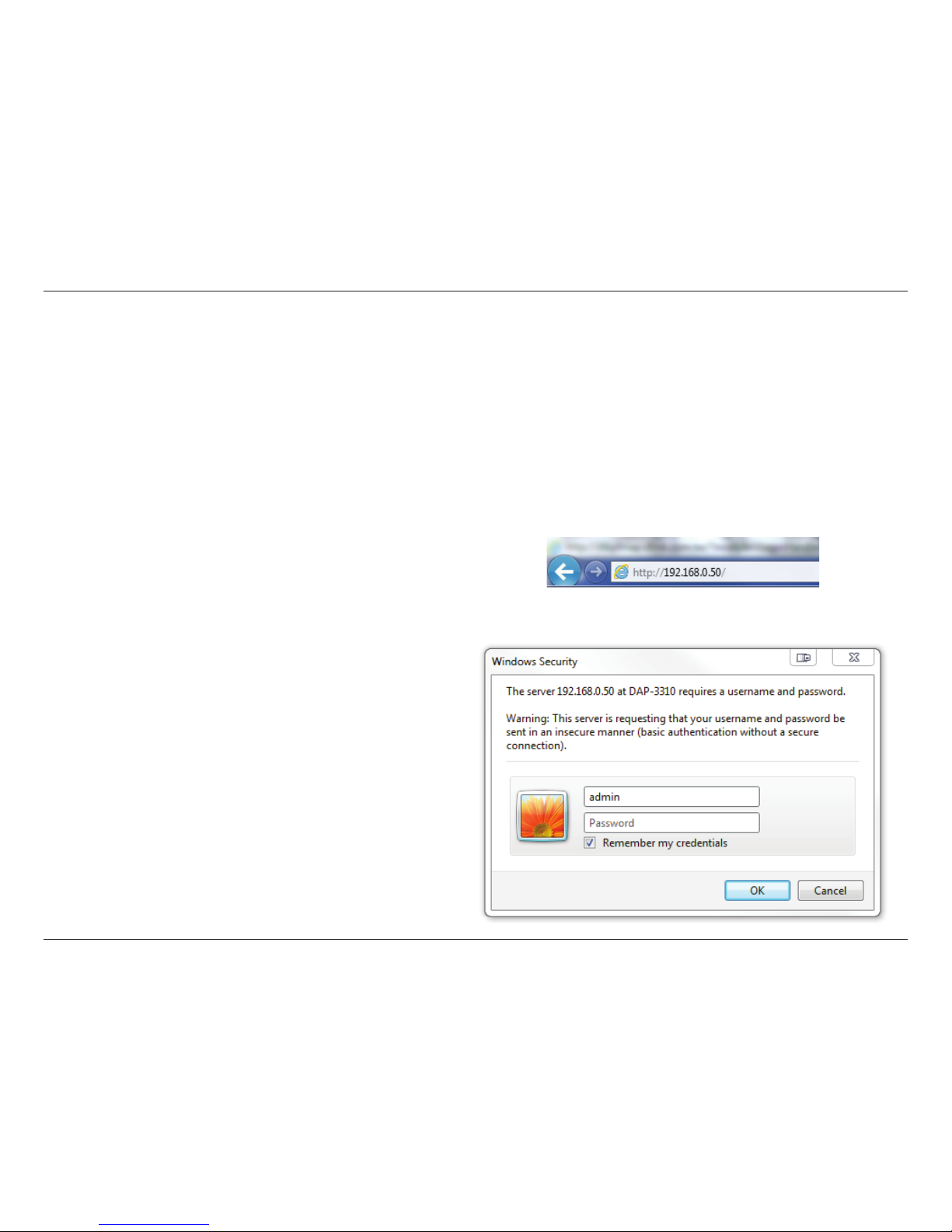

To access the conguration utility, open a web browser
such as Internet Explorer and enter http://192.168.0.50
Select admin and then enter your password. Leave the
password blank by default.
If you get a Page Cannot be Displayed error, please refer to
“Troubleshooting” on page 61 for assistance.

15D-Link DAP-3315 User Manual
Section 3 - Conguration
Operating Modes
In access point (AP) mode, 802.11n/g/b compliant
devices can connect to the wireless network.
Wireless distribution system (WDS) with AP mode
expands current wireless coverage and also
allows devices to connect to the network.
Wireless distribution system (WDS) mode
expands current wireless coverage from other
Wireless AP devices that are in WDS mode.
As a wireless client the DAP-3315 can connect to
an existing AP and expand the network physically
with the two built-in 10/100 Ethernet ports.
Repeater mode will extend current wireless
coverage, alleviating dead spots and weak
signals.
WISP Client Router mode allows for the sharing of
a WISP connection using the two built-in 10/100
Ethernet ports.
WISP Repeater mode will extend an existing
WISP’s network coverage area.
Access Point:
WDS with AP:
WDS:
Wireless Client:
Repeater:
WISP Client
Router:
WISP Repeater:
The DAP-3315 features seven dierent operating modes, allowing
it to adapt to any situation. Select the operating mode by clicking
on the radio button, that correspondes to the desired mode then
click on Change Mode. After conrming that the operating mode
will be changed, the AP will reboot and will be ready for use after
40 seconds.

16D-Link DAP-3315 User Manual
Section 3 - Conguration
Basic Settings
The image to the right shows a conguration menu tree for when
the AP is in Access Point mode. If you need help determining
which operating mode the AP is currently in, please see
“Operating Modes” on page 15.
Note: The DAP-3315 has different configuration options
depending on the current operating mode. Please be aware
that some screens and menus will not be present unless the AP
is operating in an applicable operating mode.

17D-Link DAP-3315 User Manual
Section 3 - Conguration
Wireless Settings
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Extension
Channel:
Enter a name for your wireless network (SSID). For
security purposes, it is highly recommended to
change from the default network name.
Select Disabled if you do not want the SSID of
your wireless network to be broadcasted by the
DAP-3315.Your wireless clients will have to know
the SSID of your DAP-3315 in order to connect
to it.
The Auto Channel Scan setting can be selected to
allow the DAP-3315 to choose the channel with
the least amount of interference.
Indicates the channel setting for the DAP-3315.
The Channel can be changed to t the channel
setting for an existing wireless network or to
customize the wireless network. If you enable
Auto Channel Scan, this option will be grayed out.
Auto 20/40 - Select if you are using both 802.11n
and non-802.11n wireless devices. 20MHz - Select
if you are not using any 802.11n wireless clients.
Used only when Channel width is set to 40 MHz.
Select the desired channel bonding for control.

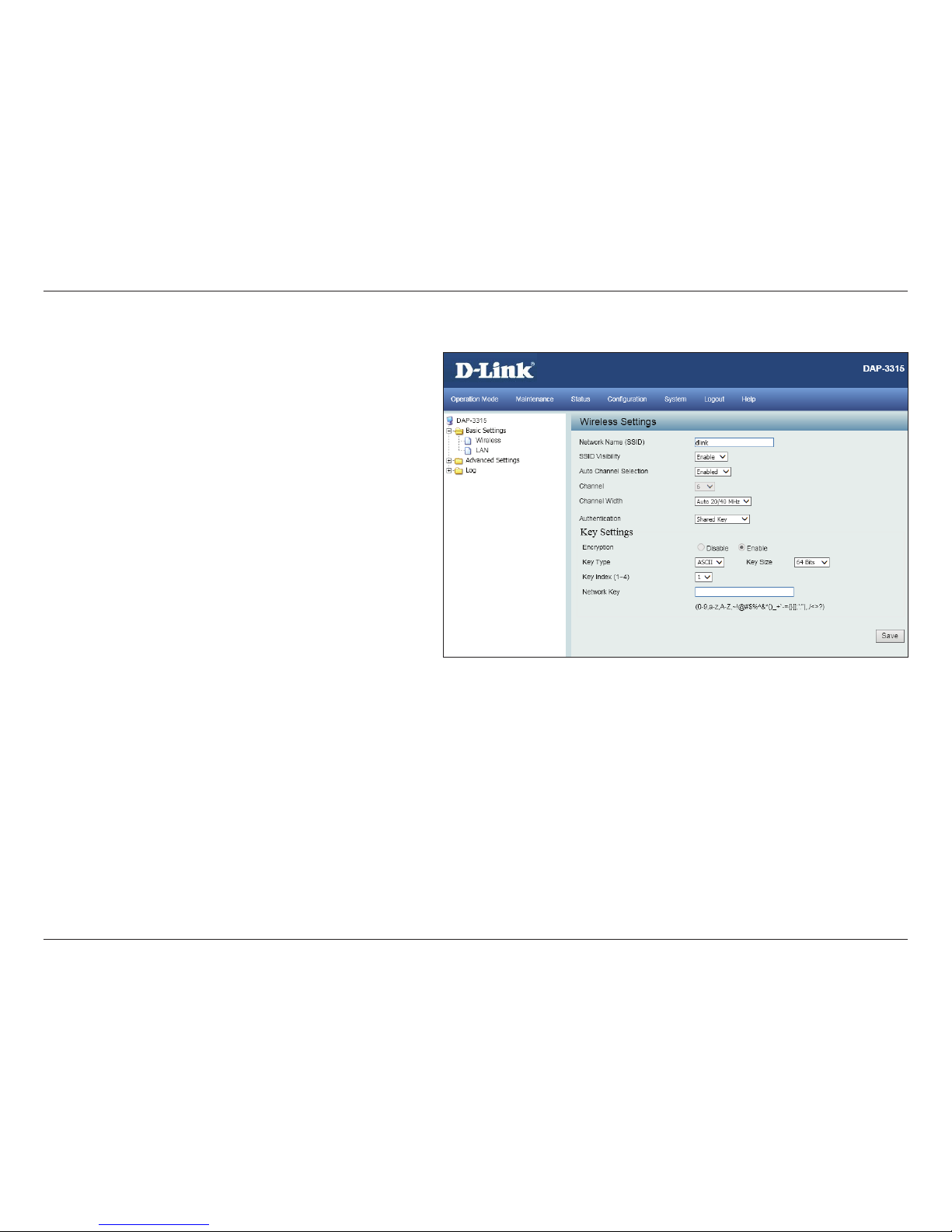

This page will allow you to congure the wireless connection
for the DAP-3315. Please be aware that some menu options will
change depending on which type of security setting is used.

18D-Link DAP-3315 User Manual
Section 3 - Conguration
Encryption:
Key Type:
Key Size:
Key Index:
Network Key:
Conrm Key:
Use the radio button to disable or enable
encryption. (Encryption option only available
with Open System setting)
Select either HEX or ASCII as the key type.
Select 64 Bits or 128 Bits for your key size.
Select which key you want to be the active key.
Input up to four keys for encryption. You will
select one of these keys in the Key Index drop-
down menu.
Conrm the network key.
Click Save to commit your changes.
Note: Hexadecimal (HEX) digits consist of the
numbers 0-9 and the letters A-F.
ASCII (American Standard Code for Information
Interchange) is a code that represents English
letters using numbers ranging from 0-127.
Open System/Shared Key Authentication
If you selected Open System as your Authentication, you will
see these settings:

19D-Link DAP-3315 User Manual
Section 3 - Conguration
WPA/WPA2-Personal Authentication
When WPA-Personal is selected for
Authentication type, you must also select a
WPA mode from the drop-down menu: AUTO
(WPA or WPA2), WPA2 Only, or WPA Only.
WPA and WPA2 use dierent algorithms. AUTO
(WPA or WPA2) allows you to use both WPA
and WPA2.
When you select WPA-Personal, you must also
select AUTO, AES, or TKIP from the drop-down
menu.
Select the interval during which the group
key will be valid. The default value of 1800 is
recommended. Select Manual to enter your
key (Passphrase).
When you select WPA-Personal, please enter
a Passphrase in the corresponding elds.
WPA Mode:
Cipher Type:
Group Key
Update:
Passphrase
/ Conrm
Passphrase:
If you selected WPA/WPA2-Personal Authentication as your
Authentication, you will see these settings:

20D-Link DAP-3315 User Manual
Section 3 - Conguration
WPA/WPA2-Enterprise Authentication
When WPA-Enterprise is selected, you must
also select a WPA mode from the drop-down
menu: AUTO (WPA or WPA2), WPA2 Only,
or WPA Only. WPA and WPA2 use different
algorithms. AUTO (WPA or WPA2) allows you
to use both WPA and WPA2.
When WPA-Enterprise is selected, you must
also select a cipher type from the drop-down
menu: Auto, AES, or TKIP.
Select the interval during which the group key
will be valid. The recommended value is 1800.
A lower interval may reduce data transfer rates.
Enter the IP address of your RADIUS server.
Enter the RADIUS port.
Enter the RADIUS secret.
WPA Mode:
Cipher Type:
Group Key
Update
Interval:
RADIUS Server:
RADIUS Port:
RADIUS Secret:
