DAP-3320 Install Guide
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based
operating systems with CD-ROM drive
• Installed Ethernet adapter
• Internet Explorer 8, Chrome, Firefox, or Safari 5.1 or higher
Note: To power the unit, use a D-Link PoE switch or the D-Link DPE-301GI PoE injector (not included).
Minimum Requirements
Package Contents
Note: If any of the above items are missing, please contact your reseller.
• DAP-3320 Wireless PoE Outdoor Access Point
• Grounding Wire
• Wall Mounting Bracket/Kit
• CD (with software and user manual)
* Maximum Wireless signal rate derived from IEEE 802.11n and 802.11g specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trac, building materials and construction,
and network overhead lower actual data throughput rate.

DAP-3320 Install Guide
3

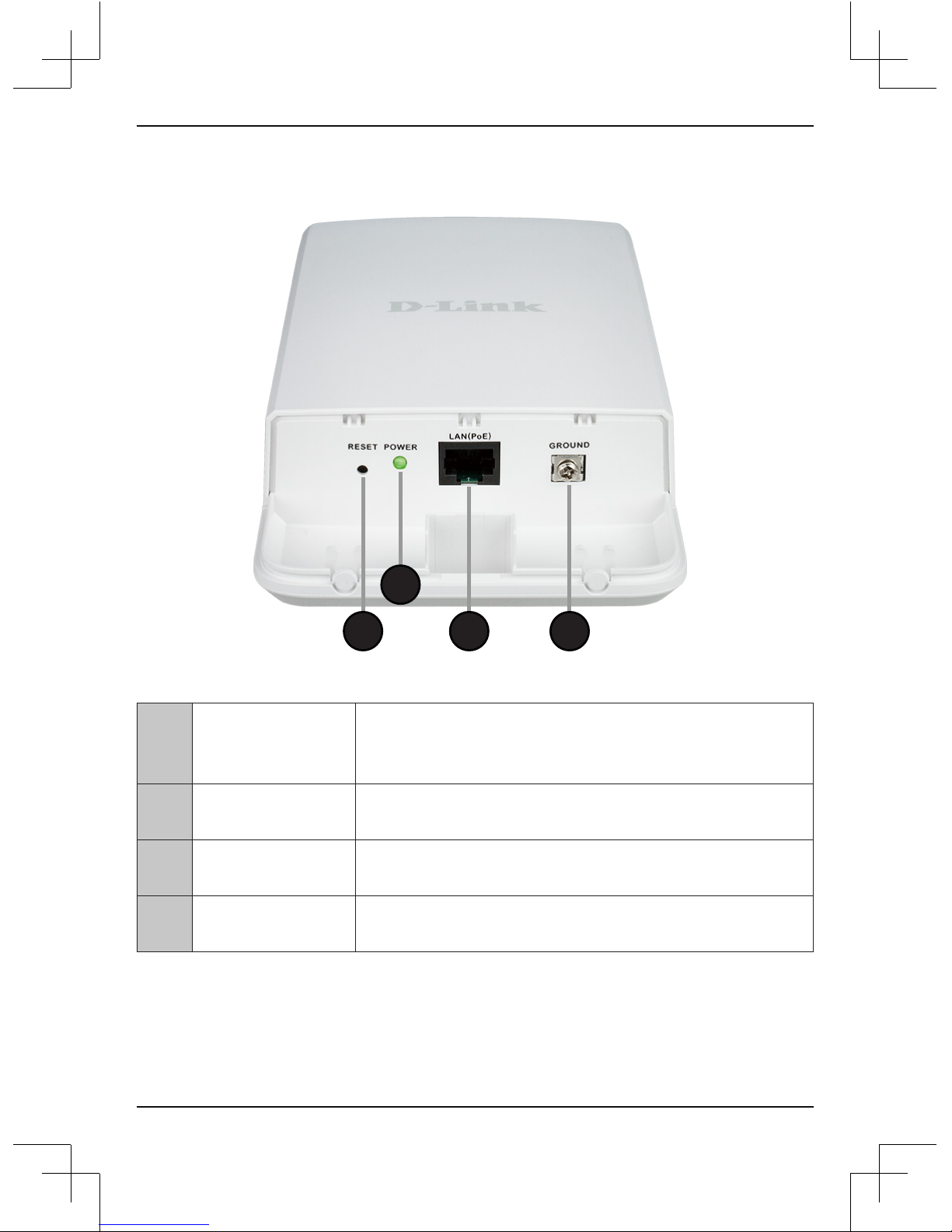

1Reset Button
Press and hold for six seconds to reset the access point
to the factory default settings. The LED will turn on for
two seconds and then begin the reboot process.
2Power LED A solid green light indicates the device is powered
and operational.
3LAN (PoE) Port Power is supplied to this port via an Ethernet cable
that is connected to a PoE injector or a PoE switch.
4Ground Connect a grounding wire to help prevent device
damage due to shorts and lightning strikes.
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based
operating systems with CD-ROM drive
• Installed Ethernet adapter
• Internet Explorer 8, Chrome, Firefox, or Safari 5.1 or higher
Note: To power the unit, use a D-Link PoE switch or the D-Link DPE-301GI PoE injector (not included).
Hardware Overview
1
2
3 4

4
DAP-3320 Install Guide
Before You Begin
This product should ONLY be installed by an experienced installer who is familiar
with local building and safety codes and, where applicable, is licensed by the
appropriate authorities. Failure to employ an experienced installer may render
the D-Link product warranty void and may also expose the end user or the service
provider to legal and nancial liabilities. D-Link and its resellers or distributors
expressly disclaim any and all liabilities for injury, damage, or violation of
regulations due to the improper installation of outdoor units or antennas.
A safety grounding system is necessary to protect your outdoor installation from
lightning strikes and the build-up of static electricity. Direct grounding of an
outdoor AP is very important and can protect your networks from brutal outdoor
environments and devastating ESD attacks. The grounding system must comply
with the National Electrical Code and safety standards that apply in your country
and/or region. Always check with a qualied electrician if you are in doubt as to
whether your outdoor installation is properly grounded.
To keep you safe and to install the hardware properly, please read and follow these
safety precautions:
1. Keep safety as well as performance in mind when selecting your installation site,
especially when there are electric power and phone lines.
2. When installing your access point, note the following:
• Do not use a metal ladder.
• Do not work on a wet or windy day.
• Wear shoes with rubber soles and heels, rubber gloves, and a long sleeved
shirt or jacket.
3. When the system is operational, avoid standing directly in front of the antenna.
Strong RF elds are present when the transmitter is on.
4. A safety grounding system is necessary to protect your outdoor installation
from lightning strikes and the build-up of static electricity. When mounting
the product on an antenna mast, you must connect the product to the same
grounding system as the AC wall outlet. The grounding system must comply
with the National Electrical Code and safety standards that apply in your country.
5. Always check with a qualied electrician if you are in doubt as to whether your
outdoor installation is properly grounded.

DAP-3320 Install Guide
5
Installation

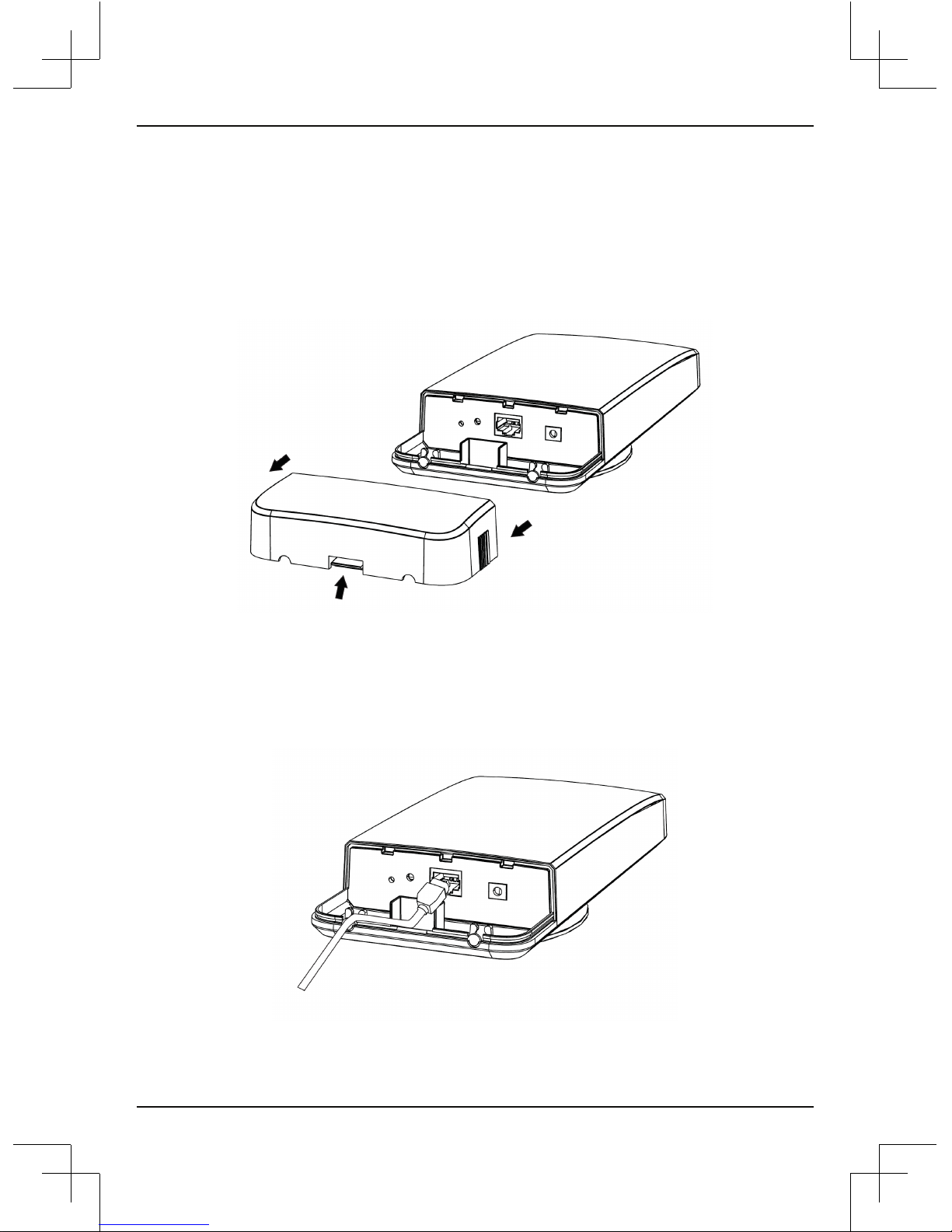

1. Lift the release tab in the middle of the cover, then pull the cover
o.
2. Connect an Ethernet cable (not included) to the Ethernet port.

6
DAP-3320 Install Guide

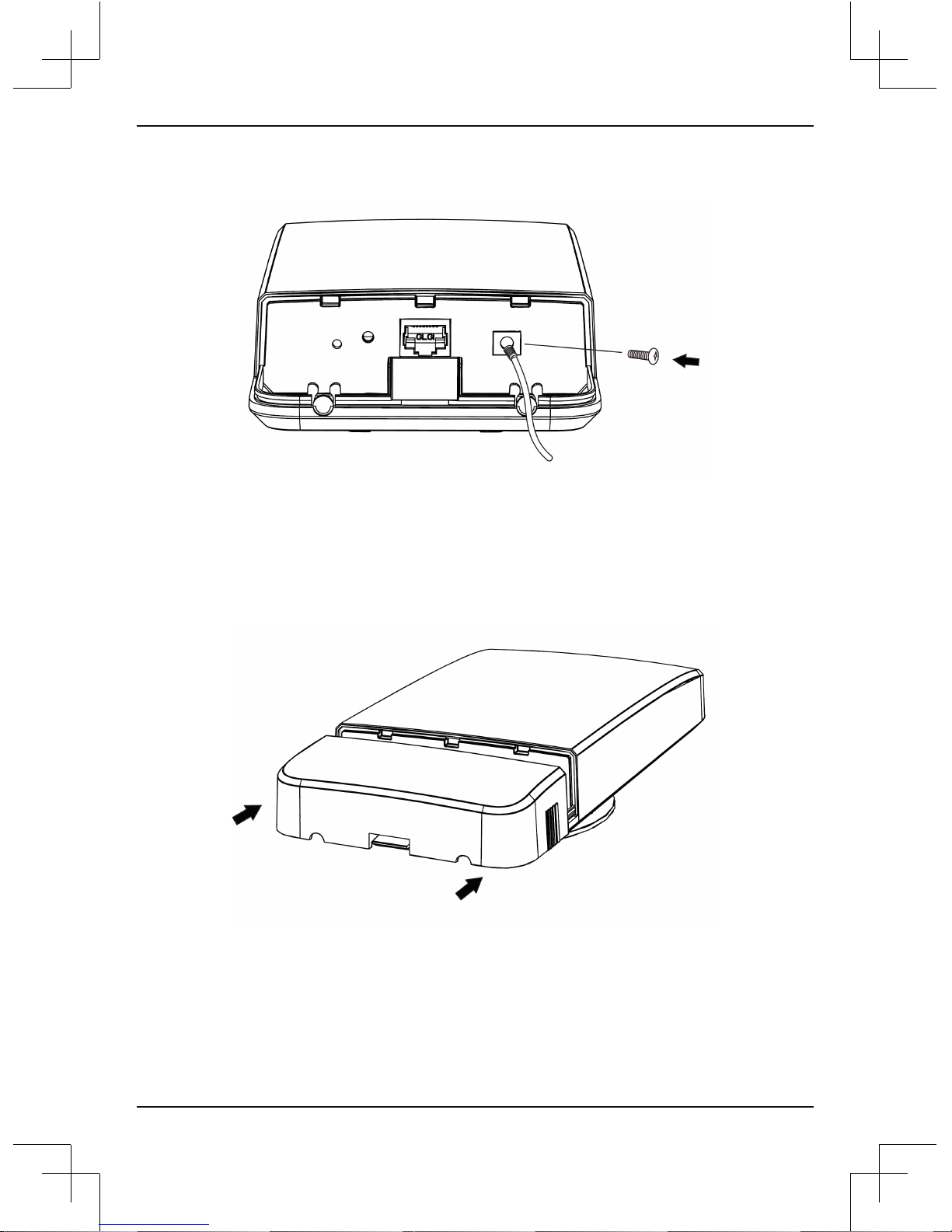

3. Use the grounding screw to attach the grounding wire.
4. Reattach the cover. You may need to break o one of the plastic
port covers to allow your cables to exit the AP.

DAP-3320 Install Guide
7
Mounting
The DAP-3320 supports the IP55 water/dustproof standard. It
is recommended that you place the AP under a roof, shelter, or
weatherproof container in severe weather environments. It is highly
recommended that you congure and test your access point before
mounting it.
Pole Mount

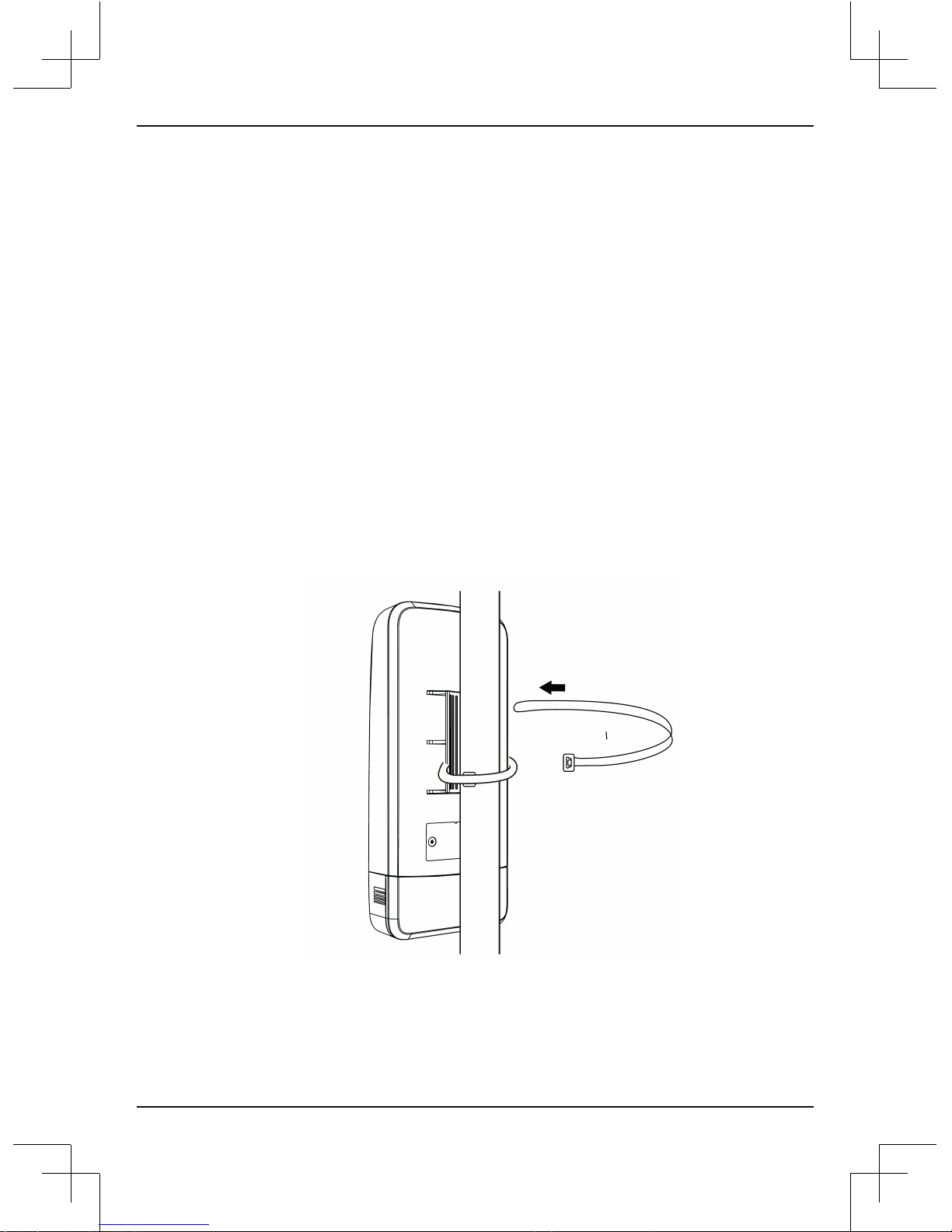

Thread the plastic mounting ties through the back of the DAP-3320
and around the pole.

8
DAP-3320 Install Guide
Wall Mount

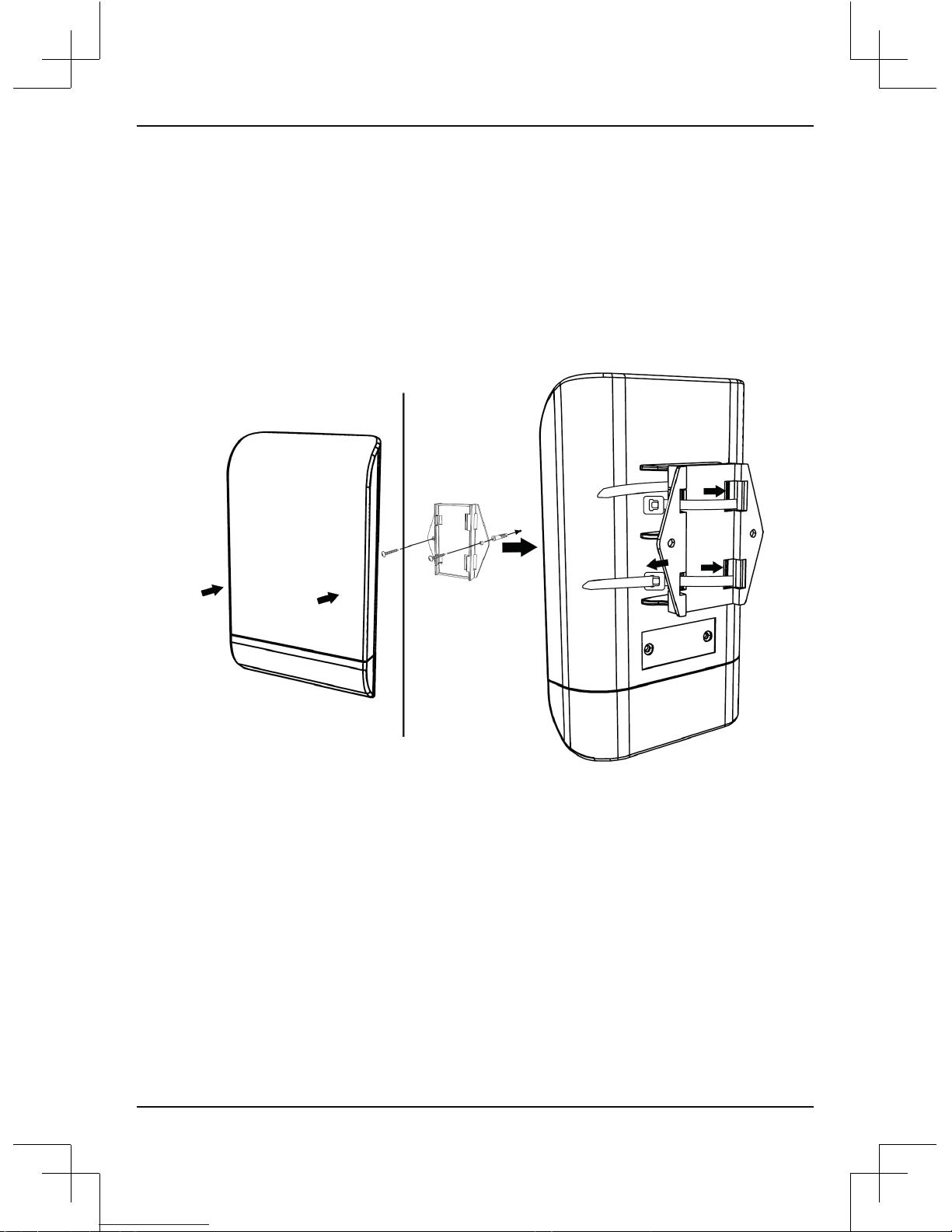

Screw the wall mounting bracket into the wall, then attach the Access
Point to it. For extra security, you can thread the plastic mounting ties
through the back of the Access Point and the wall mounting bracket
as shown.

DAP-3320 Install Guide
9
Connect to Your Network
You can connect the DAP-3320 to a PoE switch, or you can use a PoE
injector to power the AP.

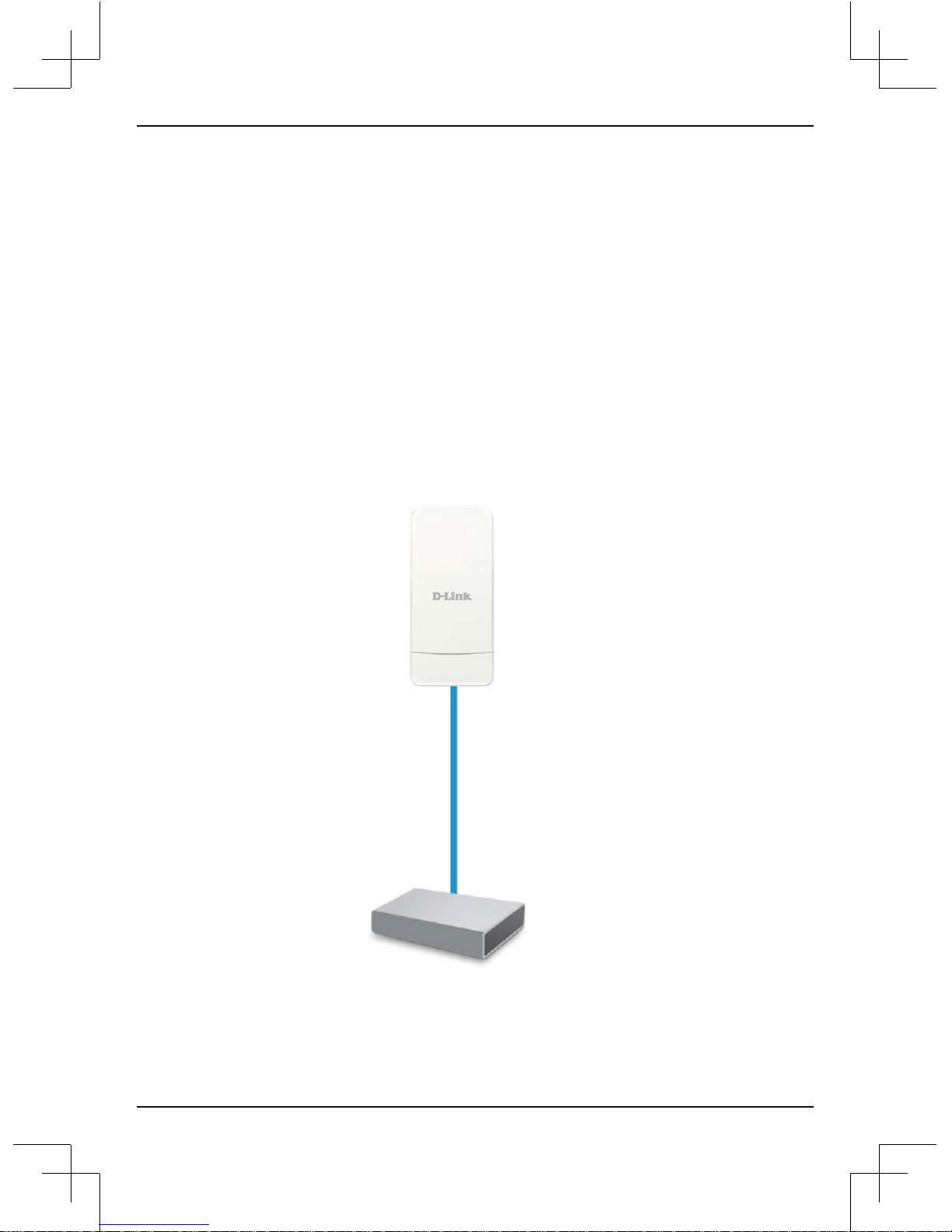

Connecting to a PoE Switch
Connect the Ethernet cable that is connected to the DAP-3320 to
your PoE switch.
DAP-3320
PoE Switch

10
DAP-3320 Install Guide

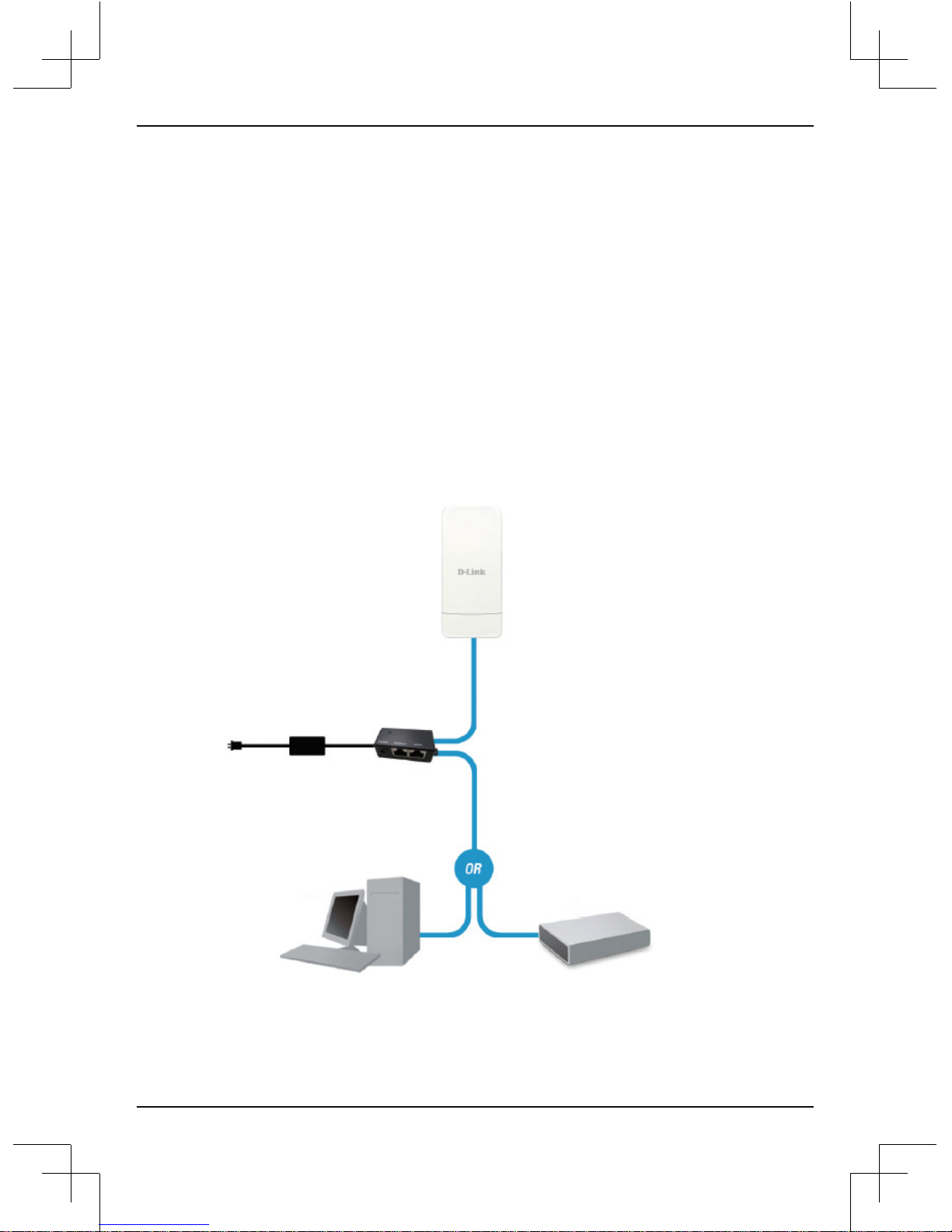

Connecting to the PoE Injector
1. Connect the Ethernet cable that is connected to the DAP-3320 to
the P+DATA OUT port on the PoE injector.
2. Connect an Ethernet cable to the DATA IN port on the PoE Injector.
Connect the other end of the Ethernet cable to your network
switch or router.
3. Attach the power adapter to the connector labeled POWER IN on
the PoE Injector, and plug it into an electrical outlet.
DAP-3320
PoE Injector*
Switch or
Router
PC
Power Adapter*
* Power adapter and PoE injector are not included.

DAP-3320 Install Guide
11

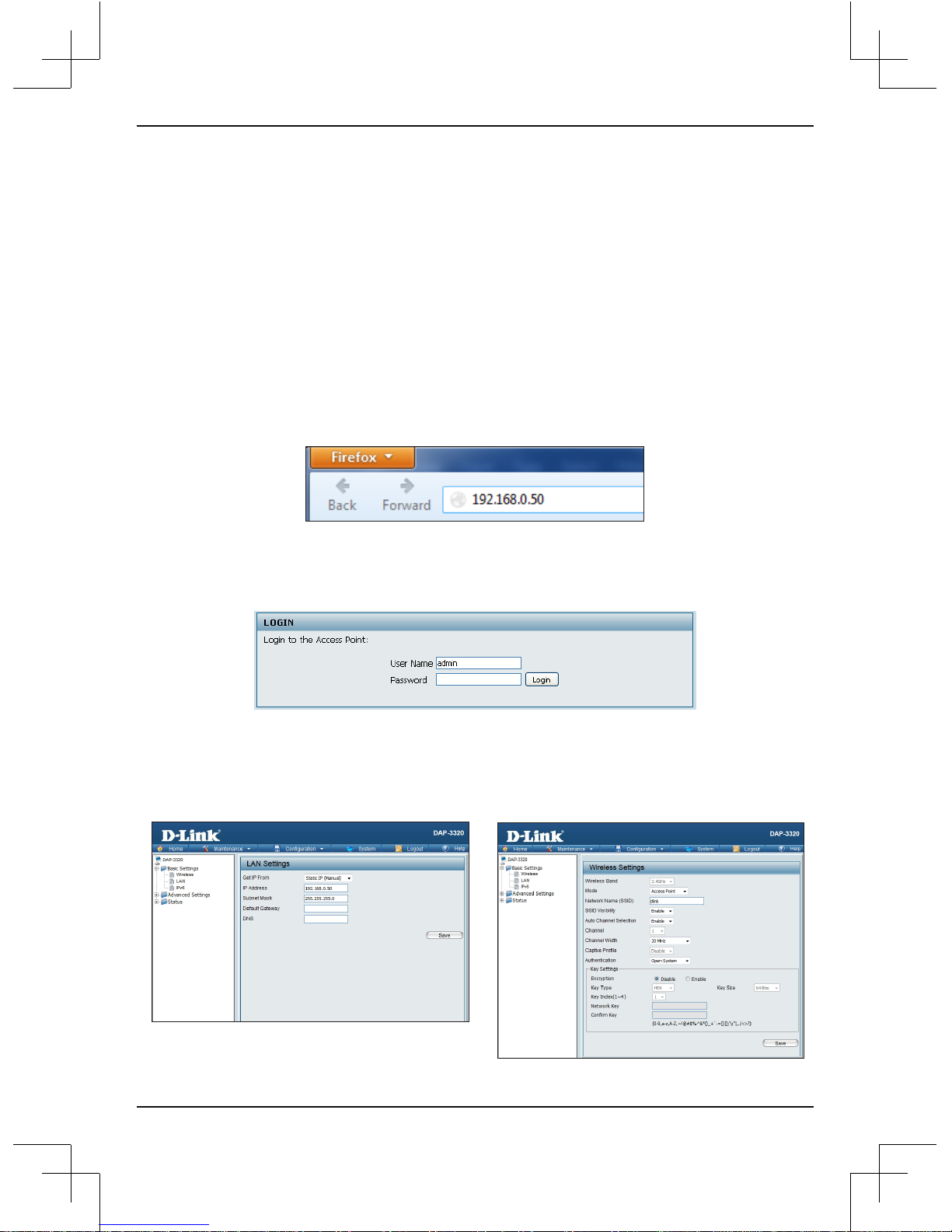

Step 2: At the login screen, enter admin for the user name and leave the password
blanks. Click Login to continue.
Step 3: After the home page appears, go to Basic Settings > LAN to change the IP
settings of the DAP-3320. Go to Basic Settings > Wireless to congure your wireless
settings.
Conguration
Note: It is recommended to congure your DAP-3320 before mounting. The easiest
way is to connect to the Access Point directly to a computer using an Ethernet cable.
Statically assign the IP address of your computer to 192.168.0.2 with a subnet mask of
255.255.255.0. If you connect the AP to a router (with DHCP enabled), make sure you
are on a 192.168.0.xxx network. By default, the AP will not receive an IP address since it
is statically assigned 192.168.0.50.
Step 1: Open a web browser (e.g., Internet Explorer, Chrome, Firefox , or Safari) and
enter http://192.168.0.50.
Note: Make sure you click on Conguration > Save and Activate to save your settings.

Technical Support
D-Link’s website contains the latest user documentation and software updates for D-Link
products.
U.S. and Canadian customers can contact D-Link Technical Support through our website
or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.ca
Version 1.00(US)_90x130
February 17, 2016
6AP3320Q..01G
