D-Link DAP-1150 User manual

WIRELESS N 150 ACCESS POINT
Quick Installation Guide+
Руководство по быстрой установке+
DAP-1150

DAP-1150
WIRELESS N 150 Access Point
Quick Installation Guide
Version 2.00

3

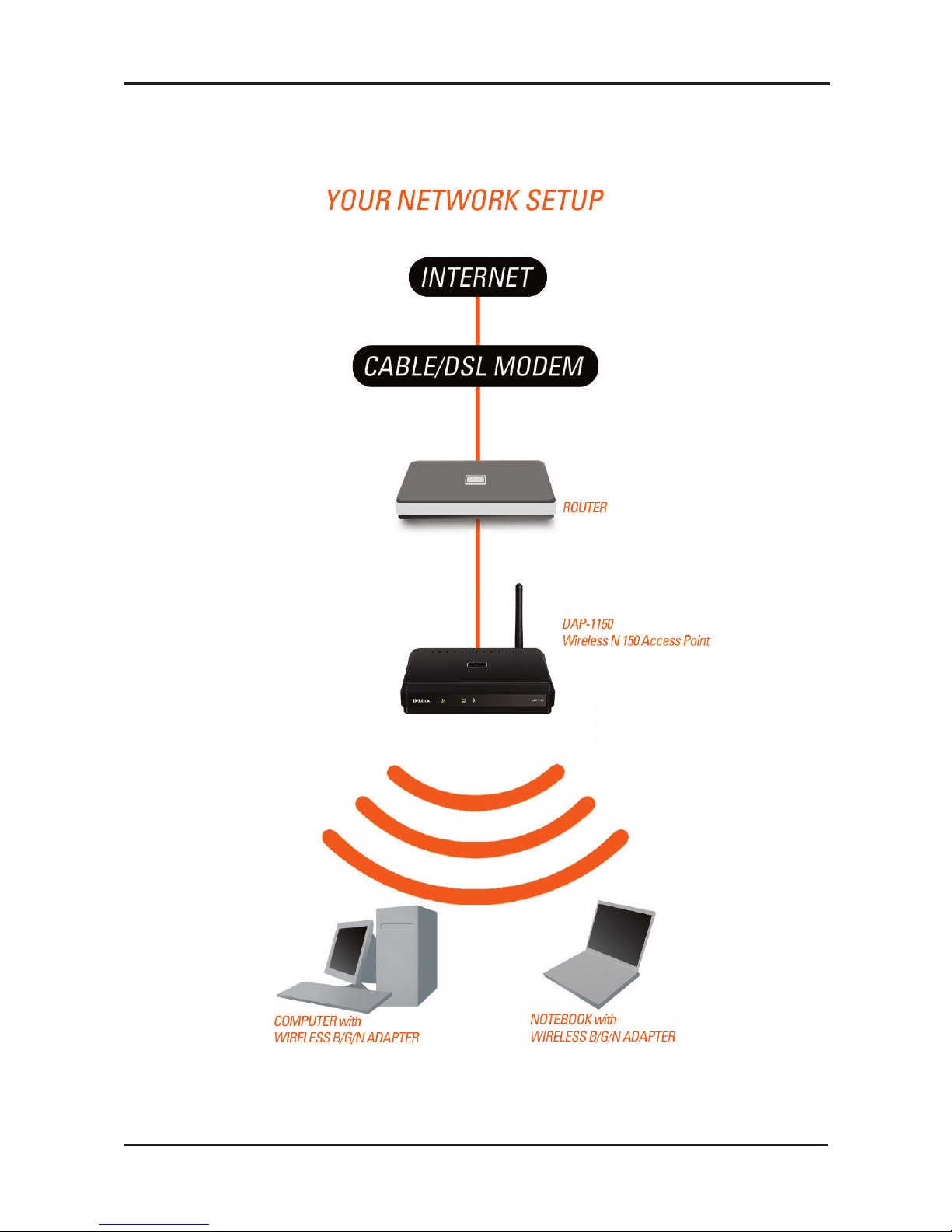

System Requirements

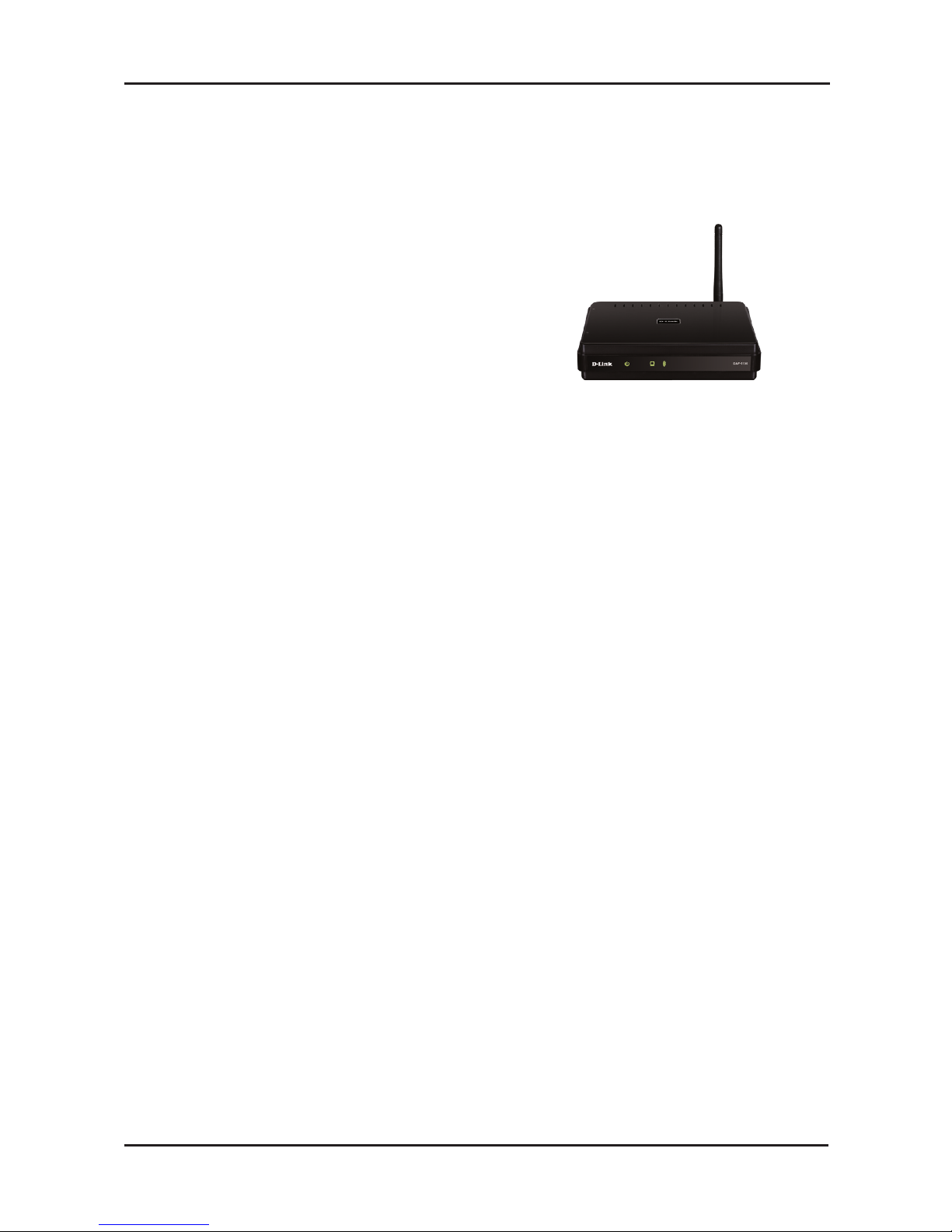

Package Contents
Open the DAP-1150 package and check to see if all of the following items
are included inside:
• DAP-1150 Wireless N 150 Access Point
• Detachable antenna
• Power adapter
• Cat. 5 Ethernet cable
• CD-ROM containing the User’s Manual
and this Quick Installation Guide
If any of the above item is missing or damaged, contact the reseller from
whom you purchased this package immediately.
The DAP-1150 Wireless N 150 Access Point is designed to work with
computers equipped with Windows®, Macintosh®, or Linux-based operating
systems.
To congure this Wireless N 150 Access Point, you need a computer with an
Ethernet interface and an Internet browser such as Microsoft Internet Explorer
6.0 or above, Netscape Navigator 7.0 or above, or FireFox 1.5 or above.
Setting Up the DAP-1150
Step 1: Connect the Power Adapter.
Check the AC voltage of your AC power outlet against the AC power input
of the power adapter. Connect the power adapter supplied with the DAP-
1150 to the power socket on the back of this device rst, then plug it to your
AC power outlet. Check to see that the Power LED on the front panel of the
DAP-1150 is turned ON.

4

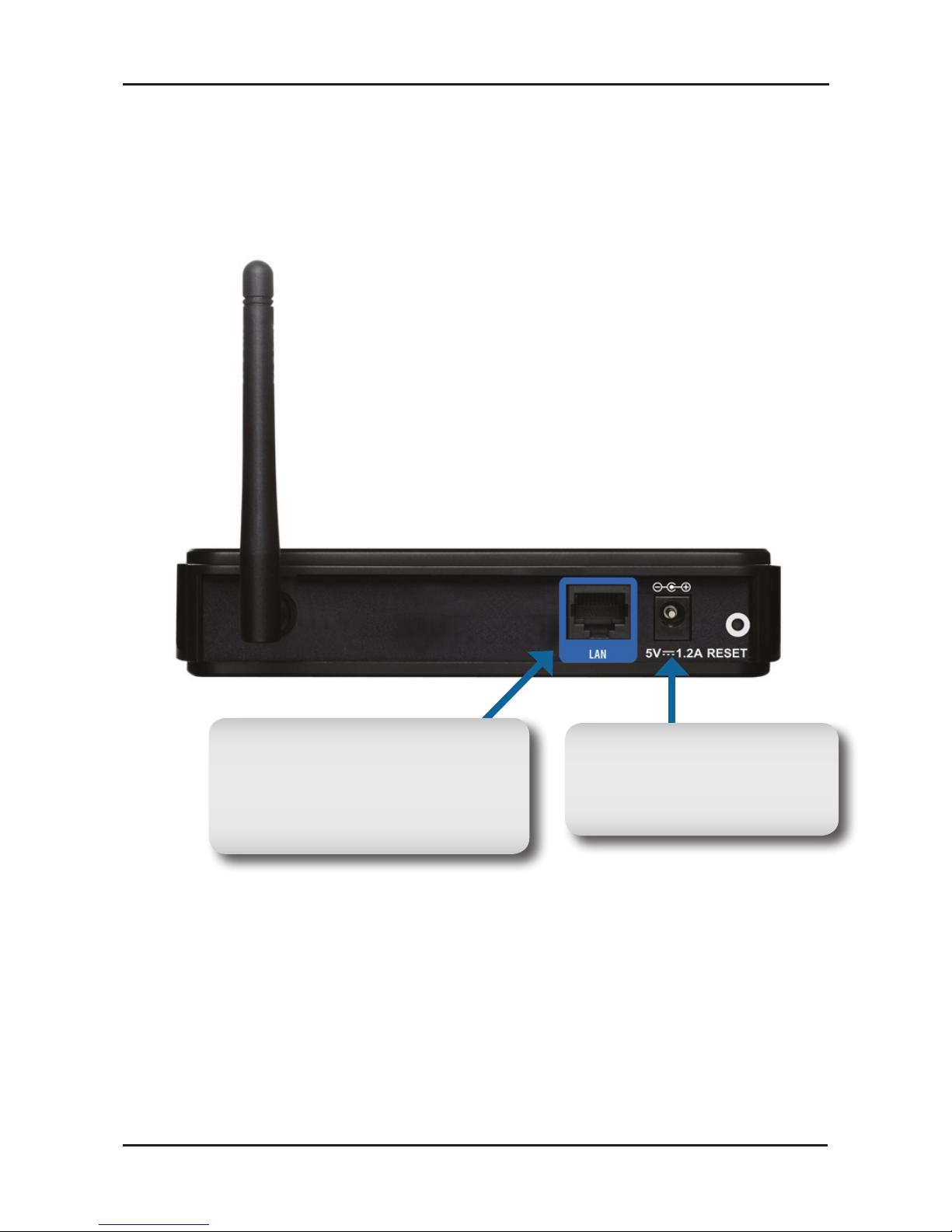

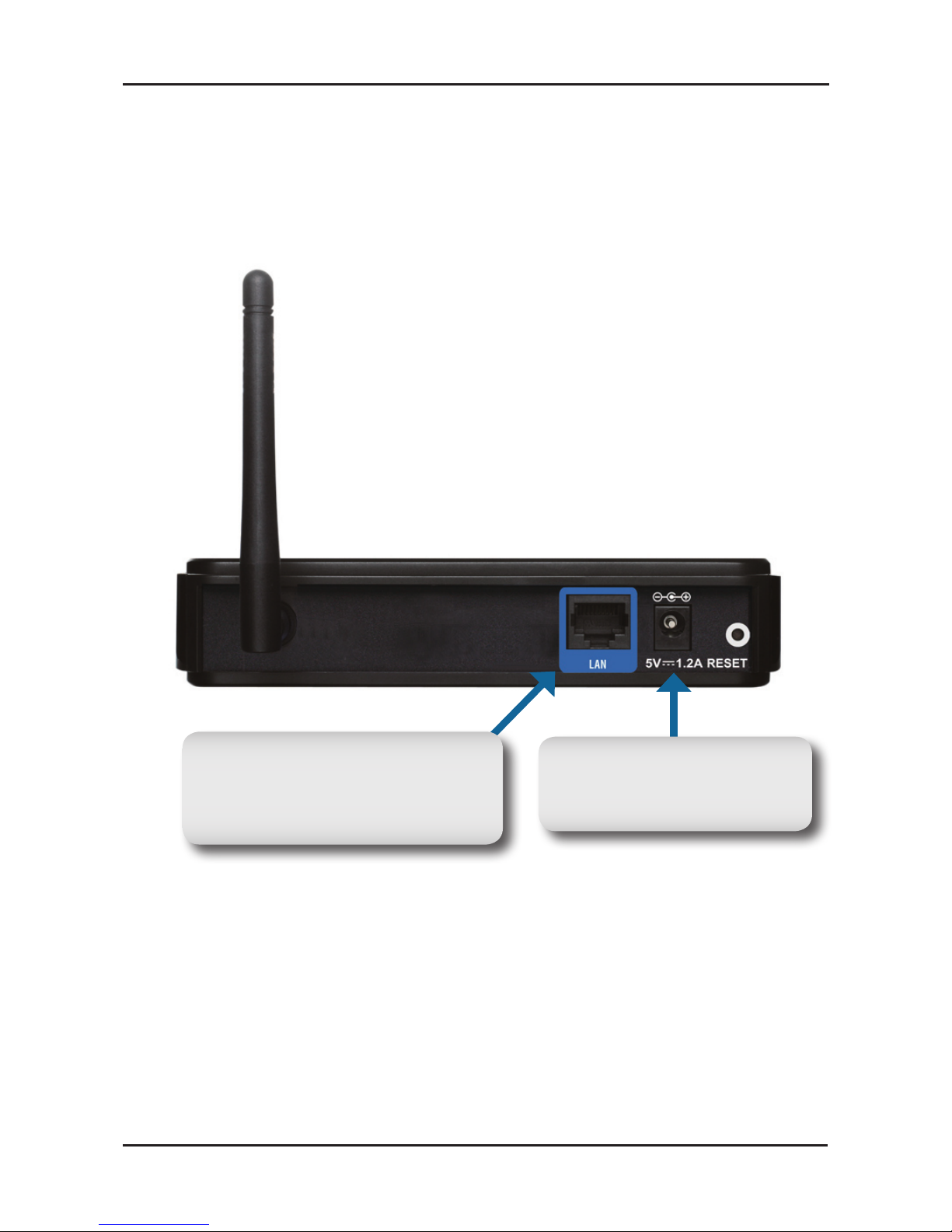

Ethernet LAN Port
Can be connected to Ethernet
port of computer, or to an Ethernet
switch or LAN port of a router.
Power Socket
Connect to a 5VDC 1.2A power
adapter.
WARNING! The DAP-1150’s power output is 5 volts DC, 1.2 Ampere. Use only the
power adapter supplied with this DAP-1150 or one with the same power specications.
Using a power adapter with a different voltage or plugging your DAP-1150 to a wrong
AC voltage outlet will damage this device and will void the warranty for this product.
Step 2: Connect the Antenna and Ethernet Cable.
Connect the antenna to the antenna connector on the back of the DAP-1150.
Connect one end of the Ethernet cable to LAN port on the back panel of the
DAP-1150, and the other end of this cable to your computer’s Ethernet port.
If your computer is connected to an Ethernet network via an Ethernet switch,
connect this end of the cable to the switch’s port.

5
In the Address eld, type
the address of the DAP-
1150(192.168.0.50).
In the User Name field,
type in the default name
admin
Leave the Password
eld blank.

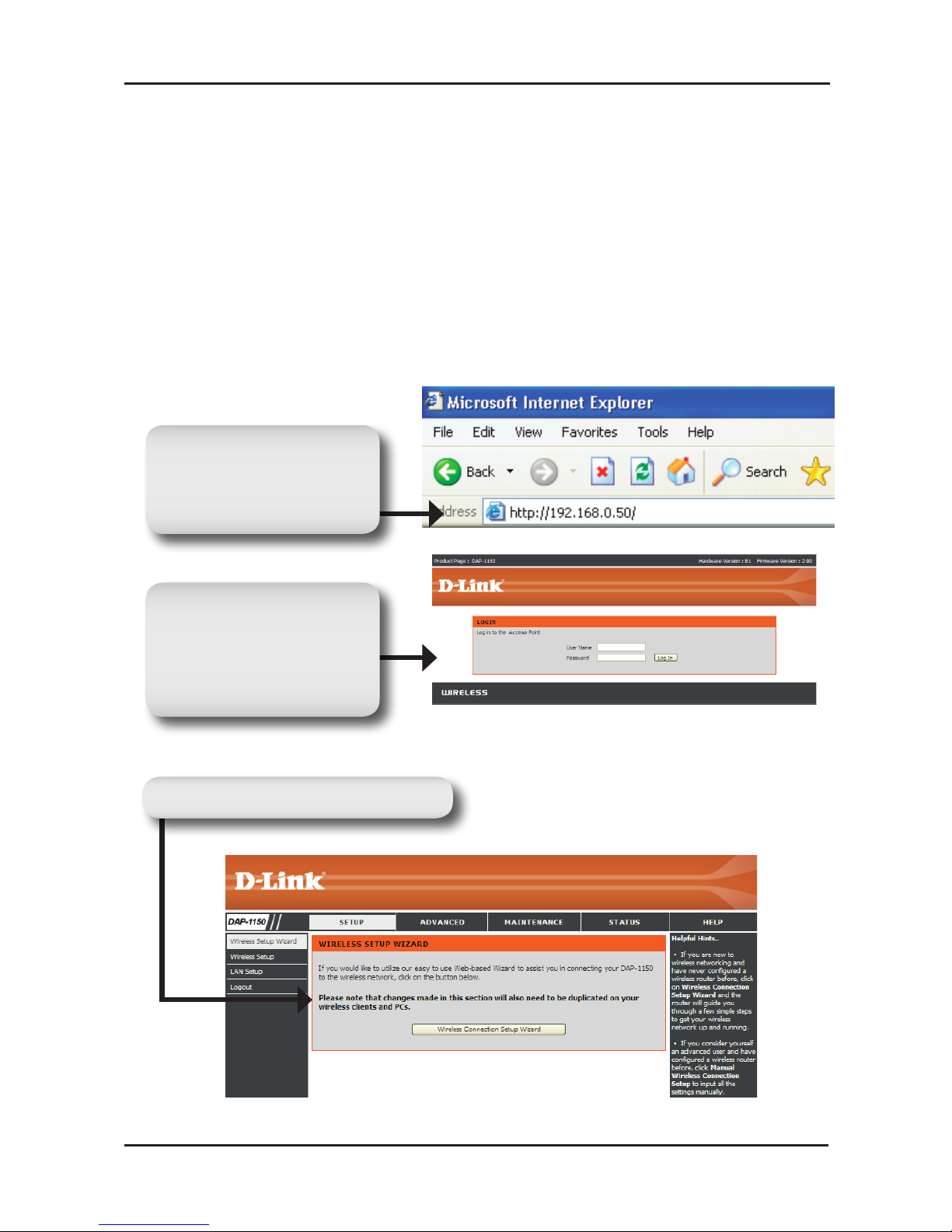

Once you have logged in, the following Setup screen will appear:
Click Launch Wireless Setup Wizard
Step 3: Begin Conguring your DAP-1150.
This conguration step presumes that you will use the DAP-1150’s default
factory setting of operation mode of AP (access point). This mode allows
computers and devices equipped with 802.11g/n standard wireless LAN
interfaces to communicate with other wireless computers and devices
through the DAP-1150. In addition, the default factory setting provides no
wireless security. To set the DAP-1150 to another operation mode and to
set its wireless security, refer to its User’s Manual.
Run a web browser on your computer.
The following login screen will appear:

6

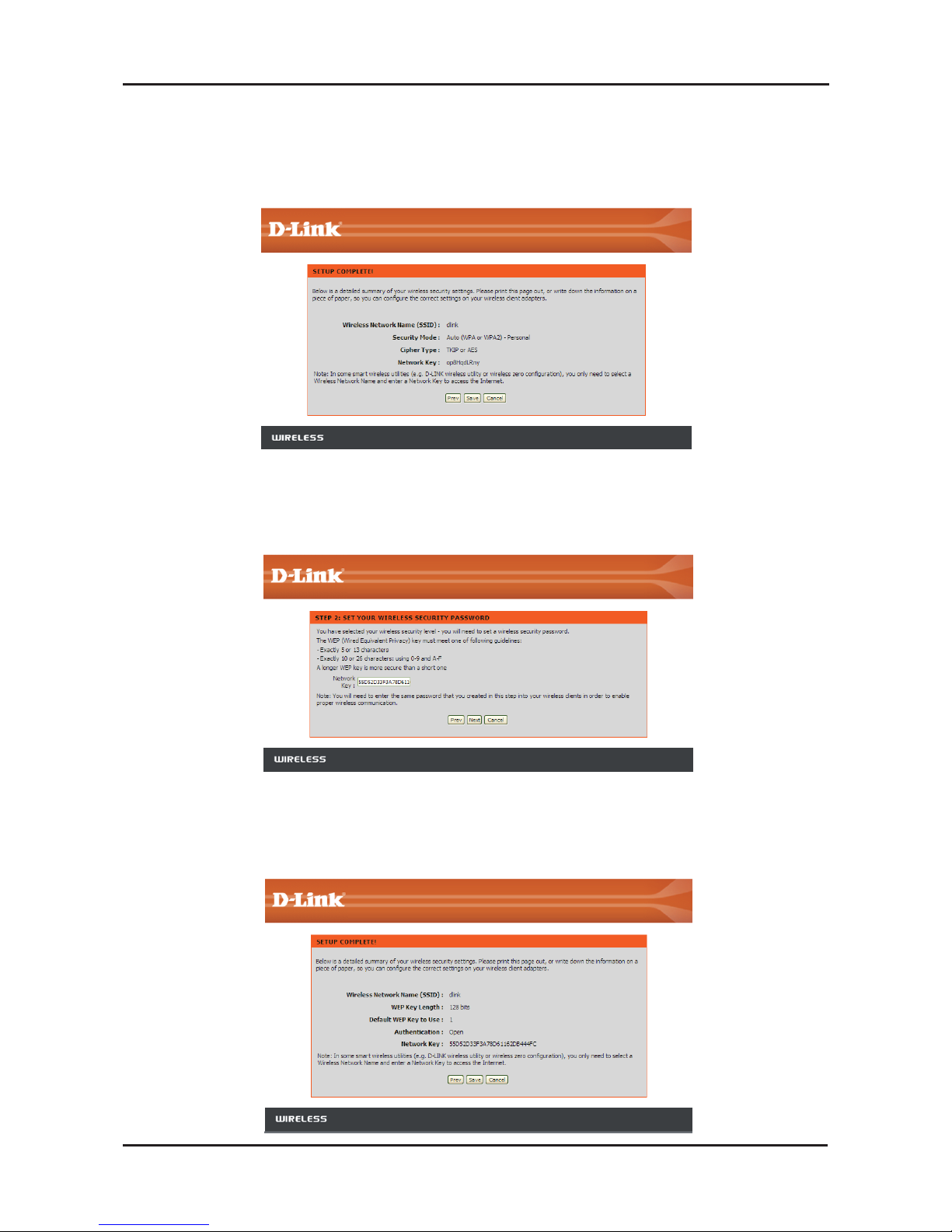

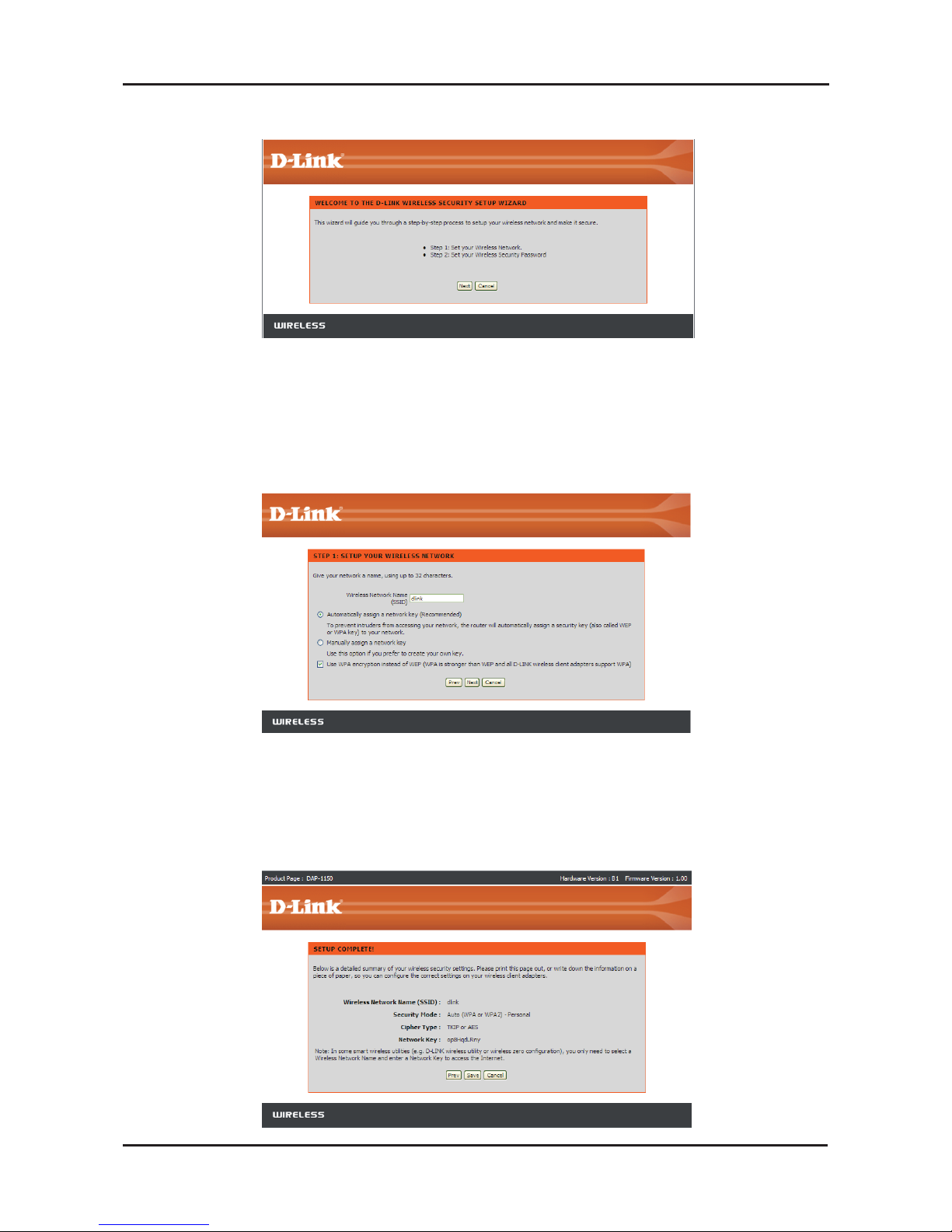

If you choose WPA-PSK encryption, the following screen will display the
Network Key to be entered on your wireless clients.
Click Save to nish the Setup Wizard.

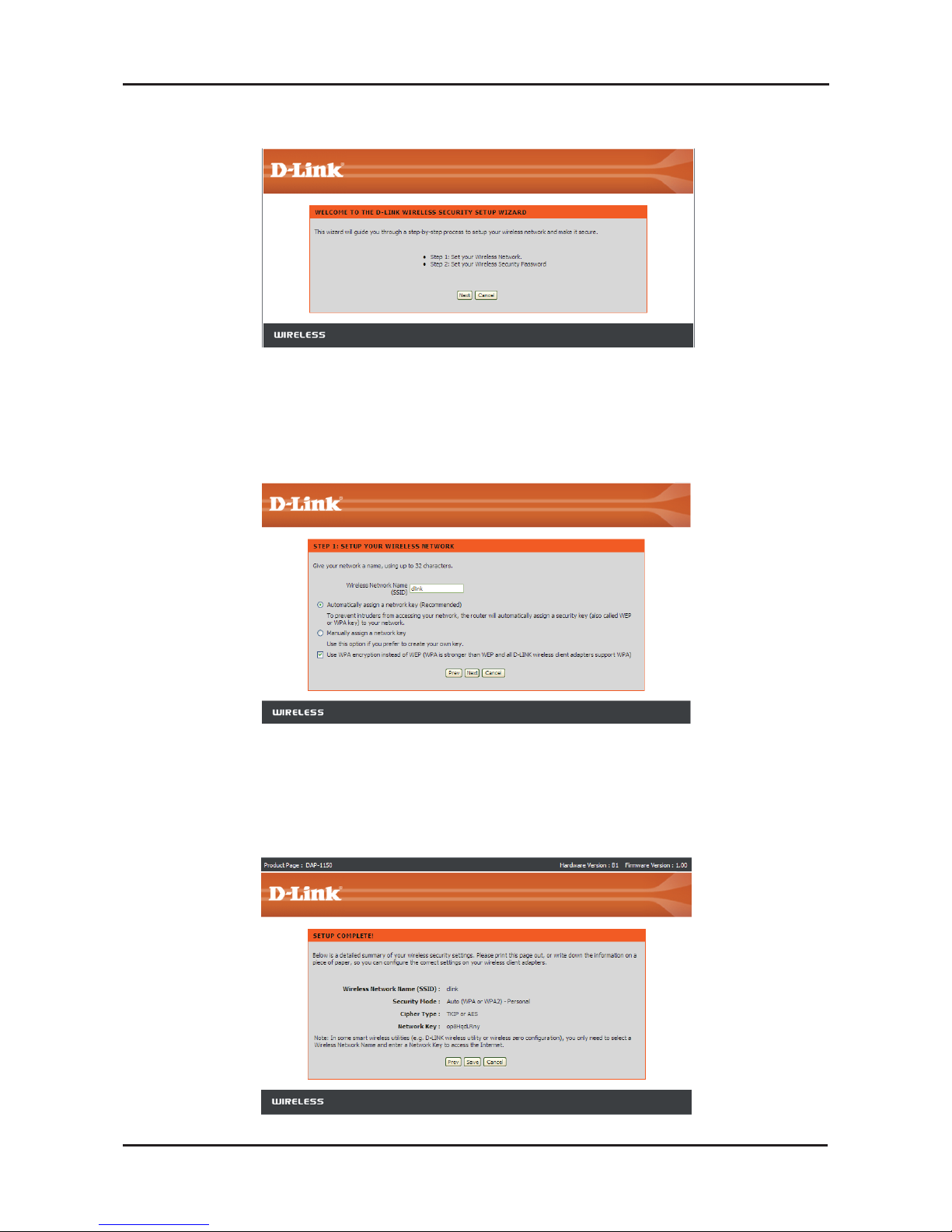

Enter a network name and choose the option to Automatically assign a
network key. To Manually assign a network key, skip to page 7.
Click Next to continue.
Follow the steps to congure your DAP-1150.

7
For WPA encryption, enter a Network Key between 8 and 63 characters
long or enter exactly 64 characters using 0-9 and A-F.
Click Next to continue.
Choose Manually assign a network key to create your own key.
Click Next to continue.

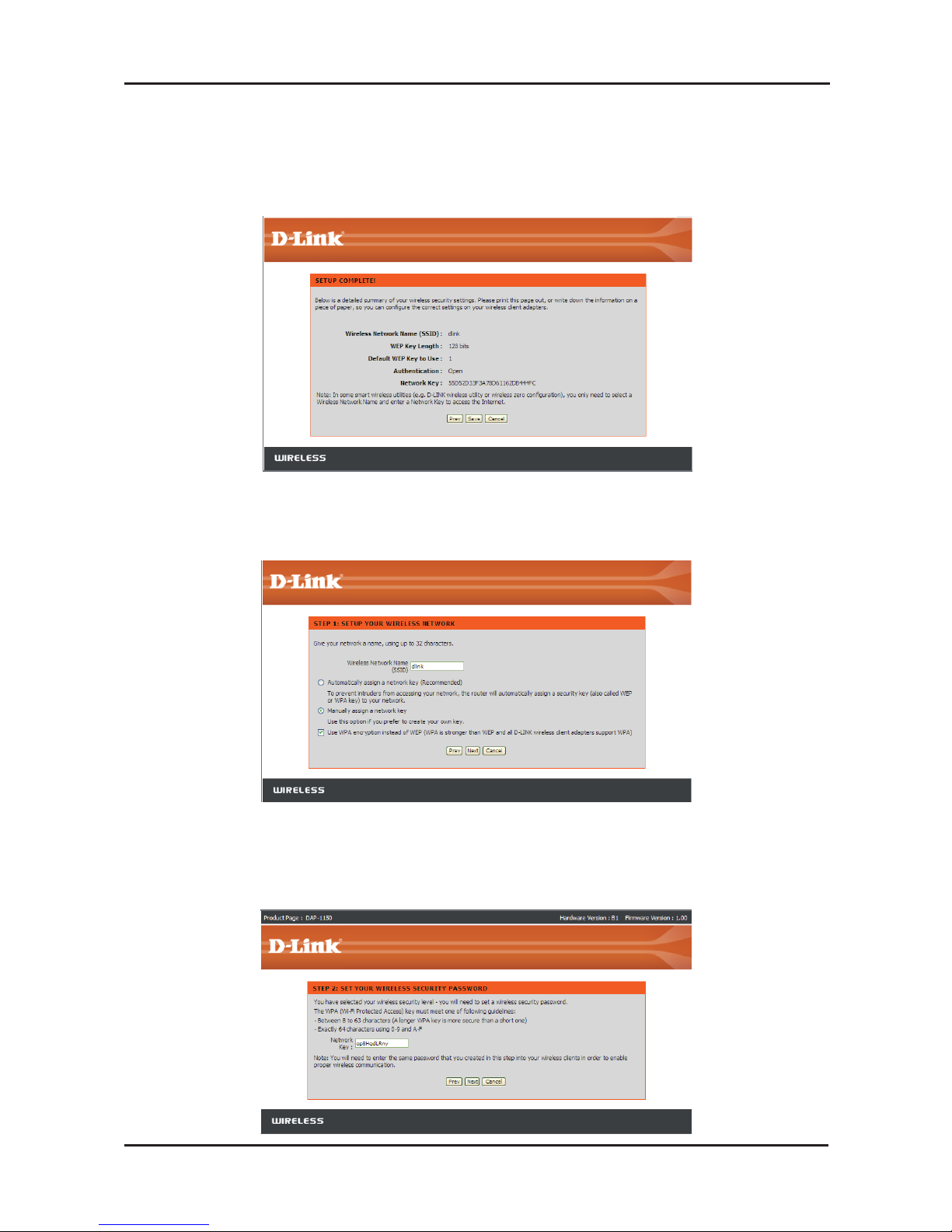

If you choose WEP encryption, the following screen will show you your
Network Key to enter on your wireless clients.
Click Save to nish the Setup Wizard.

8

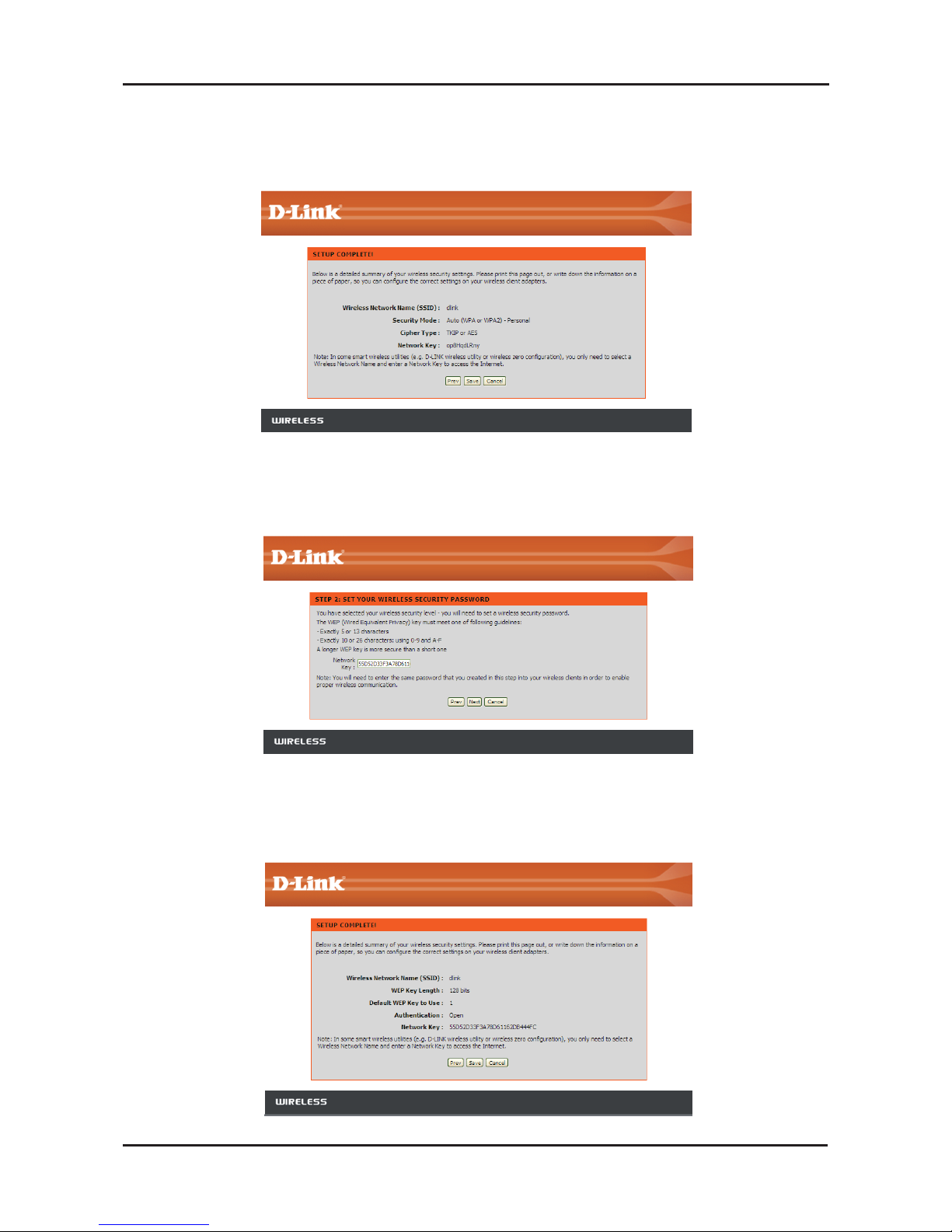

If you select WPA encryption, the following screen will display the network
key to be entered on your wireless clients.
Click Save to nish the Setup Wizard.
If you select WEP encryption, the following screen will show you your
network key to enter on your wireless clients.
Click Save to nish the Setup Wizard.
For WEP encryption, enter a Network Key exactly 5 or 13 characters long
or exactly 10 or 26 characters using 0-9 and A-F.
Click Next to continue.

9
