D-Link DAP-1150 User manual

2D-Link DAP-1150 User Manual
Table of Contents
Product Overview ...............................................................4
Package Contents ..........................................................4
System Requirements ....................................................4
Features ..........................................................................5
Hardware Overview ........................................................6
Connections..............................................................6
LEDs .........................................................................7
Wireless Installation Considerations...............................8
AP/Repeater/Wireless Client Mode ..................................9
Access Point Mode.........................................................9
Repeater Mode .............................................................10
Router Mode .................................................................11
Conguration for AP Mode..............................................12

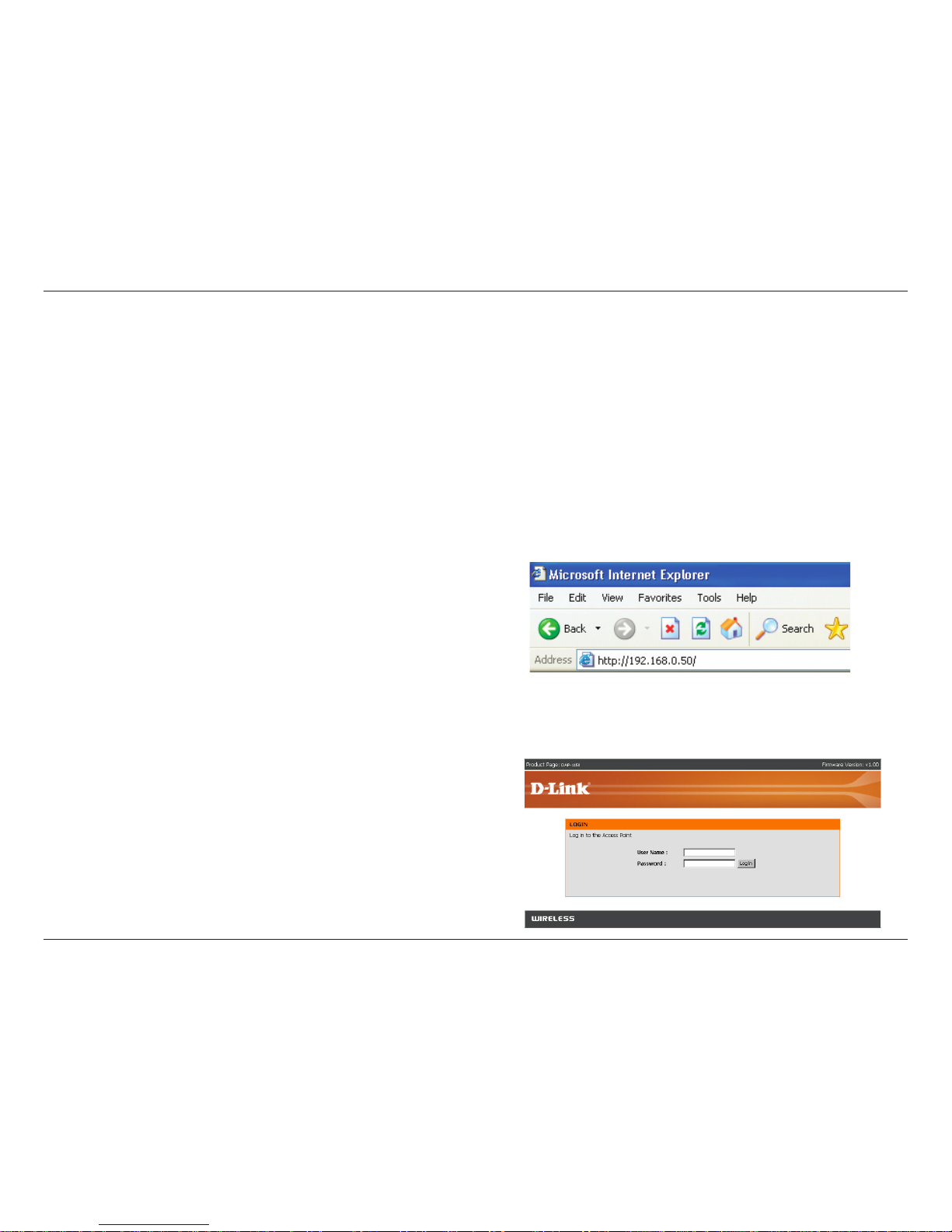

Web-based Conguration Utility ..................................12

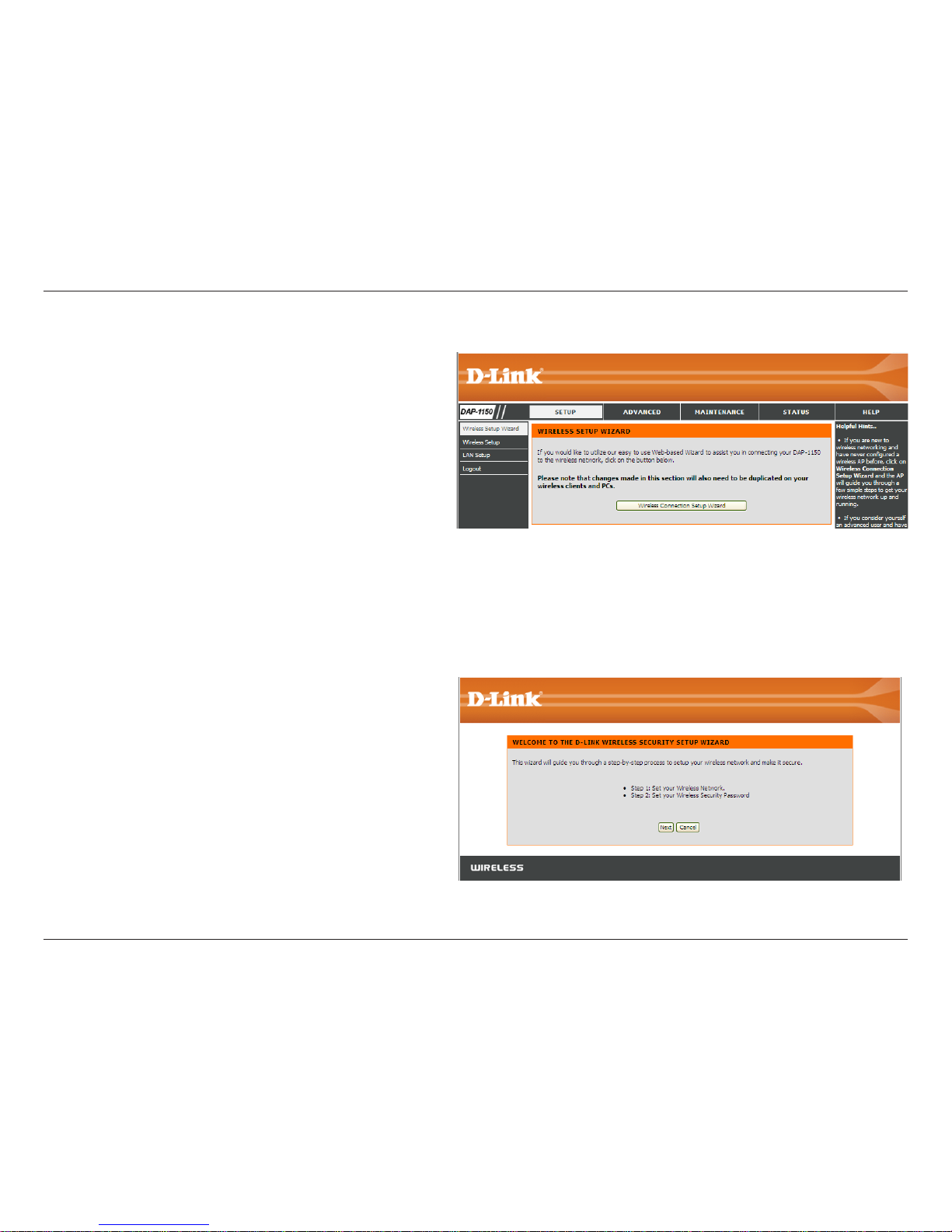

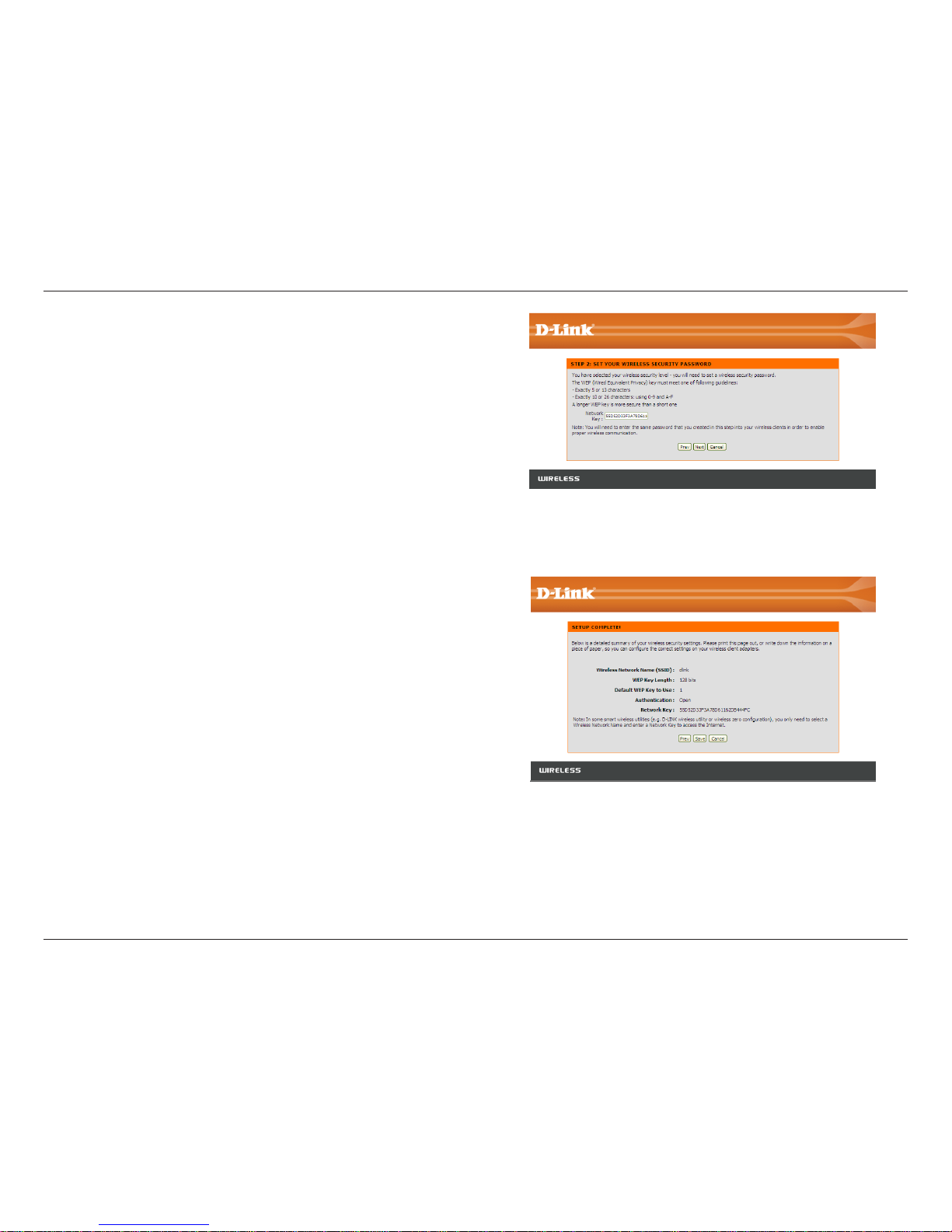

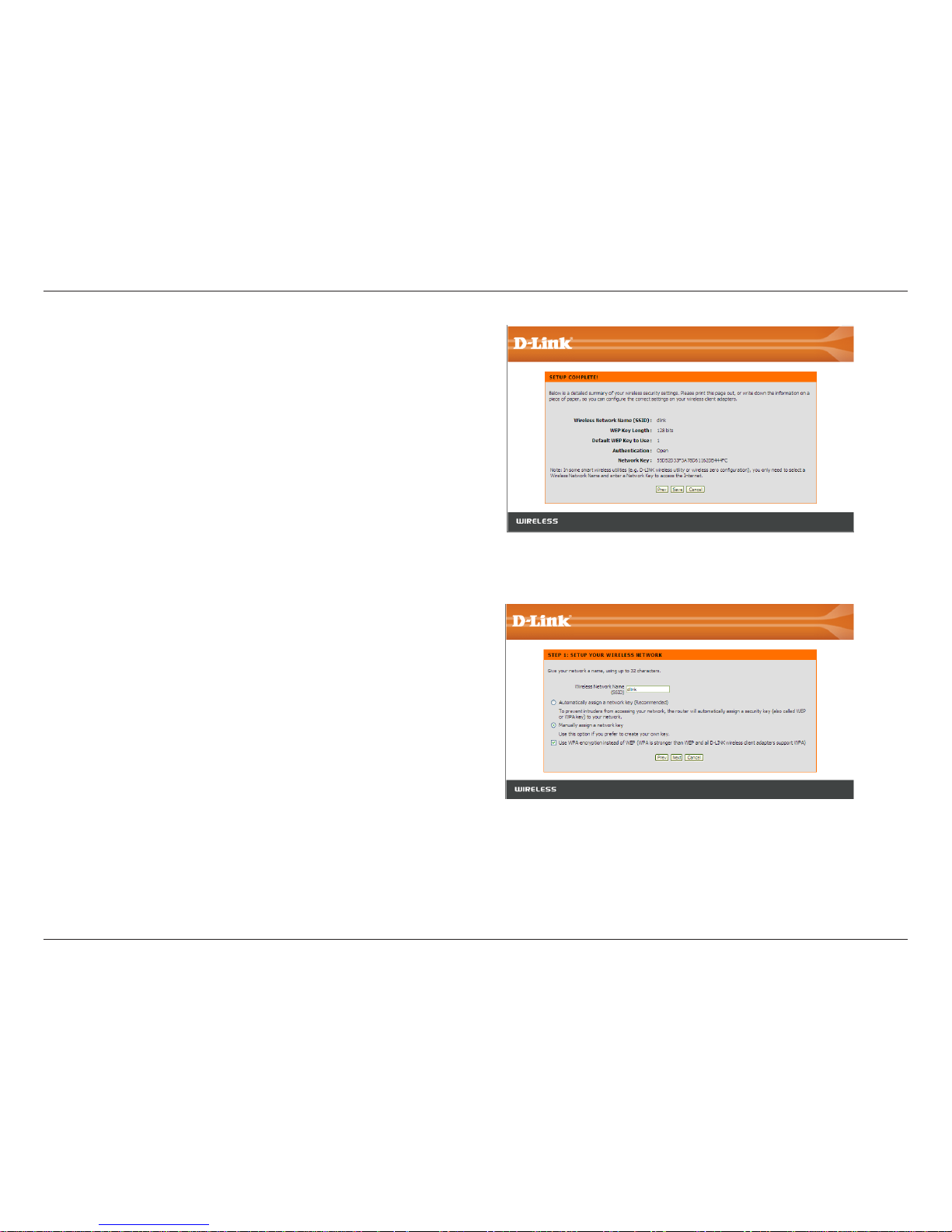

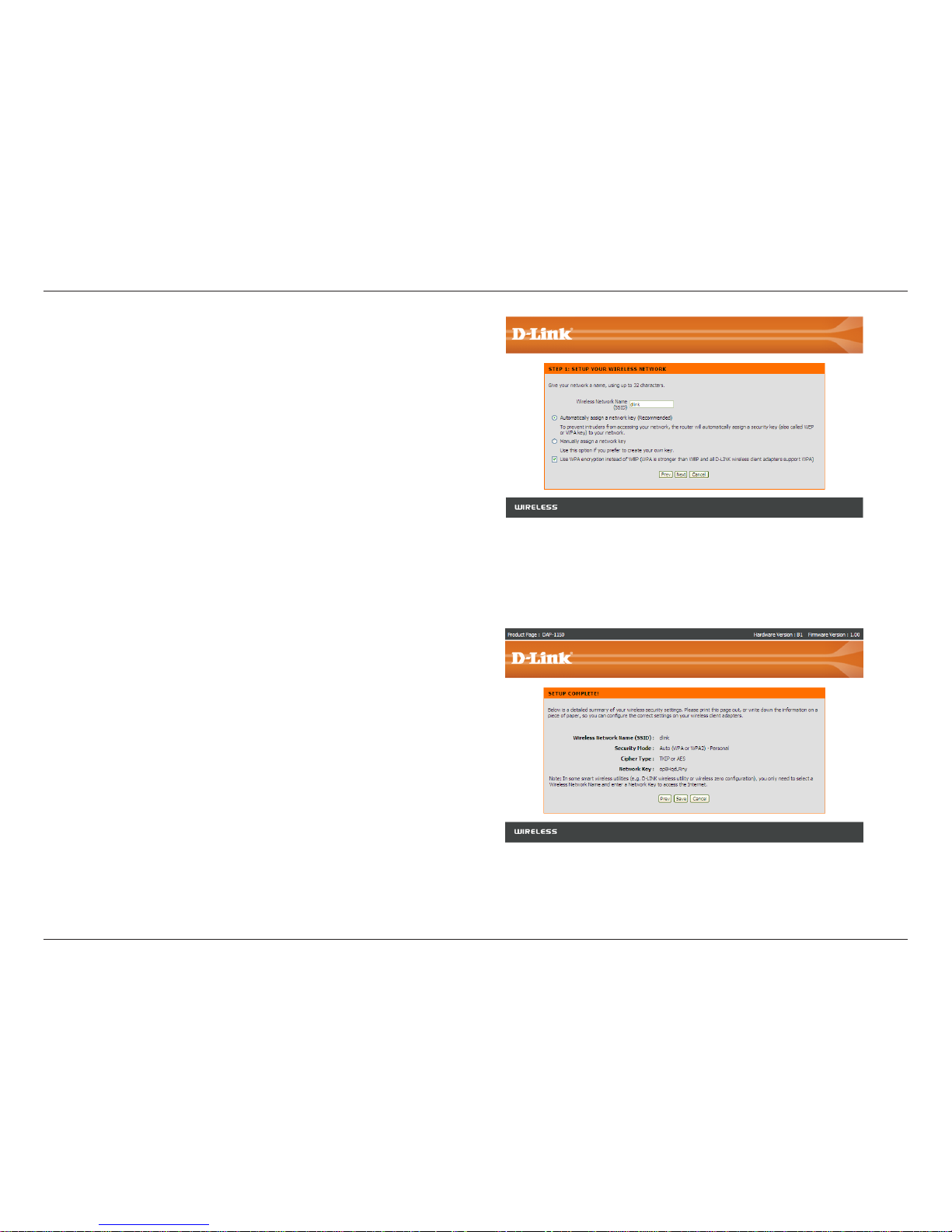

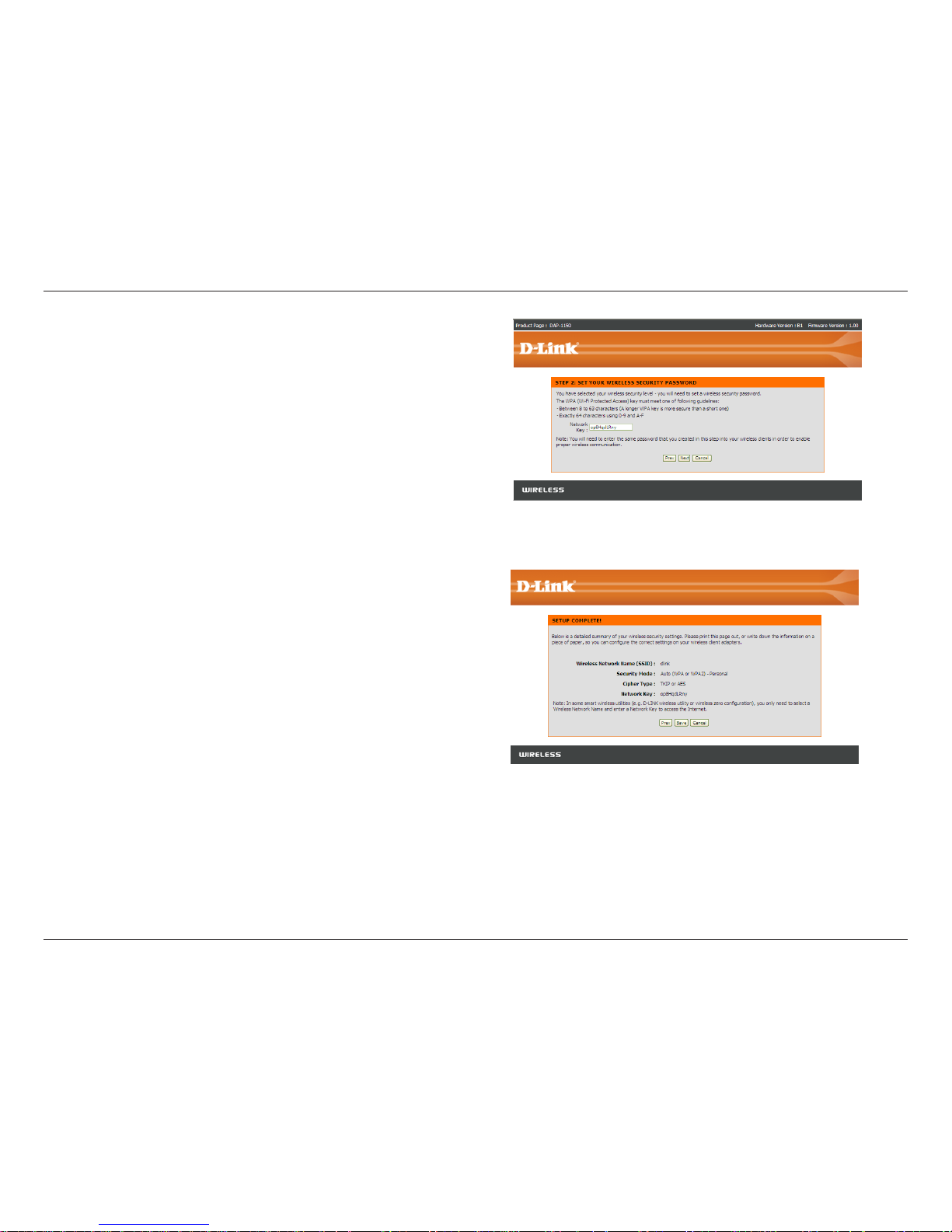

Wireless Setup Wizard .................................................13
Wireless Setup..............................................................18
LAN Setup.....................................................................22
DHCP Setup Settings...................................................23
Advanced Wireless ......................................................24
Device Administration ..................................................25
Save and Restore ........................................................26
Firmware Update .........................................................27
Device Info ...................................................................28
Log ................................................................................29
Wireless.........................................................................30
Statistics ........................................................................31
Help ...............................................................................32
Conguration for Repeater Mode...................................33
Web-based Conguration Utility ..................................33
Wireless Setup..............................................................34
LAN Setup.....................................................................37
DHCP Setup Settings...................................................38
Advanced Wireless ......................................................39
Device Administration ..................................................40
Save and Restore ........................................................41
Firmware Update .........................................................42
Device Info ...................................................................43
Log ................................................................................44
Wireless.........................................................................45
Statistics ........................................................................46
Help ...............................................................................47
Conguration for Router Mode.......................................48
Web-based Conguration Utility ..................................48
Setup Wizard.................................................................49
Internet Setup................................................................53
Static(assigned by ISP) ................................................53
Dynamic .......................................................................54
PPPoE ..........................................................................55
PPTP ............................................................................56
L2TP .............................................................................57
Dual Access(for Russia Only) .....................................58
LAN Setup ....................................................................63
DHCP Server Setting....................................................64
Advanced Wireless.......................................................65
MAC Filter .....................................................................66
Port Forwarding ............................................................67
Application Rules ..........................................................68
Parental Control ............................................................69
QoS Engine...................................................................70
Firewall & DMZ .............................................................71
Advanced Network........................................................72
Routing ..........................................................................73
Device Administration...................................................74
Save and Restore .........................................................75
Table of Contents

3D-Link DAP-1150 User Manual
Table of Contents
Firmware Update ..........................................................76
DDNS Setting................................................................77
System Check...............................................................78
Time and Date ..............................................................79
Schedules......................................................................80
Log Settings ..................................................................81
Device Info ....................................................................82
Log.................................................................................83
Statistics ........................................................................84
Active Session ..............................................................84
Wireless ........................................................................85
Help ..............................................................................86
Wireless Security ..............................................................87

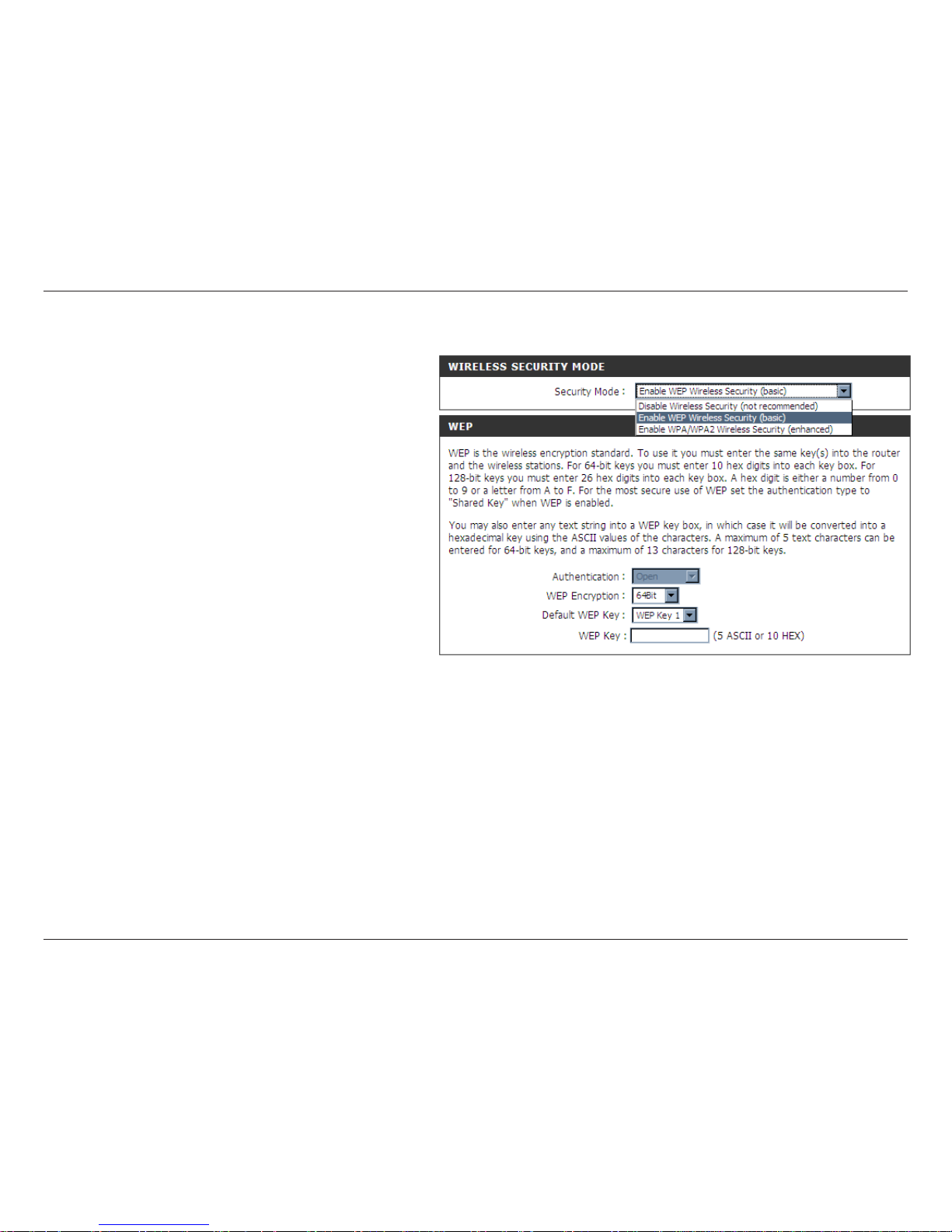

What is WEP? ...................................................................87
Congure WEP..................................................................88

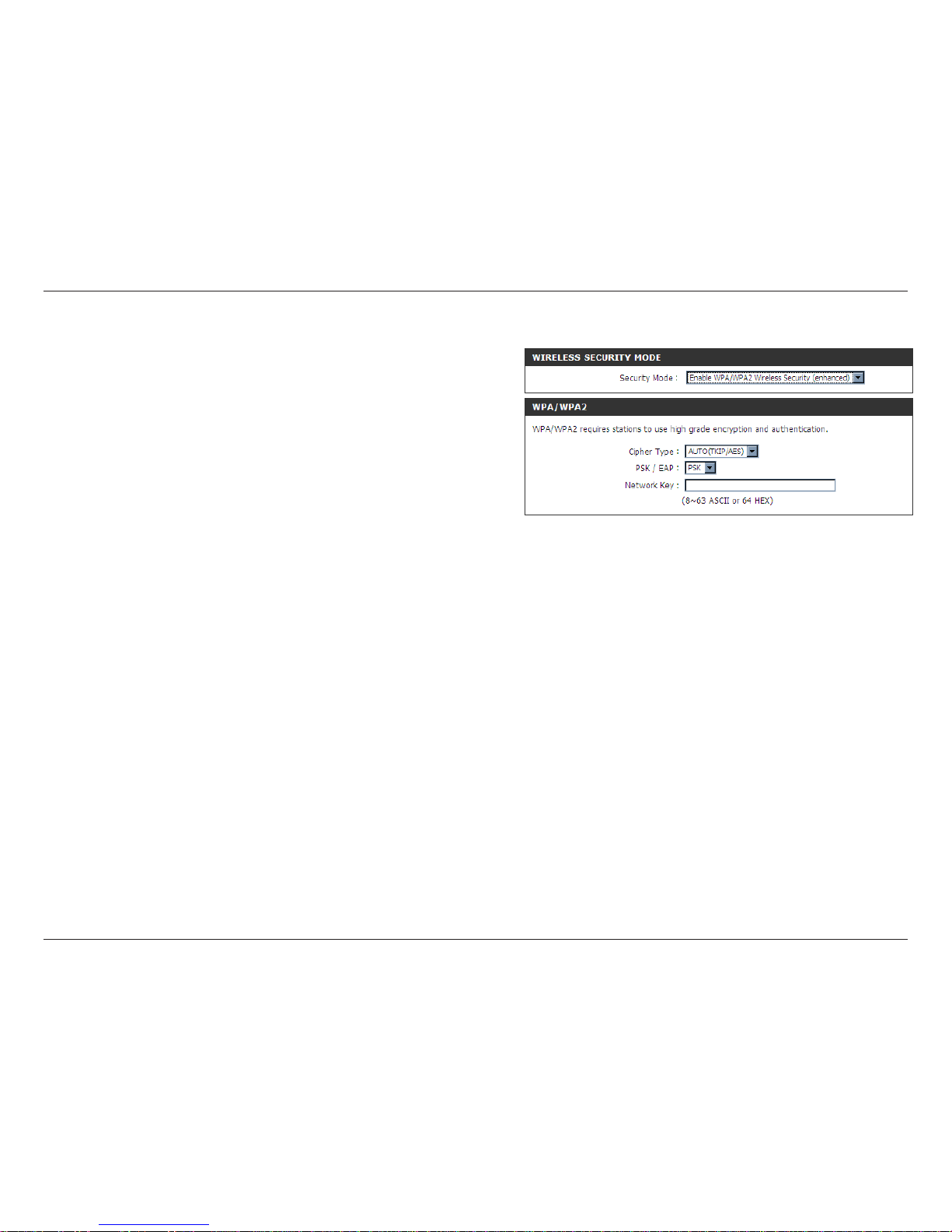

What is WPA?....................................................................89
Congure WPA-PSK, WPA2-PSK, and WPA2-Auto-PSK
(Personal) ..........................................................................90
Congure WPA-EAP, WPA2-EAP, and WPA2-Auto-EAP
(Enterprise).........................................................................91
Connect to a Wireless Network Using Windows®XP. . 92
Congure WEP/WPA-PSK...............................................93
Using Windows®Vista (Secured Network)....................94
Using Windows®Vista (Unsecured Network) ..............97
Wireless Basics ............................................................. 100
Wireless Modes .............................................................. 104
Networking Basics......................................................... 105
Technical Specications............................................... 107

4D-Link DAP-1150 User Manual

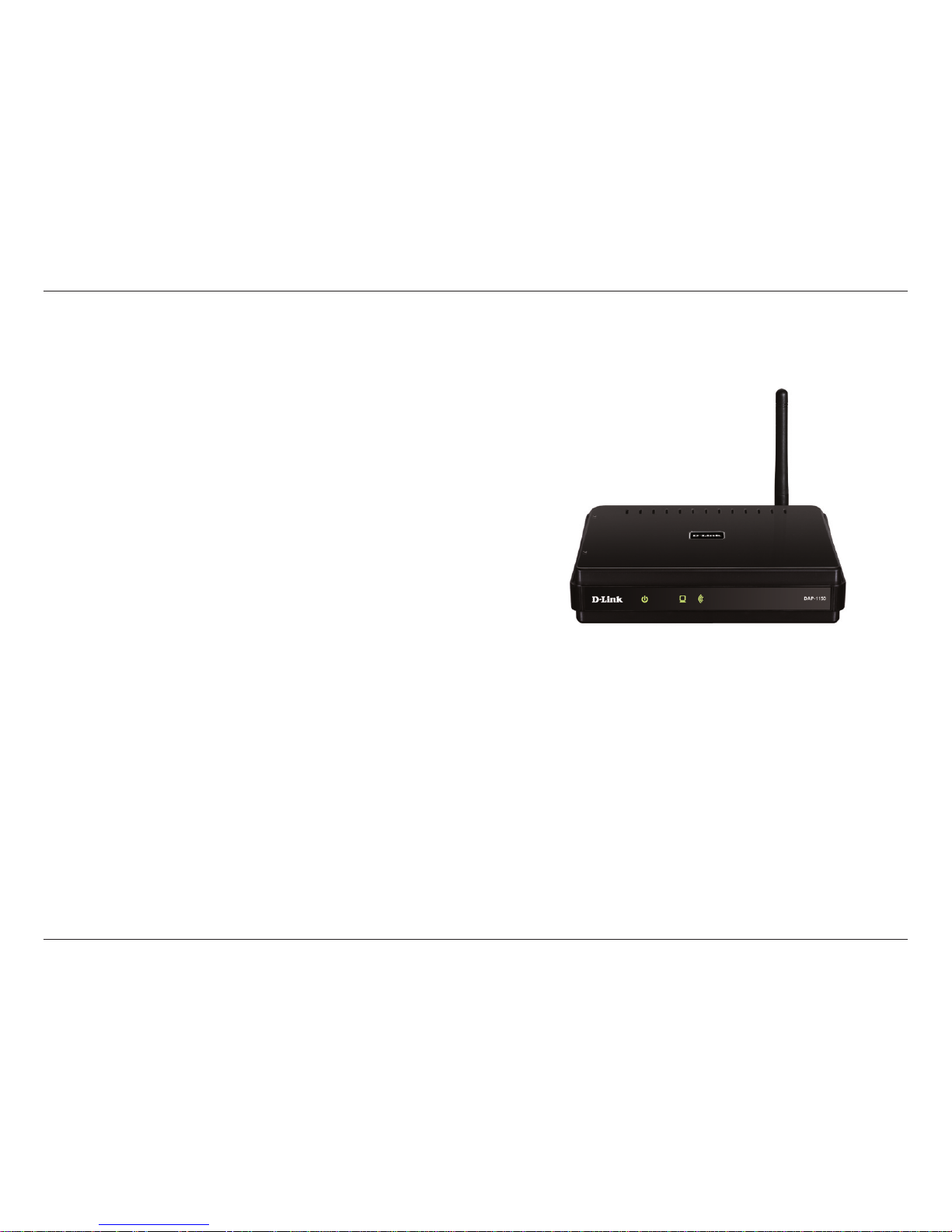

Section 1 - Product Overview
• D-Link DAP-1150 Wireless N 150 Access Point
• Power Supply
• Manual on CD
• Quick Installation Guide
• Ethernet Cable
System Requirements
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
Adapter
• Internet Explorer or Netscape Navigator version 6.0 or above, with JavaScript enabled
Product Overview
Package Contents
Note: Using a power supply with a different voltage rating than the one included
with the DAP-1150 will cause damage and void the warranty for this
product.

5D-Link DAP-1150 User Manual
Section 1 - Product Overview
Features
• Multiple operation modes - Can be exibly congured to operate as an Access Point, Wireless Repeater and Router
mode.
• Faster Wireless Networking - The DAP-1150 provides up to 150Mbps* wireless connection with other 802.11n wireless
clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and
real-time audio.
• Compatible with 802.11b and 802.11g Devices - The DAP-1150 is still fully compatible with the IEEE 802.11b and IEEE
802.11g standard, so it can connect with existing 802.11b and IEEE 802.11g PCI USB and Cardbus adapters.
• Total security - Complete set of security features including WEP encryption and WPA/WPA2 to protect network against
outside intruders.
• Connect home and soho to a wireless network - Create a wireless network for your home and ofce using the D-Link
DAP-1150 as an 802.11n standard Wireless Access Point. Connect this Access Point to a broadband modem and let others
wirelessly access your Internet connection. Enjoy surng the web, checking e-mail, and chatting with family and friends
online.
• Protect wireless network and data - The DAP-1150 provides 64/128-bit WEP encryption and WPA/WPA2 security to
protect your network and wireless data. In addition, it also provides MAC address ltering and the Disable SSID Broadcast
function to limit outsiders’ access to your home and ofce network.
• Easy to install and use - Through its easy-to-use Web-based user interface, the DAP-1150 lets you congure your AP to
your specic settings within minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput rate.
Environmental conditions will adversely affect wireless signal range.

6D-Link DAP-1150 User Manual
Section 1 - Product Overview
Hardware Overview

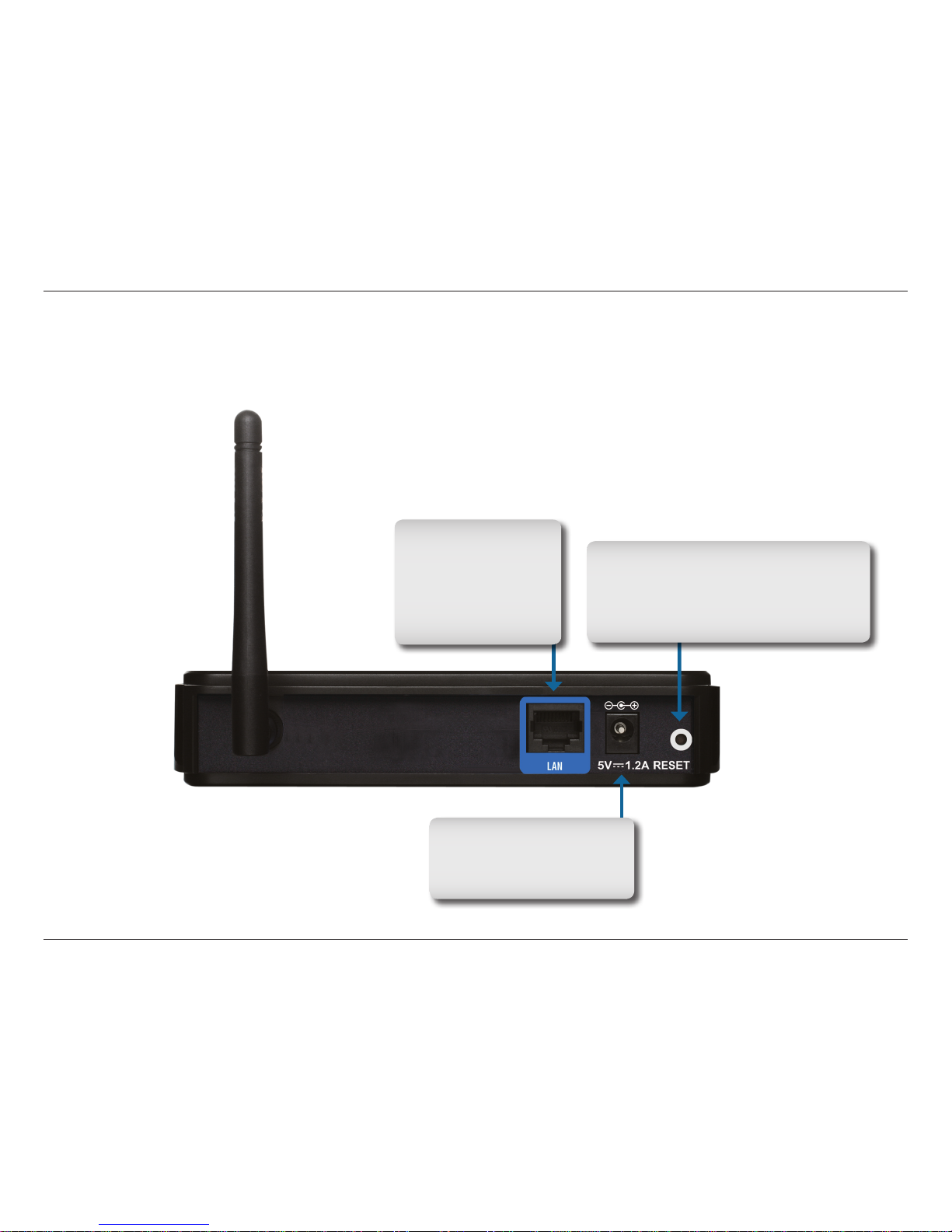

Connections
Power:
Receptor for the Power
Adapter.
LAN Port:
Connect ethernet
device such as
computer, switch
and hub.
RESET:
Pressing the Reset Button restores
the access point to its original
factory default settings.

7D-Link DAP-1150 User Manual
Section 1 - Product Overview
Hardware Overview

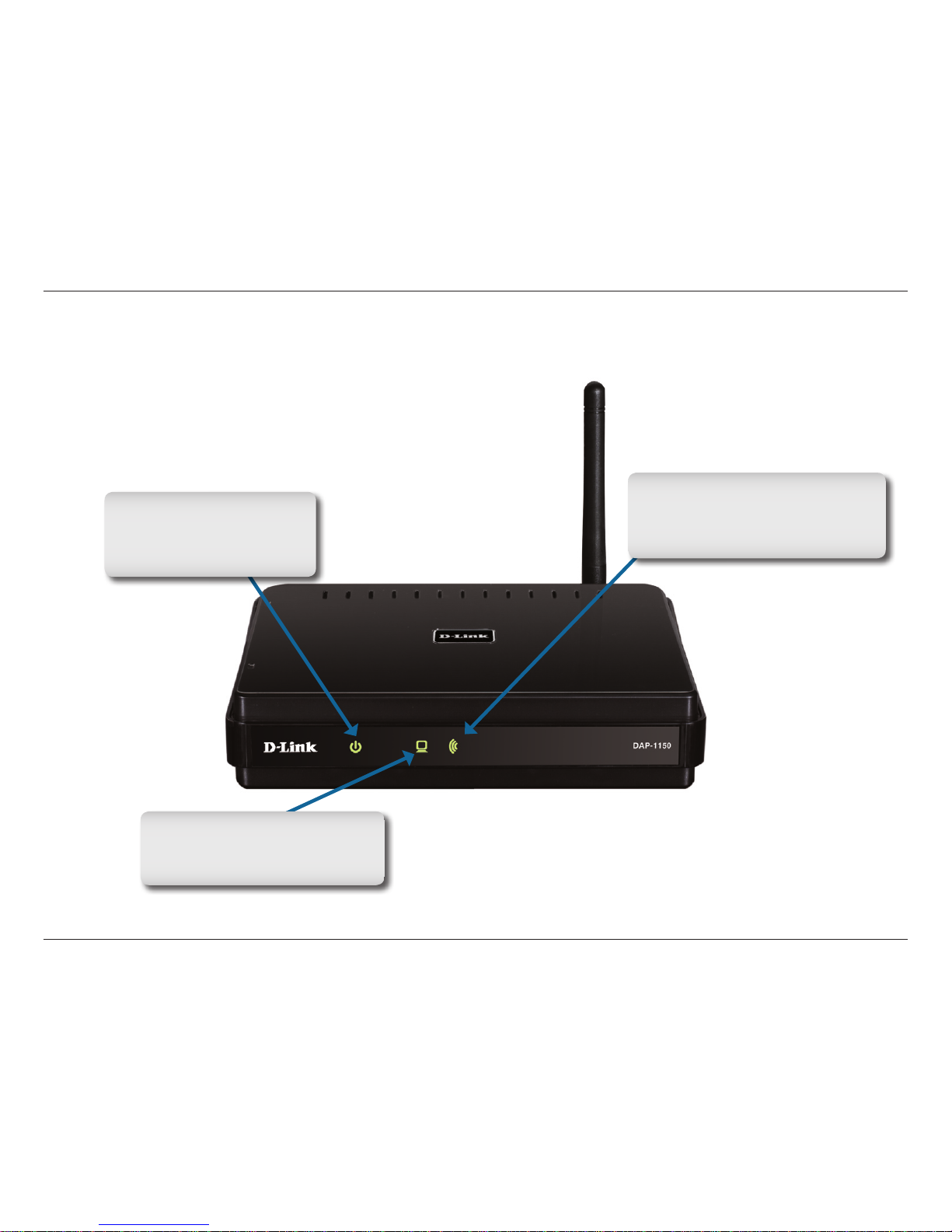

LEDs
Power: Solid green light
indicates connection to a
power source
LAN:Blinking green light
indicates activity;Solid green
light indicates connection
WLAN: Blinking green light
indicates wireless activity;solid
green light indicates connection

8D-Link DAP-1150 User Manual
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle)
for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect
on range. Try to position access points, wireless access points, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate
RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your
2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal
even if the phone in not in use.
Wireless Installation Considerations

9D-Link DAP-1150 User Manual
How you use your DAP-1150 will determine which mode you choose on the DAP-1150. This section will help you gure
out which setting works with your setup.
AP/Repeater/Router Mode

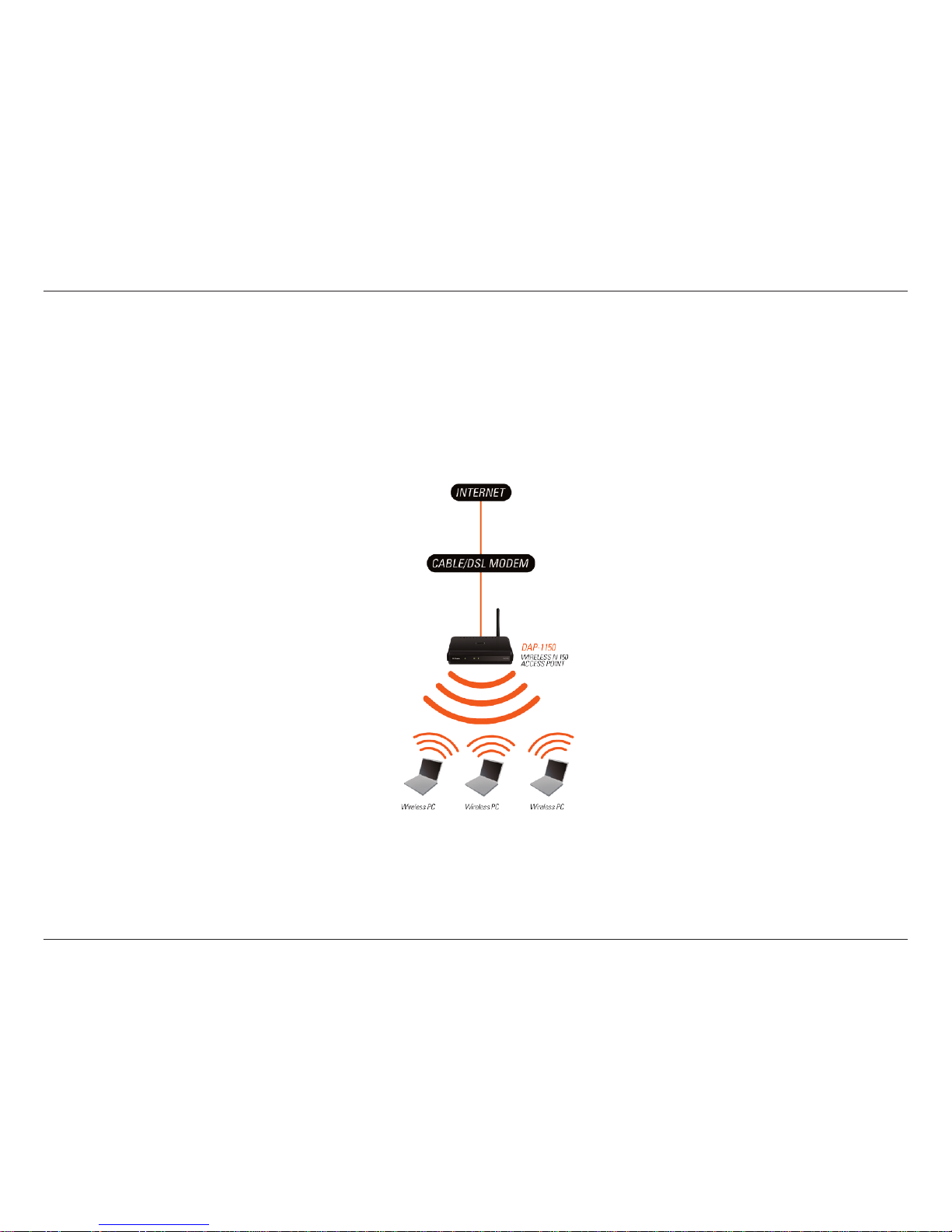

Access Point Mode
In Access Point mode, the DAP-1150 acts as a central connection point for any computer (client) that has a 802.11n
or backward-compatible 802.11b/g wireless network adapter and is within range of the AP. Clients must use the same
SSID (wireless network name) and channel as the AP in order to connect. If wireless security is enabled on the AP,
the client will need to enter a password to connect to the AP. Multiple clients can connect to the AP at the same time
in Access Point mode.
Wireless PCs Using the DAP-1150 as a Central Connection Point

10D-Link DAP-1150 User Manual
Appendix A - Wireless Modes

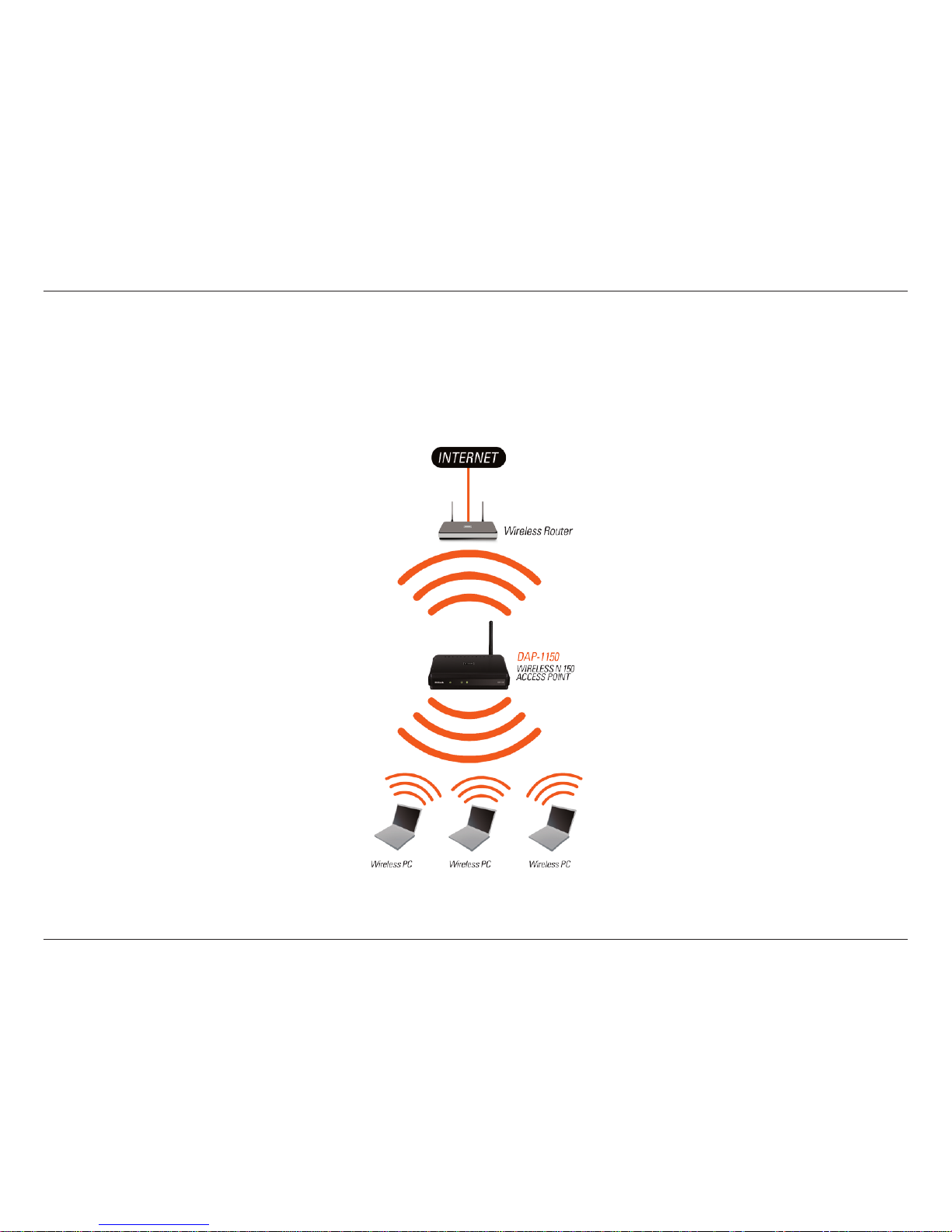

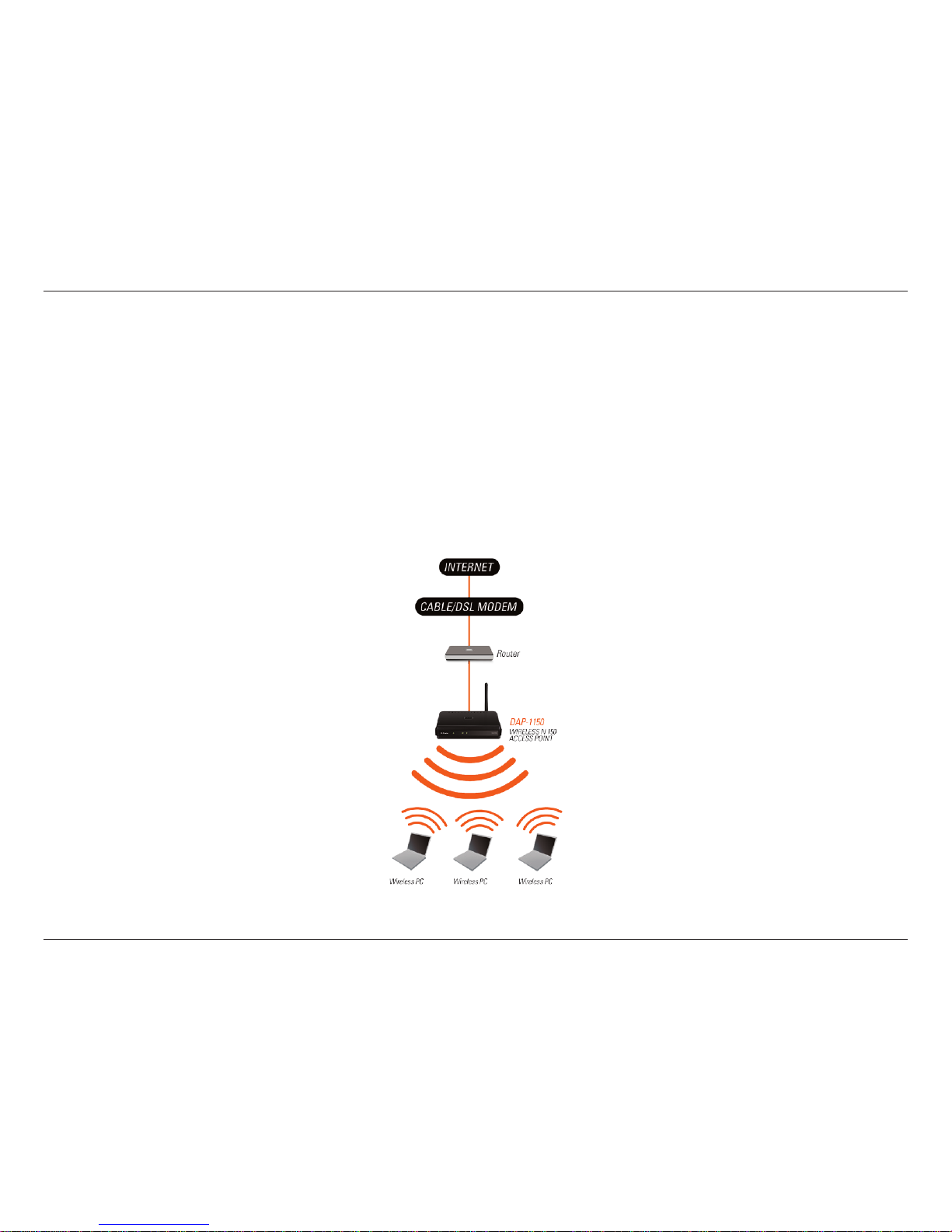

Repeater Mode
Repeater mode increases the range of your wireless network by extending the wireless coverage of another AP or
wireless router. The APs and wireless router (if used) must be within range of each other. Make sure that all clients,
APs, and the wireless router all use the same SSID (wireless network name) and channel.
Extending the Wireless Coverage of a Wireless Router Using the DAP-1150

11D-Link DAP-1150 User Manual
Router Mode
In the Router mode, the DAP-1150 connects to a broadband modem. In this mode, the DAP-1150 also acts as a router
for wireless clients on your network and provides NAT (Network Address Translation) and a DHCP server to generate
IP addresses. NAT and the DHCP server allow many computers to share the same Internet connection.
When DAP-1150 operates as Router mode, the ethernet port of DAP-1150 is congured as WAN interface, you
will need to connect wirelessly to the DAP-1150 to congure it. The default SSID of DAP-1150 is “dlink”

12D-Link DAP-1150 User Manual
Section 3 - Conguration
Conguration for AP Mode
Web-based Conguration Utility
1. Open the web browser
2. Type in the ip address of the
DAP-1150.(192.168.0.50)
If you wish to change the default settings or optimize the performance of the DAP-1150, you may use the configuration
utility that D-Link has included a configuration utility for this purpose.
After you have completed the initial installation, you can access the configuration menu, at any time, by opening the
web-browser and typing in the ip address of the DAP-1150. The DAP-1150’s default ip address is shown below:
3. Type admin in the User Name
eld
4. Leave the Password blank
5. Click OK

13D-Link DAP-1150 User Manual
Section 3 - Conguration
Click Launch Wireless Setup Wizard to quickly
congure your access point.
Wireless Setup Wizard
Follow the steps to congure your DAP-1150.

14D-Link DAP-1150 User Manual
Section 3 - Conguration
If you choose WPA-PSK encryption, the following
screen will display the Network Key to be entered
on your wireless clients.
Click Save to nish the Setup Wizard.
Enter a network name and choose the option to
Automatically assign a network key. To Manually
assign a network key, skip to page 15.
Click Next to continue.

15D-Link DAP-1150 User Manual
Section 3 - Conguration
Choose Manually assign a network key to create
your own key.
Click Next to continue.
If you choose WEP encryption, the following
screen will show you your Network Key to enter
on your wireless clients.
Click Save to nish the Setup Wizard.

16D-Link DAP-1150 User Manual
Section 3 - Conguration
For WPA encryption, enter a Network Key between 8
and 63 characters long or enter exactly 64 characters
using 0-9 and A-F.
Click Next to continue.
If you select WPA encryption, the following screen
will display the network key to be entered on your
wireless clients.
Click Save to nish the Setup Wizard.

17D-Link DAP-1150 User Manual
Section 3 - Conguration
If you select WEP encryption, the following screen will
show you your network key to enter on your wireless
clients.
Click Save to nish the Setup Wizard.
For WEP encryption, enter a Network Key exactly 5
or 13 characters long or exactly 10 or 26 characters
using 0-9 and A-F.
Click Next to continue.

18D-Link DAP-1150 User Manual
Section 3 - Conguration
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all the
wireless functions.
Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The
SSID is case-sensitive.
Select AP mode.
Indicates the channel setting for the DAP-1150. By default
the channel is set to 6. The Channel can be changed to
t the channel setting for an existing wireless network or
to customize the wireless network. The Auto Channel
Selection setting can be selected to allow the DAP-1150 to
choose the channel with the least amount of interference.
Use the drop-down menu to select the appropriate
Transmission Rate in Mbits per second. Many users will
want to use the default setting, Best (automatic).
Enable Wi-Fi Multimedia to enjoy basic quality of service
features. WMM prioritizes trafc according to four access categories: voice, video, best effort, and background.
Check this option if you would not like the SSID of your wireless network to be broadcasted by the DAP-1150. If this option
is checked, the SSID of the DAP-1150 will not be seen by Site Survey utilities so your wireless clients will have to know the
SSID of your DAP-1150 in order to connect to it.
Enable
Wireless
Channel:
Wireless Mode:
Wireless
Network Name:
Transmission
Rate:
WMM Enable:
Enable
Wireless:
Enable Hidden
Wireless:
Wireless Setup

19D-Link DAP-1150 User Manual
Section 3 - Conguration
1. To enable wireless security on the AP, use the
drop-down menu to select the desired option.
To enable WEP, select Enable WEP Wireless
Security (basic).
2. Next to Authentication, select either Open
or Shared Key. Shared Key provides greater
security.
3. Select either 64Bit or 128Bit encryption from the
drop-down menu next to WEP Encryption.
4. Next to Default Key Type, select WEP Key 1 and
enter a WEP key that you create. Make sure you
enter this key exactly on all your wireless devices.
You may enter up to four different keys either using
Hex or ASCII. Hex is recommended (letters A-F and
numbers 0-9 are valid). In ASCII all numbers and
letters are valid.
5. Click Save Settings to save your settings. If you
are conguring the AP with a wireless adapter,
you will lose connectivity until you enable WEP
on your adapter and enter the same WEP key as
you did on the AP.
NOTE:
It is recommended to enable encryption on your wireless AP
before your wireless network adapters. Please establish wireless
connectivity before enabling encryption. Your wireless signal
may degrade when enabling encryption due to the added
overhead.

20D-Link DAP-1150 User Manual
Section 3 - Conguration
1. To enable Enable WPA/WPA2 Wireless Security
(enhanced).
2. Next to Cipher Type, select TKIP,AES,or
AUTO.
3. Next to PSK/EAP, select PSK.
4. Next to Network Key, e n t e r a
passphrase. The key is an alpha-numeric
password between 8 and 63 characters long.
The password can include symbols (!?*&_) and
spaces. Make sure you enter this key exactly the
same on all other wireless clients.
5. Click Save Settings to save your settings. If you
are conguring the AP with a wireless adapter,
you will lose connectivity until you enable WPA/
WPA2 (whichever of the three options you have
selected above) on your adapter and enter the
same network key as you did on the AP.
