D-Link AirPremier DWL-00AP User manual

1

2
Table of Contents
Product Contents.................................................................................. 3
Minimum System Requirements........................................................... 3
Introduction........................................................................................... 4
Features and Benets .......................................................................... 6
Wireless Basics .................................................................................... 7
Standards-Based Technology............................................................... 8
Wireless Installation Considerations..................................................... 9
Operational Modes ............................................................................. 10
Getting Started ....................................................................................11
Connecting PoE (Power over Ethernet) ............................................. 12
Using the Conguration Menu............................................................ 13
Using the AP Manager........................................................................ 40
Networking Basics.............................................................................. 61
Troubleshooting.................................................................................. 76
Technical Specications ..................................................................... 82

3
Minimum System Requirements
Note: Using a power supply with a different voltage than the one included with the
DWL-2200AP will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Computers with Windows®, Macintosh®, or Linux-based
operating systems with an installed Ethernet Adapter
Internet Explorer version 6.0 or Netscape Navigator™
version 7.0 and above
D-Link AirPremier™DWL-2200AP
Wireless Access Point
Power over Ethernet base unit
Power Adapter
Power Cord
Manual and Warranty on CD
Quick Installation Guide
Ethernet Cable
Mounting Plate
Product Contents

4
At up to fteen times the speed of previous wireless devices (maximum
wireless signal rate of up to 108Mbps* in Super G mode), you can
work faster and more efciently, increasing productivity. With the
DWL-2200AP, bandwidth-intensive applications like graphics or
multimedia will benefit significantly because large files are able to
move across the network quickly.

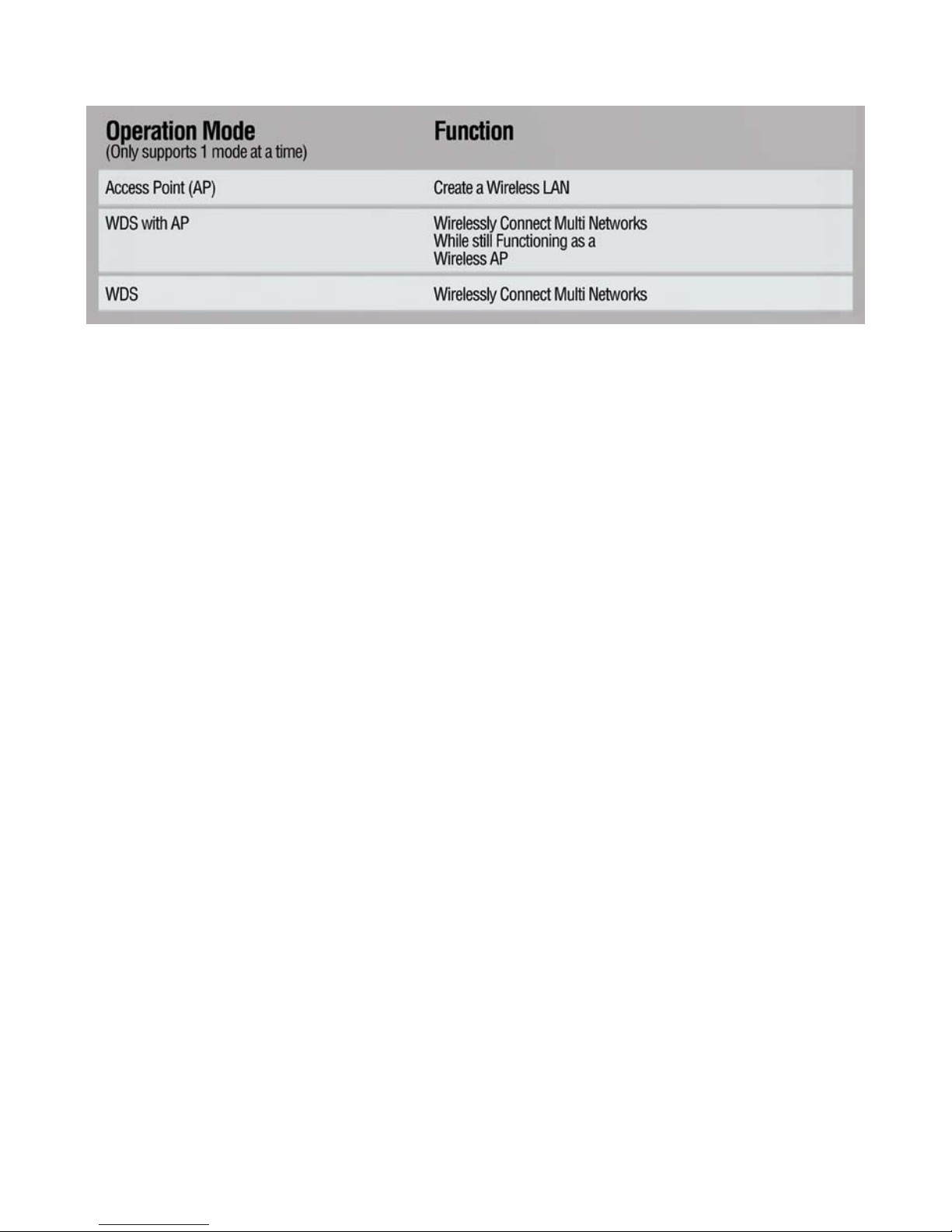

The DWL-2200AP is capable of operating in one of 3 different wireless
networking modes; access point, WDS (Wireless Distribution System)
with AP, or WDS mode.
Use less wiring, enjoy increased exibility, save time and money with
PoE (Power over Ethernet). With PoE, the DWL-2200AP shares power
and data over the CAT5 cable, making the setup of your network less
expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local
area network (WLAN) in ofces or other workplaces, trade shows and
special events, the DWL-2200AP provides data transfers at up to
108Mbps in Super G mode when used with other D-Link AirPremier™
products. (The 802.11g standard is backwards compatible with 802.11b
devices.)
Introduction
* Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual
data throughput will vary. Network conditions and environmental factors, including volume of
network trafc, building materials and construction, and network overhead, lower actual data
throughput rate. Environmental factors may adversely affect wireless signal range.
WPA is offered in two avors: Enterprise (used for corporations) and
Personal (used for home users).
WPA-Personal and WPA2-Personal is directed at home users who do
not have the server based equipment required for user authentication.
The method of authentication is similar to WEP because you dene
a “Pre-Shared Key” on the wireless router/AP. Once the pre-shared
key is confirmed and satisfied on both the client and access point,
then access is granted. The encryption method used is referred to as
the Temporal Key Integrity Protocol (TKIP), which offers per-packet
dynamic hashing. It also includes an integrity checking feature which
ensures that the packets were not tampered with during wireless
transmission. WPA2-Personal is far superior to WPA-Personal,
because the encryption of data is upgraded with the Advanced
Encryption Standard (AES).

5
802.1x: Authentication which is a first line of defense against
intrusion. In the authentication process, the Authentication Server
veries the identity of the client attempting to connect to the network.
Unfamiliar clients would be denied access.
EAP (Extensible Authentication Protocol) is available through the
Windows®XP operating system. You will need to use the same type
of EAP protocol on all devices in your network when using the 802.1x
feature.
WPA-Enterprise and WPA2-Enterprise is ideal for businesses
that have existing security infrastructures in place. Management
and security implementation can now be centralized on a server
participating on the network. Utilizing 802.1x with a RADIUS (Remote
Authentication Dial-in User Service) server, a network adminstrator
can define a list of authorized users who can access the wireless
LAN. When attempting to access a wireless LAN with WPA-Enterprise
or WPA2-Enterprise configured, the new client will be challenged
with a username and password. If the new client is authorized by
the administration, and enters the correct username and password,
then access is granted. In a scenario where an employee leaves the
company, the network administrator can remove the employee from
the authorized list and not have to worry about the network being
compromised by a former employee. WPA2-Enterprise is far superior
to WPA-Enterprise, because the encryption of data is upgraded
with the Advanced Encryption Standard (AES).

6
3 Different Operation modes - Capable of operating in
one of three different operation modes to meet your wireless
networking requirements: Access Point; WDS with AP, or WDS.
Easy Installation with PoE (Power over Ethernet).
Faster wireless networking with the 802.11g standard to
provide a maximum wireless signal rate of up to 54Mbps*
(maximum wireless signal rate of up to 108Mbps* in Super G
mode).
Compatible with the 802.11b standard to provide a wireless
data rate of up to 11Mbps - that means you can migrate your
system to the 802.11g standard on your own schedule without
sacricing connectivity.
Better security with WPA - The DWL-2200AP can securely
connect wireless clients on the network using WPA (Wi-Fi
Protected Access) providing a much higher level of security
for your data and communications than has previously been
available.
AP Manager Setup Wizard - The new Setup Wizard makes
network conguration quick and simple.
SNMP for Management - The DWL-2200AP is not just fast but
it also supports SNMP v.3 for a better network management.
Superior wireless AP manager software is bundled with the
DWL-2200AP for network conguration and rmware upgrade.
Systems administrators can also setup the DWL-2200AP easily
with the Web-based configuration. A D-Link D-View module
will be downloadable for network administration and real-time
network trafc monitoring with D-Link D-View software.
Utilizes OFDM technology (Orthogonal Frequency Division
Multiplexing).
Operates in the 2.4GHz frequency range.
Web-based interface for managing and conguring.
Features and Benets
* Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual
data throughput will vary. Network conditions and environmental factors, including volume of
network trafc, building materials and construction, and network overhead, lower actual data
throughput rate. Environmental factors may adversely affect wireless signal range.

7
Wireless Basics
D-Link wireless products are based on industry standards to provide
easy-to-use and compatible high-speed wireless connectivity within
your home, business or public access wireless networks. D-Link
wireless products will allow you access to the data you want, when and
where you want it. You will be able to enjoy the freedom that wireless
networking brings.
A Wireless Local Area Network (WLAN) is a computer network that
transmits and receives data with radio signals instead of wires. WLANs
are used increasingly in both home and office environments, and
public areas such as airports, coffee shops and universities. Innovative
ways to utilize WLAN technology are helping people to work and
communicate more efficiently. Increased mobility and the absence of
cabling and other fixed infrastructure have proven to be beneficial for
many users.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data
in any location within the operating range of the WLAN. Management
decisions based on real-time information can significantly improve
worker efficiency.
Low Implementation Costs - WLANs are easy to set up, manage,
change and relocate. Networks that frequently change can benefit
from WLANs ease of implementation. WLANs can operate in locations
where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can
be fast and easy and can eliminate the need to pull cable through walls
and ceilings. Wireless technology allows the network to go where wires
cannot go - even outside the home or office.
Inexpensive Solution - Wireless network devices are as competitively
priced as conventional Ethernet network devices. The DWL-2200AP
saves money by providing multi-functionality, configurable in one of four
different modes.
Scalability - WLANs can be configured in a variety of ways to meet
the needs of specific applications and installations. Configurations
are easily changed and range from Peer-to-Peer networks suitable
for a small number of users to larger Infrastructure networks to
accommodate hundreds or thousands of users, depending on the
number of wireless devices deployed.

8
Standards-Based Technology
The DWL-2200AP Managed Wireless Access Point utilizes the
802.11b and the 802.11g standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It
increases the maximum wireless signal rate of up to 54Mbps* (maximum
wireless signal rate of up to 108Mbps* in Super G mode) within the
2.4GHz band, utilizing OFDM technology.
This means that in most environments, within the specified range
of this device, you will be able to transfer large les quickly or even
watch a movie in MPEG format over your network without noticeable
delays. This technology works by transmitting high-speed digital data
over a radio wave utilizing OFDM (Orthogonal Frequency Division
Multiplexing) technology. OFDM works by splitting the radio signal into
multiple smaller sub-signals that are then transmitted simultaneously
at different frequencies to the receiver. OFDM reduces the amount of
crosstalk (interference) in signal transmissions.
The D-Link DWL-2200AP will automatically sense the best possible
connection speed to ensure the greatest speed and range possible.
802.11g offers the most advanced network security features available
today, including WPA and WPA2.
*”Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual
data throughput will vary. Network conditions and environmental factors, including volume of
network traffic, building materials and construction, and network overhead lower actual data
throughout rate.”

9
The D-Link DWL-2200AP lets you access your network, using a
wireless connection, from virtually anywhere within its operating range.
Keep in mind, however, that the number, thickness and location of
walls, ceilings, or other objects that the wireless signals must pass
through, may limit the range. Typical ranges vary depending on the
types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow
these basic guidelines:
Keep your product away (at least 3-6 feet or 1-2 meters) from
electrical devices or appliances that generate RF noise.
4
Keep the number of walls and ceilings between the DWL-2200AP
and other network devices to a minimum - each wall or ceiling can
reduce your DWL-2200AP’s range from 3-90 feet (1-30 meters.)
Position your devices so that the number of walls or ceilings is
minimized.
1
Be aware of the direct line between network devices. A wall that is 1.5
feet thick (.5 meters), at a 45-degree angle appears to be almost
3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14
meters) thick! Position devices so that the signal will travel straight
through a wall or ceiling (instead of at an angle) for better reception.
2
Building materials can impede the wireless signal - a solid metal
door or aluminum studs may have a negative effect on range. Try
to position wireless devices and computers with wireless adapters
so that the signal passes through drywall or open doorways and
not other materials.
3
Wireless Installation Considerations

10
Operational Modes

11
Getting Started
Consult with your Cable or DSL provider for proper installation of
the modem.
Connect the Cable or DSL modem to a Router.
(See the printed Quick Installation Guide included with your
router.)
If you are connecting a desktop computer to your network, install
the D-Link DWL-G550 wireless PCI adapter into an available
PCI slot on your desktop computer.
(See the printed Quick Installation Guide included with the
network adapter.)
Install the drivers for the D-Link DWL-G680 wireless Cardbus
adapter into a laptop computer.
(See the printed Quick Installation Guide included with the
DWL-G680.)
Connect the DWL-2200AP to the PoE base unit.
(See the printed Quick Installation Guide included with the
DWL-2200AP.)
Connect the Ethernet Broadband Router to the PoE base unit.
(See the printed Quick Installation Guide included with the
DWL-2200AP.)
2
3
4
5
6
7
You will need broadband Internet access.
1

12

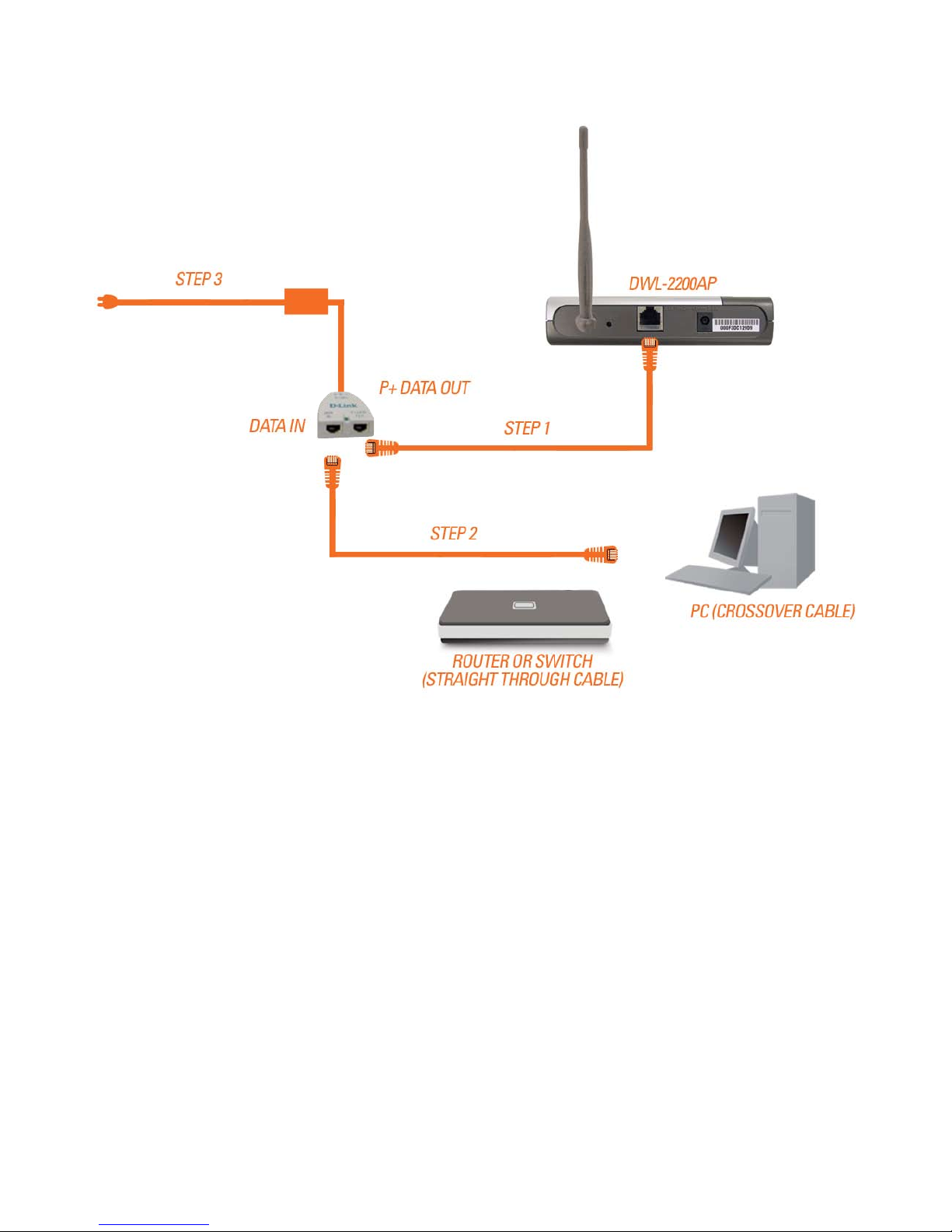

Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your pack-
age) to the LAN port on the DWL-2200AP and the other end of
the Ethernet cable to the port labeled P+DATA OUT on the PoE
base unit.
Connect another Ethernet cable from the DATA IN port on the
PoE base unit to your router/switch, using a straight through
cable, or to a PC, using a crossover cable.
Attach the power adapter to the connector labeled POWER IN on
the PoE base unit. Attach the power cord to the power adapter
and into an electrical outlet.
Step 1
Step 2
Step 3

13

 

Note: if you have changed the default IP address assigned to the DWL-2200AP, make sure to
enter the correct IP address.
Using the Conguration Menu
Home > Wizard
The Home>Wizard
screen will appear.
Please refer to the
Quick Installation
Guide for more infor-
mation regarding the
Setup Wizard.

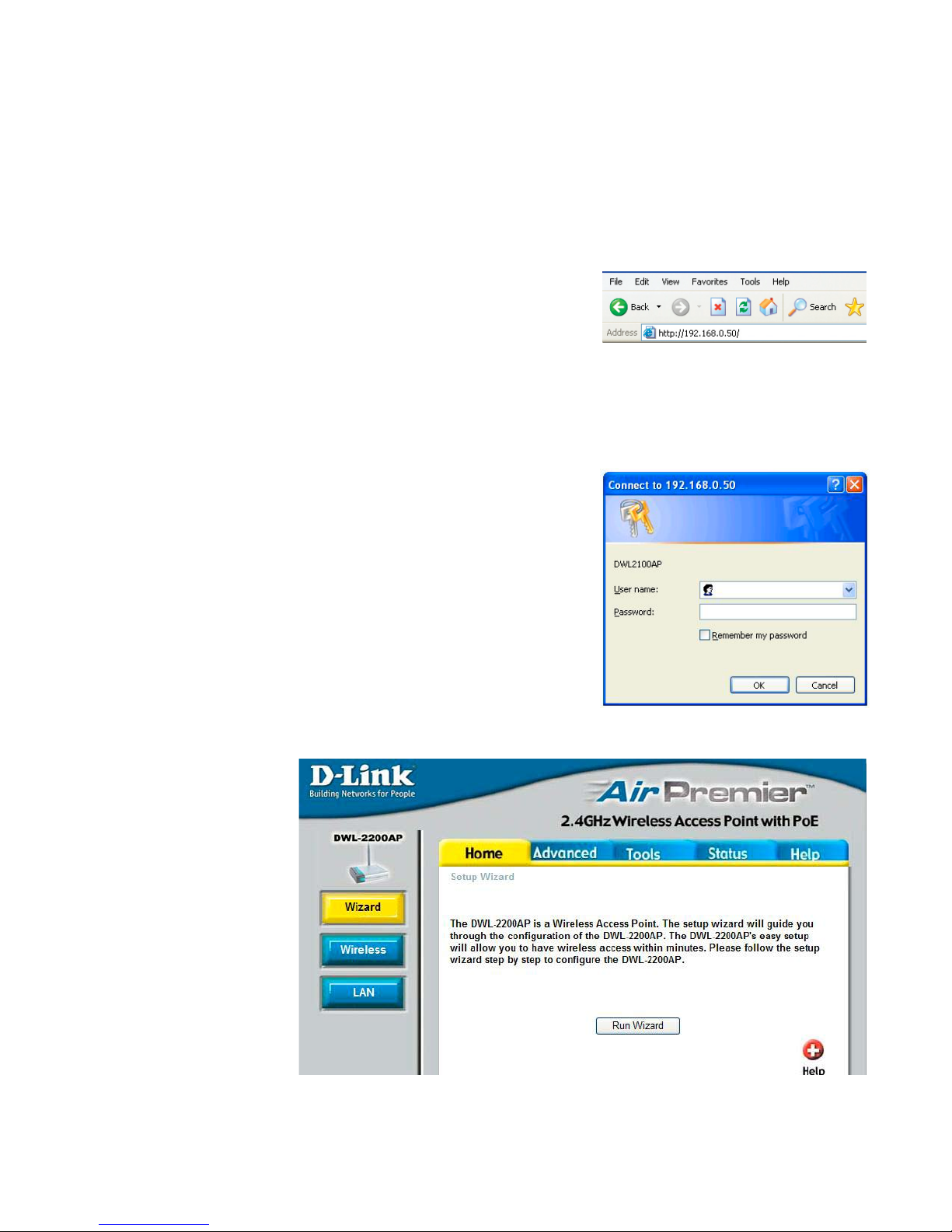

After you have completed the Setup Wizard (please see the Quick Installation Guide that
came with the product) you can access the Conguration menu at any time by opening
the Web browser and typing in the IP address of the DWL-2200AP. The DWL-2200AP
default IP address is shown below:
Open the Web browser
Type in the IP address of the
DWL-2200AP


Type admin in the User Name eld
Leave the Password blank.
(However, if you have changed the
password, please enter the correct
password.)
Click OK
admin

14
Using the Conguration Menu (continued)
Home > Wireless > AP Mode
Channel- All devices on the network must share the .
Wireless
Band- IEEE 802.11g.
Mode- Access Point is selected from the pull down menu..
SSID
Broadcast-
Enable or Disable SSID Broadcast. Enabling this feature broadcasts
the SSID across the network.
Auto Channel
Scan-
Select Enable or Disable.(Enable this feature to auto-select the channel
for best wireless performance.) Enable is selected by default.
Service Set Identifier(SSID)is the name designated for a specific
wireless local area network(WLAN).The SSID’s factory default setting
is dlink.The SSID can be easily changed to connect to an existing
network or to establish a new wireless network.
SSID-
Radio- Select On or Off.
Super G is a group of performance enhancement features that
increase end user application throughput in an 802.11g network.
Super G is backward compatible to standard 802.11g devices.
For top performance, all wireless devices on the network should be
Super G capable. Select either Disabled, Super G without Turbo, or
Super G with Dynamic Turbo.
Super G
Mode-

15
Using the Conguration Menu (continued)
Home > Wireless> AP Mode(continued)
Authentication:Open System
Shared Key
Open System/Shared Key
WPA-EAP
WPA-PSK
WPA2-EAP
WPA2-PSK
WPA-Auto-EAP
WPA-Auto-PSK
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same
WEP settings.
Select Open System/Shared Key to allow either form of data encryption.
Select WPA-EAP, WPA2-EAP, WPA-Auto-EAP to secure your network with the inclusion
of a RADIUS server.
Select WPA-PSK, WPA2-PSK, WPA-Auto-PSK to secure your network using a
password and dynamic key changes. (No RADIUS server required).
Encryption:
Key Type*:
Key Size:
Valid Key:
First through
Fourth keys:
Select Disabled or Enabled. (Disabled is selected here).
Select HEX or ASCII.
Select 64-, 128-, 152-bits.
Select the 1st through the 4th key to be the active key.
*Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code for
representing English letters as numbers from 0-127

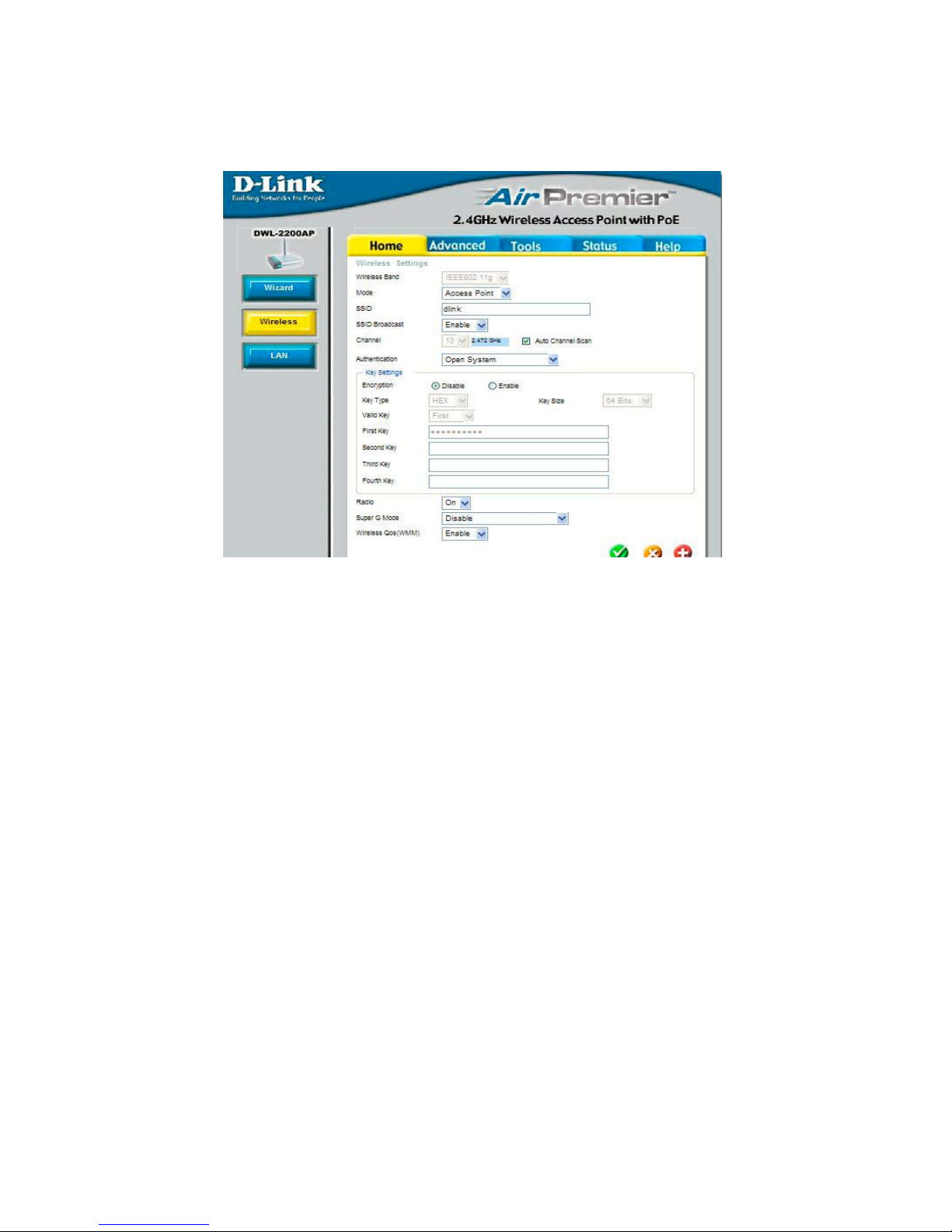

Home > Wireless>AP Mode>WEP Encryption
Disabled: Standard 802.11g support, no enhanced capabilities.
Super G without Turbo: Capable of Packet Bursting, Fast Frames,
Compression, and no Turbo mode.
Super G with Dynamic Turbo: Capable of Packet Bursting, Fast
Frames, Compression, and Dynamic Turbo mode.This setting is
backwards compatible with non-Turbo (legacy) devices. Dynamic
Turbo mode is only enabled when all devices on the wireless
network are congured with Super G with Dynamic Turbo enabled.
WMM- Select Enable or Disable, Enable is selected by default. WMM
stands for Wi-Fi Multimedia, by enabling this feature it will improve
the user experience for audio and video applications over a Wi-Fi
network.
Input up to four keys for encryption. You will select one of these
keys in the valid key eld.

16
Cipher Type:
Group Key
Update Interval:
Select AES, AUTO or TKIP from the pull down menu.
Select the interval during which the group key will be valid.
1800 is the recommended value. A lower interval may reduce data
transfer rate.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the Radius port.
Radius Secret: Enter the the Radius secret.
Using the Conguration Menu (continued)

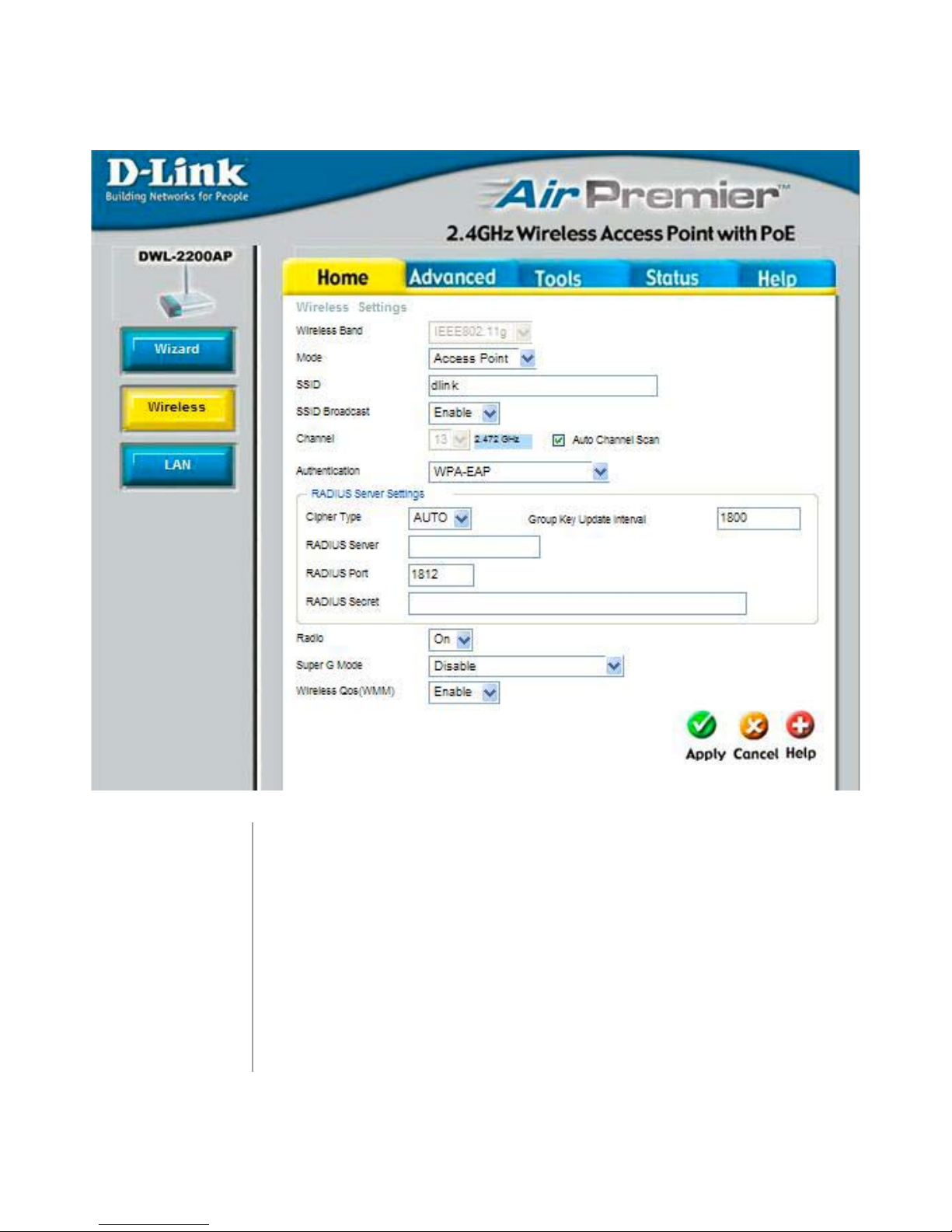

Home>Wireless>AP Mode>WPA-EAP, WPA2-EAP, WPA-Auto-EAP

17
Cipher
Type:
Group Key
Update Interval:
Select the interval during which the group key wll be valid. The
default value of 1800 is recommended.
Select AES, AUTO or TKIP from the pull down menu.
PassPhrase: Enter a PassPhrase in the corresponding eld.

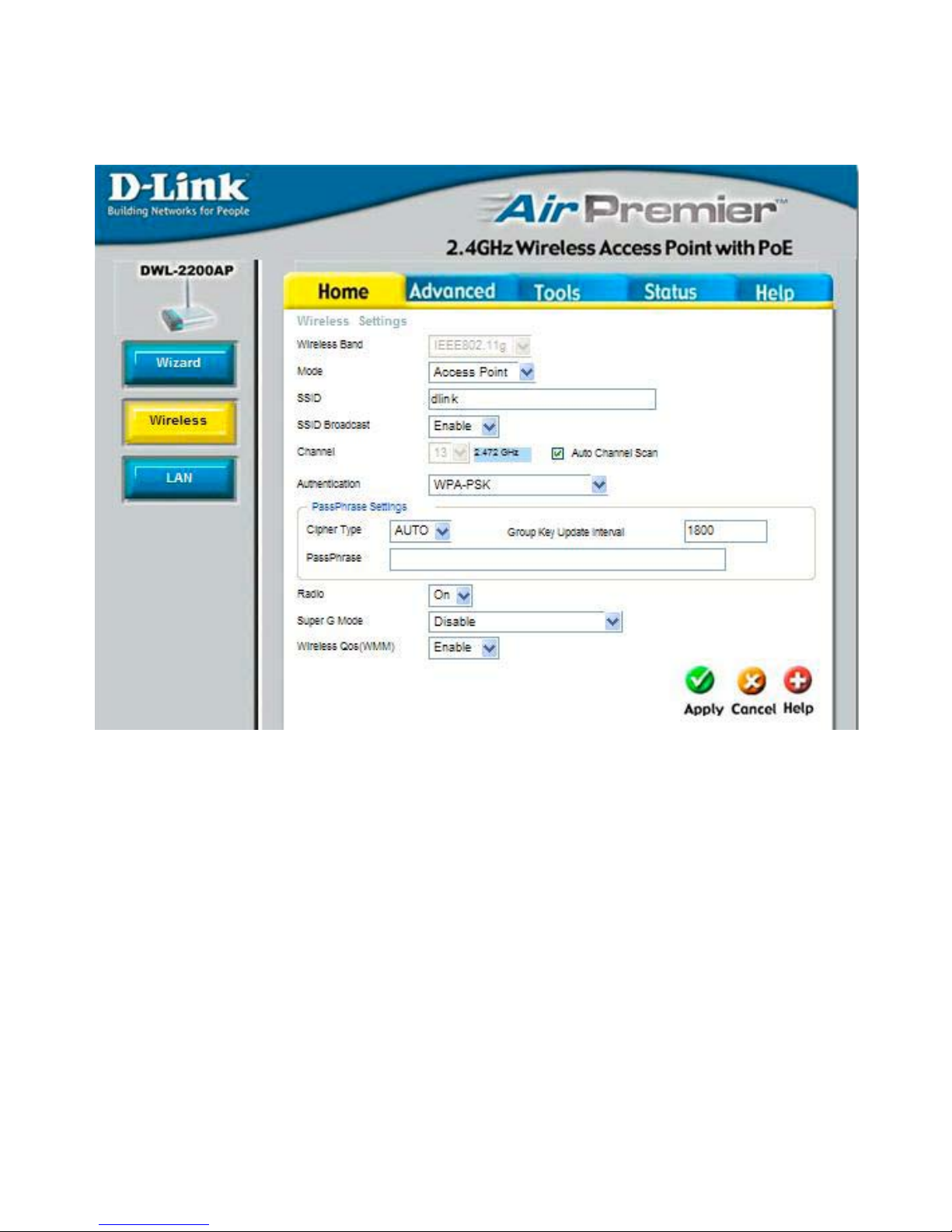

Home>Wireless>AP Mode>WPA-PSK, WPA2-PSK, WPA-Auto-PSK
Using the Conguration Menu (continued)

18
Using the Conguration Menu (continued)

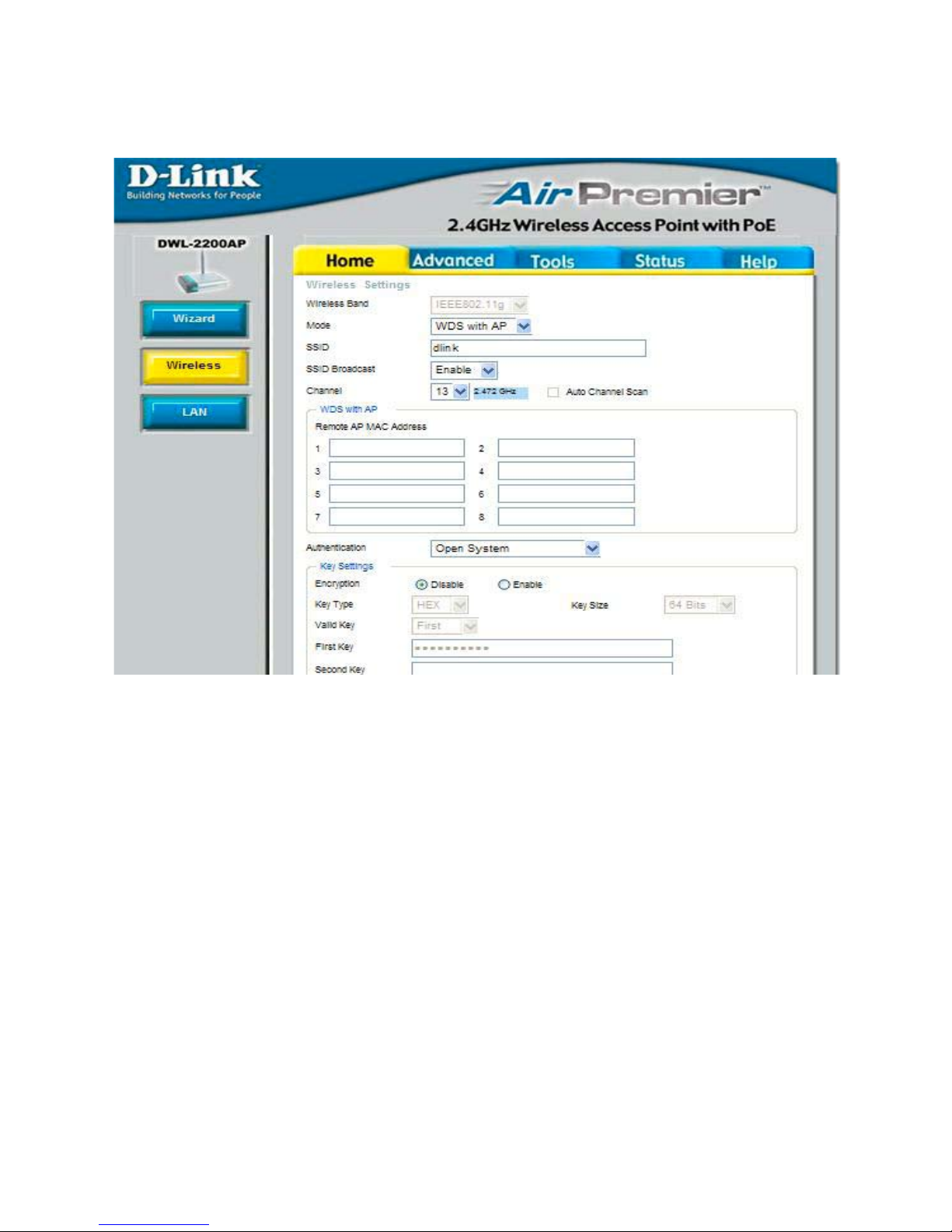

Home > Wireless > WDS with AP Mode
Channel- 6 is the default channel. All devices on the network must share the
same channel.
Wireless
Band- IEEE 802.11g.
Mode- WDS with AP mode is selected from the pull-down menu.
SSID
Broadcast-
Enable or Disable SSID Broadcast. Enabling this feature broadcasts
the SSID across the network.
Auto Channel
Scan-
Select Enable or Disable.(Enable this feature to auto-select the channel
for best wireless performance.)
Service Set Identier(SSID)is the name designated for a specic
wireless local area network(WLAN).The SSID’s factory default setting
is dlink.The SSID can be easily changed to connect to an existing
network or to establish a new wireless network.
SSID-

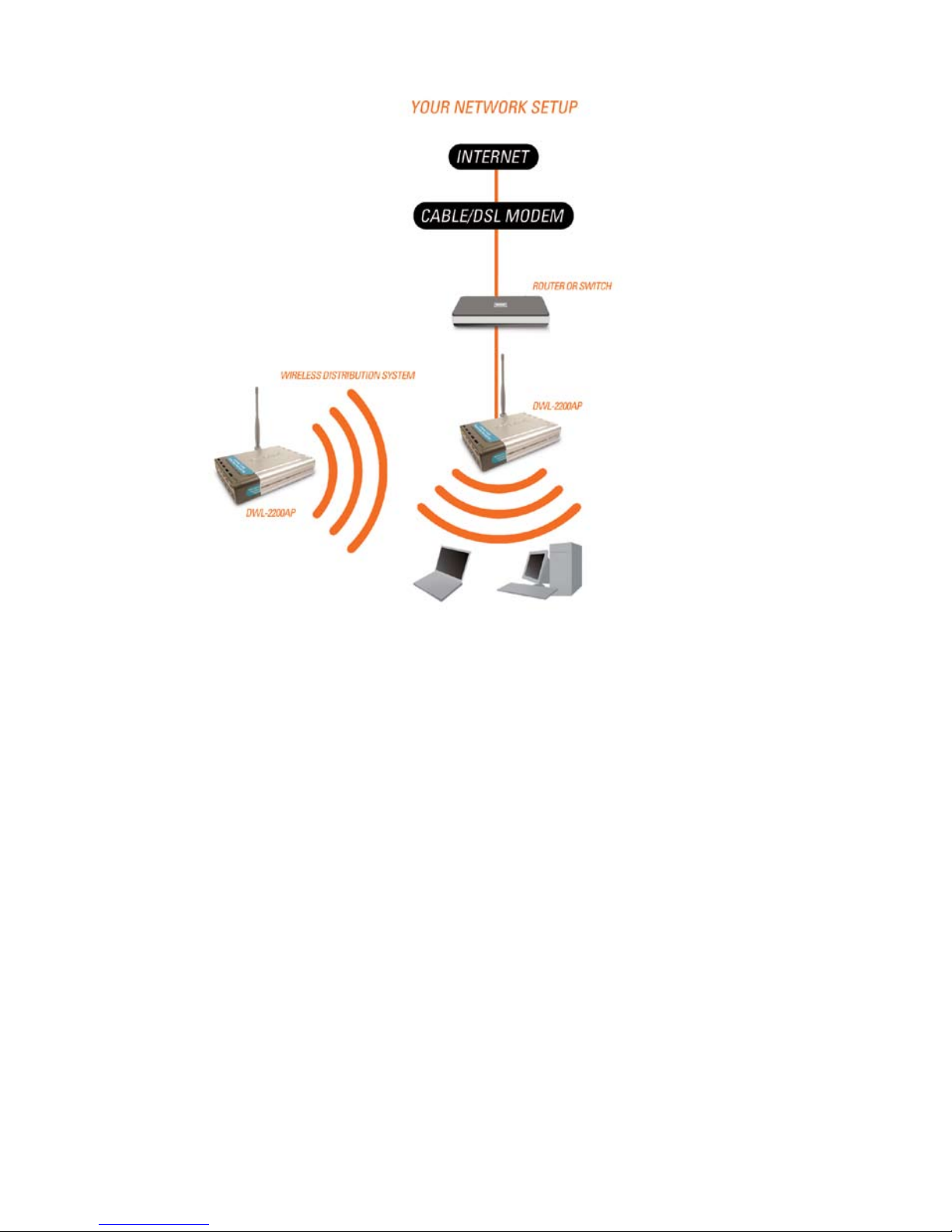

WDS (Wireless Distribution System) with AP mode can set APs to work
as PtP/PtMP Bridge and Access Point function simultaneously with the
same security setting. But all APs need to set as the same SSID.

19
Using the Conguration Menu (continued)
Home > Wireless> WDS with AP Mode(continued)
Enter the MAC address of the APs in your network that will
serve as bridges to wirelessly connect multiple networks.
Remote AP
MAC Address-
Authentication:Open System
Shared Key
Open System/Shared Key
WPA-PSK
WPA2-PSK
WPA-Auto-PSK
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same
WEP settings.
Select Open System/Shared Key to allow either form of data encryption.
Select WPA-PSK, WPA2-PSK, WPA-Auto-PSK to secure your network using a
password and dynamic key changes. (No RADIUS server required).
Encryption:
Key Type*:
Key Size:
Valid Key:
First through
Fourth keys:
Select Disabled or Enabled. (Disabled is selected here).
Select HEX or ASCII.
Select 64-, 128-, 152-bits.
Select the 1st through the 4th key to be the active key.
*Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code for
representing English letters as numbers from 0-127
Home > Wireless> WDS with AP Mode> WEP Encryption
Input up to four keys for encryption. You will select one of these
keys in the valid key eld.
Home > Wireless> WDS with AP Mode> WPA-PSK, WPA2-PSK,
WPA-Auto-PSK
Cipher
Type:
Group Key
Update Interval:
Select the interval during which the group key wll be valid. The
default value of 1800 is recommended.
Select AES or AUTO from the pull down menu.
Enter a PassPhrase in the corresponding eld.
PassPhrase:

20
Using the Conguration Menu (continued)

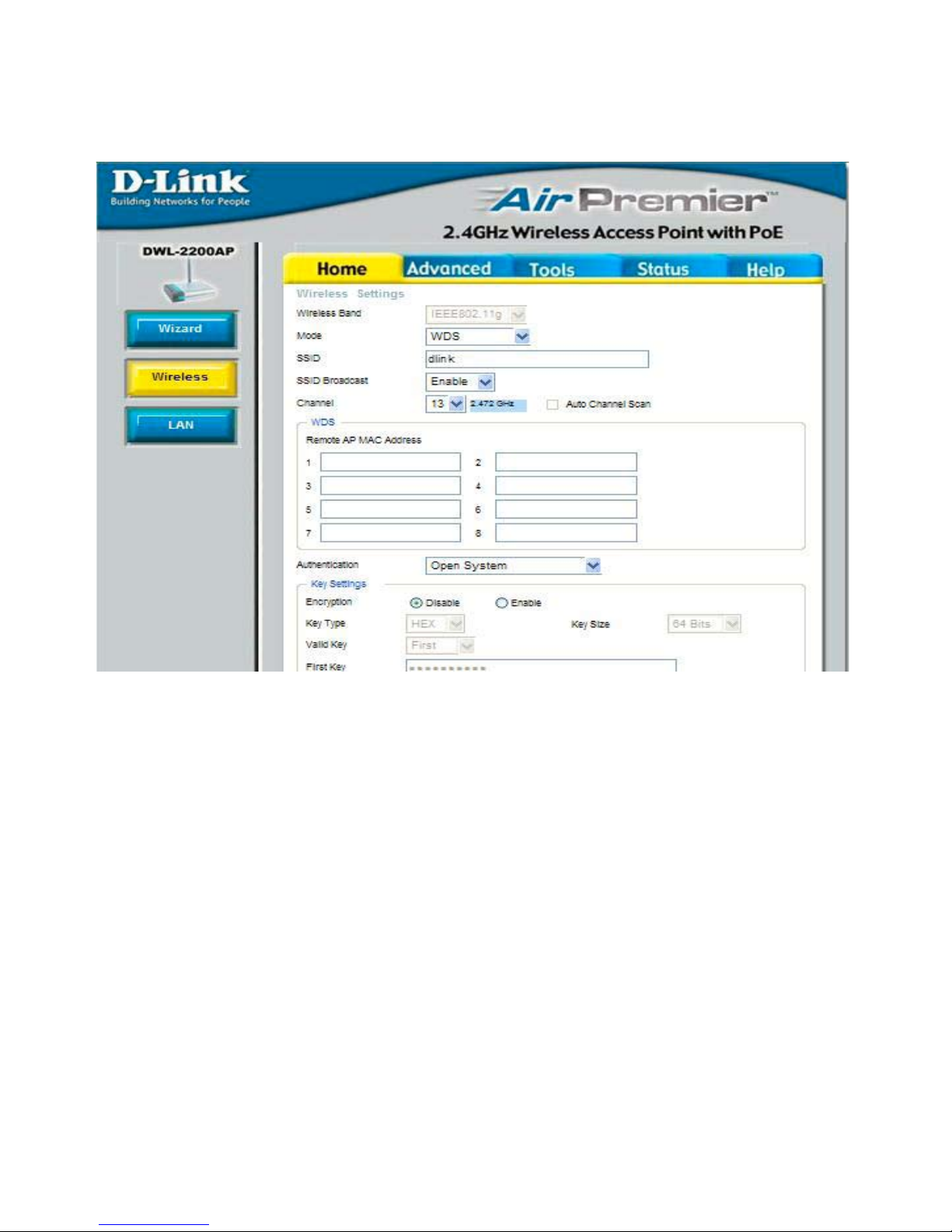

Home > Wireless >WDS Mode
Channel- 6 is the default channel. All devices on the network must share the
same channel.
Wireless
Band- IEEE 802.11g.
Mode WDS is selected from the pull-down menu.
SSID
Broadcast-
Enable or Disable SSID Broadcast. Enabling this feature broadcasts
the SSID across the network.
Auto Channel
Scan
Select Enable or Disable.(Enable this feature to auto-select the channel
for best wireless performance.)
Service Set Identier(SSID)is the name designated for a specic
wireless local area network(WLAN).The SSID’s factory default setting
is dlink.The SSID can be easily changed to connect to an existing
network or to establish a new wireless network.
SSID
WDS (Wireless Distribution System) mode can set APs to work as
PtP/PtMP Bridge. But all APs need to set as the same SSID.
