D-Link AirPremier N DAP-2360 User manual

2 DAP-2360 Install Guide
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based
operating systems
• Installed Ethernet Adapter
• Internet Explorer version 7.0 or Firefox 3.0 and above
Safety Notice:
Installation and servicing should be done by certied technicians so
as to conform to all local codes and prevent voiding your warranty.
Minimum System Requirements
Package Contents
Note: Using a power supply with a dierent voltage than the one included with the
DAP-2360 will cause damage and void the warranty for this product. If any of the
above items are missing, please contact your reseller.
• DAP-2360 AirPremier® N PoE Access Point
• Power Adapter
• Mounting Plate
• Ethernet Cable
• Manual and Software on CD-ROM

DAP-2360 Install Guide 3

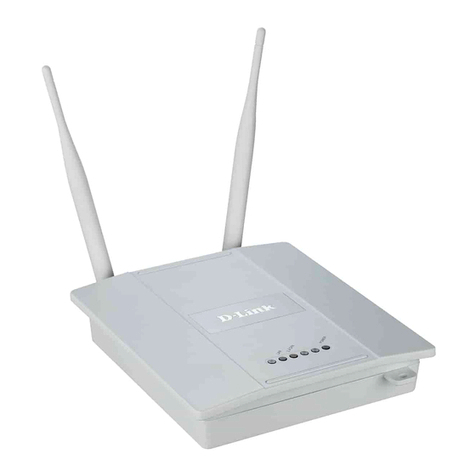

Hardware Overview

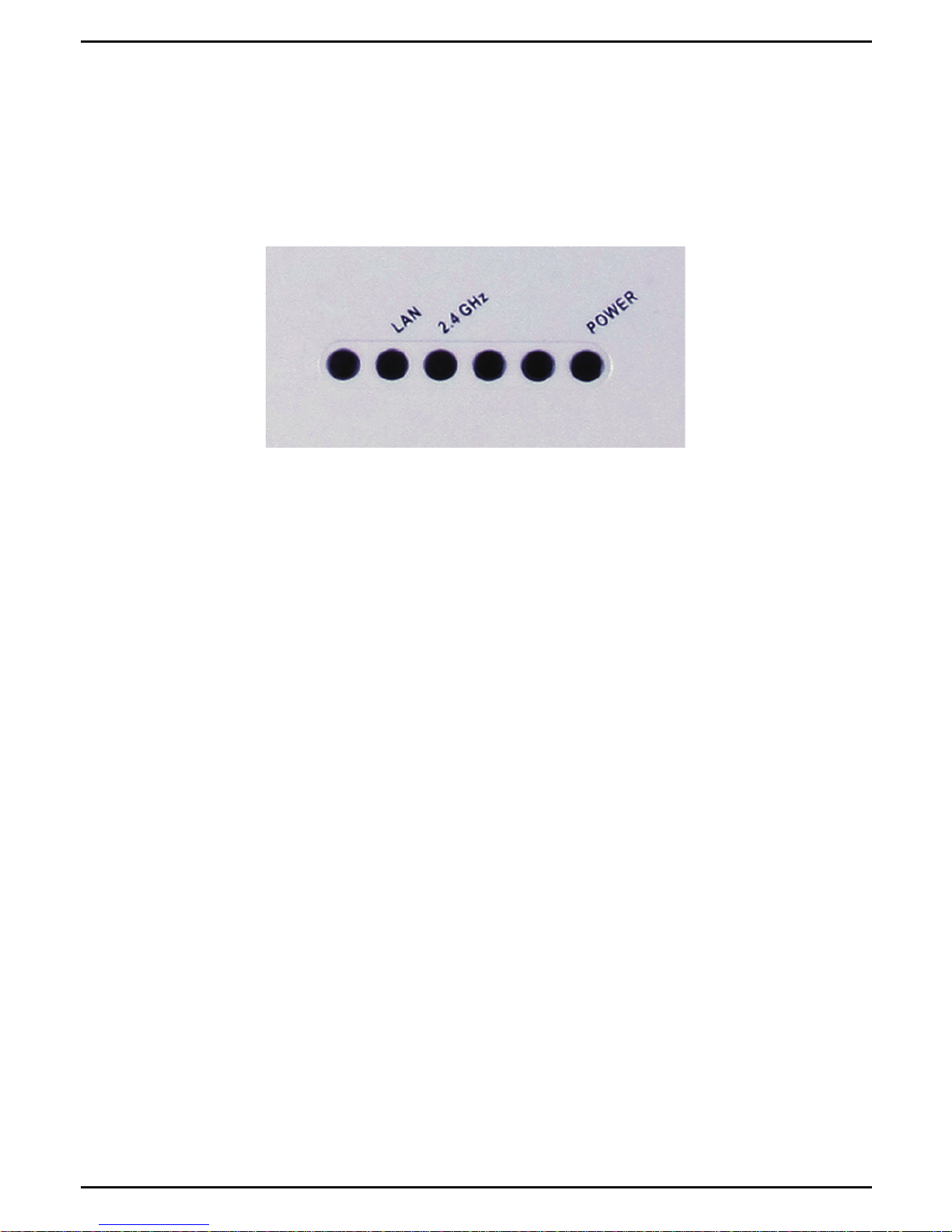

LEDs
LAN - Solid light when the Ethernet port is connected to a working
Ethernet device, such as a router or switch. The light will blink when
there is trac through LAN port.
2.4 GHz - When lit, the wireless function of the access point is work-
ing properly. This light will blink when there is wireless trac.
POWER - The light will blink during boot up. Once solid, the access
point is ready.

4 DAP-2360 Install Guide

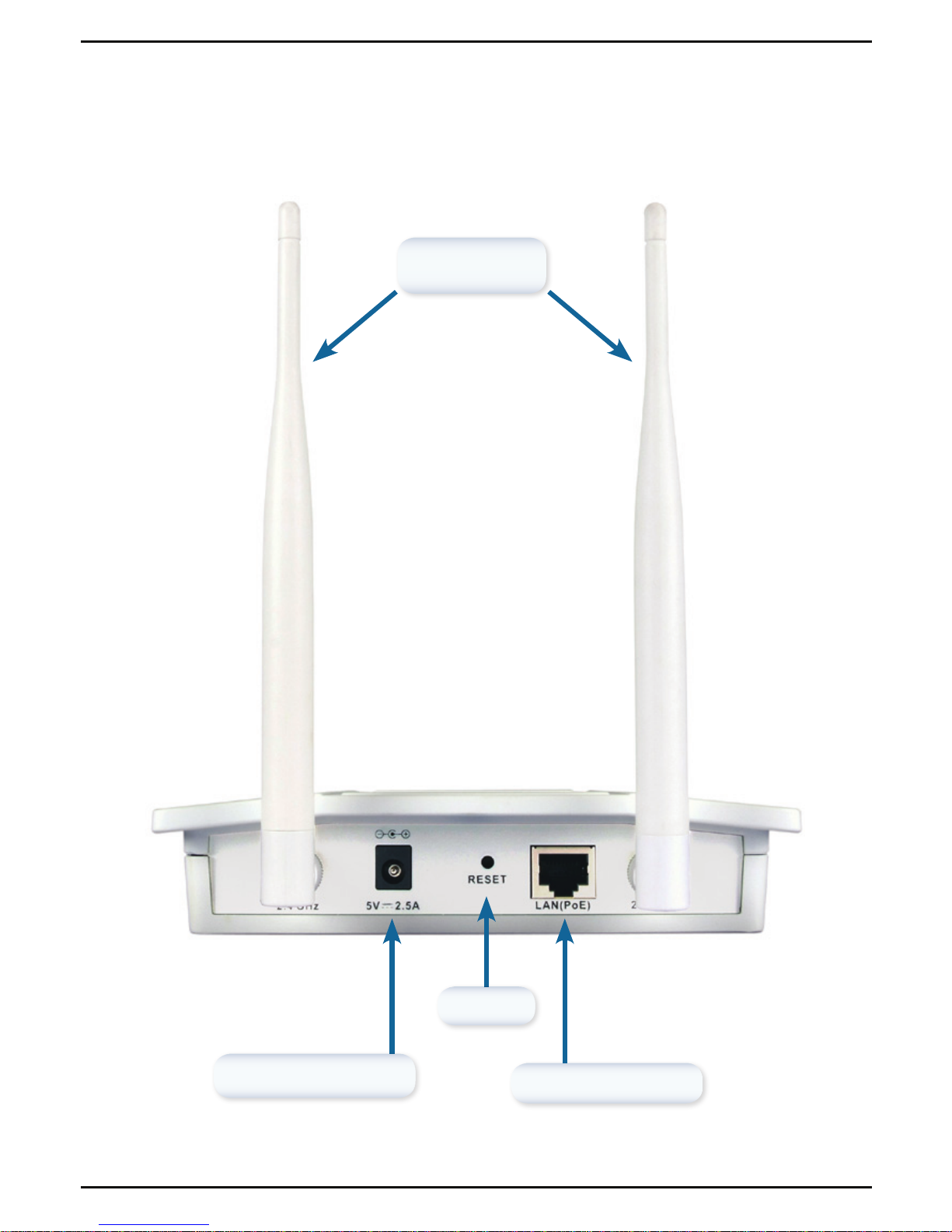

Installing the Hardware
LAN Port (PoE)
Power Receptor
Reset
Antennas

DAP-2360 Install Guide 5
To power the access point, you can use one of the following methods:
1. Standard - Use the supplied power adapter.
2. Power over Ethernet - Connect one end of your Ethernet cable into the LAN
(PoE) port on the DAP-2360 and the other end into one port on a PoE switch or
router.

6 DAP-2360 Install Guide

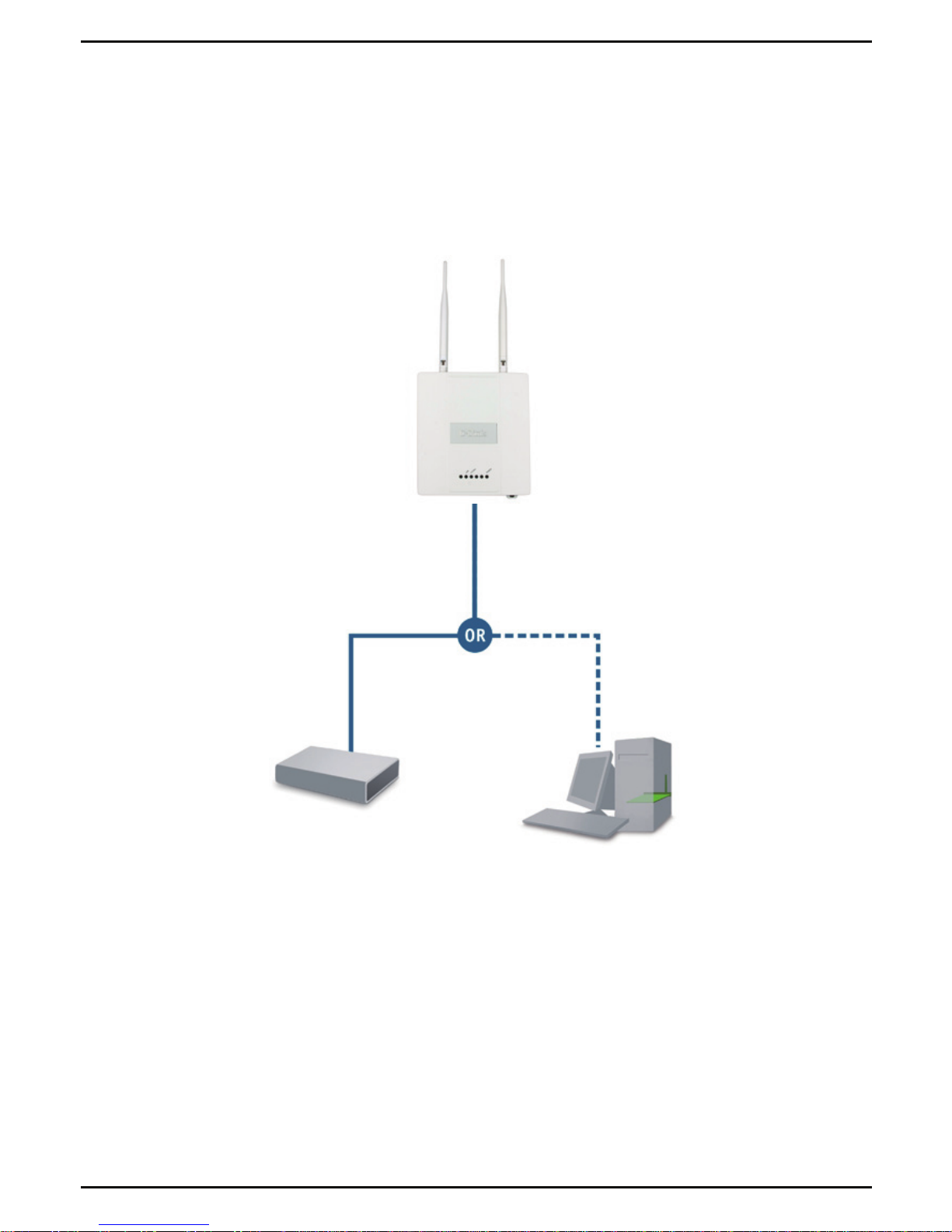

To setup and manage the DAP-2360 from a computer, use one of
the following methods:
1. Connect a straight through Ethernet cable between the
access point and your computer.
2. Connect the access point to a switch or router and use a
computer that is also connected to that switch or router.

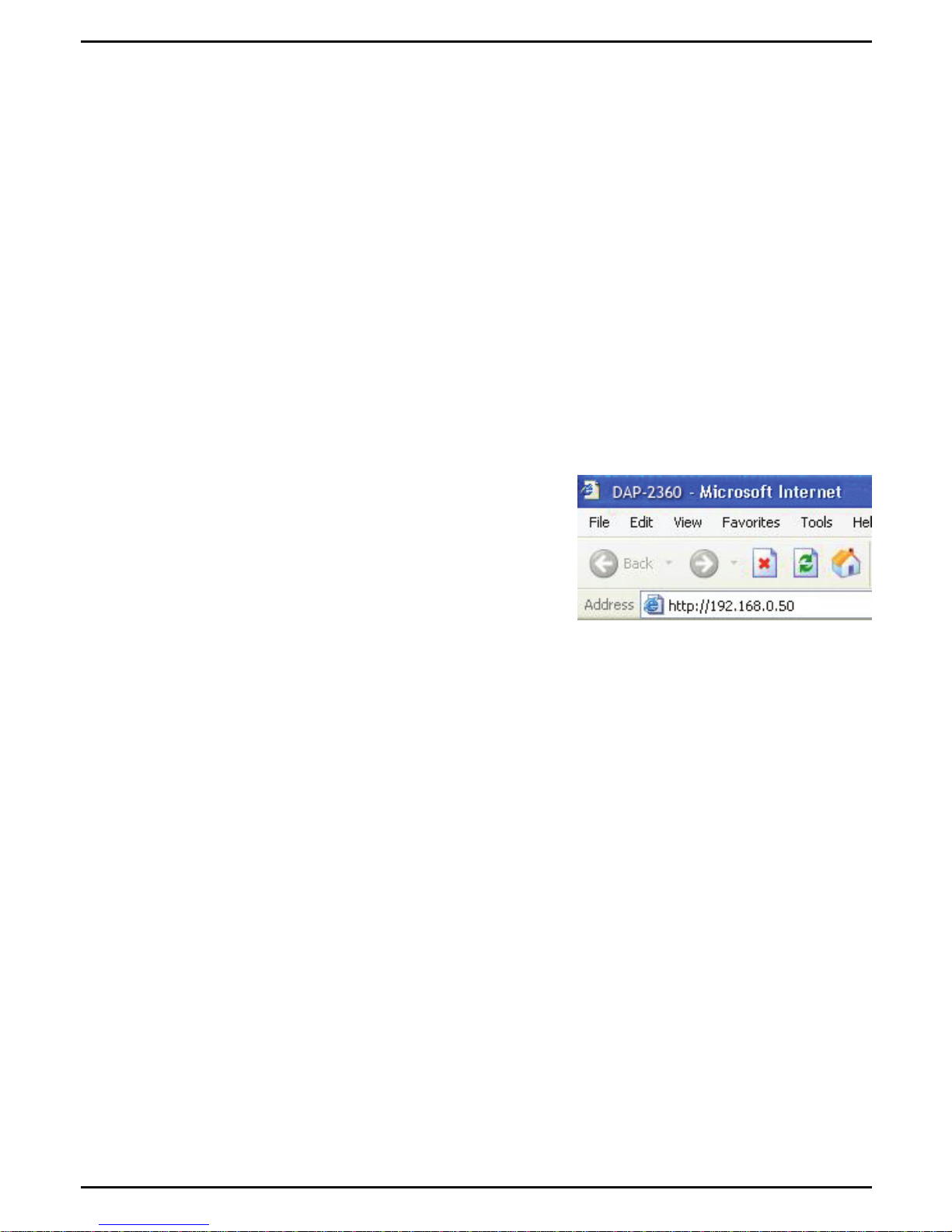

3. Please start your web browser
program, type the IP address of the
device (http://192.168.0.50) and
press Enter. Make sure that the IP
addresses of the device and your
computer are in the same subnet.
Conguration

DAP-2360 Install Guide 7

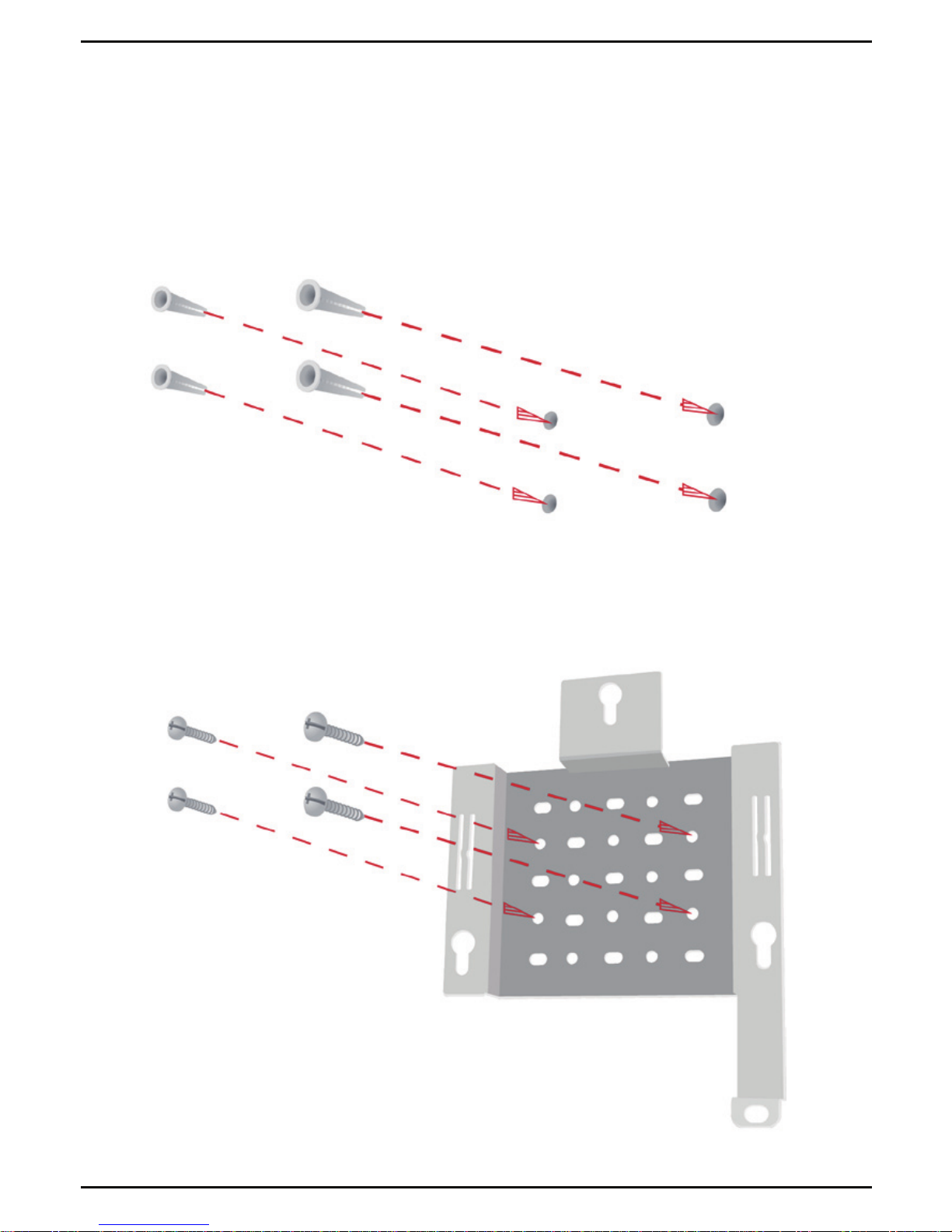

Step 1: Insert provided wall anchors in the wall where the mounting plate will be
attached.
Mounting Plate Assembly
Step 2: Use the provided screws to secure the mounting plate on the wall.

8 DAP-2360 Install Guide

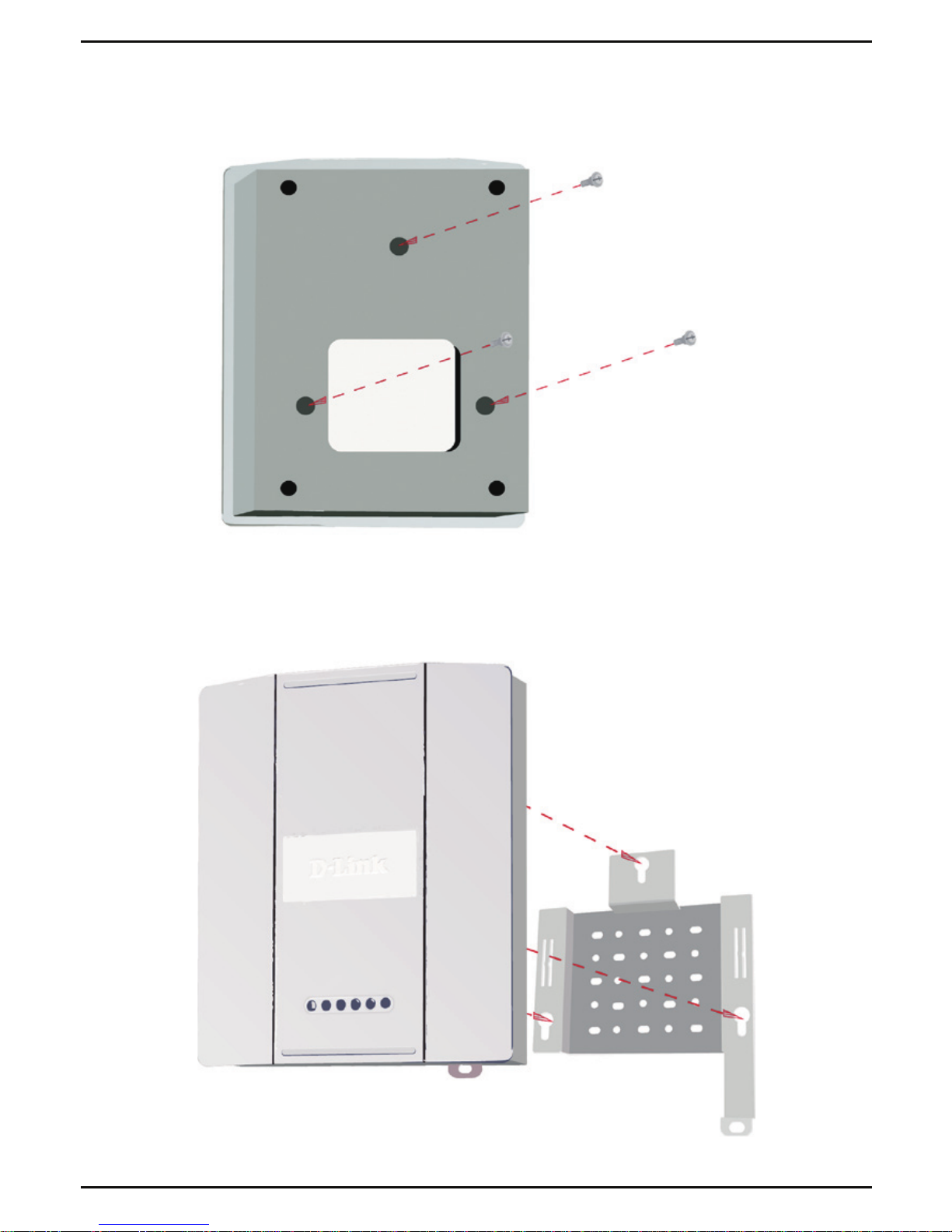

Step 3: Attach the remaining screws securely to the back of the DAP-2360.
Step 4: Attach the DAP-2360 to the mounting plate.

DAP-2360 Install Guide 9

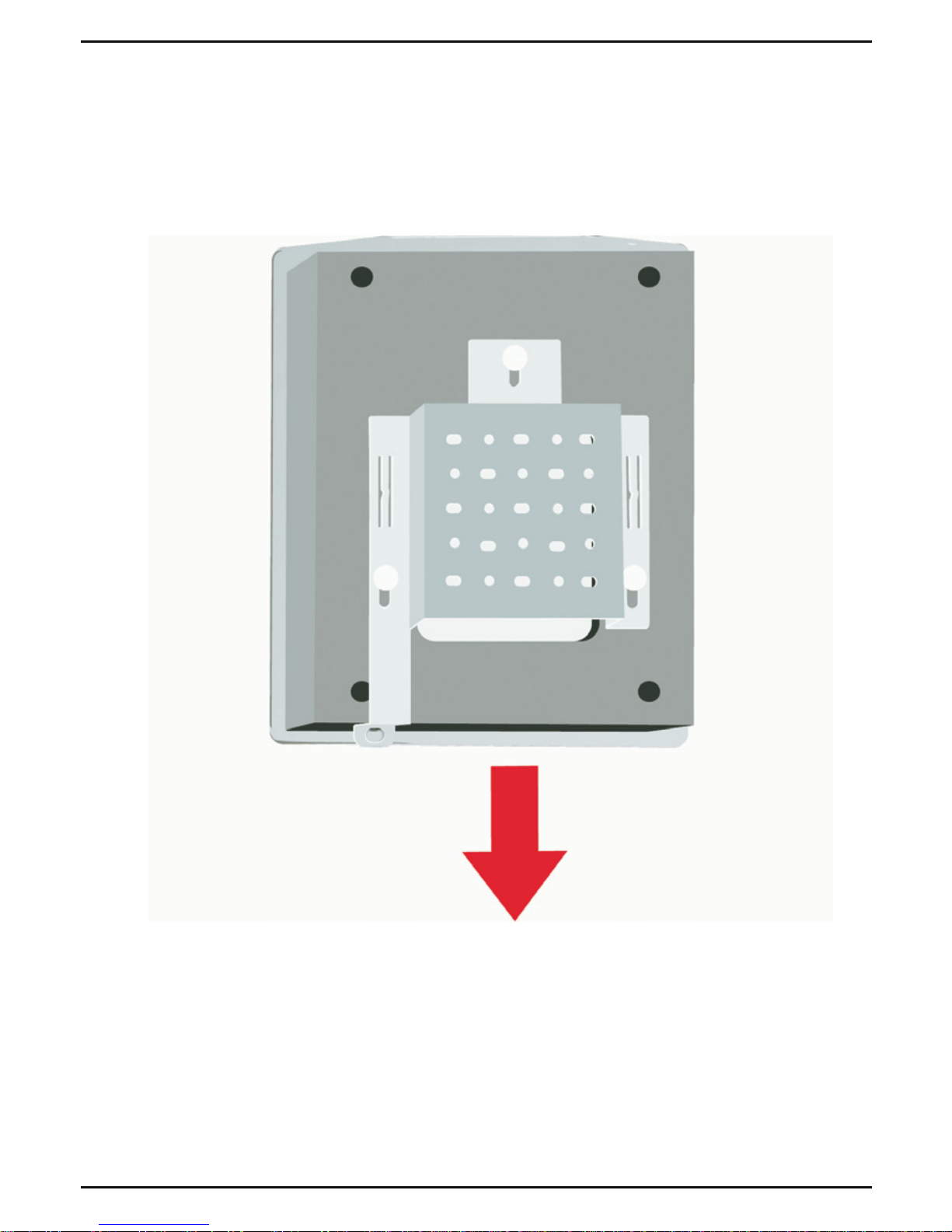

Step 5: Slide the DAP-2360 down into the grooves on the mounting plate to secure
it to the plate.

10 DAP-2360 Install Guide

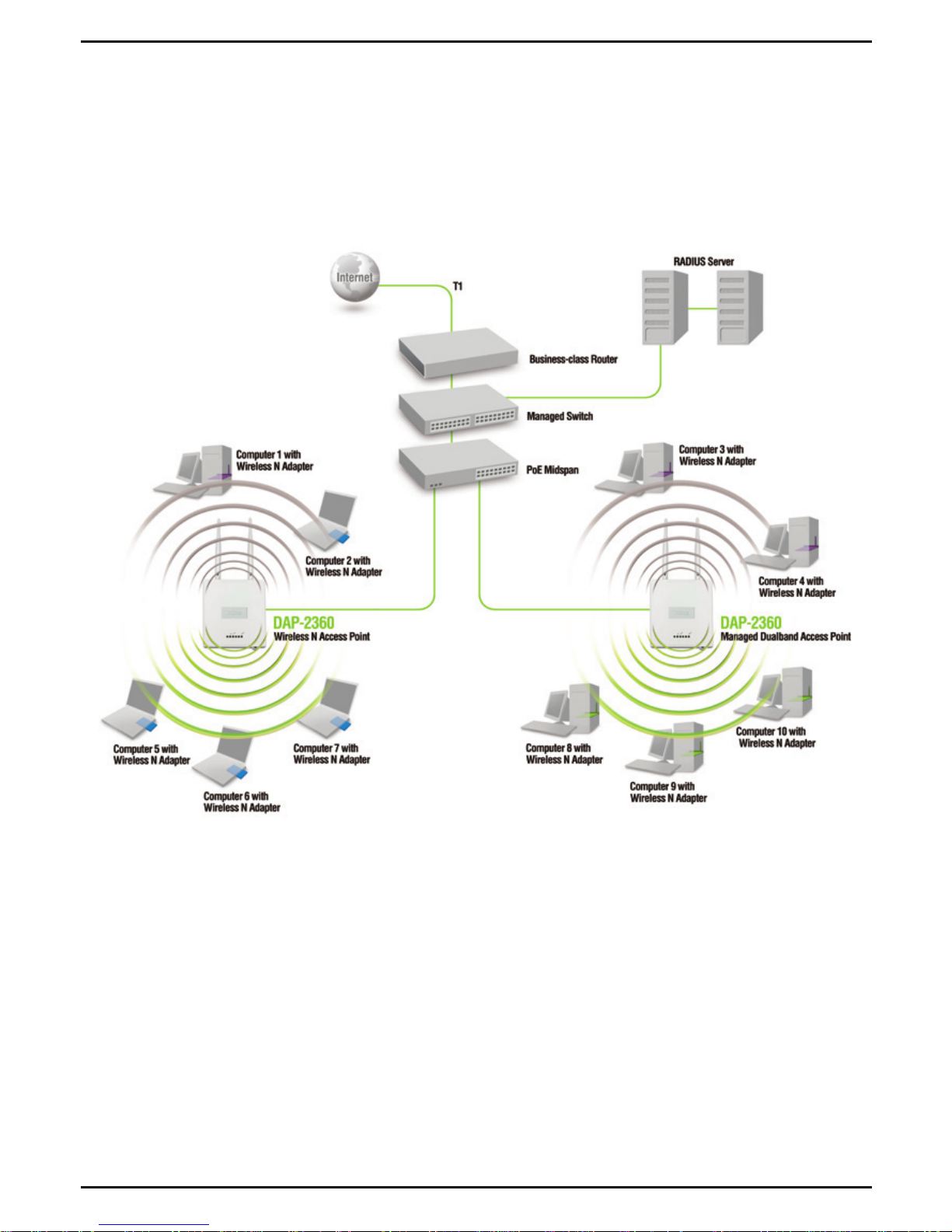

When you have completed the steps in this Installation Guide and congured your
for your network, your network should look similar to this:
Your Setup is Complete
* Maximum Wireless signal rate derived from IEEE 802.11n specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trac, building materials
and construction, and network overhead lower actual data throughput rate.

DAP-2360 Install Guide 11
Notes

Technical Support
D-Link’s website contains the latest user documentation and software updates for D-Link
products. U.S. and Canadian customers can contact D-Link Technical Support through our
website or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.ca
