D-Link DWL-3600AP User manual

Unied N Access Point
DWL-3600AP
Product Highlights
The DWL-3600AP Unified 802.11n Access Point is an indoor 802.11n Wi-Fi access point
designed specifically for deployment in business environments. Highly manageable and
capable of high data transmission speeds, the DWL-3600AP integrates seamlessly into
existing network infrastructure and can be easily scaled up to meet future demands.
High Performance
The DWL-3600AP’s 2x2 MIMO 2.4GHz radio delivers up to 300 Mbps1 of network
throughput. In addition, the DWL-3600AP features RadioProtect technology, which
ensures all users receive an adequate level of service even in an environment where many
users are accessing the network through legacy 802.11b and 802.11g devices.
Configuration Replicating Clusters
For small businesses that need to deploy multiple access points (APs) but lack the resources
to tackle the complicated task of network management, the DWL-3600AP’s Configuration
Cluster feature offers the ideal solution. When a small number of DWL-3600APs is
deployed on the network, they may be configured to form a Replicating Cluster. Once the
administrator is through with configuring one access point, the same configuration can
then be applied to all remaining APs that are members of that cluster. Up to 16 APs may be
used to form a cluster.
Features
Ideal for Business
• Blazing wireless performance of up to 300 Mbps1 network
throughput
• Conguration Replicating Clusters reduce conguration
complexity
• Up to 16 virtual access points may be created from a
single device
• Automatic load-balancing among neighboring access points
• Flexible QoS with WMM
Trusted Security
• WPA/WPA2 Personal
• WPA/WPA2 Enterprise
• WEP Encryption
• 802.1X User authentication
• MAC address ltering
• Rogue AP detection
Convenient Installation
• Can be easily mounted on a wall or ceiling
• 802.3af Power Over Ethernet enables installation at
in hard-to-reach locations
• Mounting brackets are included
Fast 300Mbps 2.4GHz 802.11n Wireless Radio
Supports 2x2 MIMO 802.11b/g/n with throughput
speeds up to 300Mbps.
Flexible Housing Design
Embedded antennas and plenum rated housing for
non-intrusive and safe deployment in any indoor
application.
Wireless Management Support
Works with DWC-1000 Wireless Controller and
DWS-3160/4026 Unied Wireless Switch for larger AP
installations that require centralized conguration and
management.

DWL-3600AP Unied N Access Point
Unified Management
When deployed in conjunction with D-Link’s line of Unified Wireless Switches
or Wireless Controllers, up to 256 DWL-3600AP units may be centrally managed
and provisioned, thus enabling the administrator to expand the Wi-Fi network
to cover a large area.
Security
The DWL-3600AP supports the latest standards in Wi-Fi security, including
WPA, WPA2, and 802.1X. In addition, the DWL-3600AP supports up to 16 virtual
access points (VAP), which allows the administrator to assign different access
privileges to different groups of users. When used together with D-Link’s line of
Unified Wireless Switches or wireless controller, security can be raised to a new
level. Rogue APs in the network may be easily detected, and the administrator
will be immediately notified of any security threat.
Automatic RF Management
When a number of access points are deployed close to each other, interference
may result if proper RF management is not implemented. When a DWL- 3600AP
senses a neighbor AP at startup, it will automatically select a non-interfering
channel. This greatly reduces RF interference and will allow the administrator
to deploy APs more densely. With a DWC Wireless Controller or DWS Unified
Wireless Switch, you can also adjust the transmit power dynamically. When a
nearby managed AP is operating on the same channel, the DWL-3600AP will
automatically lower its transmission power to minimize interference. When
that managed AP is no longer present, the DWL-3600 will increase it’s transmit
power to expand coverage.
Quality of Service
The DWL-3600AP is WMM-certified, so in the event of network congestion,
time-sensitive traffic can be given priority ahead of other traffic. Furthermore,
when a number of DWL-3600APs are in close proximity with each other, an
access point will refuse new association requests once its resources are fully
utilized. Instead, the association request will be picked up by a neighboring
AP. This feature ensures that no single AP is overburdened while others
nearby sit idle.
Convenient Installation
With an embedded antenna and simple styled exterior, the DWL-3600AP can
be installed on a wall or ceiling and blends in with most interior decorations
in an oce. Enclosed in a plenum-rated chassis, the DWL-3600AP adheres
to strict re codes for placement in air passageways. For easy installation,
the DWL-3600AP has integrated 802.3af Power over Ethernet (PoE) support,
allowing installation of this device in areas where power outlets are not
readily available.

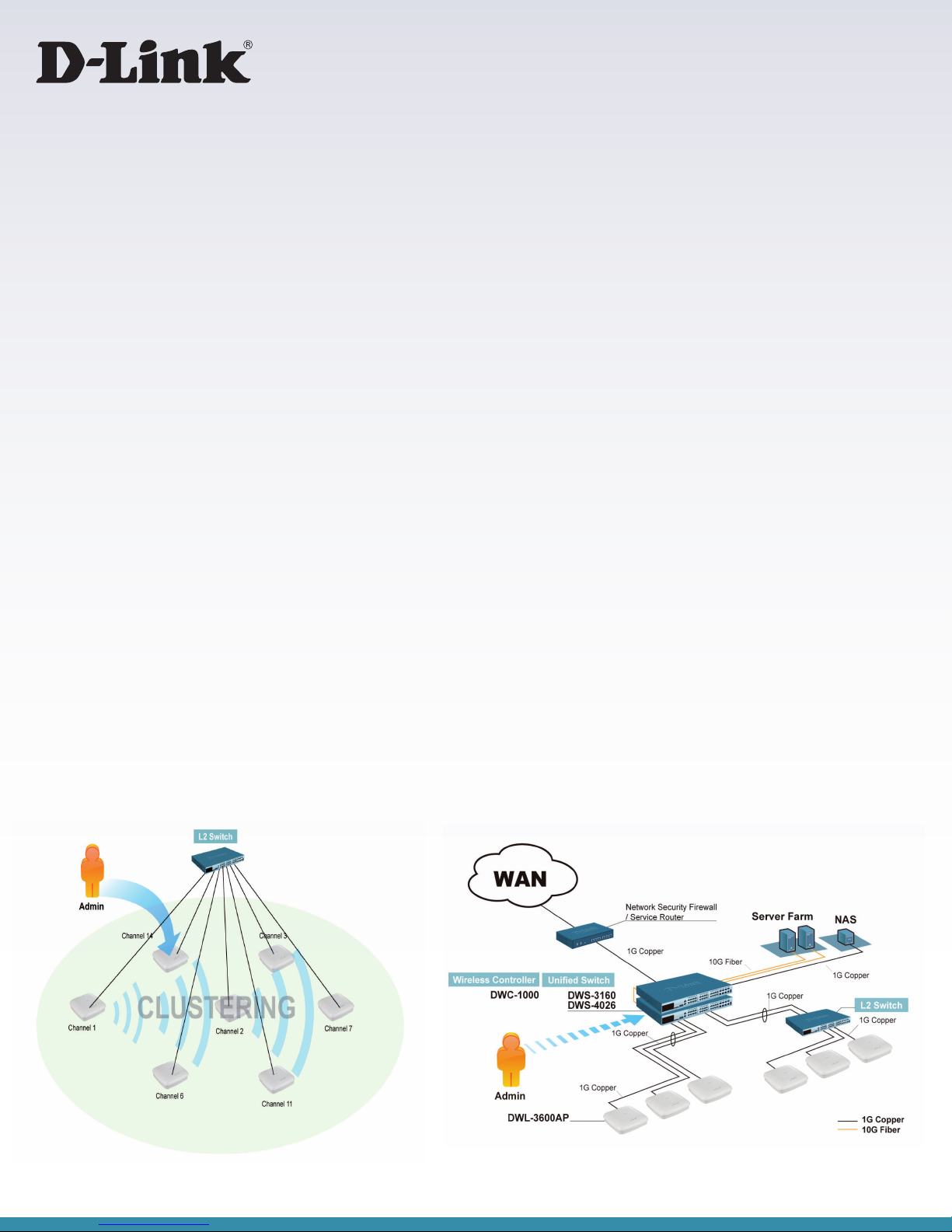

Deployment Scenario: AP Clustering Deployment Scenario: Unied Management

DWL-3600AP Unied N Access Point
Technical Specications
System
Wi-Fi Interface • 802.11b/g/n 2.4 GHz
LAN Interface • 10/100/1000 Gigabit Ethernet
Antenna • 2x2 MIMO embedded antenna with 4 internal antennas
Antenna Gain • 4.7 dBi
Power Method • IEEE 802.3af Power Over Ethernet or external power adapter
Wireless Frequency • 802.11b/g/n: 2.4 GHz - 2.497 GHz
Data Transfer Rate • 802.11n: 6.5 Mbps-130 Mbps (20 MHz)
6.5 Mbps- 300 Mbps (40 Mbps)
• 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
Operation Channel (2.4 GHz) • 11 channels for United States
System Management • HTTP/HTTPS Web-based User Interface • SNMP, SSH, Telnet Command Line
Security
SSID • 16 SSID • Station Isolation
Wireless Security • WEP • Dynamic WEP • WPA Personal/Enterprise • WPA2 Personal/Enterprise
Detection & Prevention • Rogue and Valid AP Classification
Authentication • MAC Address Filtering • 802.1x
Physical & Environmental
Power Adapter • 5V/2.5A
Power over Ethernet • 48 VDC +/- 10%
Stand-Alone Mode • WEP/WPA/WPA2 Security
• Rogue AP Detection
• Station Isolation
• MAC Address Filtering
• AP Load Balancing Setup
• WDS
• AP Clustering
• QoS/WMM
• Local Storage Configuration
Managed Mode
(Managed by D-Link Wireless Switch/
Wireless Controller)
• Centralized Management
• Centralized Firmware Dispatch
• Visualized AP Management Tool
• Auto-Power Adjustment
• Dynamic Auto-Channel Selection
• L2 Fast Roaming
• L3 Fast Roaming
• Captive Portal
• WEP/WPA/WPA2 Security
• Rogue AP Detection
• Rogue AP Mitigation
• WIDS
• Station Isolation
• MAC Address Filtering
• AP Load Balancing Setup
• WDS
• QoS/WMM
Dimensions • 7.99” x 7.99 “x 1.89” (203 x 203 x 48 mm)
Weight • 1.4 lbs (635 g)
Operating Temperature • 32°F to 104°F (0° to 40°C)
Operating Humidity • 10% to 90% non-condensing
EMI/EMC/RF • FCC Class B
• CE Class B
• C-tick,
• IC
• VCCI
• NCC
• TELEC
• Wi-Fi®
Safety • cUL, LVD (EN60950-1) • UL2043

Building Networks for People
DWL-3600AP Unied N Access Point
©2012 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, and D-ViewCam are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other
trademarks or registered trademarks are the property of their respective owners. Visit www.dlink.com for more details.
U.S.A. | 17595 Mt. Herrmann Street | Fountain Valley, CA 92708 | 800.326.1688 | dlink.com Canada | 2525 Meadowvale Blvd | Mississauga, ON L5N 5S2 | 800.361.5265 | dlink.ca
For more information
1300 Mbps is the maximum wireless signal rate as specified by the IEEE 802.11n standard. Actual data throughput will vary. The network and other factors, including volume of network traffic, building materials, and nearby radio interference
may lower actual data throughput.
2This feature is available when the DWL-3600AP is used in conjunction with D-Link’s line of Unified Wireless Switches.
Updated 04/10/12
Warranty
Warranty • Limited Lifetime
Ordering Information
Part Number Description
DWL-3600AP Unified N Access Point
Optional Products
DWC-1000 Unified Wireless Controller
DPE-101GI PoE Gigabit injector Power injector
DWS-3160-24TC Unified Wireless L2 Gigabit PoE Switch
DWS-3160-24PC Unified Wireless L2 Gigabit PoE Switch
DWS-4026 L2+ Unified Wired/Wireless Gigabit Switch Switch - 24 ports
