D-Link AirPremier N DAP-2310 User manual

無線網路基地台
AirPremier N Access Point

2D-Link DAP-2310 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction.............................................................. 5
Features .................................................................. 7
Wireless Basics ........................................................... 8
Standards-Based Technology ................................. 9
Wireless Installation Considerations...................... 10
Hardware Overview ............................................... 11
Four Operational Modes ........................................... 13
Getting Started........................................................... 14
............................................................. 15
Save and Activate Settings.................................... 16
Basic Settings........................................................ 17
Wireless .......................................................... 17

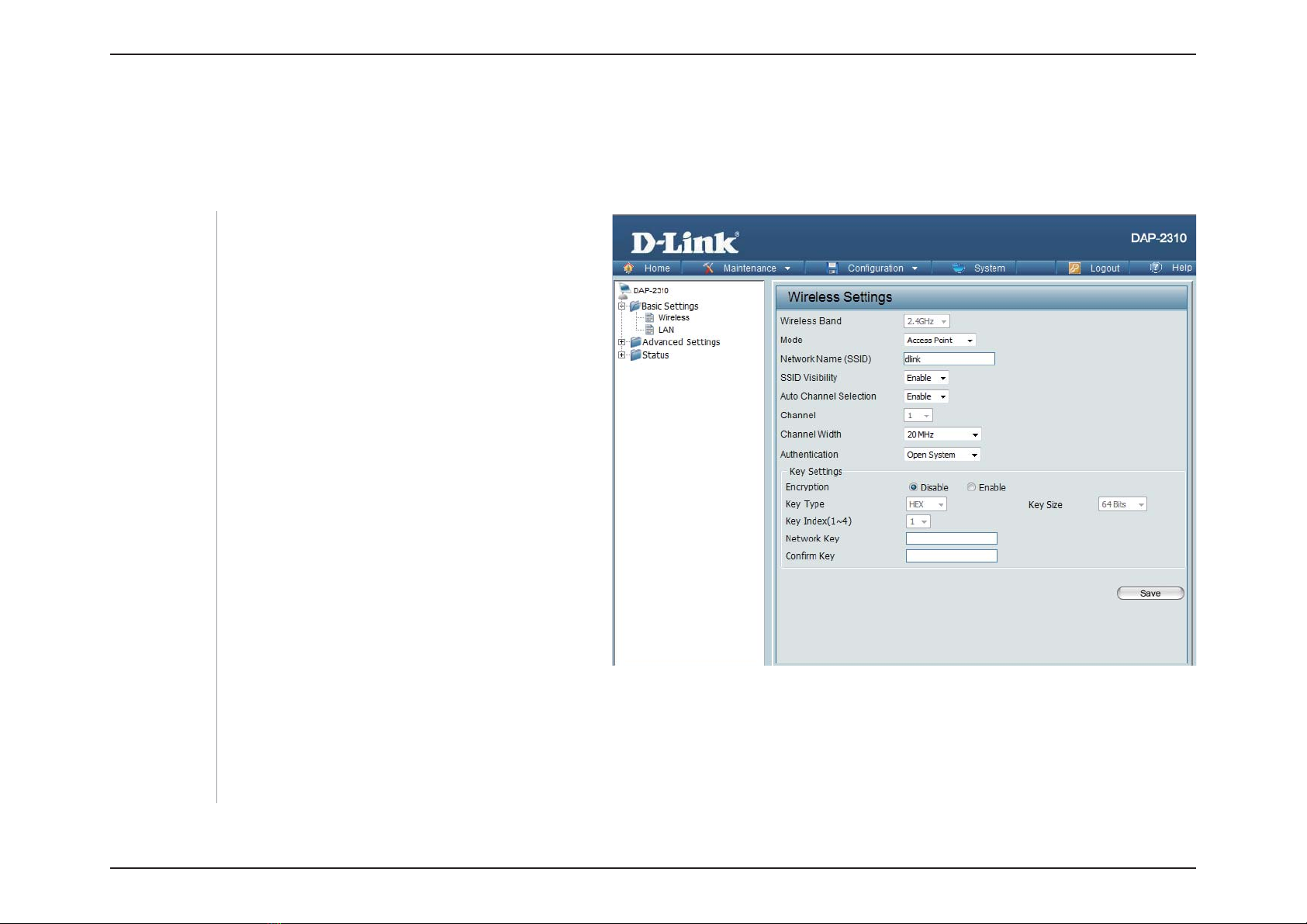

Access Point mode ...................................... 17

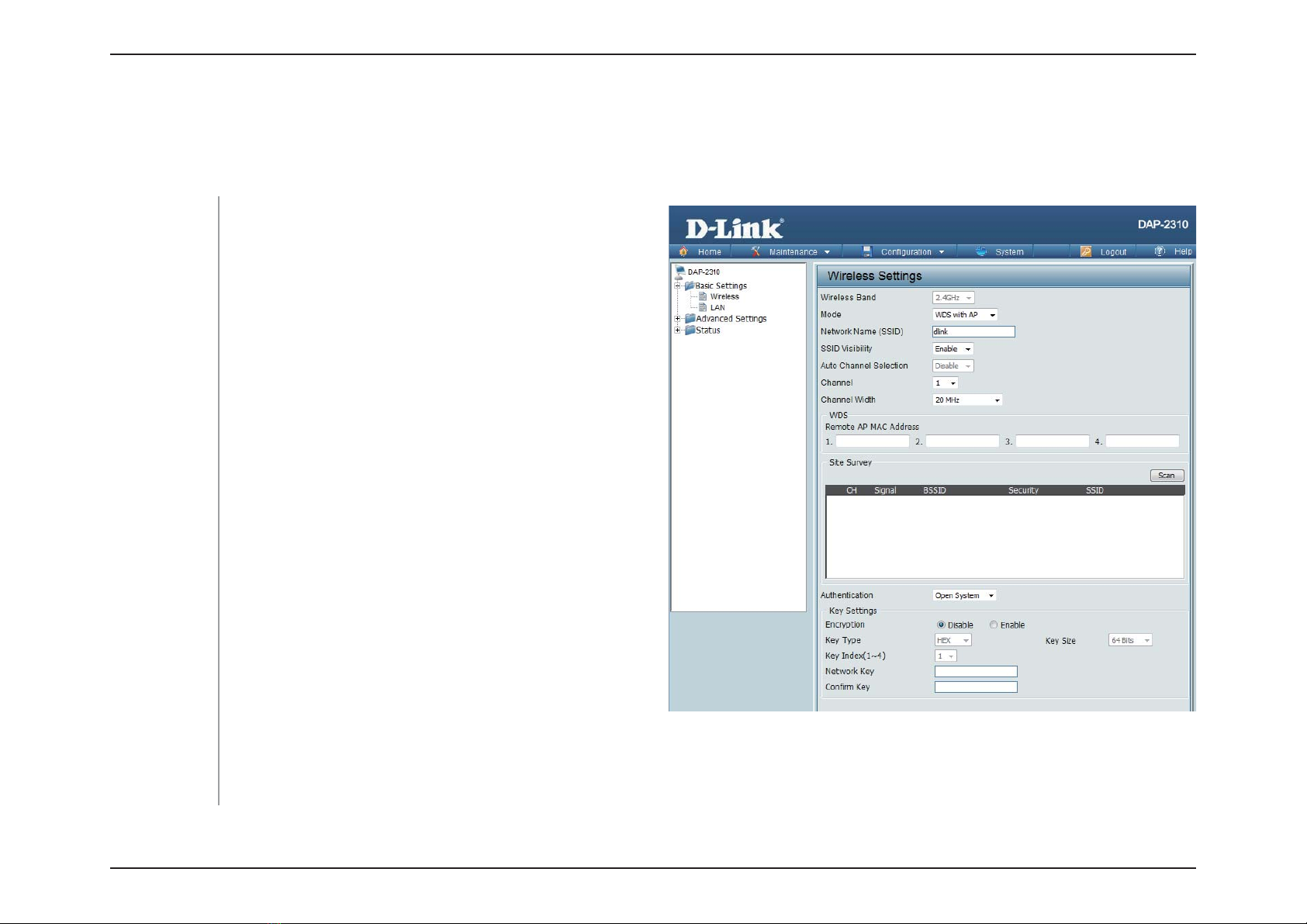

WDS with AP mode ..................................... 19

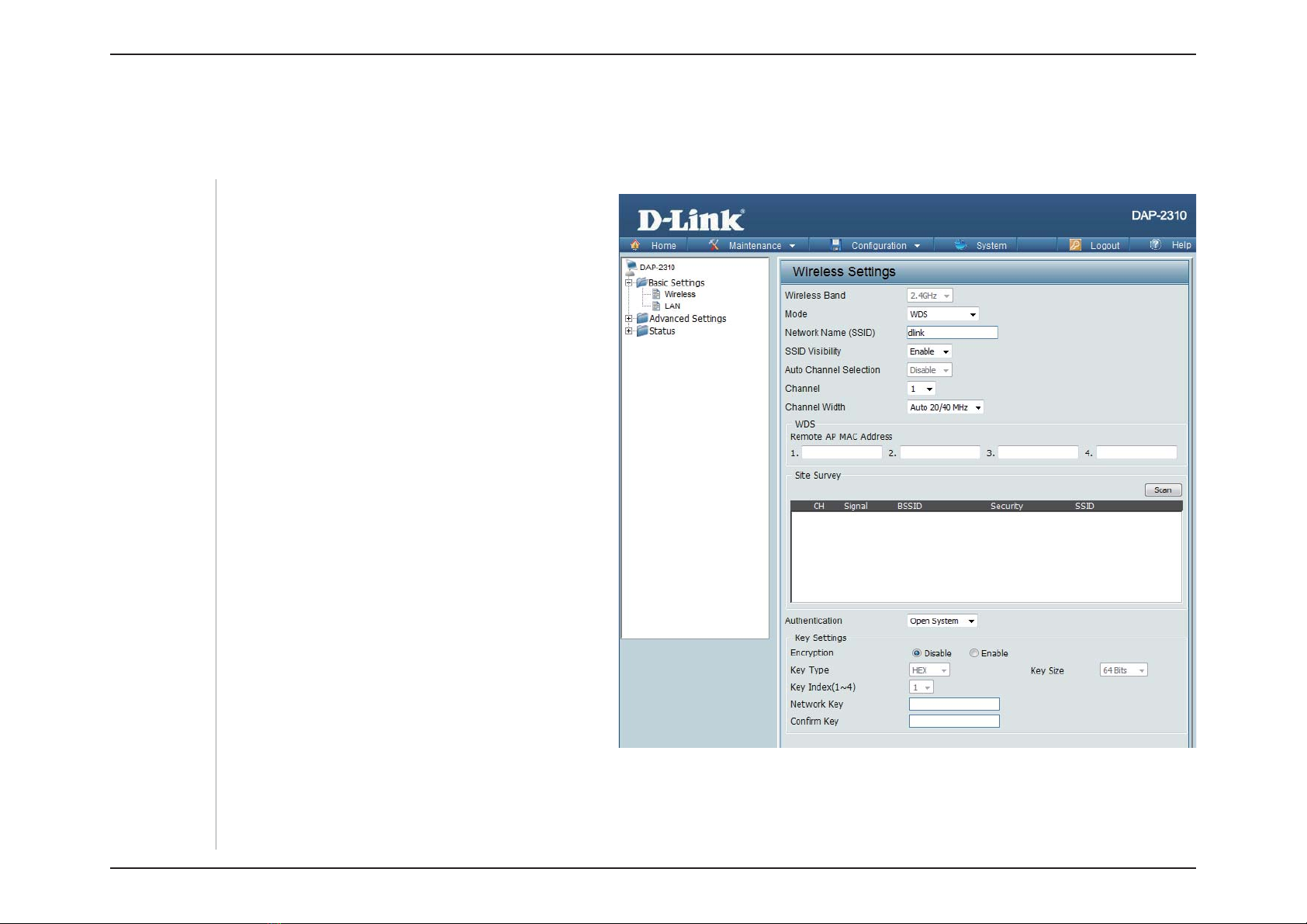

WDS mode................................................... 21
Wireless Client mode ...................................23
Open System/Shared Key Authentication ... 24
WPA/WPA2-Personal Authentication........... 25
WPA/WPA2-Enterprise Authentication ........ 26
802.1x Authentication................................... 27
LAN ................................................................. 28
Advanced Settings................................................. 29
Performance .................................................... 29
Multi-SSID........................................................ 31
VLAN ............................................................... 33
VLAN List ..................................................... 33
Port List ........................................................ 34
Add/Edit VLAN ............................................. 35
PVID Setting................................................. 36
Intrusion ........................................................... 37
Schedule.......................................................... 38
QoS.................................................................. 39
AP Array .......................................................... 41
Wireless Basic Settings................................ 42
Wireless Advanced Settings ........................ 42
Multiple SSID & VLAN.................................. 43
Advanced Functions..................................... 43
Administration Settings ................................ 43
 ................................ 44
DHCP Server .................................................. 45
Dynamic Pool Settings ................................. 45
Static Pool Setting........................................ 47
Current IP Mapping List ............................... 49
Filters ............................................................... 50
Wireless MAC ACL ...................................... 50
WLAN Partition............................................. 51
Status ................................................................... 52
Table of Contents

3D-Link DAP-2310 User Manual
Table of Contents
Device Information........................................... 52
Client Information............................................. 53
WDS Information ............................................. 54
Stats................................................................. 55
Ethernet........................................................ 55
................................................ 56
Log................................................................... 57
View Log ...................................................... 57
Log Settings ................................................. 58
Maintenance ......................................................... 59
Administration Settings .................................... 59
Limit Administrator ....................................... 60
System Name Settings................................. 61
Login Settings .............................................. 62
Console Settings .......................................... 63
SNMP Settings............................................. 64
 ................ 65
 ...................................... 66
Time and Date .......................................................67
System............................................................. 68
System Settings ........................................... 68
Help ....................................................................... 69
Troubleshooting ........................................................ 70
Networking Basics .................................................... 72
Check your IP address .......................................... 72
Statically Assign an IP address ............................. 73
........................................... 74

4D-Link DAP-2310 User Manual

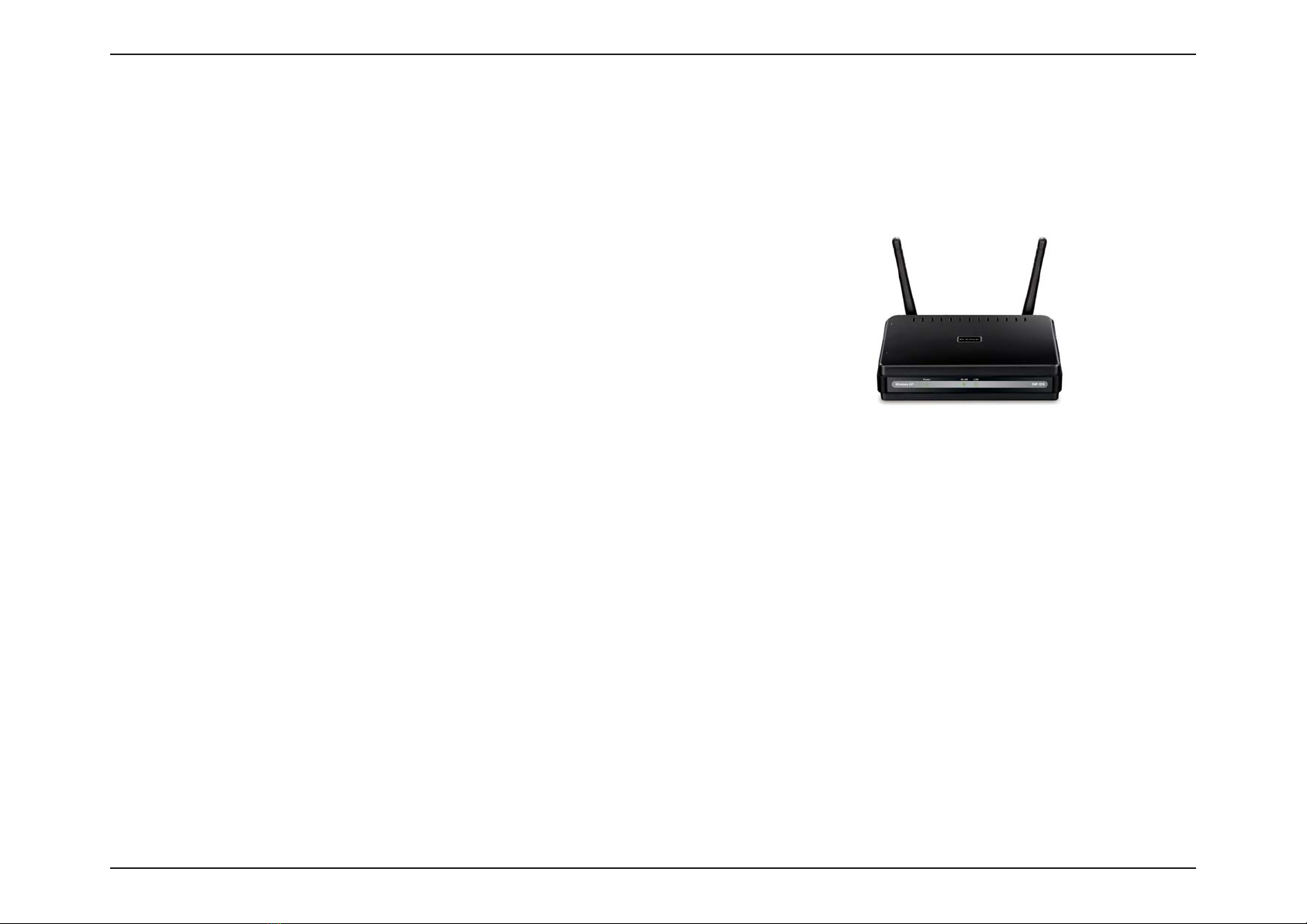

Section 1 - Product Overview
AirPremier®N Access Point




System Requirements
®, Macintosh®, or Linux-based operating systems with an installed Ethernet
Adapter

  ®Internet Explorer®6.0 and higher
   
   ™ Chrome 2.0 and higher
  
Product Overview
Package Contents
Note: Using a power supply with a different voltage rating than the one included
with the DAP-2310 will cause damage and void the warranty for this product.

5D-Link DAP-2310 User Manual
Section 1 - Product Overview
Introduction


able to move across the network quickly.

Distribution System) with AP, WDS, or Wireless Client mode.


is backwards compatible with 802.11g and 802.11b devices.)

WPA-Personal and WPA2-Personal are directed towards home users who do not have the server-based equipment



offers per-packet dynamic hashing. It also includes an integrity checking feature which ensures that the packets were
not tampered with during wireless transmission.
WPA-Enterprise and WPA2-Enterprise are ideal for businesses that already have existing security infrastructures

  

6D-Link DAP-2310 User Manual
Section 1 - Product Overview



where an employee leaves the company, the network administrator is able to remove the previous employee from the

®



lower actual data throughout rate.

7D-Link DAP-2310 User Manual
Section 1 - Product Overview
Four different operation modes - Capable of operating in one of four different operation modes to meet your

 Faster wireless networking with the 802.11n standard to provide a maximum wireless signal rate of up to 300
Mbps*.
 Compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps, allowing you to migrate

 
range.
 Better security with WPA - 
Protected Access) to provide a much higher level of security for your data and communications than its previous
versions.
 AP Manager II management software - The real-time display of the network's topology and AP’s information

 SNMP for management - The DAP-2310 is not just fast, but also supports SNMP v.3 for better network

              
             

 
 Supports one 10/100/1000M Ethernet port.
 
 


Features

8D-Link DAP-2310 User Manual
Section 2 - Installation
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to
use within your home, business or public access wireless networks. D-Link wireless products provides you with access
to the data you want, whenever and wherever you want it. Enjoy the freedom that wireless networking can bring to you.




Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards,
allowing wireless users to use the same applications as those used on a wired network.

Mobility - productivity increases when people can have access to data in any location within the operating range

of a worker.
Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently

wiring may be impractical.
Installation and network expansion - by avoiding the complications of troublesome cables, a WLAN system
can be fast and easy during installation, especially since it can eliminate the need to pull cable through walls

Inexpensive solution - wireless network devices are as competitively priced as conventional Ethernet network

modes.
Scalability 
number of users to larger Infrastructure networks to accommodate hundreds or thousands of users, depending
on the number of wireless devices deployed.

9D-Link DAP-2310 User Manual
Section 2 - Installation
Standards-Based Technology

The IEEE 802.11n standard is an extension of the 802.11b and 802.11g standards that came before it. It increases




technology. OFDM works by splitting the radio signal into multiple smaller sub-signals that are then simultaneously

transmissions.
The D-Link DAP-2310 will automatically sense the best possible connection speed to ensure the greatest possible
speed and range.
IEEE 802.11n offers the most advanced network security features available today, including WPA.



10D-Link DAP-2310 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link AirPremier®N wireless access point lets you access your network using a wireless connection from virtually
anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and
location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical


1. Keep the number of walls and ceilings between the access point and other network devices to a minimum.


2                   


of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect
on the range. Try to position access points, wireless routers, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,

4    
generate RF noise.
5
home security systems), your wireless connection may degrade dramatically or drop completely. Make

a signal even if the phone in not in use.

11D-Link DAP-2310 User Manual
Section 2 - Installation
Hardware Overview
Power LED
This light will be solid green when the unit is powered on.
WLAN LED

use.
LAN LED

Power Receptacle
The supplied power adapter connects here.
Reset Button
A pinhole button located beside the Ethernet socket is used to reset
the system or restore the factory default settings.
Note: After resetting the unit, you will still be able to access the
data on your hard drives.
LAN Port
An Ethernet port that connects the unit to a network.

12D-Link DAP-2310 User Manual
Section 2 - Installation
Wireless Client AP acts as a wireless network adapter for your Ethernet-
enabled device
 Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still
functioning as a wireless AP
WDS Wirelessly connect multiple networks
Four Operational Modes

13D-Link DAP-2310 User Manual
Section 2 - Installation
Getting Started

2. Consult with your cable or DSL provider for proper installation of the modem.

4. If you are connecting a desktop computer to your network, install a wireless PCI adapter into an available
PCI slot on your desktop computer.
5. Install the drivers for your wireless CardBus adapter into a laptop computer.

14D-Link DAP-2310 User Manual


 Network

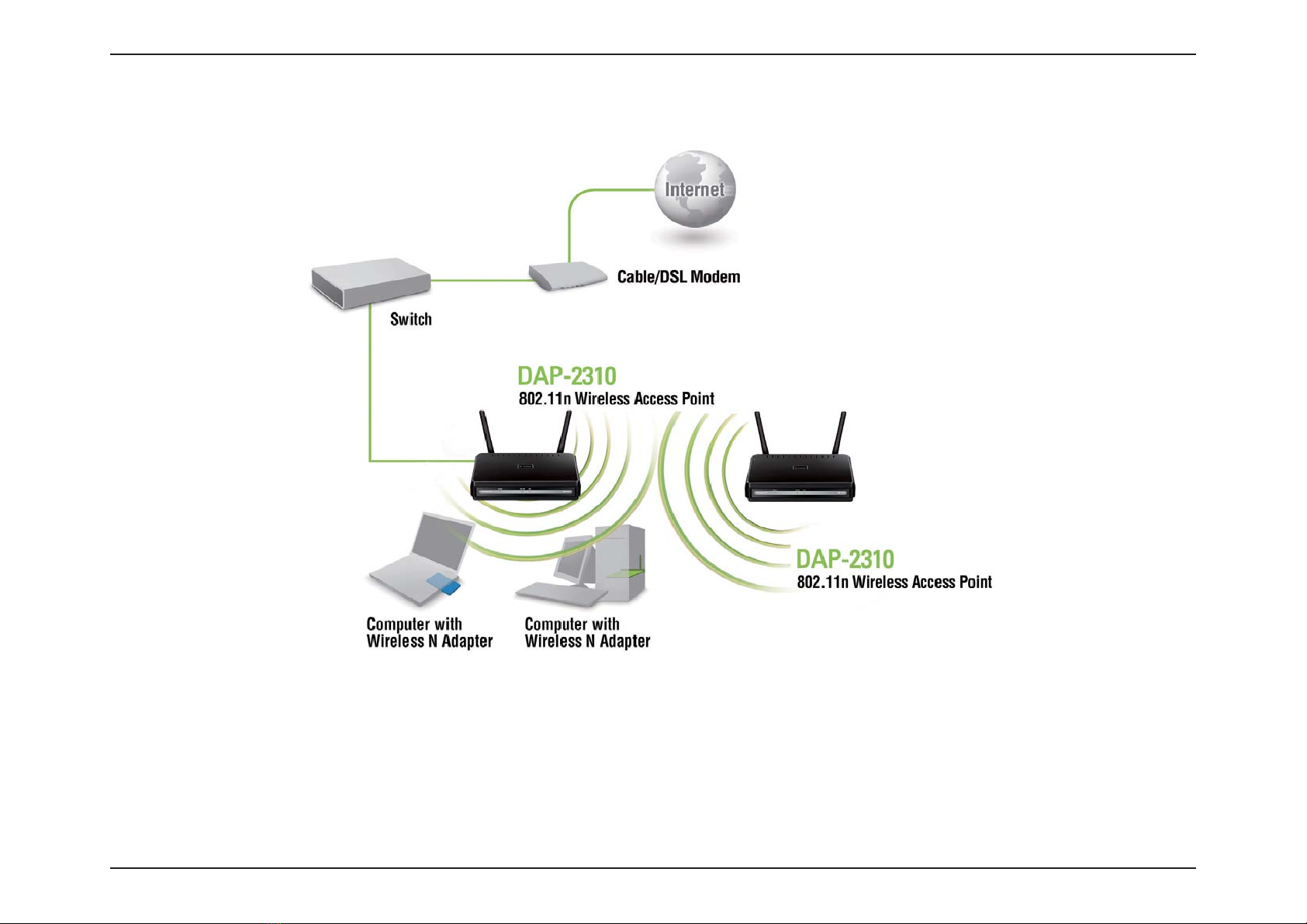

Layout diagram
).

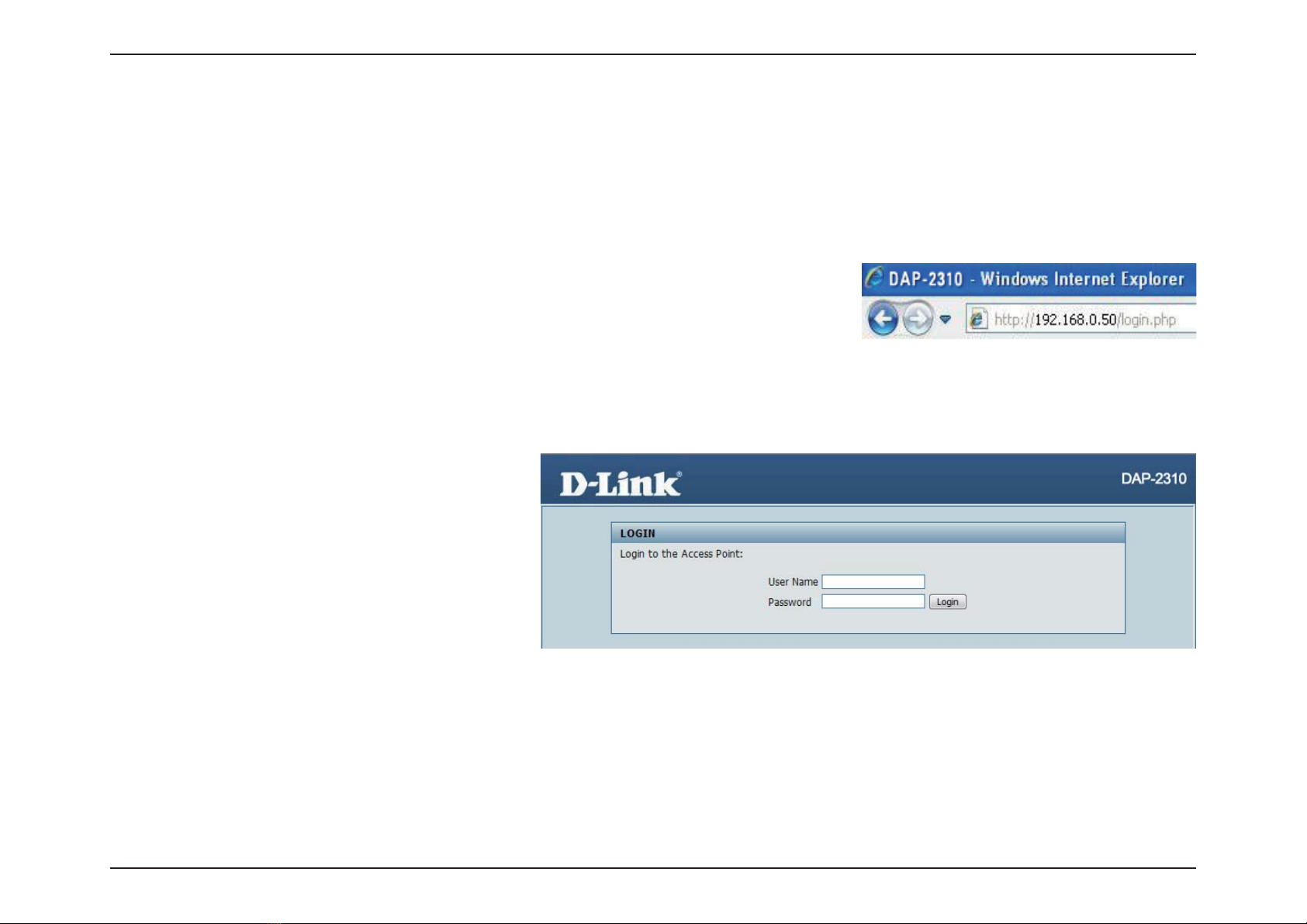

Launch your web browser.
http://192.168.0.50)
and press Enter. Make sure that the IP addresses of the DAP-2310 and your
computer are in the same subnet.
Note: If you have changed the default IP address assigned to the DAP-2310, make sure to enter the correct IP address.
adminLogin.
Note: If you have changed the password, make
sure to enter the correct password.

15D-Link DAP-2310 User Manual


  

 button

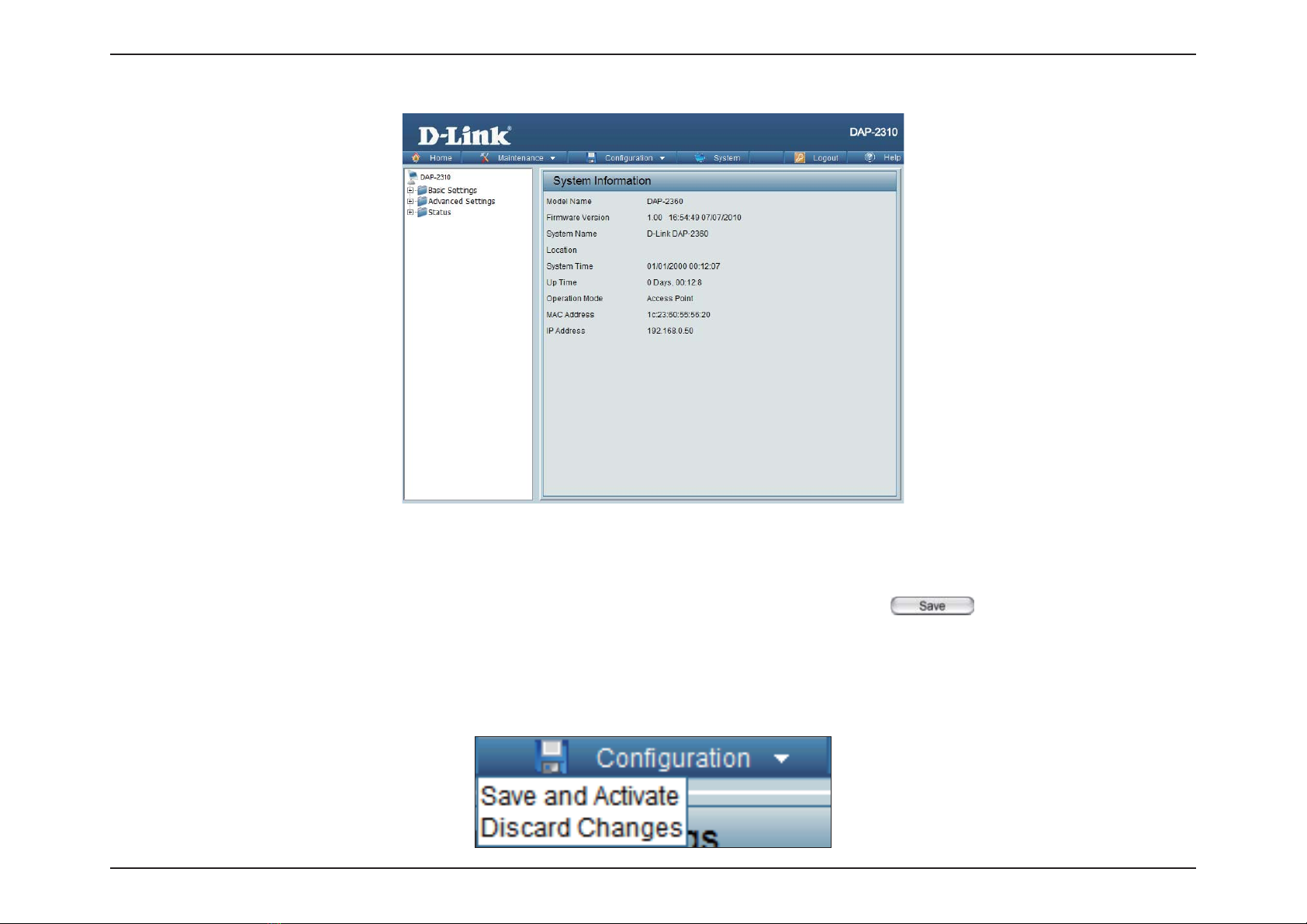

located at the top of the page and then click Save and Activate.
Save and Activate Settings

16D-Link DAP-2310 User Manual

Basic Settings
Wireless
Access Point mode
Select Access Point from the drop-down
menu. The other three choices are WDS with
AP, WDS, and Wireless Client.
      
      
     
setting is dlink. The SSID can be easily
changed to connect to an existing wireless
network or to establish a new wireless network.
The SSID can be up to 32 characters and is
case-sensitive.
Enable or Disable SSID visibility. Enabling
this feature broadcasts the SSID across the
network, thus making it visible to all network
users.
Enabling this feature automatically selects the
channel that provides the best wireless performance. Enable is set by default. The channel selection process only occurs
when the AP is booting up.

setting to Disable, and then use the drop-down menu to make the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Mode:
Network Name
(SSID):
SSID
Visibility:
Auto Channel
Selection:
Channel:
Wireless Band: Select 2.4GHz from the drop-down menu.

17D-Link DAP-2310 User Manual

Channel Width:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless
clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g wireless devices on your network.
Use the drop-down menu to choose Open System, Shared Key, WPA-Personal, WPA-Enterprise,or 802.11x.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled,
this option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
Select 802.1x to secure your network using 802.1x authentication.

18D-Link DAP-2310 User Manual

WDS with AP mode
WDS with AP mode is selected from the drop-down
menu.


SSID’s factory default setting is dlink. The SSID can
be easily changed to connect to an existing wireless
network or to establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature
broadcasts the SSID across the network, thus making
it visible to all network users.
Enabling this feature automatically selects the channel
that will provide the best wireless performance. This
feature is not supported in WDS with AP mode. The
channel selection process only occurs when the AP
is booting up.
To change the channel, use the drop-down menu
       
adapters will automatically scan and match the
wireless settings.)

Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Wireless Band:
In WDS with AP mode, the DAP-2310 wirelessly connects multiple networks while still functioning as a wireless AP.
Select 2.4GHz from the drop-down menu.

19D-Link DAP-2310 User Manual

Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to
connect with.
Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled,
this option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Remote AP
MAC Address:
Site Survey:
Authentication:

20D-Link DAP-2310 User Manual

WDS mode
In WDS mode, the DAP-2310 wirelessly connects multiple networks, without functioning as a wireless AP.
WDS is selected from the drop-down menu.
      
      
     
setting is dlink. The SSID can be easily changed
to connect to an existing wireless network or to
establish a new wireless network.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Enabling this feature automatically selects
the channel that will provide the best wireless
performance. This feature is not supported in
WDS mode.
All devices on the network must share the
same channel. To change the channel, use the
drop-down menu to make the desired selection.
Use the drop-down menu to choose 20 MHz or
Auto 20/40 MHz.
Enter the MAC addresses of the APs on your
network that will serve as bridges to wirelessly
connect multiple networks.
Mode:
Network
Name (SSID):
SSID
Visibility:
Auto Channel
Selection:
Channel:
Channel
Width:
Remote
AP MAC
Address:
Wireless Band: Select 2.4GHz from the drop-down menu.
