D-Link DWL-7100AP User manual

AirPremierTM AG Tri-mode
Dualband Wireless Access Point
Quick Install Guide+
Руководство по быстрой установке+
Guía de instalación rápida+
Guia de instalação rápida+
快速安裝手冊+
Petunjuk Pemasangan Cepat+
DWL-7100AP

2
This product can be set up using
any current Web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3 or later.
5V DC, 2.0A
Power Adapter
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specications subject to change without notice.
Before You Begin
Check Your Package Contents
DWL-7100AP Wireless Access Point
CD-ROM (containing Manual and Warranty)
Ethernet Cable
If any of the above items are missing, please contact
your reseller.
The default IP address for the DWL-7100AP is 192.168.0.50 with a subnet mask
of 255.255.255.0. For the purpose of configuring the DWL-7100AP you will
need to assign your computer a static IP address within the same range as the
DWL-7100AP’s IP address. See the Manual on the CD-ROM if you need assistance
in assigning a static IP address for your network adapter.
Using a power
supply with a
different voltage rating
will damage and void the
warranty of this product.
DWL-7100AP
D-Link AirPremierTM AG
Tri-mode Dualband Wireless
Access Point

3
Connecting The DWL-7100AP To
Your Network
A. First, connect the power adapter to the receptor at the back panel of
the DWL-7100AP and then plug the other end of the power adapter
to a wall outlet or power strip. The Power LED will turn ON to indicate
proper operation.
B. Insert an Ethernet cable into the LAN port on the back panel
of the DWL-7100AP and an available Ethernet port on the network
adapter in the computer you will use to congure the DWL-7100AP.
The Link LED for the LAN Port will illuminate to indicate a proper
connection.
C. Computers with 802.11a/b/g wireless adapters can connect to the
DWL-7100AP. The DWL-AG660 AirPremierTM Wireless Cardbus
Adapter and the DWL-AG530 AirPremierTM Wireless PCI Adapter will
connect, out of the box, with the DWL-7100AP, using their default
settings.

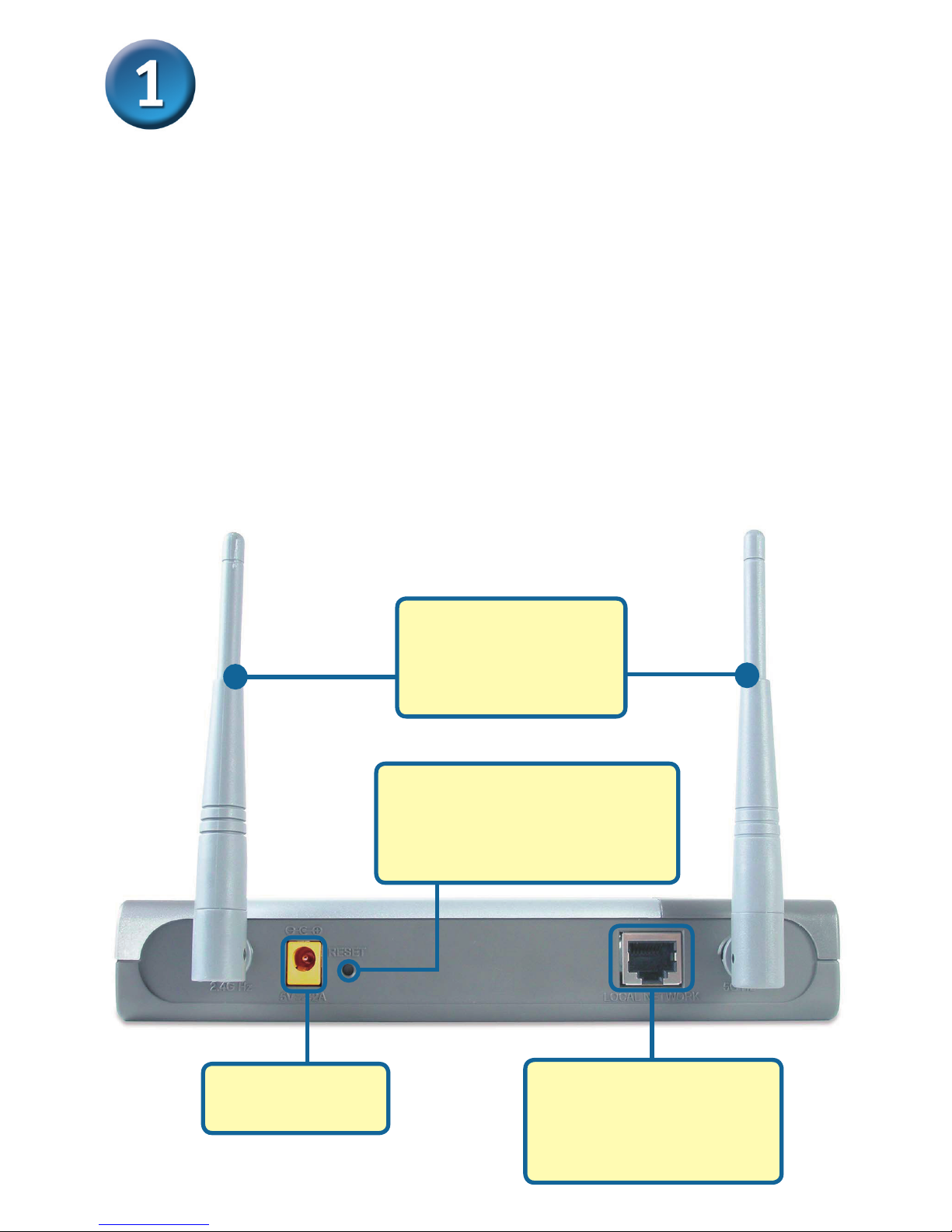

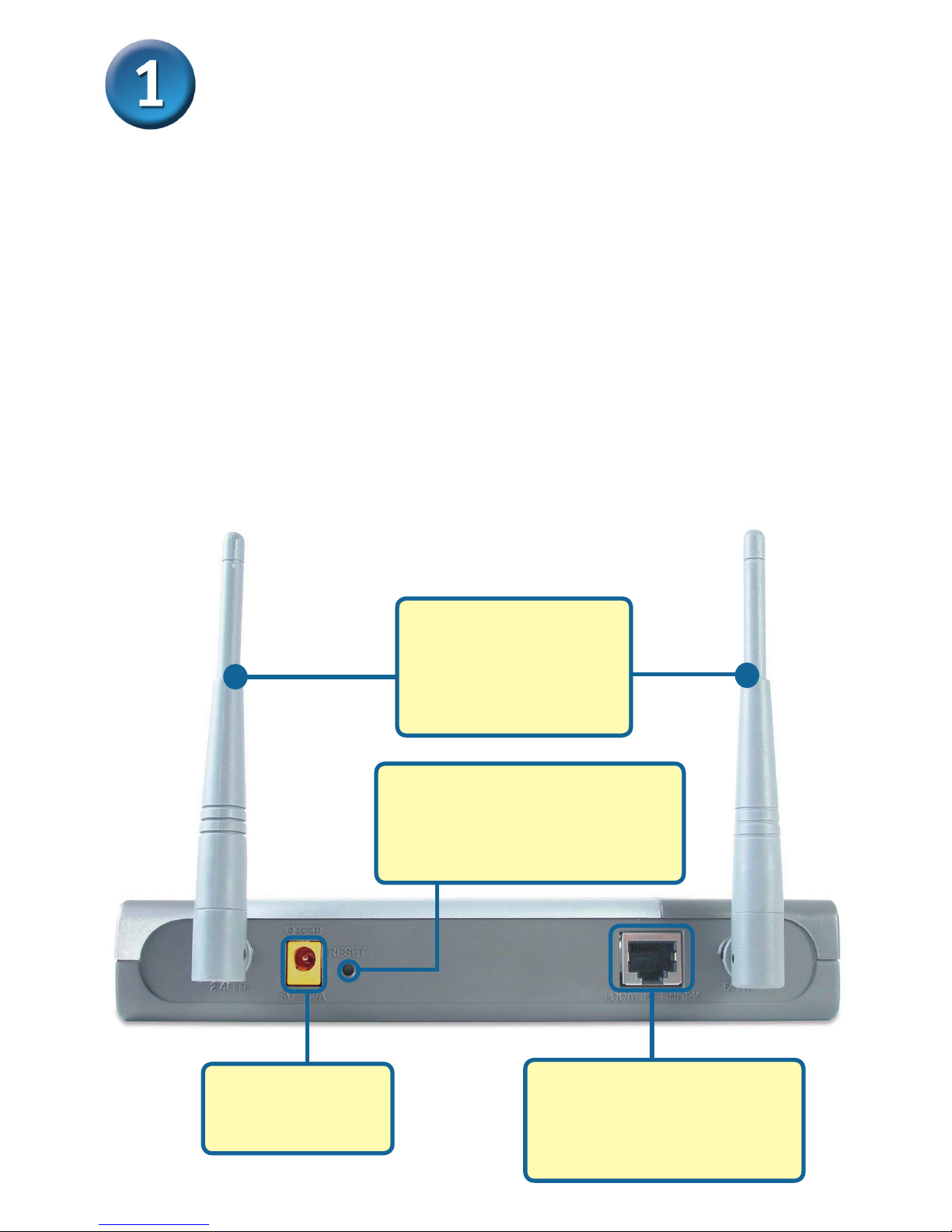

A. Receptor for
Power Adapter.
Reset Button
Pressing this button restores
the access point to its original
factory default settings.
B. LAN Port is for
connecting to a switch
on the local network
with an Ethernet cable
C. Antennas
Used to wirelessly
connect to 802.11a/b/g
adapters.

4

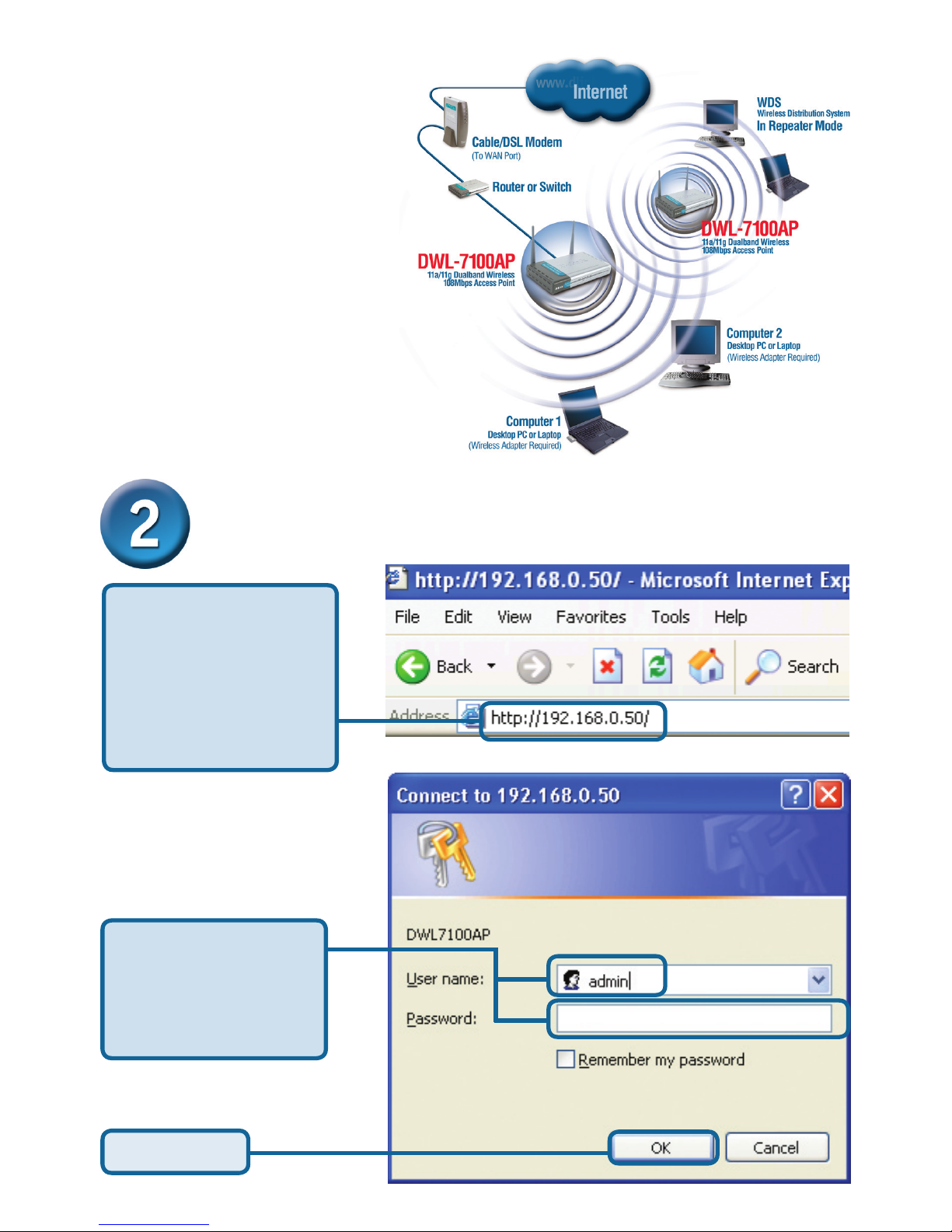

Using The Setup Wizard
When you have completed
the steps in this Quick
Installation Guide, your
connected network should
look similar to this:
The logon pop-up
screen will appear.
Type “admin” for the
username and leave
the password eld
blank.
Open your Web
browser and type
“http://192.168.0.50”
into the URL address
box. Then press the
Enter or Return key.
Click OK

5

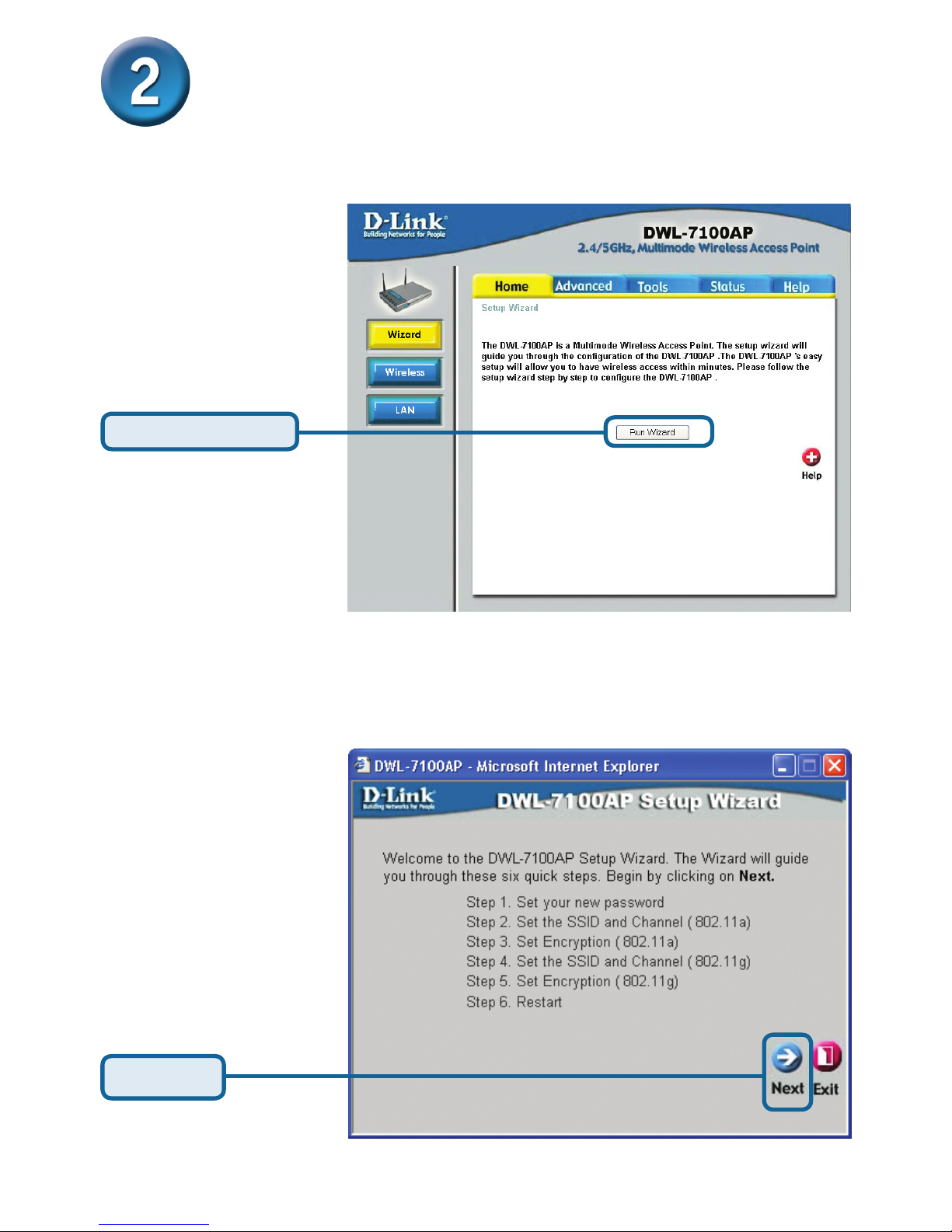

Using The Setup Wizard (continued)

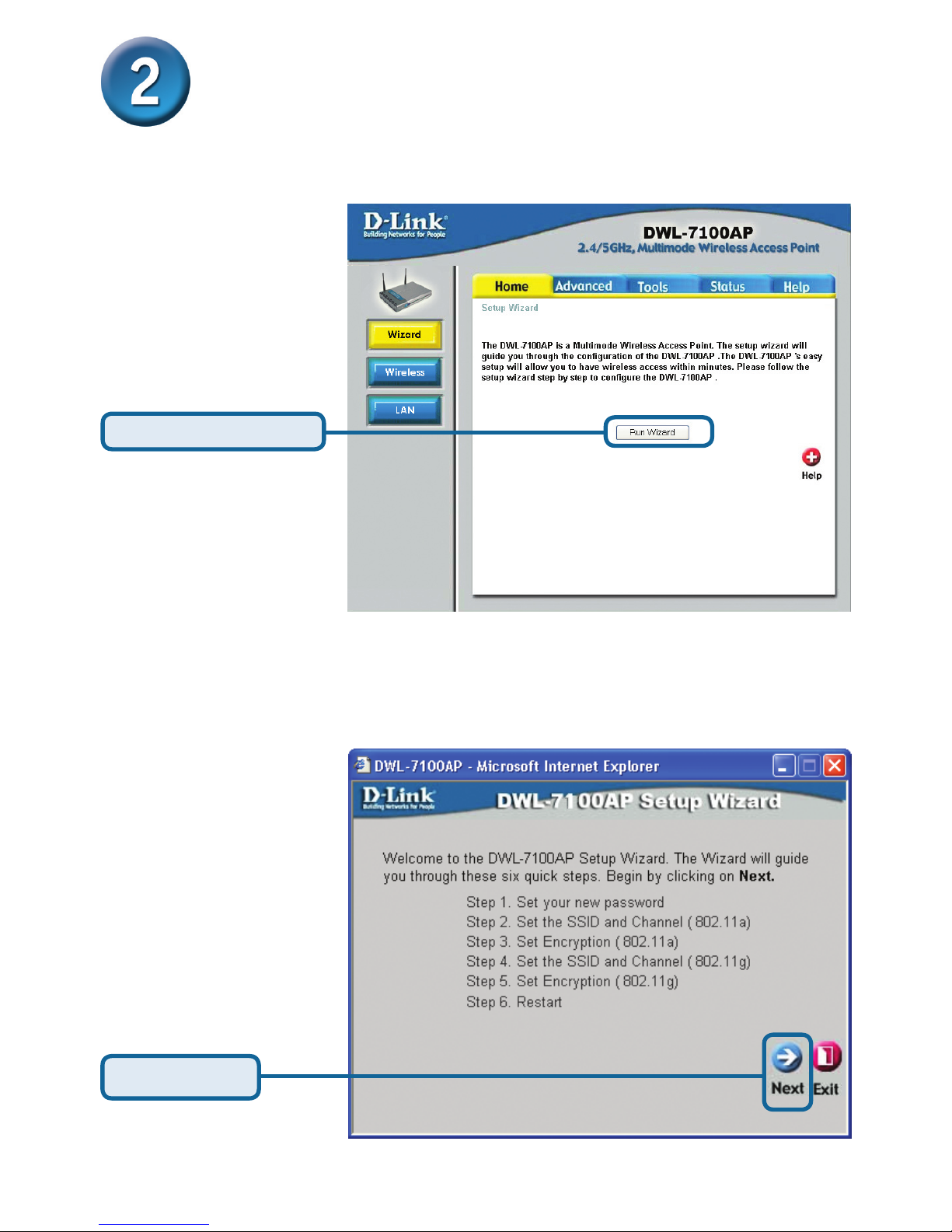

Once you have logged
in, the Home screen will
appear.
You will see the following
screens.
Click Run Wizard
Click Next

6
Click Next

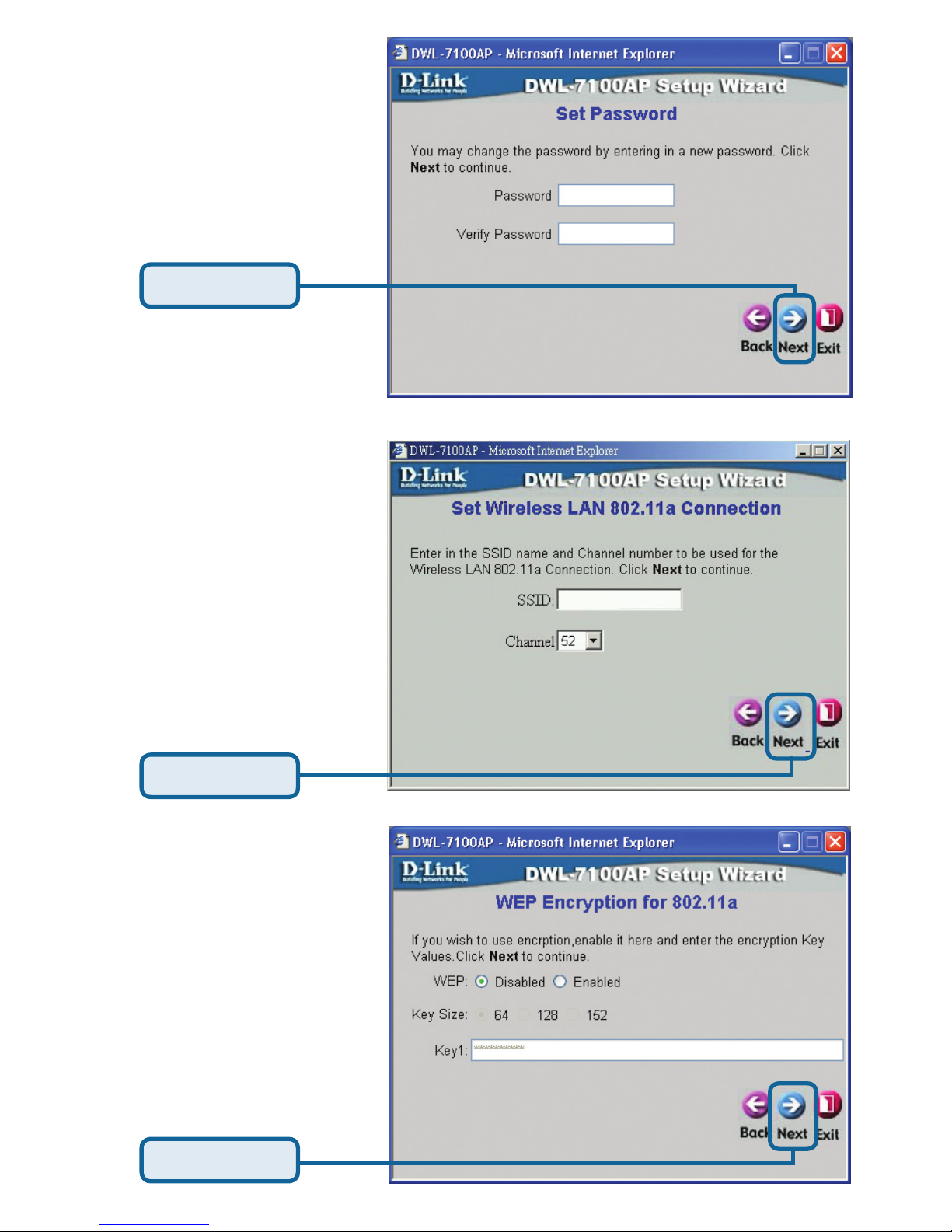

Step 1 - Set up your
new password. You
have the option to
establish a password.
Step 2 - Wireless LAN
802.11a Setup
The default wireless
settings are:
SSID = dlink
Channel = 52
You can change these
settings to match an
existing wireless network.
Step 3 - WEP Encryption
for 802.11a
The DWL-7100AP is
capable of 64-, 128-, and
152-bit encryption. Select
the key size you wish to
use and enter the key
in the eld provided. By
default, WEP is Disabled.
Click Next
Click Next
dlink

7
Your Setup is Complete!
Click Next
Click Restart

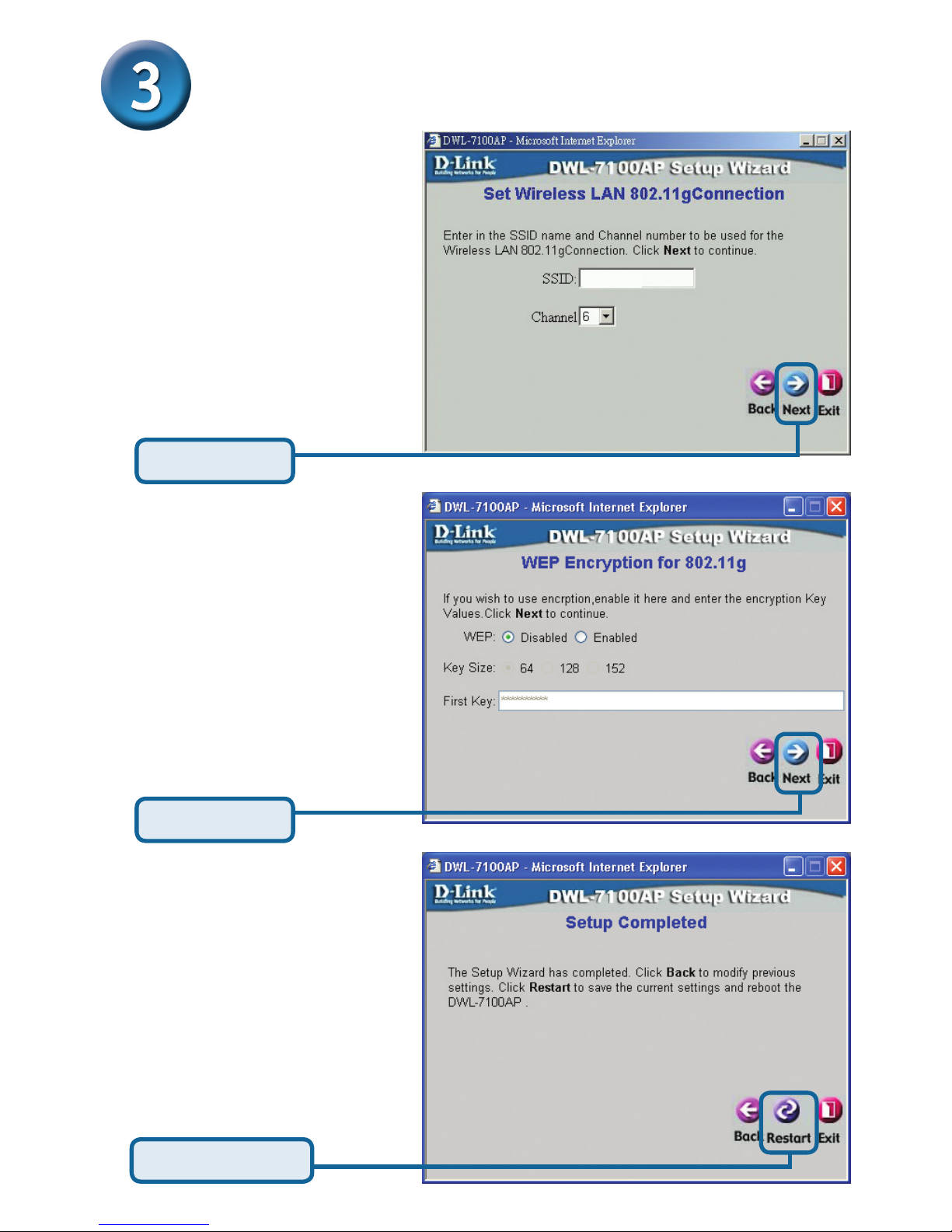

Step 2 - Wireless LAN
802.11g Setup
The default wireless
settings are:
SSID = dlink
Channel = 6
You can change these
settings to match an
existing wireless network.
Step 3 - WEP Encryption
for 802.11g
The DWL-7100AP is
capable of 64-, 128-, and
152-bit encryption. Select
the key size you wish to
use and enter the key
in the eld provided. By
default, WEP is Disabled.
Click Next
dlink

8

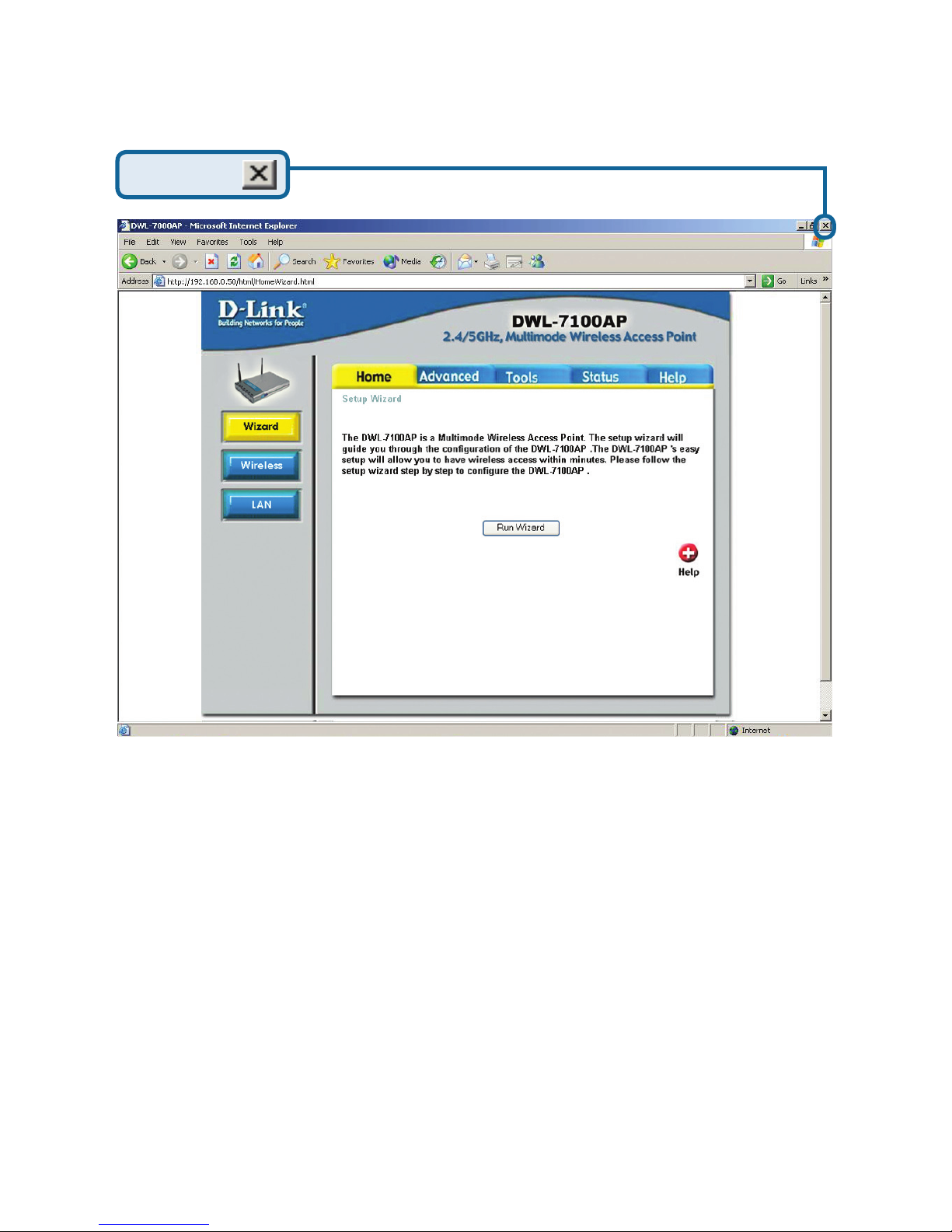

You will be returned to the Home tab.
Click to Exit
For additional settings or information, refer to the Advanced, Tools, or
Status tabs on the web-management interface; or to the manual located
on the CD-ROM.
