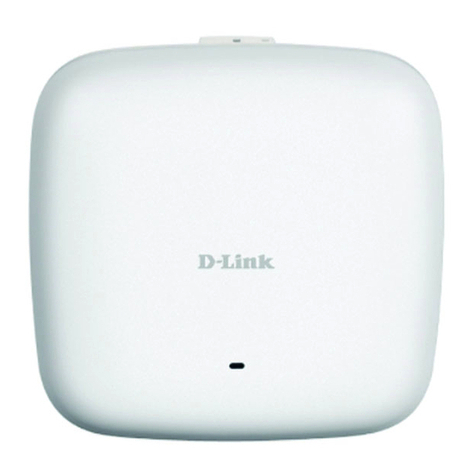

D-Link NUCLIAS CONNECT DAP-2680 User manual

This document will guide you through the basic installation
process for your new D-Link Wireless AC Access Point.
DAP-2680
Quick Installation Guide
Nuclias Connect AC1750 Wave 2 Dual Band PoE Access Point

D-Link DAP-2680 Quick Start Guide
2
ENGLISH
DAP-2680 Quick Start Guide
This installation guide provides basic instructions for installing the DAP-2680 Wireless Access
Point on your network. For additional information about how to use the Access Point, please
see the User’s Manual which is available on the CD included in this package or from the
D-Link support website.
System Requirements
Minimum System Requirements:
• an Ethernet port, or an installed Ethernet adapter
• Internal Explore 11, Safari 7, Firefox 28, Google Chrome 33 or later versions of these
browsers
1. Package Contents
DAP-2680 802.11ac Power over Ethernet (PoE) Access Point
Mounting Brackets
Ceiling Brackets
Quick Start Guide
If any of the above items are missing, please contact your reseller.
NOTE no PSU supplied. To power the units use an D-Link 802.3at PoE switch or the D-Link
DPE-301GI PoE injector.

D-Link DAP-2680 Quick Start Guide 3
ENGLISH

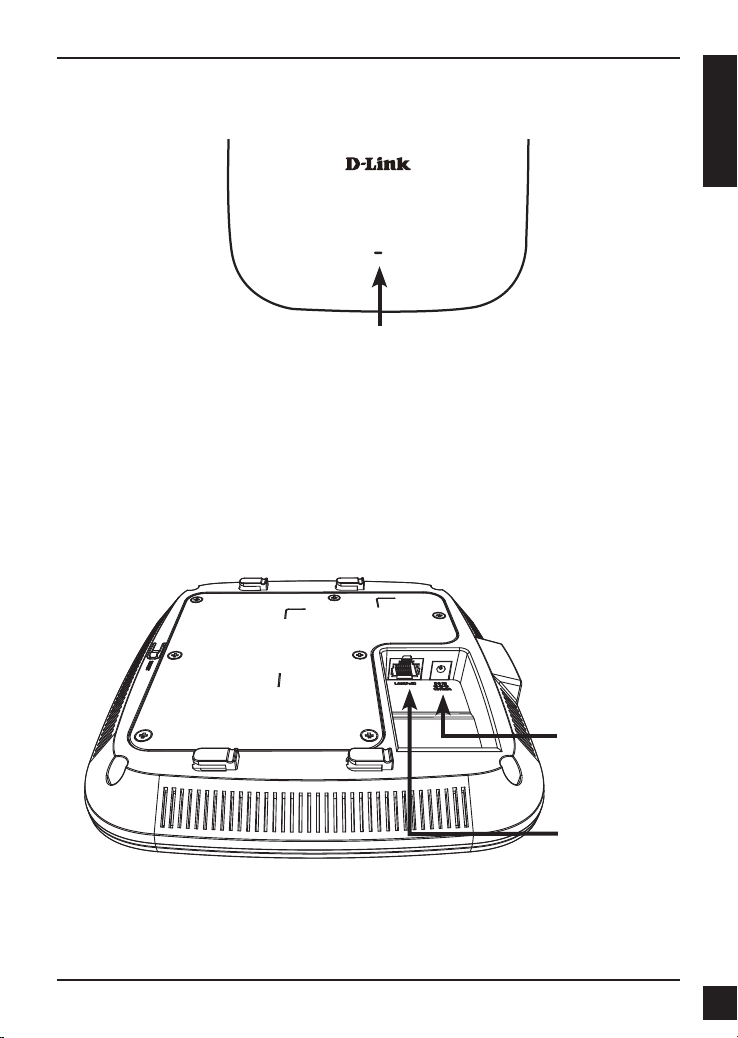

2. Hardware Overview
LED
Power/Status LED - Dual color (Red/green)
. Flash Red during booting up or malfunction
. Static Green while it’s ready/working
. Solid Red while boot up fail
Interfaces
Power Receptor
(*Note no longer
used, replaced
by PoE)
LAN Port (PoE)
* PoE kit (injector and adapter) is NOT include in the package and it can be purchased
with the model name "DPE-301GI".

D-Link DAP-2680 Quick Start Guide
4
ENGLISH
Power on the access point
To power on the DAP-2680, you can use ONE of the following methods:
1. Plug one end of your Ethernet cable into the LAN port of the DAP-2680, and the other
end into a port on a 802.3at PoE switch.
2. Purchase separately a DPE-301GI PoE injector if you need to connect the Access
Point without a 802.3at PoE Switch.
Congure the access point
To set up and manage the DAP-2680, use one of the following methods:
1. Connect the access point and your computer to the same switch. Manage the access
point from the computer.
Enter http://dap2680macxxxx.local/ (xxxx means mac’s last four characters) in the
address field of your browser, which is the default IP address of the access point.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin
2. Connect the access point and your computer via DPE-301GI. Manage the access
point from the computer.
Ensure your computer is congured with a static IP address in 192.168.0.0/24 subnet.
Launch a web browser, type the default IP address of the access point http://
dap2680macxxxx.local/ (xxxx means mac’s last four characters) and then press Enter.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin

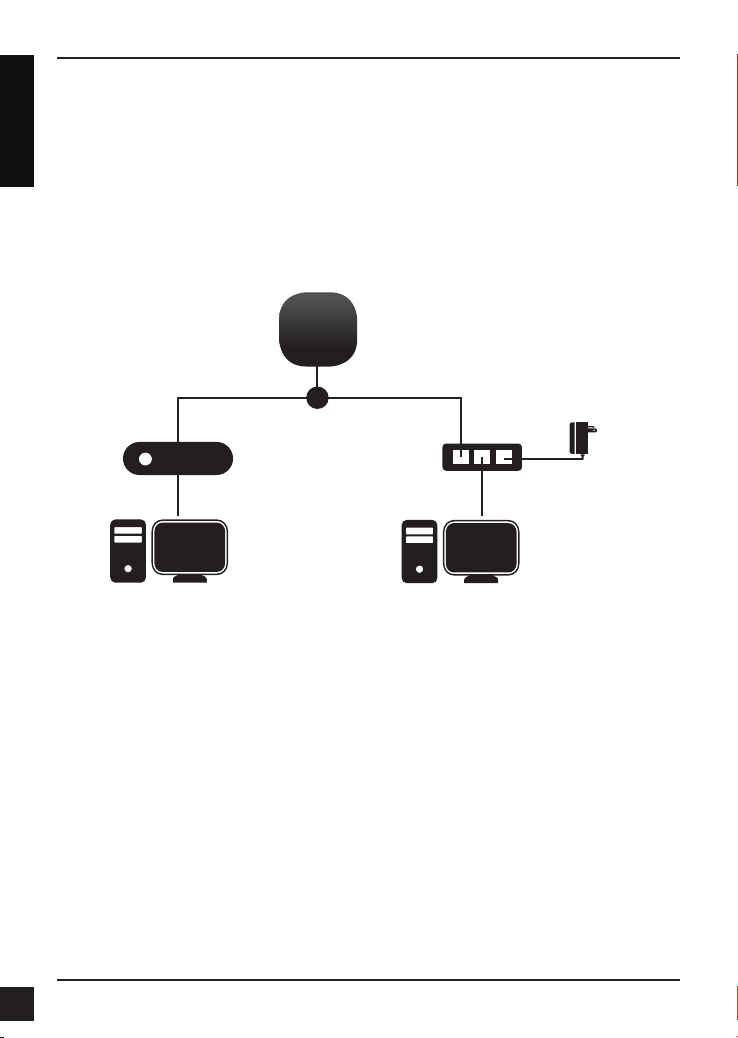

3. Installation
OR
Computer
802.3at PoE Switch
DAP-2680
Computer
PoE Injector
Power
Adapter

D-Link DAP-2680 Quick Start Guide 5
ENGLISH

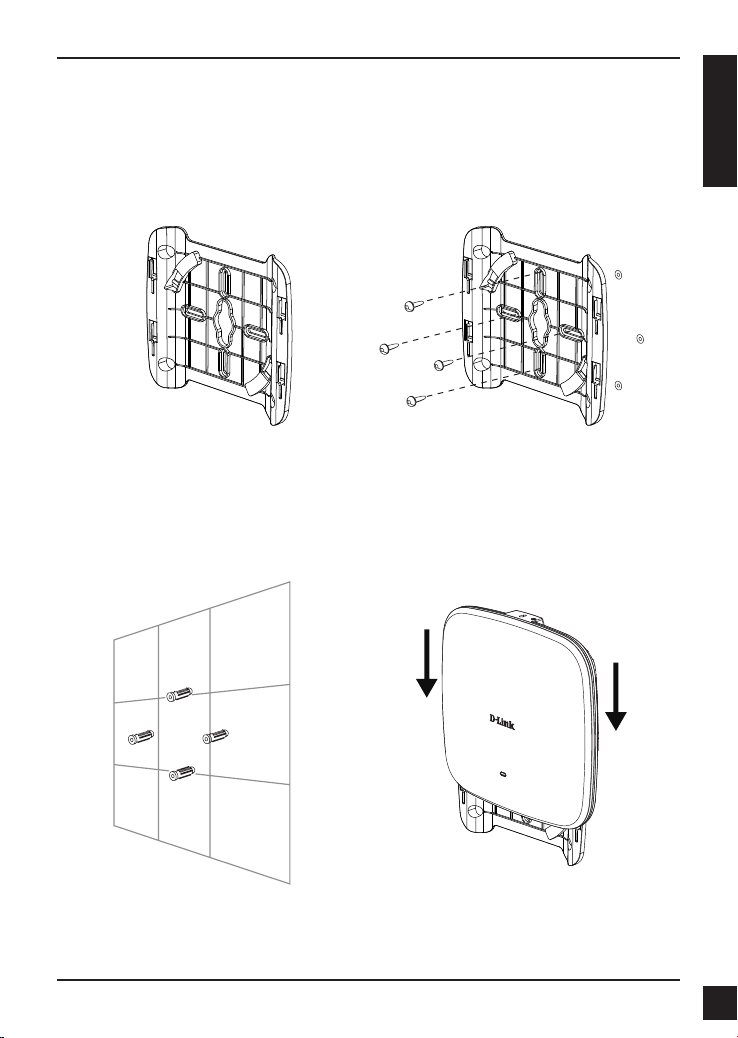

Solid wall or ceiling
Installation
1. Place the mounting bracket on a wall or
ceiling.
5. Plug the Ethernet cable into the LAN
port on the access point.
6. To attach the access point to the
mounting bracket.
2. Mark the points where you will insert the
screws. Take out the mounting ring.
3. Drill holes in the marked points and
insert the plastic wall anchors.
4. Use the supplied screws to attach the
mounting ring to the wall.

D-Link DAP-2680 Quick Start Guide
6
ENGLISH

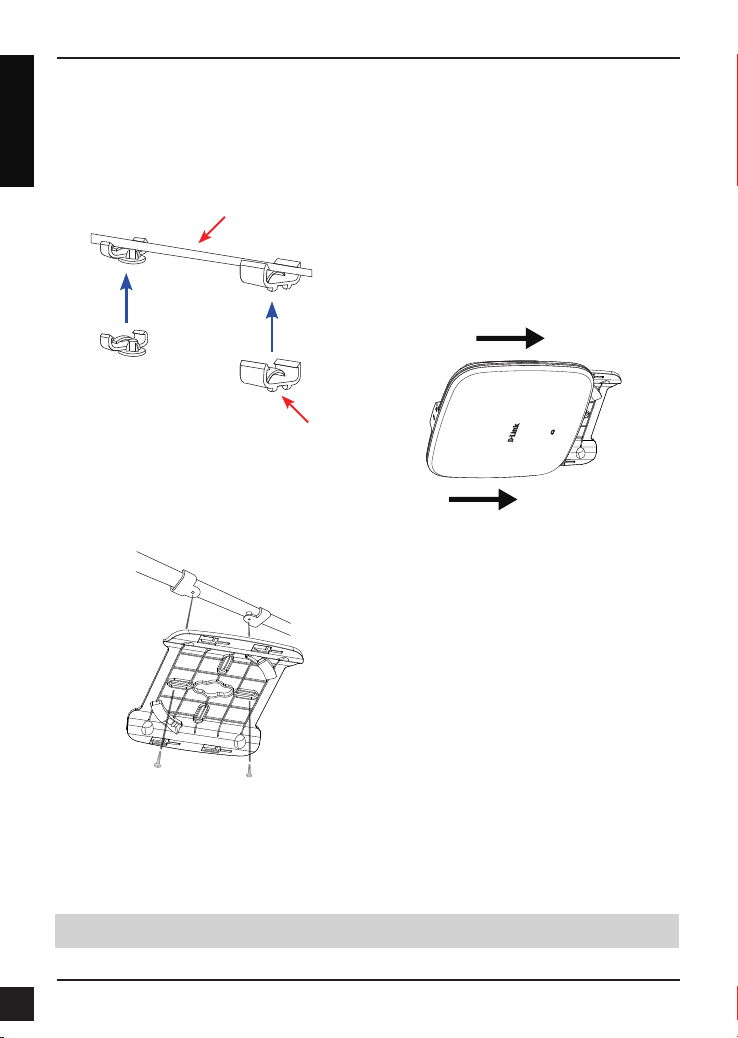

1. Clip two ceiling brackets onto the ceiling
panels. Make sure both brackets are in
line with each other.
2. Use the provided screws to attach the
mounting ring to the ceiling bracket.
3. Plug the Ethernet cable into the LAN
port on the access point.
4. Place the DAP-2680’s male bracket
in the mounting bracket’s female
bracket. Click DAP-2680 and the
mounting bracket to lock in position.
Ceiling bracket
Ceiling crossbar
Mounting with a ceiling bracket
Installation
