INSTRUCTION BOOK FOR
Boardroom Electrol®

2
Important Safety Instructions
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating
at least equal to that of the appliance should be used. Cords
rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of ire, electric shock, or
injury to persons.
Save These Instructions

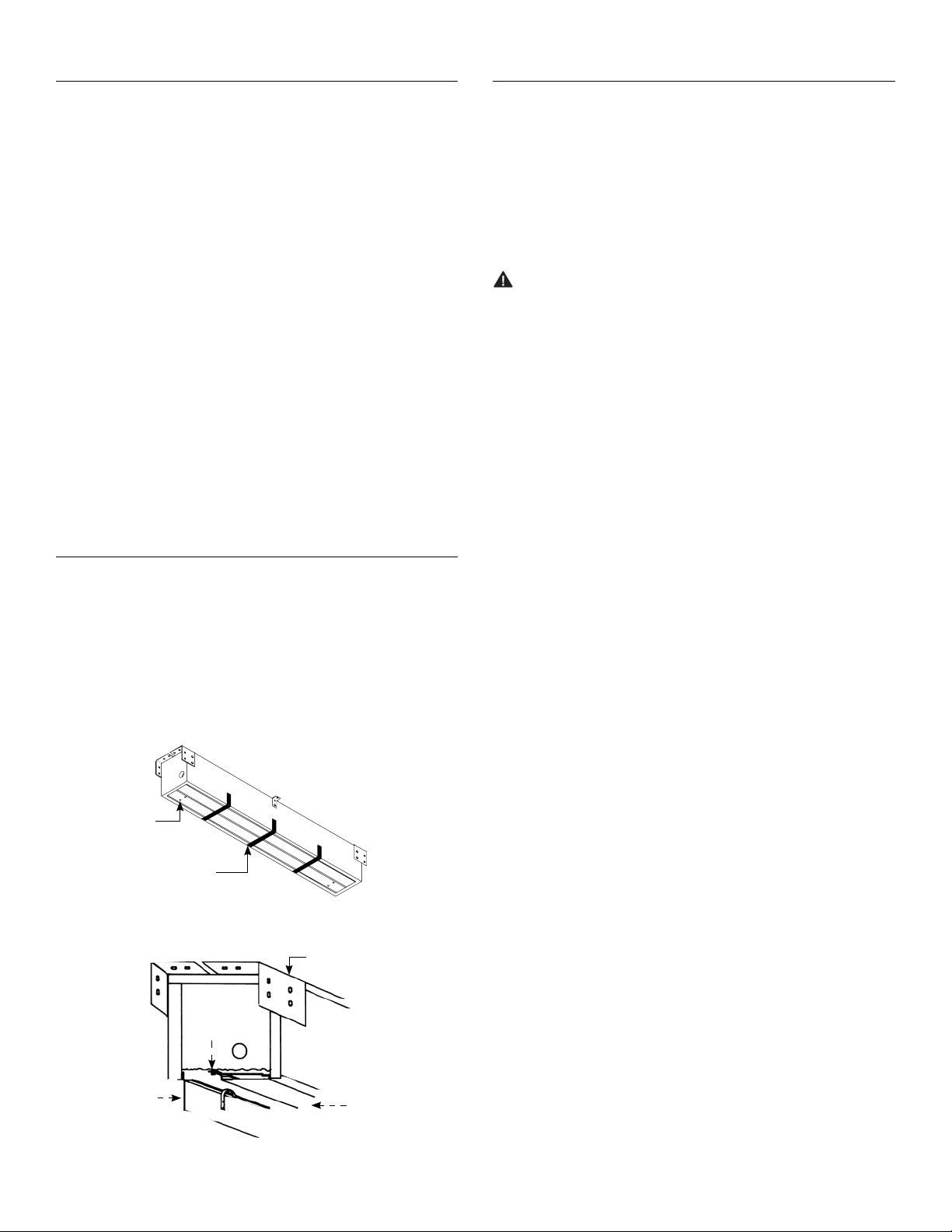

Pre-Installation
Installation
1. Carefully unpack screen and remove outer
wrapping from case.
2. Make sure to recheck measurement of screen
location before installation.
3. Remove center support brackets (on 8' and wider
screens only), reverse brackets and reinstall lush with
the top of the box.
NOTE: Unit is not to be installed in air handling space.
1. Install screen by raising unit into position between joists at
one end only. Install one lag screw or appropriate fastener in
each mounting bracket. Secure opposite end. Secure center
support brackets. Install suicient fasteners in each bracket
for secure installation.
2. Make sure unit is level and plumb.
CAUTION! Do not secure access door or seal in unit
until screen has been secured in position and properly
tested for satisfactory operation. Do not it unit so tightly
that the screen surface drop door binds. Door drops by
gravity only.
3. If you are going to cover screen door with paneling or other
materials, allow access (suitable holes or plug) to slat hook
screws (4) when servicing (Fig. 1).
4. Open access door by removing access door screws.
5. Remove junction box cover plate.
Figure 1
Slat Hook
Screws
Tape Strips
Figure 2
Fabric Door
Access
Door
Screw
Access Door
Mounting Brackets

3
6. Remove switch assembly (boxed, located at pin end of fabric).
CAUTION! Do not cut wrapping paper or tape with knife or
any sharp tool. Remove by hand.
7. Pull orange string to remove wrapping paper.
8. Install electrical hook up that applies to your unit. Standard
installation is for a single 120VAC or 240VAC wall switch to
control the screen. Optional Control units may have been
ordered. Refer to additional instructions for the external VPI,
external low voltage control and SCB100. Refer to the
appropriate wiring diagram for your screen.
NOTE: Screen has been internally wired at DALITE. Wiring
designated “external” is completed by installer conforming to
local and national codes.

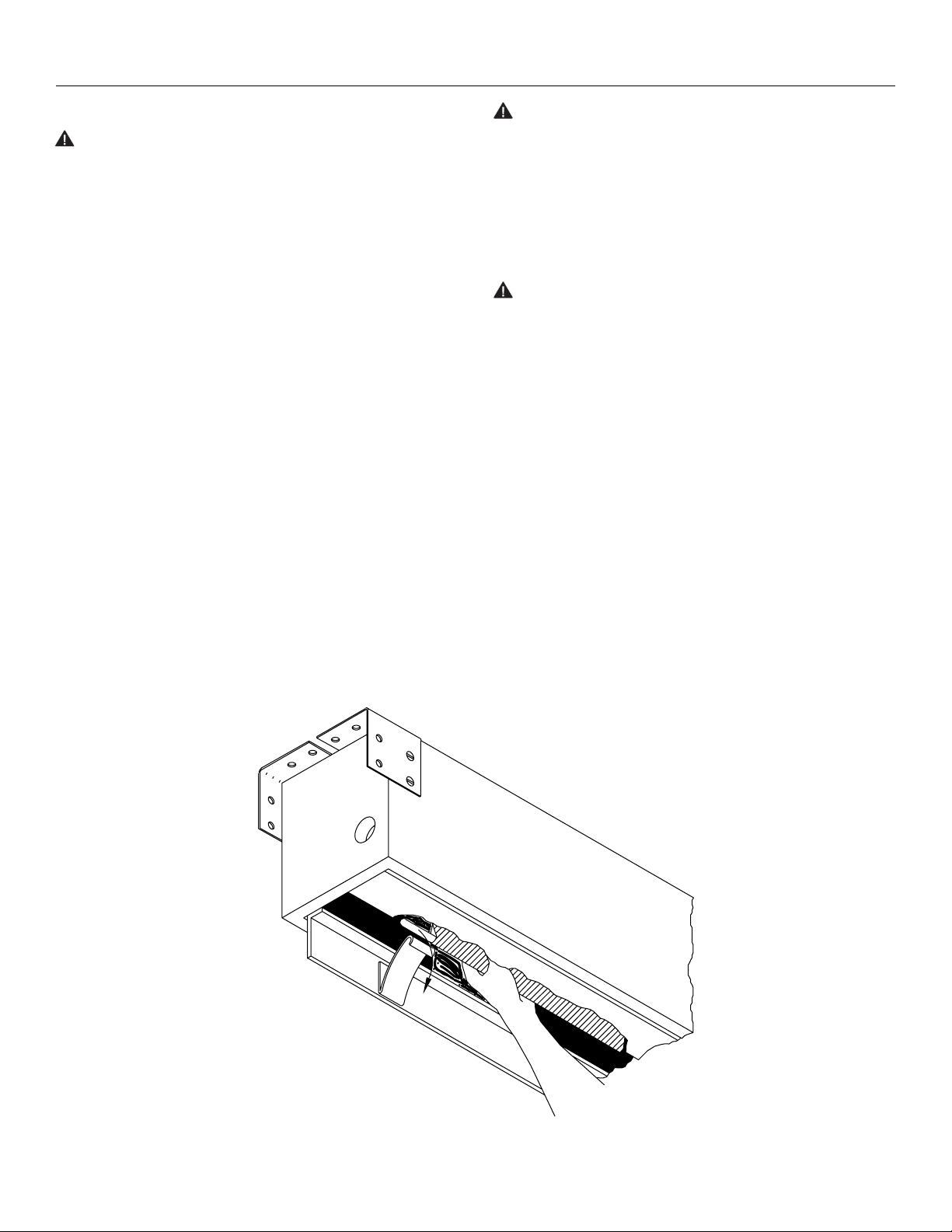

9. Lower picture surface approximately 4"-6" so that the slat will
rest on top of the slat hooks. Guide slat past hooks by gently
pulling fabric forward (Fig. 3). Do not bend hooks.
10. Test installation by carefully running picture surface up and
down 23 times. Be prepared to stop screen. Standard Duty
Cycle: 1 MIN. ON / 3 MIN. OFF.
11. Run the picture surface upward. The surface door will
automatically close when the picture surface rolls into the
case. The ends of the slat will catch the two hooks on the
surface door and pull the door closed. When the door closes,
a limit switch is tripped and the motor shuts of.
CAUTION! Excessive continuous operation may cause
overheating.
12. Run picture surface downward until picture surface
door fully opens.
13. Install junction box cover plate.
14. Close access door and reinstall screws at each end
of access door.
CAUTION! Do not attempt to restore a lost wrap by
adjusting limit switches. Allow one-eighth of an inch (1/8")
clearance around surface door. Make sure door does not
bind. Check hinges. Paint or tile cement will interfere with
free operation. Gravity drops door.
15. Complete installation by painting and inishing to suit
your needs. Finish to allow access door to be removed
if necessary.
Boardroom Electrol®Installation
Figure 2

4
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted
at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:
NOTE: Use a screw driver or 5/32" allen wrench to make
adjustments.
More screen drop
1. Place operating switch in “down” position.
2. When the screen stops, turn the white “down” limit knob
(Fig.4) one-quarter turn counterclockwise. Test by raising
picture surface approximately two feet, then lower again.
Repeat until desired picture surface position is attained.
Less screen drop
1. Raise picture surface approximately two feet
above desired level.
2. Place operating switch in “of” position.
3. Turn the white “down” limit knob (Fig.4) one-quarter turn
clockwise. Test by raising picture surface approximately two
feet, then lower again. Repeat until desired picture surface
position is attained.
CAUTION! Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on the
roller. This screen comes standard with 0" or 2" black at
the top. See the speciication data sheet for details.

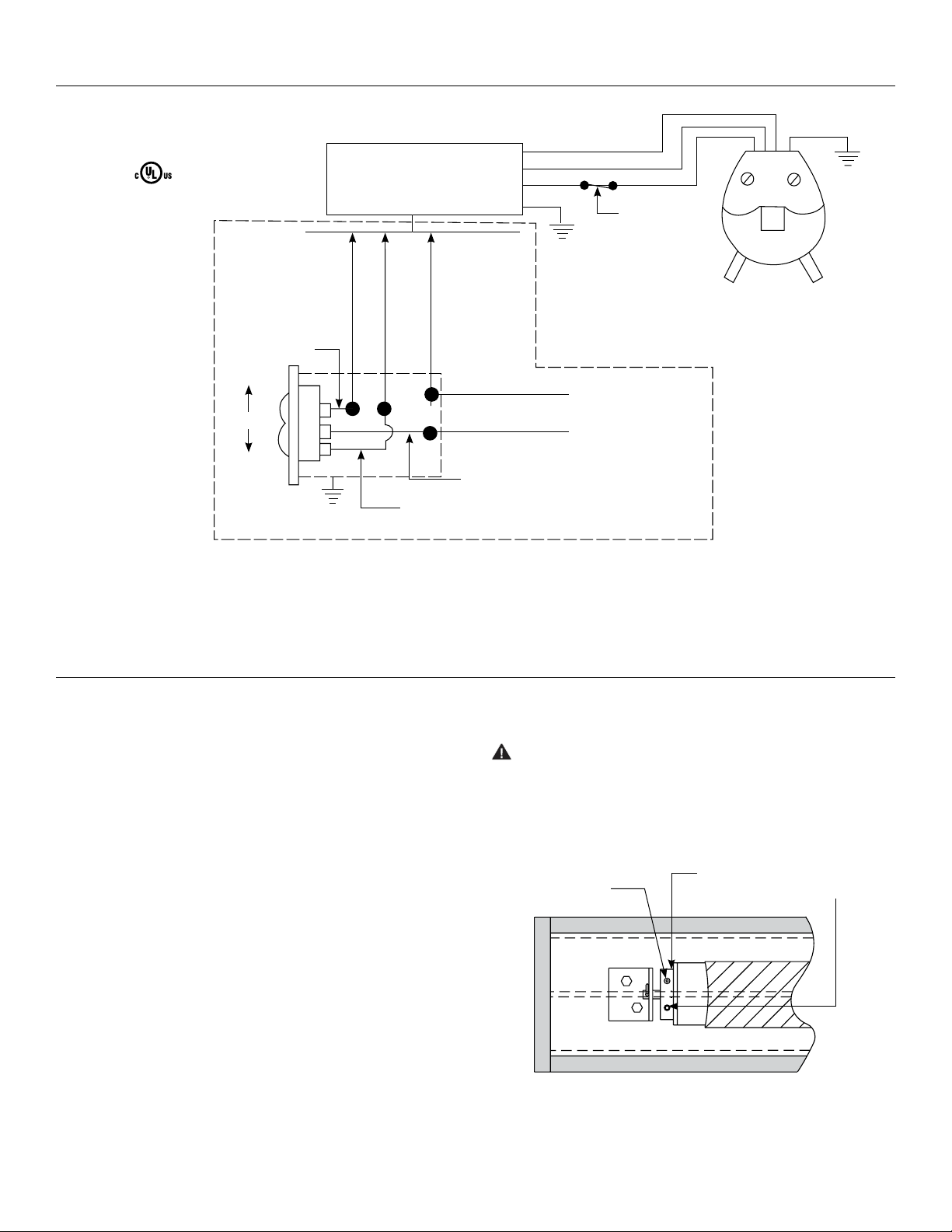

Boardroom Electrol®Installation 120V Screens
Screen Adjustment For 120V Screens
Operating switch and
plate furnished with
screen. (SPDT with
center of)
Black
(Down)
Up
Down
Red
(Up)
Side View of
Switch & Box
Black (Down)
Red (Up)
White (Common)
AC Common
Black With
Yellow
AC Hot
120V. AC 60 HZ
1 AMP. MAX.
NOTE: A single switch cannot be used to operate more than
one screen. Contact the factory for further information.
This switch cannot be used with L.V.C.
120V Wiring Diagram
Figure 4
To junction box mounted in
screen case, in which internal
wiriing teminates in white, black,
and red leads.
In multiple control
installations the switch
is replaced by the low
voltage control,
operated from push
button stations.
Black
White
Red
Normally
Closed
Door
Limit
Switch
Motor
Of
Access
Door
Adjustment Red
Knob "Up"
Adjustment White
Knob "Down"
Fabric
Door
Screen
Motor

5

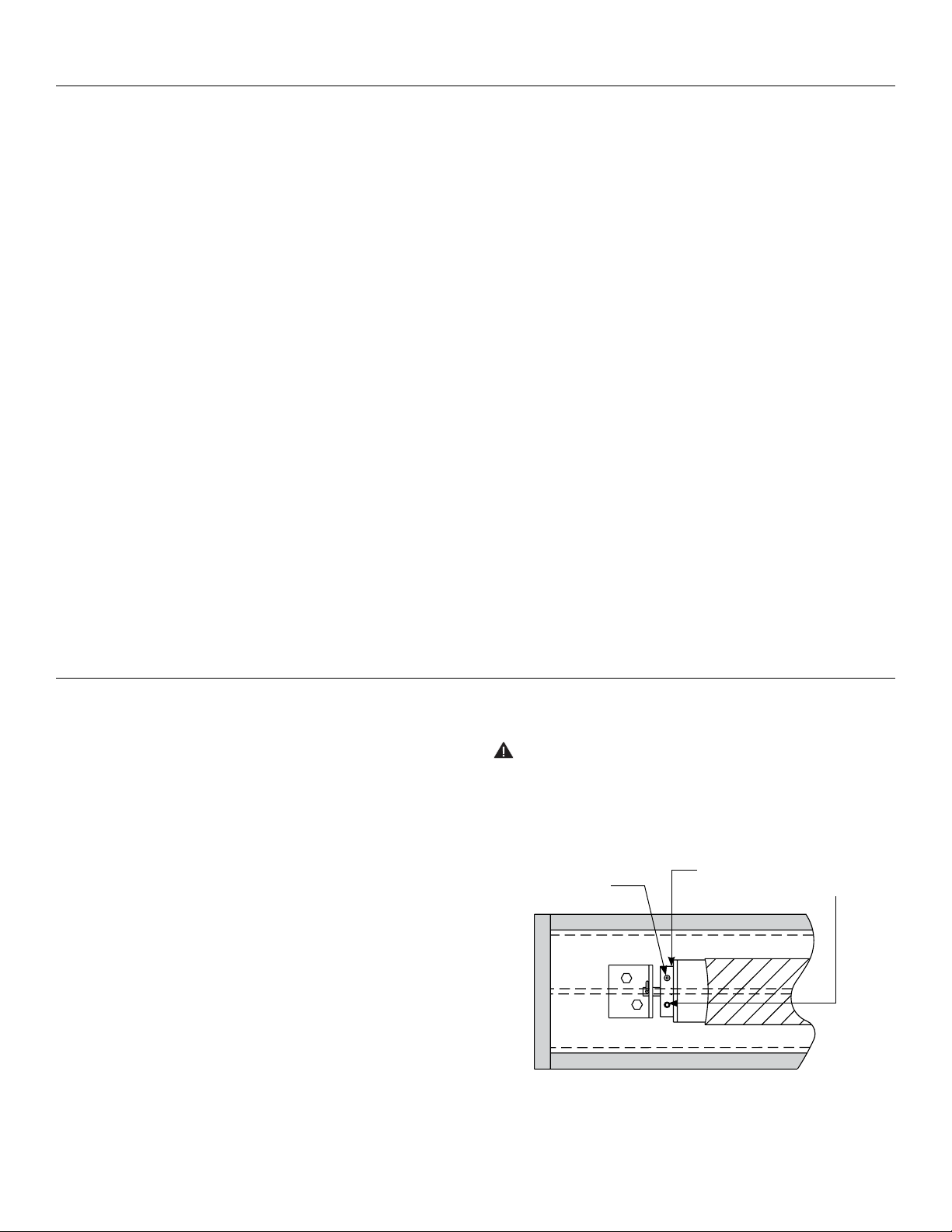

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.
Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:
NOTE: Use a screw driver or 5/32" allen wrench to make
adjustments.
More screen drop
1. Place operating switch in “down” position.
2. When the screen stops, turn the white “down” limit knob
(Fig.5) one-quarter turn counterclockwise. Test by raising
picture surface approximately two feet, then lower again.
Repeat until desired picture surface position is attained.
Less screen drop
1. Raise picture surface approximately two feet above desired
level.
2. Place operating switch in “of” position.
3. Turn the white “down” limit knob (Fig.5) one-quarter turn
clockwise. Test by raising picture surface approximately two
feet, then lower again. Repeat until desired picture surface
position is attained.
CAUTION! Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on the
roller. This screen comes standard with 0" or 2" black at
the top. See the speciication data sheet for details.
240 Volt Wiring Diagram for Standard Wall Switch:
Da-Lite ofers two styles of 240 volt wall switches for standard
operation. Please see wiring diagram included in wall switch
box included with screen.
Boardroom Electrol®Intallation 220/240V Screens
Screen Adjustment For 220/240V Screens
Figure 5
Access
Door
Adjustment Red
Knob "Up"
Adjustment White
Knob "Down"
Fabric
Door
Screen
Motor

6
Boardroom Electrol®Intallation
Select installation method according to ceiling type.
Ofset mounting, recessed above ceiling. For plaster,
dry wall, tile or paneling. Doors and bottom of case
painted same inish as ceiling.
Ofset mounting, recessed above ceiling. May be adapted
for 1/2" to 3/4" ceiling, but cut to 1/4" thick under doors
and screen case.
Flush mounting, recessed above ceiling. May
be adapted for 1/4" paneling for ceiling and doors.
Flush mounting, recessed above ceiling. For use with
dropped ceiling. May also be adapted for use with
acoustical or other ceiling 1/2" to 3/4" thick but cut to 1/4"
thick under doors and screen case.
Method A Method B
Method C Method D
"L"
Bracket
"L"
Bracket
Mounting
Bracket
Mounting
Joist
(Suggested)
¼" Bolt
(Suggested)
1 ¼" Lag
Screws
Access
Door
Access
Door
Access
Door
Access
Door
Surface
Door
Surface
Door
Surface
Door
Surface
Door
1 ½"
1 ½"
1 ½"
1 ½"
1 ½"
1 ½"
¾"
¾"
¾"
¾"
¼"
¼"
¼"
¼"
2 ½"
2 ½"
2 ½"
2 ½"
2 ½"
2 ½"
2 ½"
2 ½"
1 ½"
½" To ¾"
Finished
Ceiling
½" To ¾"
Finished
Ceiling
Furring
Strip
Slat
Hook
¼" x 1"
Screw & TNut
Drywall
Screw
Surface
Surface
⅜" Steel Slat
In Pocket
⅜" Steel Slat
In Pocket
"L"
Bracket
Mounting
Bracket
Mounting
Joist
(Suggested)
¼" Bolt
(Suggested)
1 ¼" Lag
Screws
½" To ¾"
Finished
Ceiling
Furring
Strip
Slat
Hook
¼" x 1"
Screw & TNut
Drywall
Screw
Picture Surface
Picture Surface
⅜" Steel Slat
In Pocket
⅜" Steel Slat
In Pocket
Mounting
Bracket
Mounting
Joist
(Suggested)
¼" Bolt
(Suggested)
1 ¼" Lag Screws
Furring
Strip
Slat
Hook
¼" x 1"
Screw & TNut
Drywall
Screw
"L"
Bracket
Mounting
Bracket
Mounting
Joist
(Suggested) ¼" Bolts
T Bar
Furnished
With Ceiling
Furring
Strip
Slat Hook
¼" x 1"
Screw &
TNut
Drywall
Screw
NOTE: Can be painted the same as door Ceiling tile cut to 1/4" thick (Attach with Mastic)
Mounting
Joist
Suspended
Ceiling
Tile
Ceiling tile cut to 1/4" thick (Attach with Mastic)
7 ⅜"
7 ⅜"
7 ⅜"
8"
4 ⁄"
8 ¼" 8 ¼"
8" ¼"

7
Symptom Cause Solution
Screen will not operate or will
not go “down”.
Motor does not hum.
Motor hums.
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit.
No power to operating switch or junction box. Check above. Tighten all loose wire connections.
Recheck wiring. See installation instructions.
Insuicient line voltage (must be at least 115V or
220V, depending on motor type).
Correct line voltage.
“Down” Position
Check for power across black and white leads.
Power at junction box
Thermal overload tripped. Let motor cool down for 15 minutes. Try again.
Broken wire in the “down” position. Check for continuity.
Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.
Capacitor burned out. Replace motor assembly.
Screen will not move upward.
Motor does not hum.
Motor hums.
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit breaker.
No power to operating switch or junction box.
Check above. Tighten all loose wire connections. See above.
“Up” Position
Check for power across red and white leads.
Insuicient line voltage (must be at least 115V or
220V, depending on motor type). Correct line voltage.
Open door micro switch. Replace micro switch.
Power at junction box
Thermal overload tripped. Let motor cool down for 15 minutes. Try again.
Broken wire in the “up” position. Check for continuity.
Defective motor, limit switch or capacitor. Replace motor assembly. NOTE:
Motor is a sealed assembly.
Capacitor burned out. Replace motor assembly.
Troubleshooting
Visit www.da-lite.com/products/tutorials.php to ind installation
and troubleshooting tutorials. You will also ind a link to
Live Chat for interactive support and you can contact us
by email at inf[email protected] or by phone at (800) 6223737
or (574) 2678101 with any troubleshooting questions.

8
Troubleshooting
Symptom Cause Solution
Door will not open
Hinge is bound or has a foreign substance on it
which does not allow it to open by gravity..
Check installation to free door. Clear any foreign substance;
i.e., paint or plaster from hinge.
Slat hooks catch on access door..
Adjust slat hooks. Door can be opened by removing four
screws holding slat hooks to door. Access should be
provided to these screws during and after installation.
Door does not close tightly. “Up” limit switch in motor is out of adjustment.
NOTE: This switch is not normally used when operating
screen. Motor automatically shuts o if fabric does not
close fabric door.
If adjustment allows motor to shut o too soon, it will
leave fabric door open. Adjust black limit switch clockwise
(towards +).
“Down” limit switch incorrect. “Down” limit switch out of adjustment. See installation instructions.
Noise.
NOTE: Screen will operate with
a low-pitched hum.
Squeaking, rubber end plug rubbing on motor. Center roller in case.
Grinding. Foreign object in screen rubbing on roller
or fabric. Remove.
Gear noise Replace motor assembly..
Coasting. Defective brake. Replace motor assembly.
Roller displaced from
mounting bracket. Pin end slipped out of nylon bearing Remove pin end mounting. Realign motor in tube. Reattach
pin end.
Fabric door hangs down on one
end.
Slat hooks not formed equally. Bend slat hook slightly or apply tape to end of slat where
door hangs. Build slat up enough to close door.
Crooked pocket. If not corrected by applying above, replace fabric.
Fabric hangs crooked or is
rubbing on slat hook.
Screen not installed properly.. Check for level and plumb.
Fabric has backed up inside case. Adjust “down” limit switch slowly until roller is exposed and
wrinkle comes out, then readjust for proper drop.
Fabric is damaged. Replace fabric.

9

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
74418
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: [e-mail]
www.da-lite.com
DL–0173 11.13
© 2013 Milestone AV Technologies LLC. Printed in U.S.A.
