Da-Lite Cosmopolitan Electrol User manual

INSTRUCTION BOOK FOR
Cosmopolitan Electrol
For Sizes Up To 9' x 12'

2
1. Carefully unpack screen and remove outer wrapping from case.
2. Do not remove black tape or rubber bands from slat pocket.
3. Always handle screen in horizontal position.
Important Safety Instructions
When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. Maximum surrounding air temperature 122°F (50°C).
3. Main disconnect must be incorporated in the ixed wiring in
accordance with the wiring rules.
4. Rated for indoor use only.
5. Use copper rated conductors rated 167°F (75°C) or higher.
6. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualiied persons in
order to avoid hazard.
7. Supplied drive is only intended for use in Da-Lite screen models
Advantage, Contour, and Cosmopolitan.
8. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
9. If an extension cord is necessary, a cord with a current rating at
least equal to that of the appliance should be used. Cords rated
for less amperage than the appliance may overheat.
10. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric shock
when the appliance is used subsequently.
11. The use of an accessory attachment not recommended by the
manufacturer may cause a risk of ire, electric shock, or injury to
persons.
12. Failure to provide adequate structural strength for this
component can result in serious personal injury or damage to
equipment! It is the installer’s responsibility to make sure the
structure to which this component is attached can support the
weight of all equipment. Reinforce the structure as required
before installing the component.
13. Use this projection screen only for its intended use as described
in these instructions. Do not use attachments not recommended
by the manufacturer.
Save These Instructions
Pre-Installation
Original Instructions
Disclaimer
Milestone and its ailiated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete.
However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide
for every possible contingency in connection with the installation or use of this subject to change without notice or obligation of any
kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone
assumes no responsibility for accuracy, completeness or suiciency of the information contained in this document.
Da-Lite® is a registered trademark of Milestone AV Technologies. All rights reserved.

3

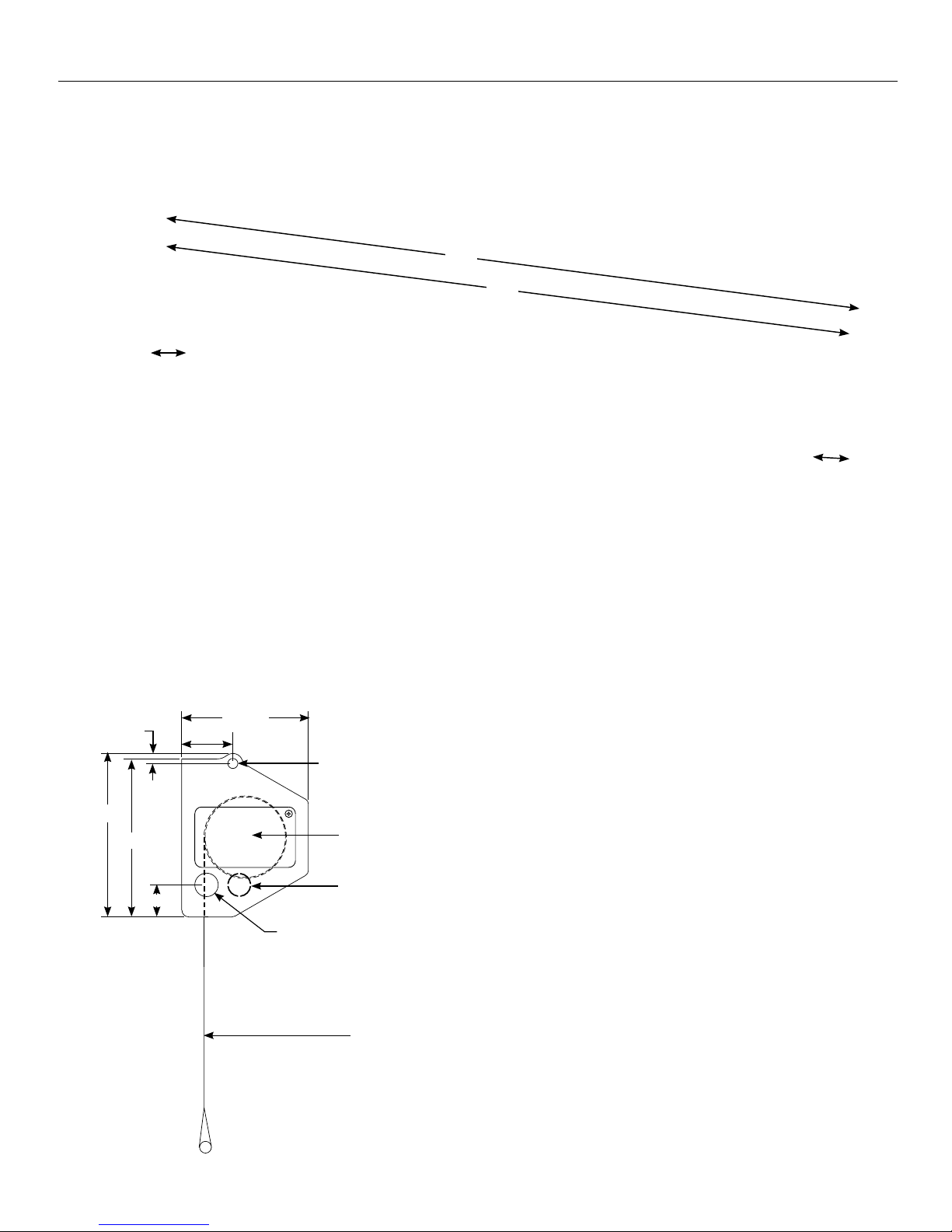

Fabric Height x Width As Ordered, Up To 9
Feet x 12 Feet
Keyhole For Wall Installation
Overall length A = fabric width + 8".
Length B is the distance between wall mounting holes at back of end
caps and is the fabric width + 6 ½".
4"
4"
Motor End
A
B
Installation

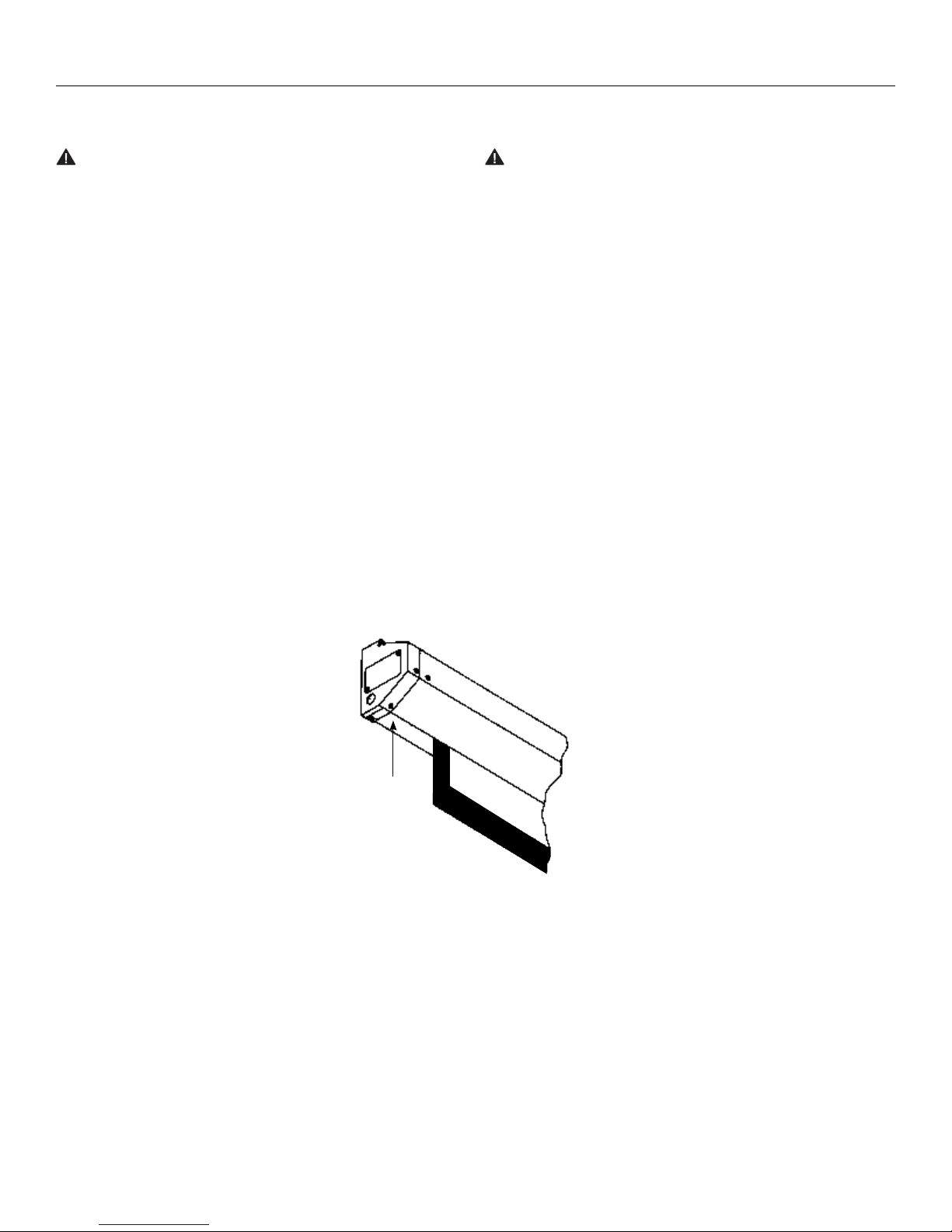

⅜" Diameter For
Ceiling Installation
Enclosure Cover
⅞" Diameter Opening
For Electrical Fittings
Surface
1 ⁄"
⁄"
⅞" Diameter
Knock Out
4 ⁄"
5 ⅞"
6 ⁄"
1 ⁄"

4
NOTE: Under no circumstances should unit be completely sealed in
recessed installation. Allow access for service. Picture surface
is centered in case. Case extends 4" beyond surface on either end.
Do not attach anything to screen slat rod or bottom fabric pocket.
1. Make sure screen is level. Use a carpenter’s level and plumb
level.
2. Remove tape and rubber bands from slat pocket.
CAUTION! Do not cut wrapping paper or tape with knife or
any sharp tool. Remove by hand.
ATTENTION! Ne coupez pas le papier d'emballage ou le
ruban adhésif avec un couteau ou un outil tranchant. Retirez
à la main.
3. Install electrical hook up that applies to your unit. Make sure to
review your Electrical Installation Checklists and wiring diagrams
(included) for either 120 volt switch, 220/240 volt switch, or low
voltage control.
4. Test installation by running screen up and down a few times.
Be prepared to stop screen. Standard Duty Cycle:
1 MIN. ON / 3 MIN. OFF.
NOTE: Must be installed in accordance with the requirements of the
Local Building Codes, the Canadian Electrical Code (CEC), CAN/CSA
C22.1 and the National Electric Code (NEC), NFPA 70.
NOTE: DO NOT clean end caps with any cleaning solution. Use only
damp cloth to clean dust from screen case.
Installation Continued

5
Installation (continued)
For Wall
Use No. 6 Brackets
To Hang Behind
Beam or Valance
Figure 1
For Ceiling
Screen may be mounted on a wall, suspended from ceiling or
extension brackets. Wall screens must be mounted level and with
the case-back parallel to the wall.
Wall Mounting
1. Select fasteners of proper type for wall or ceiling involved.
2. Insert fasteners through proper openings provided in back side
of end caps. See igure 1.
NOTE: DO NOT over tighten fasteners or damage may occur.
3. Attach screen securely to studding or other solid surface - never
to plaster only.
4. MAKE SURE SCREEN IS MOUNTED LEVEL.
Ceiling Mounting
1. Heavy screw hooks may be installed into wood joists. Other
types of hooks or chain may be used for other ceilings or for
stage installations.
2. Insert hooks or chain through proper openings provided in sides
of end caps. Screen must hang so that lat back of case is
perpendicular to loor.
NOTE: DO NOT hang from the end caps at an angle. See Figure
3. Must be perpendicular to the mounting See Figure 4.
3. MAKE SURE SCREEN IS MOUNTED LEVEL.
90°
Figure 2
Figure 3
Figure 4

6
120V Wiring Diagram
Side View
Of Switch
And Box
This Switch Cannot Be Used With LVC.
NOTE: A single switch cannot be used to operate more than one
screen. Contact the factory for further information.
Down Black
Black
Up
White
Red
Down
AC Hot
Of
Common White
Black With
Yellow
Up Red
Rocker
Switch
AC Common
120 V. 60 Hz. 2.5 Max. Amp
Operating Switch
And Plate Furnished
With Screen (SPDT
With Center Of)
In Multiple Control
Installations This
Switch Is Replaced By
The Low Voltage
Control, Operated
From Push Button
Stations.
To Junction Box, Mounted In Screen Case,
In Which Internal Wiring Terminates In
White, Black and Red Leads
Down
White Limit
Switch
Adjustment
Wiring Enclosure Cover

7

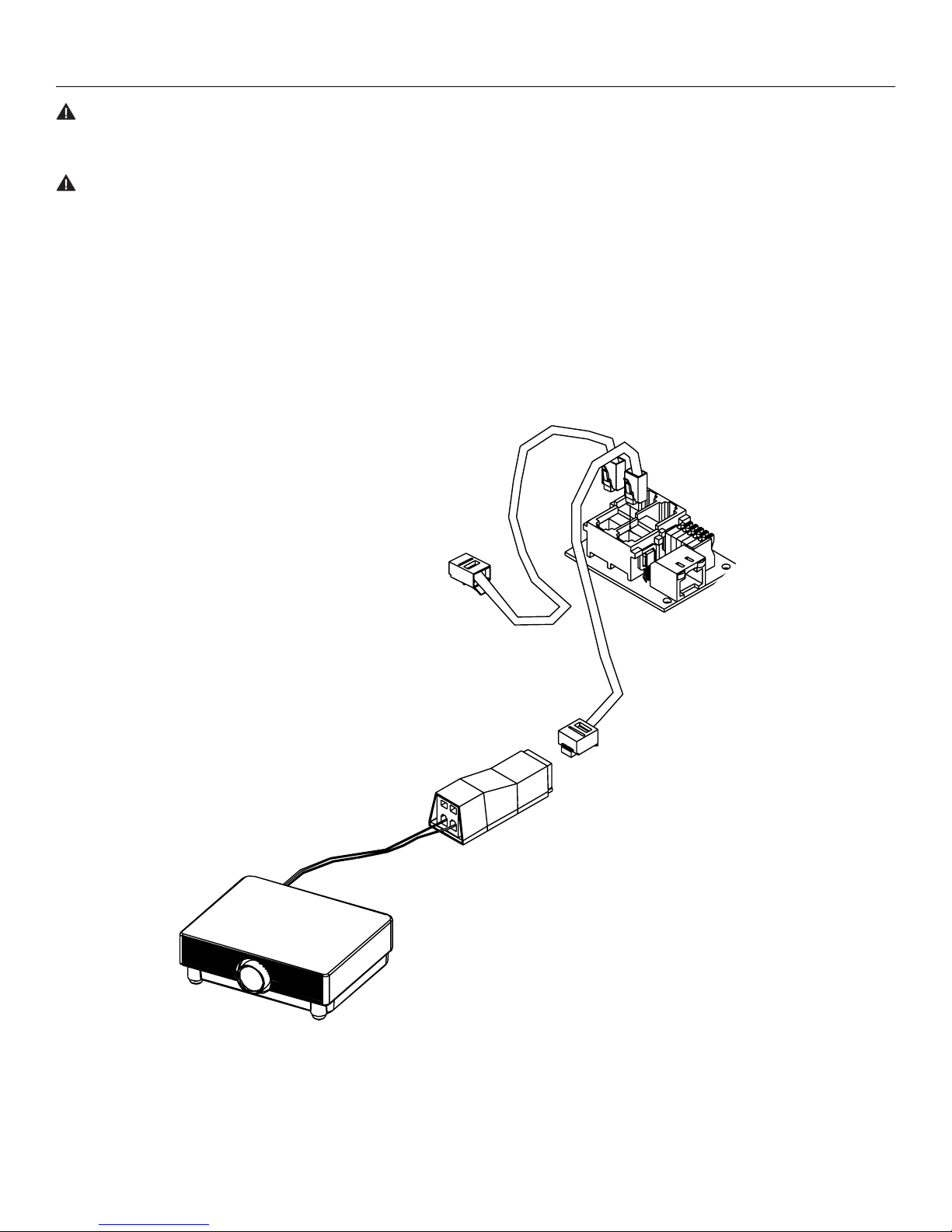

120V Wiring Diagram with Optional Built-In Low Voltage Control
RJ45
Receptacle
RJ22
Output
(QAUX)
RJ22
Inputs
(QEYE)
Up (Dry Contact)
Down (Dry Contact)
Common (Both)
Bus (Bus)
5V (Bus)
UP
STOP
DOWN
BUS
COM
5V
Front of
Wall Switch
Bus
UP
STOP
DOWN
BUS
COM
5V
LED
Up Limit
Tactile Button
Down Limit
Tactile Button
Back of
Wall Switch
RJ22 Pin-Outs (Tab Is Facing Down)
Standard RJ22 can be used in place of RJ14 cable
Bus (RP Data)
+12V
RQ Clock
RQ Data
+5V
Ground
Yellow
Green
Red
Black
White
Blue
RJ45 Pin-Outs (Tab Is Facing Down)
+12V
Manual 2
Ground
Manual 1
RQ Clock
Bus (RP Data)
RQ Data
+5V
Blue
Green
Yellow
Red
Black
Orange
Purple
Brown
3-conductor 2024 gauge wire can be used in place of the
supplied RJ14 cable to connect the wall switch. Connect the
BUS terminals on the wall switch to the corresponding BUS
terminals on the splitter board.
IMPORTANT NOTE: The wall switch is REQUIRED to make any
limit switch adjustments, EVEN if a third party control system is
used. Therefore, it is advised to wire the switch or provide a
3-conductor connection that is accessible.
UP
STOP
DOWN
BUS
COM
5V
Power Input 120VAC / 60Hz
Green (Ground)
(Ground–Must be Connected
to Building Ground)
Black
(Hot)
White
(Common)
Power
Wire
Data
Cable
RJ45 Jack
RJ22 Jack
(Connection to
Wall Switch)
RJ22
Jack
RJ14 Pin-Outs (Tab Is Facing Down)
Supplied RJ14 cable
Bus (RP Data)
RQ Data
+5V
Ground
White
Green
Red
Black
Installation Video
To view a video of this installation,
visit http://youtu.be/t2ZQ9PVAhEg
or use the QR code below.

8

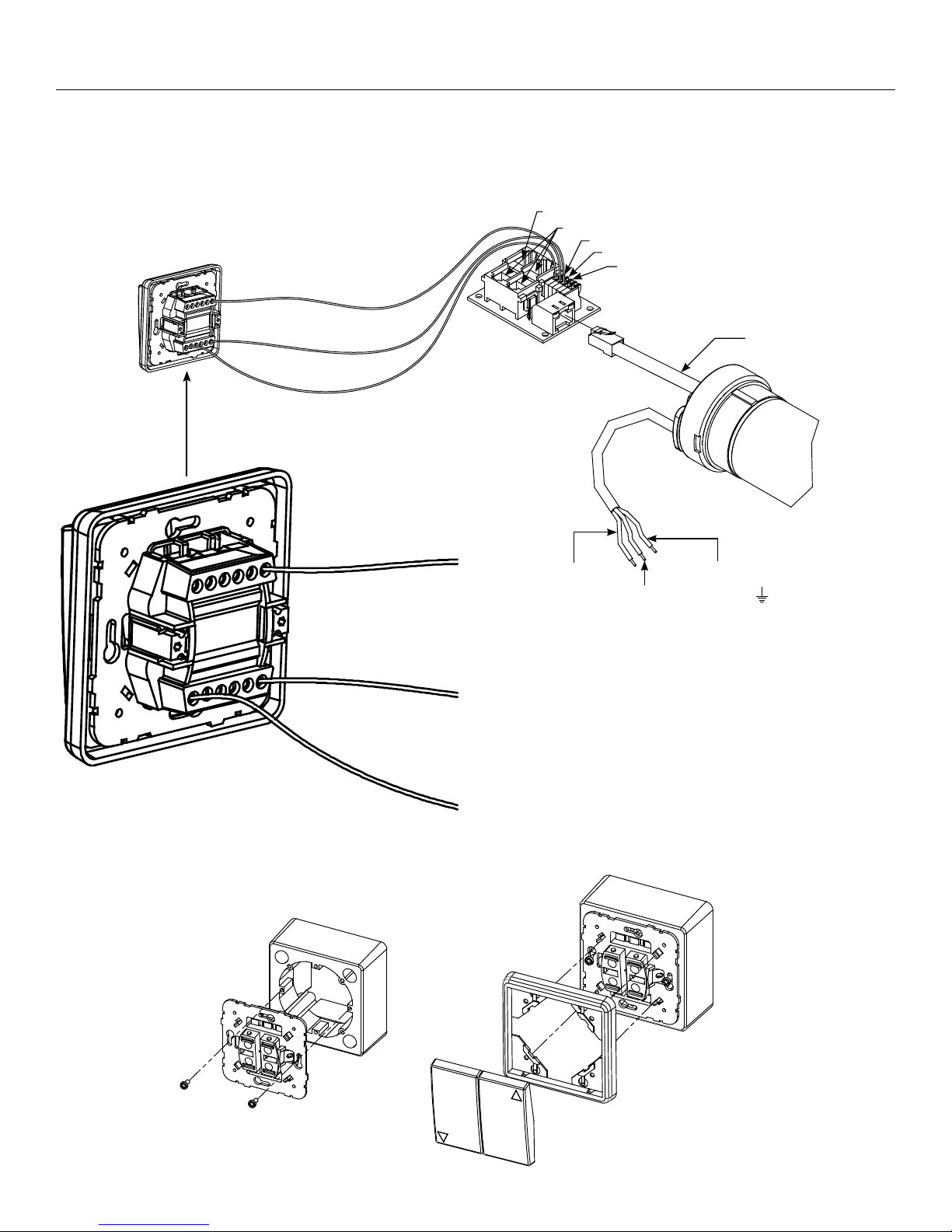

220V Wiring Diagram - European Switch
NOTE: A single switch cannot be used to operate more than one screen. In multiple control installations this switch is replaced by the low
voltage control, operated from push button stations. Contact the factory for further information.
220V Wiring Diagram - Rocker Switch
To Junction Box, Mounted In Screen Case,
In Which Internal Wiring Terminates In
Black, Brown and Blue Leads
This Switch Cannot Be Used With LVC.
Rear View
of Switch
Black (Up)
Brown (Down)
Blue (Common)
Green & Yellow
(Ground)
Black (Up) Brown (Down) Blue (Common)
NOTE: Must be wired to conform to local wiring code.
Blue AC Common
Brown AC Hot
230V AC 50Hz
Green & Yellow (Ground)
Jumper Wire
Green & Yellow
(Ground)
Motor
NOTE: A single switch cannot be used to operate more than one screen. In multiple control installations this switch is replaced by the low
voltage control, operated from push button stations. Contact the factory for further information.
To Junction Box, Mounted In Screen Case,
In Which Internal Wiring Terminates In
Black, Brown and Blue Leads
This Switch Cannot Be Used With LVC.
Rear View of DPDT, With
Center Of, Switch in Box
Black (Up)
Brown (Down)
Blue (Common)
Green & Yellow
(Ground)
Black (Up) Brown (Down) Blue (Common)
NOTE: Must be wired to conform to local wiring code.
Blue AC Common
Brown AC Hot
230V AC 50Hz
Green & Yellow (Ground)
Blue
Jumper Wire
Green & Yellow
(Ground)
Motor
Brown
Yellow
Up
Of
Down

9
220V Wiring Diagram with Optional Built-In Low Voltage Control
RJ45
Receptacle
RJ22
Output
RJ22
Inputs
Up (Dry Contact)
Down (Dry Contact)
Common (Both)
Bus (Bus)
5V (Bus)
UP
STOP
DOWN
BUS
COM
5V
Front of
Wall Switch
Bus
UP
STOP
DOWN
BUS
COM
5V
LED
Up Limit
Tactile Button
Down Limit
Tactile Button
Back of
Wall Switch
RJ22 Pin-Outs (Tab Is Facing Down)
Standard RJ22 can be used in place of RJ14 cable
Bus (RP Data)
+12V
RQ Clock
RQ Data
+5V
Ground
Yellow
Red
Green
Black
White
Blue
RJ45 Pin-Outs (Tab Is Facing Down)
+12V
Manual 2
Ground
Manual 1
RQ Clock
Bus (RP Data)
RQ Data
+5V
Blue
Green
Yellow
Red
Black
Orange
Purple
Brown
220V Wiring Diagram with Operation & Limit Adjustment Wall
Switch
3-conductor 2024 gauge wire can be used in place of the supplied
RJ14 cable to connect the wall switch. Connect the BUS terminals on
the wall switch to the corresponding BUS terminals on the splitter
board.
IMPORTANT NOTE: The wall switch is REQUIRED to make any limit
switch adjustments, EVEN if a third party control system is used.
Therefore, it is advised to wire the switch or provide a 3-conductor
connection that is accessible.
UP
STOP
DOWN
BUS
COM
5V
Power Input 220VAC / 50Hz
Green / Yellow (Ground)
Blue
(Hot)
Brown
(Common)
Power
Wire
Data
Cable
RJ45 Jack
RJ22 Jack
(Connection to
Wall Switch)
RJ22
Jack
RJ14 Pin-Outs (Tab Is Facing Down)
Supplied RJ14 cable
Bus (RP Data)
RQ Data
+5V
Ground
White
Green
Red
Black

10
220V Wiring Diagram with Optional Built-In Low Voltage Control (continued)
220V Wiring Diagram with European Style Wall Switch
Use 3-conductor 2024 gauge wire for wall switch connections.
IMPORTANT NOTE: The European style wall switch is for operation
only and CANNOT be used to make limit switch adjustments.
Therefore, it is advised to wire the limit adjustment switch or provide
a 3-conductor connection that is accessible.
Power Input 220VAC / 50Hz
Green / Yellow (Ground)
Blue
(Hot)
Brown
(Common)
Power
Wire
Data
Cable
RJ45 Jack
Black (Down)
White (Common)
Red (Up)
Red
Black
White
Inputs
Output
Black (Down)
White (L / Common)
Red (Up)
Push Down on Tab to
Insert Wire
L

11
Optional Built-In Video Projector Interface
CAUTION: The projector must be turned of before
connecting the trigger wires to the projector. Failure to do so
may damage the controller.
ATTENTION: Le projecteur doit être éteint avant de brancher
les ils de déclenchement à celui-ci. Tout manquement à
cette instruction pourrait endommager le contrôleur.
Use 2-conductor 1824 gauge wire to extend the low voltage
connection from the projector’s 5 or 12-volt screen trigger output to
the length required to reach the VPI.
NOTE: When extending the low voltage connection from the
projector’s screen trigger output polarity does not matter. The red
and black wires from the VPI are interchangeable.
IMPORTANT NOTE: The wall switch is REQUIRED to make any limit
switch adjustments, EVEN if a third party control system is used.
Therefore, it is advised to wire the switch or provide a 3-conductor
connection that is accessible.
3-conductor 2024 gauge wire can be used in place of the supplied
RJ14 cable to connect the wall switch. Connect the BUS terminals on
the wall switch to the corresponding BUS terminals on the splitter
board.
See 120V or 220V wiring diagram with built-in low voltage
control for complete wiring instructions.
UP
STOP
DOWN
BUS
COM
5V
RJ22 Jack
(Connection to
Wall Switch)
RJ22
Jack (QEYE)
5/12 Volt
Screen Trigger
on Projector
Black
Red
VPI Trigger
Module

12
Screen Adjustment
For Screens Without A Built-In Low Voltage Control
NOTE: Use a screwdriver or 5/32" Allen wrench to make
adjustments.
SETTING THE DOWN LIMIT POSITION
To Reduce Screen Drop: Turn the white limit switch screw
clockwise to decrease the amount of screen drop. Run the
screen down to test the stop position. If the screen drops too far,
raise the screen about one foot and adjust the limit switch again.
Repeat until the desired position is set.
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.
Should it be necessary to adjust for more or less picture drop (viewing area), proceed in the following manner:
CAUTION: Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on
the roller. This screen comes standard with 0" or 2" black
at the top. See the speciication data sheet for details.
ATTENTION! N'efectuez pas de réglage pour obtenir un
déroulement supérieur à celui commandé. Au moins 1 à 1/2
tour de toile doit être maintenu sur le cylindre. Cet écran
est doté de série d'une bande noire supérieure de 0 cm (0
po) ou 5 cm (2 po). Consultez la iche technique pour plus
de renseignements.
To Increase Screen Drop: Turn the white limit switch screw
counterclockwise to increase the amount of screen drop. Run the
screen down to test the stop position. If the screen does not
drop enough, raise the screen about one foot and adjust the limit
switch again. Repeat until the desired position is set. Do not
adjust for more drop than what was ordered. At least 11/2 wraps
of fabric must remain on the roller.
Down
White Limit
Switch
Adjustment

13
For Screens With A Built-In Low Voltage Control or VPI
1. Locate the wall switch and remove the cover plate from
the 3-button wall switch and remove the switch from the
junction box.
2. Locate the two tactile buttons on the back of the switch. They
are square silver with black round buttons.
3. To adjust the down limit switch, press and hold the down
tactile button until the LED on back of switch turns solid red.
This will put the motor in limit set mode. Turn the wall switch
over and use the down button on front of switch. Press and
hold until the desired travel position is reached. If you travel
to far down you can press the up to move the screen upward.
If you press and let go of either up or down button the motor
will do a small jog in that direction for iner adjustment of
screen. Once desired position is reached turn switch over
press and hold down tactile button until the LED on back of
switch blinks red twice. The down limit is now set.
4. To adjust the up limit switch, press and hold the up tactile
button until the LED on back of switch turns solid green. This
will put the motor in limit set mode. Turn the wall switch over
and use the up button on front of switch. Press and hold until
the desired travel position is reached. If you travel to far up
you can press the down to move the screen downward. If you
press and let go of either up or down button the motor will
do a small jog in that direction for iner adjustment of screen.
Once desired position is reached turn switch over press and
hold up tactile button until the LED on back of switch blinks
green twice. The up limit is now set.
5. To test limit switch setting, press and release the up or down
button on the wall switch to operate the screen.
6. Replace switch and cover plate on the wall.
NOTE: If the screen is in limit set mode and no buttons are
pushed for 20 seconds, the LED on the back of the wall
switch will turn of, the motor will return to run mode and no
changes will be saved. If this occurs, return to step 3 for down
limit adjustment or step 4 for up limit adjustment.
IMPORTANT NOTE: The wall switch is REQUIRED to make
any limit switch adjustments, EVEN if a third party control
system is used. Therefore, it is advised to wire the switch or
provide a 3-conductor connection that is accessible.
Screen Adjustment (continued)
UP
STOP
DOWN
BUS
COM
5V
Front of Wall
Switch
UP
STOP
DOWN
BUS
COM
5V
LED
Up Limit
Tactile Button
Down Limit
Tactile Button
Back of
Wall Switch

14
Third Party Control For Screens With A Built-In Low Voltage Control or VPI
Control Panel
A control panel may be connected to the splitter board by using
the dry contact Up, Down and Common connections. The
control panel must provide a momentary, dry contact closure of
at least 1/2 second.
1. Use 3-conductor 2024 gauge wire to connect the control panel
to the splitter board.
2. A momentary closure across the common and up wires will be
an “up” command.
3. A momentary closure across the common and down wires will
be a “down” command.
4. A momentary closure across the common, up and down wires
will be a “stop” command.
Up (Dry Contact)
Down (Dry Contact)
Common (Both)
Bus (Bus)
5V (Bus)
Operation of Screens With A Built-In Low Voltage Control or VPI
Operation & Limit Adjustment Wall Switch
1. Press ”DOWN” button on screen switch and screen will deploy
out of case in downward direction.
2. Press “STOP “button on screen switch and screen will stop if in
movement.
3. Press “UP” button on screen switch and screen will retract
upward into case.
“Up”
Button
“Stop”
Button
“Down”
Button
“Up”
Button
“Down”
Button
European Style Wall Switch (220V models only)
1. Press ”DOWN” button on screen switch and screen will deploy
out of case in downward direction.
2. Press “UP” button on screen switch and screen will retract
upward into case.

15
Troubleshooting
Symptom Cause Solution
Screen will not operate.
Motor does not hum.
Motor hums.
Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage, rewire
incoming electric line.
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit breaker.
No power to operating switch or junction.
Check above. Tighten all loose wire connections. Correct any
improper connections.
“Down” Position
Check for power across black and white leads.
“Up” Position
Check for power across red and white leads.
Power at junction box.
Thermal overload tripped.
Let motor cool down for 15 minutes. Try again.
Broken wire in the “up” or ”down” position. Check for continuity. Cut o old splice and reconnect.
Defective motor, limit switch or capacitor..
Replace motor assembly.
NOTE: Motor is a sealed assembly..
Capacitor burned out. Replace motor assembly.
Incorrect stopping position in
downward direction.
Lost roller wrap. See instructions below.
“Down” limit switch out of adjustment. See installation instructions.
Incorrect stopping position in
upward direction.
Lost roller wrap. See instructions below.
“Up” limit switch out of adjustment. Adjust “up” limit switch. Call factory for instructions.
Noise.
NOTE: Screen will operate
with a low pitched hum.
Gear noise. Replace motor assembly.
Coasting. Defective brake. Replace motor assembly.
Roller displaced from mounting
bracket. Pin end slipped out of nylon bearing. Realign pin end bracket.
Restoring Lost Roller Wrap
1. Push strap over back of roller.
2. Tape end of strap to pocket.
3. Feed fabric as you pull strap to draw fabric over top.
4. Remove tape and strap.

46832
LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Customer Care Specialists at
3100 North Detroit Street, Warsaw, IN 46582, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
A BRAND OF MILESTONE AV TECHNOLOGIES | www.milestone.com
P800.622.3737 / 574.267.8101 F877.325.4832 / 574.267.7804
[e-mail]
In British Columbia, Milestone AV Technologies ULC carries on business as MAVT Milestone AV Technologies ULC.
©2018 Milestone AV Technologies. DL0256 (Rev. 3) 04.18.
Da-Lite is a registered trademarks of Milestone AV Technologies. All other brand names or marks are used for
identiication purposes and are trademarks of their respective owners. All patents are protected under existing
designations. Other patents pending.
