DAB EVOPLUS B 120/220.32 M Operating and maintenance manual

INSTRUCTIONS FOR INSTALLATIONAND MAINTENANCE
V3.0

B 120/220.32 M B 120/220.32 SAN M D 120/220.32 M
B 40/220.40 M
B 60/220.40 M
B 80/220.40 M
B 100/220.40 M
B 120/250.40 M
B 150/250.40 M
B 180/250.40 M
B 120/250.40 SAN M
B 150/250.40 SAN M
B 180/250.40 SAN M
D 40/220.40 M
D 60/220.40 M
D 80/220.40 M
D 100/220.40 M
D 120/250.40 M
D 150/250.40 M
D 180/250.40 M
B 40/240.50 M
B 60/240.50 M
B 80/240.50 M
B 100/280.50 M
B 120/280.50 M
B 150/280.50 M
B 180/280.50 M
B 100/280.50 SAN M
B 120/280.50 SAN M
B 150/280.50 SAN M
B 180/280.50 SAN M
D 40/240.50 M
D 60/240.50 M
D 80/240.50 M
D 100/280.50 M
D 120/280.50 M
D 150/280.50 M
D 180/280.50 M
B 40/340.65 M
B 60/340.65 M
B 80/340.65 M
B 100/340.65 M
B 120/340.65 M
B 150/340.65 M
B 40/340.65 SAN M
B 60/340.65 SAN M
B 80/340.65 SAN M
B 100/340.65 SAN M
B 120/340.65 SAN M
B 150/340.65 SAN M
D 40/340.65 M
D 60/340.65 M
D 80/340.65 M
D 100/340.65 M
D 120/340.65 M
D 150/340.65 M
B 40/360.80 M
B 60/360.80 M
B 80/360.80 M
B 100/360.80 M
B 120/360.80 M
D 40/360.80 M
D 60/360.80 M
D 80/360.80 M
D 100/360.80 M
D 120/360.80 M
B 40/450.100 M
B 60/450.100 M
B 80/450.100 M
B 100/450.100 M
B 120/450.100 M
D 40/450.100 M
D 60/450.100 M
D 80/450.100 M
D 100/450.100 M
D 120/450.100 M
ENGLISH page 12

1A
ONLY FOR HEATING

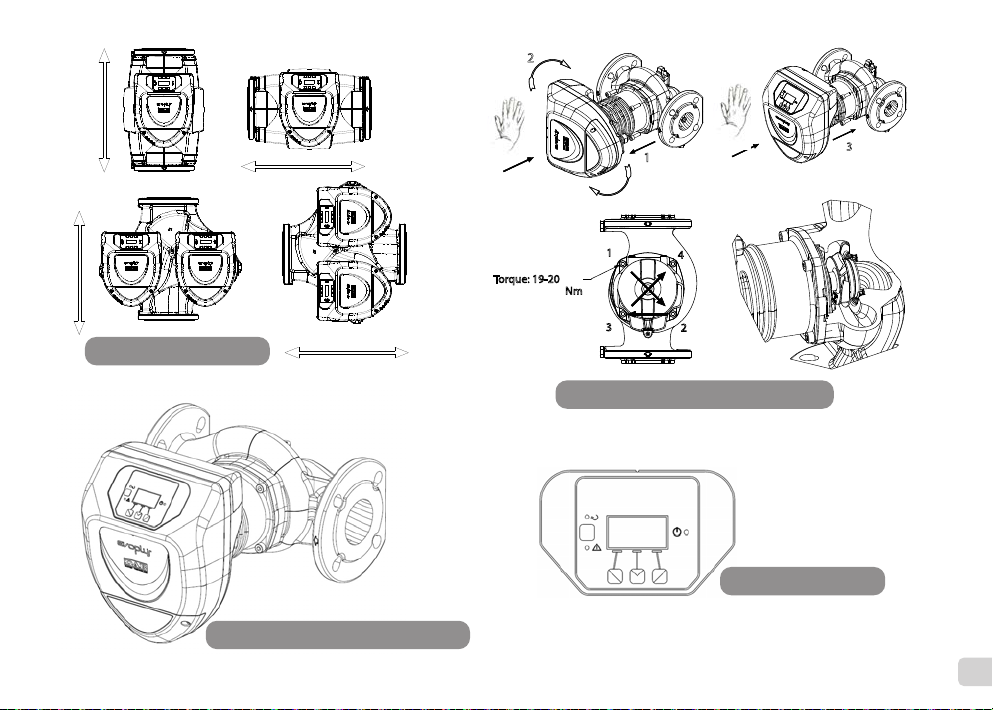

Figure 1: Assembly position
1
2
4
3
Torque: 19-20
Nm
C D
Figure 2: Instructions for motor head assembly
3
B
1
2
A
Figure 10: Control panel
Figure 3: Installation on horizontal pipes

2A
EVOPLUS Hmax [m] Qmax [m3/h] EVOPLUS Hmax [m] Qmax [m3/h]
B 120/220.32 M - B 120/220.32 SAN M* 12.0 17.01 D 120/220.32 M 12.0 30.62
B 40/220.40 M 4.0 12.18 D 40/220.40 M 4.0 21.91
B 60/220.40 M 6.0 15.69 D 60/220.40 M 6.0 28.24
B 80/220.40 M 8.0 18.58 D 80/220.40 M 8.0 33.44
B 100/220.40 M 10.0 20.64 D 100/220.40 M 10.0 37.15
B 120/250.40 M - B 120/250.40 SAN M* 12.0 23.48 D 120/250.40 M 12.0 42.26
B 150/250.40 M - B 150/250.40 SAN M* 15.0 25.65 D 150/250.40 M 15.0 46.17
B 180/250.40 M - B 180/250.40 SAN M* 18.0 25.65 D 180/250.40 M 18.0 46.17
B 40/240.50 M 4.0 20.27 D 40/240.50 M 4.0 36.49
B 60/240.50 M 6.0 25.20 D 60/240.50 M 6.0 45.36
B 80/240.50 M 8.0 27.51 D 80/240.50 M 8.0 49.52
B 100/280.50 M - B 100/280.50 SAN M* 10.0 30.08 D 100/280.50 M 10.0 54.14
B 120/280.50 M - B 120/280.50 SAN M* 12.0 32.98 D 120/280.50 M 12.0 59.36
B 150/280.50 M - B 150/280.50 SAN M* 15.0 35.02 D 150/280.50 M 15.0 63.04
B 180/280.50 M - B 180/280.50 SAN M* 18.0 37.02 D 180/280.50 M 18.0 66.64
B 40/340.65 M - B 40/340.65 SAN M* 4.0 27.90 D 40/340.65 M 4.0 50.22
B 60/340.65 M - B 60/340.65 SAN M* 6.0 34.47 D 60/340.65 M 6.0 62.05
B 80/340.65 M - B 80/340.65 SAN M* 8.0 38.30 D 80/340.65 M 8.0 68.94
B 100/340.65 M - B 100/340.65 SAN M* 10.0 41.71 D 100/340.65 M 10.0 75.08
B 120/340.65 M - B 120/340.65 SAN M* 12.0 44.63 D 120/340.65 M 12.0 80.33
B 150/340.65 M - B 150/340.65 SAN M* 15.0 53.44 D 150/340.65 M 15.0 96.19
B 40/360.80 M 4.0 37.30 D 40/360.80 M 4.0 67.14
B 60/360.80 M 6.0 43.54 D 60/360.80 M 6.0 78.37
B 80/360.80 M 8.0 42.84 D 80/360.80 M 8.0 77.11
B 100/360.80 M 10.0 49.02 D 100/360.80 M 10.0 88.24
B 120/360.80 M 12.0 58.12 D 120/360.80 M 12.0 104.62
B 40/450.100 M 4.0 45.29 D 40/450.100 M 4.0 81.52
B 60/450.100 M 6.0 50.77 D 60/450.100 M 6.0 91.39
B 80/450.100 M 8.0 56.85 D 80/450.100 M 8.0 102.33
B 100/450.100 M 10.0 61.60 D 100/450.100 M 10.0 110.88
B 120/450.100 M 12.0 63.73 D 120/450.100 M 12.0 114.71
*This circulator is suitable for drinking water only.
Table: Maximum head (Hmax) and maximum ow rate (Qmax) of EVOPLUS circulators

3A
Table: Energy E󰀩ciency Index - EEI
EVOPLUS B 120/220.32 M 0,22
EVOPLUS B 40/220.40 M 0,23
EVOPLUS B 60/220.40 M 0,23
EVOPLUS B 80/220.40 M 0,21
EVOPLUS B 100/220.40 M 0,20
EVOPLUS B 120/250.40 M 0,20
EVOPLUS B 150/250.40 M 0,20
EVOPLUS B 180/250.40 M 0,20
EVOPLUS B 40/240.50 M 0,23
EVOPLUS B 60/240.50 M 0,21
EVOPLUS B 80/240.50 M 0,21
EVOPLUS B 100/280.50 M 0,20
EVOPLUS B 120/280.50 M 0,19
EVOPLUS B 150/280.50 M 0,19
EVOPLUS B 180/280.50 M 0,19
EVOPLUS B 40/340.65 M 0,21
EVOPLUS B 60/340.65 M 0,20
EVOPLUS B 80/340.65 M 0,19
EVOPLUS B 100/340.65 M 0,18
EVOPLUS B 120/340.65 M 0,18
EVOPLUS B 150/340.65 M 0,18
EVOPLUS B 40/360.80 M 0,19
EVOPLUS B 60/360.80 M 0,20
EVOPLUS B 80/360.80 M 0,20
EVOPLUS B 100/360.80 M 0,19
EVOPLUS B 120/360.80 M 0,19
EVOPLUS B 40/450.100 M 0,19
EVOPLUS B 60/450.100 M 0,18
EVOPLUS B 80/450.100 M 0,18
EVOPLUS B 100/450.100 M 0,19
EVOPLUS B 120/450.100 M 0,19
EVOPLUS D 120/220.32 M 0,22
EVOPLUS D 40/220.40 M 0,23
EVOPLUS D 60/220.40 M 0,23
EVOPLUS D 80/220.40 M 0,23
EVOPLUS D 100/220.40 M 0,23
EVOPLUS D 120/250.40 M 0,23
EVOPLUS D 150/250.40 M 0,23
EVOPLUS D 180/250.40 M 0,23
EVOPLUS D 40/240.50 M 0,23
EVOPLUS D 60/240.50 M 0,22
EVOPLUS D 80/240.50 M 0,22
EVOPLUS D 100/280.50 M 0,22
EVOPLUS D 120/280.50 M 0,22
EVOPLUS D 150/280.50 M 0,21
EVOPLUS D 180/280.50 M 0,21
EVOPLUS D 40/340.65 M 0,21
EVOPLUS D 60/340.65 M 0,21
EVOPLUS D 80/340.65 M 0,21
EVOPLUS D 100/340.65 M 0,20
EVOPLUS D 120/340.65 M 0,20
EVOPLUS D 150/340.65 M 0,20
EVOPLUS D 40/360.80 M 0,20
EVOPLUS D 60/360.80 M 0,20
EVOPLUS D 80/360.80 M 0,20
EVOPLUS D 100/360.80 M 0,19
EVOPLUS D 120/360.80 M 0,19
EVOPLUS D 40/450.100 M 0,19
EVOPLUS D 60/450.100 M 0,19
EVOPLUS D 80/450.100 M 0,20
EVOPLUS D 100/450.100 M 0,20
EVOPLUS D 120/450.100 M 0,20
The benchmark for the most e󰀩cient circulators is EEI ≤ 0,20

ENGLISH GB
12
INDEX
1. Particular warnings................................................................................................13
2. Pumped liquids.......................................................................................................13
3. Electromagnetic Compatibility (EMC) ..................................................................13
4. Management............................................................................................................13
4.1 Storage...................................................................................................................13
4.2 Transport................................................................................................................13
4.3 Weight....................................................................................................................13
5. Installation...............................................................................................................13
5.1 Circular Installation and Maintenance....................................................................13
5.2 Rotation of the Motor Heads...................................................................................14
5.3 Non-return valve.....................................................................................................14
6. Electrical connections...........................................................................................14
6.1 Power supply connection........................................................................................15
6.2 Electrical connections of Inputs, Outputs and MODBUS........................................15
6.2.1 Digital Inputs.....................................................................................................15
6.2.2 MODBUS and LON Bus...................................................................................15
6.2.3 Analogue Input and PWM.................................................................................16
6.2.4 Outputs.............................................................................................................16
6.3 Connections for Twin Systems............................................................................16
7. Start.........................................................................................................................16
8. Functions.................................................................................................................17
8.1 Regulating Modes...................................................................................................17
8.1.1 Regulation with Proportional Differential Pressure...........................................17
8.1.2 Regulation with Constant Differential Pressure................................................17
8.1.3 Regulation with constant curve.........................................................................17
8.1.4 Regulation with Constant and Proportional Differential Pressure depending on
the Water Temperature...............................................................................................17
9. Control Panel..........................................................................................................18
9.1 Graphic Display......................................................................................................18
9.2 Navigation Buttons.................................................................................................18
9.3 Warning Lights........................................................................................................18
10. Menus....................................................................................................................18
11. Factory settings....................................................................................................20
12. TypeS ofAlarm......................................................................................................21
13. Error Condition And Reset..................................................................................21
INDEX OF FIGURES
Figure 1: Assembly position..........................................................................................1A
Figure 2: Instructions for motor head assembly ............................................................1A
Figure 3: Installation on horizontal pipes.......................................................................1A

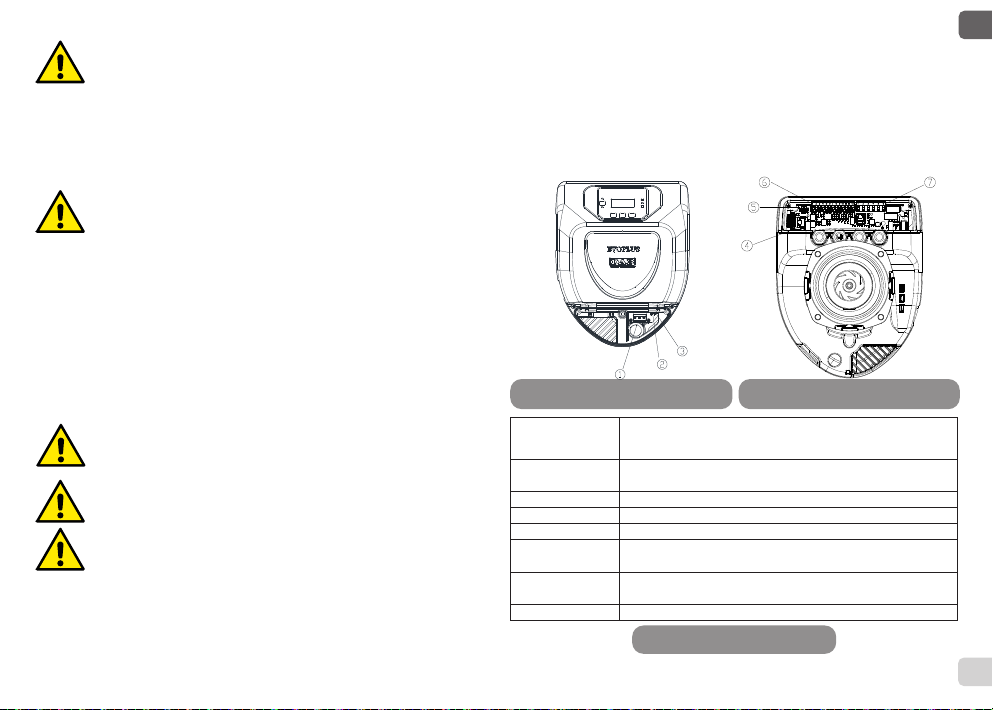

Figure 4: Electrical connections (front)..........................................................................14
Figure 5: Electrical connections (rear)...........................................................................14

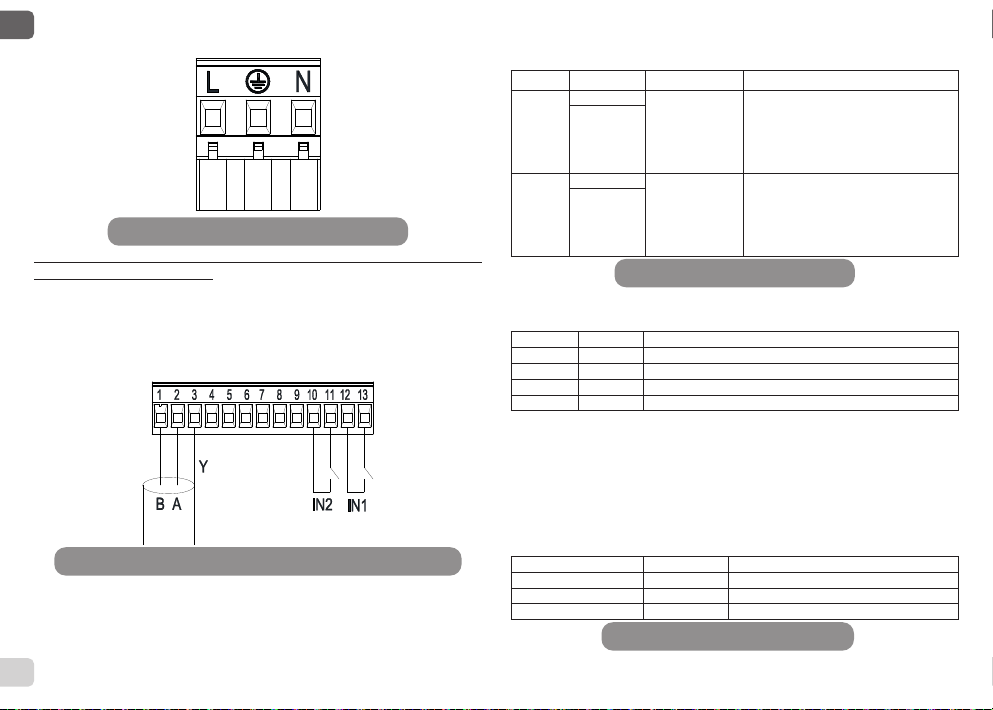

Figure 6: Pull-out terminal board for supply...................................................................15
Figure 7: Pull-out 13-pole terminal board: digital inputs and MODBUS ........................15
Figure 8: Pull-out 13-pole terminal board: 0-10V inputs and PWM...............................16

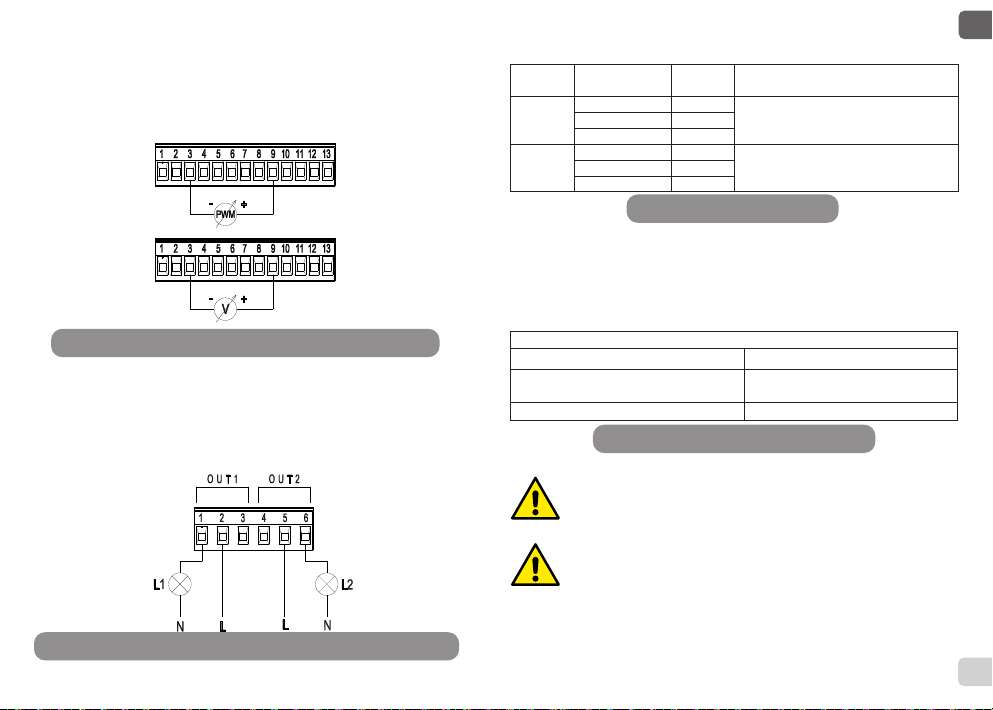

Figure 9: Pull-out 6-pole terminal board: example of output connection..........................16
Figure 10: Control panel................................................................................................1A
INDEX OF TABLES
Table 1: Electrical connections......................................................................................14
Table 2: Digital inputs IN1 and IN2................................................................................15
Table 3: RS_485 MODBUS terminals............................................................................15
Table 4: Outputs OUT1 and OUT2................................................................................16
Table 5: Characteristics of the output contacts..............................................................16
Table 6: Factory settings................................................................................................20
Table 7: List of alarms....................................................................................................21
Table: Maximum head (Hmax) and maximum ow rate (Qmax)
of EVOPLUS circulators..............................................................................................2A
Table: Energy Efciency Index - EEI..........................................................................3A

ENGLISH
GB
13
1. PARTICULAR WARNINGS
Ensure that the product has not suffered any damage during transport
or storage. Check that the outer casing is unbroken and in excellent
conditions.
Always switch off the mains power supply before working on the electri-
cal or mechanical part of the system. Wait for the warning lights on the
control panel to go out before opening the appliance. The capacitor of
the direct current intermediate circuit remains charged with dangerously
high voltage even after the mains power has been turned off.
Only rmly cabled mains connections are admissible. The appliance
must be earthed (IEC 536 class 1, NEC and other applicable standards).
Mains terminals and motor terminals may still have dangerous voltage
when the motor is stopped.
If the power cable is damaged, it must be replaced by the technical assis-
tance service or by qualied personnel, so as to avoid any risk.
2. PUMPED LIQUIDS
The machine has been designed and made for pumping water, free from explosive sub-
stances and solid particles or bres, with a density of 1000 Kg/m³, a kinematic viscosity
of1mm²/sand non chemically aggressive liquids. It is possible to use ethylene glycol in a
percentage of no more than 30%.
3. ELECTROMAGNETIC COMPATIBILITY (EMC)
EVOPLUS circulators respect standard EN 61800-3, in the C2 category, for electromag-
netic compatibility.
-Electromagnetic emissions - Industrial environment (in some cases restrictive
measures may be requested).
-Conducted emissions - Industrial environment (in some cases restrictive meas-
ures may be requested).
4. MANAGEMENT
4.1 Storage
All the circulators must be stored in a dry covered place, with possibly constant air hu-
midity, free from vibrations and dust. They are supplied in their original pack in which
they must remain until the time of installation. If this is not the case, accurately close the
suction and delivery mouth.
4.2 Transport
Avoid subjecting the products to needless impacts and collisions. To lift and transport the
circulator use lifting devices with the aid of the pallet supplied with it (if contemplated).
4.3 Weight
The adhesive plate on the packaging indicates the total weight of the circulator.
5. INSTALLATION
Carefully follow the advice in this chapter to carry out correct electrical, hydraulic and
mechanical installation.
Ensure that the voltage and frequency on the data plate of the EVOPLUS
circulator are the same as those of the power mains.
5.1 Circular Installation and Maintenance
Always install the EVOPLUS circulator with the motor shaft in a horizon-
tal position.Install the electronic control device in a vertical position (see
Figure 1)
- Thecirculatormay be installed in heating and conditioning systems on either the deliv-
ery pipe or the return pipe; the arrow marked on the pump body indicates the direction
of ow.
-Install the circulator as far as possible above the minimum boiler level and as far as
possible from bends, elbows and junction boxes.
-To facilitate control and maintenance operations, install an interception valve both on
the suction pipe and on the delivery pipe.
-Before installing the circulator, accurately ush the system with only water at 80°C.
Then drain the system completely to eliminate any harmful substance that may have
got into circulation.
-Assembleinsuchawayasto avoid dripping on the motor and on the electronic control
device during both installation and maintenance.
-Avoid mixing additives derived from hydrocarbons and aromatic products with the cir-
culating water. It is recommended that the addition of antifreeze, where necessary,
should not exceed 30%.
-In the event of heat insulation use the special kit (if provided) and ensure that the con-
densate draining holes in the motor casing are not closed or partly blocked.
-To guarantee maximum efciency of the system and long life of the circulator it is
recommended to use magnetic sludge-removing lters to separate and collect any im-
purities present in the system (particles of sand, particles of iron and sludge)

ENGLISH GB
14
Never insulate the electronic control device.
- In the case of maintenance, always use a set of new gaskets.
5.2 Rotation of the Motor Heads
If the circulator is installed on pipes in a horizontal position, it will be necessary to rotate
the motor with the respective electronic device through 90 degrees in order to maintain
the grade of IP protection and to allow the user a more convenient interaction with the
graphic interface (see Figure 2-3).
Before rotating the circulator, ensure that it has been completely drained.
Should it be necessary to rotate the motor heads, follow the instructions below with care
to ensure correct installation:
1. Unscrew the 4 screws xing the motor assembly to the pump body (gure A).
2. Rotate the motor assembly keeping it in the seat where it couples with the pump
body (gure A-B).
3. Once the head has been rotated into the desired position, tighten the 4 screws,
always proceeding in cross formation (gure C).
If the motor assembly has been removed from its seat, pay the greatest attention during
assembly, taking care to insert the impeller completely in the oating ring before tighten-
ing the retaining screws (gure D). If it has been correctly assembled, the motor assembly
rests completely on the pump body.
Incorrect assembly may damage the impeller, causing a typical rubbing
noise when the circulator starts.
The electronic control device must always remain in vertical position!
Ensure that the connecting cable of the pressure sensor never comes in
contact with the motor casing.
5.3 Non-return valve
If the system is equipped with a non-return valve, ensure that the minimum pressure of
the circulator is always higher than the valve closing pressure.
6. ELECTRICAL CONNECTIONS
The electrical connections must be made by expert, qualied personnel.
-The circulator does not require any external motor protection.
-Ensure that the supply voltage and frequency are the same as the values indicated on
the electrical data plate of the circulator.
Figure 4: Electrical connections (front) Figure 5: Electrical connections (rear)
Reference
(Figure4andFigure5) Description
1Pull-out terminal board for connection of the supply line:
1x220-240 V, 50/60 Hz
2 auxiliary LED
3 system live indicating LED
4 Connector for connecting twin circulators
5Connector for connecting the uid pressure and temperature sen-
sor (standard)
6Pull-out 13-pole terminal board for connecting the inputs and the
MODBUS systems
7Pull-out 6-pole terminal board for alarm signals and system status
Table 1 Electrical connections

ENGLISH
GB
15
6.1 Power supply connection
Before supplying power to the circulator, ensure that the cover of the EVOPLUS
control panel is perfectly closed.
6.2 Electrical connections of Inputs, Outputs and MODBUS
EVOPLUScirculatorsareequippedwithdigitalandanalogueinputsanddigitaloutputsso
astobeabletorealiseinterfacesolutionswithmorecomplexinstallations.Forthe install-
er it will be sufcient to wire up the desired input and output contacts and to congure their
functions as desired (see par. par. 8.2.1 par. 6.2.2 par. 6.2.3 and par. 6.2.4).
6.2.1 Digital Inputs
Figure 6: Pull-out terminal board for supply
Figure 7: Pull-out 13-pole terminal board: digital inputs and MODBUS
With reference to Figure 7 the digital inputs available are:
Input Terminal no. Type of contact Associated function
IN1 12 Clean contact EXT: If is activated from the control panel
(see par. 12 Page 11.0 of the EVOPLUS
menu) it will be possible to command the
switching on and off of the pump in re-
mote mode.
13
IN2 10 Clean contact Economy: If is activated from the control
panel (see par. 12 Page 5.0 of the EVO-
PLUS menu) it will be possible to active
the set-point reduction function in remote
mode.
11
If the EXT and Economy functions have been activated from the control panel, the sys-
tem will behave as follows:
IN1 IN2 System Status
Open Open Pump stopped
Open Closed Pump stopped
Closed Open Pump running with set-point set by the user
Closed Closed Pump running with reduced set-point
6.2.2 MODBUS and LON Bus
EVOPLUS circulators provide serial communication through an input RS-485. The com-
munication is realised according to MODBUS specications.
With MODBUS it is possible to set the circulator operating parameters in remote mode
such as, for example, the desired differential pressure, the inuence of temperature, the
regulating mode, etc. At the same time the circulator can provide important information
on the system status.
For the electrical connections refer to Figure 6 and to Table 3:
MODBUS Terminals Terminal no. Description
A 2 Terminal not inverted (+)
B 1 Terminal inverted (-)
Y 3 GND
Table 2: Digital inputs IN1 and IN2
Table 3: RS_485 MODBUS terminals

ENGLISH GB
16
The MODBUS communication conguration parameters are available in the advanced
menu see Par.10). EVOPLUS circulators also have the possibility of communicating on
LON bus through external interface devices.
Further information and details on the MODBUS and LON bus interface are available at
the following link: http://www.dabpumps.com/evoplus
6.2.3 Analogue Input and PWM
Figure 8 shows the wiring diagram of the external signals 0-10V and PWM. As may be
seen from the gure the 2 signals share the same terminals on the terminal board, so they
are mutually exclusive. If you want to use an analogue control signal, you will have to set
the type of signal from the menu (see par. 10).
Further information and details on the MODBUS and LON bus interface are available for
download at the following link: http://www.dabpumps.com/evoplus
6.2.4 Outputs
Figure 8: Pull-out 13-pole terminal board: 0-10V inputs and PWM
With reference to Figure 9 the digital outputs available are:
Output Terminal no. Type of
contact Associated function
OUT1 1 NC Presence/Absence of alarms in the system
2 COM
3 NO
OUT2 4 NC Pump running/Pump stopped
5 COM
6 NO
TheoutputsOUT1andOUT2are available on the pull-out6-poleterminalboardasspec-
ied in Table 4 which also shows the type of contact (NC = Normally Closed, COM =
Common, NO = Normally Open). The electrical characteristics of the contacts are shown
in Table 5. In the example shown in Figure 8 the light L1 is lit when there is an alarm in
the system and it goes off when no kind of malfunction is found, whereas the light L2 is lit
when the pump is running and goes off when the pump is stopped.
Characteristics of the output contacts
Max. bearable voltage [V] 250
Max. bearable current [A] 5 If resistive load
2,5 If inductive load
Max. accepted cable section [mm²] 2,5
6.3 Connections for Twin Systems
For correct operation of the twin system, all the external connections of
the pull-out 13-pole terminal board must be connected in parallel between
the 2 EVOPLUS respecting the numbering of the individual terminals.
7. START
All the starting operations must be performed with the cover of the EVO-
PLUS control panel closed. Start the system only when all the electrical
and hydraulic connections have been completed.
Avoid running the circulator when there is no water in the system.
Table 4: Outputs OUT1 and OUT2
Table 5: Characteristics of the output contacts
Figure 9: Pull-out 6-pole terminal board: example of output connection

ENGLISH
GB
17
-Primary circuits with high load losses
-Domestic water recirculating systems with thermostatic valves on the rising col-
umns
8.1.2 Regulation with Constant Differential Pressure
In this regulating mode the differential pressure is kept constant,
irrespective of the demand for water,
The Hs set point may be set from the display or by an external
signal 0-10V or PWM.
Regulation indicated for:
-Heating and conditioning plants with low load losses
-Two-pipe systems with thermostatic valves and head ≤ 2 m
-Single-pipe systems with thermostatic valves
-Plants with natural circulation
-Primary circuits with low load losses
-Domestic water recirculating systems with thermostatic valves on the rising col-
umns.
8.1.3 Regulation with constant curve
In this regulating mode the circulator works on characteristic curves
at a constant speed. The operating curve is selected by setting
the rotation speed through a percentage factor. The value 100%
indicates the maximum limit curve. The actual rotation speed may
depend on the power and differential pressure limits of your circu-
lator model.
The rotation speed may be set from the display or by an external
signal 0-10V or PWM.
Regulation indicated for heating and conditioning plants with constant ow.
8.1.4 Regulation with Constant and Proportional Differential Pressure depending
on the Water Temperature In this regulating mode the regulating set point
Hs is reduced or increased according to the wa-
ter temperature. THs may be set from 0ºC to 100
ºC in order to allow operation in both heating and
conditioning plants.
H
Q
limitemassimo
maximum limit
As well as being at a high temperature and pressure, the uid in the sys-
tem may also be in the form of steam. DANGER OF SCALDING!
It is dangerous to touch the circulator. DANGER OF SCALDING!
Once all the electrical and hydraulic connections have been made, ll the system with
water and if necessary with glycol (for the maximum glycol percentage see par. 2) and
feed the system. Once the system has been started it is possible to modify the operating
modes to adapt better to the plant requirements (see par.10).
8. FUNCTIONS
8.1 Regulating Modes
EVOPLUS circulators allow the following regulating modes depending on plant require-
ments:
-Proportional differential pressure regulation depending on the ow present in the
plant.
-Proportional differential pressure regulation with set-point depending on the exter-
nal signal 0-10V or PWM.
-Proportional differential pressure regulation depending on the ow present in the
plant and on the liquid temperature.
-Constant differential pressure regulation.
-Constant differential pressure regulation with set-point depending on the external
signal 0-10V or PWM.
-Constant differential pressure regulation with variable set-point depending on the
liquid temperature.
-Regulation with constant curve.
-Regulation with constant curve with rotation speed depending on the external sig-
nal 0-10V or PWM.
The regulating mode may be set through the EVOPLUS control panel (see par. 10).

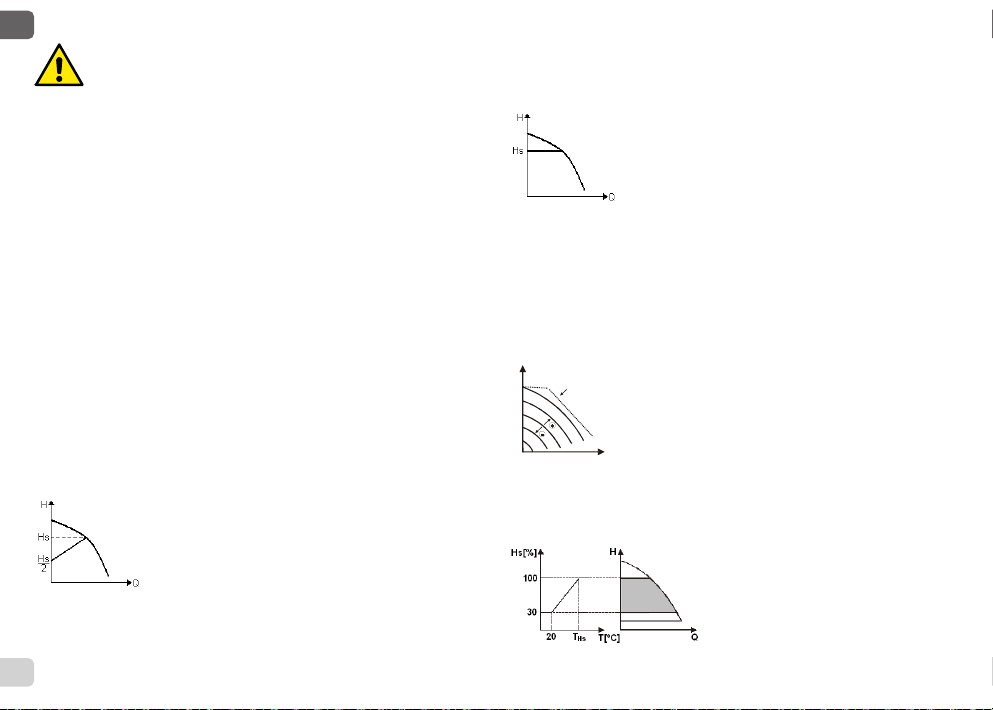

8.1.1 Regulation with Proportional Differential Pressure
In this regulating mode the differential pressure is reduced or in-
creased as the demand for water decreases or increases.
The Hs set point may be set from the display or by an external
signal 0-10V or PWM.
Regulation indicated for:
-Heating and conditioning plants with high load losses
-Two-pipe systems with thermostatic valves and head ≥ 4 m
-Plants with secondary differential pressure regulator

ENGLISH GB
18
10 MENUS
EVOPLUS circulators offer 2 menus: user menu and advanced menu.
The user menu is accessible from the Home Page by pressing and releasing the central
“Menu” button.
The user menu is accessible from the Home Page by holding down the central “Menu”
button for 5 seconds
Below are shown the user menu pages with which it is possible to check the system
status and modify its settings.
Instead on the advanced menu there are the conguration parameters for communica-
tion with MODBUS systems (for further details visit the link: http://www.dabpump.com/
evoplus). To leave the advanced menu you must scroll through all the parameters using
the central button.
If the menu pages show a key at bottom left it means that it is not possible to change the
settings. To unblock the menus go to the Home Page and press the hidden button and
the button under the key at the same time until the key disappears.
If no button is pressed for 60 minutes, the settings are automatically blocked and
the display switches off. When any button is pressed the display lights up again
and the “Home Page” appears.
To navigate in the menus, press the central button.
To return to the previous page, hold down the hidden button, then press and release the
central button.
To modify the settings use the left and right buttons.
To conrm the change of a setting, hold down the central button “OK” for 3 seconds.
Conrmation will be indicated by the following icon:
Regulation indicated for:
-Plants with variable ow (two-pipe heating
plants), where a further reduction of the circu-
lator performance is ensured depending on the
lowering of the temperature of the circulating liq-
uid, when the demand for heating is lower.
-Plants with constant ow (single-pipe and under-
oor heating plants), where the circulator perfor-
mance can be regulated only by activating the
temperature inuence function.
9. CONTROL PANEL
The functions of EVOPLUS circulators can be modied by means of the control panel on
the cover of the electronic control device.
On the panel there are: a graphic display, 4 navigation keys and 3 LED warning lights
(see Figure 10).
9.1 Graphic Display
Using the graphic display it will be possible to navigate in an easy and intuitive menu
which will enable you to check and modify the system operating mode, the enabling of
theinputsandtheworkingset-point.Itwillalsobepossibletoviewthesystemstatusand
the log of any alarms memorised by the system.
9.2 Navigation Buttons
4 buttons are provided for navigating in the menu: 3 buttons under the display and 1 at
the side. The buttons under the display are called active buttons and the one at the side
is called hidden button. Each page of the menu is made in such a way as to indicate the
function associated with the 3 active buttons (the ones under the display).
9.3 Warning Lights
Yellow light: System live signal.
If lit, it means that the system is live.
Never remove the cover if the yellow light is lit.
Red light: Warning of an alarm/malfunction present in the system.
If the light is blinking it is a non-blocking alarm and the pump can still be controlled. If the
light is xed it is a blocking alarm and the pump cannot be controlled.
Green light: Pump ON/OFF signal.
if lit, the pump is running. If off, the pump is stopped.

ENGLISH
GB
19
Home Page The main settings of the system are graphically summed up
on the Home Page.
The icon at top left indicates the type of regulation selected.
The icon at centre top indicates the operating mode selected
(auto or economy).
The icon at top right indicates the presence of a single or twin
inverter. The rotation of the icon or indicates which
circulation pump is operating.
At the centre of the Home Page is a read-only parameter which
can be chosen from a small set of parameters on Page 9.0 of
the menu.
From the Home Page it is possible to access the page for regu-
lating the contrast of the display: hold down the hidden button,
then press and release the right button.
EVOPLUS circulators o󰀨er 2 menus: user menu and advanced
menu. The user menu is accessible from the Home Page by
pressing and releasing the central “Menu” button.
The user menu is accessible from the Home Page by holding
down the central “Menu” button for 5 seconds.
Page 1.0 The factory settings are set from Page 1.0 by holding down the
left and right buttons at the same time for 3 seconds.
The resetting of the factory settings will be notied by the ap-
pearance of the symbol next to the word “Default”.
Page 2.0 The regulating mode is set from Page 2.0. You can choose be-
tween the following modes:
1 = Proportional di󰀨erential pressure regulation.
2 = Proportional di󰀨erential pressure regulation with set-
point set by external signal (0-10V or PWM).
3 = Proportional di󰀨erential pressure regulation with set-point
depending on temperature.
4 = Regulation with constant di󰀨erential pressure.
5 = Constant di󰀨erential pressure regulation with set-point
set by external signal (0-10V or PWM).
6 = Constant di󰀨erential pressure regulation with set-point
depending on temperature.
7 = Regulation with constant curve with rotation speed set
from the display.
8 = Regulation with constant curve with rotation speed set by
an external signal (0-10V or PWM).









Page 2.0 displays 3 icons which represent:
- central icon = setting currently selected
- right icon = next setting
- left icon = previous setting
Page 3.0 The regulating set-point can be modied from Page 3.0.
Depending on the type of regulation chosen on the previous
page, the set-point to be set will be a head or, in the case of a
Constant Curve, a percentage of the rotation speed.

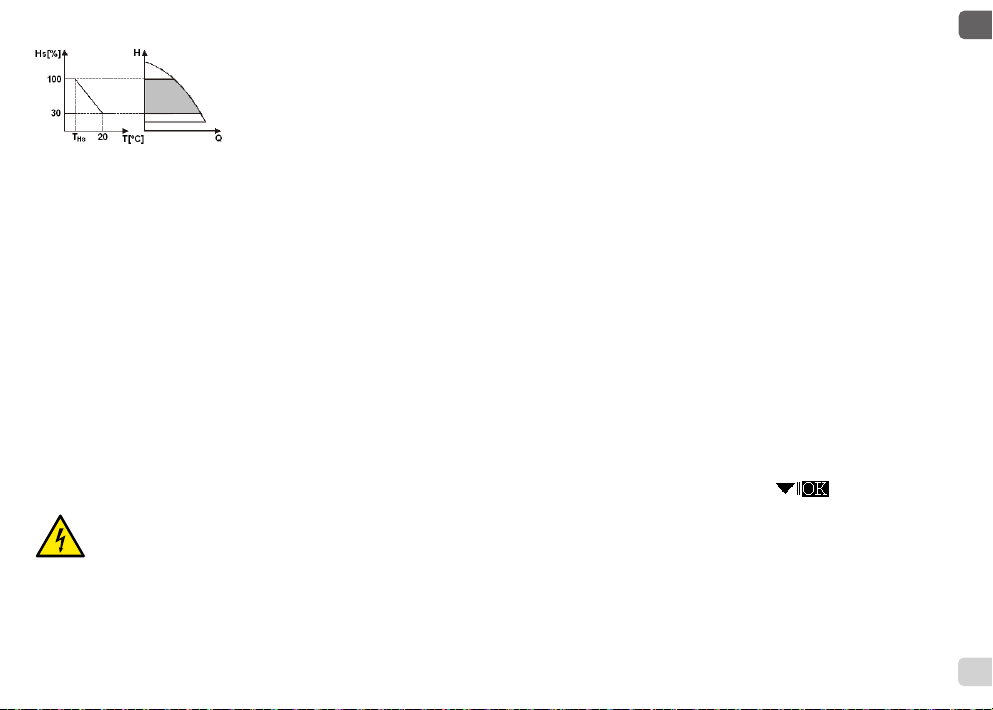

Page 4.0 On Page 4.0 it is possible to modify the parameter THs with
which to make the curve depending on temperature (see Par.
8.1.4).
This page will be displayed only for the regulating modes de-
pending on uid te mperature.
Page 5.0 Page 5.0 allows you to set the “auto” or “economy” operating
mode.
“Auto” mode disables the reading of the status of digital input
IN2 and in fact the system always activates the set-point set
by the user.
“Economy” mode enables the reading of the status of digital
input IN2. When input IN2 is energised the system activates a
percentage reduction of the set-point set by the user (Page 6.0
of the EVOPLUS menu).
For the connection of the inputs see par. 6.2.1
Page 6.0 Page 6.0 is displayed if “economy” mode has been chosen
on page 5.0 and allows setting of the percentage value of the
set-point.
This reduction will be carried out if digital input IN2 is ener-
gised.
Page 7.0 Page 7.0 is displayed if an operating mode has been chosen
with set-point regulated by an external signal.
This page allows you to choose the type of control signal: an-
alogue 0-10V (positive or negative increase) or PWM (positive
or negative increase).

ENGLISH GB
20
Alarms Log If the system nds any faults it records them permanently in the
alarms log (up to a maximum of 15 alarms). For each recorded
alarm a page composed of 3 parts is displayed: an alphanumer-
ic code that identies the type of fault, a symbol that illustrates
the fault in graphic mode, and a message in the language se-
lected on Page 10.0, giving a brief description of the fault.
By pressing the right button you can scroll through all the pages
of the log.
2 questions appear at the end of the log:
“Reset Alarms?”
Pressing OK (left button) resets any alarms still present in the
system.
“Delete Alarms Log?”
Pressing OK (left button) deletes the alarms memorised in the
log.
Pagina 12.0 On page 12.0 you can set the system status in ON, OFF or
controlled by a remote signal EXT (digital input IN1).
If ON is selected the pump is always on.
If OFF is selected the pump is always o󰀨.
If EXT is selected, reading of the status of digital input IN1 is
enabled. When input IN1 is energised the system goes ON and
the pump is started (on the Home Page the messages “EXT”
and “ON” appear alternately at bottom right); when input IN1 is
not energised the system goes OFF and the pump goes o󰀨 (on
the Home Page the messages “EXT” and “OFF” appear alter-
nately at bottom right).
For the connection of the inputs see par. 6.2.1
11. FACTORY SETTINGS
Parameter Value
Regulating mode = Proportional differential pressure regulation
THs 50 ºC
Operating mode auto
Set-point reduction percentage 50 %
Type of external analogue signal 0-10V
Twin operating mode = Alternate every 24h
Pump start control EXT (from remote signal on input IN1).


Table 6: Factory settings
Page 8.0 If a twin system is used (see Par. 6.3) on page 8.0 you can set
one of the 3 possible twin operation modes:
Alternate every 24h: The 2 circulators alternate in reg-
ulation every 24 operating hours. If one of the 2 mal-
functions, the other takes over regulation.
Simultaneous: The 2 circulators work at the same time
and at the same speed. This mode is useful when a
ow rate is required that cannot be provided by a single
pump.
Main/Reserve: Regulation is always performed by the
same circulator (Main), the other (Reserve) takes over
only if there is a malfunction of the Main one.
If the twin communication cable is disconnected the systems
automatically gure as Single, working completely independent
of each other.
Page 9.0 On page 9.0 it is possible to choose the parameter to be dis-
played on the Home Page:
H: Measured head expressed in metres
Q: Estimated ow rate expressed in m3/h
S: Rotation speed expressed in revs per minute (rpm)
E: Head requested by external signal 0-10V or PWM, if active
P: Power distributed expressed in kW
h: Operating hours
T: Liquid temperature measured with the sensor tted on board
T1: Liquid temperature measured with an external sensor
Page 10.0 On page 10.0 you can choose the language in which to display
the messages.
Page 11.0
On page 11.0 you can display the alarms log by pressing the
right button.


ENGLISH
GB
21
12. TYPES OF ALARM
Alarm Code Alarm Symbol Alarm Description
e0 - e16; e21 Internal Error
e17 - e19 Short Circuit
e20 Voltage Error
e22 - e31 Internal Error
e32 - e35 Electronic system excess temperature
e37 Low voltage
e38 High voltage
e39 - e40 Pump blocked
e43; e44; e45; e54 Pressure Sensor
e46 Pump Disconnected
e42 Dry operation
e56 Motor excess temperature (motor protector trips)
e57 Frequency of PWM external signal less than 100 Hz
e58 Frequency of PWM external signal greater than 5 kHz
INFORMATION
Frequently asked questions (faq) on the ecodesign directive 2009/125/ec establishing
a framework for the setting of ecodesign requirements for energy-related products and
its implementing regulations: http://ec.europa.eu/enterprise/policies/sustainable-
business/documents/eco-design/guidance/les/20110429_faq_en.pdf
Guidelinesaccompanyingcommissionregulationsimplementingtheecodesigndirective:
http://ec.europa.eu/energy/efciency/ecodesign/legislation_en.htm - see “circula-
tors”.
Table 7: List of alarms
13. ERROR CONDITION AND RESET
Display
indication Description Reset
e0 – e16
Internal error -Switch o󰀨 system power.
-Wait for the warning lights on the control panel
to go o󰀨, then power the system again.
-If the error persists, change the circulator.
e37
Low mains
voltage
(LP)
-Switch o󰀨 system power.
-Wait for the warning lights on the control panel
to go o󰀨, then power the system again.
-Check that the mains voltage is correct, if nec-
essary reset it at the plate values
e38
High mains
voltage
(HP)
-Switch o󰀨 system power.
-Wait for the warning lights on the control panel
to go o󰀨, then power the system again.
-Check that the mains voltage is correct, if nec-
essary reset it at the plate values.
e32-e35
Critical
overheat-
ing of
electronic
parts
-Switch o󰀨 system power.
-Wait for the warning lights on the control panel
to go o󰀨.
-Check that the system ventilation ducts are
not blocked and that the environment temper-
ature of the premises is correct.
e43-e45;
e54 Sensor sig- nal absent - Check sensor connection.
-If the sensor is faulty, replace it.
e39-e40 Protection against
overcurrent
- Check that the circulator turns freely.
-Check that any antifreeze added does not ex-
ceed the maximum percentage of 30%.
e21-e30 Voltage
Error
-Switch o󰀨 system power.
-Wait for the warning lights on the control panel
to go o󰀨, then power the system again.
-Check that the mains voltage is correct, if nec-
essary reset it at the plate values.
e31
Twin com-
munication
absent
-Check that the twin communication cable is
intact.
- Check that both circulators are powered.
e42 Dry oper-
ation -Put the system under pressure.

ENGLISH GB
22
e56 Motor excess tem-
perature
-Switch o󰀨 system power.
-Wait for the motor to cool down.
-Power the system again.
e57 ; e58 f < 100 Hz ;
f > 5 kHz Check that the PWM external signal is operating and connected as specied.
Energy Efciency Index - EEI
The benchmark for the most efcient circulators is EEI ≤ 0,20

DAB PUMPS S.p.A.
Via M. Polo, 14 - 35035 Mestrino (PD) - Italy
Tel. [phone] - Fax [phone]
www.dabpumps.com
DAB PUMPS LTD.
6 Gilbert Court
Newcomen Way
Severalls Business Park
Colchester Essex
C04 9WN - UK
[email protected]
Tel. [phone]
DAB PUMPEN DEUTSCHLAND GmbH
Am Nordpark 3
41069 Mönchengladbach
Germany
[email protected]
Tel. [phone]
Fax [phone]
DAB PUMPS HUNGARY KFT.
H-8800
Nagykanizsa, Buda Ernőu.5
Hungary
Tel. [phone]
DAB PUMPS OCEANIA PTY LTD
426 South Gippsland Hwy,
Dandenong South VIC 3175 – Australia
[email protected]
Tel. [phone]
DAB PUMPS DE MÉXICO, S.A. DE C.V.
Av Amsterdam 101 Local 4
Col. Hipódromo Condesa,
Del. Cuauhtémoc CP 06170
Ciudad de México
Tel. [phone]
DAB PUMPS B.V.
Albert Einsteinweg, 4
5151 DL Drunen - Nederland
[email protected]
Tel. [phone]
Fax [phone]
DAB PUMPS B.V.
‘tHofveld 6 C1
1702 Groot Bijgaarden - Belgium
[email protected]
Tel. [phone]
DAB PUMPS IBERICA S.L.
Calle Verano 18-20-22
28850 - Torrejón de Ardoz - Madrid Spain
[email protected]
Tel. [phone]
Fax: + 34 91 6569676
DAB PUMPS INC.
3226 Benchmark Drive
Ladson, SC 29456 - USA
[email protected]
Tel. [phone]
Fax [phone]
OOO DAB PUMPS
Novgorodskaya str. 1, block G
office 308, 127247, Moscow - Russia
[email protected]
Tel. [phone]
Fax [phone]
DAB PUMPS (QINGDAO) CO. LTD.
No.40 Kaituo Road, Qingdao Economic &
Technological Development Zone
Qingdao City, Shandong Province - China
PC: 266500
[email protected]
Tel. [phone]
Fax [phone]
DAB PUMPS SOUTH AFRICA
Twenty One industrial Estate,
16 Purlin Street, Unit B, Warehouse 4
Olifantsfontein - 1666 - South Africa
[email protected]
Tel. [phone]
DAB PUMPS POLAND SP. z.o.o.
Ul. Janka Muzykanta 60
02-188 Warszawa - Poland
[email protected]
06/20 cod.60151285
