Dacor DTI30M Series User manual

Installation Instructions
Modernist Induction Cooktop
DTI30M*****
DTI36M*****
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 1 2017-04-05  3:02:28

English2
Contents
Contents
Before you begin... 3
Important 3
Customer-service information 4
If You Need Help... 4
Important safety instructions 5
For your safety 5
Installation requirements 6
Tool and parts 6
Location requirements 7
Product dimensions 8
Electrical requirements 12
Installation instructions 14
Install cooktop 14
Make electrical connection 16
Complete installation 19
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 2 2017-04-05  3:02:28

English 3
Before you begin...
Before you begin...
Important
• The overall design and/or accessories may
differ with the model.
Installer
• To promote safety and minimize
problems, read this manual thoroughly
before starting the installation. Leave
this manual with the user.
• Write the appliance’s model/serial
numbers in this manual for service/
maintenance reference.
User
• Keep this manual for personal reference
and for that of inspectors, service
personnel, etc.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 3 2017-04-05  3:02:28

English4
Customer-service information
Customer-service information
If You Need Help...
If you have questions or problems with installation, contact your Dacor® dealer or the
Dacor Customer-Service team. If your Dacor appliance is under warranty, call Dacor
Distinctive Service. Have the appliance’s model/serial numbers available when you call.
Dacor Modernist Service (repairs under warranty only)
Phone: [phone] ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 4:00 p.m. Pacific Time
Dacor Customer Service
Phone: [phone] ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
All specifications are subject to change without notice. Dacor assumes no liability for
changes to specifications.
© 2017 Dacor, all rights reserved.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 4 2017-04-05  3:02:28

English 5
Important safety instructions
Important safety instructions
For your safety
• For Personal Safety, remove house fuse or open circuit breaker before beginning
installation. Failure to do so could result in serious injury or death.
• Be sure your cooktop is installed properly by a qualified installer or service technician.
• To eliminate the risk of burns or fire due to reaching over heated surface elements,
cabinet storage located above the surface units should be avoided. If cabinet storage
space is necessary, the risk can be reduced by installing a range hood that projects
horizontally a minimum of 5” beyond the bottom of the cabinets. Cabinet installation
above the cooktop may be no deeper than 13”.
• Make sure the cabinets and wall coverings around the cooktop can withstand the
temperatures (up to 194 °F) generated by the cooktop.
• The cooktop should be easy to reach and illuminated by natural light during the day.
• Always disconnect the electrical service to the cooktop before repairing or servicing
the cooktop. This can be done by disconnecting the fuse or circuit breaker. Failure to
do this could result in a dangerous or fatal shock. Know where your main disconnect
switch is located. If you do not know, have your electrician show you.
This appliance must be supplied with the proper voltage and frequency, and connected to
an individual, properly grounded branch circuit, protected by a 40A circuit breaker or a
time delay circuit breaker as noted on name plate.
We recommend you have the electrical wiring and hookup of your cooktop connected by
a qualified electrician. After installation, have the electrician show you where your main
cooktop disconnect is located.
The cooktop conduit wiring is approved for copper wire connection only, and if you have
aluminum house wiring, you must use special UL approved connectors for joining copper
to aluminum.
WARNING
If the information in this manual is not followed exactly, a fire or electrical shock may
result causing property damage, personal injury, or death.
WARNING
Before beginning the installation, switch the power off at the service panel and lock the
service disconnecting switch to prevent power from being switched on accidentally. When
the service disconnecting switch cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
WARNING
This appliance must be properly grounded.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 5 2017-04-05  3:02:28

English6
Installation requirements
Installation requirements
Tool and parts
Tools you will need
Pencil Phillips Head Screwdriver Ruler or Straightedge
Safety Glasses Saber Saw 1/8” Drill Bit & Electric or
Hand Drill
Parts needed
• A UL listed or CSA approved connector for 1/2” (1.3 cm) diameter conduit\
• UL listed wire connectors
Check local codes. Check existing electrical supply. See the “Electrical requirements”
section.
It is recommened that all electrical connections be mafe by a licensed, qualified electrical
installer.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 6 2017-04-05  3:02:28

English 7
Installation requirements
Parts included
6 screw
(M4 L10 2 ea,
M4 L16 2 ea,
UNC 243/16 L75 2 ea)
Bracket Guide: 2 ea Foam tape
Location requirements
IMPORTANT: Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used.
Recessed installation area must provide complete enclosure around the recessed
portion of the cooktop.
• Grounded electrical supply is required. See “Electrical Requirements” section.
NOTE
It is recommended to install the juction box on right side of the cabinet.
If installing the junction box near the left side, make sure the junction box does not
interfere with the cooktop (by concealing the junction box inside the wall).
IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet
supplier to make sure that the materials used will not discolor, delaminate or sustain other
damage. This cooktop has been designed in accordance with the requirements of UL and
CSA International and complies with the maximum allowable wood cabinet temperatures
of 194 °F (90 °C).
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 7 2017-04-05  3:02:28

English8
Installation requirements
Installation requirements
Product dimensions

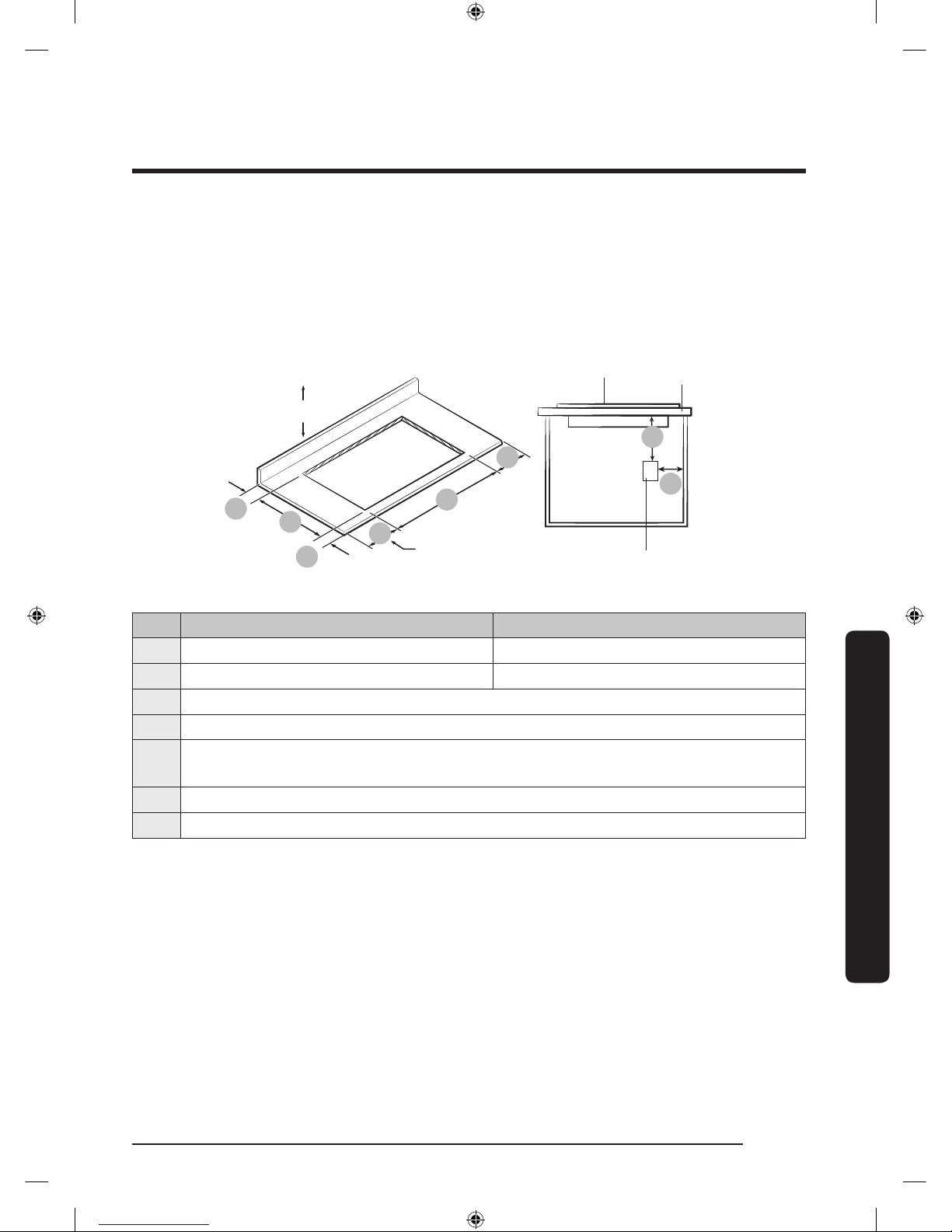

B
A
D
C
EF
Cabinet 30” (mm) 36” (mm)
A Frame Depth 211/4” (540) 211/4” (540)
B Frame Width 30” (762) 36” (914)
C Case Depth 191/2” (494.6) 19” (481.6)
D Case Width 283/8” (720) 333/4” (856.6)
E Conduit Case Height 4” (101) 4” (101)
F Case Height 31/8” (80.5) 31/8” (80.5)
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 8 2017-04-05  3:02:28

English 9
Installation requirements
IMPORTANT:
If installing a range hood or microwave hood combination above the cooktop, follow the
range hood or microwave hood combination installation instructions for dimensions and
clearance above the cooktop surface.
G
F
A
C
E
E
D
B
Cooktop
Rear Wall
Countertop
Junction box
Minimum distance to
combustible side wall above
countertop (both sides)
DTI30M***** (30”) DTI36M***** (36”)
A281/2” - 282/3” (724 mm - 728 mm)
336/7” - 34” (860 mm - 864 mm)
B 194/7” - 192/3” (497.4 mm - 499.4 mm) 191/8” - 191/5” (485.6 mm - 487.6 mm)
CMin 11/7” (28 mm). Between cutout and the wall behind the cooktop
DMin 11/2” (38 mm). From front edge of cutout and front edge of countertop
EMin 1” (26 mm). Distance nearest left and right side combustible surface above
cooktop.
FJunction box or outlet 10” (254 mm) maximum from right-hand side of cabinet
GJunction box or outlet 15” (381 mm) minimum from bottom of countertop
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 9 2017-04-05  3:02:28

English10
Installation requirements
Installation requirements
Single Oven Under counter
D
A
F
E
B
G
C
H
01 02
01 See built-in oven installation for
complete installation instructions.
See label on top of approved built-in
oven models.
02 Refer installation Manual of OVEN.
Size
AMin. 33/4” (9.5 cm)
B4” (10.1 cm)
CMin. 281/2” / Max. 285/8” (Min. 72.4 cm / Max. 72.7 cm)
DMin. 1” / Max. 11/4” (Min. 2.5 cm / Max. 3.2 cm)
EMin. 271/4” / Max. 271/3” (Min. 69.2 cm / Max. 69.5 cm)
F24” (61 cm)
GMin. 22” (Min 55.9 cm)
HMax. 91/2” (Max. 24.1 cm) – Junction Box
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 10 2017-04-05  3:02:29

English 11
Installation requirements
Make sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 194 °F) generated by
cooktop.
NOTE

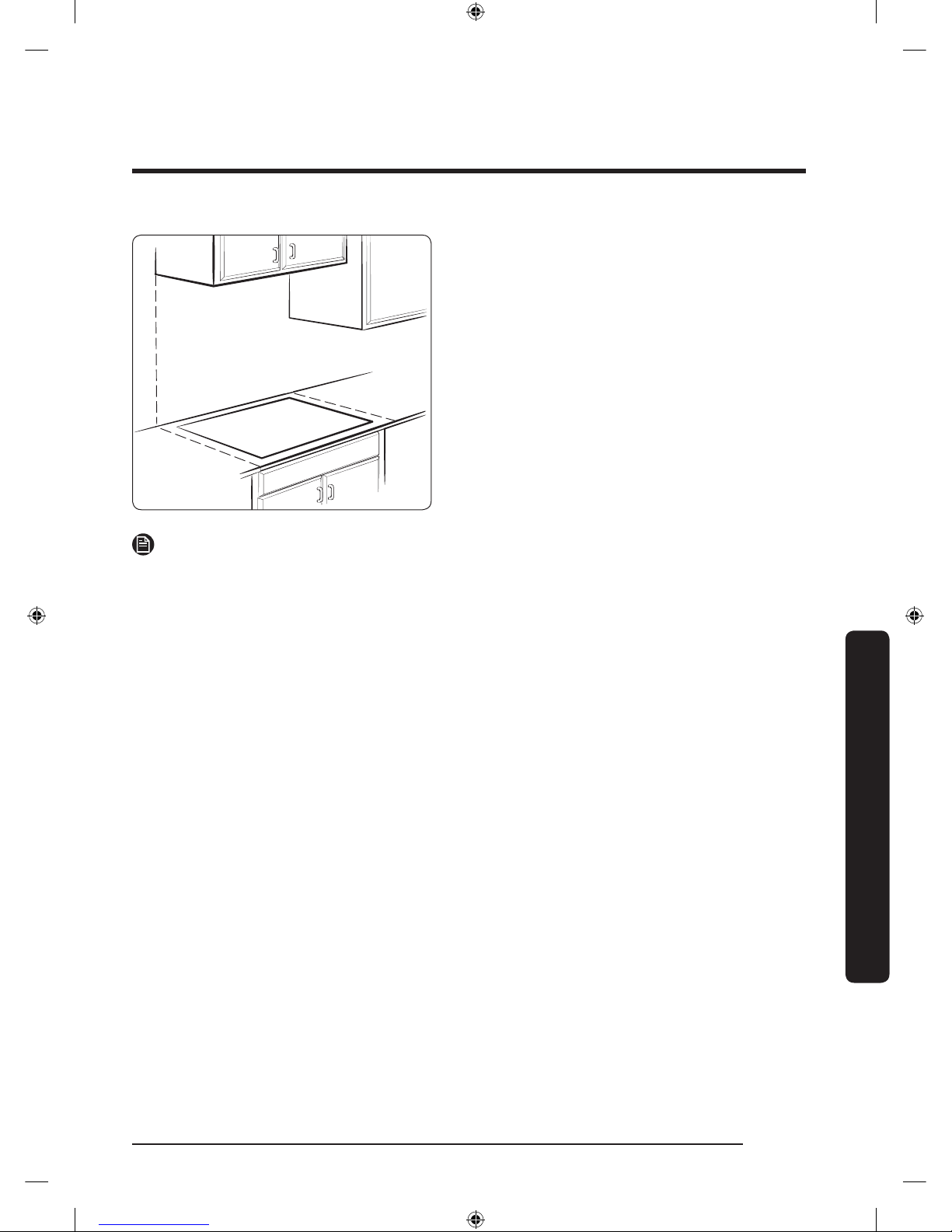

If cabinet has a drawer, a minimum 127 mm (5”) depth clearance from the bottom of
cooktop to top of the drawer (or other obstruction) in base cabinet is required.
IMPORTANT:
The junction box must be located where it will allow considerable slack in the conduit for
serviceability.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 11 2017-04-05  3:02:29

English12
Installation requirements
Installation requirements
Electrical requirements
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge solid copper wire.
Electrically ground cooktop.

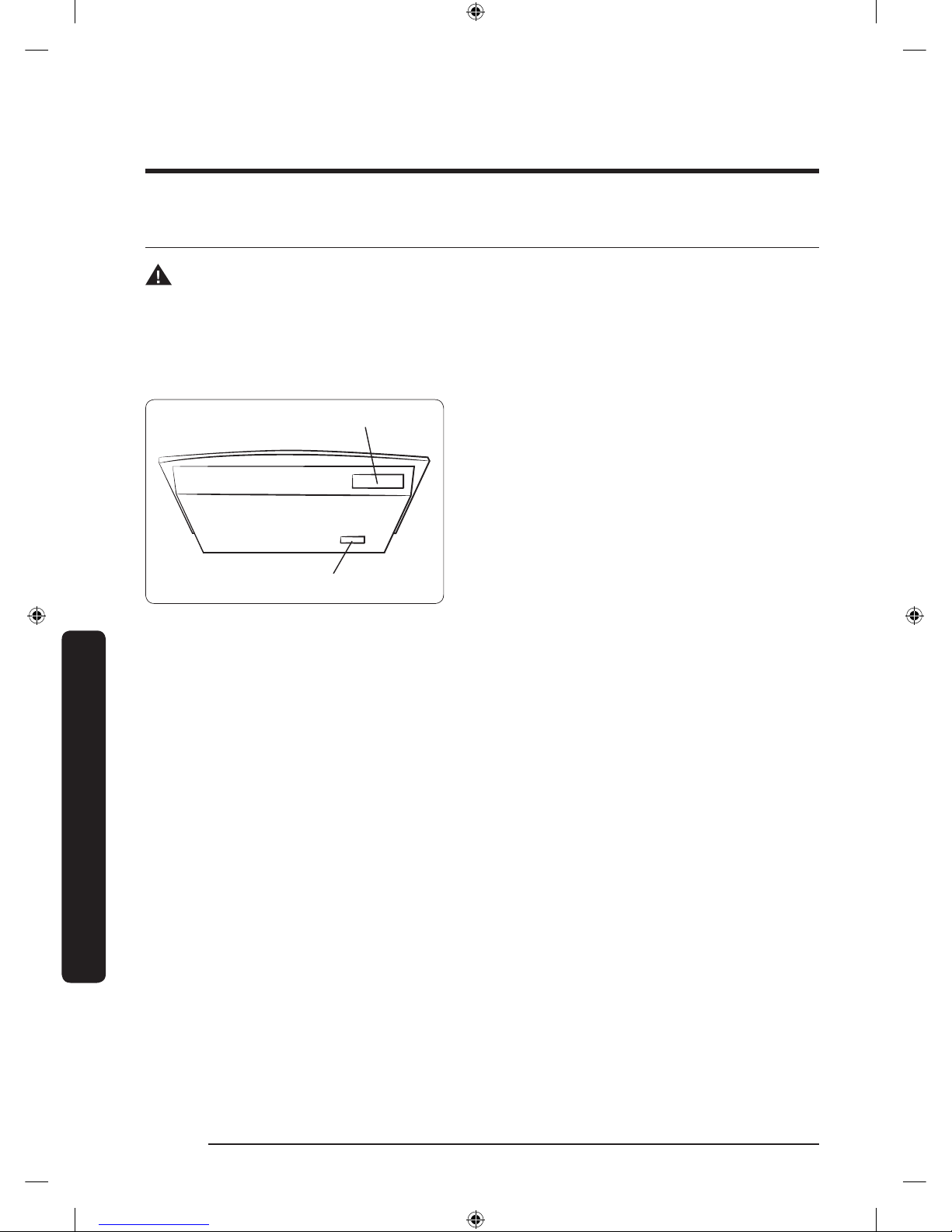

Label
Label
• Refer the label on the bottom or
front of the cooktop for power
requirements and model information.
Failure to follow these instructions can
result in death, fire, or electrical shock.
If codes permit and a separate ground
wire is used, it is recommended that a
qualified electrical installer determine that
the ground path and the wire gauge are in
accordance with local codes.
Check with a qualified electrical installer
if you are not sure the cooktop is properly
grounded.
This cooktop must be connected to a grounded metal, permanent wiring system.
Be sure that the electrical connection and wire size are adequate and in conformance with
the National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.
1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local
codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
178 Rexdale Boulevard,
Toronto, ON, Canada M9W 1R3
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 12 2017-04-05  3:02:29

English 13
Installation requirements
Before you make the electrical connection:
To properly install your cooktop, you must determine the type of electrical connection you
will be using and follow the instructions provided for it here.
• A 3-wire or 4-wire, single phase, 208 or 240 volt AC, 60-Hz, power supply is required
on a dedicated double pole circuit breaker of at least 40 amps for the 30” cooktop, and
of at least 45 amps for the 36” cooktop.
NOTE
• The cooktop is rated 240 volt. Some models have a neutral (white) wire.
• The cooktop should be connected directly to the junction box through flexible, armored
or nonmetallic sheathed, copper cable. The flexible, armored cable extending from the
fuse box or circuit breaker box should be connected directly to the junction box.
• Locate the junction box to allow as much slack as possible between the junction box
and the cooktop so that the cooktop can be moved if servicing becomes necessarry in
the future.
• Do not cut the conduit. Use the length of conduit provided.
• A UL listed or CSA approved conduit connector is necessary at each end of the power
supply cable (at the cooktop and at the junction box). A listed conduit connector is
already provided at the cooktop.
• If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special
connectors and/or tools designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer’s recommended procedure. Aluminum/
copper connection must conform with local codes and industry accepted wiring
practices.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 13 2017-04-05  3:02:29

English14
Installation instructions
Installation instructions
Install cooktop
STEP 1 Prepare installation
Decide on the final location for the cooktop. Avoid drilling or cutting into house wiring
during installation.
Foam Tape
Bottom of Cooktop
Cooktop Glass
1. Using 2 or more people, place the
cooktop upside down on a covered
surface using the foam end posts from
the packaging.
2. The foam strip helps avoid damage
to the underside of the cooktop glass
from debris and helps the cooktop sit
flat on uneven counters.
STEP 2 Place cooktop
Cooktop Insert the cooktop centered into the cutout
opening. Make sure the cooktop is parallel
to the front edge of the countertop. Make
final check that all required clearances are
met.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 14 2017-04-05  3:02:29

English 15
Installation instructions
STEP 3-1 Bracket Guide Installing -Main
The bracket Guide can be installed after cooktop is placed into the cutout.
Bottom of Cooktop
M4 L10 screw
M4 L16 screw
1. Attach bracket guide to bottom of
cooktop and side of wall.
2. Adjust to match hole of bracket and
bottom of cooktop.
3. Tighten screw enough to hold bracket
in place when cooktop is placed in
cutout.
4. Using 2 or more people, turn the
cooktop right side up and place in
cutout.
NOTE
Make sure that the front edge of the
cooktop is parallel to the front edge of the
countertop. If repositioning is needed, lift
entire cooktop up from cutout to avoid
scratching the countertop.
STEP 3-2 Alternative Bracket Guide Installing
The bracket Guide can be installed after cooktop is placed into the cutout.
Countertop
Cooktop
UNC 243/16 L75
screw
M4 X L10 screw
1. Attach bracket guide to bottom and
select bracket location.
2. Tighten screw bracket guide to base of
cooktop.
3. Install UNC 243/16 L75 screw until it
touches the bottom of the countertop.
Turn the thumbscrew until bracket touches
the bottom of the countertop. Do not over
tighten.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 15 2017-04-05  3:02:29

English16
Installation instructions
Installation instructions
Make electrical connection
This cooktop is manufactured with ground wire (bare or green) connected to the cooktop
frame connect the cooktop cable to the junction box through the UL listed or CSA
approved conduit connector.
Electrical Connection Options
If your home has: And you will be connecting to : Go to section:
4-wire direct Afused disconnect or circuit
breaker box
4-Wire Cable from Power
supply to 3-Wire Cable
from Cooktop
3-wire direct Afused disconnect or circuit
breaker box
3-Wire Cable from Power
supply to 3-Wire Cable
from Cooktop
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 16 2017-04-05  3:02:29

English 17
Installation instructions

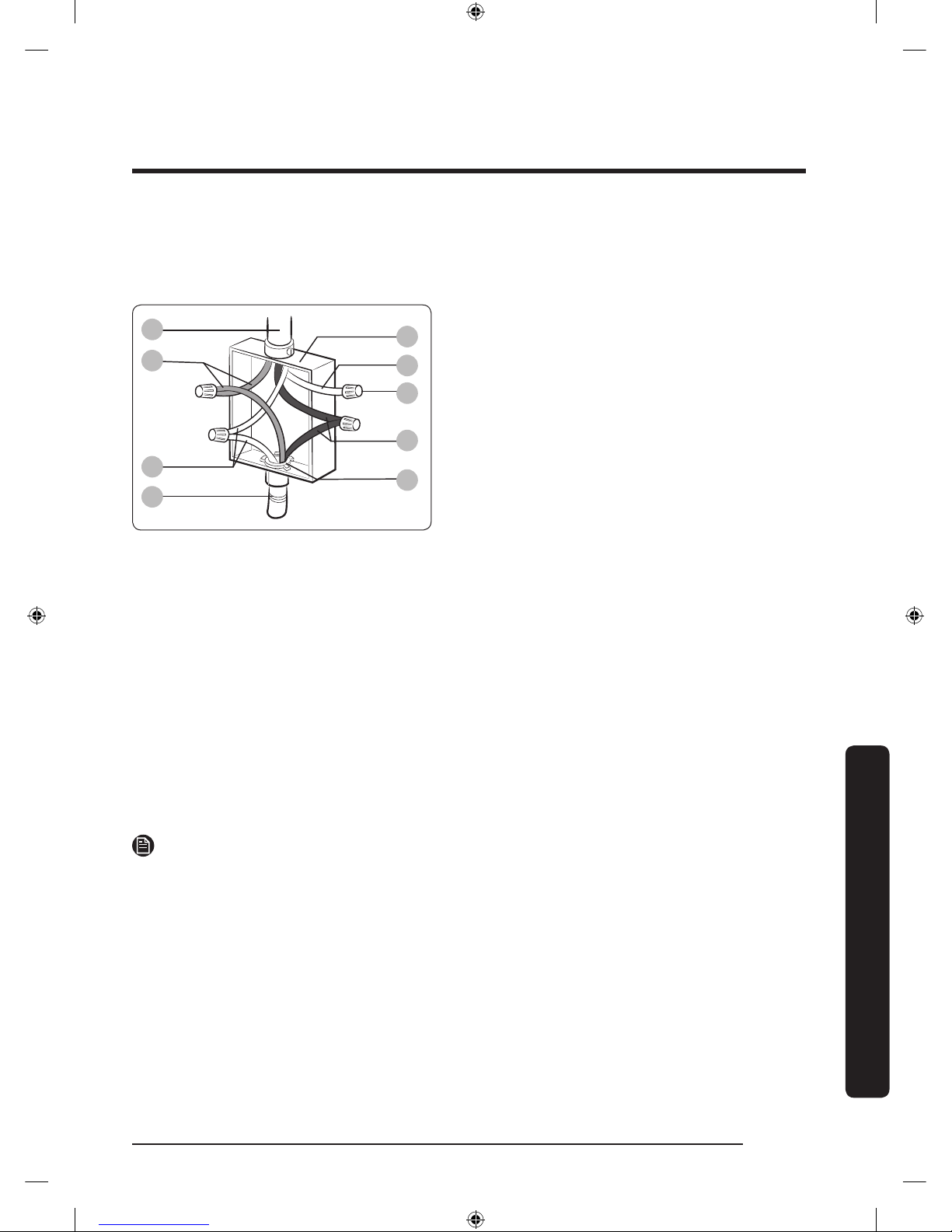

4-Wire Cable from Power Supply to 3-Wire Cable from Cooktop
IMPORTANT: Use the 4-wire cable from power supply where local codes do not permit
connecting the frame-ground conductor to the Neutral (N) junction box wire.
A
B
C
D
E
G
H
I
F
A. 4-wire cable from power supply
B. L1 wires
C. Ground (G) or bare ground wire (from
cooktop)
D. 3-wire cable from cooktop
E. Junction box
F. N (normally White) wire (from power
supply)
G. UL listed wire connector
H. L2 (normally Red) wires
I. UL listed or CSA approved conduit
connector
1. Disconnect power.
2. Remove Junction box cover if present.
3. Connect the flexible cable condult
from the cooktop to the junction box
using a UL listed or CSA approved
condult connector.
4. Tighten screws on condult connector,
if present.
5. Connect the two L2 wires together
using the UL listed wire connectors.
6. Connect the two L1 wires together
using the UL listed wire connectors.
7. Connect the Ground (G) or bare ground
wire from the cooktop cable to the
Ground (G) or bare ground wire (in the
junction box) using a UL listed wire
connectors.
8. Put a UL listed wire connector on the
end of the Neutral (N) wire.
9. Install junction box cover.
10. Reconnect power.
NOTE
• Usually L1 is Black, L2 is Red, Ground (G) is Green or bare wire and Neutral (N) is White
wire.
• Do not connect the bare ground wire to the Neutral (N) wire in the junction box.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 17 2017-04-05  3:02:29

English18
Installation instructions
Installation instructions

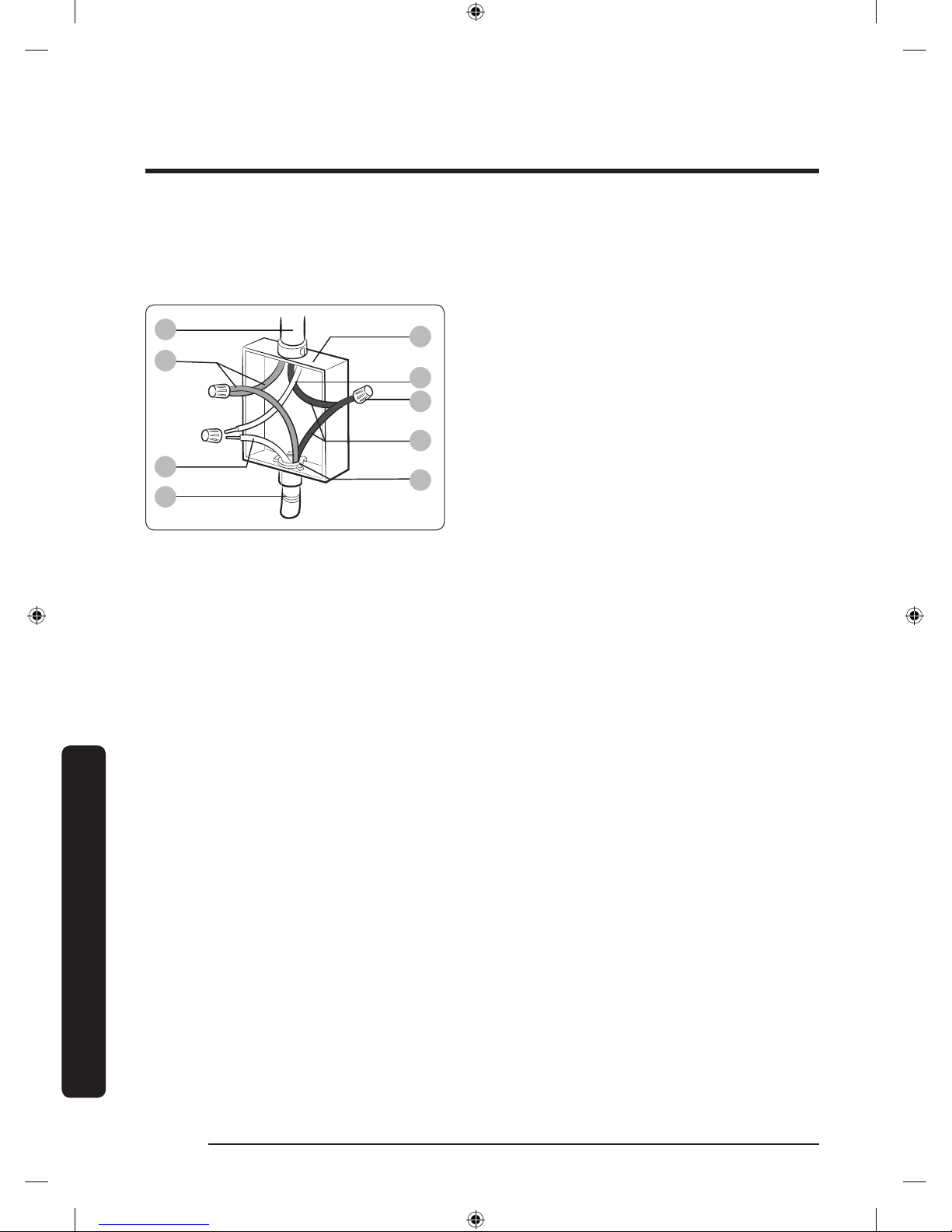

3-Wire Cable from Power Supply to 3-Wire Cable from Cooktop
IMPORTANT: Where local codes permit, 3-wire cable can be use to supply power. In those
cases connect connect cooktop ground wire to the neutral wire from the junction box.
A
B
C
D
E
F
G
H
I
A. 3-wire cable from power supply
B. L1 wires
C. Ground (G) or bare ground wire (from
cooktop)
D. 3-wire cable from cooktop
E. Junction box
F. N (normally White) wire (from power
supply)
G. UL listed wire connector
H. L2 (normally Red) wires
I. UL listed or CSA approved conduit
connector
1. Disconnect power.
2. Remove Junction box cover, if present.
3. Connect the flexible cable condult
from the cooktop to the junction box
using a UL listed or CSA approved
condult connector.
4. Tighten screws on condult connector,
if present.
5. Connect the two L2 wires together
using the UL listed wire connectors.
6. Connect the two L1 wires together
using the UL listed wire connectors.
7. Connect the Ground (G) or bare ground
wire from the cooktop cable to the
Ground (G) or bare ground wire (in the
junction box) using a UL listed wire
connectors.
8. Install junction box cover.
9. Reconnect power.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 18 2017-04-05  3:02:29

English 19
Installation instructions
Complete installation
1. Check that all parts are now installed. If there is an extra parts go back through the
steps to see if any steps were skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Use a mild solution or liquid household cleaner and warm water to clean cooktop
before use. Dry throughly with a soft cloth. For more information, see the User’s
Manual.
5. Reconnect power.
If You Need Assistance or Service:
Please reference the “User Manual” or contact the dealer from whom cooktop was
purchased.
NOTE
For later use,keep the serial-number label(located on the top of the cooktop) in the user
manual or anywhere else the consumer wants.
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 19 2017-04-05  3:02:29

MEMO
NZ9500K_MOD_DTI30M977B_DG68-00898A-00_EN+MES+CFR.indb 20 2017-04-05  3:02:29
