Dacor EF24LWCZ1SS User manual

Installation Instructions
Built-In Wine Coolers, Beverage Centers
For use with models:
EF24LBCSS, EF24LWCZ1SS, EF24LWCZ2SS,
EF24RBCSS, EF24RWCZ1SS, EF24RWCZ2SS
Part No. 100961 Rev. C 7081 621-01

Important Safety Instructions .....................................................1
General Safety Precautions ....................................................... 1
Planning the Installation..............................................................2
Electrical Requirements..............................................................2
Location Requirements...............................................................3
Installation Instructions............................................................3-4
Unpacking the Appliance ............................................................3
Tools Required for Installation ....................................................3
Installation...................................................................................3
Handle Installation ......................................................................4
Before Operation ........................................................................4
Installation Checklist ...................................................................4
Table of Contents
Customer Service Information
IMPORTANT:
I◊ nstaller: In the interest of safety and to minimize problems, read these installation instructions completely before you begin the
installation process. Leave these installation instructions with the customer.
Customer◊ :Keep these installation instructions for future reference and the local building inspector’s use.
If You Need Help...
If you have questions or problems with installation, contact your
Dacor ®dealer or the Dacor Customer Service Team. For repairs
to Dacor appliances under warranty call the Dacor Distinctive
Service line. Whenever you call, have the model and serial
number of the appliance ready. The model and serial number are
printed on the product data label.
Dacor Customer Service
Phone: [phone] (U.S.A. and Canada)
Monday — Friday 6:00 a.m.to 5:00 p.m.Pacific Time
Web site: www.Dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: [phone] (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 4:00 p.m. Pacific Time
Product Data Label
The product data label contains the model and serial◊
number information and the electrical requirements.
It is located inside the door on the lower left side wall.◊
All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications.
© 2009 Dacor, all rights reserved.

1
Important Information About Safety
Instructions
The Important Safety Instructions and warnings in this manual
are not meant to cover all possible problems and conditions
that can occur. Use common sense and caution when installing,
maintaining or operating this or any other appliance.
Always contact the Dacor Customer Service Team about problems
and conditions that you don’t understand. See Customer Service
Information.
Safety Symbols and Labels
DANGER
DANGER – Immediate hazards that WILL result in severe
personal injury or death.
WARNING
WARNING – Hazards or unsafe practices that COULD result in
severe personal injury or death.
CAUTION
CAUTION – Hazards or unsafe practices that COULD result in
minor personal injury or property damage.
DANGER
IMPORTANT: To prevent child entrapment and suffocation,
when discarding an old appliance:
Remove the door(s).•
Leave the racks in place so children cannot easily climb•
inside.
Cut the prongs off the power plug and discard them.•
Cut the power cable off and discard it separately from the•
old appliance.
IMPORTANT: To avoid fire or explosion, do not operate the
appliance in the presence of explosive materials or fumes, such
as gasoline.
IMPORTANT: The interior lights on this appliance emit class 1M
laser radiation.
Only a qualified service technician should replace the light•
bulbs or remove the light covers.
Service technicians:• To avoid severe eye injury or electric
shock, disconnect power to the appliance before removing
the light covers or changing the light bulbs.
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when installing or using this appliance, follow basic safety precautions,
including the following:
WARNING
This appliance is to be installed only by a qualified installer•
according to these installation instructions.
This appliance must be installed in a cabinet or counter•
before it is used.
Use this appliance only according to the accompanying•
use and care manual. This appliance is not intended for
commercial use.
Only a qualified service technician should service this•
appliance, unless the service procedure is specifically
recommended in the literature accompanying it. Before
performing any type of service, disconnect the unit from
electric power.
WARNING
Never allow anyone, including children to sit, stand or•
climb on any part of the appliance, including the door.
Doing so may cause, damage, serious injury or death.
Do not tamper with the controls.•
Do not allow the ventilation grill below the door to become•
obstructed. Make sure there is always good ventilation in
front of the appliance.
If “• F0” or “F1” appears on the display, a fault has
occurred. Unplug the appliance and contact Dacor
customer service.
READ AND SAVE THESE INSTRUCTIONS

2

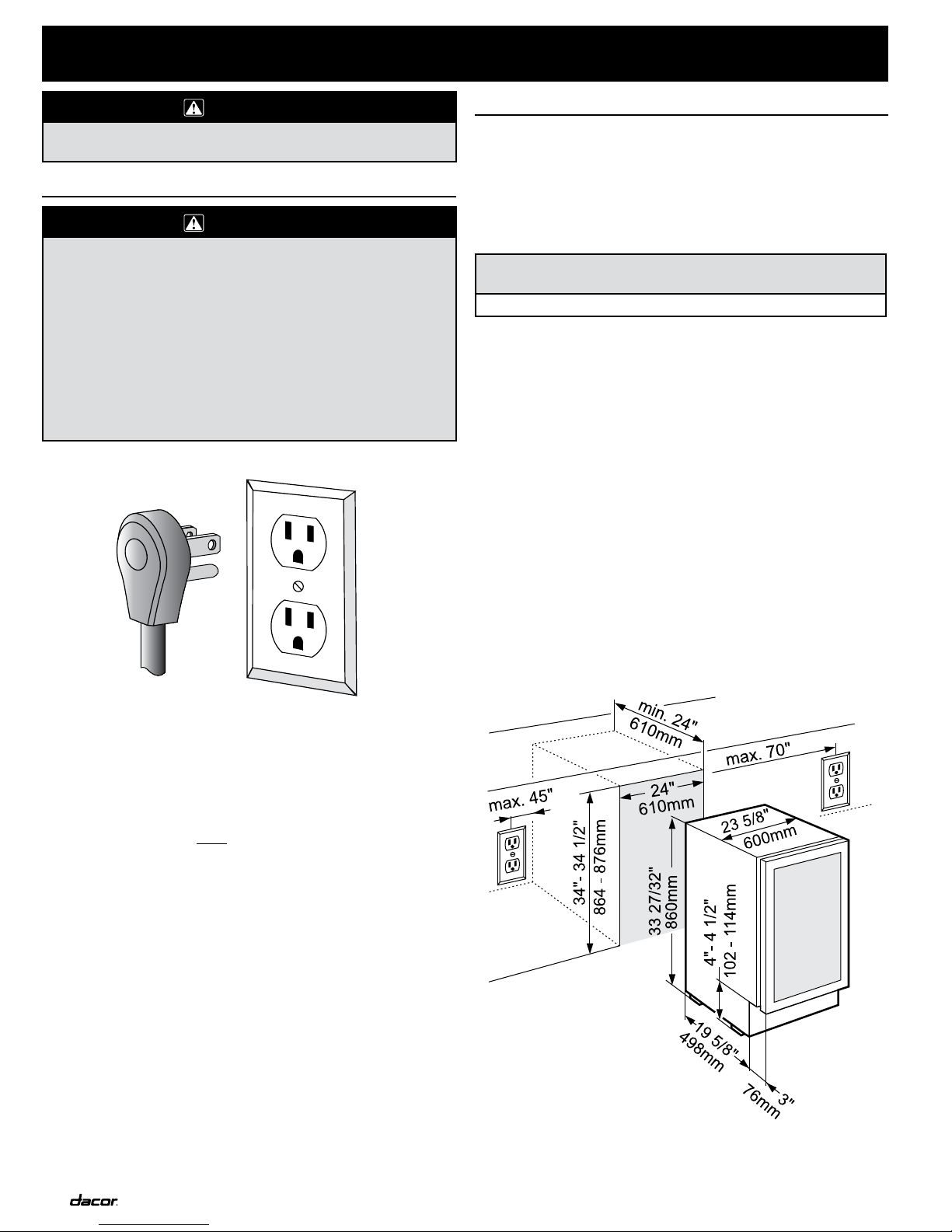

Planning the Installation
Location Requirements
Operating Environment
Do not install this appliance where it is hit by direct sunlight or◊
near a stove, range top, radiator or similar heat source.
The appliance is set to operate within the room temperature◊
limits listed below. These temperature limits should not be
exceeded.
ROOM TEMPERATURE REQUIREMENTS
FOR PROPER OPERATION
61°F to 90°F (16°C to 32°C)
Location and Cabinet Layout Requirements
The Dacor wine cooler or beverage center can be recessed in an
opening between cabinets or installed at the end of a cabinet run
using a side panel to enclose it.
IMPORTANT:
The installation◊ location should permit the door to open a
minimum of 90°. The maximum angle the door can open is
105°.
The appliance must be l◊ ocated so that the grill on the bottom
is not obstructed.
The electrical outlet must be accessible after installation so◊
that the user can unplug the appliance.
T◊ he floor under the appliance must be flat and level with the
surrounding floor.
NOTE: The overall height of the appliance can be increased by
1⅛”(28.6mm)byadjustingthefeet.The cutout dimensions allow
for additional clearance for sliding the appliance into its recess
based on how you chose the final installation to look.
Cabinet Cutout and Product Dimensions
WARNING
IMPORTANT: Observe all governing codes and ordinances
during planning and installation.
Electrical Requirements
WARNING
IMPORTANT - This appliance is equipped with a three prong
grounding plug for your protection against possible electric
shock hazards. Plug it only into a dedicated, grounded three
prong electrical outlet. It is the responsibility of the customer to
make sure the proper type of outlet is installed. Do not under
any circumstances:
Cut or remove the third (ground) prong from the power cord.•
Use an adapter plug.•
Use an extension cord.•
Use a power cord that is frayed or damaged.•
This ap◊ pliance should have its own separate, 110-120 Vac,
15 Amp. grounded circuit controlled by a circuit breaker or
fuse. Follow the National Electrical Code and local codes and
ordinances when installing the electrical outlet.
The electrical outlet◊ must accept a grounded three prong
power cord. A ground fault circuit interrupter (GFCI) type
is not recommended because it may cause interruption
of operation. See Location Requirements for guidelines
regarding location of the electrical outlet.
This appliance complies with current safety regulations and◊
EC directives 73/23/EEC and 89/336/EEC.
In addition, this appliance complies with UL250 and is◊
designed to cool and store wine and beverages.
The refrigerant system on this appliance has been tested for◊
leaks.
Power supply cord with
three prong grounding plug
Grounded type electrical outlet
(GFI not recommended)

3
Installation Instructions
Unpacking the Appliance
WARNING
If you receive a damaged product, immediately contact your•
dealer or builder. Do not install or use a damaged appliance.
To prevent personal injury, property damage or damage to•
the unit, this appliance should only be unpacked and set up
by two people.
Keep packaging materials away from children. Plastic sheets•
and bags can cause suffocation.
Keep the appliance out of the weather. Avoid placing the•
appliance in direct sunlight or near a stove, range top,
radiator or similar heat source.
To protect the unit from possible damage, allow it to stand in•
place 1/2 to 1 hour after delivery before turning the electricity
on. Doing so allows the refrigerant and system lubrication to
reach equilibrium.
Protect the floor surface before you un◊ -crate the unit. Put the
unit on cardboard, plywood, or preferably, a carpet remnant
(backing up) placed on the floor.
Keep the floor protected◊ when moving the appliance.
Tools Required for Installation
Make sure that you have the necessary tools and materials
available for a proper installation.
Phillips screwdriver set◊
Level◊
Crescent wrenches◊
Four (4) mounting screws (included)◊
Allen wrench (included)◊
Two (2) set screws (included)◊
Handle (included)◊
Installation
Adjust the appliance height to fit the cutout using the four1.
adjustable feet on the underside of the appliance.
Make sure all four feet hit the floor and that the appliance2.
does not rock.
Place the level on one of the racks inside the appliance.3.
Check to make sure the appliance is level front to back and
side to side. Readjust the feet if necessary.
Slide the appliance into the cutout.4.
Attach the appliance to the front of the cutout as shown using5.
the four (4) mounting screws included with the unit. The
screws can be installed into the bottom of the counter and/or
into the cabinet in any combination. All four screws must be
used.
Continued...

4
Installation Instructions
Before Operation
NOTE: Dacor recommends cleaning the appliance according to
the cleaning instructions in the use and care manual before use.
IMPORTANT:
Read the use and care manual completely before operation.◊
The importance of the proper installation of your Dacor◊
built-In appliance cannot be overemphasized. To ensure a
safe and proper installation, the following checklist should
be completed by the installer to ensure that no part of the
installation has been overlooked.
Installation Checklist
Has the appliance been secured in place in the countertop or□
cabinet?
Are all leveling legs extended down to make contact with the□
floor? Is the unit level?
Is the power cord plugged into a properly grounded dedicated□
three prong electrical outlet, which has been installed in
accordance with all applicable electrical codes?
Has the warranty been activated on-line or the warranty card□
been filled out completely and mailed?
Once the power cord is connected and the unit is turned on,
the appliance will take several hours to cool down. Load the
compartment once it is cool. See the use and care manual for
further instructions.
If the appliance does not work after performing the above
checklist, contact Dacor Distinctive Service at [phone]. Do
not attempt to repair the appliance yourself.
Dacor is not responsible for the cost of correcting problems
caused by a faulty installation.
Handle Installation
Insert the end caps into1.
the center portion of the
handle.
Thread the included set2.
screws two turns into
the handle end caps.
End caps
Set screws
Put both ends of the3.
handle over the handle
mounting pins on the
refrigerator.
Tighten both set screws4.
into place using the
included Allen wrench.
Do not overtighten.

Dacor ●Phone: [phone] ●FAX: [phone] ●www.Dacor.com
