Dacor EF24RBCSS Owner's manual

d__'_r_ U S E _, C A R E
tho,1,oo_the_,tchoo_ EP IC U R E TM
UNDER THE COUNTER
WINE COOLER
& BEVERAGE CENTER
For Use With Models:
EF24LWCZISS, EF24RWCZISS
EF24LBCSS, EF24RBCSS
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ................................................ 1-2
GETTINGTO KNOW YOUR APPLIANCE .............................................. 3
OPERATINGYOUR APPLIANCE ...................................................... 4-6
CLEANING AND MAINTENANCE ...................................................... 7-8
BEFOREYou CALL FOR SERVICE .................................................... 9
NOTES ................................................................................. 10-11
WARRANTY & SERVICE ................................................................ 12
WARRANTY CARD ......................................................... BACK COVER
Part No. 109969 Rev. B

To Our Valued Customer:
Congratulations on your purchase of the very latest in Oacor products! Our unique combination of features, style and
performance make us The Life of the Kitchen, and a great addition to your home.
In order to familiarize yourself with the controls, functions, and full potential of your new distinctive appliance, we
suggest that you thoroughly read this use & care manual, beginning with the Important Safety Instructions Section.
All Dacor appliances are designed and manufactured with quality and pride, while working within the framework of our
company value. Should you ever experience a problem with your product, please first check the Before You Call for
Service section of this manual for guidance. It provides useful suggestions and remedies prior to calling for service.
Valuable customer input helps us to continuously improve our products and services, so please feel free to contact
our Customer Service Team for assistance with any of your product support needs.
Dacor Customer Service
1440 Bridge Gate Drive
Diamond Bar, CA 91765
Telephone:
Fax:
Hours of Operation:
Web Site:
[phone]
[phone]
Monday through Friday
6:00 AM. to 5:00 P.M Pacific Time
www.dacor.com
Thank you for choosing Dacor for your home. We are a company built by families for families and we are dedicated
to serving yours. We are confident that your new Dacor product will deliver a high level of performance and
enjoyment for many years to come.
yl Crowe
Director, Customer Satisfaction

IMPORTANT SAFETY INSTRUCTIONS
INSTALLER: LEAVE THIS GUIDE WITH THIS APPLIANCE.
CUSTOMER: READ THIS USE & CARE MANUAL COMPLETELY
BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
THIS GUIDE PROVIDES PROPER USE AND MAINTENANCE
INFORMATION. KEEP THIS GUIDE AND THE SALES RECEIPT
AND/OR THE CANCELED CHECK IN A SAFE PLACE FOR
FUTURE REFERENCE. PROOF OF ORIGINAL PURCHASE
DATE IS NEEDED FOR WARRANTY SERVICE.
If you have any questions, call:
Dacor Customer Service
1-800-793-0093 (U.S.A. and Canada)
Monday -- Friday 6:00 am to 5:00 pm Pacific Time
website: www.dacor.com
Have the complete model and serial number identification of your
appliance ready. These numbers are found on the serial number
plate located inside the door on the left side. Record these
numbers below for easy access.
Model Number
Serial Number
Date of Purchase
For warranty and service information, see page 12.
In our continuing effort to improve the quality and performance
of our appliances, it may be necessary to make changes to the
appliance without revising this guide.
What You Need to Know About Safety
Instructions
Warnings and Important Safety Instructions appearing in this
guide are not meant to cover all possible conditions and situations
that may occur. Common sense, caution, and care must be
exercised when installing, maintaining, or operating an appliance.
Always contact the manufacturer about problems or conditions
you do not understand.
Safety Symbols, Words, and Labels
Power supply cord with
three-prong grounding plug
Grounded type wall /
receptacle (ground fault /
circuit not recommended)
SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, serious injury, or death when installing and using your wine cooler or beverage
center, follow basic safety precautions, including the following:
1Ifyou receive a damaged product, immediately contact your dealer or builder Do not install or use a damaqed appliance
2. To prevent personal injury, property damage, or damage to the unit, this appliance should only be unpacked and set up by two
people according to the accompanying installation instructions
3 Keep packaging materials away from children Plastic sheets and bags can cause suffocation
4 This appliance must be installed in a cabinet or counter before it isused Make sure that the unit has been properly installed by
a qualified installer according to the accompanying installation instructions
5 Connect th_s apphance to a 110-120 VAC, 10 amp (15 Amp for stde-by-stde tnstallattons) c_rcutt that ts controlled by a c=rcutt
breaker or fuse This appliance should have its own separate grounded circuit
6 Do not install, repair, or replace any part of the appliance unless specifically recommended in the literature accompanying it A
qualified service technician should perform all other service
7 Before performing any type of service, disconnect the unit from electric power
8 Use this appliance only for its intended purpose, the storage of wine and beverage products It isnot tntended for commerctal
use
9 Never allow anyone, including children to sit, stand, or climb on any part of the appliance, includingthe door Dotng so may
cause, damage, serious tnjury,or death
10 Do not tamper w_th the controls
11 Do not operate the appliance in the presence of explosive materials or fumes, such as gasoline
12 If "FO"or "FI" appears on the display, a fault has occurred Unplug the appliance and contact Dacor customer service
1 To protect the appliance from possible damage, allow it to stand in place 1/2 to 1 hour after moving before turning the electricity
on Doing so allows the refrigerant and system lubrication to reach equilibrium
2 In the event of a power outage, minimize opening the door
3 Do not allow the ventilation grill below the door to become obstructed Make sure there isalways good ventilation in front of the
appliance
4 When disconnecting the power cord, do not pull on the cable Instead, grasp the plug and pull it out of the electrical outlet

GETTING TO KNOW YOUR APPLIANCE
Model Identification
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Wine Coolers:
EF24LWCZISS (Handle on Right)
EF24RWCZ1SS (Handle on Left)
Beverage Centers:
EF24LBCSS (Handle on Right)
EF24RBCSS (Handle on Left)
Features
The right environment for your wines
A vine is an extremely sensitive plant. Grape quality is dependent
on three factors: light, air humidity, and ambient temperature.
This sensitivity continues even after the wine is bottled. To allow a
wine's flavor to fully develop and to preserve the excellent aroma,
it has to be properly stored. Your wine cooler or beverage center
offers the best storage environment:
Wide Temperature Range: The unit has a wide tem-
perature adjustment range. It allows you to store wine at
low temperature for superb aging or at a higher temper-
ature for serving wine lightly chilled. The temperature
can be set between 41 to 64°F (5 to 18°C).
Wine Cellar Simulation: The fan on your wine cooler
or beverage center allows you to simulate the humid
conditions inside a wine cellar. High humidity prevents
bottle corks from drying out.
High Storage Capacity: High storage capacity allows
you to preserve the flavor of your favorite wines. The
wine cooler models can store 56 750mL bottles of
wine. The beverage center models can store 29 750mL
bottles of wine and 88 eight ounce beverage cans at the
same time.
Rack Locations (See diagram above)
C) Slide-Out Racks: Hold up to nine bottles of wine each
Q Beverage Shelves: Hold up to 44 eight ounce cans each
(3) Bottom Shelf: Holds up to 11 bottles of wine
Additional Features
•User-friendly electronic controls
• Electronic display
• Adjustable lighting
• Door open alarm
• Child-resistant lock on the control panel
• Easy to clean
• Low energy consumption
• CFC-free
Temperature Requirements
Your appliance can operate within the room temperature limits
listed below. These temperature limits should not be exceeded.
Safety Features
• The refrigerant system on this appliance has been tested for
leaks
• This appliance also complies with current safety regulations and
EC directives 73/23/EEC and 89/336/EEC.
• In addition, this appliance complies with UL250 and is designed
to cool and store wine and beverages.
IMPORTANT: All Dacor appliances are subject to continuous
improvement. The manufacturer reserves the right to make
modifications in the shape, equipment, and technology.

OPERATING YOUR APPLIANCE
UP DOWN ON/OFF LIGHT ALARM
Getting to Know the Control Panel
C) Temperature setting buttons
(_) Child-resistant lock indicator
(3) Temperature display
(_) ON/OFF button
(_) Interior LIGHT on/off button
(_) ALARM on/off button
Loading the Wine Racks
All of the wine racks on your wine cooler or beverage center slide
out for easy access except for the bottom shelf.
•Each of the slide out racks can hold up to nine 750mL
Bordeaux bottles.
• The bottom shelf can hold up to 11 Bordeaux bottles.
• For maximum capacity, reverse the position of every other
bottle as shown.
Turning the Power ON and OFF
• Clean your appliance before turning it on for the
first time. See the Cleaning and Maintenance
section.
• Connect the power cord to the electrical outlet.
The unit wilt come on.
• The alarm wilt sound and the temperature
display will flash because the beverage compartment is warm
when you first turn it on (see the Alarm section for details). Push
the ALARM button to turn the alarm off while compartment is
cooling down to operating temperature. The temperature display
wilt continue to flash until the interior has cooled.
• To turn the unit off: Push and hold the ON/OFF button for about
three seconds. The display will turn off to indicate that the
appliance is off.
• To turn it on: Push the ON/OFF button until the display lights
up.
Setting the Temperature
• Push the UP or DOWN button to raise or lower the temperature.
You can change the settings in increments of I°F (or 1°C). The
temperature setting wilt flash on the display while you change it.
• After 5 seconds the display will stop flashing and the actual
temperature of the compartment will be displayed.
UP DOWN
Bottle Placement
Labeling Your Wines
Yr.: Wine:
Winery:
• The front of each slide out rack has a slot for attaching wine
labels. Labeling the front of the rack allows you to find the bottle
of wine you are looking for without having to pull the racks out
and look at the bottle labels.
• You can obtain additional labels from your Dacor dealer or part
distributor.
Put Labels in Slot

OPERATING YOUR APPLIANCE
Setting Up the Display (Set-up Mode)
In set-up mode you can turn the child-resistant lock on and off
(see page 6 for details), set the temperature scale to Fahrenheit
or Celsius, and adjust the brightness of the display.
Changing the temperature scale (°F or °C)
You can select the temperature scale that the unit uses to display
the temperature settings:
•Push and hold the LIGHT button for about five seconds to enter
set-up mode. The display wilt begin to flash.
• Push the UP button until the degree symbol ..... flashes on the
display.
UP DOWN ON/OFF LIGHT ALARM
• Push the LIGHT button. °F or °C wilt flash on the display.
• Push the UP or DOWN button until the desired temperature
scale flashes on the display. Push the LIGHT button to select
the desired temperature scale.
• Push the ON/OFF button to exit set-up mode.
Within about two minutes, the appliance will change the
temperature scale on the display.
To change the display brightness
• Push and hold the LIGHT button for about five seconds to enter
set-up mode. The display wilt begin to flash.
• Push the UP button until an "h" flashes on the display. Push the
LIGHT button. The current display brightness level, from 1 to 5
wilt flash on the display, hl is the lowest level, h5 is the highest
level.
Turning on the Fan
When storing wine for tong periods of time, turn on the fan. The
fan wilt increase the humidity level, which prevents bottle corks
from drying out. The fan wilt run continuously until turned off.
• To turn on the fan, push the LIGHT and ALARM buttons at the
same time.
LIGHT ALARM
• When the fan is on, pushing the LIGHT and ALARM buttons at
the same time turns it off.
Alarm
The alarm helps to protect your wines against
excessive temperature fluctuations. The alarm
sounds when the door is open for longer than
about 60 seconds. It also sounds when the interior
gets too warm or too cold. The temperature
display wilt also flash. Itwilt continue to flash until
the temperature problem has been fixed, even if
the alarm has been muted.
• To mute the alarm, push the ALARM button.
Interior Liahtina
v
You can set the interior lighting so that it is on all
the time, or so that it comes on only when the
door isopen.
To make the light stay on (or turn off)
when the door is closed:
•Push the light button.
•Push the UP or DOWN button until the desired brightness level
flashes on the display. Push the LIGHT button to select the
desired brightness level.
• Push the ON/OFF button to exit set-up mode.

OPERATING YOUR APPLIANCE
Child-Resistant Lock
The child-resistant lock feature makes it more difficult
for a child to tamper with the controls. The child-
resistant lock indicator appears on the display when
the lock is on.
To lock (or unlock) the control panel:
•Push and hold the LIGHT button for about five seconds to enter
set-up mode. The display will begin to flash.
• Push the UP button until " c "flashes on the display.
i
UP DOWN i
•Push the LIGHT button, cO or cl will flash on the display.
- cO means that the lock is off.
- cl means that the lock is on.
• Push the UP button to select the desired mode. Push the
LIGHT button to select that mode.
• Push the ON/OFF button to exit set-up mode.

CLEANING AND MAINTENANCE
Defrosting
Both compartments of your appliance defrost automatically. Water
may form on the rear walt as part of the defrost process. It drains
into a reservoir at the back of the appliance and is heated so that
it evaporates.
Cleaning the surfaces
Stainless Steel Surfaces
• Clean stainless steel surfaces with a mild solution of detergent
and warm water. Rinse and dry with a soft, lint-free cloth.
• You may also use Dacor Stainless Steel Cleaner on the
stainless steel surfaces. Use it according to the directions on
the package.
• Stainless steel that is exposed to chlorine gas and moisture
may have some discoloration. This discoloration is normal. If
your unit is used in this type of environment, clean and polish
your stainless steel more often.
• If the surface discolors or rust appears, clean it quickly with a
non-abrasive cloth and protect it.
Replacing the Activated Carbon Filter
Air quality is an important part of preserving and maturing good
wine. To maintain good air quality, your Dacor wine cooler or
beverage center is equipped with an activated charcoal filter. It is
located on the rear walt.
Dacor recommends that you replace the filter at least once a year.
Filters can be obtained from your Dacor dealer or part distributor.
To remove the old filter:
• Disconnect the power cord from the electrical outlet or turn off
power at the circuit breaker or fuse box.
• Hold the filter by the handle in the center.
• Turn it 90° to the left or right. Pull it out.
To install the new filter:
•Insert it with the handle in the vertical position.
• Turn it 90° to the left or right until it clicks into place.
• Reconnect the power.
Glass Surfaces
• To remove finger prints on glass surfaces, use a mild glass
cleaner with a soft damp rag.
Other Surfaces
• Clean all other surfaces with a soft damp rag. You may soak the
rag with a mild detergent solution.

CLEANING AND MAINTENANCE
The ht
The light fixture is mounted in the ceiling toward the front of
the unit. If it is not working, call your dealer or Dacor Customer
Service to have it replaced.
Light
i_i iiiiiiiiiiiiiiiiiiiiiii

BEFOREYOU CALL FOR SERVICE
PROBLEM SOLUTION GUIDE
Nothing works. Appliance does
not cool, control panel display is
off, and lights do not work.
Light does not come on.
Loud running noise.
Appliance runs constantly.
Temperature not cold enough.
F0 or F1 appears on the display.
Appliance not connected to
electrical power.
Electricity to power outlet is off.
Make sure appliance is plugged in.
Turn power on at junction box. Check for tripped circuit
breaker or blown fuse.
Appliance is turned off. See Turning the Appliance On and Off on page 4.
Power outage.
No power.
Lights are turned off.
Light bulb burned out.
Bottles vibrating.
Appliance not standing firmly on
floor.
Room temperature too hot.
Door has been left ajar.
Appliance mounted too close to
heat source.
A lot of bottles added to appliance.
Temperature not set properly.
See "Appliance runs constantly",
above.
Appliance has a fault.
Contact power company.
See nothing works, above.
See Interior Lighting on page 5.
Call for service to have it replaced. See "Getting Help" on
page 12 for details.
Adjust bottles and racks to minimize vibration.
Check appliance leveling according to installation
instructions. If problem persists, contact installer. Have
installer level appliance or modify installation.
Make sure room temperature is between limits on room
temperature chart on page 3. Adjust ventilation system if
necessary.
Make sure door is firmly shut.
Have a technician or installer modify the appliance
installation or the heat source.
The appliance will run until it has had a chance to cool all
the bottles.
See Setting the Temperature on page 4.
Disconnect the power cord. Call for service. See "Getting
Help" on page 12 for details.

NOTES
10

NOTES
11

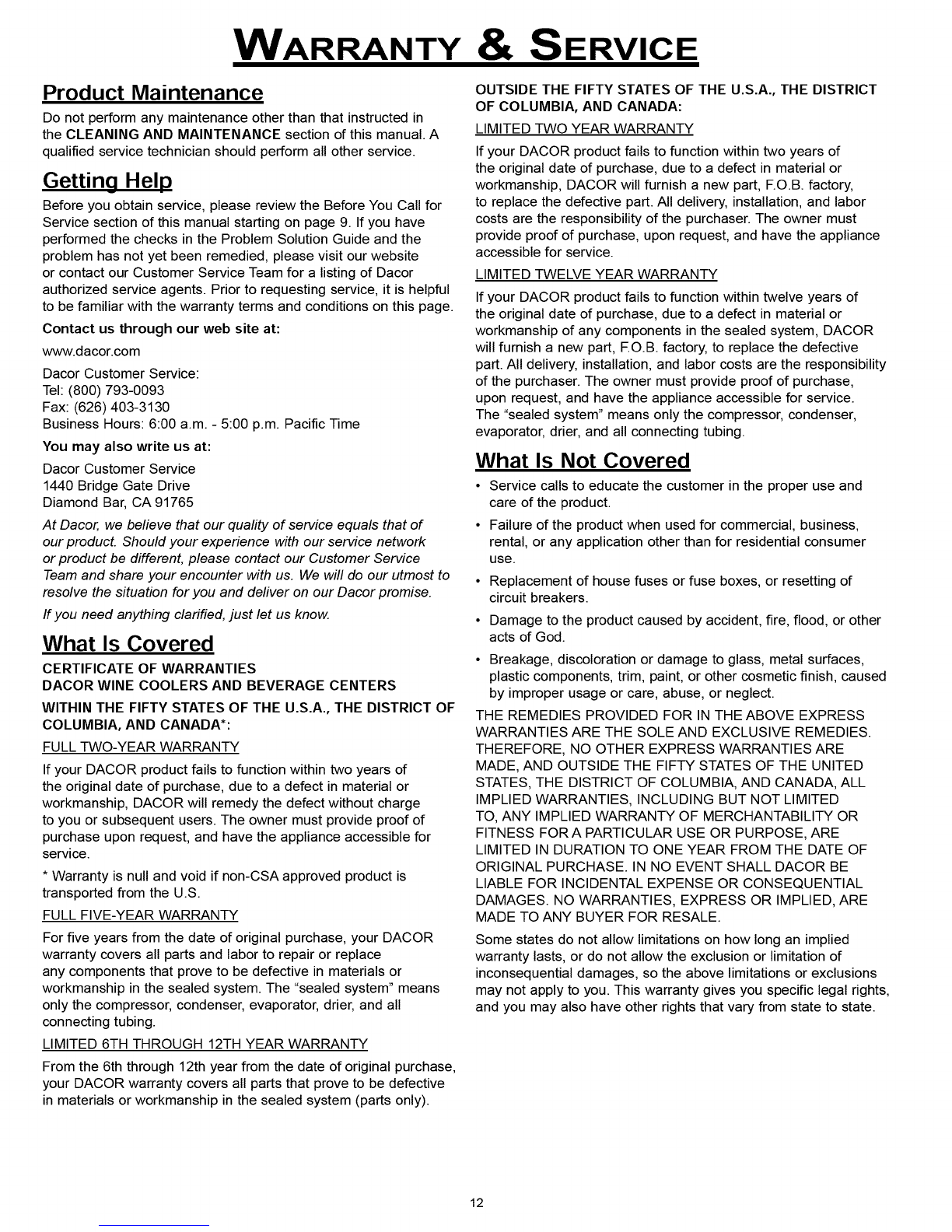

WARRANTY & SERVICE
Product Maintenance
Do not perform any maintenance other than that instructed in
the CLEANING AND MAINTENANCE section of this manual. A
qualified service technician should perform all other service.
Getting Help
Before you obtain service, please review the Before You Call for
Service section of this manual starting on page 9. If you have
performed the checks in the Problem Solution Guide and the
problem has not yet been remedied, please visit our website
or contact our Customer Service Team for a listing of Dacor
authorized service agents. Prior to requesting service, it is helpful
to be familiar with the warranty terms and conditions on this page.
Contact us through our web site at:
www.dacor.com
Dacor Customer Service:
Tel: [phone]
Fax: [phone]
Business Hours: 6:00 a.m. - 5:00 p.m. Pacific Time
You may also write us at:
Dacor Customer Service
1440 Bridge Gate Drive
Diamond Bar, CA 91765
At Dacor, we believe that our quality of service equals that of
our product. Should your experience with our service network
or product be different, please contact our Customer Service
Team and share your encounter with us. We will do our utmost to
resolve the situation for you and deliver on our Dacor promise.
If you need anything clarified, just let us know.
What Is Covered
CERTIFICATE OF WARRANTIES
DACOR WINE COOLERS AND BEVERAGE CENTERS
WITHIN THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF
COLUMBIA, AND CANADA*:
FULL TWO-YEAR WARRANTY
If your DACOR product fails to function within two years of
the original date of purchase, due to a defect in material or
workmanship, DACOR will remedy the defect without charge
to you or subsequent users. The owner must provide proof of
purchase upon request, and have the appliance accessible for
service.
* Warranty is null and void if non-CSA approved product is
transported from the U.S.
FULL FIVE-YEAR WARRANTY
For five years from the date of original purchase, your DACOR
warranty covers all parts and labor to repair or replace
any components that prove to be defective in materials or
workmanship in the sealed system. The "sealed system" means
only the compressor, condenser, evaporator, drier, and all
connecting tubing.
LIMITED 6TH THROUGH 12TH YEAR WARRANTY
From the 6th through 12th year from the date of original purchase,
your DACOR warranty covers all parts that prove to be defective
in materials or workmanship in the sealed system (parts only).
OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT
OF COLUMBIA, AND CANADA:
LIMITED TWO YEAR WARRANTY
If your DACOR product fails to function within two years of
the original date of purchase, due to a defect in material or
workmanship, DACOR will furnish a new part, F.O.B. factory,
to replace the defective part. All delivery, installation, and labor
costs are the responsibility of the purchaser. The owner must
provide proof of purchase, upon request, and have the appliance
accessible for service.
LIMITED TWELVE YEAR WARRANTY
If your DACOR product fails to function within twelve years of
the original date of purchase, due to a defect in material or
workmanship of any components in the sealed system, DACOR
will furnish a new part, F.O.B. factory, to replace the defective
part. All delivery, installation, and labor costs are the responsibility
of the purchaser. The owner must provide proof of purchase,
upon request, and have the appliance accessible for service.
The "sealed system" means only the compressor, condenser,
evaporator, drier, and all connecting tubing.
What Is Not Covered
• Service calls to educate the customer in the proper use and
care of the product.
• Failure of the product when used for commercial, business,
rental, or any application other than for residential consumer
use.
• Replacement of house fuses or fuse boxes, or resetting of
circuit breakers.
• Damage to the product caused by accident, fire, flood, or other
acts of God.
• Breakage, discoloration or damage to glass, metal surfaces,
plastic components, trim, paint, or other cosmetic finish, caused
by improper usage or care, abuse, or neglect.
THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS
WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES.
THEREFORE, NO OTHER EXPRESS WARRANTIES ARE
MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED
STATES, THE DISTRICT OF COLUMBIA, AND CANADA, ALL
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FORA PARTICULAR USE OR PURPOSE, ARE
LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF
ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE
LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL
DAMAGES. NO WARRANTIES, EXPRESS OR IMPLIED, ARE
MADE TO ANY BUYER FOR RESALE.
Some states do not allow limitations on how long an implied
warranty lasts, or do not allow the exclusion or limitation of
inconsequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights that vary from state to state.
12

fold here
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST-CLASSMAIL PERMITNO.4507 DIAMONDBARCA
POSTAGEWILL BE PAIDBYADDRESSEE
DACOR, INC.
ATTN: WARRANTY PROCESSING DEPT
1440 BRIDGE GATE DR STE 200
PO BOX 6532
DIAMOND BAR CA 91765-9861
I1,1,,,,,111,,,I,I1,,,I,1,1,1,,I,,I,,11,,,,,111,,I,I

Pleasevisit www.dacor.com to activate your warrantyonline.
WARRANTYINFORMATION
IMPORTANT:
Yourwarrantyfor this productCANNOTBEACTIVATEDuntilthisform hasbeenreturnedto Dacor.Ifyou have
purchased morethanone Dacorproduct,pleasereturn allforms inone envelope.
Pleaserestassuredthatunderno conditionswillDacorsellyournameor anyoftheinformationonthisformformailinglist purposes.We
areverygratefulthatyouhavechosenDacorproductsforyourhomeanddonotconsiderthesaleofsuchinformationto bea properway
ofexpressingourgratitude!
Owner'sName: Last (Please PrintorType)
Street: First Middle
City: State:
PurchaseDate: Email: Telephone:
Dealer:
Zip:
City: State: Zip:
Yourwillingnesstotakea fewsecondstofill inthesectionbelowwillbesincerelyappreciated.Thankyou.
1.Howwereyoufirst exposedto Dacorproducts?(Pleasecheckoneonly.)
!3 A. T.V.CookingShow !3 F Builder
!3 B. Magazine !3 G. Architect/Designer
!3 C. ApplianceDealerShowroom !3 H. AnotherDacorOwner
!3 D. KitchenDealerShowroom !3 I. ModelHome
!3 E. HomeShow !3 J. Other
2.WheredidyoubuyyourDacorappliances?
!3 A. ApplianceDealer !3 D. Builder
!3 B. KitchenDealer !3 E. Other
!3 C. BuilderSupplier
3. Forwhatpurposewastheproductpurchased?
!3 A. Replacementonly !3 C. NewHome
!3 B. Partof a Remodel !3 D. Other
4.Whatis yourhouseholdincome?
!3 A. Under$75,000 !3 D. $150,000-$200,000
!3 B. $75,000-$100,000 !3 E. $200,000-$250,000
!3 C. $100,000-$150,000 !3 E Over$250,O00
5.Whatotherbrandsofappliancesdoyouhaveinyourkitchen?
A.Cooktop C. Dishwasher
B. Oven D. Refrigerator
6.Wouldyoubuyor recommendanotherDacorproduct?
FI Yes
Comments: !_ No
o
o
Thankyouverymuchforyourassistance.Theinformationyouhave
providedwillbe extremelyvaluablein helpingusplanforthefuture
andgivingyouthesupportyoudeserve.
PlaceSerialNumberLabelHere
Web Site: www.dacor.com
Corporate Phone: [phone]
