Daewoo COL1319 User manual

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed. These instructions should be saved for future
reference:
• Read and familiarise yourself with all operating instructions before
using this Air Conditioner.
• Before plugging your unit into the mains, visually check that the unit
is intact and has not su󰀨ered any transit damage.
• Check that the voltage indicated on the data plate corresponds with
that of the local network before connecting the appliance to the
mains power supply.
• If you are in any doubt about the suitability of your electricity supply
have it checked and, if necessary, modied by a qualied person.
• Disconnect the power plug from the socket before dismantling,
assembling or cleaning.
• Avoid touching any moving parts within the appliance.
• Never insert ngers, pencils or any other objects through the guard.
• This appliance can be used by children from 8 years and above and
persons with reduced physical, sensory or mental capabilities or
lack of experience or knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understands the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Do not leave children unsupervised with this appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the appliance to an electrical outlet using an
extension lead. If an outlet is not available, one should be installed
by a qualied electrician.
• Never operate this appliance if the cord or plug are damaged.
Ensure the power cord is not stretched or exposed to sharp objects
or edges.
• A damaged supply cord should be replaced by the manufacturer or a
qualied electrician in order to avoid a hazard.
• Any service other than regular cleaning or lter replacement should
be performed by an authorised service representative.
• Do not use this appliance for any other purpose than it’s intended
use.

• The air conditioner must always be stored and transported upright,
otherwise irreparable damage may be caused to the compressor; if
in doubt, wait at least 24 hours before restarting the unit.
• Avoid restarting the air conditioner unless 3 minutes have passed
since being turned o󰀨. This prevents damage to the compressor.
• Never use the mains plug or external timer as a means of switching
the air conditioner on or o󰀨. Use the ON/OFF button located on the
control panel.
• Always place the unit on a dry and stable surface.
• The appliance should not be placed in a laundry or wet room.
• The appliance must be placed in a room without sources of
ignition (for example: open ames, an operating gas appliance or an
operating electric heater)
• The appliance must be installed and used in a room with a oor area
larger than 4m2
• This appliance contains R290 refrigerant gas. For quantity see rating
label on the rear of the unit.
• R290 refrigerant gas complies with EU environmental directives.
• Refrigerant gas may be odourless, if the appliance is used or stored
in an unventilated room, the room must be such as to prevent
stagnation of possible leaks of refrigerant gas as there could be a
danger of re or explosion hazard should the refrigerant come into
contact with electric heaters, stoves or other sources of ignition.
• The refrigerant system should not be perforated.
• The appliance must be stored in such a way as to prevent
mechanical failure.
• Individuals who operate or work on the refrigerant circuit must have
the appropriate certication issued by an accredited organisation that
ensures competence in handling refrigerants according to a specic
evaluation recognized by associations in the industry.
• Repairs must be performed based on the recommendation from the
manufacturing company. Maintenance and repairs that require the
assistance of other qualied persons must be performed under the
supervision of an individual specied in the use of ammable refriger-
ants.

Description of parts
Control panel
1.
2. 3.
5.
6.
7.
8.
4.
Left side Front Right side Rear
Top
1. Control panel
2. Air inlet
3. LED display
4. Air outlet
5. Cable storage
6. Hot air exhaust
7. Condensed water drain
8. Air inlet

Vent kit
1. 3.2.
1. Flexible Hose
2. Hose Connector
3. Hose Exit Ring
Fitting the Flexible Hose – the hose must be tted before use
1. First t the hose connector (2) to one end of the hose as follows:
a. Extend one
end of the
exible hose
(1) by about
10cm
b. Screw the hose
connector (2)
onto the end
of the hose in
a clockwise
direction.
c. Extend the
other end of
the exible
hose (1) by
about 10cm
d. Screw the hose
exit ring (3)
onto the other
end of the hose
in a clockwise
direction.
2. Next attached the hose exit ring (3) to the other end of the hose as
follows:

3. Next attached the hose exit ring (3) to the other end of the hose as
follows:

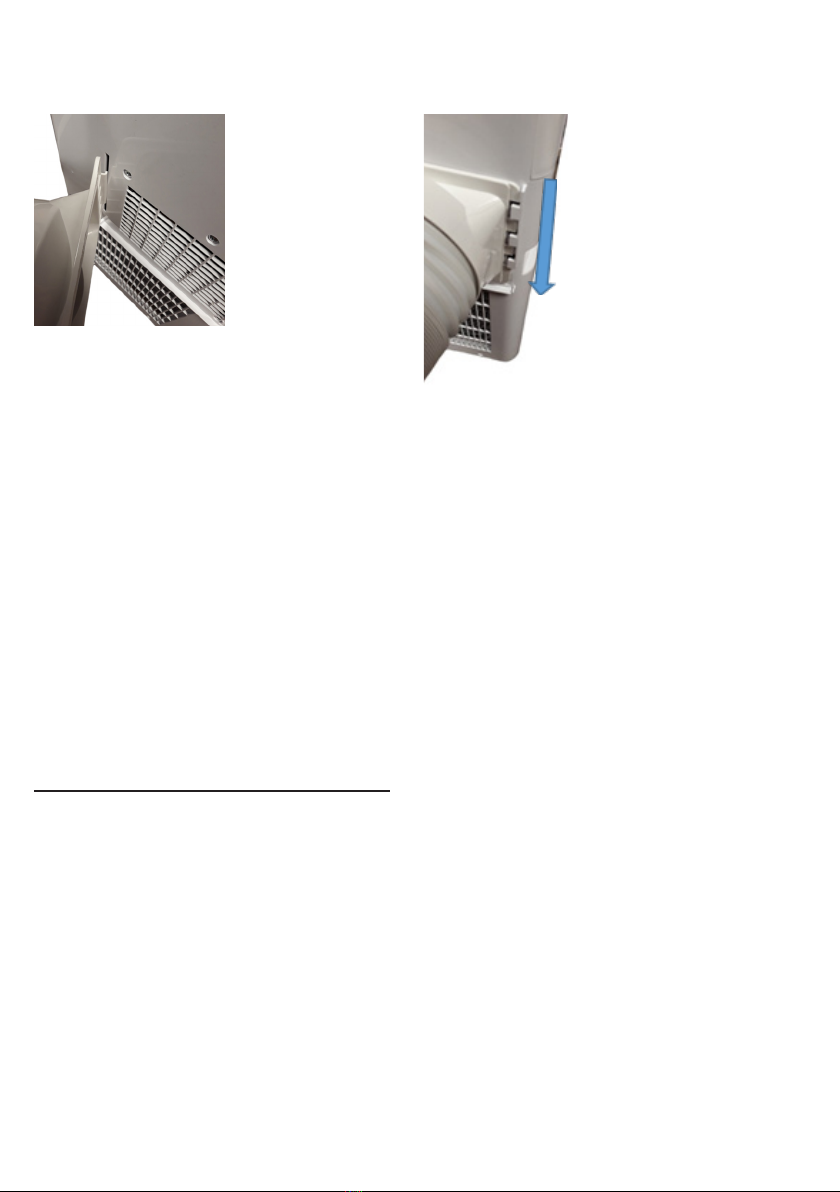

e. Hook the at
part of the hose
connector (2)
into the slot on
the rear of the
unit as shown
left.
f. Bring the hose
connector (2) towards
the back of the unit
until the notches in the
connector line up with
the tongues on the
rear of the unit. Finally
slide the connector
down in the direction
of the arrow shown
left.
4. Place the exit end of the hose through a suitable outlet such as an
open window, door, etc.
NB the unit must be positioned a minimum of 1 metre from any wall or
obstruction on all sides.
Before use, check the exible vent hose is properly tted.
Ensure the unit is on a level dry surface and the mains supply meets the
requirements of the unit.
Do not share sockets with other appliances via a mains adaptor or other
means.
Using the Air Conditioning Unit
Cooling Operation
1. Turn the unit on using the ON/OFF button.
2. Press the Mode Button until the Cool indicator illuminates.
3. Press the Temperature + or Temperature – Button to select a desired
room temperature (16˚C - 31˚C).
4. Press the Fan Speed Selection Button to choose the required air ow
speed.
NOTE: To create a circulatory e󰀨ect, the cooled air leaves the unit at
an angle and slightly to one side. This is to make space cooling more
e󰀩cient and is normal.

Dehumidifying Operation
1. Turn the unit on sing the Power Button.
2. Press the Mode Button until the Dehum indicator illuminates.
The unit will automatically set the temperature to 2˚C below the room
temperature and the fan speed to low.
Fan Only Operation
1. Press the Mode Button until the Fan indicator illuminates.
2. Press the Fan Speed Selection Button to choose the required air ow
speed.
Timer Operation
Time ON Setting.
1. When the unit is OFF, press the Timer button and select a desired
ON time using the Temperature/Time + and – Buttons.
2. The ON time is displayed on the LED Display as a number of hours
to the ON time (0 – 24Hrs).
Time OFF Setting
1. When the unit is ON, press the Timer button and select a desired
OFF time using the Temperature/Time + and – Buttons.
2. The OFF time is displayed on the LED Display as a number of hours
to the OFF time (0 – 24Hrs).
Remote Control
The controls on the control
panel are duplicated on the
remote control to allow full
function use of the remote

Batteries
• Remove the battery compartment cover on the back of the remote
control by pushing back the clip and removing.
• Insert 2 x AAA batteries (not supplied) into the battery compartment
observing the polarity markings on the inside.
• Replace the battery cover.
• Do not mix old and new batteries together.
• It is recommended that batteries are removed if the remote is not to
be used for a long time period.
Waste batteries should not be disposed of with household
waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
Internal Water Tank and Draining
During normal use, a majority of the moisture collected will be
evaporated internally by the unit and expelled through the exhaust.
However, the internal water tank will eventually ll to its maximum
capacity and the Water Full (WF) indicator will illuminate on the control
panel to show the tank is full.
To empty the water tank, take the unit outside, remove the bung from
the drain at the bottom rear left of the unit and allow the tank to empty.
Alternatively connect a hose to the drain and lead it outside to the drain
the tank.
NB ensure the drain bung is replaced before using the unit again.
The Water Tank Drain bung on
the bottom left of the rear panel
(arrowed).

Air Filter
The air lter is located behind the side air inlet grille and will need
occasional cleaning. To clean the lter remove the lter by pulling
the tab, the lter can be cleaned in lukewarm (40˚C) water with mild
detergent. See image below.
After washing allow the lter to dry naturally, laid at to avoid stretching.
Ensure that the lter has fully dried before retting it to the unit.
NB do not use the unit without the lter tted.
The Air Filter located on the top left
hand side of the unit (shown partially
removed). To remove, slide the lter out
in the direction of the arrow.
Safety
The unit is tted with an automatic high temperature shut o󰀨 device, if
the air inlet or exhaust are blocked the unit will shut down safely.
After clearing the blockage, allow 5 minutes before restarting the unit.
Cleaning and Maintenance
Clean the surface of the unit with a damp cloth and mild detergent.
Excess dust etc can be removed from grilles and exhaust using the
nozzle attachment of a vacuum cleaner.

Problem Reason Solution
The unit does not
power up
No power supply
Water tank is full
Timer function is active
Room temperature is too low
Power on and turn on the unit
Drain the water tank
Cancel timer function
Reset temperature on unit
Unit not performing
well
Unit is in direct sunlight
Filter is dirty
Air inlet or outlet is blocked
Shade the unit with curtains/
blinds
Remove and clean the lter
Remove any blockage or
debris from the inlet/outlet
Compressor not
working
Overheat protection device
has operated
Check venting then allow
the unit to cool for 5 minutes
before restarting
Remote control not
working
Operating distance is too far.
Batteries are at
Move closer to the unit.
Replace batteries
Unit is noisy The unit is located on an
uneven surface
Position the unit on a at level
surface
E2 Code displayed Water tank full Drain the water tank
Troubleshooting
Technical Data
Model Number : COL1319
Cooling Capacity : 12000 BTU/h (3.5kW)
Refrigerant : R290 (215g)
Operating Pressure : Discharge 2.6MP
Suction 1.0MPa
Maximum Pressure : Discharge 3.2MPa
Suction 1.2MPa
Weight : 24kg
Rated Voltage : 220-240V
Rated Current : 6.0A
Rated Power Input : 1345W
IP Rating : IPX0
Sound Power Level : 65dB(A)

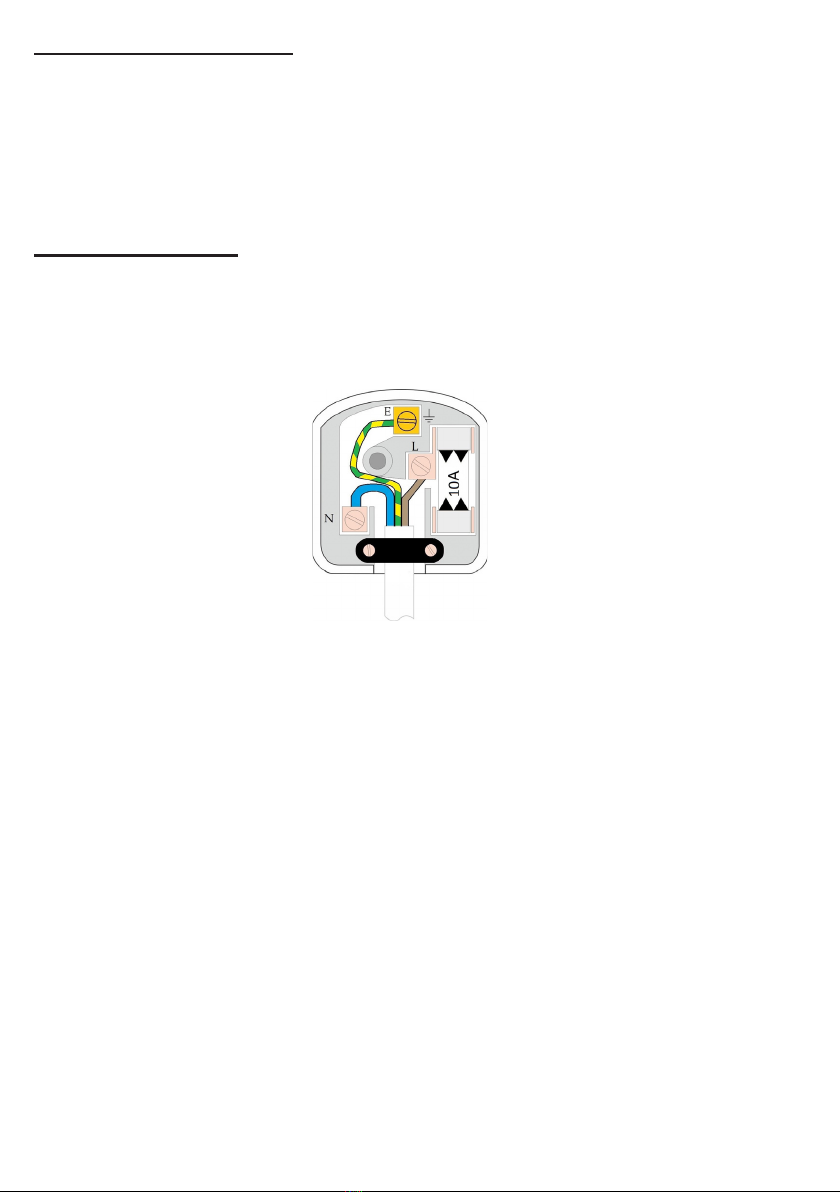

Electrical Connections
This appliance is tted with a fused three-pin plug to BS 1363. If the plug
has to be removed, it should be cut o󰀨 and carefully disposed of
immediately. To avoid a possible shock hazard, do not insert the
discarded plug into a mains socket.
Fitting a new plug
If for any reason you need to t a new plug, the exible mains lead must
be connected as shown below. The wires in the mains lead tted to this
appliance are coloured in accordance with the following code:
Connect Green and
Yellow to Earth (E)
Connect Blue to
Neutral (N)
Connect Brown to
Live (L)
Ensure the outer sheath is
securely held by the cord clamp
• The Blue wire must be connected to the terminal marked N or
coloured Black.
• The Brown wire must be connected to the terminal marked L or
coloured Red.
• The Green & Yellow wire must be connected to the terminal marked
E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 10 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer
to a qualied electrician.
• After replacing or changing a fuse on a moulded plug, the cover must
be retted to the plug; the appliance must not be used without a fuse
cover.
