Daewoo DSA-151L User manual

Manual de servicio
Acondicionador de Aire Tipo Split
Modelo: DSA-181L

Contents
CONTENTS
1. Specifications................................................................................................2
2. Outline and Dimensions .................................................................................3
3. Operation.....................................................................................................5
4. Wiring Diagram..........................................................................................17
5. Refrigerant Cycle.........................................................................................22
6. Control Block Diagram.................................................................................23
7. Electric Circuit Diagram................................................................................24
8. Trouble Shooting..........................................................................................27
9. Disassembly Instructions ...............................................................................43
1) Indoor Unit..............................................................................................43
2) Outdoor Unit...........................................................................................45
3) Exploded Diagram (Indoor Unit) ...............................................................47
4) Exploded Diagram (Outdoor Unit) ............................................................50
5) Control Box Assembly..............................................................................56

2
1. SPECIFICATIONS
MODEL DSA-151L DSA-181L DSB-181L
ITEM
Function Cooling
Class T
Power Supply AC 208~230V, 60Hz AC 208~230V, 60Hz AC 220~240V, 50Hz
Capacity W 4,300 5,100 5,100
Btu/h 15,500 17,500 17,500
Dehumidification 1.98l/h 2.3l/h 2.3l/h
Running Current 6.6A 8.3A 9.8A
Power Input 1,450W 1,785W 1,950W
Starting Current 42A 44A 46A
Type Rotary Rotary RECIPRO
Model RCA150A001 ECB185211A CRDQ-0200-PFJ
Capacitor 30µF/400 VAC
Type Indoor Cross Flow Fan
Outdoor Propeller Fan
Capacitor Indoor 1.2µF/400 VAC
Outdoor 3µF/400 VAC
Motor Model Indoor IC-9425DWKH6A IC-9425DWKH6A IC-9425DWKC5A
Outdoor AM12DPD05 AM12DPD05 AM12DPD04
Control Capillary
Charge Q'ty 1,250g 1,450g 1,150g
Type Flare
OD Indoor 1/4”(6.35mm)
(Liquid/Suction) Outdoor 1/2”(12.7mm)
Dimensions Indoor 1,035 x 322 x 205
Outdoor 800 x 615 x 277
Net Weight Indoor 11.7Kg 11.7Kg 11.7Kg
Outdoor 43Kg 44Kg 55.8Kg
Electrical
Data
Compressor
Fan
Refrigerant
(R-22)
Connection
◆DSA-151L/DSA-181L/DSB-181L

3
2. OUTLINE AND DIMENSIONS
1
INDOOR UNIT
◆ DSA-151L/DSA-181L/DSB-181L
1035
205
322
453
¿‹ Æ˘˜ ˙`
”fi `⁄˘˙
`⁄„«…–‚fi‚ ˜
‰˙‡»– ‚Ø– ‚–
‰˙‡»– ‚ ˆ…
Connecting Pipe
Filter-L Filter-R
Grille Insert
Body
Plate Mounting
REMOCON
453
1035

4
2
OUTDOOR UNIT
◆ DSA-151L/DSA-181L/DSB-181L
277
367
615
800
Inlet
Inlet
Outlet
Foot
Handle
Panel Top
Cabinet
Service Valve
Discharge
Grille

5
1

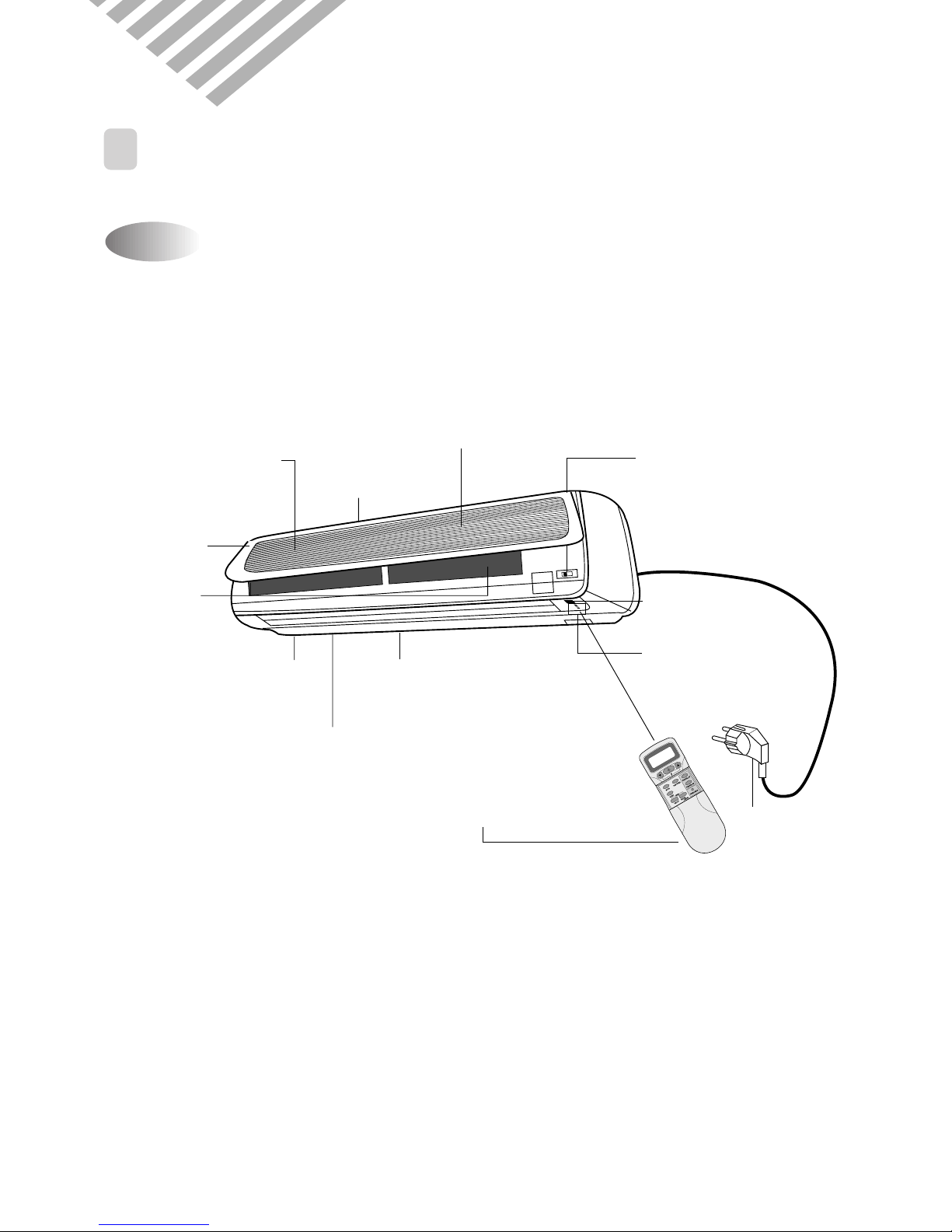

PARTS OF NAME AND FUNCTION
Indoor Unit
3. OPERATION
◆ DSA-151L/DSA-181L/DSB-181L
Indoor Cover
Electrostatic Filter
Removes dust
particles from the air.
Deodorizing Filter
Removes bad
smells from the air.
Test/Emergency/
Remote Switch
Slide to select
the desired position.
Indicators
Indicate the
AC setting.
Remote Sensor
Power PlugLCD Remote Controller
Air Cleaning
Filters
Removes dust
and prohibits
germs. Cold Air
Air In
Fan Direction
(Up/Down)
Fan Direction
(Left/Right)
ON OFF ENTER CANCEL
TIMER RESET
FAN DIR.
FAN SPEED
MODE
SLEEP
ON/OFF
TEMP.

6
◆ DSA-151L/DSA-181L/DSB-181L
■Remote Control Signal Receiver
This place is the part to receive the signal if it receive
the signal, you can hear the signal “beep. beep”.
■There is a switch panel at inside of Front Panel.
At the time of operating, open the Front Panel.
Emergency switch can be used when the remote
controller is lost or Testing.
Remote switch is usually used by remote controller.
Indoor Unit Display Switch Panel
ON (Red)
Lights when the
operation is going on.
Air clean (Green)
Timer (Yellow)
Lights during the time
reservation mode.
Quick (Red)
Lights during the
time Quick
Mode.
Timer
Quick
Airclean
ON
EMERGENCY REMOTE

7

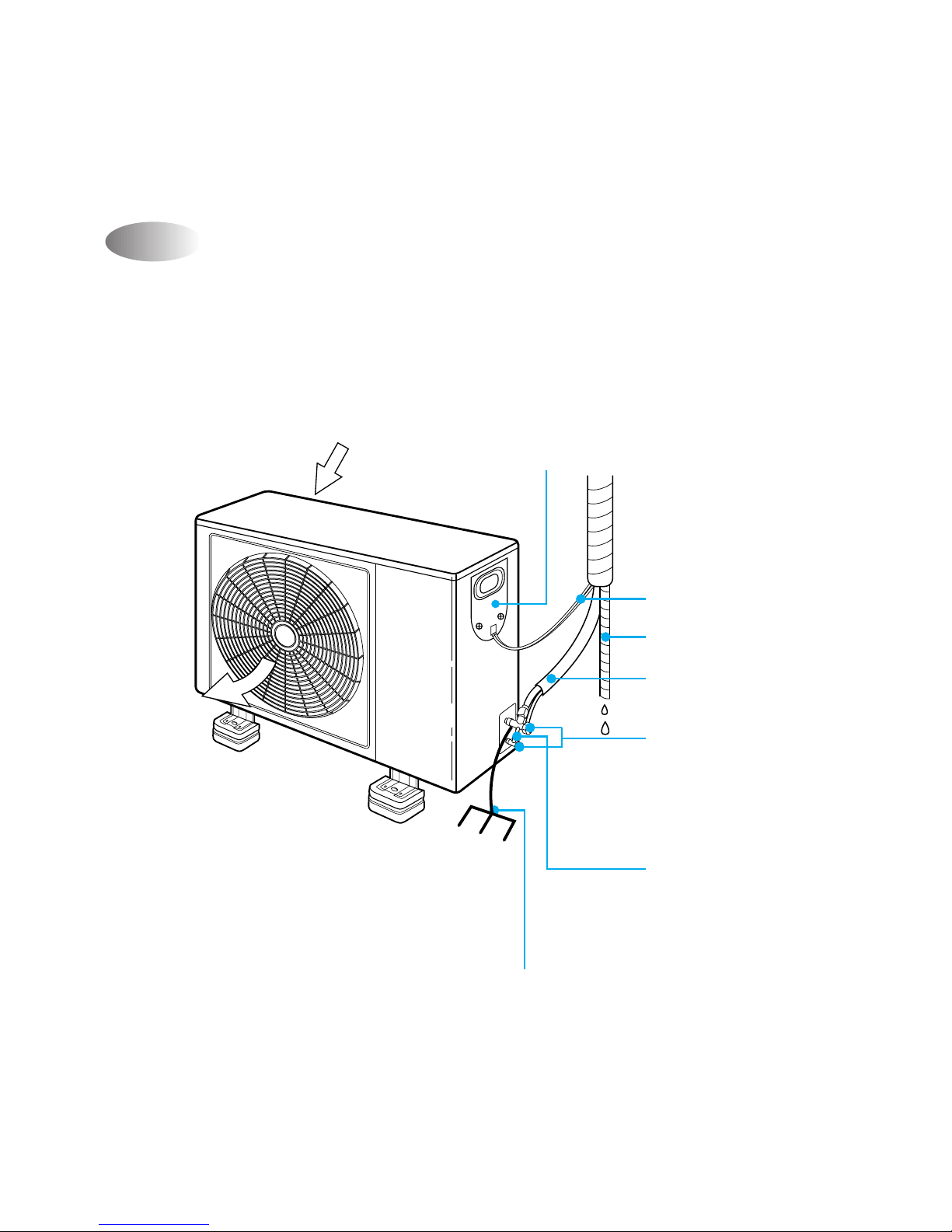

Outdoor Unit
◆ DSA-151L/DSA-181L/DSB-181L
AIR IN
AIR OUT
AC Cover
Remove cover to
access the AC
connection from
this unit to the
indoor unit.
Connection Wire
Drain Hose
COPPER TUBING
Service Valves
The indoor and outdoor
units are connected by
copper tubes which are
connected here.
Grounding Screw
Ground the unit here.
Ground Wire
(Not supplied)

8

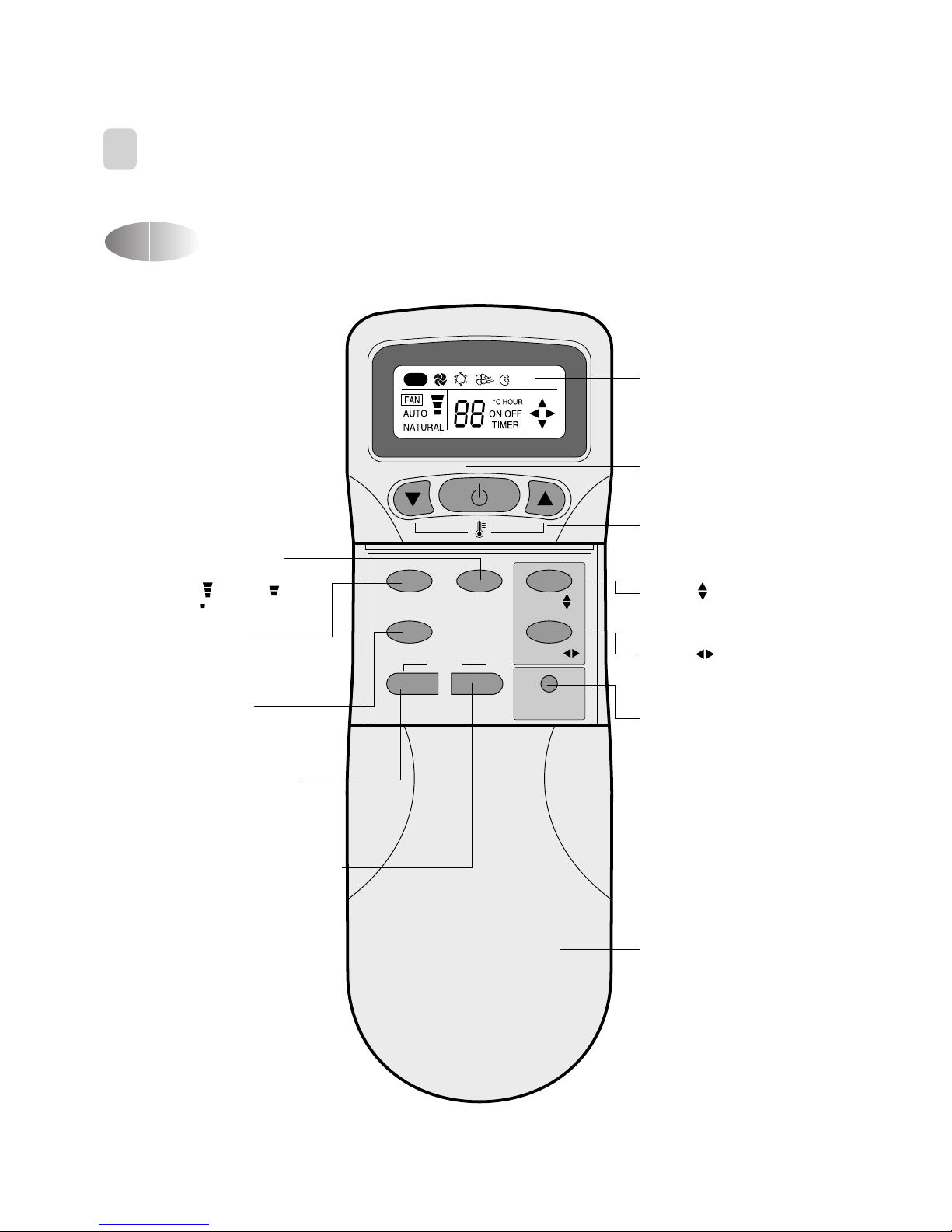

Name of Each Button
2
REMOTE CONTROLLER
◆ DSA-151L/DSA-181L/DSB-181L
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
Display
Displays information
pertaining to unit.
TURBO/MILD
Press to be colder the unit.
TIMER ENTER/CANCEL Button
Press to enter a timer setting or
to cancel timer setting
TIMER ON/OFF Button
Press to set the unit of or on time.
(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10, 12, 16, 20, 24hr)
MODE Button
Press to cycle through the modes
(Auto/Quick/Cooling/Fan/Dry)
SLEEP Button
Press to set the unit for
the sleep mode.
FAN DIR. Button
Press to select up/down
direction for fan.
FAN DIR. Button
Press to select left/right
direction for fan.
ON/OFF Button
Press to turn the unit
on or off.
TEMPERATURE Buttons
Press to raise or lower
the desired temperature.
FAN SPEED Button
Press to select the fan speed
(High " ", Middle " ",
Low " ").
COVER
Slide down to access most
of the remote buttons.
Slide down further to
access the battery
compartment.
AUTO
FAN DIR.
FAN DIR.

9
Replacing Batteries
3
REMOTE CONTROLLER DISPLAY
Open the cover after
pressing the arrow
direction and pulling out.
Put the drycell by
direction. Close the cover after pushing into arrow
direction.
123
◆ DSA-151L/DSA-181L/DSB-181L
MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier)
Lights to indicate the mode selected.
TIMER Indicators (Include sleep)
Lights to indicate the timer function mode.
TEMPERATURE & RESERVATION TIME lndicators
Lights to indicate the temperature or time.
FAN DIRECTION Indicators
Lights to indicate the
fan direction.
NATURAL Indicator
Lights to indicate the
speeds simulating a breeze.
FAN Indicators
Lights to indicate
the fan speed.
AUTO
+–
+–
+–

10
If you set time in OFF-Timer Mode, the unit will stop at the set time.
If you set time in ON-Timer Mode, the unit will run at the set time.
(1) Range of setting temperature: 18~32°C
(2) Setting temperature: Operating temperature of compressor
(3) During the time of test operating, Fan (Indoor, Outdoor) and Compressor is running regardless of room
temperature.
If the Indoor Unit Display receive the signal of Remote Controller, you can hear the signal "beep –" or "beep,
beep".

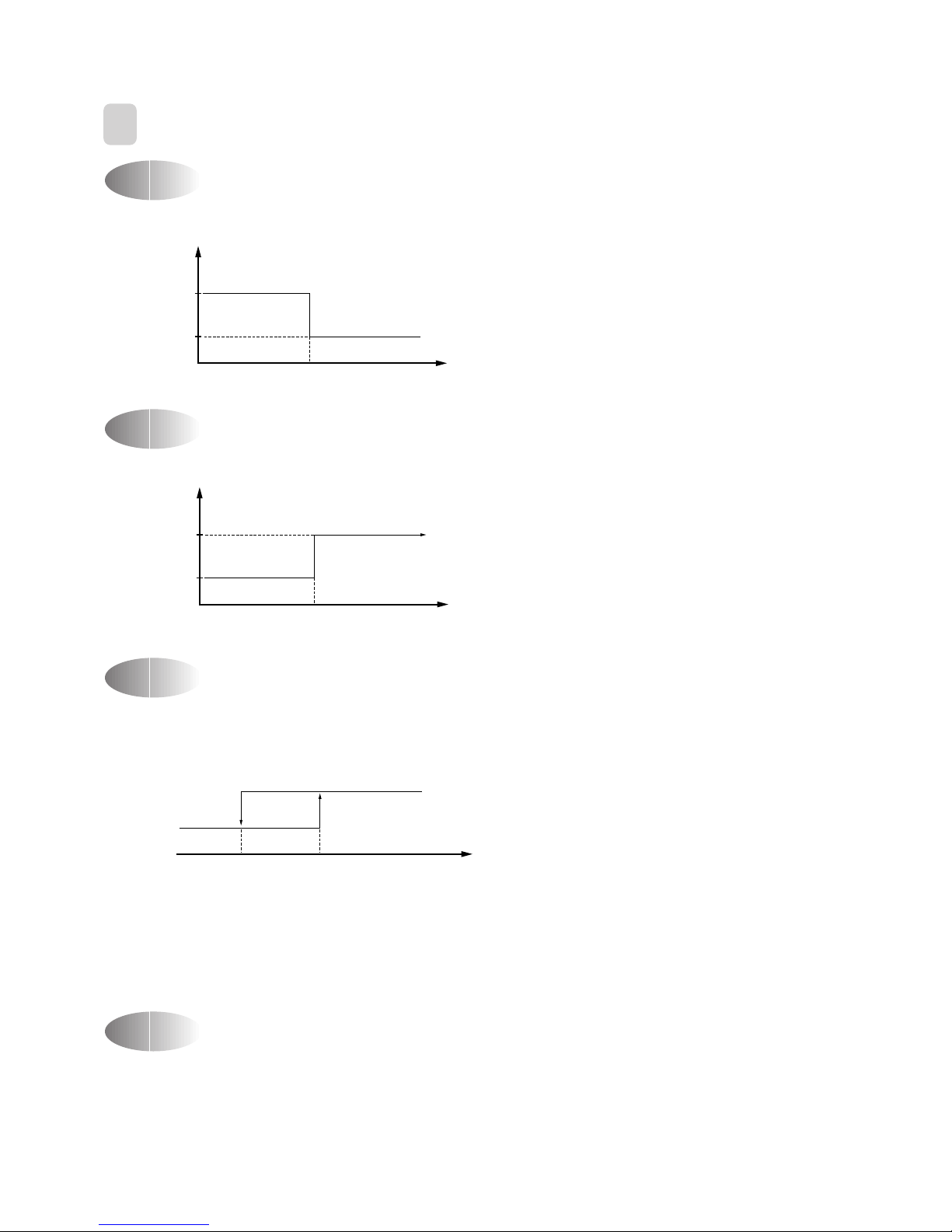

OFF-Timer
4
DESCRIPTION OF FUNCTIONS
Unit ON
Unit OFF
SET Time HOUR
ON
OFF
ON-Timer
Unit ON
Unit OFF
SET Time HOUR
ON
OFF
Control of Room Temperature
Buzzer
COMP (ON)
(COOLING)
COMP (OFF)
-1˚C 0˚C Temperature
(RT-DT)
❇Room temperatrue
< setting temperature
Compressor OFF
Room temperature
> setting temperafure
Compressor ON
(
(

11
Fan Speed (Indoor Unit)
(1) Motor speed (high speed, normal speed, low speed).
(2) Remote controller setting fan speed. (Auto, L, M, H, Natural)
(3) Relation of operating mode between fan speed.
(4) Automatic Operation
If the unit is set in 'AUTO' mode, the unit operates automatically according to the room temperature to keep the
room temperature comfortable.
(COOLING)
• DSA-151L/DSA-181L/DSB-181L
FAN ONLY COOL DEHUMI- AUTO Quick
DIFICATION
HHHXHH
MMMXMX
LLLXLX
Auto X Auto Auto Auto X
Natural Natural Natural X Natural X
0
LMH
+1°C+2°C (RT-DT)

12
(1) When you are going to sleep, select sleep switch and the unit controls the room to the desired temperature.
(The unit will not operate after 4 hour)
(2) For changing the temperature.
(3) To cancel sleep mode, press the SLEEP button again or press the MODE button once.: the SLEEP
indicator will disappear in the display.

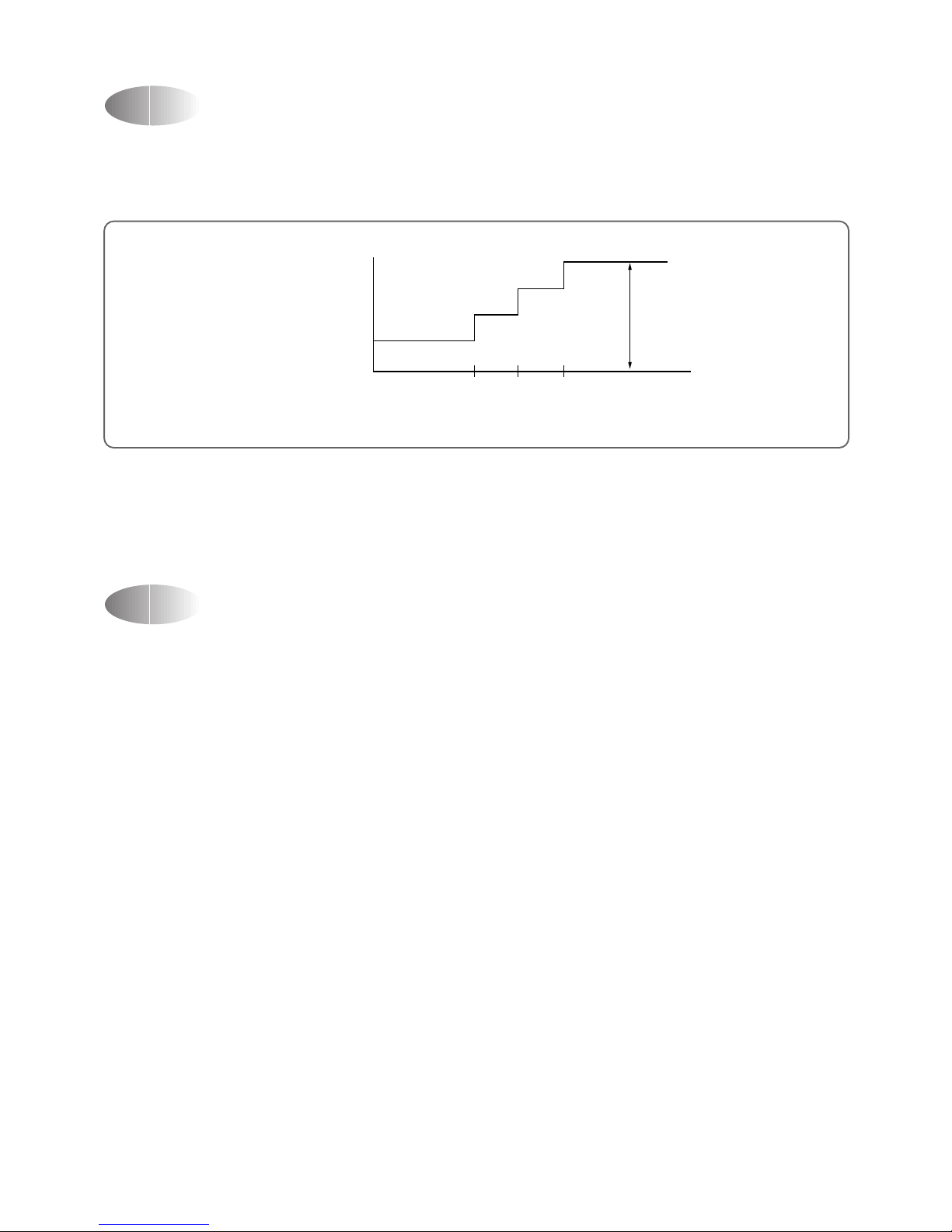

Sleep Mode
(1) When the remote controller is lost, damaged or the battery is discharged, the Emergency operation can be
used to run the unit.
(2) The setting conditions of Emergency operation are as follows.
• Operation mode: AUTO
• Preset temperature: 26°C
• Fan speed: AUTO
Emergency Operation
0 0.5 1.0 HOUR
SET TIME
Desired
Difference
desired temperature
between room
temperature (°C) 0.5°C0.5°C0.5°C
Temperature

13
3 min. Time Delay of Compressor
In normal operation, there is a time delay of three minutes between turn off and turning back on including initial
power up.
When indoor fan motor is on, it always starts at normal speed and then it operates desired speed.
Indoor Fan Motor Starting
Frost Prevention of Indoor Unit
When the unit operates at low ambient temperature, frost may appear on the Evaporator. When the indoor coil
temperature is lower than 0°C at the end of 10 minutes of continuous compressor operation from the start, the
microcomputer of the unit stops the compressor to protect the unit from the frost. The control procedure for
indoor coil freeze protection.
1) The compressor and outdoor fan turn off.
2) Indoor fan operates according to user set speed.
3) The normal operation returns when the indoor coil temperature is higher than 7°C or equal to 7°C.
0°C7°C
Compressor and
Outdoor Fan OFF
ON
Set Speed
Indoor Fan
(Indoor coil temperature)

14
Auto Mode
(1) When the room temperature is higher than 28°C (Cooling Mode)
!Compressor and lndoor Fan
@The fan will automatically operate as following Figure
(2) When the room temperature is lower than 28°C and higher than 22°C (Dehumidification Mode).
(3) When the room temperature is lower than 22°C (Fan only).
-1 0 °C
OFF
ON
(Room temperature-
Desired temperature)
H
M
L
0+1+2 °C (Room temerature-
Desired temperature)

15

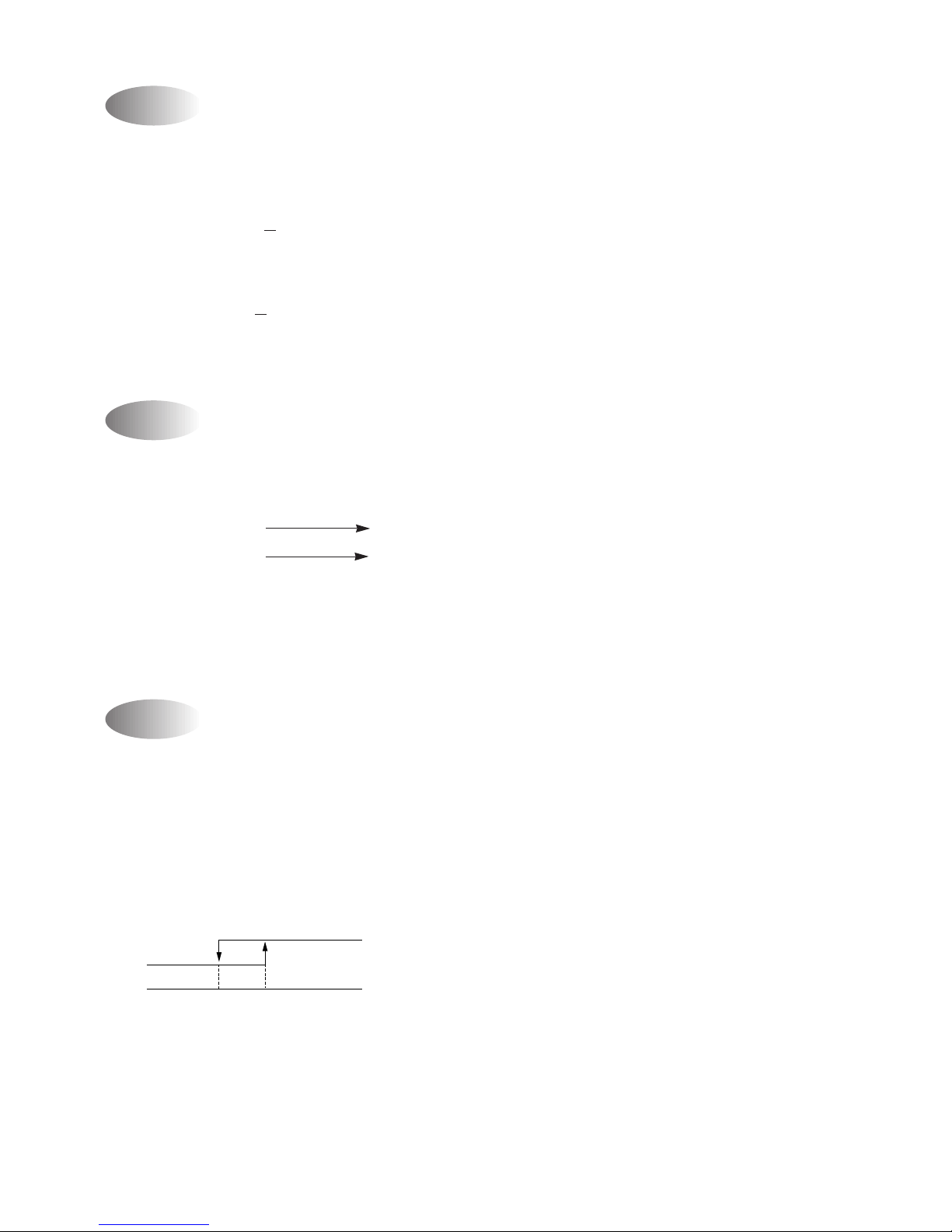

(1) Cooling condition
!Fan Speed: High speed
@Air discharge direction: Fixed
#Set temperature: 18°C (Fixed)
$Operation Mode: Cooling Mode
%Compressor and Outdoor Fan
Quick Mode (Powerful Cooling)
-1
OFF ON
(Room temperature-18˚C)
0
Dehumidification Mode
Air Discharge Direction
(1) When you turn on the unit, the flaps move to the position of keeping the room temperature comfortable.
(2) The air discharge direction is below.
Up/Down On/Off
Left/Right On/Off
!Desired temperature < Room temperature
Outdoor Fan, Compressor : ON
Indoor Fan : Low speed
@Desired temperature Room temperature
Compressor : 3 min/ON, 5 min/OFF
Indoor Fan : 3 min 30 second/ON, 4 min 30 second/OFF
Fan Speed : Low speed
#Room temperature 18°C
Compressor : OFF
Indoor Fan : 1 min/ON, 7 min/OFF
Fan speed : Low speed
>
>

16
Self-Diagnostic Function
The control will contain diagnostic test to verify the integrity of the system.
(1)Error Code Display Pattern
!ON LAMP: ON (Red) LED ON/OFF
@Error Code (Display in Emergency Mode only)
ERROR CODE DISPLAY PATTEN ERROR CONTENTS
1Room air thermistor, connector
Indoor coil thermistor, connector
2Compressor, Electrical parts of
comp. Gas leak
8 seconds
0.5 second
8 seconds
0.5 second

17
4. WIRING DIAGRAM
◆ DSA-151L
OUTDOOR UNIT INDOOR UNIT

18
◆ DSA-181L/DSB-181L

19
◆ DSA-151L
Indoor
Unit
Outdoor
Unit
1
MAIN ELECTRIC PARTS
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3964330200 IC-9425 KH 6C 1
Fan Motor Capacitor 3106995010 1.2µF 450VAC 0.2A 1
Fuse 5FVGB0302R 250V 3A S/B 1
Fuse 5FVGD0402S 250V 4A 6ITS 1
Transformer 5EPK533110 220V/15V 1
Stepping Motor 1 3108004310 MP28GA (L=1300mm) 1
Stepping Motor 2 3108004300 MP-28GA (L=400mm) 2
Terminal Block 3108912320 SN-DBW-4P 1
Compressor 3100030AE0 RCA-150A001 1
Capacitor Dual 3109500100 370V 30/3µF 1
Fan Motor 3964320430 AM12DPD05 1
Power Relay 5SC0202700 G7L-2A-TUB 1
Terminal Block 3108912320 SN-DBW-4P 1
