2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
User Manual

2
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
•Read and familiarise yourself with all operating
instructions before using this Oil Filled Radiator.
•Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
•WARNING! In order to avoid overheating, do not cover
the heater.
•DO NOT install the appliance directly below an electrical
socket.
•DO NOT use this heater with a programmer, timer,
separate remote-control system or any other device that
switches the heater on automatically, since a fire risk
exists if the heater is covered or positioned incorrectly.
•DO NOT use this heater with an extension cable.
•Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
•Close supervision is required when using this appliance
near children.

3
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•Children of less than 3 years should be kept away unless
continuously supervised.
•Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been
placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
•Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user
maintenance.
WARNING! Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
•DO NOT use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.
•DO NOT immerse the appliance or its cord in water or any
other liquids.
•DO NOT leave the appliance unattended during use.
•DO NOT leave the appliance unattended whilst connected
to the mains supply.
•Always use this appliance on a solid, level, heat resistant
surface.
•DO NOT use this appliance outdoors.
•It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.

4
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
•Repairs to electrical appliances should only be performed
by a qualified electrician. Improper repairs may place user
at serious risk.
•DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
•Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
•If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified after-sales-
service in order to avoid a hazard
•DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
•DO NOT run the mains cable under carpets, rugs, etc.
•Allow the unit to cool before storage.
•Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
•Never place the appliance near to flammable material or
high pressure containers. E.g. Paper, wood, petrol,
solvents, spray canisters.
•This appliance is intended for household use only and
should not be used for industrial purposes.
•DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
•DO NOT use this appliance for anything other than its
intended use.
•DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
•Ensure appliance is situated in an open area, do not allow
it to come in contact with Cupboards, Curtains, wall
coverings, clothing or other flammable materials.
•The appliance should not be installed in areas which have
a fire-risk, such as garages, stables or wooden sheds; this

5
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
is applicable also for rooms in which highly inflammable
gasses or dust can develop. Danger of fire!!
•Unplug after each use. Grasp the plug, not the cord.
CAUTION
ONCE ASSEMBLED ALLOW THE RADIATOR TO STAND UPRIGHT
FOR ONE HOUR TO ALLOW FOR THE OIL TO SETTLE
THIS RADIATOR MUST ONLY BE OPERATED IN THE UPRIGHT
POSITION WITH THE CASTORS FITTED.
THIS APPLIANCE MUST BE EARTHED
This appliance has been ERP classified as a portable space heater and should
only be used for supplementary, secondary or temporary heating. It should not
be considered for primary permanent heating in a room or dwelling.
During the first few minutes of initial use, you may notice a slight odour
and a little smoke. This is normal and will quickly disappear, It is the coating
applied to the heating elements to prevent any corrosion during transit.

6
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
WARNING!
This designates a hazard with moderate risk, which may
result in severe injury if not adhered to.

7
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual

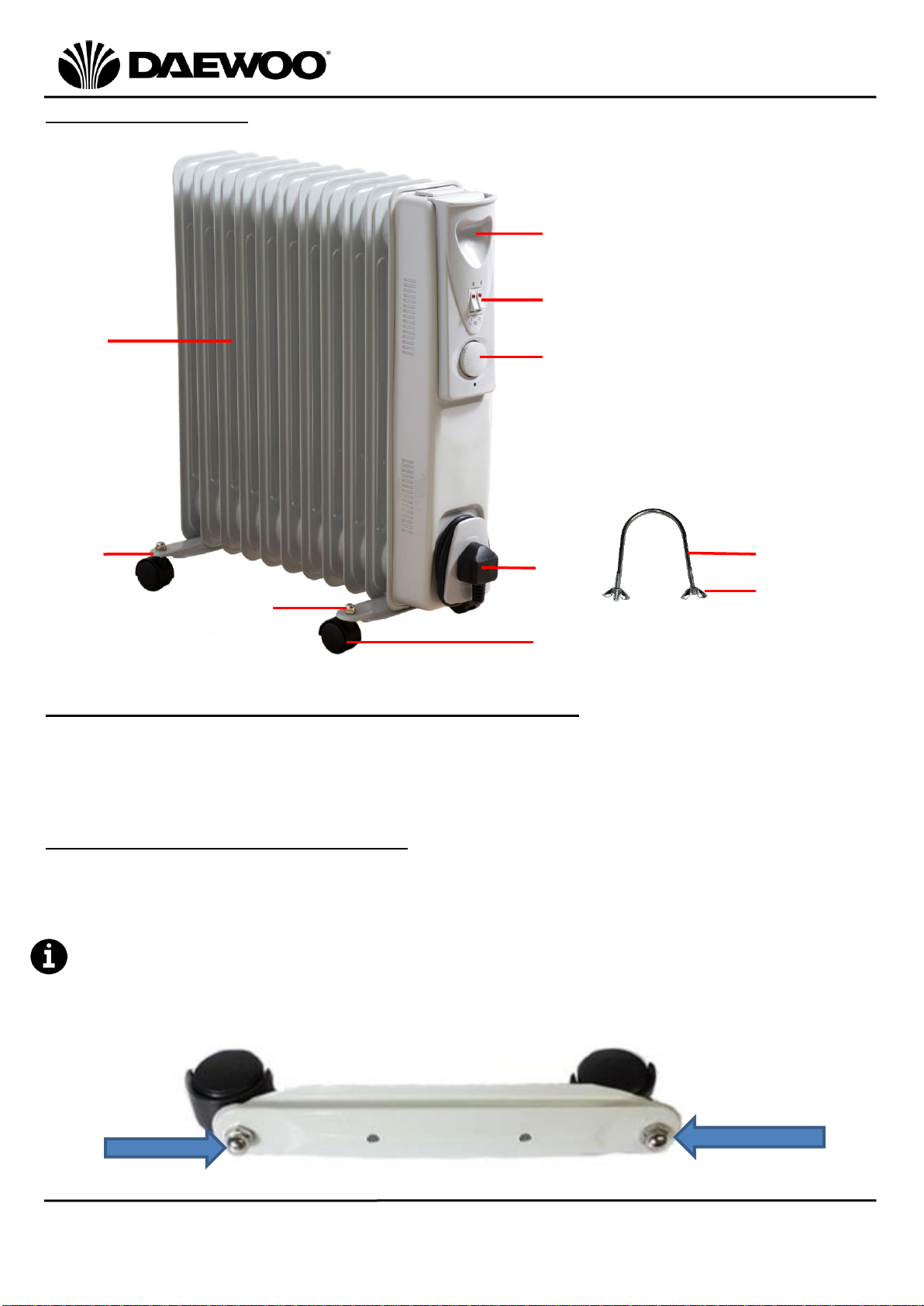

Description of Parts
Before the first time you use your Oil Filled Radiator
Remove all packing materials and discard responsibly.
Ensure that all parts are present before assembling your Oil filled Radiator –see
Description of Parts above.
Assembling Your Oil Filled Radiator
1.Place protective material (such as cardboard) on the floor to prevent scratching
or damage to the appliance.
2.Turn the radiator upside down onto the material ensuring that it is stable.
The oil inside the radiator will be heard to settle inside this is quite normal.
3.Attach the Castors (8) to the Wheel Plates (6) using the Domed Nuts (7)
supplied (arrowed below), tighten with a suitable spanner (not supplied):
5
4
2
1
1.Carry Handle
2.Power Switches
3.Radiant Fins
4.Thermostat
5.Cord Storage
6.Wheel Plates (x 2)
7.Domed Nut (x 4)
8.Castors (x 4)
9.U-Bolts (x 2)
10.Wing Nuts (x 4)
3
6
7
8
9
10
Domed Nut
Domed Nut

8
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
4.Remove the Wing Nuts (10) from the U-Bolts (9) and loop it between the first
and second fins behind the control housing, attach the Wheel Plates (6)
(above) securing in place using the Wing Nuts (10) as in the image below,
taking care not to overtighten:
5.Remove the Wing Nuts (10) from the other U-Bolts (9) and loop it between the
end and next to the end fins, attach the other Wheel Plates (6) (above)
securing in place using the Wing Nuts (10) as in the image below, taking care
not to overtighten:
Castor(s)
Wheel Plate
Domed Nut
U-Bolt
Control Housing
Wing Nuts
Above: Underside view
Wing Nuts
Castor(s)
Wheel Plate
Domed Nut
U-Bolt
Next to End Fin
End Fin
Above: Underside view

9
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
6.Once the Castors (8) are attached invert the radiator the correct way up onto its
Castors (8) and place into the desired position ensuring that it is stable and
vertical. The oil inside the radiator will be heard to settle inside this is quite
normal.
Operating Instructions
1.Ensure that the Power Switches (2) are in the “O” Off position.
2.Insert the mains plug into the nearest socket.
3.Press the Power Switches (2) as follows to select the desired heat level:
Power Switches (2)
Heat Setting
Press Just Switch
Low (1000W)
Press Just Switch
Medium (1500W)
Press Both Switches
High (2500W)
4.Rotate the Thermostat (4) to the fully clockwise position. The Indicator lights
will illuminate on the Power Switches (2) to show that the radiator is heating
up.
5. Once the area reaches the desired temperature, rotate
the Thermostat (4) control anti-clockwise until the
indicator light(s) extinguish on the heat setting
Switch(es) (2). Turn the Thermostat (4) back up
clockwise very slightly. The Thermostat (4) will now
maintain the set temperature. If desired rotate the
Thermostat (4) clockwise to increase the temperature
or anticlockwise to reduce the temperature.
6.To switch the radiator off, press both Power Switches (2) to the ‘0’ position.
The Indicators on the Power Switches (2) will go on and off during use to show
the set temperature is being maintained, this is quite normal.

10
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
Care and Use of your Oil Filled Radiator
•Always disconnect the heater from the mains power supply and allow it to cool
before cleaning.
•Clean outside of the heater with a clean damp cloth. Never clean with harsh or
abrasive cleaners.
•DO NOT submerge any part of the heater in water or any other liquids.
Technical Specification
Rated Voltage
220-240V~ 50/60Hz
Rated Power
2500W
Model Number
HEA1145
Protection Class
I (This appliance must be earthed)
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug -DISCONNECT FROM THE MAINS- and then cut it
off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.

11
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper
re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-
cycling facilities.
Dispose of non-recyclable plastics in the appropriate
plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk to find
your nearest recycling point.
This heater is filled with a precise quantity of special oil. Repairs requiring
opening of the oil container are only to be made by the manufacturer.
Whilst scrapping the heater, follow the regulations concerning the disposal of oil.

12
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual

13
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
ErP Data
Model identifier(s): HEA1145
Item
Symbol
Value
unit
Item
unit
Heat output
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat output
Pnom
0.9003
kW
manual heat charge control, with
integrated thermostat
[no]
Minimum heat output
(indicative)
Pmin
0.5537
kW
manual heat charge control with
room and/or outdoor temperature
feedback
[no]
Maximumcontinuous heat
output
Pmax,c
0.9003
kW
electronic heat charge control with
room and/or outdoor temperature
feedback
[no]
Auxiliary electricity
consumption
fan assisted heat output
[no]
At nominal heat output
elmax
0.000
kW
Type of heat output/room temperature
control (select one)
Atminimum heat output
elmin
0.000
kW
single stage heat output and no room
temperature control
[no]
In standby mode
elsb
0.000
kW
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[yes]
with electronic room temperature
control
[no]
electronic room temperature control
plus day timer
[no]
electronic room temperature control
plus week timer
[no]
Other control options (multiple selections
possible)
room temperature control, with
presence detection
[no]
room temperature control, with open
window detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[no]
with black bulb sensor
[no]
Contact details:

14
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2500W 11 Fin Oil Filled Radiator
Model No. HEA1145
User Manual
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
• The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
• The product must beused solely for domestic purposes.
• It does not cover general wear and tear, damage, misuse or any consumable parts.
• The guarantee will berendered invalid if the product is re-sold or has been damaged through
inexpert repair.
• The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within
28 days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
