Daewoo SG-382 User manual

MP3 PLL RADIO CASSETTE
WITH CD PLAYER AND DAB
SG-382

Page Description
1Cover
2Index
3PCB layout – Main / Power AMP / Phones / LCD / AC /
AUX

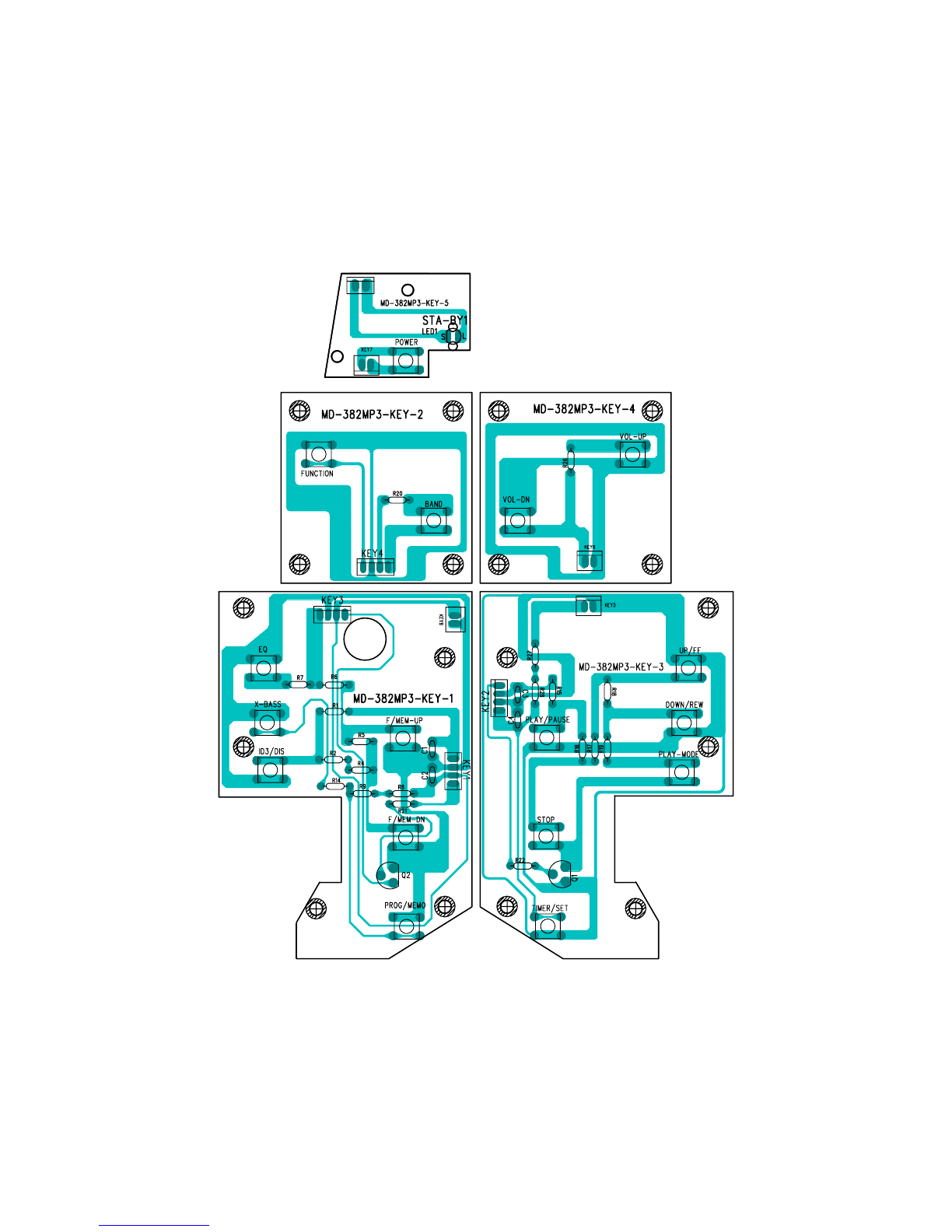

4PCB layout – Keyboard
5PCB layout – REC

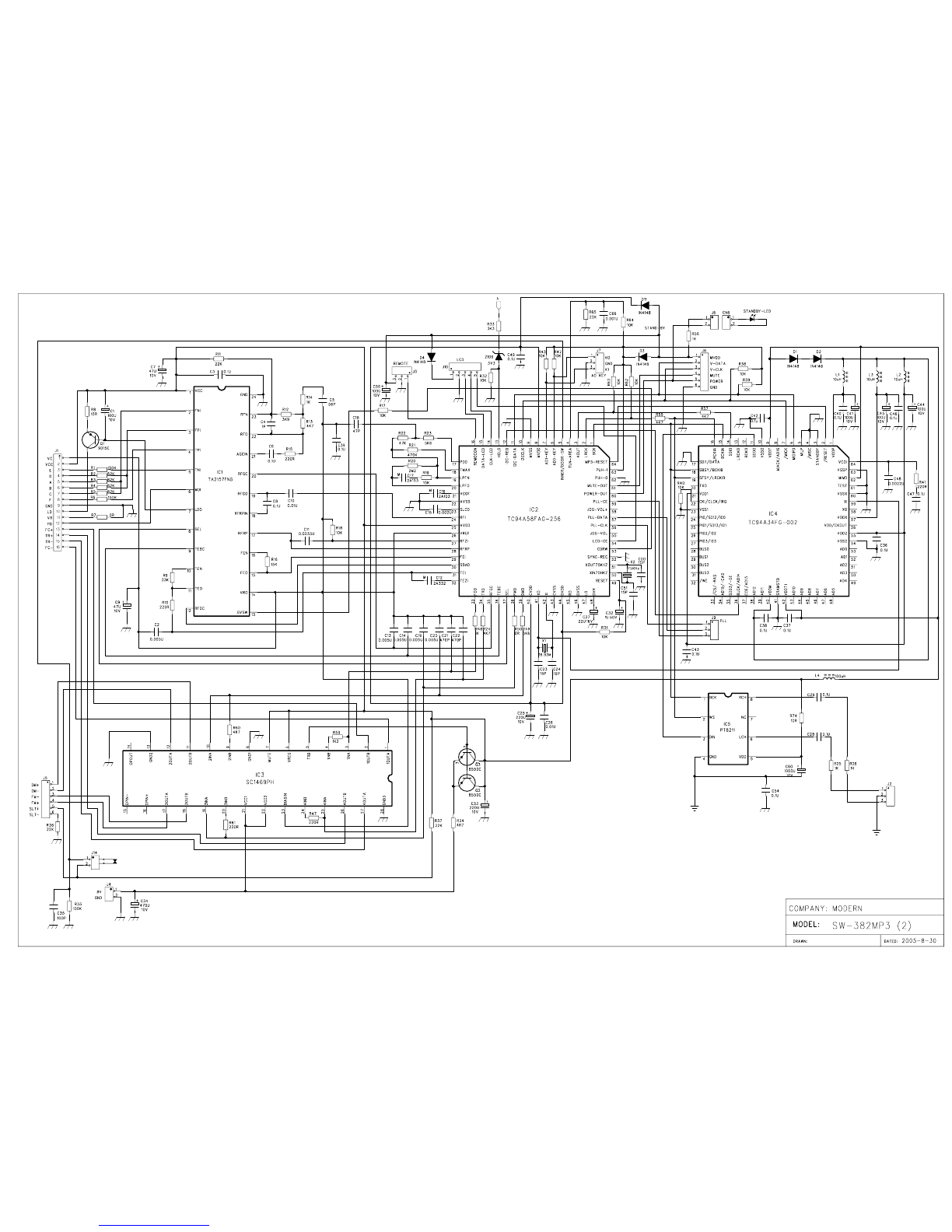

6Circuit diagram – Micom controller / Main
7Circuit diagram – Audio / Tuner

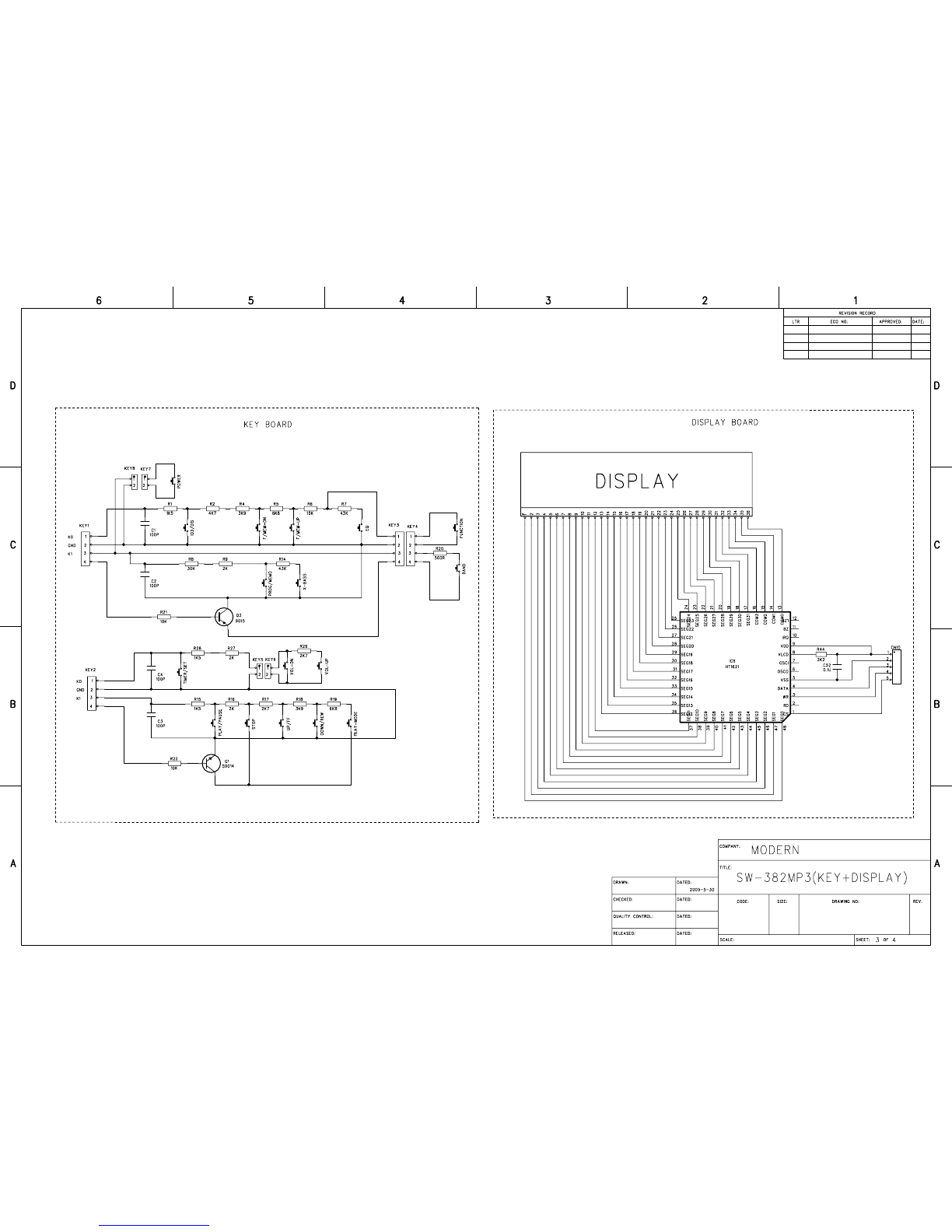

8Circuit diagram – Key / LCD display

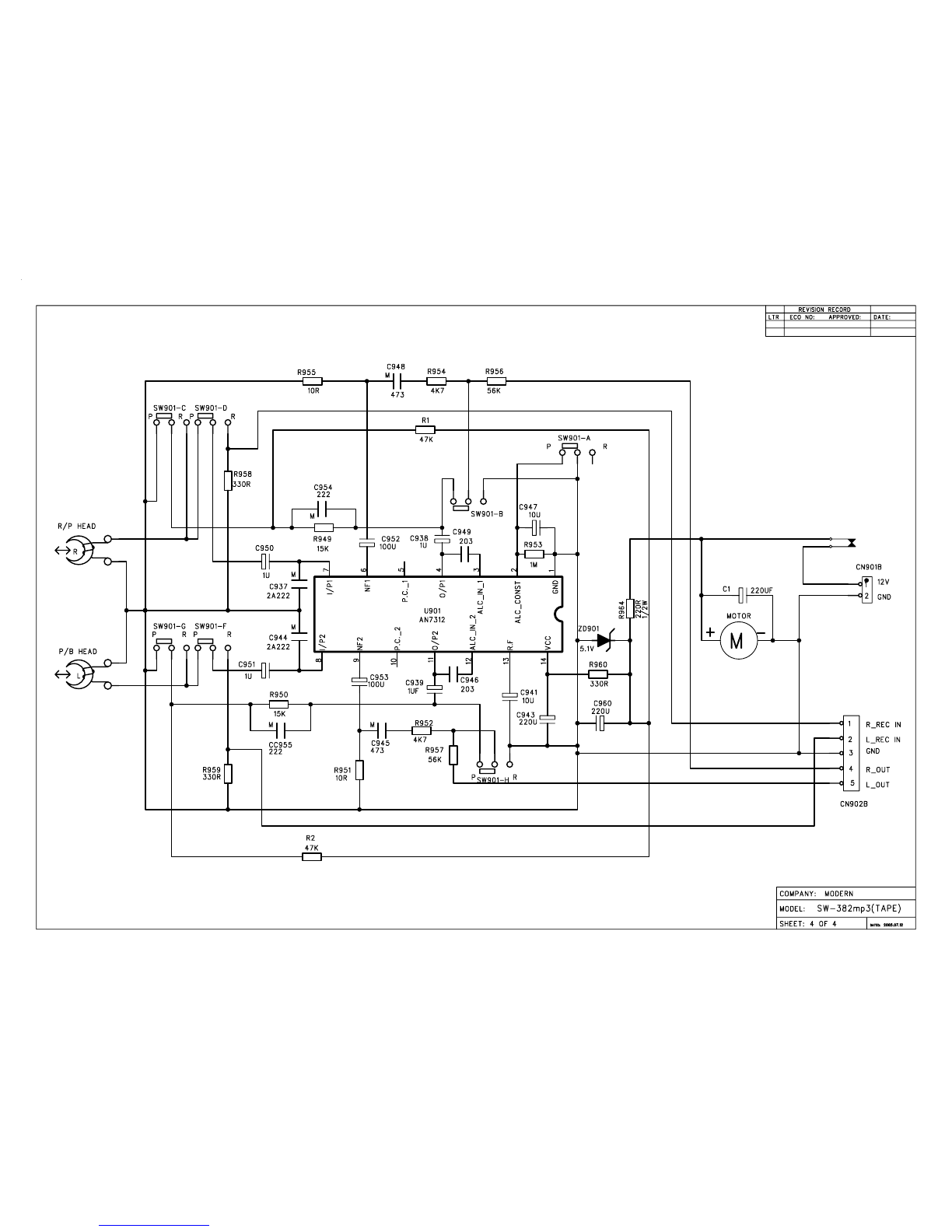

9Circuit diagram – Tape

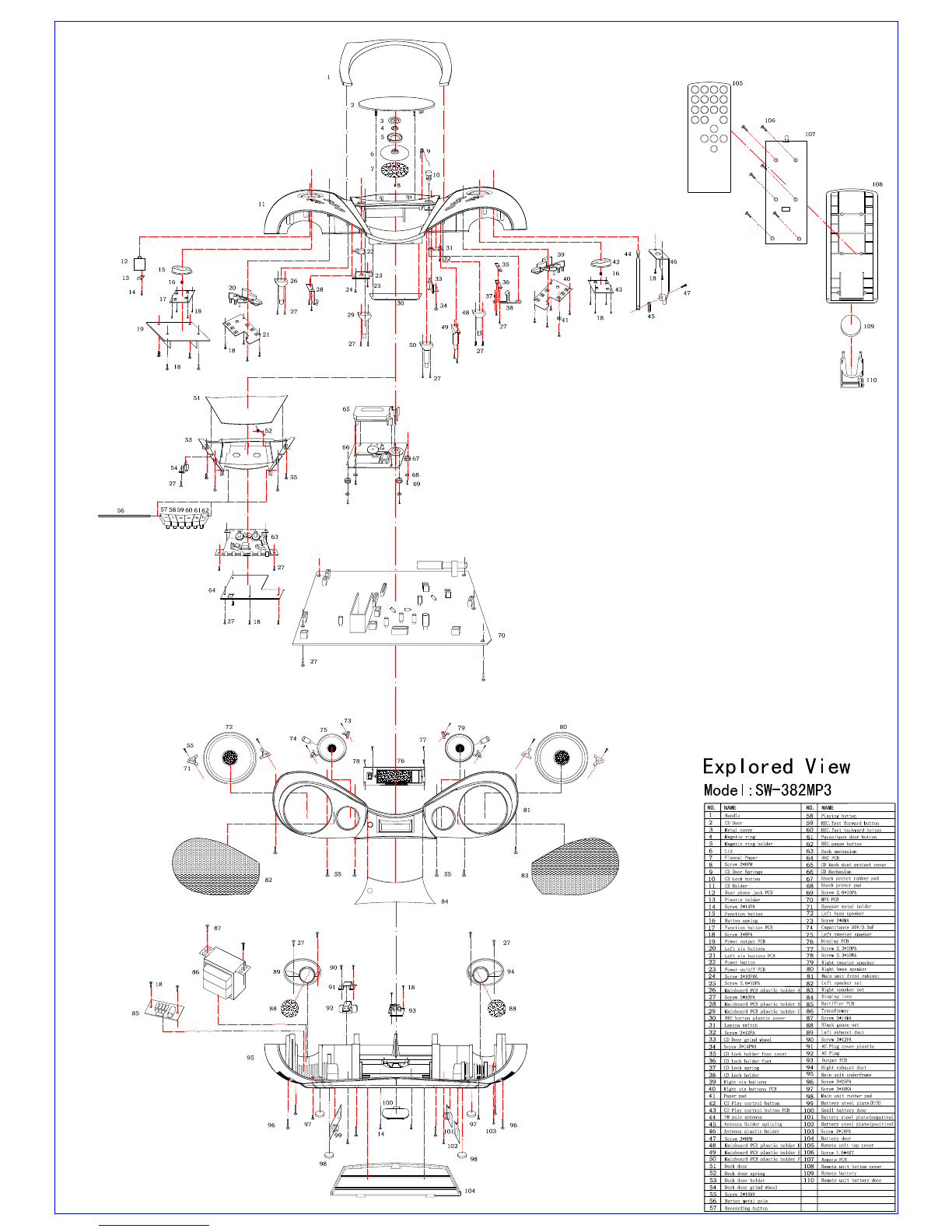

10 Explored view diagram
11-20 Bill of materials

Page 1 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MD-382MP3-001 RESISTOR 2.2 OHM 2 R158 R159
MD-382MP3-002 10 OHM 5 R74 R105 R118 R951 R955
MD-382MP3-003 15 OHM 1 R8
MD-382MP3-004 47 OHM 1 R7
MD-382MP3-005 120 OHM 2 R173 R174
MD-382MP3-006 220 OHM 8 R10 R15 R41 R47 R61 R113 R145 R164
MD-382MP3-007 270 OHM 2 R154 R155
MD-382MP3-008 330 OHM 4 R106 R958 R959 R960
MD-382MP3-009 390 OHM 1 R115
MD-382MP3-010 470 OHM 1 R165
MD-382MP3-011 560 OHM 1 R20
MD-382MP3-012 1 K 13 R14 R25 R26 R56 R58 R130 R131 R134 R139 R141 R146 R147 R153
MD-382MP3-013 1.2 K 1R59
MD-382MP3-014 1.5 K 3 R1 R15 R28
MD-382MP3-015 2.2 K 2 R44 R114
MD-382MP3-016 2.7 K 5 R9 R16 R17 R26 R27
MD-382MP3-017 3.3 K 3 R33 R107 R116
MD-382MP3-018 3.9 K 3 R4 R12 R18
MD-382MP3-019 4.7 K 6 R2 R24 R60 R117 R952 R954 1/8W
MD-382MP3-020 5.6 K 4 R23 R49 R122 R123
MD-382MP3-021 6.8 K 4 R5 R19 R111 R112
MD-382MP3-022 10 K 16 R13 R17 R18 R21 R22 R31 R32 R38 R39 R40 R42 R43 R45 R64 R142 R143
MD-382MP3-023 12 K 2 R949 R950
MD-382MP3-024 15 K 3 R6 R16 R19
MD-382MP3-025 22 K 6 R11 R36 R37 R65 R82 R83
MD-382MP3-026 30 K 1 R8
MD-382MP3-027 33 K 1 R9
MD-382MP3-028 43 K 4 R7 R14 R108 R109
MD-382MP3-029 47 K 5 (REC PCB R1 R2 )R22 R101 R103
MD-382MP3-030 56 K 8 R2 R3 R4 R5 R132 R133 R956 R957
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL

Page 2 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-031 68 K 2 R68 R69
MD-382MP3-032 100 K 10 R29 R30 R35 R46 R62 R63 R102 R104 R119 R120
MD-382MP3-033 120 K 4 R1 R6 R171 R172
MD-382MP3-034 150 K 4 R27 R28 C57 OUT(1)
MD-382MP3-035 470 K 1 R21
MD-382MP3-036 1 M 2 R8 R953
MD-382MP3-037 2.2 M 1 R20
MD-382MP3-038 4.7 OHM 2 J2 R34
MD-382MP3-039 68 OHM 1 R167 1/4W
MD-382MP3-040 150 OHM 1 R166
MD-382MP3-041 560 OHM 1 R129
MD-382MP3-042 56 OHM 1/2W 1 R140
MD-382MP3-043 220 OHM 1/2W 1 R964
MD-382MP3-044 C CAP 1 PF 1 C4
MD-382MP3-045 15 PF 4 C23 C24 C50 C31
MD-382MP3-046 20 PF 1 C104 NPO
MD-382MP3-047 22 PF 3 C108 C125 C126
MD-382MP3-048 30 PF 3 C101 C102 C103
MD-382MP3-049 47 PF 1 C18
MD-382MP3-050 56 PF 1 C5
MD-382MP3-051 101 PF 5 C1 C2 C3 C4 C35
MD-382MP3-052 121 PF 2 C61 C62
MD-382MP3-053 331 PF 1 C116
MD-382MP3-054 391 PF 1 C111
MD-382MP3-055 471 PF 2 C21 C22
MD-382MP3-056 102 PF 6 C30 C31 C66 C105 C139 C140
MD-382MP3-057 202 PF 1 C15
MD-382MP3-058 502 PF 5 C2 C13 C14 C19 C20
MD-382MP3-059 103 PF 7 C10 C26 C106 C107 C110 C112 C180
MD-382MP3-060 203 PF 7 C124 C802 C803 C804 C805 C946 C949

Page 3 of 10
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
C3 C6 C8 C28 C29 C36 C37 C38 C39 C40 C42 C43 C46 C47 C48 C49 C52 C54
C118 C119 C127 C130 C131 C148 C160 C161 C162 C163 C164 C165 C166
MD-382MP3-062 E CAP 0.22 UF/50V 2 C136 C137
MD-382MP3-063 1 UF/50V 10 C32 C56 C57 C117 C141 C142 C938 C939 C950 C951
MD-382MP3-064 2.2 UF/50V 2 C134 C167
MD-382MP3-065 3.3 UF/50V 2 MIN SP(2)
MD-382MP3-066 4.7 UF/50V 1 C115
MD-382MP3-067 10 UF/25V 3 C128 C941 C947
MD-382MP3-068 22 UF/16V 5 C27 C53 C58 C113 C149
MD-382MP3-069 47 UF/16V 9 C7 C9 C25 C55 C154 C157 C169 C171 C173
MD-382MP3-070 100 UF/16V 10 C1 C41 C44 C45 C58 C159 C176 C188 C952 C953
MD-382MP3-071 220 UF/16V 5 C33 C129 C155 C943 C960
MD-382MP3-072 470 UF/16V 4 C34 C135 C156 C175
MD-382MP3-073 1000 UF/10V 1 C60
MD-382MP3-074 1000 UF/25V 2 C78 C79
MD-382MP3-075 2200 UF/25V 1 C185
MD-382MP3-076 4700 UF/25V 1 C801
MD-382MP3-077 MYLAR 2A222K 4 C937 C944 C954 C955
MD-382MP3-078 2A102K 2 C63 C64
MD-382MP3-079 2A272K 2 C132 C133
MD-382MP3-080 2A322K 2 C11 C12
MD-382MP3-081 2A103K 5 C16 C120 C121 C181 C182
MD-382MP3-082 2A153K 1 C17
MD-382MP3-083 2A223K 4 R66 R67 C122 C123
MD-382MP3-084 2A473K 2 C945 C948
MD-382MP3-085 2A104K 2 C178 C187
MD-382MP3-086 FM COIL 0.6x3x3.5T 1 L103
MD-382MP3-087 0.6x3x4.5T 1 L102
MD-382MP3-061 104 PF 31

Page 3 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
C3 C6 C8 C28 C29 C36 C37 C38 C39 C40 C42 C43 C46 C47 C48 C49 C52 C54
C118 C119 C127 C130 C131 C148 C160 C161 C162 C163 C164 C165 C166
MD-382MP3-062 E CAP 0.22 UF/50V 2 C136 C137
MD-382MP3-063 1 UF/50V 10 C32 C56 C57 C117 C141 C142 C938 C939 C950 C951
MD-382MP3-064 2.2 UF/50V 2 C134 C167
MD-382MP3-065 3.3 UF/50V 2 MIN SP(2)
MD-382MP3-066 4.7 UF/50V 1 C115
MD-382MP3-067 10 UF/25V 3 C128 C941 C947
MD-382MP3-068 22 UF/16V 5 C27 C53 C58 C113 C149
MD-382MP3-069 47 UF/16V 9 C7 C9 C25 C55 C154 C157 C169 C171 C173
MD-382MP3-070 100 UF/16V 10 C1 C41 C44 C45 C58 C159 C176 C188 C952 C953
MD-382MP3-071 220 UF/16V 5 C33 C129 C155 C943 C960
MD-382MP3-072 470 UF/16V 4 C34 C135 C156 C175
MD-382MP3-073 1000 UF/10V 1 C60
MD-382MP3-074 1000 UF/25V 2 C78 C79
MD-382MP3-075 2200 UF/25V 1 C185
MD-382MP3-076 4700 UF/25V 1 C801
MD-382MP3-077 MYLAR 2A222K 4 C937 C944 C954 C955
MD-382MP3-078 2A102K 2 C63 C64
MD-382MP3-079 2A272K 2 C132 C133
MD-382MP3-080 2A322K 2 C11 C12
MD-382MP3-081 2A103K 5 C16 C120 C121 C181 C182
MD-382MP3-082 2A153K 1 C17
MD-382MP3-083 2A223K 4 R66 R67 C122 C123
MD-382MP3-084 2A473K 2 C945 C948
MD-382MP3-085 2A104K 2 C178 C187
MD-382MP3-086 FM COIL 0.6x3x3.5T 1 L103
MD-382MP3-087 0.6x3x4.5T 1 L102
MD-382MP3-061 104 PF 31

Page 4 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-088 0.7x4.5x4.5T 1 L101
MD-382MP3-089 SOLDER WIRE 40MM 81 REC PCB(8)MAIN PCB（70）功放板(3)
MD-382MP3-090 DIODE IN4148 10 D1 D2 D3 D4 D5 D9 D105 D110 FM ANT(2)
MD-382MP3-091 IN4001 1 D10
MD-382MP3-092 IN5402 4 D801 D802 D803 D804
MD-382MP3-093 ZENER 3V3 1 R33
MD-382MP3-094 ZENER 4V7 1 Z102
MD-382MP3-095 ZENER 5V1 1 Z105
MD-382MP3-096 ZENER 6V2 1 ZD901
MD-382MP3-097 ZENER 9V1 2 Z101 Z103
MD-382MP3-098 ZENER 12V 1 Z104
MD-382MP3-099 ISV101DC 2 D101 D102
MD-382MP3-100 IS149BG 2 D103 D104
MD-382MP3-101 TRANSISTOR C9012 1 Q103
MD-382MP3-102 C9014 6 （KEY PCB Q1）Q5 Q101 Q102 Q105 Q106
MD-382MP3-103 C9015 2 Q1 （KEY PCB Q2）
MD-382MP3-104 C8550 2 Q2 Q3
MD-382MP3-105 C8050 3 Q4 Q107 Q110
MD-382MP3-106 C2328A 1 Q104
MD-382MP3-107 B772-Q 1 Q108
MD-382MP3-108 D882-Y 1 Q109
MD-382MP3-109 FILTER SFU450B 1 CF102
MD-382MP3-110 SFE10.7MA5 （2A）1 CF101 配套
MD-382MP3-111 SFE10.7MA5 （A3）1 CF103
MD-382MP3-112 INDUCTOR 10 UH 3 L1 L2 L3
MD-382MP3-113 100 UH 3 L4 C50 L106
MD-382MP3-114 QUARTZ CRYSTAL 16.9344MHZ（2A）1X1 陶瓷滤波
MD-382MP3-115 75 KHZ 2 X2 X101 3x8MM
色环电感

Page 5 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-116 EYELET 2x4MM 10 REC PCB(6)AC PCB(4)
MD-382MP3-117 I.F.T. 7616 （RED）1 L105
MD-382MP3-118 701B(YELLOW) 1 T101 7MM
MD-382MP3-119 SEMI FIX. 10PF 1 CT101 MAX
MD-382MP3-120 20PF 2 CT102 CT103
MD-382MP3-121 IC AN7312 1 U901
MD-382MP3-122 BA5417 1 IC104
MD-382MP3-123 TB2132FNG 1 IC101
MD-382MP3-124 SC7314S 1 IC102
MD-382MP3-125 TC94A34FG-002 1 IC4
MD-382MP3-126 TC94A58FAG-256 1 IC2
MD-382MP3-127 TA2157FN 1 IC1
MD-382MP3-128 PT8211-S 1 IC5
MD-382MP3-129 SA1469PH 1 IC3
MD-382MP3-130 HT1621（邦定IC）1LCD PCB
MD-382MP3-131 AM COIL 70：30x4 1
MD-382MP3-132 BAR 10x60MM 1
MD-382MP3-133 BAR HOLDER 10x21MM 2
MD-382MP3-134 SOCKET AC-001 1 AC插
MD-382MP3-135 ST-066-SWD 1 耳插
MD-382MP3-136 MSP-252V 1 AUX SOCKET
MD-382MP3-137 BAND SWITCH TS-1150 17 (160克力度）
MD-382MP3-138 PS92D01 1 SW901
MD-382MP3-139 LS-323 1 CD DOOR SWITCH
MD-382MP3-140 REMOTE CONTROL PIC-26043TMZ 1遥控接收头
MD-382MP3-141 LED （RED）3MM 1 POWER LED 长脚
MD-382MP3-142 （WHITE）φ5MM 1 LCD PCB(1) 普通蓝
MD-382MP3-143 LCD A96240 050600-1(3.3V) 1
MD-382MP3-144 FUSE 3.15A/250V 1 保险丝

Page 6 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-145 FUSE HOLDER 3K2-04-01 2 左右各一个 金属保险丝架
MD-382MP3-146 PCB MD-382MP3-MAIN 1 MAIN PCB
MD-382MP3-147 MD-382MP3-KEY-1 1 KEY PCB
MD-382MP3-148 MD-382MP3-KEY-2 1 FUNCTION KEY PCB
MD-382MP3-149 MD-382MP3-KEY-3 1 KEY PCB
MD-382MP3-150 MD-382MP3-KEY-4 1 VOL KEY PCB
MD-382MP3-151 MD-382MP3-KEY-5 1 POWER KEY PCB HB料
MD-382MP3-152 MD-382MP3-LCD 1 LCD PCB
MD-382MP3-153 SW382DAB-REC 1 REC PCB
MD-382MP3-154 MD-382MP3-AUX 1 AUX IN PCB
MD-382MP3-155 MD-382MP3-POWER 1 功放 PCB
MD-382MP3-156 MD-382MP3-PHONES 1 PHONE PCB
MD-382MP3-157 MD-382PLL-AC 1 AC PCB V0料
MD-382MP3-158 遥控器（成品） SAM 4008H 1
MD-382MP3-159 TAPE DECK WS-21F-MD382P 1 ST
MD-382MP3-160 CD DECK R800 1无波仔头
MD-382MP3-161 SPEAKER 4" 3 OHM 12W (45D) 2
MD-382MP3-162 2 " 4 OHM 5W(32D) 2
MD-382MP3-163 TRANSFORMER HF-V57C17 1 230V 50Hz
MD-382MP3-164 AC CORD 8字尾 1
MD-382MP3-165 CABLE TIE (WHITE) 100MM 5
MD-382MP3-166 HEAT PIPE φ4x15MM 4 AC SOCKET（4）热缩管
MD-382MP3-167 φ3x15MM 3 110V/220V(3)
MD-382MP3-168 φ3x15MM 8 AC PCB(8) 纤维套管
MD-382MP3-169 CD DECK RUBBER BW-03-C-228-20 2 YELLOW
MD-382MP3-170 BW-03-G-228-45 2 GREEN
MD-382MP3-171 DUST COVER CDH-SY2 1防尘盖
MD-382MP3-172 CHOCKING PLATE S187075Y 1 塑胶磁吸盖
MD-382MP3-173 CHOCKING PLATE CD-J1 1金属磁吸盖
编号QS-4109H/S0506-5 泡边 、银亮、纸盘
编号QS-229GH/S0506-06 高音、 银亮、纸盘

Page 7 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-174 MAGNET RING M183050S 1 六极/磁石
MD-382MP3-175 PAPER 64x19x0.3MM 1 绒纸
MD-382MP3-176 PAPER φ35MM 2 出汽筒 黑纱
MD-382MP3-177 69X29MM 1 牛油纸
MD-382MP3-178 BLACK PLATE：29.7X52MM 1
MD-382MP3-179 23.6X13.7MM 1 单电压时用
MD-382MP3-180 382-22 1 机芯位胶片
MD-382MP3-181 BATTERY SPRING 382-1 1 电池正片（1）
MD-382MP3-182 382-2 1 电池负片（1）
MD-382MP3-183 382-3 1 正负连片（1）
MD-382MP3-184 CD CASSETTE SPRING 382-7A（φ1.2MM）1CD门弹弓
MD-382MP3-185 CASSETTE SPRING 382-8 1 卡门弹弓
MD-382MP3-186 METAL SHAFT 382-9 1 卡门轴
MD-382MP3-187 BUTTON SPRING 382-10 2 钮弹簧
MD-382MP3-188 CD DOOR LOCK 382-18 1 CD门扣弹簧
MD-382MP3-189 ANT CON PLATE 3X12MM 1 天线焊片
MD-382MP3-190 RUBBER φ16.4x3MM 4 橡胶脚
MD-382MP3-191 HEAT SINK 2388-02A 1 BA5417
MD-382MP3-192 MS01-04 1 D822Y
MD-382MP3-193 312-09 1 SA1469PH
MD-382MP3-194 SPEAKER HOLDER F-001 4 大喇叭码
MD-382MP3-195 F-005 4 中喇叭码
MD-382MP3-196 F-008 4 细喇叭码
MD-382MP3-197 METAL SPEAKER NET 382-20 1 L网金属网
MD-382MP3-198 382-21 1 R网
MD-382MP3-199 FM ANTENNA TL10-100-IV-10节1可变拉杆天线
MD-382MP3-200 JUMPER WIRW (UL) 80MM 1 MAIN PCB(1)
MD-382MP3-201 100MM 1 MAIN PCB(1) φ1.3MM 单支线
MD-382MP3-202 130MM 1 MAIN PCB(1)

Page 8 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-203 150MM 3 TAPE DECK(2) TAPE DECK MOTOR+（（1）
MD-382MP3-204 180MM 1 MOTOR-（（1）φ1.3MM
MD-382MP3-205 220MM 1 FM ANT(1)
MD-382MP3-206 130MM 4 MIN SP(4)
MD-382MP3-207 220MM 1 AC SOCKET（1）
MD-382MP3-208 300MM 1 A-（1） φ1.6MM
MD-382MP3-209 500MM 1 A+（1）
MD-382MP3-210 WAFER XH02A WAFER 3 功放板(3)
MD-382MP3-211 PH02A WAFER 9 REC PCB(1)MAIN PCB(6)功放板(2)
MD-382MP3-212 PH03A WAFER 4 MAIN PCB（3）功放板(1)
MD-382MP3-213 PH04A WAFER 2 MAIN PCB（2）
MD-382MP3-214 XH05A WAFER 1 功放板(1)
MD-382MP3-215 PH05A WAFER 3 REC PCB(1)MAIN PCB(2)
MD-382MP3-216 PH06A WAFER 1 MAIN PCB(1)
MD-382MP3-217 1MMx16A 1 MAIN PCB(1)
MD-382MP3-218 PIN CABLE XH05Px130MM 1 PHONES 彩虹线一头入盒
MD-382MP3-219 XH02Px330MM 1 功放PCB（1） 红黑并线一头入盒
MD-382MP3-220 PH02Px150MM 1 POWER LED 红黑并线一头入盒
MD-382MP3-221 PH02Px330MM 2 LCD LED(1) CD DOOR SWITCH(1) 红黑并线一头入盒
MD-382MP3-222 PH02Px2220MM 2 功放PCB（2） 红黑并线一头入盒
MD-382MP3-223 PH02Px2130MM 1 REC CPB 红黑并线两头入盒
MD-382MP3-224 XH02Px230MM 1 SP+- 红黑并线两头开线
MD-382MP3-225 XH02Px580MM 1 SP+- 红黑并线两头开线
MD-382MP3-226 PH03Px200MM 1 AUX IN 磁头线一头入盒
MD-382MP3-227 PH03Px330MM 1 接收头 磁头线一头入盒
MD-382MP3-228 PH03Px2280MM 1 功放PCB（1） 磁头线两头入盒
MD-382MP3-229 PH05Px2130MM 1 REC CPB 磁头线两头入盒
MD-382MP3-230 03Px150MM 1 TAPE DECK 磁头线两头开线
MD-382MP3-231 PH04Px180MM 2 KEY-1（1）KEY-2（1） 软排线一头入盒
MD-382MP3-232 PH05Px330MM 1 LCD 软排线一头入盒

Page 9 of 9
DATE: 05-7-12
ITEM NO DESCRIPTION UNIT LOCATION REMARK
MODEL: SW-382MP3 (CE Standard）
BILL OF MATERIAL
MD-382MP3-233 PH06Px2180MM 1 CD DECK MOTRO 软排线两头入盒
MD-382MP3-234 02Px80MM 1 VOL-DN 软排线两头开线
MD-382MP3-235 02Px130MM 1 POWER SWITCH 软排线两头开线
MD-382MP3-236 04Px90MM 1 KEY3-KEY4 软排线两头开线
MD-382MP3-237 16Px150MM 1 CD DECK （A型)超薄铜皮排线）
MD-382MP3-238 SCREW 2.3x8PA（BLACK）1 CHOCKING HOLDER(1)
MD-382MP3-239 2x10PA 1 CD DOOR SWITCH（1）
MD-382MP3-240 2.6x8PA 8 LCD PCB(4)LCD HOLDER(2)POWER LED PCB(2)
MD-382MP3-241 2.6x10PA 4 CD DECK(4)
MD-382MP3-242 2.6x12PA 2 AC SOCKET(2)
MD-382MP3-243 3x12KA 5 DOS SHELL（4）AUX IN(1)
MD-382MP3-244 3x6WA 4 MIN SPEAKER(4)
MD-382MP3-245 3x8PA 21 KEY PCB（18)REC PCB（1）AC PCB(2)
MD-382MP3-246 3x8PM 2 HEAT SINK (1)FM ANT（1）
MD-382MP3-247 3x8PM W/N 1 HEAT SINK (1)
功放板（4) MP3 PCB（5）REC PCB（2）TAPE DECK(4)
HOLE OUT STEAM （4）CD DOOR SPRING（2）
MP3 PCB HOLDER(10)FM ANT HOLDER(2)AUX IN PCB(2)
TAPE RESISTANCE RING(1) MAX SPEAKER(4)
MD-382MP3-249 3x10WA 10 TAPE DECK HOLDER(4)CONNECT HOLDER（6)
MD-382MP3-250 3x14WA 2 PHONE PCB（1）CD RESISTANCE RING(1)
MD-382MP3-251 3x14PA 5 DOS SHELL（5）
MD-382MP3-252 3x18WA 2 TRANSFORMER（2）
MD-382MP3-253 3x20PA 5 DOS SHELL（5）
MD-382MP3-248 3x10PA 40
