USER'S MANUAL

DAWS-032 / DAWS-032SG

Cordless pruning shear

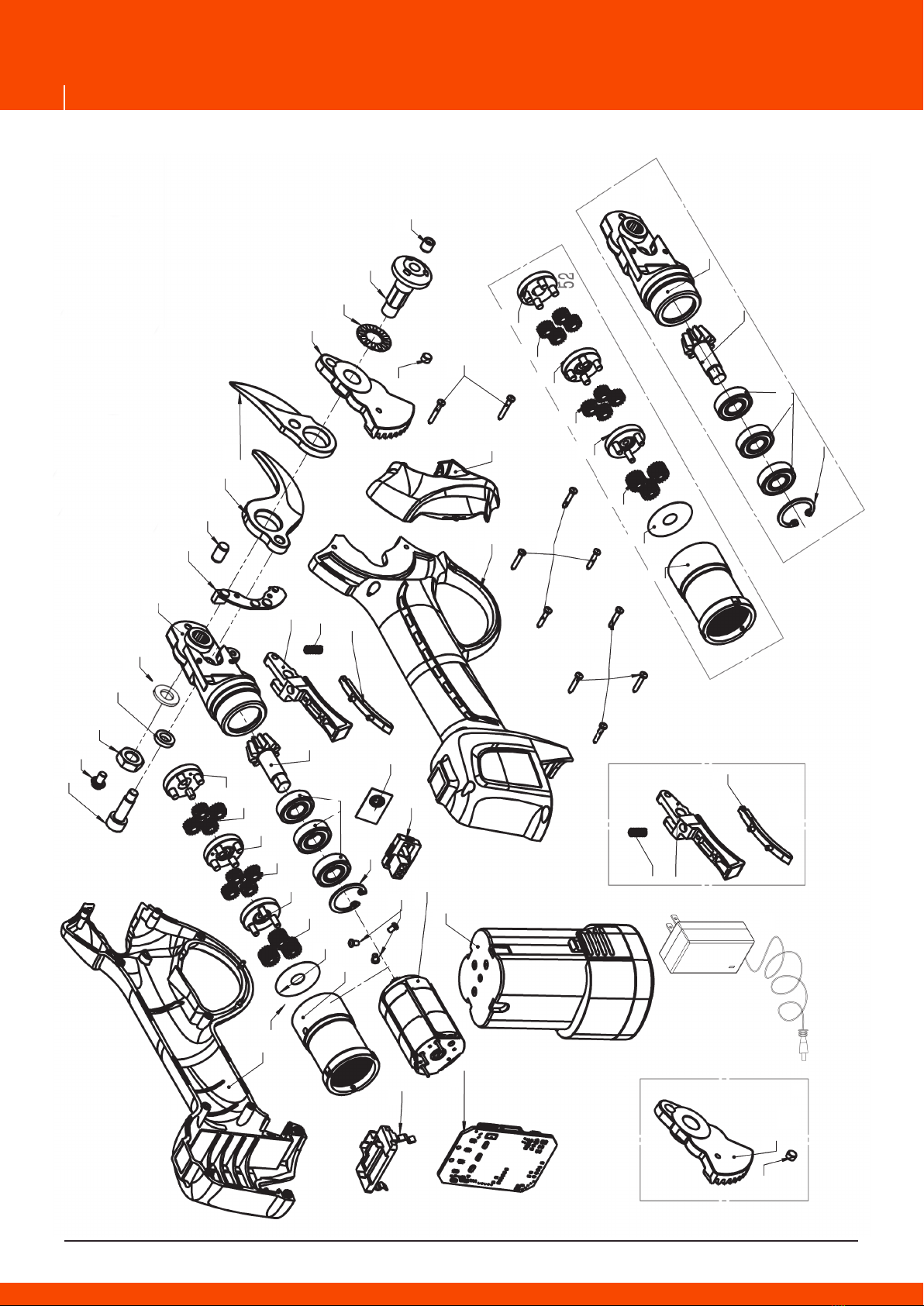

9. EXPLODED VIEW AND SPARE PART LISTlrregularity Measures

1. In the event the pruning shear is not able to cut through an object, released the trigger immediate-

ly and the moving blade will return to its open position automatically.

2. In the event the pruning shear is cutting through a branch of particularly hardness,released the

trigger immediately and the moving blade will return to it´s open position automatically.

3. In the event the battery is not charging properly, please check if the charger is the one provided

with the package during purchase. Next is to ensure the supply voltage to the charger is same rating

as the speciﬁcatlon of the charger.

4. In the event of electric or mechanical malfunction, power OFF immedialely.

5. Operating not following instructions in this manual may result battery ﬂuid leakage, do not con-

tact the leaked batlery ﬂuid. In the event of accidental contact with battery ﬂuid, clean with clear

water immediately. lf the battery ﬂuid keeps in contact with the eyes, wash wilh clear water and

must seek hospital assistance. Fluid from leaked battery may causad irritations or burns.

After sale service

Should you have any questions regarding the pruning shears, please contact us immediately (con-

tact information is on the cover). Our professionals will resolve the problems for you, and our quali-

ﬁed engineers will repair your electric pruning shears.

Disclaimer

Our company reserves the right to make any design and manufacturing changes deemed necessary

to improve on the performance. Thank you your understanding. If there are differences between the

physical tool and the graphics as well as texts in this manual, take the physical item as the most

accurate.

of battery.

14. Do not connect the battery to charging outlets or car cigarette lighter socket.

15. Do not use the battery on equipment other !han the designated pruning shear.

16. Do not dlrect contact wlth llthlum cells In the battery.

17. Do not place the battery in microwave, high temperatura or high pressured vessel.

18. Do not use the battery that is leaking.

19. Keep the battery out of reach from CHILDREN.

20. Do not use or place the battery under direct sunlight (or in vehicle that are under direct sunlight)

that will cause the battery to overheat or bum shortening the battery lifespan.

21. Do not use the battery in electrostatic environment(above 64V).

22. Do not usebattery that is corroded, with unpleasant odor or unusual appearance.

23. lf the skin or clothing comes into direct contact with battery ﬂuid, wash with clearwater imme-

diately.

24. Maintain the battery fully charged when the pruning shear is not used and electricity is charged

every three months for a long period of time.

8. SAFETY NOTES

WARNING! Please read all instructions carefully,not complying with instruction may lead to electric

shocks,ﬁre or other serious damage.

Workplace safety

1. Keep work area clean and bright , messy and dimmed workplace may cause accidents.

2. Do not use the pruning shear in explosive , inﬂammable or hum id environment.

3. Keep CHILDREN and bystander away before operating the pruning shear to avoid accidental

injury due to distraction.

Electrical safety

1. Pruning shear battery socket must be compatible with the power cable plug, do not modify the

socket and plug.

2. Do not exposed the pruning shear to rain, humid environment, water or any other moisture that

will risk electrical shock.

3. Do not misuse the power cord. Do not lift or pull the pruning shear by !he power cord. Keep the

pruning shears away from heat, oil, sharp edges or moving parts.

Human safety

1. Keep alert while using the pruning shear. Do not operate the pruning shear when you are tired or

under the inﬂuence of drugs or alcohol.

2. Use protective devices, always wear safety goggles as well as other safety tools such as dust

mask, anti-slide boots, helmet and hearing protective devices that will reduce the risk of injury.

3. Before powering on the pruning shear ensure all adjusting tools and spanners are removed. Tools

left on the rotating parts of pruning shear may result injury.

4. Do not over stretch hands when operating the pruning shear, keep both hands from cutting area.

Do not under any circumstances place !he hands beneath the branches, al the same ensure the

surface and underside of the branches do not have any material that can be damage by cutting

edges. Always mainlain balance and in control of pruning shear in any situation.

5. Dress appropriately, do not wear loase clothing or jewelry. Keep hair, clothing and sleeves away

from the pruning shear. Loase clothing, accessories and long hair may be enlangled with the moving

parts of the tool.

Fixed and movable blades can be re placed individually; do not worry about the size of the replace-

ment blade aperture, the opening will automatically return to normal size during power ON after

completing blade replacement.

7. OPERATION PRECAUTIONS

Usage and care for pruning shear

1. Do not cut branches beyond the speciﬁed diameter indicated, do not cut hard items such as

metals,stone or any other non-plant materials. lf the bladesare worn or damaged, please replace the

blades.

2. Keep the pruning shear clean, use a clean cloth to clean the pruning shear, battery and charger

(do not use ant abrasive or solvent-based cleaningagent), use a soft brush or a dry to clean the dust

offthe pruning shear head.

3. Do not immerse the pruning shear, battery or charger in any liquid.

4. Follow instructions as given for proper use of the pruning shear, do not use the pruning shear

when the tool itself,battery or charger is damaged.

5. Do not use the pruning shear if it could not operate or shut down properly, send for servicing

immediately. lt is dangerous to use the pruning shearwhen the tool could not operate or shut down

properly.

6. Please ensure the power pruner is powered OFF during any adjustment, changing accessories or

storage. This protective meas u re aims to reduce the risk of accidental pruning shear activation.

7. Please ensure the blades are closed when not in use, remove the battery, storage of the pruning

shearmust keep out of reach from children, do notallow any person who is not familiar with the

pruner operation or instructionto use the pruning shear, it is dangerous to use the pruning shear

without proper training and understanding.

8. The use of the pruning shear must comply with instructions stated in this manual and methods of

use as well as taking in considerations of the workingenvironment and nature of work undertaken,

The use of the pruning shear notwithin its stated capability and speciﬁcations is dangerous.

9. Remove all dirt from the moving and ﬁxed blades alter each use, thereafter apply lubricanton the

blade side where both moving and ﬁxed blade contact. This will ensure the blades are maintained in

good conditions and reduceresistance during use prolonging the pruner and blade lifespan.

Usage and care for battery

1. Do not charge battery with ambient temperature below 32ºF (OºC) or above 113ºF (45ºC).

2. Please ensure the battery is switched off befo re connecting the power cord to the battery.

3. Only use battery charger as supplied together with the pruning shear, the use of any other char-

ger not matching to the charging speciﬁcation of the battery may cause ﬁre.

4. ltems such as paper clips, coins, keys, nails, screws, or any other conductive items must be keep

away from battery when not in use.

5. Do not disassemble the battery.

6. Do not short-circuit the battery.

7. Do not use the battery beside heat source.

8. Do not put the battery in ﬁre or in water.

9. Do not charge the battery near ﬁre or under direct sunlight.

10. Do not insert nail into the battery, hammer the battery, stomp the battery, throw the battery or

any other form of shocks to the battery.

11. Do not use battery that is damaged or deformed.

12. Do not perform soldering or welding on the battery.

13. Do not reverse direction of charging battery, reverse polarity of connections excessive discharge

Cautions

1. Before charging, please ensure battery power switch is in OFF position. During charging, it is

normal far the charger and battery to be warm.

2. lf the battery is not use for a long period of time, it recommended to charge the battery once

every 3 months, this is to ensure the battery life is not affected by low usage.

3. For new battery or battery unused far a long time,i t will need about 5 charge-discharge cycles

before achieving full capacity.

4. Do not recharge a fully charged battery just alter a few minutes of usage, this will reduce the

battery lifespan and efﬁciency.

5. Do not use a damaged battery and do not disassemble the charge ar battery.

6. Do not place battery near high temperatura heat source, the ballery will explode in ﬁre ar long

exposure to high temperatura heat source.

7. Do not charge the battery in outdoor ar humid environment.

8. lt is normal for the pruning shear to reduce cutting diameter when the battery capacity is getting

low.

9. Do not use the pruning shear during charging. lt must be disconnected from the battery during

charging.

10. Do not store the battery in a humid environment.

Blade replacement

When the moving blade no longer crosses the ﬁxed blade throughout ils length, or when the power

pruner could no longer have a clean cut after grinding, blade replacement is recommended with the

following steps:

1. For safety, before replacing the blade, please ensure the pruning shear is power OFF and power

cable disconnected from the battery.

2. Refer to the diagrams below on the procedure to replace the blade.

3. Clean up the the blade after replacing,connect to power cable to battery, power ON to test the

blade, close up the blade to complete the whole procedure.

4. TECHNICAL SPECIFICATIONS

Model: DAWS-032 Model: DAWS-032SG

Driver: Gear Driver: Gear

Cut diameter: up to 30 mm Cut diameter: up to 32 mm

Power: 16.8 V DC Brushless Power: 16.8 V DC Brushless

Motor speed: 2300 rpm Motor speed: 2300 rpm

Lithium battery: 2.6 Ah Lithium battery: 4.5 Ah

Charger voltage: AC 110-240 V Charger voltage: AC 110-240 V

Charging time: 2 hours Charging time: 2 hours

Material of blade: Stainless alloy Material of blade: Stainless alloy

Protect system: Yes Protect system: Yes

Includes: Tool kit, BMC case, 2 batteries and power indicator.

Please read through all safety warnings and instructions carefully.

Failure to follow warnings and instructions may result in electric shock, ﬁre and

serious burns and other accidents.

Do not use or exposed electric pruning shear in rainy conditions.

Never place hands near the cutting area of the electric pruning shear during operations.

Never contact charged objects with electric scissors.

5. DESCRIPTION PART

1. Movable blade

2. Fixed blade

3. Latch pin

4. Trigger

5. Power switch

6. Lubrication hole

7. Electric pruning shear´s power input connector

8. LED light indicator

9. Charging jack

10. Release button

11. Battery input connector

12. Battery output connector

6. PRODUCT OPERATION

Setting up

1. Open the package, insert the the baltery into the power connector of the pruner with designated

direction, see .

2. Press the power button till the LED display indicator change to green. After the sound "Di- Di Di

Di" indicate that is activated. Double click the trigger, the pruner blades will automatically open.

3. Normal Pruning: Press trigger to clase the blades and release the trigger to open blades.

4. Press trigger for one second. Release trigger after hear the sound "Di Di" to adjust the size the

cut diameter. Conversion between large and small cut diameter can be achieved by the same opera-

tion.

5. Press trigger with one second after the sound "Di Di", for another 1.5 seconds press with the

sound " Di Di" The pruner comes into standby mode of (children's lock function). The pruner can

only be reopened with double click the trigger.

6. Pressing the trigger constently for 6 seconds, the notice sound will be heard "Di Di" "Di Di" "Di".

Release trigger, the function of blade injury prevention can be turned on or turned off. Please note

that the safety systerm is only auxiliary fuction, when the environment is very dry, the safety system

may fail.

7. Without operation for 3 minutes when the blades open, after sound 'Di Di" the pruner comes into

standby mode of (children's lock function), can only be reopened with double click the trigger.

Another without operation for 10 minutes, after sound " Di Di Di Di" the pruner automatic shutdown.

When the blades closed and pruner comes into standby mode of (children's lock function), without

operation for 10 minutes, after sound "Di Di Di Di" the pruner automatic shutdown.

8. Before operation, in order to see if the pruner and battery performances well, please press the

trigger to close and release the trigger to open the blades without cutting anything, repeat this for a

few times.

9. Start working after all normal.

Packing up

1. Press the trigger and hold far a few seconds and then release, the blade will clase and will not

open.

2. Switch off the battery, disconnect the battery.

3. Tidy up, clean up and pack the pruner into the tool box.

Failure tips

Battery charging

The battery connected to the charger. The charger plug connected to the power socket.

The LED indicator on the battery will turn RED during charging and turn GREEN when the battery is

fully charged.

1. PACKING LIST

lncluded in the case

1. Electric pruning shear

2. Lithium battery

3. Battery charger

4. Tool kit

2. SAFETY MARKS

NOTE

1. Please read through the manual carefully.

2. Battery can only be charged indoors.

3. Double insulation,grounding not required.

4. Fail-safe transformer charger.

5. Battery charging will automatically cut off when overheating occurs.

6. Dispose battery charger separately from house hold waste.

7. Dispose battery separately from household waste.

3. PRODUCT DESCRIPTION

This product is a battery-driven electric pruning shear,comprises a ﬁxed blade, a movable blade,

lithium battery, battery charger, work vest, tool box and other components. Designed ﬁr cutting or

trimming 1-25 mm or less branches in fruit orchards, vineyyards, etc. Simple and easy to operate, it

also has 8-10 times the efﬁciency of traditional manual pruners. Pruning quality is signiﬁcantly

higher as compared to manual pruners.

INDEX

.PACKING LIST ......................................................................................................................................... 3

.SAFETY MARKS ...................................................................................................................................... 3

.PRODUCT DESCRIPTION ....................................................................................................................... 3

.TECHNICAL SPECIFICATIONS ............................................................................................................... 4

.DESCRIPTION PART ............................................................................................................................... 4

.PRODUCT OPERATION .......................................................................................................................... 5

7. OPERATION PRECAUTIONS .................................................................................................................. 8

. SAFETY NOTES ....................................................................................................................................... 9

.EXPLODED VIEW AND SPARE PART LIST ........................................................................................... 11

EC DECLARATION OF CONFORMITY ..................................................................................................... 13

WARRANTY ............................................................................................................................................... 14
