INSTRUCTION MANUAL
DWDNU1221
Washing Machine Instruction Manual
A NOTE TO YOU
Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.
■Economic washing system
The washing machine determines the water level and washing time
automatically by sensing the amount of laundry and water temperature
in order to minimize energy and water consumption.
■Low noise system
The washing machine minimizes the spinning noise level by sensing
the amount of laundry and ensuring it is balanced before spinning.
WASHER SAFETY ..........................................................................................................................2
PARTS AND FEATURES .................................................................................................................4
INSTALLATION INSTRUCTIONS ...................................................................................................5
ELECTRICAL REQUIREMENTS ....................................................................................................8
OPERATING YOUR WASHER ........................................................................................................8
THE FUNCTIONS OF THE CONTROL PANEL ............................................................................10
PROGRAMS AND FUNCTIONS ...................................................................................................11
WASHING PROCEDURE AND PROGRAM SELECTION ............................................................12
PRODUCT INFORMATION ...........................................................................................................14
MAINTENANCE ............................................................................................................................15
HOW TO CLEAN THE FILTER ......................................................................................................16
REMOVING STAINS .....................................................................................................................17
TROUBLE SHOOTING .................................................................................................................18
SPECIFICATION ...........................................................................................................................19
DWDNU1221(영)_영국향.indd 1 15. 3. 11. 오후 2:54

2
WASHER SAFETY
Save these instructions
Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using
your washer adhere to the following basic precautions.
• Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.)
should not be used or stored in or near your washer.
Do not add flammable fluids to your wash water.These substances
give off vapors that can create a fire hazard or explosion.
• After starting a cycle, do not reach into the washer until all motions
stop.
• Do not tamper with the controls.
• The appliance is not intended for use by young children or infirm
persons without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, or its service agent or a similarly qualified person in
order to avoid a hazard.
• If the appliance is supplied from a cord extension set or electrical
portable outlet device it should be positioned so that it is not
subjected to splashing or ingress of moisture.
Please ...
• Have only a qualified person install, repair, or replace parts on
washer.
• Maintain washer properly.
• Protect washer from the weather and keep it where the
temperature will not fall below freezing.
• Do not install the washer at a place of extremely high humidity. It
could cause an electric shock or a short circuit.
• Connect washer to the correct outlet, electrical supply, water supply,
and drain supply.
Read all instructions before using your washer
DWDNU1221(영)_영국향.indd 2 15. 3. 11. 오후 2:54

3
WASHER SAFETY
Understanding your responsibilities
• Do not use chlorine bleach and ammonia or acid(such as vinegar
or rust remover) in the same wash. Hazardous fumes can form.
• Unplug power supply cord before attempting to service your
washer.
• Do not wash fiberglass material.
Small particles can stick to fabrics washed in following loads and
cause skin irritation.
• Do not spray water on the control panel of the washer.
It could cause fire or an electric shock.
• In case of the dual valve model, if you connect only cold water
inlet valve, while water temperature is selected as hot or warm,
there can be water leakage from unconnected water inlet valve.
• This appliance must be grounded.
To avoid electrical shock, use a metal pipe for the ground
connection.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or metal
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazard involved.
• Children should not play with the appliance.
• Cleaning and user maintenance shall not be carried out by
children without supervision.
• If you want to obtain user manual, please visit our website at
www.daewooelectronics.co.uk or call our customer services on
0118 925 2577.
DWDNU1221(영)_영국향.indd 3 15. 3. 11. 오후 2:54

4
PARTS AND FEATURES
The parts and features of your washer are illustrated on the page.
Become familiar with all parts and features before using your washer.
NOTE
The drawings in the book may vary from your washer model.
They are designed to show the different features of all models coverd by this book.
Your model may not include all features.
ADJUSTABLE LEG
CONTROL PANEL
DOOR
DETERGENT CASE
INLET HOSE (COLD)
COVER PUMP
POWER CORD
HOSE DRAIN
Accessories
Inlet hose Manual Sticker holder (3EA) Guide Hose Drain
(Option)
DWDNU1221(영)_영국향.indd 4 15. 3. 11. 오후 2:54

5
INSTALLATION INSTRUCTIONS

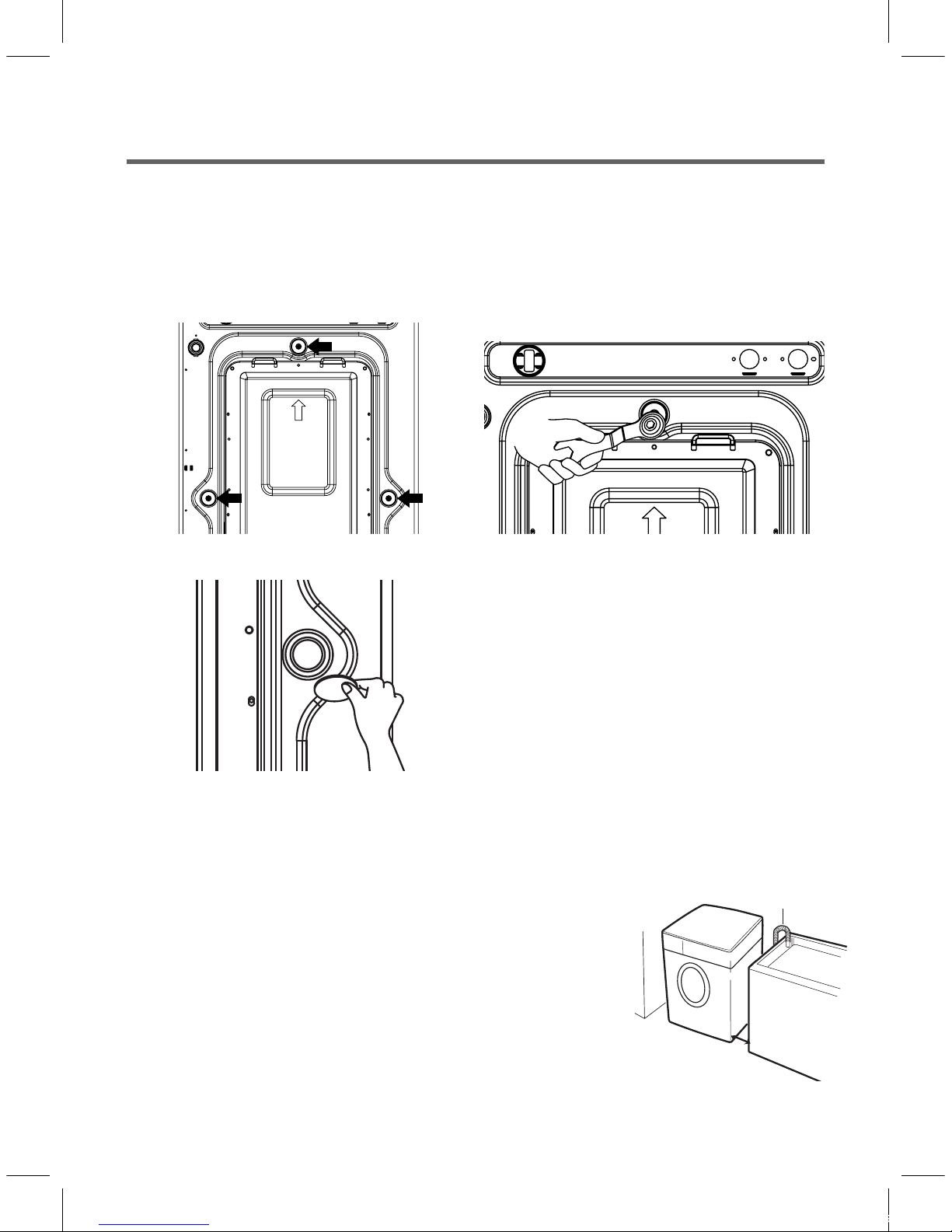

Removing transit bolts
1. Before operating the washer, remove the
transit bolts(x3) along with the rubber
around them.
• If the bolts are not removed, it may cause
excessive noise, vibration or malfunction.
2. Unscrew the 3 bolts with a 10mm hex
wrench or spanner or cross-tip screwdriver.
Do not discard the bolts.
• When the appliance is transported, the
transit bolts will need to be re-used.
3. Close the holes with the sticker holders supplied.
Location of washer
• Check the location where the washer will be installed. Make sure you have everything
necessary for correct installation.
• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.
• Do not place or store laundry products on top of washer at any times.
• Install the washer on the horizontal, solid, level floor.
If the washer is installed on an unsuitable floor, it could make
considerable noise, vibrate severely and cause a malfunction. If the
washer is not level, adjust leg up or down for horizontal installation.
• Ventilation openings must not be obstructed by carpeting when the
washer is installed on a carpeted floor.
• Leave some space around the machine (right & left : 2cm, rear : 10cm).
• In case of built-in installation, the distance between top of the washer
and bottom of upper plate should be at least 3mm.
Drain Hose
Washer
Laundry
Tub
approx.
2cm
DWDNU1221(영)_영국향.indd 5 15. 3. 11. 오후 2:54

6
• When installing the drain hose to tub(sink), secure it tightly with a string.
• Proper securing of the drain hose will protect the floor from damage due to water leakage.
• When the drain hose is too long, do not force it back into the washer.
This will cause abnormal noise.
Drain system
• Never forget to install drain hose before operating your washer.
• Open the packing box, and the drain hose is tied at backside of washer.
• If you use the laundry tub, Top of laundry tub must be at least 60cm high and no higher than
100cm from bottom of washer.
Laundry tub
max. 100 cm
min. 60 cm
ca. 105 cm
Hose
Retainer
Tie
strap
max. 100 cm
min. 60cm
max. 100 cm
min. 60cm
Inlet hose connection
• The washer should be connected to the water mains using new hose set and old hose sets should not be
reused.
• In case of only one water inlet valve, connect the inlet hose to the cold water tap.
• Periodically check the tightness of the inlet hose.
• Make sure that the inlet hose is not kinked or folded and that it is not crushed.
1. Connect the inlet hose
to the water tap tightly.
2. Connect the inlet
hose to the water
inlet valve tightly.
DWDNU1221(영)_영국향.indd 6 15. 3. 11. 오후 2:54

7

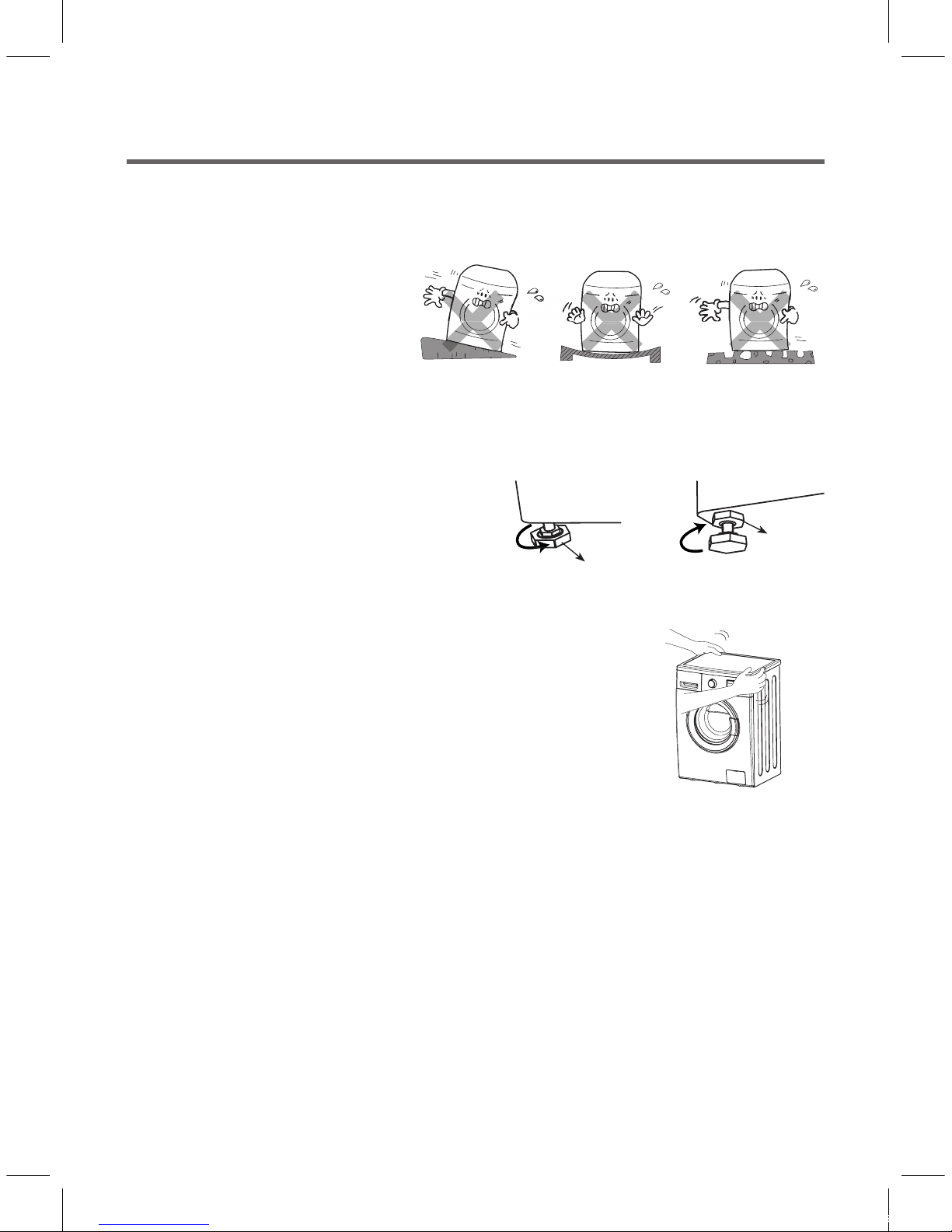

Level adjustment
1If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate and
cause a malfunction.
2Adjust the level of washer using adjustable legs.
• Please check if there is any gap between the
four adjustable legs and the floor.
• Adjust the level of washer by turning
adjustable legs.
• After the adjustment is finished, turn the fixing
nuts up tightly so that the washer maintains the
adjustment.
3Make it sure that the washer does not sway when you press
down the four corners of the washer's top plate.
And make it sure that there is no swaying of washer.
adjustable leg
Fixing Nut
DWDNU1221(영)_영국향.indd 7 15. 3. 11. 오후 2:54

8
OPERATING YOUR WASHER
To obtain the best washing results, you must operate your washer properly.
This section gives you this important information.
ELECTRICAL REQUIREMENTS
• Electrical earth is required on this washer.
• If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Don’t earth to a gas pipe.
• Don’t change the power supply cord plug.
• Check with a qualified electrician if you are not
sure the washer is properly earthed.
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord ‘A’ having a earthing plug ‘B’.
To minimize possible shock hazard, the cord must be plugged into a mating
earthing-type plug socket ‘C’. If a mating plug socket is not available, it is the
personal responsibility and obligation of the customer to have the proper earthed
plug socket installed by a qualified electrician.
WARNING Electrical shock hazard : Failure to follow these instructions could result in death
or serious injury.
A
B
C
Recommended earthing method
• Close zippers, snaps, and hooks to avoid
snagging other items.
Remove pin, buckles, and other hard
objects to avoid scratching the washer
interior.
• Empty pockets and pull them inside out.
• Turn down cuffs and turn synthetic knits
inside out to avoid pilling.
• Tie strings and sashes to avoid tangling.
• Treat spots and stains.
(See 'REMOVING STAINS' on page 14)
Preparing clothes for washing
DWDNU1221(영)_영국향.indd 8 15. 3. 11. 오후 2:54

9
• Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.
• Separate dark colors from light colors, colorfast items from non-colorfast item.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white clothes from colored clothes.
Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.
Sorting
• Drop items into washer loosely. Items should move
easily through wash water for best cleaning and
wrinkle-free results.
• Load washer properly and select correct load size
setting.
Overloading and selecting a setting too small for
the wash load can :
- Cause poor cleaning
- Increase wrinkling
- Create excessive lint
- Wear out items faster (because of pilling)
• Mix large and small items in each load. Load evenly
to maintain washer balance.
An unbalanced load can make the washer vibrate
during spin or not complete spin cycle.
• Reduce wash time when using a small load size
setting. Load with only a few small items needs
less wash time.
• Use a large load size setting to reduce wrinkling
with permanent press clothes and some synthetic
knits. These items should have more room to move
in the water than heavy items. (towels, jeans)
Loading

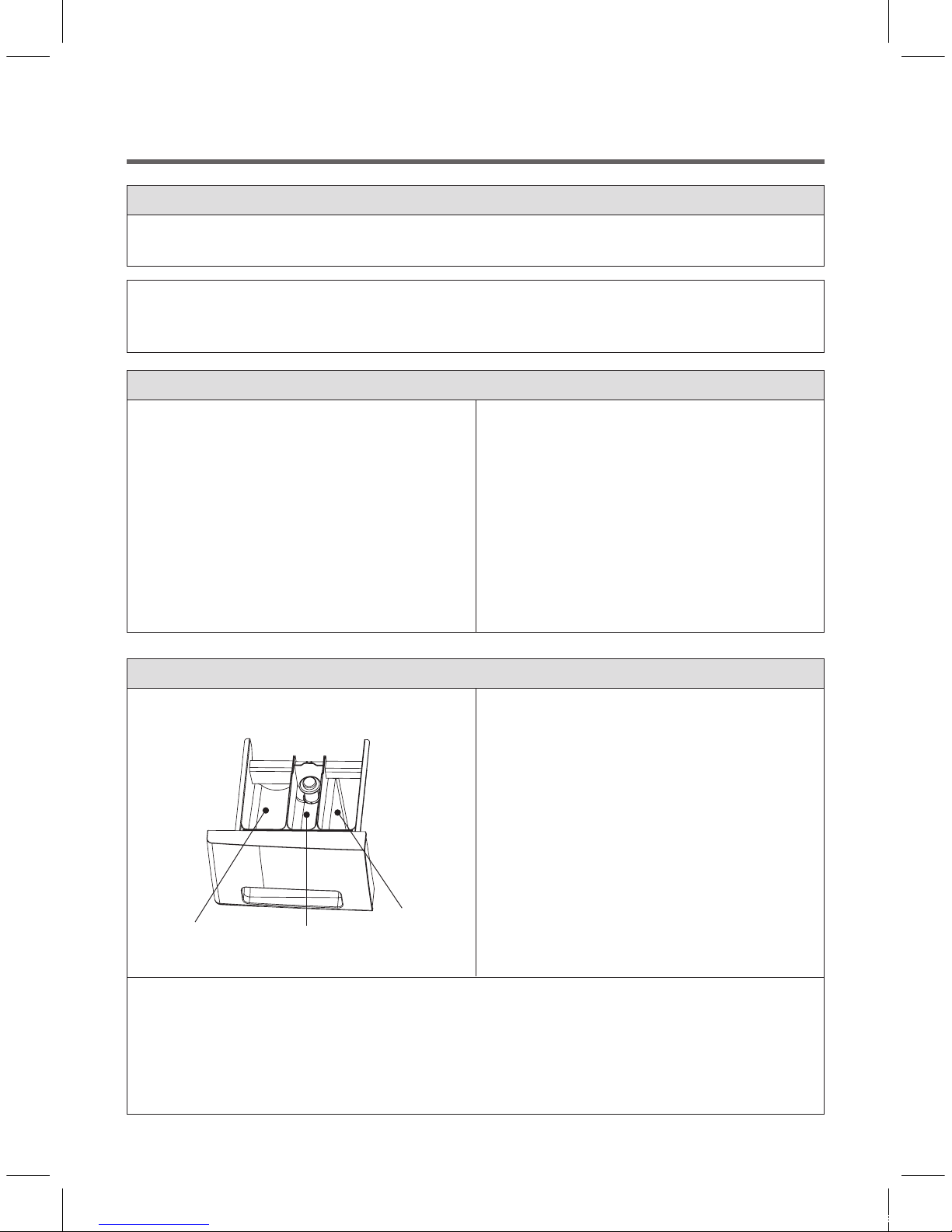

1Detergent case 2Adding fabric softener
• If desired, add measured liquid fabric
softener to the softener inlet.
• Pour liquid fabric softener into the
dispenser using the amount
recommended on the package.
• Do not exceed the maximum fill line.
Overfilling can cause early dispensing of
the fabric softener which could stain
clothes.
• Do not open the detergent case when
water is supplied.
• Avoid pouring fabric softener directly on
the clothes.
Adding detergent
Main wash
Pre wash
Fabric softener
• Please use only the powder detergent for the front loader washing machine.
• Please use the proper amount of detergent in conformity with the instruction of the detergent manufacturer.
• A use of a large amount of detergent more than the recommended amount can cause many soapsuds and
the overload to the motor. In addition to, this will deteriorate the washing and rinse performance.
• If too much detergent used, it can occur that the detergent directly falls down to the inside cavity. In this
case, remove the detergent case and clean the cavity after washing cycle is finished. (See page 13)
DWDNU1221(영)_영국향.indd 9 15. 3. 11. 오후 2:54

10

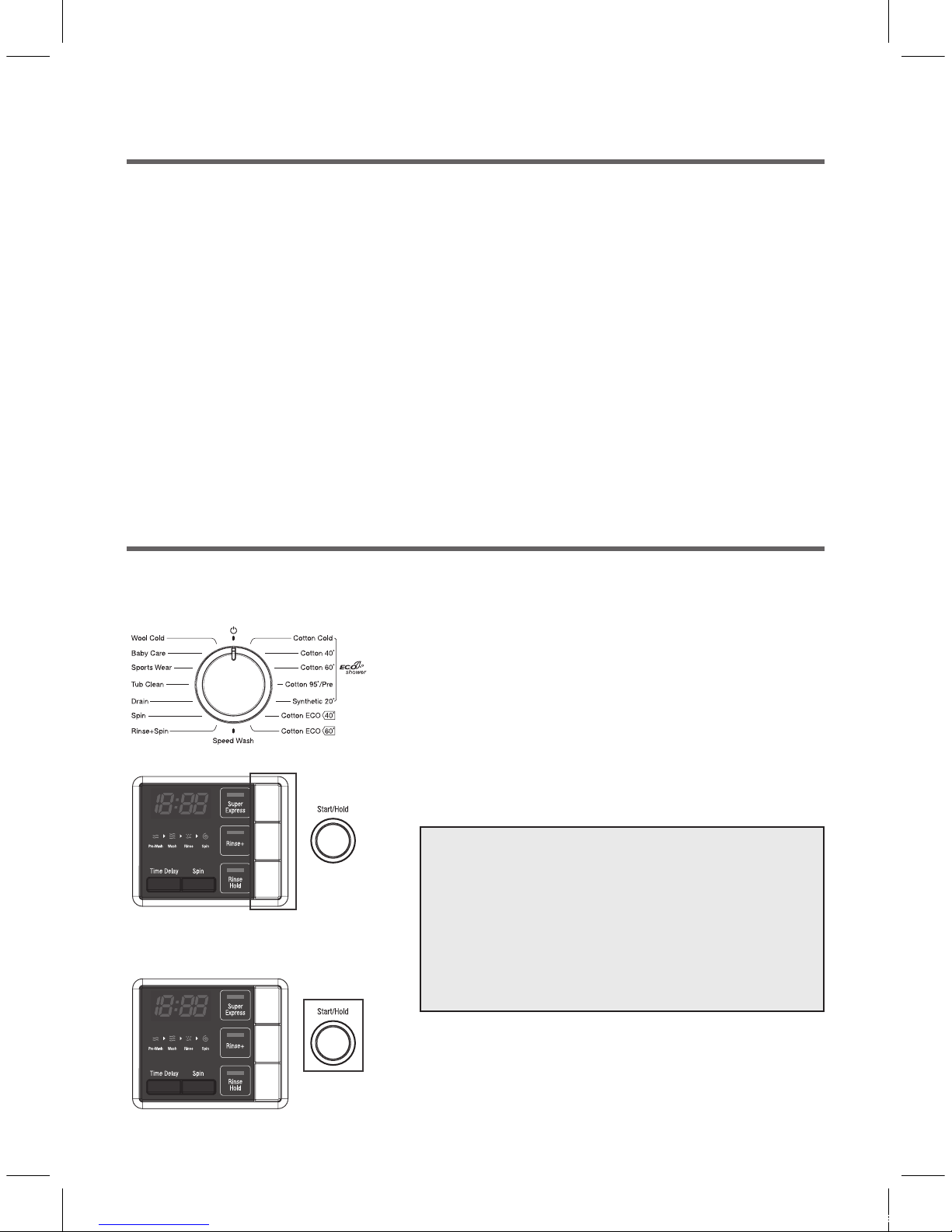

THE FUNCTIONS OF THE CONTROL PANEL
Program selector
For switching the washing machine on and off and
for selecting the program.
Can be rotated in both directions.
Even if the program selector rotates while the
program is running, the program is not changed
(except for off ) .
(All program is electronically controlled by
PCB)
Indicator light
The respective indicator lights up, when the
required program segment runs.
Time delay
To pre-engage time for washing.
As the button is pressed, the delayed time is
repeated as following;
2hours ➝3hours ➝4hours ➝ • • •
➝10hours ➝11hours ➝max 12hours
This option is enabled with COTTON, COTTON Eco,
SYNTHETIC, Speed Wash, Tub Clean, Sports wear,
Rinse+Spin and Baby care programs.
Button for options
(in addition to the program if required)
Super Express Use reduce the laundry time
or wash the mild dirty.
Rinse + Extra rinse cycle.
Rinse Hold No final spin cycle
• The indicator lamp of the buttons lights up if
options are active.
• Canceling options : Press button again.
Start/Hold button
For starting the washing cycle.
(program must have been selected)
Note
The washing time may vary by the amount of laundry, water pressure, water temperature and other
washing conditions. If an unbalanced load is detected the washing time maybe extended. (Maximum
increasing time is about 1 hour.)
In order to use another program, set the program dial to 'OFF MODE' position and check the window
display to ensure the screen is turned off and then select another program by turning the dial.
Spin selector
You can select the spin programs(Spin 400rpm,
600rpm, 800rpm, 1000rpm, 1200rpm) by pressing
the program selector.
400rpm of spin velocity is selected automatically
with WOOL/TUB CLEAN programs in order to
protect damage on laundry.
800rpm of spin velocity is selected automatically
with COTTON/SYNTHETIC/BABY CARE/
SPEED WASH/ SPORTS WEAR/SPIN/
RINSE+SPIN programs.
1200rpm of spin velocity is selected automatically
with COTTON ECO 40 & 60 °C
*Warning : If the washing load is unbalanced the
machine will not be able to reach the
RPM spin speed selected.
DWDNU1221(영)_영국향.indd 10 15. 3. 11. 오후 2:54

11
Cold
40°C
60°C
95°C/Pre
20°C
40°C
60°C
Cold
Cold
Cold
95°C
Cold
30°C
Program Fabric type Proper
Temp.
Degree
of soiling Option Max. Load Remark
Colourfast garments
(shirts, night dresses,
pyjamas...) and lightly
soiled white cotton
(underwear...).
Made of polyamide,
acrylic, polyester,
(synthetic or blended
fabrics).
Colourfast garments
(shirts, night dresses,
pyjamas...) and lightly
soiled white cotton
(underwear...).
Coloured laundry.
Use to clean the Tub
and Drum.
Lightly soiled fast and
thin laundry.
Baby clothes
Machine washable wool
and wool-rich textiles or
silk.
Lightly
soiled
Normally
to heavily
soiled
Heavily
soiled
Lightly
soiled
Lightly
soiled
Normally to
heavily
soiled
Lightly
soiled
-
Lightly
soiled
Normally
soiled
Lightly
soiled
Rinse+
Rinse Hold
Super
Express
Rinse+
Rinse Hold
Super
Express
Rinse+
Rinse Hold
Rinse+
Rinse Hold
Rinse+
Rinse Hold
Rinse+
Rinse Hold
Rinse+
Rinse Hold
Super
Express
Rating
2.5kg
Rating
1.0kg
without
load
Rating
Rating
1.0kg
First Check if
laundry is
washable.
First Check if
laundry is
washable.
Short program
(Fast washing
time)
First Check if
laundry is
washable.
PROGRAMS AND FUNCTIONS
COTTON
SYNTHETIC
Cotton eco
Speed
Wash
Tub Clean
Sportswear
Baby care
WOOL
Programs and functions
NOTICE : Set program at "COTTON 40°C Eco" and "COTTON 60°C Eco" for test in accordance or
in conformity with EN60456 and IEC60456 . This option has longer setting time for
washing.
DWDNU1221(영)_영국향.indd 11 15. 3. 11. 오후 2:54

12
WASHING PROCEDURE AND PROGRAM SELECTION
Rinse : Rinse cycle with subsequent spin cycle for rinsing hand-washed items.
Spin : Spin cycle after a program with setting ‘Rinse Hold’ is finished or for spinning hand-washed washing.
Washing and rinsing water is drained before the spin cycle.
Drain : Water is drained after program with setting ‘Rinse Hold’ is finished.
Rinse+ : Additional rinsing of laundry. Program duration and rinsing water is extended accordingly. This help to
remove residuary traces of detergent and recommended in area with very soft water.
Rinse+ option is selectable with all programs except WOOL, Spin and Drain programs.
Rinse Hold : For delicate textiles and net curtains. All program can be carried out without the final spin cycle.
The laundry is left in the final rinsing water. Before the laundry is unloaded, the ‘Drain’ or ‘Spin’
must be run by using program selector.
Rinse Hold option is not selectable with WOOL, Spin and Drain programs.
Super Express : Use this function when you want to reduce the laundry time or wash the mildly dirty.
It reduce the laundry time and number of rinse.
Washing Procedure
• Turn the program selector to the desired program.
The indicator light of Start/Hold button is on.
• If required, press the button(s) for option(s).
The indicator light of the selected option button is on.
• Press the Start/Hold button.
The selected program starts and the indicator light of Start/
Hold button twinkle: will flash.
Note
If you want to finish washing program during 'Rinse Hold'
process, press the 'Start/Hold' button once. Then the
'Rinse Hold' process stops and the 'Spin' course selected
automatically. (The indicator light of 'Rinse Hold' button is
not twinkle anymore.) When you press the 'Start/Hold'
button once again, spin sequence begin. You can take out
laundry after spin course finish.
DWDNU1221(영)_영국향.indd 12 15. 3. 11. 오후 2:54

13
• Turn the program selector to OFF and reselect
the desired program by using the program selector.
• Press the Start/Hold button.
The selected program stops and the indicator light of
Start/Hold button is not flashing on.
• If required, select the option(s).
And press the Start/Hold button. The newly selected
program starts.
Changing the program
If you have accidentally selected the wrong program, follows next procedure.
• Pressing the ‘Time Delay’ button, select the delayed time.
‘Time delay’ function is not selectable with WOOL program.
• Press the ‘Start/Hold’ button.
The indicator light of ‘Start/Hold’ is off and the indicator light
corresponding to the selected time is on.
• The displayed time shows program finishing time.
Using Time delay
Firstly, you select the desired program and option(s).
When the washing is complete, the indicator light of Start/Hold button is not twinkle but on. (not flashing)
• Turn the program selector to OFF .
After washing
❋Canceling Time delay
• Press the ‘Start/Hold’ button.
(Then the indicator light of ‘Start/Hold’ is on.)
• Turn the program selector to OFF.
DWDNU1221(영)_영국향.indd 13 15. 3. 11. 오후 2:54

14
PRODUCT INFORMATION
Most efficient programs for cotton laundry
The following programme are suitable for cleaning normally soiled cotton texiles and are the
most efficient with respect to combined energy and water consumption.
The actual water temperature, energy, water, RMC and duration may differ from the declared
value in the following table.
RMC(remaining moisture content) means the amount of moisture contained in the load at the
end of the spinning phase.
Recommendation for the detergents
The power consumption of the off mode and of the left-on mode
the off mode 0.11 W the left-on mode 0.49 W
Program Load (kg) Energy (kWh) Water (L) RMC (%) Duration
(min)
Cotton
7.0 0.71 41.5 52.2 244
3.5 0.82 38.3 54.3 254
3.5 0.52 37.6 54.5 160
Washing and type of textile Washing
programme
Washing
temperature Detergent
Boil washable white washing
made of linen or cotton
Cotton
(Cottons) 20°C - max. 90°C Standard detergent containing bleach and optical brighteners
Coloured washing made of linen
or cotton
Cotton
(Cottons) 20°C - max. 60°C Colour detergent without bleach and optical brighteners
Coloured washing made of easy-
care fibres, synthetic materials
Easy-Care 20°C - max. 60°C Colour/mild deergent without
optical brighteners
Delicate fine textiles, silk or
viscose
Delicate / Silk 20°C - max. 40°C Mild detergent
Wool
Wool 20°C - max. 40°C Detergent for woollens
60˚C
40˚C
DWDNU1221(영)_영국향.indd 14 15. 3. 11. 오후 2:54

15
MAINTENANCE
Proper care of your washer can extend its life. This section explains how to care for your washer
properly and safely.
Cleaning your washer
Winter storage or moving care
Install and store your washer where it will not freeze. Because some water may stay in the
hoses, freezing can damage your washer.
If you store or move your washer during freezing weather, winterize it.
Non-use or vacation care
Operate your washer only when you are at home.
If you are on vacation or don’t use your washer for an extended period of time, you should:
• Unplug the power supply cord or turn off eletrical power to the washer.
• Turn off the water supply to the washer.
This helps avoid accidental flooding (due to a water pressure surge) while you are away.
Wipe up detergent, bleach, and other spills
with a soft, damp cloth or sponge as they
occur. Occasionally wipe the outside of the
washer to keep its looking like new one.
Clean interior with 250ml of chlorine bleach
mixed with 500ml of detergent.
Run washer through a complete cycle with no
washing in it.
Repeat this process if necessary.
Exterior Interior
Do not put sharp or metal object in your washer, or they can
damage the finish. Check all pockets for pins, clips, money,
bolts, nuts, etc.
Do not put these objects in your washer after emptying
pockets.
• Turn off the water tap.
• Disconnect inlet hoses and drain the water
of inlet hoses.
• Run the washer on the drain and spin cycle
setting.
• Unplug the power supply cord.
• Flush water pipes and hoses.
• Reconnect water inlet hoses.
• Turn on water faucet.
• Reconnect power supply cord.
To winterize washer To use washer again
DWDNU1221(영)_영국향.indd 15 15. 3. 11. 오후 2:54

16
Cleaning the detergent case
• In case of residual detergents or fabric softeners have accumulated ;
- It should be cleaned with a jet of running water.
- If necessary, it can be removed completely from the washing machine.
• Detergents can be also accumulate the inside cavity.
In this case, the inside cavity should be cleaned with a brush.
• After cleaning, replace the detergent case and run Rinse cycle without laundry.
HOW TO CLEAN THE FILTER
Cleaning the water inlet filter
• Clean the filter when water leaks from the water inlet.

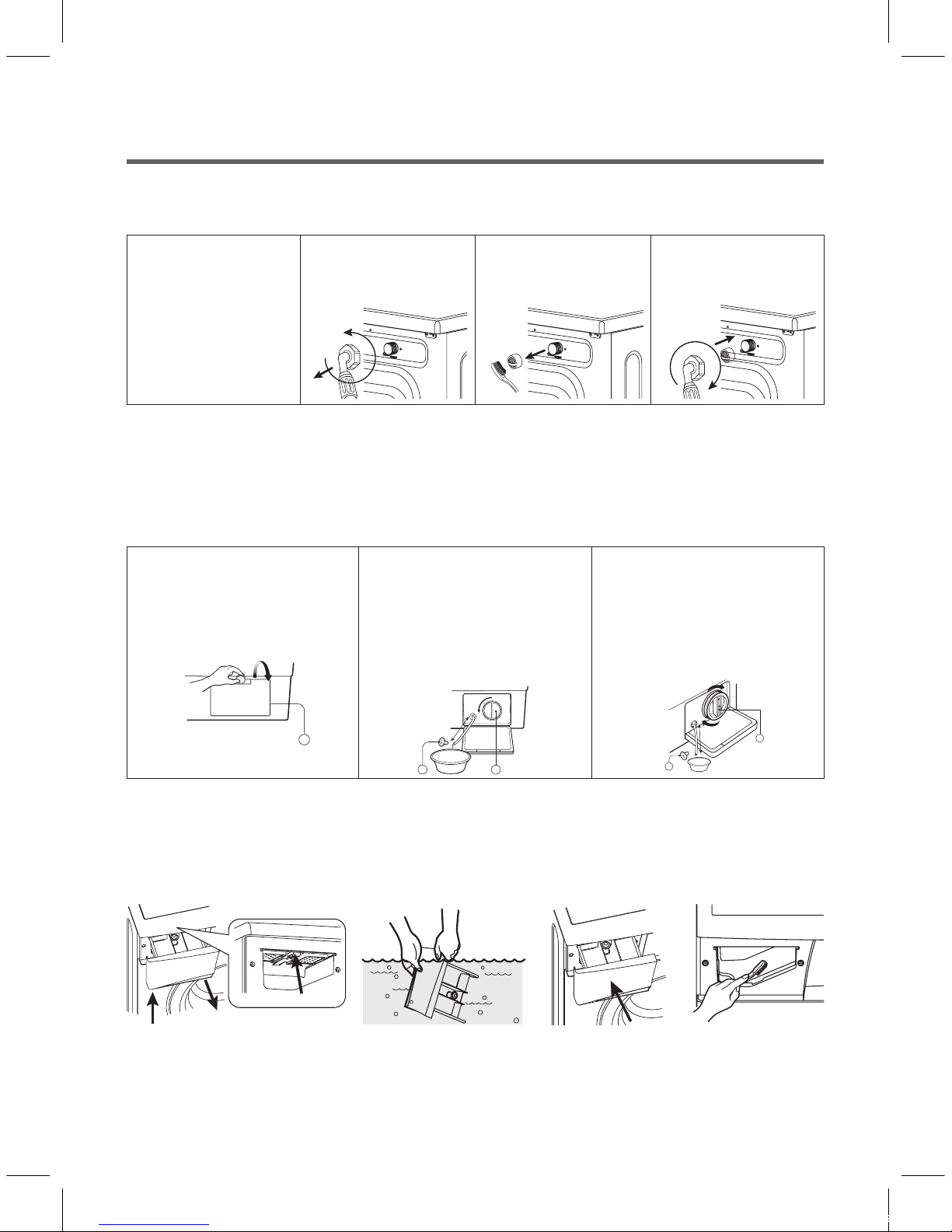

1Turn off the water
tap.
2Separate the inlet
hose.
3Pull out the inlet
filter. Clean the inlet
filter with the brush.
4Connect the inlet
hose.
Push point
1 Pull-out
2Push and pull again
1. Open the lower cover(1) by
using a coin. Remove the cap
hose(2) to pull out the hose.
2. Unplug the cap hose(2),
allowing the water to flow out. At
this time use a vessel to prevent
water flowing on to the floor.
When water does not flow any
more, turn the pump filter(3)
open to the left.
3. Remove any foreign material
from the pump filter(3). After
cleaning, turn the pump filter
clockwise and insert the cap
hose(2) to the original place.
Close the lower cover.
23
2
3
1
1
23
2
3
1
1
23
2
3
1
1
Cleaning the drain filter
• This drain filter is used to screen the foreign stuffs such as threads, coins, pins, buttons etc..
• If the drain filter is not cleaned regularly (every 10 times of use), drain problem could be caused.
CAUTION : Be careful when draining if the water is hot.
DWDNU1221(영)_영국향.indd 16 15. 3. 11. 오후 2:54

17
Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results.
Soaking helps remove protein-type stains like blood, milk or grass. Prewashing helps loosen soil
before washing.
Stain removal rules
• Use warm water for soaking or prewashing stained laundry. Hot water can set stains.
• Most stains are easier to remove when they are fresh.
• Before treating any stain, find out what kind of stain it is, how old the stain is, what kind of fabric it
is, and whether the fabric is colorfast. (Check the care label)
• Washing and drying can set some stains.
• Start with cold or warm water. Hot water can set some stains.
• When bleach is recommended, use a bleach that is safe for the fabric.
• Put the stained area face down on a paper towel or white cloth. Apply the stain remover to the
back of the stain. This forces the stain off fabric instead of through it.
Stain removal guide
REMOVING STAINS
STAIN TO REMOVE
Blood Rinse immediately in COLD water.
If stain remains, soak in cold water with an enzyme prewash.
Chewing gum Use ice in plastic bag to harden the gum.
Scrape off what you can and then sponge with white spirits.
Cocoa, Chocolate Sponge with COLD water and soak in an enzyme prewash.
If stains persist, rub in a little detergent and rinse in cold water.
Coffee Blot up quickly and rinse out in COLD water.
Rub in a little detergent and wash in the maximum temperature allowed for the
fabric type.
Cream/Milk
Ice cream
Rinse in COLD water and wash normally.
If stain is still apparent, sponge with white spirits.
Deodorant Rub affected area with white vinegar and then rinse out in COLD water.
Sponge with white spirits.
Treat stiffened areas with enzyme prewash.
Egg Soak in a COLD enzyme prewash, rinse and wash normally.
Fabric/Softener Rub affected area with bar soap and wash normally.
Fruit stains Treat as soon as possible by sponging with COLD water.
Rub a little detergent on the stain and wash normally.
Grass Sponge with white spirits.
Rub in an enzyme prewash and wash as normally.
Grease and oil Lay the affected area face down on an absorbent cloth and work from the back.
Sponge with white spirits or dry cleaning fluid. Wash normally.
Iron or rust Apply lemon juice and salt and place in the sun. Wash normally.
Lipstick Sponge with white methylated spirits and wash normally.
Mildew Wash in WARM water and detergent.
Moisten area with lemon juice, dry in the sun and wash normally.
If stain persists and the fabric allows, use a bleach.
Mud Brush off any dry mud. Rinse in cold water.
If stain persists rub in a little detergent and wash normally.
Paint-oil based Scrape off any fresh paint and sponge with a non flammable dry cleaning fluid
and wash normally.
Paint-water based Treat while still wet, rinse in WARM water and wash normally.
Scorch marks Dampen a cloth with hydrogen peroxide, lay it over the affected area and press
with a fairly hot iron.
DWDNU1221(영)_영국향.indd 17 15. 3. 11. 오후 2:54

18
■ DISPLAY ERROR MESSAGE
Most problems are easily solved if you understand the cause.
Check the following list for problem before calling for service.
TROUBLE SHOOTING
Problem Cause Solution
Program does not
start.
Plug is loose or not plugged in. Insert plug tightly.
Power failure. An interrupted program will be resumed when the
power return.
Loading door is not closed. Check whether laundry is trapped in door.
Close the loading door. (a click should be heard)
Program is not selected. Select the desired program.
Start/Hold button is not pressed. Press the Start/Hold button.
Water dose not
enter the washing
machine.
Water tap is not turned on. Turn the water tap on.
Inlet hose is kinked or folded. Straighten the inlet hose.
Filters is blocked in water inlet filter. Clean the water inlet filter.
Washing machine is
not drain.
Drain hose is kinked or clogged. Straighten and clean the drain hose.
Pump filter is clogged. Clean the pump filter.
Washing machine is
not spin.
The amount of laundry is too small. Add the laundry to balance.
And repeat the Spin cycle.
The laundry is unbalanced. Rearrange the laundry. And repeat the Spin cycle.
If articles of heavy clothing (e.g. bath robe) are
loaded, washing machine may skip or stop the spin
cycle.
Spin result is
unsatisfactory.
Drain hose is placed over 1m above the
floor.
Place the drain hose under 1m above the floor.
Foam come out of
the detergent case.
Too much detergent or unsuitable
detergent used.
Repeat the Rinse cycle.
Serious noise and
vibration.
Transit bolts are not removed. Remove the transit bolts.
Washing machine is installed on uneven
floor.
Reinstall washing machine on even floor.
Washing machine is not leveled. Adjust the level of washing machine using
adjustable legs.
MESSAGE ERROR CAUSE SOLUTION
IE WATER
INLET
ERROR
The water tap is closed. Open the water tap.
The filter of the valve inlet is clogged. Clean the filter of the valve inlet.
The valve inlet is an inferior product or broke down. Change the valve inlet.
The water level sensor (sensor pressure) is an inferior
product or broke down.
Change the water level sensor
(sensor pressure).
The drain motor works during water supply. Change the drain motor.
The PCB ASS’Y does not check the water level. Change the PCB ASS’Y.
OE DRAIN
ERROR
The drain hose is kinked or clogged. Clean and straighten the drain hose.
The drain motor is an inferior product. Change the drain motor.
The valve inlet works during drain. Change the valve inlet.
The water level sensor is an inferior product. Change the water level sensor.
The PCB ASS’Y does not check the water level. Change the PCB ASS’Y.
UE
UNBALANCE
ERROR
The laundry is concentrated to one side of the drum
during spin ashing load too mall.
Rearrange the laundry.
LE DOOR OPEN
ERROR
The Start/Hold button is pressed while the door is
opened.
Close the door.
Add mare washing.
The switch door lock is an inferior product. Change the switch door lock.
The PCB ASS’Y does not check the door lock. Change the PCB ASS’Y.
DWDNU1221(영)_영국향.indd 18 15. 3. 11. 오후 2:54

19
SPECIFICATION
MODEL DWDNU1221
Power Source A.C 220-240V/50Hz
Power Consumption 2000 W
Dimension (mm) NET : 595X465X850 (WXDXH)
Maximum mass of textile (kg) 7 kg
Unit Weight (kg) 55(NET) / 58(GROSS)
Standard Water Consumption 39ℓ
Spin Speed(RPM) 400 / 600 / 800 / 1000 / 1200
Operating Water Pressure 0.05MPA ~ 0.8MPa (0.5kgf/cm² ~ 8kgf/cm²)
Off Mode Power Consumption 0.11 W
Left-on Mode Power Consumption 0.49 W
DWDNU1221(영)_영국향.indd 19 15. 3. 11. 오후 2:54

Supplier : DONGBU DAEWOO ELECTRONICS
Model : DWDNU1221
Capacity : 7,0 kg
Energy efficiency class : A+++
Energy consumption 154 kWh per year, based on 220 standard washing cycles for cotton
programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power
modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption : 0.69 kWh
Energy consumption in the standard cotton program at 60°C with full load : 0.71 kWh
Energy consumption in the standard cotton program at 60°C with half load : 0.82 kWh
Energy consumption in the standard cotton program at 40°C with half load : 0.52 kWh
Power consumption of the off-mode and of the left-on mode : 0.49 W
Water consumption 8580 litres per year, based on 220 standard washing cycles for cotton
programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend
on how the appliance is used.
Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
Maximum spin speed : 1200 rpm
The 'standard 60 °C cotton programme'and the 'standard 40°C cotton programme'are the
standard washing programmes to which the information in the label and the fiche relates, that
these programmes are suitable to clean normally soiled cotton laundry and that they are the
most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60 °C cotton with full load: 244 minutes
Programme time of the standard 60 °C cotton with half load : 254 minutes
Programme time of the standard 40 °C cotton with half load : 160 minutes
Duration of the left-on mode (if the household washing machine is equipped with a power
management system) : 50 minutes
Airborne acoustical noise emissions(spinning) : 79 dB(A)
Airborne acoustical noise emissions(washing) : 59 dB(A)
Designing Excellence
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
PRODUCT FICHE
DWDNU1221(영)_영국향.indd 20 15. 3. 11. 오후 2:54
