VIDEO DOOR ENTRY
Quick Install Guide

2
VTO Connections
Home System Configuration
VTNS1060A
VTH1550CH
When conguring a home VDP system, all devices should rst be connected together. Usually, this is done by connecting both the
camera unit (VTO) and monitor unit (VTH) to the VTNS1060A PoE switch.
The VTNS1060A is a 24v passive PoE unit, this is a different type of PoE than that seen on conventional IP devices. As such, both the
VTO2000A and VTH1550CH can only be used with 24v passive PoE or by connecting a 12/24vdc power supply to the power input
terminals on the units.

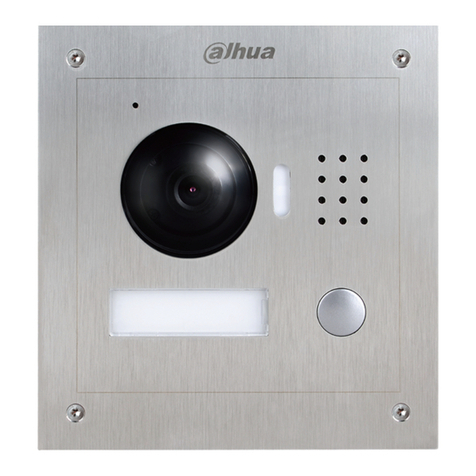

VTO2000A
24v PoE 24v PoE
Tamper Switch Sounds an alarm in the event that the VTO unit is tampered with
Network Connection Connect the supplied RJ45 adapter cable to this port
+12/24v Used when not powering the VTO via PoE, connect the 12v or 24v DC positive supply to this
terminal
GND Ground connection for 12v or 24v DC negative supply and other inputs
12v Out DC 12v continuous output for auxillary device
Unlock Button Input to connect a switch such as a push button for releasing the door lock
Feedback Input for door contact to check if the door is closed before engaging lock
NO/NC/COM Relay output used when unlocking door
Tamper
Switch
NET
Network
Connection
Inputs &
Outputs
+12V/+24V +12V_OUT FEEBBACK UNLOCK BUTTON GND GND NO NC COM GND 485_A 485_B

3
VTO Camera Conguration
With a PC or Laptop connected to the network switch, run the Dahua cong tool to nd the VTO unit. By default the VTO has an IP
address of 192.168.1.110, this can be changed if required via the cong tool or within the VTO web browser.
Login to the VTO via the computers web browser. Username: admin Password: admin
Select the Local Cong tab and change Device Type to Villa Station. Click OK to save the setting.
Select the Logout option on the left menu and click Reboot Device, this will restart the VTO.
VTH Monitor Conguration
To congure the VTH unit use the built in menu within the monitor itself. VTH units do not support web browser conguration.
Select Settings > Project Settings and input the engineer password: 002236 (default)
For DHI-VTH5221D units hold down the Settings button for 5 seconds and enter the engineer password: 888888 (default)
The Product Info menu is used to set the room number of the VTH and to congure the unit as a Master or Extension unit. If
only a single VTH is being used in the system, then this should be set to Master and a room number chosen. Adding multiple
VTH units is covered on page 5.
Tel: [phone] | Fax: [phone] | Email: [email protected] | Online: www.cop-eu.com

4
In the project settings menu select NetSet to congure the VTH network settings. When conguring the network address of the VTH it
is vital to ensure the IP address range is within the same Subnet as the VTO.
For both the VTO and VTH to communicate, each unit must have the IP address details of the other unit. To add the VTO unit to the
VTH, select Network and input the VTO units IP address and set Enable Status to ON.
To add the VTH to the VTO, revisit the VTO web browser and go to System Cong > Indoor Manager > Add. Input a family name, rst
name and Nickname, these are purely for reference. Enter the VTH Short number. This number must match the Room Number set in
the VTH Product Info page.
Click OK to conrm the setting.
At the top of the VTH screen the icon should disapear, this indicates that the VTO and VTH are now connected. To call the VTH
from the VTO, press the button on the VTO unit and press Answer to initiate two way communication.
VTH Conguration (Continued)

5
Adding Additional VTH Units
When additional VTH units are to be added to the system, usually it is required that all VTH units are called by the VTO.
To enable this feature and congure the additional VTH units;
Login to the VTO web browser and go to System Cong > LAN Cong and tick the Group Call option.
Click OK then select Logout > Reboot
On the additional VTH unit, rst congure the network address within the same range as both the VTO and existing VTH units.
Go to Project Settings > Product Info and select Master, this will change the VTH to Extension mode. Input the room number of the
master unit followed by -1, as an example if the room number is 1 enter 1-1 or 1-2, 1-3 etc for further additional units.
In the Master IP eld enter the IP address of the main VTH unit.
Select OK to save the setting, the conguration is now complete.
Tel: [phone] | Fax: [phone] | Email: [email protected] | Online: www.cop-eu.com

6
When congured as a home system, both the VTO2000A & VTO2221D-WP support P2P connections. Currently P2P is only supported for
iOS and Android devices. Download the mobile application to your mobile device by scanning the QR codes below or by searching
for the app in your relative app store.
iDMSS - Free
iPhone
gDMSS - Free
Android Phone
iDMSS HD- Free
iPad
gDMSS HD - Free
Android Tablet
Connect using the app
1. Open DMSS app 2. Select Door
7. Select Push Notications to enable
video calls.
9. View cameras
3. Tap the Device List icon
4. Tap +Add Device 5. Input a name (for your reference only)
Press QR button
6. Scan the QR Code from the P2P
page in the VTO web browser.
8. Tap Start Live Preview
Application Set Up

7
VTNS1060A
When installing a VDP system in an apartment/business setting, several modules are available. Each module has an IN and OUT
connection, this links the various modules together. Regardless of which modules are to be used, the camera unit is always the master
and is the rst device in the chain.
VTO2000A-C
VTO2000A-B
VTO2000A-K
Link Wire
Link Wire
24v PoE
Apartment 1
24v PoE
Apartment 2
24v PoE
Apartment 3
24v PoE
VTO Module Conguration
With a PC or Laptop connected to the network switch, run the Dahua cong tool to nd the VTO unit. By default the VTO
has an IP address of 192.168.1.110, this can be changed if required via the cong tool or within the VTO web browser.
Login to the VTO via the computers web browser. Username: admin Password: admin
Select the Local Cong tab and change Device Type to Modularize Villa click Ok to save the setting.
Select the Logout option on the left menu and click Reboot Device, this will restart the VTO.
Modular System Configuration
Tel: [phone] | Fax: [phone] | Email: [email protected] | Online: www.cop-eu.com

8
Module Conguration
To congure the layout of the modular system, go to System Cong > Local Cong > Fascade Layout
Click the Plus symbol in the location of the next module, then select the module type. Multiple modules can be aded to the layout.
Click Save to conrm the settings, then select the Logout option on the left menu and click Reboot Device, this will restart the VTO.

9
VTH Monitor Conguration
To congure the VTH unit use the built in menu within the monitor itself, VTH units do not support web browser conguration.
Select Settings and input the engineer password: 002236 (default)
The Product Info menu is used to set the room number of the VTH and to congure the unit as a Master or Extension unit. When
conguring a modular system, each monitor will be congured as a Master.
In the Room No eld input the room number, such as 1 for apartment 1.
Select Settings and then Project Settings, in the project settings menu select NetSet to congure the VTH network settings. When
conguring the network address of the VTH it is vital to ensure the IP address range is within the same Subnet as the VTO.
For both the VTO and VTH to communicate, each unit must have the IP address details of the other unit. To add the VTO unit to the
VTH, select Network and input the VTO units IP address and set Enable Status to ON.
Tel: [phone] | Fax: [phone] | Email: [email protected] | Online: www.cop-eu.com

10
To add the VTH to the VTO, revisit the VTO web browser and go to System Cong > Indoor Manager > Add. Input a family name, rst
name and Nickname, these are purely for reference. Enter the VTH Short number This number must match the Room Number set in
the VTH Product Info page. For details on self password see page 11.
Click OK to conrm the setting.
Repeat the process for additional monitors, each time setting the monitor to a unique IP address and Room Number.
To program the module buttons, go to System Cong > Local Cong > Facade Layout. On the module images, click the relative
buttons to assign a specic apartment number to it.
For both the VTO and VTH to communicate, each unit must have the IP address details of the other unit. To add the VTO unit to the
VTH, select Network and input the VTO units IP address and set Enable Status to ON.
VTH Monitor Conguration

11
Uniform Password is a global password used for all users, rather than a password being issued on an individual basis.
The uniform password is congured in System Cong > Local Cong > New Unlock Password.
Once the password type has been selected and a Uniform Password set (if required), click OK to save the conguration.
The format when entering the password on the keypad is # > Password > # as an example, a password of 888888 would be entered
as #888888#.
When using the keypad module, rst add it to the layout as described on page 8. The keypad module has two primary functions,
calling and password entry. To make a call to a specic room, simply enter the room number followed by the phone button.
To congure password entry;
There are two types of password that can be used, Self Password or Uniform Password.
Congure which type of password is to be used in System Cong > Local Cong > Password Unlock Type
Self password is an individual password given to each user, this is created when adding the VTH monitor in the Indoor Manager
menu, as described on page 4.
Keypad Conguration
Tel: [phone] | Fax: [phone] | Email: [email protected] | Online: www.cop-eu.com
