OPERATION MANUAL
MODELS:
BRC7E618 BRC7EA618
BRC7E619 BRC7EA619
Wireless Remote Controller Kit
Thank you for purchasing this Daikin air conditioner.
Carefully read this operation manual before using the air conditioner.
It will tell you how to use the unit properly and help you if any trouble occurs.
After reading the manual, file it away for future reference.
Vielen Dank für den Kauf einer Klimaanlage von Daikin.
Bitte lesen Sie diese Bedienungsanleitung vor der Inbetriebnahme des Gerätes
gründlich durch. Hier wird erklärt, wie das Gerät richtig eingesetzt wird und was bei
Störungen zu tun ist.
In dieser Anleitung wird nur das Innenaggregat beschrieben.
Verwenden Sie diese Anleitung zusammen mit der Bedienungsanleitung des
Außenaggregats.
Nach dem Lesen der Anleitung legen Sie diese griffbereit zum Nachschlagen auf.
Nous vous remercions pour votre acquisition de ce climatiseur Daikin.
Lisez attentivement ce manuel avant d’utiliser le climatiseur.
Il vous expliquera comment vous servir correctement de l’appareil et vous guidera
en cas de problème.
Lorsque vous aurez lu le manuel, rangez-le afin de pouvoir vous y référer
ultérieurement.
Le agradecemos la compra de este acondicionador de aire Daikin.
Lea cuidadosamente el manual de funcionamiento antes de utilizar el acondicionador
de aire.
Dicho manual le indicará cómo utilizar adecuadamente la máquina y le ayudará en caso
de avería.
Después de leer el manual, consérvelo para consultas futuras.
00_CV_3P107422-10F_1.fm Page 1 Wednesday, August 31, 2005 1:42 PM

La ringraziamo di aver acquistato questo condizionatore d’aria Daikin.
Leggere attentamente questo manuale prima di avviare il condizionatore.
Ciò permetterà di usare correttamente l’unità e di ottenere un aiuto in caso di anomalia
di funzionamento.
Dopo aver letto il manuale, conservarlo in un luogo accessibile per una futura
necessità.
Σαò εuχαριστοýìεπου αγορÜσατε τη συσκευÞ κλιìατισìοý.
ÄιαβÜστε προσεκτικÜ αυτÝò τιò οδηγßεò χρÞσηò πριν να χρησιìοποιÞσετε τη συσκευÞ
κλιìατισìοý.
Θα σαò πουν πωò θα χρησιìοποιÞσετε σωστÜ τη ìονÜδα και θα σαò βοηθÞσουν αν
εìφανιστοýνπροβλÞìατα.
Αφοý διαβÜσετε τιò οδηγßεò, ΒÜλτε τιò στσ αρχεßοσαò για ìελλοντικÞ αναφορÜ.
Wij danken u voor de aankoop van deze Daikin airconditioner.
Lees deze bedrijfshandleiding aandachtig door voordat u de airconditioner gebruikt.
Het omvat uitleg over het correcte gebruik van de unit en biedt hulp in geval een storing
mocht optreden.
Gebruik deze handleding voor verdere raadpleging.
Obrigado pela sua compra deste aparelho de ar condicionado Daikin.
Leia com atenção este manual de operação antes de proceder à utilização do aparelho
de ar condicionado.
Este indicar-lhe-á como deverá utilizar a unidade correctamente e ajudá-lo-á no caso
de surgir qualquer problema.
Depois de ler o manual, guarde-o num local seguro a fim de o poder consultar caso
venha a ser preciso.
Спасибо за поêóпêó данноãоêондиционера фирмы Daikin.
До начала работы сêондиционером внимательно изóчите данное рóêоводство
по эêсплóатации.
Внем излаãаются правила надлежащеãопользования óстройством и
приводятся реêомендации пользователю по поисêó иóстранению
неисправностей.
После изóчения рóêоводства сохраните еãодля обращений вбóдóщем.
00_CV_3P107422-10F_2.fm Page 1 Wednesday, August 31, 2005 1:42 PM

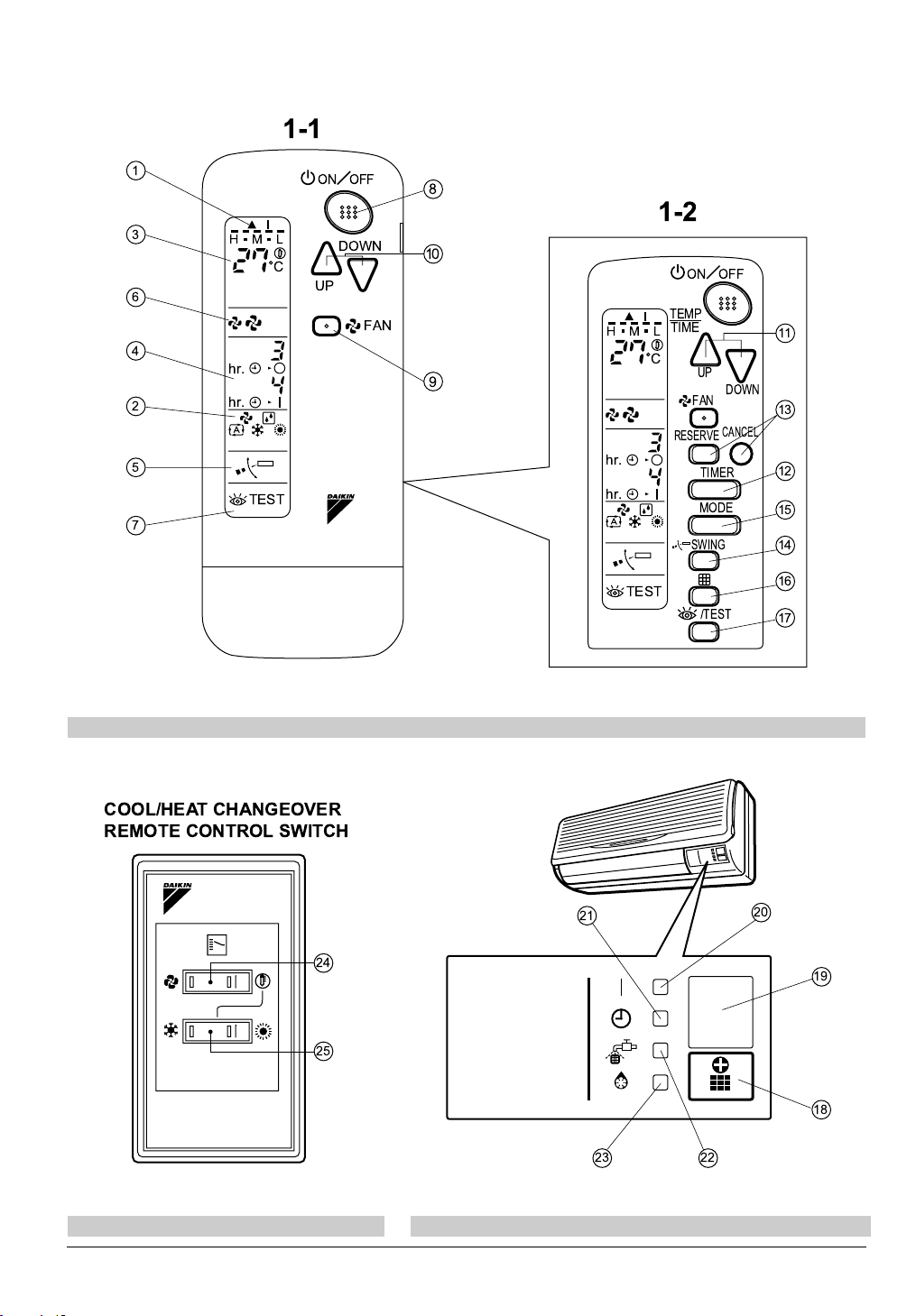

[1]
1
1-3 2
1-1
1-2
8
10
13
11
12
15
14
16
17
9
1
3
4
6
2
5
7
DOWN
FAN
UP
ON OFF
MHL
C
hr.
hr.
TEST
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
TEST
SWING
FAN
TIME
TEMP
ON OFF
MHL
C
hr.
hr.
TEST
24
25
COOL/HEAT CHANGEOVER
REMOTE CONTROL SWITCH
21 20
19
18
23 22
00_CV_3P107422-10F_2.fm Page 2 Wednesday, August 31, 2005 1:42 PM

[2]
PRIOR TO USE
This operation manual is exclusively for instructions on how to use the wireless remote controller.
Read also the operation manual attached to the indoor unit for safe usage of the system and
maintenance.
VOR DER INBETRIEBNAHME
Diese Betriebsanleitung enthält ausschließlich Anweisungen über den Gebrauch der drahtlosen
Fernbedienung.
Über die sichere Anwendung und Wartung des Systems, lesen Sie auch die dem lnnenaggregat
beiliegende Bedienungsanleitung.
AVANT LA MISE EN SERVICE
Ce mode d’emploi ne concerne que les instructions d’utilisation de la télécommande sans câble.
Lire également le mode d’emploi joint à l’unité intérieure pour une utilisation et un entretien du
système en toute sécurité.
ANTES DE LA UTILIZACIÓN
Este manual de instrucciones contiene sólo las instrucciones para el uso del control remoto sin
cables.
Lea también el manual de instrucciones que viene con la unidad interior para un uso seguro del
sistema y para su mantenimiento.
PRIMA DELL’USO
Il presente manuale d’uso fornisce esclusivamente istruzioni per l’uso del telecomando via radio.
Per un uso sicuro del sistema e per la sua manutenzione leggere inoltre il manuale d’uso in
dotazione all’unità interna.
ΠΡΙΝ ΑΠΟ ΤΗ ΧΡΗΣΗ
Αυτü το εγχειρßδιο λειτουργßαò περιÝχει ìüνο οδηγßεò για τη χρÞση του ασýρìατου
τηλεχειριστηρßου.
ÄιαβÜστε επßσηò το εγχειρßδιο λειτουργßαò που συνοδεýει την εσωτερικÞ ìονÜδα για την ασφαλÞ
χρÞση του συστÞìατοò και για τη συντÞρηση.
VOOR GEBRUIK
Deze bedieningshandleiding is uitsluitend bedoeld voor gebruik tijdens de instructie over de
werking van de afstandsbediening.
Lees ook de bedieningshandleiding die werd meegeleverd bij de binnenunit voor een veilig
gebruik van het systeem en het onderhoud ervan.
ANTES DE UTILIZAR
O presente manual de funcionamento destina-se exclusivamente para explicar o modo de
utilização do controlo remoto sem fio.
Leia igualmente o manual de funcionamento fornecido com a unidade interior para uma utilização
e manutenção segura do sistema.
ПОДГОТОВКА КИСПОЛЬЗОВАНИЮ
Данное рóêоводство по эêсплóатации посвящено исêлючительно инстрóêтированию
работе сбеспроводным óдаленным êонтроллером.
Для безопасноãоиспользования итехничесêоãообслóживания системы ознаêомьтесь
таêже срóêоводством по эêсплóатации, прилаãаемом ê êомнатномó блоêó.
00_CV_3P107422-10F_3.fm Page 13 Wednesday, August 31, 2005 1:43 PM

English 1
CONTENTS
ILLUSTRATION .............................. [1]
PRIOR TO USE .............................. [2]
1 SAFETY CONSIDERATIONS .......... 1
2 NAMES AND FUNCTIONS OF THE
OPERATING SECTION.................... 2
3 HANDLING FOR WIRELESS
REMOTE CONTROLLER................. 3
4 OPERATION RANGE ....................... 4
5 OPERATION PROCEDURE............. 5
6 NOT MALFUNCTION OF THE
AIR CONDITIONER........................ 10
7 HOW TO DIAGNOSE
TROUBLE SPOTS.......................... 10
Read the following cautions carefully and
use your equipment properly.
There are three kinds of safety cautions and
tips listed here as follows:
WARNING ....... Improper handling can
lead to such serious con-
sequences as death or
severe injury.
CAUTION ........ Improper handling can
lead to injury or damage.
It could also have serious
consequences under
certain conditions.
NOTE ........ These instructions will
ensure proper use of the
equipment.
Be sure to follow these important safety
cautions.
Keep these warning sheets handy so that
you can refer to them if needed.
Also, if this equipment is transferred to a new
user, make sure to hand over this user’s
manual to the new user.
1. SAFETY
CONSIDERATIONS
WARNING
Do not expose yourself directly to the
cool air currents too long nor allow the
air in the room to become too cold.
Doing so may make you feel sick or dam-
age your health.
If you detect any abnormality (such as the
smell of fire), turn off the power and con-
tact your dealer for instructions.
If you keep using the air conditioner
under these conditions, it will eventually
break down, and could cause electric
shocks or catch fire.
Ask your dealer to install your equipment.
Improper installation could cause water
leakage, electric shocks or fire.
Ask your dealer to perform servicing or
repairs whenever necessary.
Improper servicing or repairs could cause
water leakage, electric shocks or fire.
Do not stick your fingers or any other
objects into the air inlet, air outlet or air
direction vanes during operation.
The high-speed fan is dangerous and
could cause injury.
Ask your dealer to remove and reinstall
your equipment whenever necessary.
Improper installation could cause water
leakage, electric shocks or fire.
CAUTION
Do not use the air conditioner for pur-
poses other than air conditioning.
Do not use the air conditioner for special
purposes such as preserving or protecting
food, animals, plants, precision machinery
or works of art, since the quality of such
items could be adversely affected.
When using the air conditioner with other
heating equipment, ventilate the room
from time to time.
Inadequate ventilation could cause an
oxygen shortage.
Do not expose your pets or plants to
the air current.
They may be adversely affected.
Do not operate the air conditioner with
a wet hand.
Otherwise, you could receive an electric
shock.
01_EN_3P107422-10F.fm Page 1 Wednesday, August 31, 2005 1:44 PM

2English
Do not place any burning appliance in the
air current from the air conditioner, since
such appliance may suffer incomplete
combustion.
Never place nor use any inflammable
sprays near the air conditioner, since
such sprays could cause a fire.
The batteries must be removed from
the appliance before it is scrapped
and they are disposed of safely.
The appliance is not intended for use
by young children or infirm persons
without supervision.
Young children should be supervised
to ensure that they do not play with the
appliance.
2. NAMES AND FUNCTIONS
OF THE OPERATING SEC-
TION (Fig. 1, 2)
1
DISPLAY “ ”
(SIGNAL TRANSMISSION)
This lights up when a signal is being
transmitted.
2
DISPLAY“”“”“ ”“ ”
“ ” (OPERATION MODE)
This display shows the current OPER-
ATION MODE. For cooling only type,
“ ” (Auto) and “ ” (Heating) are
not installed.
3DISPLAY “ ” (
SET TEMPERATURE
)
This display shows the set temperature.
4
DISPLAY “ ”
(PROGRAMMED TIME)
This display shows PROGRAMMED
TIME of the system start or stop.
5DISPLAY “ ” (AIR FLOW FLAP)
Refer to page 6.
MHL
C
hr. hr.
6DISPLAY “ ” “ ” (FAN SPEED)
The display shows the set fan speed.
7
DISPLAY “ ”
(INSPECTION/ TEST OPERATION)
When the INSPECTION/TEST OPER-
ATION BUTTON is pressed, the dis-
play shows the system mode is in.
8
ON/OFF BUTTON
Press the button and the system will
start. Press the button again and the
system will stop.
9
FAN SPEED CONTROL BUTTON
Press this button to select the fan
speed, HIGH or LOW, of your choice.
10
TEMPERATURE SETTING BUTTON
Use this button for SETTING TEM-
PERATURE (Operates with the front
cover of the remote controller closed.)
11
PROGRAMMING TIMER BUTTON
Use this button for programming
“START and/or STOP” time. (Operates
with the front cover of the remote con-
troller opened.)
12 TIMER MODE START/STOP BUTTON
Refer to page 7.
13 TIMER RESERVE/CANCEL BUTTON
Refer to page 8.
14
AIR FLOW DIRECTION ADJUST BUTTON
Refer to page 6.
15
OPERATION MODE SELECTOR BUTTON
Press this button to select OPERA-
TION MODE.
16
FILTER SIGN RESET BUTTON
Refer to the section of MAINTENANCE
in the operation manual attached to the
indoor unit.
17
INSPECTION/TEST OPERATION
BUTTON
This button is used only by qualified ser-
vice persons for maintenance purposes.
18
EMERGENCY OPERATION SWITCH
This switch is readily used if the remote
controller does not work.
TEST
01_EN_3P107422-10F.fm Page 2 Wednesday, August 31, 2005 1:44 PM

English 3
19
RECEIVER
This receives the signals from the
remote controller.
20
OPERATING INDICATOR LAMP (Red)
This lamp stays lit while the air
conditioner runs. It flashes when the
unit is in trouble.
21 TIMER INDICATOR LAMP (Green)
This lamp stays lit while the timer is set.
22
AIR FILTER CLEANING TIME
INDICATOR LAMP (Red)
Lights up when it is time to clean the air
filter.
23
DEFROST LAMP (Orange)
Lights up when the defrosting opera-
tion has started. (For cooling only type
this lamp does not turn on.)
24
FAN/AIR CONDITIONING SELECTOR
SWITCH
Set the switch to “ ” (FAN) for FAN
and “ ” (A/C) for HEAT or COOL.
25
COOL/HEAT CHANGEOVER SWITCH
Set the switch to “ ” (COOL) for
COOL and “ ” (HEAT) for HEAT.
NOTES
•For the sake of explanation, all indica-
tions are shown on the display in Figure 1
contrary to actual running situations.
•Fig. 1-2 shows the remote controller with
the front cover opened.
•Fig. 1-3 shows this remote controller can
be used in conjunction with the one pro-
vided with the VRV system.
•If the air filter cleaning time indicator lamp
lights up, clean the air filter as explained
in the operation manual provided with the
indoor unit.
After cleaning and reinstalling the air fil-
ter, press the filter sign reset button on
the remote controller. The air filter clean-
ing time indicator lamp on the receiver
will go out.
•
The Defrost Lamp will flash when the power
is turned on. This is not a malfunction.
Precautions in handling remote con-
troller
Direct the transmitting part of the remote
controller to the receiving part of the air
conditioner.
If something blocks the transmitting and
receiving path of the indoor unit and the remote
controller as curtains, it will not operate.
Transmitting distance is approximately 7 m.
Do not drop or get it wet.
It may be damaged.
Never press the button of the remote con-
troller with a hard, pointed object.
The remote controller may be damaged.
Installation site
•
It is possible that signals will not be received
in rooms that have electronic fluorescent
lighting. Please consult with the salesman
before buying new fluorescent lights.
•If the remote controller operated some
other electrical apparatus, move that
machine away or consult your dealer.
Placing the remote controller in the
remote controller holder
Install the remote controller holder to a wall
or a pillar with the attached screw. (Make
sure it transmits)
3. HANDLING FOR
WIRELESS REMOTE
CONTROLLER
2 short beeps
from the receiver
indicates that the
transmission is
properly done.
01_EN_3P107422-10F.fm Page 3 Wednesday, August 31, 2005 1:44 PM

4English
How to put the dry batteries
(1) Remove the back cover
of the remote controller
to the direction pointed
by the arrow mark.
(2) Put the batteries
Use two LR03<IEC>
dry cell batteries. Put
dry batteries correctly to
fit their (+) and (–).
(3) Close the cover
When to change batteries
Under normal use, batteries last about a
year. However, change them whenever the
indoor unit doesn’t respond or responds
slowly to commands, or if the display
becomes dark.
[CAUTIONS]
•Replace all batteries at the same time, do
not use new and old batteries intermixed.
•In case the remote controller is not used
for a long time take out all batteries in
order to prevent liquid leak of the battery.
Placing the remote
controller
Slide from above
Remote
controller
holder
Removing the
remote controller
Pull it upward
IN THE CASE OF CENTRALIZED
CONTROL SYSTEM
If the indoor unit is under centralized control, it is
necessary to switch the remote controller’s setting.
In this case, contact your DAIKIN dealer.
VRV System
See the operation manual provided with the
air conditioner.
Split System
If the temperature or the humidity is beyond the
following conditions, safety devices may work
and the air conditioner may not operate, or
sometimes, water may drop from the indoor unit.
COOLING [°C]
HEATING [°C]
DB: Dry bulb temperature
WB: Wet bulb temperature
The setting temperature range of the remote
controller is 16°C to 32°C.
4. OPERATION RANGE
OUT-
DOOR
UNIT
INDOOR OUTDOOR
TEMPERA-
TURE
TEMPERA-
TURE
HUMID-
ITY
COOLING
ONLY
TYPE
R71
RP71
D
B
20 to 35 80% or
below
D
B
21 to 46
W
B
14 to 25
HEAT
PUMP
TYPE
RY71
RYP71
D
B
18 to 35 80% or
below
D
B
– 5 to 46
W
B
12 to 25
OUT-
DOOR
UNIT
INDOOR
TEMPERATURE
OUTDOOR TEM-
PERATURE
HEAT
PUMP
TYPE
RY71
RYP71
D
B
15 to 27
D
B
– 9 to 21
W
B
– 10 to 15
01_EN_3P107422-10F.fm Page 4 Wednesday, August 31, 2005 1:44 PM

English 5
Refer to figure 1 on page [1]
•Operating procedure varies with heat
pump type and cooling only type. Contact
your Daikin dealer to confirm your system
type.
•To protect the unit, turn on the main power
switch 6 hours before operation.
•If the main power supply is turned off dur-
ing operation, operation will restart auto-
matically after the power turns back on
again.
Operate in the following order.
•AUTOMATIC OPERATION can be
selected only by Heat pump split system or
Heat recovery VRV system.
•For cooling only type, “COOLING”, and
“FAN” and “DRY”operation are able to
select.
〈〈
〈〈〈〈
〈〈FOR SYSTEMS WITHOUT COOL/
HEAT CHANGEOVER REMOTE
CONTROL SWITCH〉〉
〉〉〉〉
〉〉
Refer to figure 1-1, 2 on page [1]
OPERATION MODE
SELECTOR
Press OPERATION MODE SELECTOR
button several times and select the
OPERATION MODE of your choice as
follows.
 COOLING OPERATION .................... “ ”
 HEATING OPERATION..................... “ ”
 AUTOMATIC OPERATION................ “ ”
•In this operation mode, COOL/HEAT
changeover is automatically conducted.
 FAN OPERATION.............................. “ ”
 DRY OPERATION ............................. “ ”
5. OPERATION PROCEDURE
COOLING, HEATING, AUTOMATIC,
FAN, AND PROGRAM DRY
OPERATION
1
MODE
•The function of this program is to
decrease the humidity in your room with
the minimum temperature decrease.
•Micro computer automatically
determines TEMPERATURE and FAN
SPEED.
•This system does not go into operation if
the room temperature is below 16°C.
ON/OFF
Press ON/OFF button
OPERATION lamp lights up or goes off and
the system starts or stops OPERATION.
NOTE
•Do not turn OFF power immediately after
the unit stops. Then, wait no less than
5 minutes.
Water is leaking or there is something else
wrong with the unit.
〈〈
〈〈〈〈
〈〈FOR SYSTEMS WITH COOL/HEAT
CHANGEOVER REMOTE CONTROL
SWITCH〉〉
〉〉〉〉
〉〉
Refer to figure 1-1,3 on page [1]
OPERATION MODE
SELECTOR
(1) Select OPERATION MODE with the
COOL/HEAT CHANGEOVER REMOTE
CONTROL SWITCH as follows.
 COOLING OPERATION............. “ ”
 HEATING OPERATION.............. “ ”
 FAN OPERATION ...................... “ ”
 DRY OPERATION ...................... “ ”
•
See “FOR SYSTEM WITHOUT COOL/
HEAT CHANGEOVER REMOTE CON-
TROL SWITCH” for details on dry operation.
2
ON OFF
1
01_EN_3P107422-10F.fm Page 5 Wednesday, August 31, 2005 1:44 PM

6English
(2) Press OPERATION MODE SELECTOR
button several times and select “ ”
(This operation is only available during
dry operation.)
ON/OFF
Press ON/OFF button
OPERATION lamp lights up or goes off and
the system starts or stops OPERATION.
NOTE
•Do not turn OFF power immediately after
the unit stops. Then, wait no less than
5 minutes.
Water is leaking or there is something else
wrong with the unit.
[EXPLANATION OF HEATING OPERA-
TION]
DEFROST OPERATION
•
As the frost on the coil of an outdoor unit
increase, heating effect decreases and the
system goes into DEFROST OPERATION.
•The fan operation stops and the
DEFROST lamp of the indoor unit goes
on.
After 6 to 8 minutes (maximum 10 min-
utes) of DEFROST OPERATION, the sys-
tem returns to HEATING OPERATION.
Heating capacity & Outdoor air
temperature
•Heating capacity drops as outdoor air tem-
perature lowers. If feeling cold, use
another heater at the same time as this air
conditioner.
•
Hot air is circulated to warm the room. It will
take some time from when the air conditioner
is first started until the entire room becomes
warm. The internal fan automatically turns at
low speed until the air conditioner reaches a
certain temperature on the inside. In this sit-
uation, all you can do is wait.
•If hot air accumulates on the ceiling and
feet are left feeling cold, it is recom-
mended to use a circulator. For details,
contact the place of purchase.
2
ON OFF
For programming TEMPERATURE, FAN
SPEED and AIR FLOW DIRECTION, follow
the procedure shown below.
TEMPERATURE SETTING
Press TEMPERATURE SETTING button
and program the setting temperature.
Each time this button is pressed,
setting temperature rises 1°C.
Each time this button is pressed,
setting temperature lowers 1°C.
In case of automatic operation
Each time this button is pressed,
setting temperature shifts to “H”
side.
Each time this button is pressed,
setting temperature shifts to “L”
side.
[°C]
•The setting is impossible for fan operation.
NOTE
•The setting temperature range of the
remote controller is 16°C to 32°C.
FAN SPEED CONTROL
Press FAN SPEED CONTROL button.
High or Low fan speed can be selected.
The microchip may sometimes control the
fan speed in order to protect the unit.
AIR FLOW DIRECTION
ADJUST
Press the AIR FLOW DIRECTION
ADJUST button to select the air direc-
tion as shown below.
ADJUSTMENT
DOWN
UP
DOWN
UP
DOWN
UP
HML
Setting
temperature 25 23 22 21 19
FAN
SWING
01_EN_3P107422-10F.fm Page 6 Wednesday, August 31, 2005 1:44 PM

English 7
DISPLAY appears and the
air flow direction continu-
ously varies. (Automatic
swing setting)
Press AIR FLOW DIREC-
TION ADJUST button to
select the air direction of
your choice.
DISPLAY vanishes the air
flow direction is fixed
(Fixed air flow direction
setting).
Adjusting left/right air flow direction
Angle the flaps to the left/
right from the knob, as
wanted or as needed to air
condition the room.
NOTE
•Stop flaps from swinging
before trying to angle
them. Working while the
flaps are moving may get your fingers
pinched.
MOVEMENT OF THE AIR FLOW FLAP
For the following conditions, micro computer
controls the air flow direction so it may be
different from the display.
Operation
mode
Cooling Heating
Operation
conditions
•
When operat-
ing continu-
ously at
downward air
flow direction
•
When room
temperature is
higher than the
set temperature
•
At defrost
operation
(The flaps blow
horizontally to
avoid blowing
cold air directly
on the occupants
of the room.)
NOTE
•
If you try cooling or programmed drying,
while the flaps are facing downward, air
flow direction may change unexpectedly.
There is nothing wrong with the equipment.
This serves to prevent dew formed on parts
in the air discharge outlet from dripping.
•Operation mode includes automatic
operation.
Operate in the following order.
•
The timer is operated in the following two
ways.
Programming the stop time ( )
.... The system stops
operating after the set time has elapsed.
Programming the start time ( )
.... The system starts
operating after the set time has elapsed.
•The timer can be programmed a maximum
of 72 hours.
•The start and the stop time can be simulta-
neously programmed.
TIMER MODE START/
STOP
Press the TIMER MODE START/STOP
button several times and select the
mode on the display.
The display flashes.
For setting the timer stop .... “ ”
For setting the timer start .... “ ”
PROGRAMMING TIME
Press the PROGRAMMING TIME but-
ton and set the time for stopping or
starting the system.
When this button is pressed, the
time advances by 1 hour.
When this button is pressed, the
time goes backward by 1 hour.
PROGRAM TIMER OPERATION
1
TIMER
2
DOWN
UP
DOWN
UP
01_EN_3P107422-10F.fm Page 7 Wednesday, August 31, 2005 1:44 PM

8English
TIMER RESERVE
Press the TIMER RESERVE button.
The timer setting procedure ends.
The display changes from flashing light to a
constant light.
TIMER CANCEL
Press the TIMER OFF button to cancel
programming. The display vanishes.
For example.
When the timer is
programmed to stop
the system after
3 hours and start the
system after
4 hours, the system
will stop after
3 hours and then
1 hour later the sys-
tem will start.
NOTE
•After the timer is programmed, the display
shows the remaining time.
•When the system is installed as shown
below, it is necessary to designate the
master remote controller.
 For Heat pump system
When one outdoor unit is connected with
several indoor units.
3
RESERVE
4
CANCEL
HOW TO SET MASTER
REMOTE CONTROLLER
(For VRV system)
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
FAN
TIME
TEMP
ON OFF
C
hr.
hr.
 For Heat recovery system
When one BS unit is connected with several
indoor units.
•Only the master remote controller can
select HEATING, COOLING or
AUTOMATIC (only Heat recovery system)
OPERATION.
When the indoor unit with master remote
controller is set to “COOL”, you can switch
over operation mode between “FAN”, “DRY”
and “COOL”.
When the indoor unit with master remote con-
troller is set to “HEAT”, you can switch over
operation mode between “FAN” and “HEAT”.
When the indoor unit with master remote
controller is set to “FAN”, you cannot switch
operation mode.
One of these remote controllers needs 
to be designated as the master remote
controller.
Outdoor unit
Indoor unit
One of these remote controllers needs 
to be designated as the master remote 
controller.
Outdoor unit
Indoor unit
BS unit
01_EN_3P107422-10F.fm Page 8 Wednesday, August 31, 2005 1:44 PM

English 9
When attempting settings than that
consented above, a “peep” is emitted as a
warning.
Only with Heat recovery system, you can set
the indoor unit to AUTOMATIC. Attempting
to do so, a “peep” will be emitted as a warn-
ing.
How to designate the master remote
controller
Operate in the following order.
Continuously press the OPERATION
MODE SELECTOR button for 4 seconds.
The displays showing “ ” of all slave
indoor unit connected to the same outdoor
unit or BS unit flash.
Press the OPERATION MODE SELEC-
TOR button to the indoor unit that you
wish to designate as the master remote
controller. Then designation is com-
pleted. This indoor unit is designated
as the master remote controller and
the display showing “ ” vanishes.
•
To change settings, repeat steps and .
When the remote controller does not work
due to battery failure or the absence thereof,
use this switch which is located beside the
discharge grille on the main unit. When the
remote controller does not work, but the
battery low indicator on it is not lit, contact
your dealer.
[START]
To press the emergency opera-
tion switch.
The machine runs in the previous mode.
The system operates with the previously set
air flow direction.
1
MODE
2
MODE
EMERGENCY OPERATION
1
2
1
[STOP]
Press the EMERGENCY OPERA-
TION switch again.
This system provides two other control
systems beside individual control (one
remote controller controls one indoor unit)
system. Confirm the following if your unit is of
the following control system type.
 Group control system
One remote controller controls up to 16
indoor units.
All indoor units are equally set.
 Two remote controller control system
Two remote controllers control one indoor
unit. (In case of group control system, one
group of indoor units)
The unit follows individual operation.
NOTES
•Cannot have two remote controller control
system with only wireless remote control-
lers. (It will be a two remote controller con-
trol system having one wired and one
wireless remote controllers.)
•Under two remote controller control sys-
tem, wireless remote controller cannot
control timer operation.
•
Only the operating indicator lamp out of 3 other
lamps on the indoor unit display functions.
NOTE
•Contact your Daikin dealer in case of
changing the combination or setting of
group control and two remote controller
control systems.
PRECAUTIONS FOR GROUP
CONTROL SYSTEM OR TWO
REMOTE CONTROLLER
CONTROL SYSTEM
12
2
01_EN_3P107422-10F.fm Page 9 Wednesday, August 31, 2005 1:44 PM

10 English
The following symptoms do not indi-
cate air conditioner malfunction
I. THE SYSTEM DOES NOT OPERATE
•
The system does not restart immediately
after the ON/OFF button is pressed.
If the OPERATION lamp lights, the system
is in normal condition. It does not restart
immediately because a safety device
operates to prevent overload of the sys-
tem. After 3 minutes, the system will turn
on again automatically.
• The system does not restart immedi-
ately when TEMPERATURE SETTING
button is returned to the former posi-
tion after pushing the button.
It does not restart immediately because a
safety device operates to prevent overload
of the system. After 3 minutes, the system
will turn on again automatically.
• If the reception beep is rapidly repeated
3 times (It sounds only twice when
operating normally.)
Control is set to the optional controller for
centralized control.
• If the defrost lamp on the indoor unit’s
display is lit when heating is started.
This indication is to warn against cold air
being blown from the unit. There is
nothing wrong with the equipment.
I. EMERGENCY STOP
When the air conditioner stops in emergency,
the run lamp on the indoor unit starts blinking.
Take the following steps yourself to read the
malfunction code that appears on the dis-
play. Contact your dealer with this code. It will
help pinpoint the cause of the trouble, speed-
ing up the repair.
6. NOT MALFUNCTION OF
THE AIR CONDITIONER

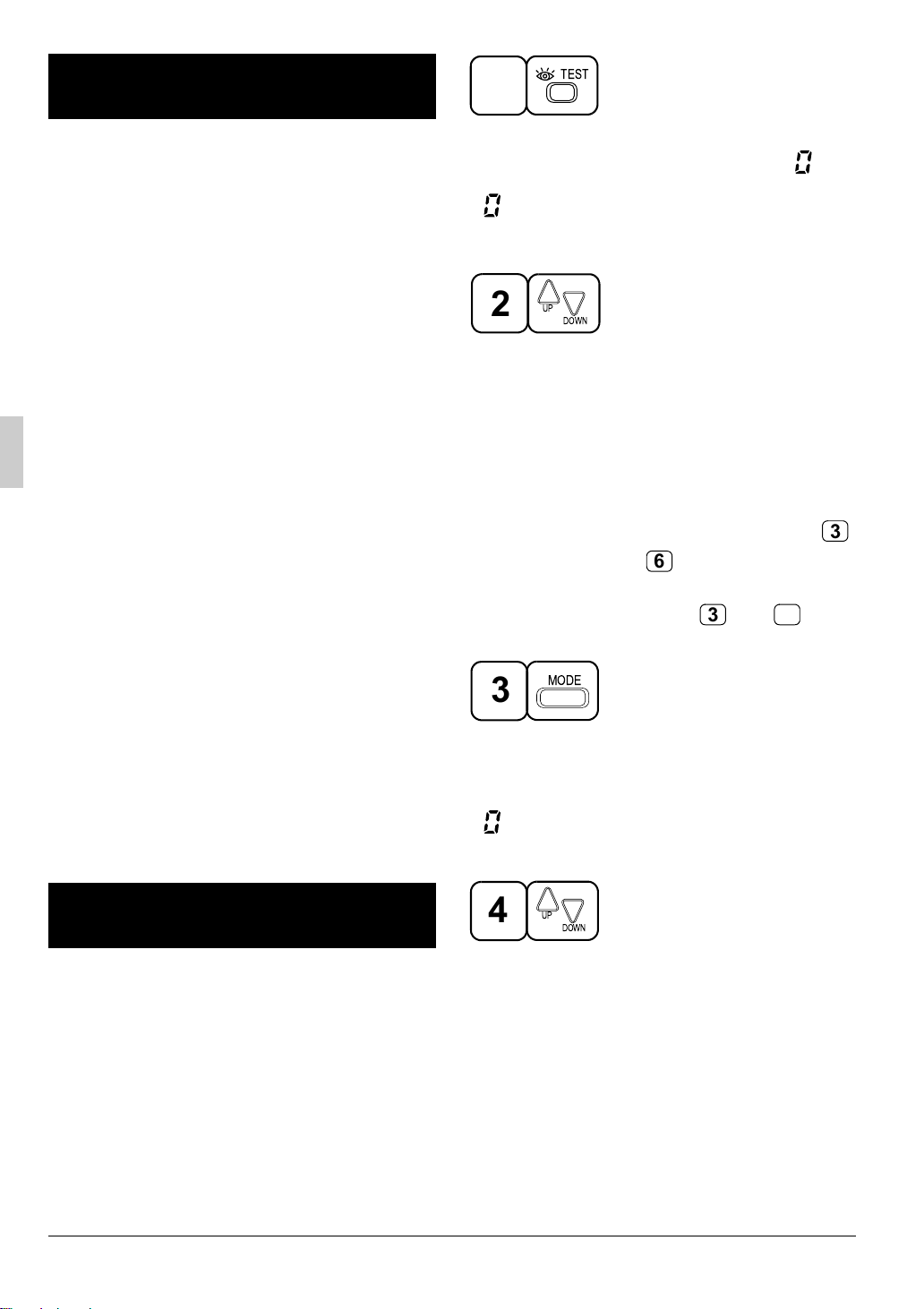

7. HOW TO DIAGNOSE
TROUBLE SPOTS
Press the INSPECTION/TEST button
to select the inspection mode “ ”.
“ ” appears on display and blinks. “UNIT”
lights up.
Press PROGRAMMING TIMER BUT-
TON and change the unit number.
Press to change the unit number until the
indoor unit beeps and perform the following
operation according to the number of beeps.
Number of beeps
3 short beeps .....Perform all steps from
to .
1 short beep .......Perform and steps
1 long beep ........Normal state

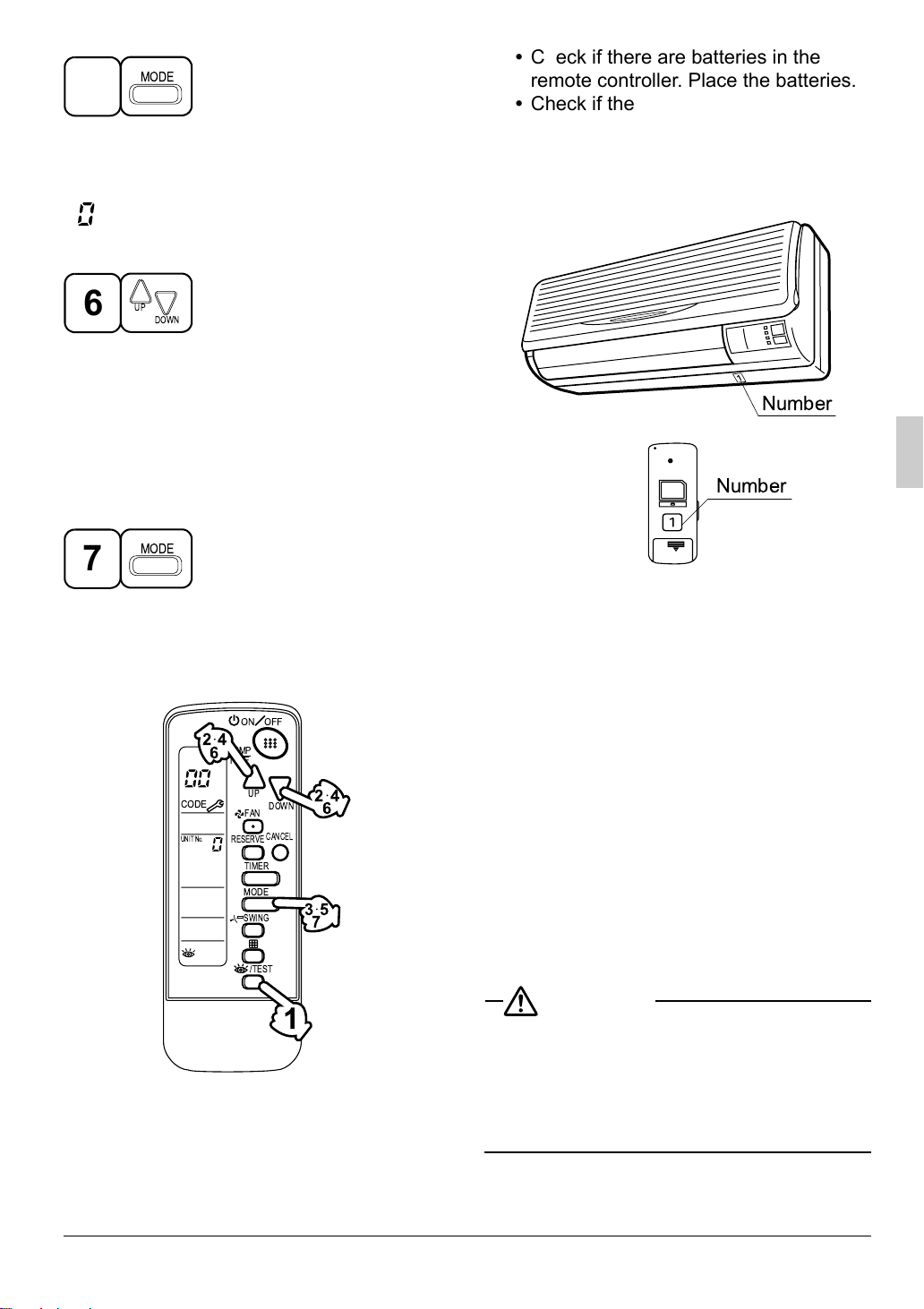

Press OPERATION MODE SELECTOR
BUTTON
“ ” on the left-hand of the malfunction code
blinks.
Press PROGRAMMING TIMER BUT-
TON and change the malfunction code.
Press until the indoor unit beeps twice.
1
TEST
2
DOWN
UP
3
6
3
6
MODE
3
4
DOWN
UP
01_EN_3P107422-10F.fm Page 10 Wednesday, August 31, 2005 1:44 PM

English 11
Press OPERATION MODE SELECTOR
BUTTON
“ ” on the right-hand of the malfunction
code blinks.
Press PROGRAMMING TIMER BUT-
TON and change the malfunction code.
Press until the indoor unit makes a long
beep.
The malfunction code is fixed when the
indoor unit makes a long beep.
Reset of the display
Press OPERATION MODE SELECTOR
BUTTON to get the display back to the
normal state.
II. IN CASE BESIDES EMERGENCY STOP
1. The unit does not operate at all.
•Check if the receiver is exposed of
sunlight or strong light. Keep receiver
away from light.
5
MODE
6
DOWN
UP
7
MODE
UNIT NO.
CODE
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
SWING
FAN
TIME
TEMP
1
24
6
35
7
ON OFF
24
6
•Check if there are batteries in the
remote controller. Place the batteries.
•Check if the indoor unit number and
wireless remote controller number are
equal.
Operate the indoor unit with the remote con-
troller of the same number.
Signal transmitted from a remote controller of
a different number cannot be accepted. (If
the number is not mentioned, it is considered
as “1”)
2. The system operates but it does not
sufficiently cool or heat.
•If the set temperature is not proper.
•If the FAN SPEED is set to LOW
SPEED.
•If the air flow angle is not proper.
Contact the place of purchase in the fol-
lowing case.
WARNING
When you detect a burning odor, shut
OFF power immediately and contact the
place of purchase. Using the equipment
in anything but proper working condition
can result in equipment damage, electric
shock and/or fire.
Number
Number
01_EN_3P107422-10F.fm Page 11 Wednesday, August 31, 2005 1:44 PM

12 English
[Trouble]
The RUN lamp of the indoor unit is flashing
and the unit does not work at all.
[Remedial action]
Check the malfunction code (A1 - UF) on the
remote controller and contact the place of
purchase. (See page 10.)
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
SWING
FAN
TIME
TEMP
ON OFF
UNIT N O .
CODE
Malfunction Code
Unit No. which
sensed trouble
INSPECTION
display
01_EN_3P107422-10F.fm Page 12 Wednesday, August 31, 2005 1:44 PM

(0510) HT
3P107422-10F EM01A186B FS
00_CV_3P107422-10F_1.fm Page 2 Wednesday, August 31, 2005 1:42 PM
