Daikin FT18HEVLK Installation and operating instructions

English
DAIKIN ROOM AIR CONDITIONER
OPERATION MANUAL AND
INSTALLATION MANUAL
MODELS
FT18HEVLK
FT24HEVLK
FT30HEVLK
FTY18HEVLK
FTY24HEVLK
FTY30HEVLK
00_CV_3V007382-3J.indd 100_CV_3V007382-3J.indd 1 7/31/2010 10:41:28 AM7/31/2010 10:41:28 AM

English
1
This symbol stands for the items
which are forbidden.
This symbol stands for the items
which must be followed.
Thank you for purchasing this DAIKIN air conditioner. Before use, carefully read this owner’s
manual and keep it in a safe place for future reference.
The product in this manual may differ from the model you have purchased. Some models do
not have a display. Please refer to the model you have for the correct position and shape of
the display.
This appliance should not be operated by people who have reduced physical, sensory or
mental capabilities. People who have no experience using this air conditioner should read
and understand the manual before operation, or be supervised by a knowledgeable person.
Children should be supervised to ensure that they do not play with the appliance.
Do not dispose of this product as unsorted municipal waste.
Such waste must be collected separately for special treatment.
OPERATION MANUAL
■
CONTENTS
■Safety Precautions......................................................................................2
■Introduction to basic functions ....................................................................4
■Description of parts .....................................................................................6
■Remote control operation............................................................................7
■Emergency operation............................................................................... 12
■Cleaning and maintenance ...................................................................... 13
■Troubleshooting ....................................................................................... 15
INSTALLATION MANUAL
■Safety Precautions................................................................................... 18
■Installation dimensions............................................................................. 20
■Indoor unit installation.............................................................................. 21
■Outdoor unit installation ........................................................................... 23
■Installation and test operation checklist ................................................... 24
■Specifications........................................................................................... 25
01_EN_3V007382-3J.indd 101_EN_3V007382-3J.indd 1 8/18/2010 9:14:27 AM8/18/2010 9:14:27 AM

2
Safety Precautions
Keep this manual where the operator can easily find them.•
Read this manual attentively before starting up the unit.•
For safety reason the operator must read the following cautions carefully.•
This manual classifies precautions into WARNING and CAUTION. Be sure to follow all precautions•
below: they are all important for ensuring safety.
WARNING CAUTION
If you do not follow these instructions exactly,
the unit may cause property damage, personal
injury or loss of life.
If you do not follow these instructions exactly,
the unit may cause minor or moderate property
damage or personal injury.
Never do. Be sure to follow the instructions.
Be sure to earth the air conditioner. Never cause the air conditioner (including
the remote controller) to get wet.
Never touch the air conditioner (including
the remote controller) with a wet hand.
WARNING
In order to avoid fire, explosion or injury, do not operate the unit when harmful, among which•
flammable or corrosive gases, are detected near the unit.
It is not good for health to expose your body to the air flow for a long time.•
Do not put a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at a high•
speed, it will cause injury.
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work•
will cause electric shocks, fire etc.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for•
some reason any refrigerant happens to leak into the room, make sure it does not come in
contact with any flame as of gas heaters, kerosene heaters or gas range.
If the air conditioner is not cooling properly, the refrigerant may be leaking, so call your dealer.•
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with
our service staff.
Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage,•
electric shocks or fire. For installation, consult the dealer or a qualified technician.
In order to avoid electric shock, fire or injury, if you detect any abnormally such as smell of fire,•
stop the operation and turn off the breaker. And call your dealer for instructions.
CAUTION
The air conditioner must be earthed. Incomplete earthing may result in electric shocks. Do•
not connect the earth line to a gas pipe, water pipe, lightening rod, or a telephone earth line.
In order to avoid any quality deterioration, do not use the unit for cooling precision•
instruments, food, plants, animals or works of art.
Never expose little children, plants or animals directly to the air flow.•
Do not place appliances which produce open fire in places exposed to the air flow from the unit or •
under the indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat.
Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble. •
01_EN_3V007382-3J.indd 201_EN_3V007382-3J.indd 2 8/18/2010 9:14:27 AM8/18/2010 9:14:27 AM

English
3
Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not•
remove the fan guard.
Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In•
certain conditions, moisture in the air may condense and drip.
After a long use, check the unit stand and fittings for damage.•
Do not touch the air inlet and aluminum fins of outdoor unit. It may cause injury.•
The appliance is not intended for use by young children or infirm persons without supervision.•
Young children should be supervised to ensure that they do not play with the appliance.•
To avoid oxygen deficiency, ventilate the room sufficiently if equipment with burner is used•
together with the air conditioner.
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord.•
Do not connect the air conditioner to a power supply different from the one as specified. It may•
cause trouble or fire.
Depending on the environment, an earth leakage breaker must be installed. Lack of an earth•
leakage breaker may result in electric shocks.
Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the•
building, furniture etc.
Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris•
accumulate around the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals can
cause malfunctions, smoke or fire when making contact with electrical parts.
Do not operate the air conditioner with wet hands.•
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.•
Do not place things such as vessels containing water or anything else on top of the unit. Water•
may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
Installation site.
To install the air conditioner in the following types of environments, consult the dealer.
Places with an oily ambient or where steam or soot occurs.•
Salty environment such as coastal areas.•
Places where sulfide gas occurs such as hot springs.•
Places where snow may block the outdoor unit.•
The drain from the outdoor unit must be discharged to a place of good drainage.
Consider nuisance to your neighbours from noises.
For installation, choose a place as described below.
A place solid enough to bear the weight of the unit which does not amplify the operation noise or•
vibration.
A place from where the air discharged from the outdoor unit or the operation noise will not annoy•
your neighbours.
Electrical work.
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.•
System relocation.
Relocating the air conditioner requires specialized knowledge and skills. Please consult the •
dealer if reloca tion is n ecessary for moving or remodeling.
01_EN_3V007382-3J.indd 301_EN_3V007382-3J.indd 3 8/18/2010 9:14:29 AM8/18/2010 9:14:29 AM

4
Basic cooling functions
Basic heating functions
Air conditioner function:
To bring the ambient temperature to a comfortable level, the air conditioner absorbs heat from
inside the room and discharges it outside.
Anti-freezing function:
If the unit is running in COOL mode and in low temperature, there will be frost formed on the
heat exchanger, when indoor heat exchanger temperature decreased below 0°C, the indoor
unit microcomputer will stop compressor running and protect the unit.
Heating function:
*Heat is generated from the outdoor unit is discharged inside to increase the temperature of
the room. The heating effect will decrease in very cold outdoor conditions.
*If outside temperatures become very low, it may be necessary to use additional heating
equipment.
Defrosting:
*When the unit is on for long periods of time and outside temperatures are low with high
humidity, frost will form on the outdoor unit. The auto defrosting function will start, and the
heat will stop for 8-10 minutes.
*During auto defrosting the fan motors will stop.
*During defrosting the indoor indicator light flashes and the outdoor unit will possibly give off
some water vapor. This is not a malfunction.
*After defrosting is complete, heating will start automatically.
■
Introduction to basic functions
01_EN_3V007382-3J.indd 401_EN_3V007382-3J.indd 4 8/18/2010 9:14:29 AM8/18/2010 9:14:29 AM

English
5
■
Introduction to basic functions
Anti-cool wind function:
To prevent cool wind from blowing in Heat mode, the indoor fan will not start if the indoor heat
exchanger has not reached the correct temperature within 2 minutes. The anti-cool wind
function operates in these conditions:
1. When Heating starts.
2. After Auto Defrost is complete.
3. When temperatures are low.
Gentle Breeze:
The indoor unit may blow a gentle breeze, and the guide louver rotate when:
1. When the unit is turned on in Heat mode and the compressor has not started.
2. In Heat mode, when the unit has not reached the correct temperature and the compressor
is stopped.
The operating temperature range (outdoor temperature) for the cooling unit is 21°C - 52°C; for
the cooling and heating unit –7°C - 52°C.
* Working temperature range
Maximum cooling
Minimum cooling
Maximum heating
Minimum heating
Indoor DB/WB (°C)
32/23
21/15
27/ –
20/ –
Outdoor DB/WB (°C)
52/31
18/ –
24/18
–7/–8
01_EN_3V007382-3J.indd 501_EN_3V007382-3J.indd 5 8/18/2010 9:14:30 AM8/18/2010 9:14:30 AM

6
■

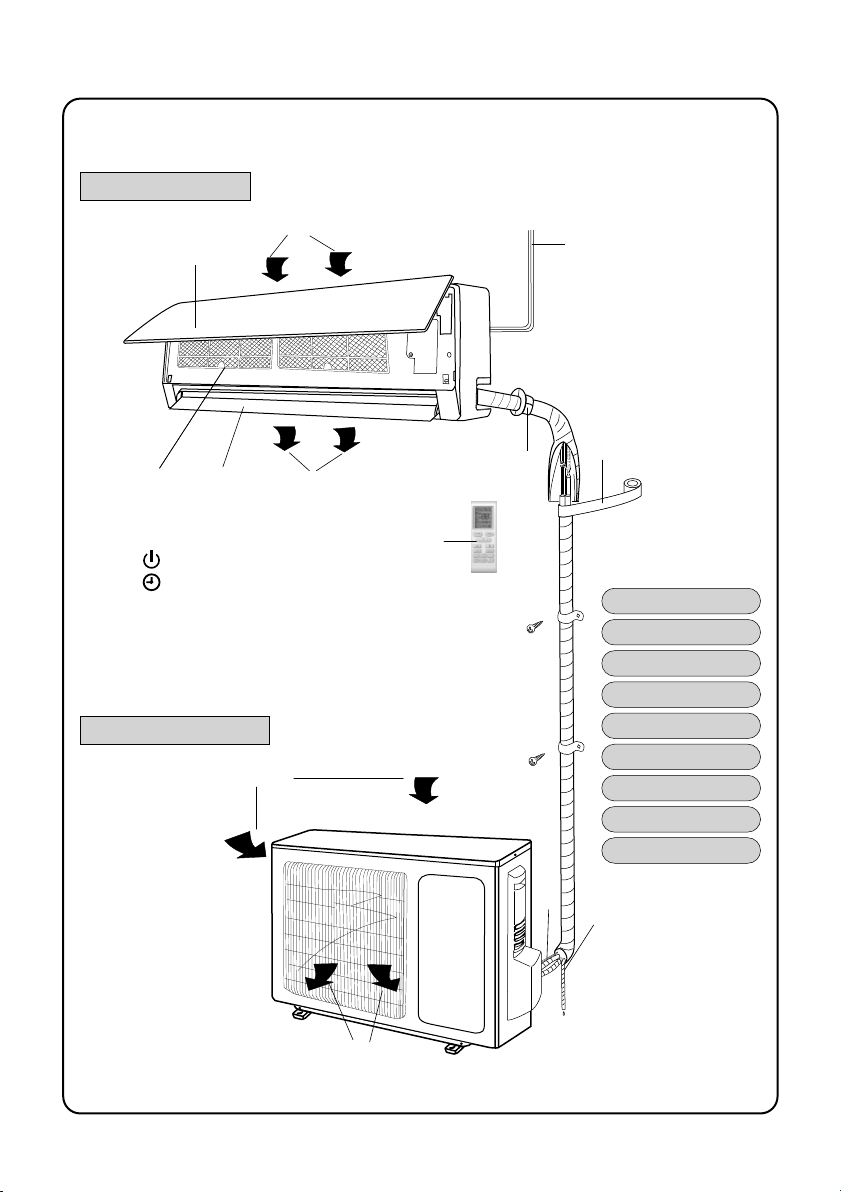

Description of parts
Indoor unit
Outdoor unit
: Run
: Timer
Symbol shown on the display:
Air in
Air out
Remote controller
Air in
Air out
(1)
(2)
(8) (9)
(3)
(4) (5) (6)
(7)
(1) Power cable
(2) Remote controller
(3) Front panel
(4) Air filter
(5) Guide louver
(6) Wall pipe
(7) Bind tape
(8) Connection wire
(9) Drainage pipe
01_EN_3V007382-3J.indd 601_EN_3V007382-3J.indd 6 8/18/2010 9:14:30 AM8/18/2010 9:14:30 AM

English
7
Description of remote control functions
■
Remote control operation
Note: Make sure there are no obstructions between the receiver and remote controller.
Do not drop or throw the remote controller. Do not allow liquid to get on the remote
controller. Do not put the remote controller in direct sunlight or places that are hot.
Remote controller
Signal transmitter
ON/OFF
• Press this button, the unit will be turned on,
press it once more, the unit will be turned
off. The Timer and Sleep functions are
canceled when the unit is turned on or off,
but preset times are kept.
ON/OFF button
SLEEP
• Press the SLEEP button to select Sleep On
and Sleep Off. The default setting is Sleep
Off. After the unit is turned off, the Sleep
function is canceled. After the Sleep
function has been set up, the Sleep symbol
will show on the display. The timer can be
adjusted in this mode. In Fan and Auto
modes, this function is not available.
SLEEP button
FAN
• Press the FAN button to set the fan speed.
Auto, Low, Middle, or High speed can be
selected. The default fan speed is Auto. In
Dehumidify mode, only Low fan speed can
be selected.
MiddleLow
High
Note: The fan speed is not adjustable in Dry mode.
FAN button
MODE
• Press the MODE button to select Auto,
Cool, Dry, Fan, or Heat modes. While the
power is on the default mode is Auto. In
Auto mode, the temperature is not
displayed. In Heat mode the initial
temperature is 28°C (82°F). In other modes
the initial temperature is 25°C (77°F).
MODE button
AUTO
COOL
DRY
HEAT
(for cooling and heating units only)
FAN
CLOCK
• Press the CLOCK button to set the clock.
will blink and in 5 seconds, it can be set
by pressing the + or – buttons. Press and
hold this button for 2 seconds or more and
for each half second held, the tenth place
numeral will increase by 1. While is
blinking, press the CLOCK button again to
accept and keep the setting. After the unit
powered on, 12:00 is the default setting. The
symbol usually indicates the current time.
It displays the hour set for the timer function
only when the timer is set.
CLOCK button
LIGHT
• Press the LIGHT button to turn the light on
or off. When the LIGHT is turned on will
show and the display indicator light will be
on. When the LIGHT is turned off the will
show and the display indicator light will be
off.
LIGHT button
01_EN_3V007382-3J.indd 701_EN_3V007382-3J.indd 7 8/18/2010 9:14:32 AM8/18/2010 9:14:32 AM

8
Description of remote control functions
■
Remote control operation
Notice: This remote controller is for general use and can be used for multifunction air
conditioners. Some functions are not available on certain models, and even if the
corresponding button for such functions on the remote controller is pressed, the unit will
be operating at the current running status.
Remote controller
BLOW
• Press the BLOW button to turn the drying
function on or off.
When you press this button in Cool and
Dehumidifying mode BLOW appears to
show that the Blow function is on. When
the button is pressed again BLOW will
disappear and the Blow function will turn
off.
The default the Blow setting is OFF. When
operating the ON/OFF button, or switching
to Cool or Dehumidifying mode, the Blow
function setting will be kept. In Auto, Fan,
or Heat modes, BLOW does not appear
and the Blow function can not be set up.
BLOW button
TURBO
• In Cool or Heat mode, press this button
can turn on or turn off the Turbo function.
After turned on the Turbo function, its
signal will be displayed. When switching
the mode or changing fan speed, this
function will be canceled automatically.
TURBO button
+
• Press this button to increase the preset
temperature. Press and hold this button for
more than 2 seconds will quickly increase
the increments of temperature. When the
button is released the current temperature
°C (°F) is shown. In Auto mode, the
temperature can not be set. Celsius
temperature range: 16-30°C. Fahrenheit
temperature range: 61-86°F.
+ button
–
• Press this button to decrease the preset
temperature. Press and hold this button for
more than 2 seconds will quickly decrease
the increments of temperature. When the
button is released the current temperature
°C (°F) is shown. In Auto mode, the
temperature can not be set.
– button
TEMP
• After the unit is powered on, the preset
temperature is displayed. If no icon is
shown on the remote controller, the preset
temperature is displayed.
When is displayed by pressing this
button, it indicates the preset temperature.
When is displayed by pressing this
button again, it indicates the indoor
ambient temperature. When is
displayed by pressing this button one
more time, the currently displayed item will
be maintained.
If the remote controller is used to execute
other operations while the indoor ambient
temperature is displayed, the preset
temperature will be displayed once and
then the indoor ambient temperature will
be displayed after 5 seconds.
TEMP button
01_EN_3V007382-3J.indd 801_EN_3V007382-3J.indd 8 8/18/2010 9:14:32 AM8/18/2010 9:14:32 AM

English
9
Description of remote control functions
■
Remote control operation
Notice: This remote controller is for general use and can be used for multifunction air
conditioners. Some functions are not available on certain models, and even if the
corresponding button for such functions on the remote controller is pressed, the unit will
be operating at the current running status.
Remote controller
TIMER ON
• When this button is pressed, the symbol
will disappear and the “ON” symbol will
blink. The displayed numbers will indicate
the Timer-On Setting status. While the “ON”
symbol is blinking for 5 seconds, set the
timer to the desired time by pressing either
the “+” or the “–” button.
Each time the button is pressed, the
number will increase or decrease by
1 minute. If the “+” or “–” button is pressed
for 2 or more seconds, the value will
change quickly in increments of 10 minutes.
After you finish setting the timer, press this
button again. If the timer setting is not
completed while the “ON” symbol is
blinking for 5 seconds, the setting will be
cancelled.
Before setting the timer, please adjust the
clock to the current time.
TIMER ON button
TIMER OFF
• Press this key one time to enter the TIMER
OFF setup. The TIMER OFF icon will blink.
The setting procedure is the same as
TIMER ON.
TIMER OFF button
• Press this button to set a desired swing
angle.
This is a universal remote controller. The
three kinds of swing status on main unit
are:
If the swing function is turned off when the
guide louver is swinging it will stop at its
current position.
The symbol indicates the guide louver
is swinging up and down in all five
positions.
SWING UP and DOWN button
OFF
01_EN_3V007382-3J.indd 901_EN_3V007382-3J.indd 9 8/18/2010 9:14:35 AM8/18/2010 9:14:35 AM

10
(1) (2)
(4)
(3) (5)
(2)
(4)
(1)
(3)
■
Remote control operation
General Operation
(1) Turn the power on and press the ON/OFF button to start/stop
operation.
(Note: When the unit is powered off, the main unit’s guide louver
closes automatically.)
(2) Press the MODE button to select a desired operation mode, or
enter COOL or HEAT operation modes directly.
(3) Press + or – button to set the desired temperature (not available
in AUTO mode).
(4) Press the FAN button to set the fan speed. (AUTO, LOW, MID,
HIGH)
(5) Press button to select the swing angle.
Options
(1) Press SLEEP button to set to sleep mode.
(2) Press TIMER ON and TIMER OFF button to set the scheduled
timer ON/OFF.
(3) Press the LIGHT button to turn the LIGHT ON/OFF. (This function
is not available on some units.)
(4) Press the TURBO button to turn the TURBO function ON/OFF.
Special functions
Blow function
After the unit is stopped, this function blows moisture off the indoor unit's evaporator to
prevent mould.
1. Blow function on: After turning off the unit, the indoor fan operates for about 10 minutes
at low speed. At this time, you can press the blow button to stop the indoor fan.
2. Having set blow function off: After turning the unit off by pressing the ON/OFF button, the
blow function will stop running.
AUTO RUN
When AUTO RUN mode is selected the temperature setting does not show on the LCD.
The unit automatically selects a suitable operation mode and adjusts to create a comfortable
ambient temperature.
Turbo function
The turbo function operates the fan at high speed to bring the ambient temperature up to the
preset temperature as quickly as possible.
01_EN_3V007382-3J.indd 1001_EN_3V007382-3J.indd 10 8/18/2010 9:14:35 AM8/18/2010 9:14:35 AM

English
11
(1)
(2)
(3)
(4)
How to replace
batteries
■
Remote control operation

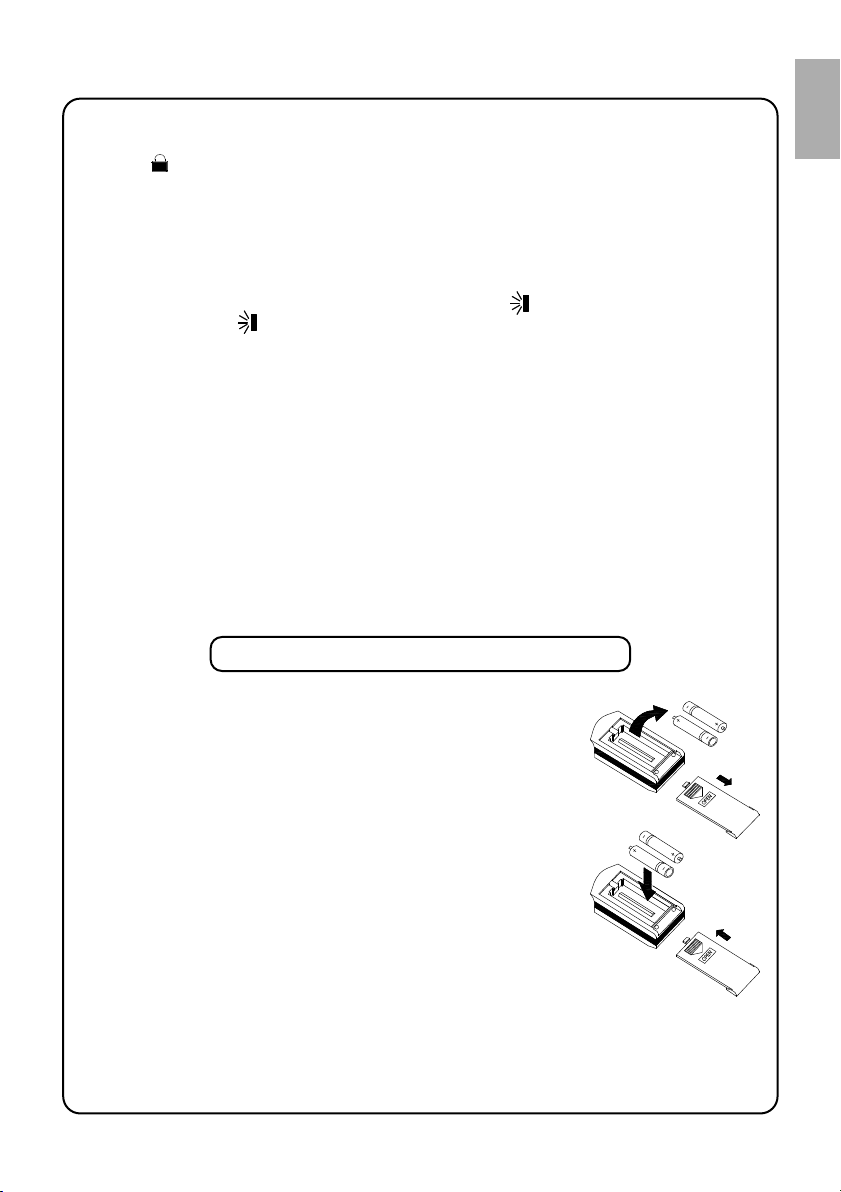

Battery replacement
(1) Push lightly on the symbol in the direction of the arrow and open
the battery compartment.
(2) Remove the old batteries.
(3) Insert two new AAA1.5V dry batteries with the polarity in the
correct position.
(4) Attach the back cover of the remote controller.
Lock
Press + and – buttons simultaneously to lock or unlock the keyboard. If the remote control is
locked, is shown. Press any button and the symbol will flicker three times. The symbol
disappears when the keyboard is unlocked.
Swing Up/Down
1. Pressing the swing up and down button for more than 2 seconds starts the main unit
swing up and down function. Release the button to stop the guide louver at the desired
position.
2. In Swing mode when the status is changed from off to , if you press this button again
2 seconds later status will change to off. The swing status change depends on the
position of the swing.
Fahrenheit/Celsius
When the unit is off, press MODE and “–” buttons simultaneously to switch between °C and °F.
Defrost mode
If the unit has been in defrost and is turned off with the remote controller, the unit will not stop
until defrosting is complete. Additionally, settings made with the remote controller will not be
carried out until defrosting is complete.
Switching this function on/off: If the remote control is off, press the mode and blow buttons
simultaneously to enter or cancel this function. If the unit is in defrost mode, the dual eight
position on the remote controller displays H1. When changing to heat mode, H1 is displayed
and flickers for 5 seconds. Press +/– button to display the temperature setting. When turned
on next, the default defrost mode will be set to close.
NOTE:
• Do not use old or unspecified batteries.
Doing so can cause the remote controller to malfunction.
• Remove the batteries from the remote controller when it is not in
regular use.
• Use the remote controller within receiving range of the AC.
• Keep the remote controller approximately 1m away from TV or
stereo equipment.
• If the remote controller does not operate correctly, remove the
batteries, wait 30 seconds, and reinsert them. Replace the
batteries if this does not help.
01_EN_3V007382-3J.indd 1101_EN_3V007382-3J.indd 11 8/18/2010 9:14:37 AM8/18/2010 9:14:37 AM

12

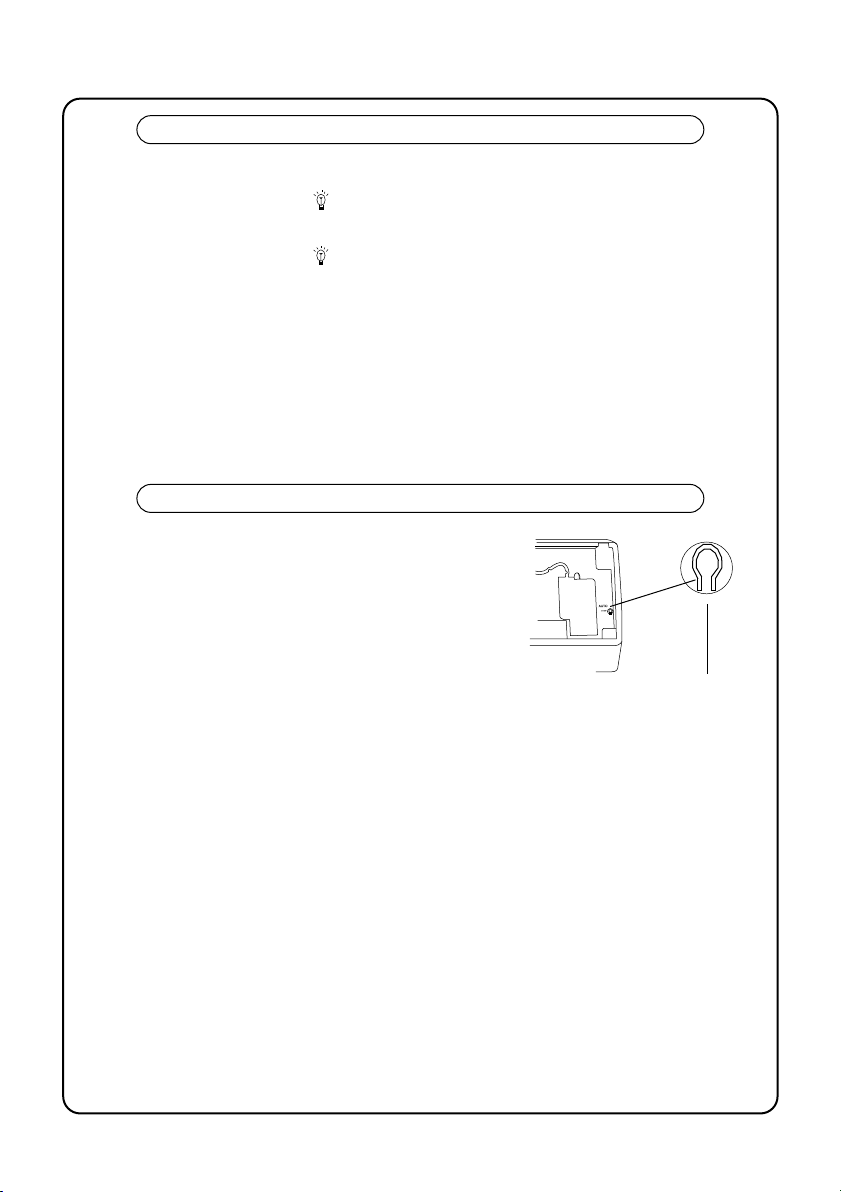

Manual switch
Fig. 3
■
Emergency operation
Indicator light control (indoor unit)
Use this feature to turn the indicator light on or off.
• Turn indicator light on: The symbol displayed on the remote controller shows
when the indicator light has been turned on.
• Turn indicator light off: The symbol displayed on the remote controller
disappears when the indicator light has been turned off.
Emergency operation
Use the manual switch if the remote controller is
lost or broken. The unit will run in Auto mode, but
the temperature and fan speed can not be
changed.
To use the manual switch:
Open the panel and find the manual switch on the
display box.
• Turn on the unit: Press the power button to start
operation. The unit will operate in Auto mode.
The microcomputer adjusts the indoor
temperature to a comfortable level.
• Turn off the unit: Press the power button to stop
operation.
01_EN_3V007382-3J.indd 1201_EN_3V007382-3J.indd 12 8/18/2010 9:14:37 AM8/18/2010 9:14:37 AM

English
13
(a)
(b)
Fig. 4
■
Cleaning and maintenance
Clean the front panel
Clean the front panel with a damp cloth and wipe dry.
Note: Do not immerse the front panel in water. Doing so can cause damage to the
microcomputer components and circuit diagrams on the front panel.
Clean the air filter (Recommended once every three months)

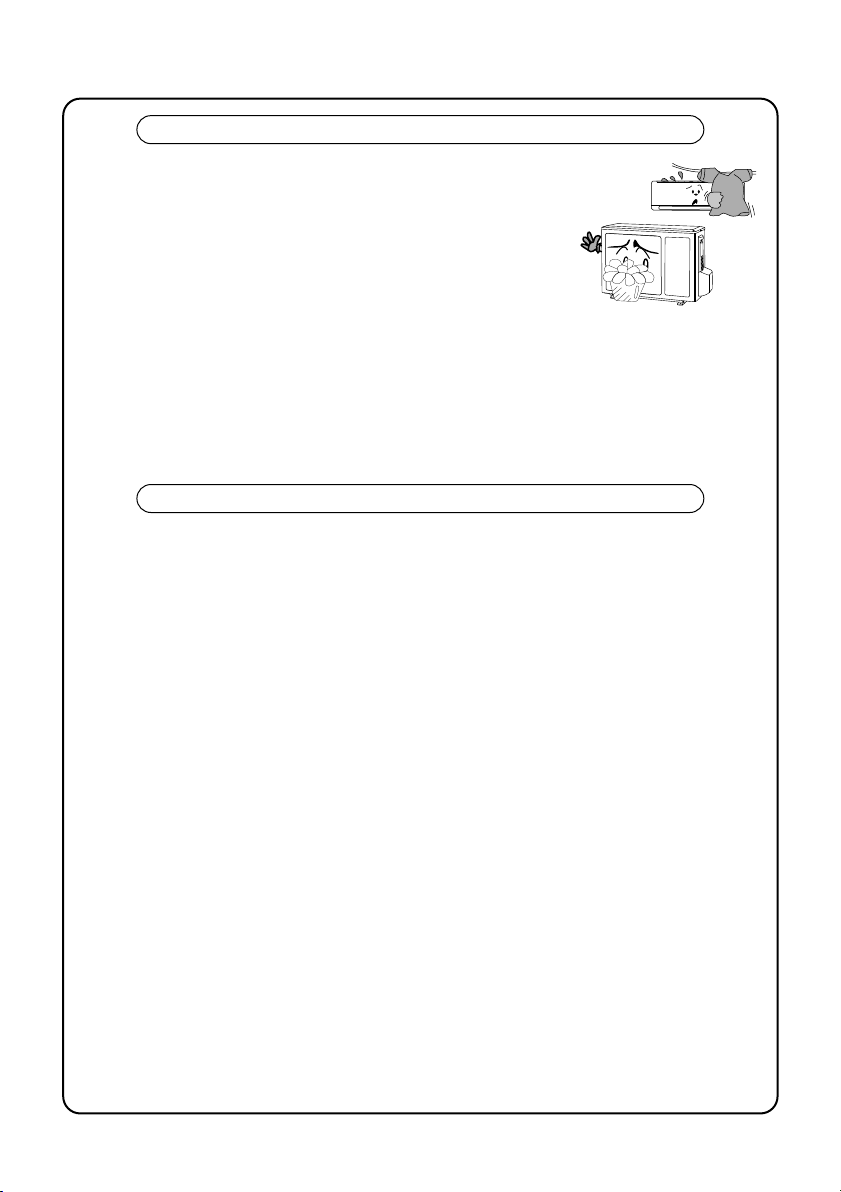

NOTE: The air filters must be cleaned regularly if there is a lot of dust around the air conditioner.
After you remove the air filter, be careful not to touch the fin on indoor unit to prevent
injury to your fingers.
• Make sure to the turn power off and disconnect the power plug before cleaning the air
conditioner to prevent the risk of electric shock.
• Do not put water directly on surfaces of the indoor or outdoor units. There is a risk of
electric shock.
• Flammable liquids (thinner, gasoline, etc.) will damage the air conditioner. (Clean the units
with a dry soft cloth, or a cloth dampened with water, or gentle cleanser.)
CAUTION
(1) Remove the air filter
At the opening of the front panel pull the air filter downward to
remove it. See Fig. 4 (a, b).
(2) Clean the air filter
Remove dust from the air filters with a vacuum cleaner, or
wash with warm water (water with neutral detergent below
45°C). Dry air filters in the shade.
NOTE: Do not use water above 45°C. Doing so can cause
deformation or discoloration. Keep away from sparks or
flame, which can start a dangerous fire.
(3) Insert the air filter
Insert the air filters to agree in the direction of the arrow
symbol, replace cover, and clasp in position.
01_EN_3V007382-3J.indd 1301_EN_3V007382-3J.indd 13 8/18/2010 9:14:38 AM8/18/2010 9:14:38 AM

14
■
Cleaning and maintenance
Check before use
(1) Make sure nothing blocks the air outlet and intake vents.
(2) Make sure the ground wire is properly connected.
(3) Make sure the air conditioner’s batteries are changed.
(4) Make sure the outdoor unit's installation stand is not damaged.
If it is damaged, please contact your dealer.
Maintenance after use
(1) Turn main power off.
(2) Clean the air filter and the exterior of the indoor and outdoor units.
(3) Remove all dust and debris from the outdoor unit.
(4) Paint over rusted areas on the outdoor unit to prevent the rust from spreading.
(5) Use the special shield to guard against rust and to prevent water and dust from entering the
unit.
01_EN_3V007382-3J.indd 1401_EN_3V007382-3J.indd 14 8/18/2010 9:14:39 AM8/18/2010 9:14:39 AM

English
15
Waiting
■
Troubleshooting
CAUTION
Do not try to repair the air conditioner; there is danger of electric shock or fire. Please refer to the
troubleshooting section before requesting service; you may be able to save time and money.
Condition Troubleshooting
• As a precaution, operation cannot be
resumed for approximately 3 minutes after
the air conditioner has stopped.
• This unit does not have any particular odour.
If you detect an odour, it will be the odour of
accumulated substances.
• Solution method: Cleaning the air filter. If the
problem persists, the air conditioner requires
further cleaning. (Please contact an
authorized maintenance center.)
•
When the air conditioner is started or
stopped, the compressor starts and
sometimes creates gurgling sounds. The
sounds are caused by the flowing of
refrigerant.
• If indoor temperatures and relative humidity
are high, this can happen when air in the
room is cooled down too quickly. Indoor
temperatures and humidity will decrease
after operating for a while.
• This is caused by deformation of the plastic
due to changes in temperature.
There is a delay in operation after the air
conditioner has started.
An unusual smell is coming from the air
conditioner.
Sound of water flowing heard during
operation.
Sometimes mist comes out of the air outlet vent
in COOL mode.
Creaking noise heard during start or stop.
01_EN_3V007382-3J.indd 1501_EN_3V007382-3J.indd 15 8/18/2010 9:14:40 AM8/18/2010 9:14:40 AM

16
Breaker off
■
Troubleshooting
Condition Troubleshooting
• Make sure the power is on.
• Make sure the power cord is connected.
• Make sure the circuit protection device has not
been tripped.
• Voltage maybe too high or too low.
(To be tested by professionals only)
• Make sure the TIMER is being used correctly.
• Check the temperature setting.
• Make sure inlet and outlet vents are not
blocked?
• The air filter may be dirty.
• Make sure windows and doors are closed.
• The fan speed may be set too low.
• Other contributing sources of heat/cold.
• If the unit functions are too frequently
switched, sometimes the controller will not
operate. At this time, disconnect the plug,
connect again and try to start operation.
• Make sure the remote controller is within
range. Check for obstructions. Replace the
batteries in the remote controller.
• The remote controller may be damaged.
• High relative humidity
• Condensed water
• The indoor unit drainage pipe connection is
loose.
• When the unit operates in COOL mode, the
pipe and connection are cooled down which
creates condensed water.
• When the unit operates in Auto Defrost mode
ice thaws into water.
• When the unit operates in HEAT mode water
on the heat exchanger drips off.
The unit does not operate.
Cooling (Heating) effect is not sufficient.
Remote controller does not operate.
Water leakage in the room.
Water leakage is coming from the outdoor
unit.
• The sound comes from the fan or
compressor relay switching on or off.
• When defrosting is started or stopped this
sound is given out. Refrigerant flowing in the
reverse direction causes this to happen.
Noise is coming from the indoor unit.
01_EN_3V007382-3J.indd 1601_EN_3V007382-3J.indd 16 8/18/2010 9:14:40 AM8/18/2010 9:14:40 AM

English
17
■
Troubleshooting
Condition Troubleshooting
• In HEAT mode, air delivery is delayed until
the indoor heat exchanger reaches the
correct temperature. (Within 2 minutes.)
• In HEAT mode, when the outdoor
temperature is cold, frost on the outdoor heat
exchanger is defrosted automatically and the
indoor unit stops delivering air for 3-12
minutes. During defrost there is water or
vapor given out.
• In dehumidifying mode, the indoor fan will
sometimes stop, this prevents water
condensation from being vaporized.
• If the unit is operates in high humidity for a
long time, moisture can condense on the air
outlet grill and drip off.
Stop all operations immediately and disconnect the
power plug. Contact the dealer in the following situations:
Indoor unit does not deliver air.
Moisture gathers on the air outlet vent.
Loud or unusual sounds are given out during
operation.
Unusual odors are given out during operation.
Water is leaking.
Air switch or protection switch often breaks.
Water or liquid enters into the unit.
Unusually hot power supply cord or power plug.
Stop operation and disconnect the
power plug.
01_EN_3V007382-3J.indd 1701_EN_3V007382-3J.indd 17 8/18/2010 9:14:41 AM8/18/2010 9:14:41 AM

18
Safety Precautions
Read these Safety Precautions carefully to ensure correct installation.•
This manual classifies the precautions into WARNING and CAUTION.•
Be sure to follow all the precautions below: they are all important for ensuring safety.
WARNING CAUTION
Failure to follow any of WARNING is likely to
result in such grave consequences as death or
serious injury.
Failure to follow any of CAUTION may result in
grave consequences in some cases.
The following safety symbols are used throughout this manual:•
Be sure to observe this instruction. Be sure to establish an earth connection.
Never attempt.
After completing installation, test the unit to check for installation errors. Give the user adequate•
instructions concerning the use and cleaning of the unit according to the Operation Manual.
WARNING
Installation should be left to the dealer or another professional.•
Improper installation may cause water leakage, electrical shock, or fire.
Install the air conditioner according to the instructions given in this manual.•
Incomplete installation may cause water leakage, electrical shock, or fire.
Be sure to use the supplied or specified installation parts.•
Use of other parts may cause the unit to come to lose, water leakage, electrical shock, or fire.
Install the air conditioner on a solid base that can support the weight of the unit.•
An inadequate base or incomplete installation may cause injury in the event the unit falls off the base.
Electrical work should be carried out in accordance with the installation manual and the national•
electrical wiring rules or code of practice.
Insufficient capacity or incomplete electrical work may cause electrical shock or fire.
Be sure to use a dedicated power circuit. Never use a power supply shared by another appliance.•
For wiring, use a cable length enough to cover the entire distance with no connection.•
Do not use an extension cord. Do not put other loads on the power supply, use a dedicated power
circuit.
(Failure to do so may cause abnormal heat, electric shock or fire.)
Use the specified types of wires for electrical connections between the indoor and outdoor units.•
Firmly clamp the interconnecting wires so their terminals receive no external stresses.
Incomplete connections or clamping may cause terminal overheating or fire.
After connecting interconnecting and supply wiring be sure to shape the cables so that they do not•
put undue force on the electrical covers or panels.
Install covers over the wires. Incomplete cover installation may cause terminal overheating,
electrical shock, or fire.
If any refrigerant has leaked out during the installation work, ventilate the room.•
(The refrigerant produces a toxic gas if exposed to flames.)
After all installation is complete, check to make sure that no refrigerant is leaking out.•
(The refrigerant produces a toxic gas if exposed to flames.)
When installing or relocating the system, be sure to keep the refrigerant circuit free from substances•
other than the specified refrigerant (R22), such as air. (Any presence of air or other foreign
substance in the refrigerant circuit causes an abnormal pressure rise or rupture, resulting in injury.)
01_EN_3V007382-3J.indd 1801_EN_3V007382-3J.indd 18 8/18/2010 9:14:41 AM8/18/2010 9:14:41 AM

English
19
During pump-down, stop the compressor before removing the refrigerant piping.•
If the compressor is still running and the stop valve is open during pump-down, air will be sucked
in when the refrigerant piping is removed, causing abnormal pressure in the freezer cycle which
will lead to breakage and even injury.
During installation, attach the refrigerant piping securely before running the compressor.•
If the compressor is not attached and the stop valve is open during pump-down, air will be sucked
in when the compressor is run, causing abnormal pressure in the freezer cycle which will lead to
breakage and even injury.
Be sure to establish an earth. Do not earth the unit to a utility pipe, arrester, or telephone earth. •
Incomplete earth may cause electrical shock, or fire. A high surge current from lightning or
other sources may cause damage to the air conditioner.
Be sure to install an earth leakage breaker. Failure to install an earth leakage breaker may result in•
electric shocks, or fire.
CAUTION
Do not install the air conditioner in a place where there is danger of exposure to inflammable•
gas leakage.
If the gas leaks and builds up around the unit, it may catch fire.
Establish drain piping according to the instructions of this manual. Inadequate piping may cause•
flooding.
Tighten the flare nut according to the specified method such as with a torque wrench.•
If the flare nut is tightened too hard, the flare nut may crack after a long time and cause refrigerant
leakage.
Make sure to provide for adequate measures in order to prevent that the outdoor unit be used as a•
shelter by small animals.
Small animals making contact with electrical parts can cause malfunctions, smoke or fire. Please
instruct the customer to keep the area around the unit clean.
01_EN_3V007382-3J.indd 1901_EN_3V007382-3J.indd 19 8/18/2010 9:14:42 AM8/18/2010 9:14:42 AM
