Daikin ERQ-AV1 Instruction manual

air conditioning systems
technical data
Air handling unit connection
ERQ-AV1

air conditioning systems
technical data
Air handling unit connection
ERQ-AV1

• Air Handling Unit Connection • Heat pump 1
• Air Handling Unit Connection • ERQ-AV1
TABLE OF CONTENTS
ERQ-AV1
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Nominal Capacity and Nominal Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Integrated heating capacity coefficient . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Combination table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Capacity correction factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 20
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
External connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sound power spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Service space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
2

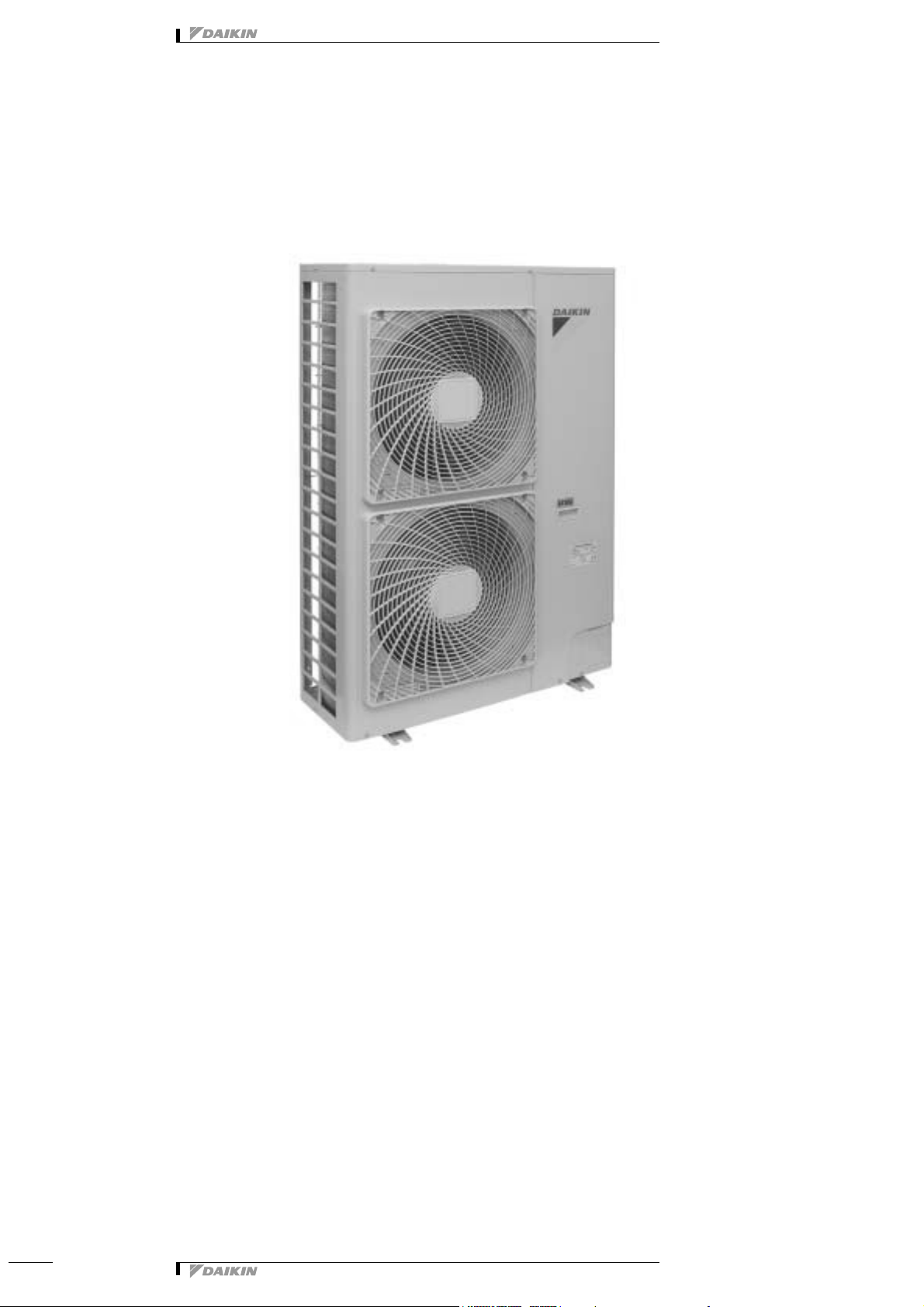

1 Features
AirHandlin ERQ-AV1Heatpump Heatpump • Wide range of Daikin units offers maximum application potential plus
flexible control options.
• The system provides optimized air conditions such as fresh air and
humidity control, both in heating and in cooling, and can be used in
small warehouses, showrooms and offices.
• Control box and expansion valve kit are required for each
combination plus an air handling unit.

• Air Handling Unit Connection • Heat pump 3
• Air Handling Unit Connection • ERQ-AV1
2 Specifications
2-1 Nominal Capacity and Nominal Input ERQ100A7V1B ERQ125A7V1B ERQ140A7V1B
Nominal Capacity Cooling capacity Standard kW 11.2 14.0 15.5
Heating capacity Standard kW 12.5 16.0 18.0
For combination
indoor units + outdoor
units
EER Nominal 3.99 3.42
COP Nominal 4.56 4.15 3.94
2-2 Technical Specifications ERQ100A7V1B ERQ125A7V1B ERQ140A7V1B
Capacity range HP 4 5 6
PED category Category 1
Casing Colour Daikin White
Material Painted galvanized steel plate
Dimensions Unit Height mm 1,345
Width mm 900
Depth mm 320
Packing Height mm 1,524
Width mm 980
Depth mm 420
Weight Unit kg 120
Packed Unit kg 130
Packing Material Carton + Wood + EPS
Weight kg 8
Heat Exchanger Dimensions Length mm 857
Nr of Rows 2
Fin Pitch mm 2
Nr of Passes 10
Face Area m² 1.131
Nr of Stages 60
Tube type Hi-XSS(8)
Fin Type Non-symmetric waffle louvre
Treatment Corrosion resistant
Fan Type Propeller
Discharge direction Horizontal
Quantity 2
Air Flow Rate
(nominal at 230V)
Cooling m³/min 106
Heating m³/min 102 105
Motor Quantity 2
Model Brushless DC motor
Motor Speed (nominal) Cooling rpm 850/815
Heating rpm 820/785 840/805
Fan Motor Output W 70
Drive Direct Drive
Compressor Quantity 1
Motor Model JT100G-VDL
Type Hermetically sealed scroll compressor
Speed rpm 6,480
Motor Output W 2.5 3.0 3.5
Starting Method Direct on line
Crankcase
Heater
W33
Operation Range Cooling Min °CDB -5
Max °CDB 46
Heating Min °CWB -20
Max °CWB 15.5
Sound Level (nominal) Cooling Sound Power dBA 66 67 69
Sound Pressure dBA 50 51 53
Heating Sound Pressure dBA 52 53 55

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
4
2 Specifications
Refrigerant Type R-410A
Charge kg 4.0
Control Expansion valve (electronic type)
Nr of Circuits 1
Refrigerant Oil Type Daphne FVC68D
Charged Volume l 1.5
Piping connections Liquid (OD) Type Flare connection
Diameter (OD) mm 9.52
Gas Type Flare connection Braze connection
Diameter (OD) mm 15.9 19.1
Drain Quantity 3
Diameter (OD) mm 26x3
Piping Length Maximum m 55
Heat Insulation Both liquid and gas pipes
Defrost Method Reversed cycle
Defrost Control Sensor for outdoor heat exchanger temperature
Capacity Control Method Inverter controlled
Capacity control Cooling Minimum 24%
Maximum 100%
Safety Devices High pressure switch
Fan motor thermal protector
Inverter overload protector
PC board fuse
Standard Accessories Item Installation manual
Quantity 1
Item Operation manual
Quantity 1
Item Connection pipes
Quantity 3
Notes Nominal cooling capacities are based on: indoor temperature: 27°CDB/19°CWB, outdoor temperature:
35°CDB, equivalent refrigerant piping: 7.5m, level difference: 0m
Nominal heating capacities are based on: indoor temperature: 20°CDB, outdoor temperature: 7°CDB/
6°CWB, equivalent refrigerant piping: 7.5m, level difference: 0m
Sound pressure level is a relative value, depending on the distance and acoustic environment. For more
details, please refer to the sound level drawings
Sound values are measured in a semi-anechoic room.
2-3 Electrical Specifications ERQ100A7V1B ERQ125A7V1B ERQ140A7V1B
Power Supply Name V1
Phase 1~
Frequency Hz 50
Voltage V 220V-240V
Voltage range Minimum V -10%
Maximum V +10%
Current Nominal running
current (RLA)
Cooling A 15.9 20.2 22.2
Starting current (cooling/heating) A 15.9 20.2 22.2
Minimum Ssc value kVa Equipment complying with EN/IEC 61000-3-12
Max. running current (RLA) A 27.0
Minimum circuit amps (MCA) A 27.0
Maximum fuse amps (MFA) A 32.0
Full load amps (FLA) A 0.3+0.3 (fan motor)
Wiring connections For Power Supply Quantity 3
Remark Earth wire included
For connection with
indoor
Quantity 2
Remark F1+F2
Field earth leakage breaker mA 300
Power Supply Intake Both indoor and outdoor unit
2-2 Technical Specifications ERQ100A7V1B ERQ125A7V1B ERQ140A7V1B

• Air Handling Unit Connection • Heat pump 5
• Air Handling Unit Connection • ERQ-AV1
2 Specifications
3 Options
Notes RLA is based on following conditions: indoor temperature: 27°CDB/19°CWB, outdoor temperature:
35°CDB
Voltage range: units are suitable for use on electrical systems where voltage supplied to unit terminal is
not below or above listed range limits
Maximum allowable voltage range variation between phases is 2%.
Select wire size based on the value of MCA
Instead of fuse, use circuit breaker. MFA is used to select circuit breaker and the ground fault circuit
interrupter (earth leakage circuit breaker).
MSC means the maximum current during start up of the compressor
EN/IEC 61000-3-12: European/international technical standard setting the limits for harmonic currents
produced by equipment connected to public low-voltage system with input current > 16A and <= 75A per
phase
SSC means short-circuit power
2-3 Electrical Specifications ERQ100A7V1B ERQ125A7V1B ERQ140A7V1B
ERQ-AV1
N° Item ERQ100 ERQ125 ERQ140
1 Cool/heat selector KRC19-26A6
2 Fixing box KJB111A
3 Central drain plug KKPJ5F180
Note: all options are kits 4TW32001-4

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
6
4 Integrated heating capacity coefficient
3TW30402-1
Integrated heating capacity coefficient
The heating capacity tables do not take account of the reduction in capacity, when frost has accumulated or while the defrosting operation is in progress.
The capacity values, which take these factors into account, in other words, the integrated heating capacity values, can be calculated as follows
Formula:
Integrated heating capacity = A
Value given in table of capacity characteristics = B
Integrating correction factor for frost accumulation (kW) = C
A=BxC
Correction factor for finding integrated heating capacity
ERQ-AV1
Inlet port temperature of heat exchanger (°C/RH 85%) -7 -5 -3 0 3 5 7
Integrating correction factor for frost accumulation 0,88 0,86 0,8 0,75 0,76 0,82 1,0
Please note that, when there is an accumulation of snow against the outside surface of the outdoor unit heat
exchanger, there will always be a temporary redusion in capacity, although this will of course vary in degree in
accordance with a number of other factors, such as the outdoor temperature (°CDB), relative humidity (RH) and
the amount of frosting which occurs.
Note:
1. The figure shows that the integrated heating capacity
expresses the integrated capacity for a single cycle (from
defrost operation to defrost operation) in terms of time.
Defrosting operation Defrosting operation
Time
One cycle
Heating capacity

• Air Handling Unit Connection • Heat pump 7
• Air Handling Unit Connection • ERQ-AV1
5 Capacity tables
5 - 1 Combination table
ERQ-AV1
Combination table
Control box Expansion valve kit
Outdoor unit EKEQDCBV3 EKEQFCBV3 EKEXV63 EKEXV80 EKEXV100 EKEXV125 EKEXV140 EKEXV200 EKEXV250
1ph ERQ100 PPPPPP--- ERQ125 PPPPPPP--
ERQ140 P P - P P P P - -
3ph ERQ125 PPPPPPP-- ERQ200PP--PPPPP
ERQ250 P P - - - P P P P
Heat pump
P: Pair: Combination depending on AHU heat exchanger volume and capacity
Allowed heat exchanger volume (dm ) Allowed heat exchanger capacity (kW)
EKEXV
Class Minimum Maximum Minimum Maximum
63 1.66 2.08 6.3 7.8
80 2.09 2.64 7.9 9.9
100 2.65 3.3 10 12.3
125 3.31 4.12 12.4 15.4
140 4.13 4.62 15.5 17.6
200 4.63 6.6 17.7 24.6
250 6.61 8.25 24.7 30.8
Saturated suction temperature (SST) = 6°C, Superheat (SH = 5K
Air temperature =27°CDB/19°CWB
If conflicting result occurs, capacity selection has priority over volume.
3TW32009-1
)
3

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
8
5 Capacity tables

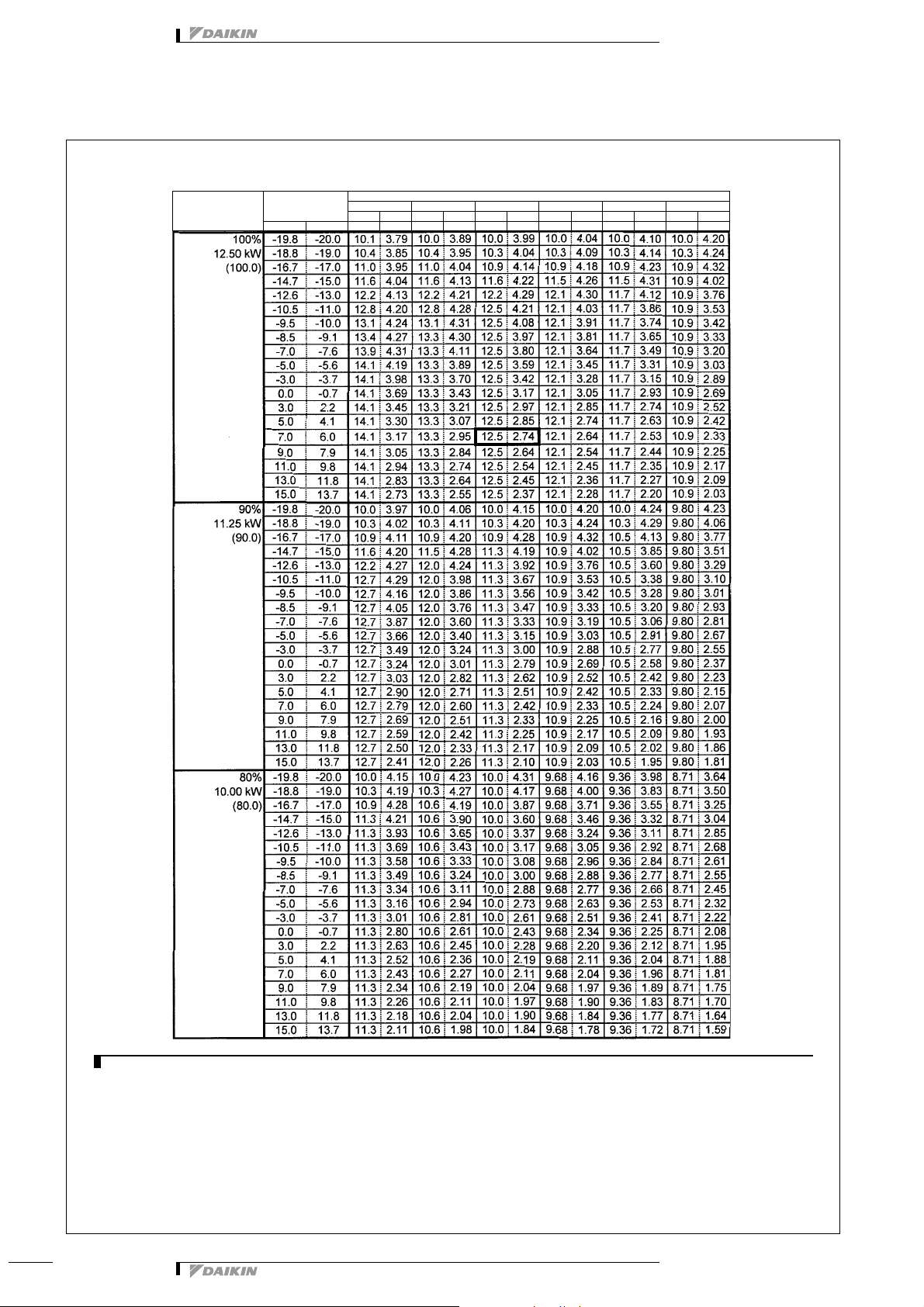

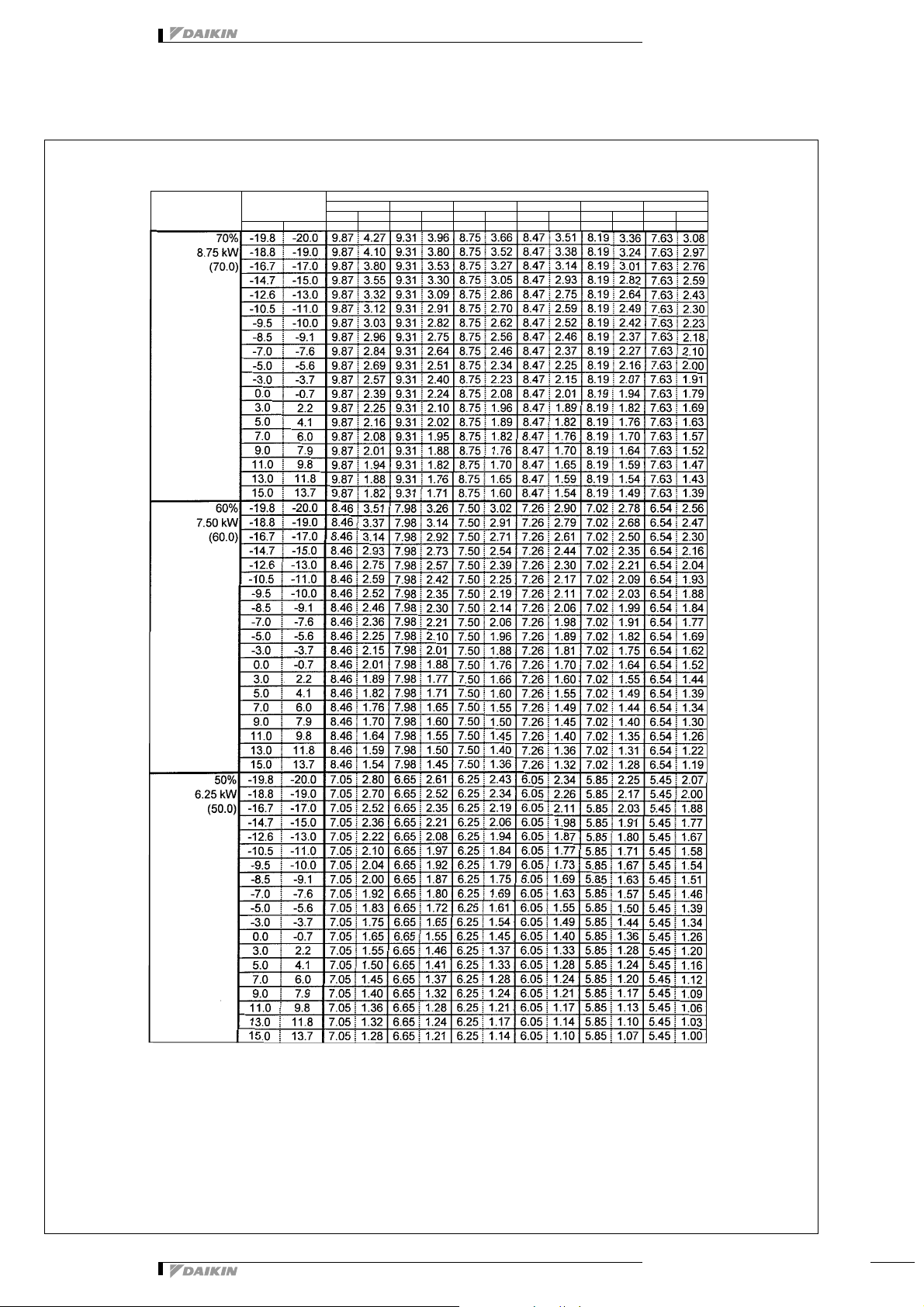

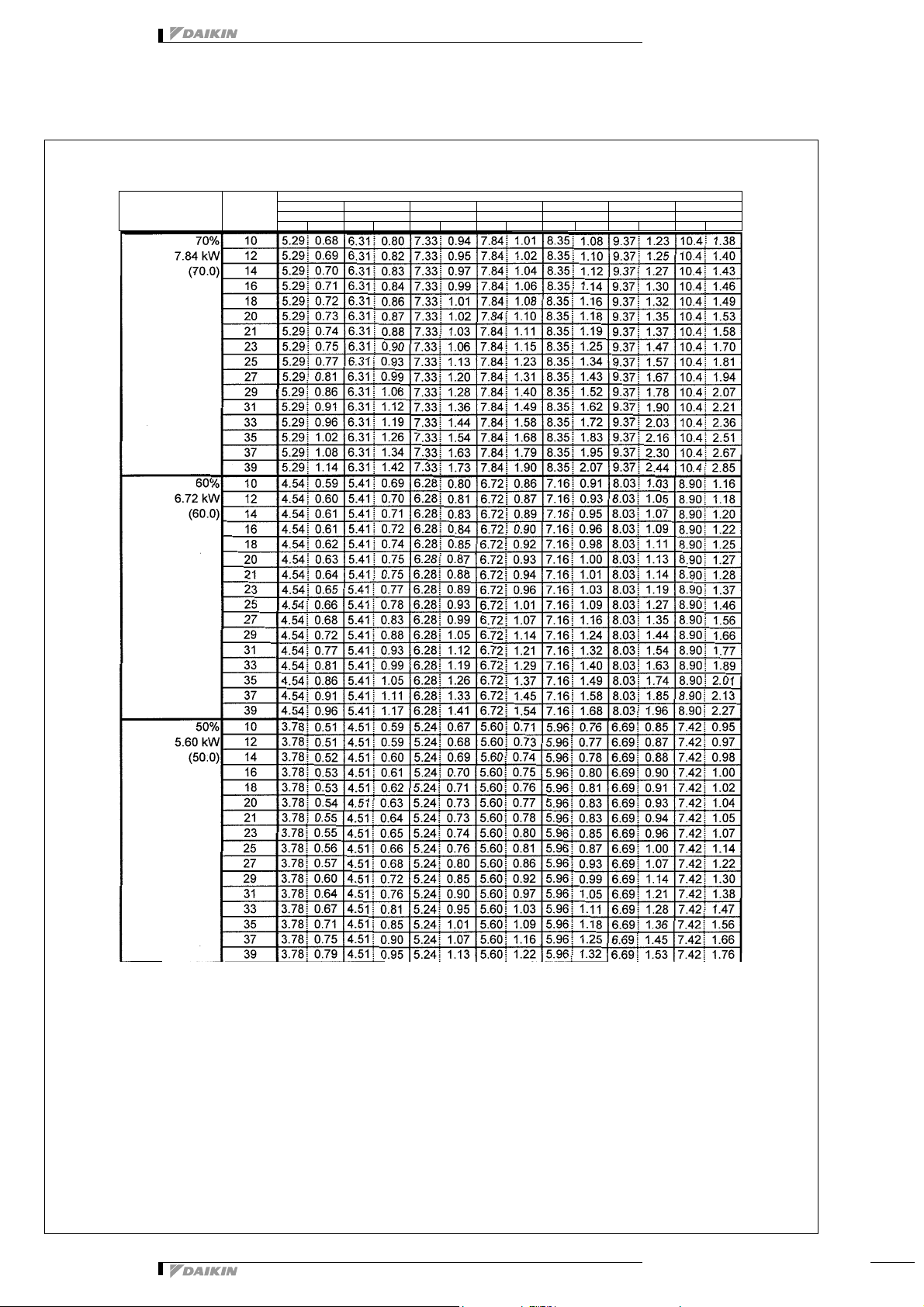

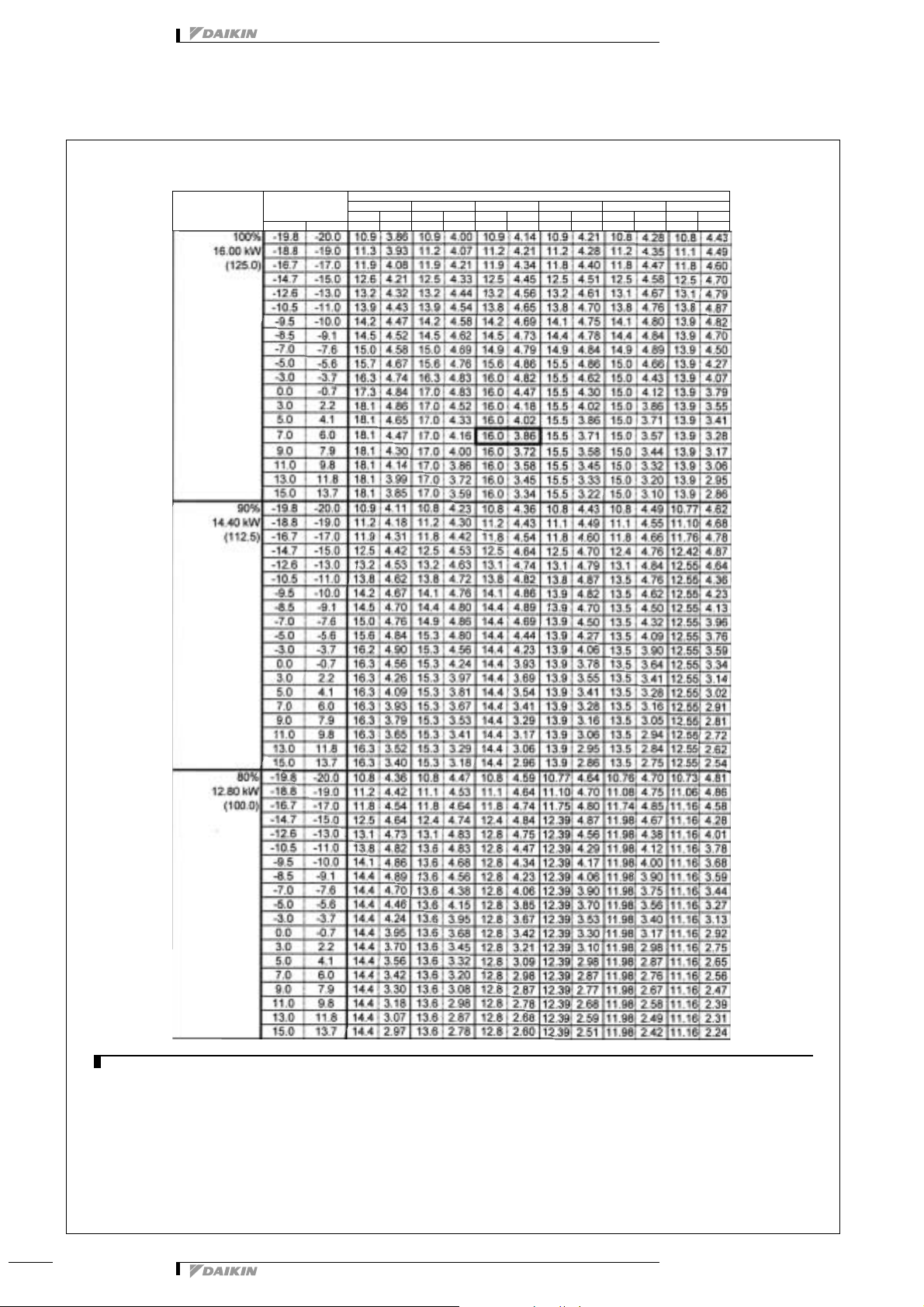

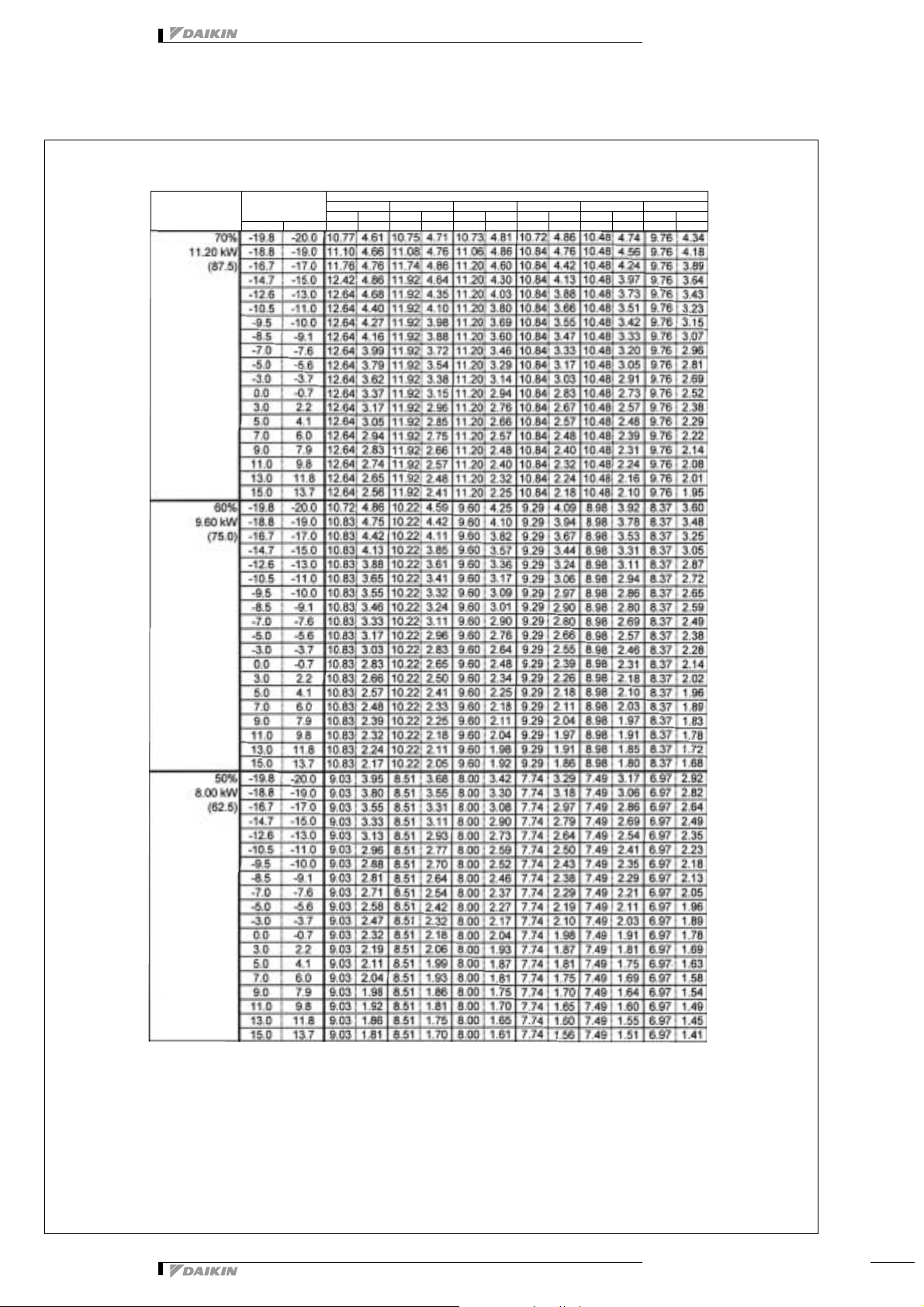

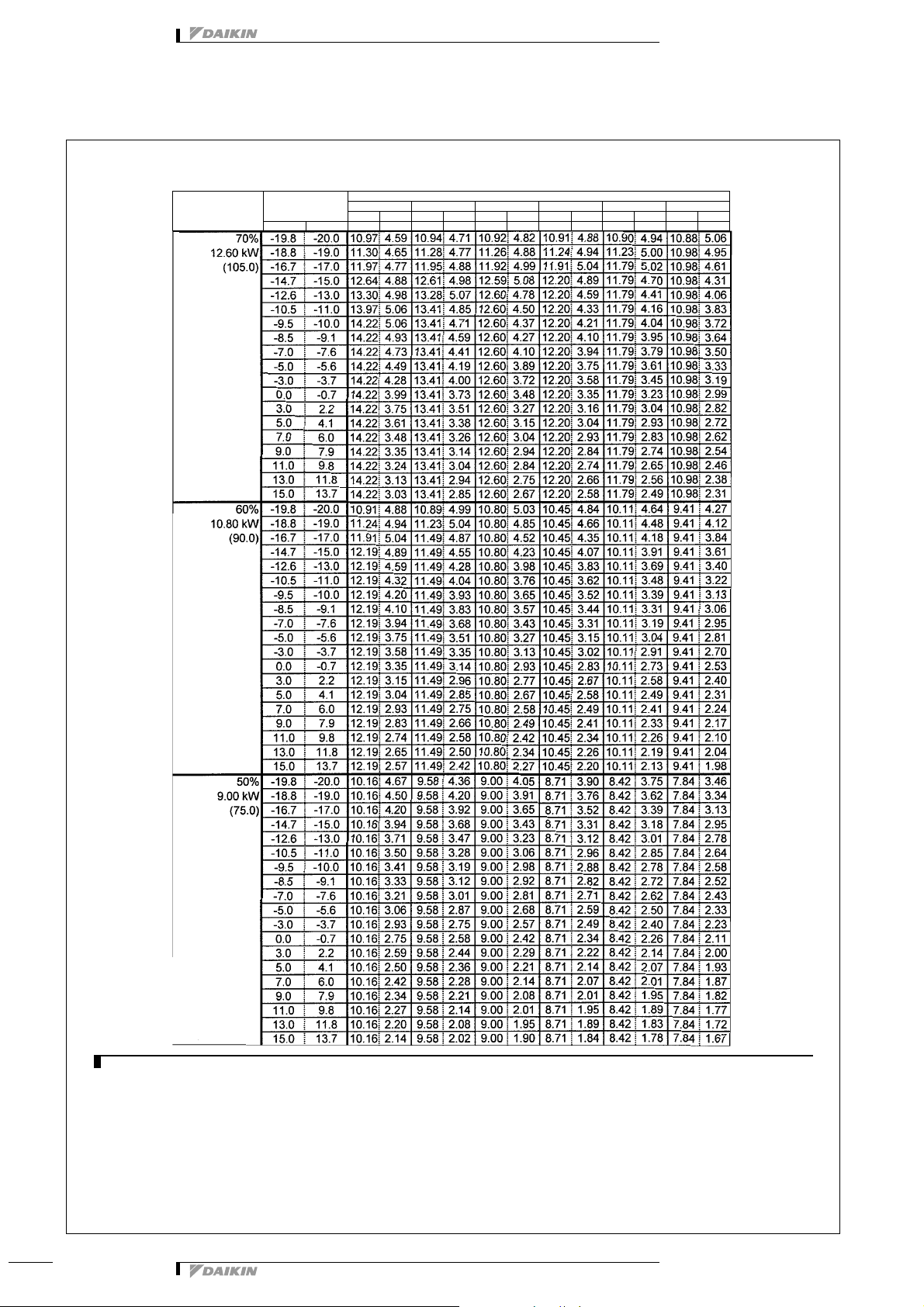

5 - 2 Cooling capacity tables
ERQ100AV1
Cooling TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
(°CDB)
Indoor air temp. °CWB
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
4TW32002-2
NOTES - ANMERKUNGEN - ƧƺƸƼǏDŽƸƼǃ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȎȏȇȋȄȖǿȌȇȞ - NOTLAR
1 The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen. die auftreten können.
 ƧDžǁƿ ƴǂƴƯƿNJ Ʋƿƴƽƴ ƴƿƴƶǂƯLJƸDžƴƼ ƺ ưDŽƺ DžƼƱ ƶƼƴ DŽdžƿƻƱƽƸǃ ǁdž ǁǂƸƲ ƿƴ ǂǁƽǎljǁdžƿ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
 DZǿȀȊȇȕǿ ȏǿȐȎȍȊȍȅȄȌȌǿȞ ȁȚȗȄ ȎȍȉǿȆȚȁǿȄȑ ȐȏȄȃȌȄȄ ȆȌǿȖȄȌȇȄ ȒȐȊȍȁȇȈ.ȉȍȑȍȏȚȄ ȋȍȂȒȑ ȌǿȐȑȒȎȇȑț.
 <XNDUÕGDNLWDEORPH\GDQDJHOHELOHFHNNRúXOODUÕQRUWDODPDGH÷erini göstermektedir.

• Air Handling Unit Connection • Heat pump 9
• Air Handling Unit Connection • ERQ-AV1

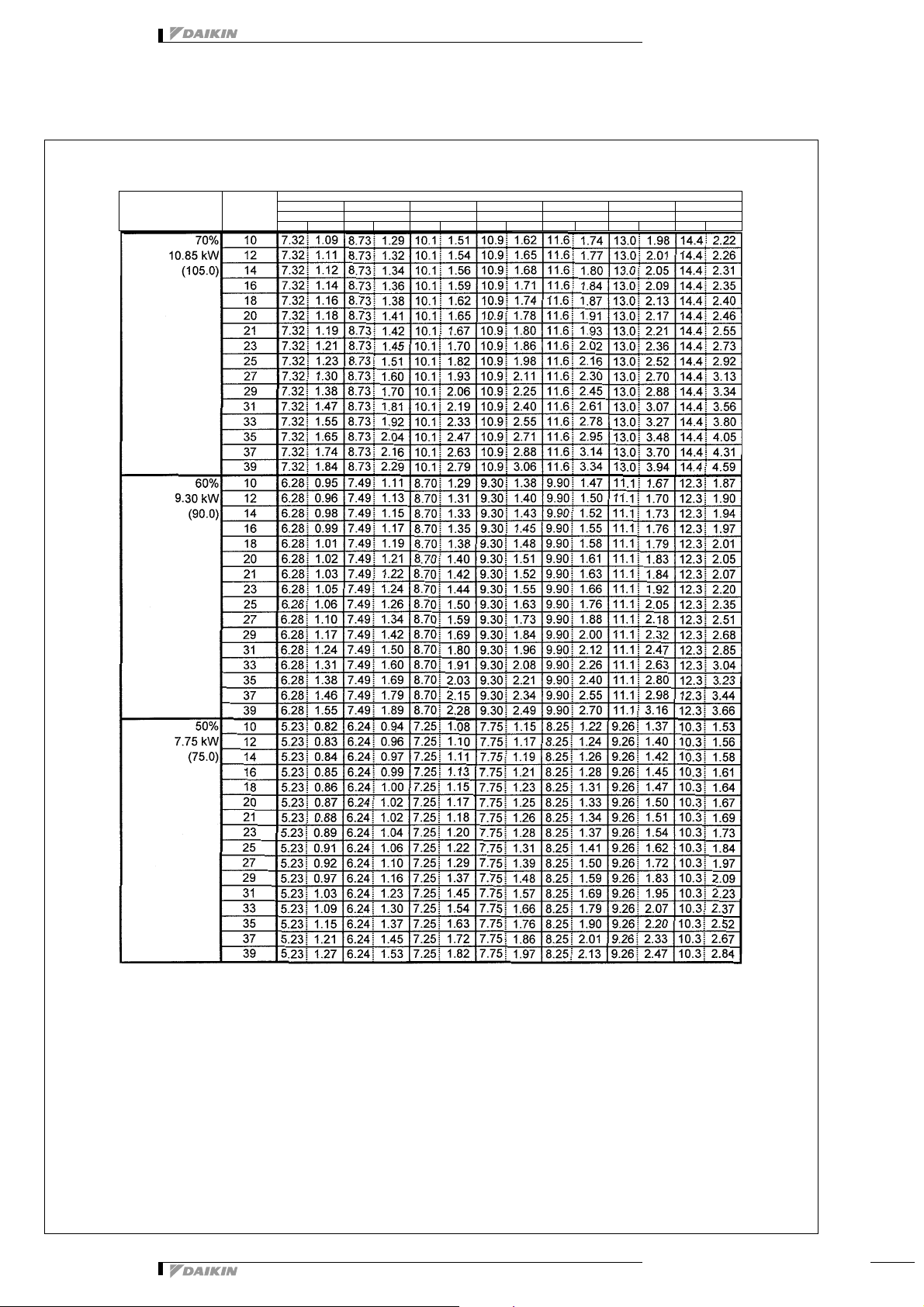

5 Capacity tables
5 - 2 Cooling capacity tables
ERQ100AV1
Cooling TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
(°CDB)
Indoor air temp. °CWB
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
4TW32002-2

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
10
5 Capacity tables
5 - 2 Cooling capacity tables
ERQ125AV1
Cooling TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
(°CDB)
Indoor air temp. °CWB
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
4TW32002-2
NOTES - ANMERKUNGEN - ƧƺƸƼǏDŽƸƼǃ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȎȏȇȋȄȖǿȌȇȞ - NOTLAR
1 The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen. die auftreten können.
 ƧDžǁƿ ƴǂƴƯƿNJ Ʋƿƴƽƴ ƴƿƴƶǂƯLJƸDžƴƼ ƺ ưDŽƺ DžƼƱ ƶƼƴ DŽdžƿƻƱƽƸǃ ǁdž ǁǂƸƲ ƿƴ ǂǁƽǎljǁdžƿ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
 DZǿȀȊȇȕǿ ȏǿȐȎȍȊȍȅȄȌȌǿȞ ȁȚȗȄ ȎȍȉǿȆȚȁǿȄȑ ȐȏȄȃȌȄȄ ȆȌǿȖȄȌȇȄ ȒȐȊȍȁȇȈ.ȉȍȑȍȏȚȄ ȋȍȂȒȑ ȌǿȐȑȒȎȇȑț.
 <XNDUÕGDNLWDEORPH\GDQDJHOHELOHFHNNRúXOODUÕQRUWDODPDGH÷erini göstermektedir.

• Air Handling Unit Connection • Heat pump 11
• Air Handling Unit Connection • ERQ-AV1
5 Capacity tables
5 - 2 Cooling capacity tables
ERQ125AV1
Cooling TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
(°CDB)
Indoor air temp. °CWB
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
4TW32002-2

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
12
5 Capacity tables
5 - 2 Cooling capacity tables
ERQ140AV1
Cooling TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
(°CDB)
Indoor air temp. °CWB
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
4TW32002-2
NOTES - ANMERKUNGEN - ƧƺƸƼǏDŽƸƼǃ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȎȏȇȋȄȖǿȌȇȞ - NOTLAR
1 The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen. die auftreten können.
 ƧDžǁƿ ƴǂƴƯƿNJ Ʋƿƴƽƴ ƴƿƴƶǂƯLJƸDžƴƼ ƺ ưDŽƺ DžƼƱ ƶƼƴ DŽdžƿƻƱƽƸǃ ǁdž ǁǂƸƲ ƿƴ ǂǁƽǎljǁdžƿ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
 DZǿȀȊȇȕǿ ȏǿȐȎȍȊȍȅȄȌȌǿȞ ȁȚȗȄ ȎȍȉǿȆȚȁǿȄȑ ȐȏȄȃȌȄȄ ȆȌǿȖȄȌȇȄ ȒȐȊȍȁȇȈ.ȉȍȑȍȏȚȄ ȋȍȂȒȑ ȌǿȐȑȒȎȇȑț.
 <XNDUÕGDNLWDEORPH\GDQDJHOHELOHFHNNRúXOODUÕQRUWDODPDGH÷erini göstermektedir.

• Air Handling Unit Connection • Heat pump 13
• Air Handling Unit Connection • ERQ-AV1
5 Capacity tables
5 - 2 Cooling capacity tables
ERQ140AV1
Cooling TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
(°CDB)
Indoor air temp. °CWB
14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB
20.0 °CDB 23.0 °CDB 26.0 °CDB 27.0 °CDB 28.0 °CDB 30.0 °CDB 32.0 °CDB
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
4TW32002-2

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
14
5 Capacity tables
5 - 3 Heating capacity tables
ERQ100AV1
Heating TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
Indoor air temp. °CWB
16.0 18.0 20.0 21.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI
°CDB °CWB kW kW kW kW kW kW kW kW kW kW kW kW
4TW32002-3
NOTES - ANMERKUNGEN - ƧƺƸƼǏDŽƸƼǃ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȎȏȇȋȄȖǿȌȇȞ - NOTLAR
1 The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen. die auftreten können.
 ƧDžǁƿ ƴǂƴƯƿNJ Ʋƿƴƽƴ ƴƿƴƶǂƯLJƸDžƴƼ ƺ ưDŽƺ DžƼƱ ƶƼƴ DŽdžƿƻƱƽƸǃ ǁdž ǁǂƸƲ ƿƴ ǂǁƽǎljǁdžƿ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
 DZǿȀȊȇȕǿ ȏǿȐȎȍȊȍȅȄȌȌǿȞ ȁȚȗȄ ȎȍȉǿȆȚȁǿȄȑ ȐȏȄȃȌȄȄ ȆȌǿȖȄȌȇȄ ȒȐȊȍȁȇȈ.ȉȍȑȍȏȚȄ ȋȍȂȒȑ ȌǿȐȑȒȎȇȑț.
 <XNDUÕGDNLWDEORPH\GDQDJHOHELOHFHNNRúXOODUÕQRUWDODPDGH÷erini göstermektedir.

• Air Handling Unit Connection • Heat pump 15
• Air Handling Unit Connection • ERQ-AV1
5 Capacity tables
5 - 3 Heating capacity tables
ERQ100AV1
Heating TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
Indoor air temp. °CWB
16.0 18.0 20.0 21.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI
°CDB °CWB kW kW kW kW kW kW kW kW kW kW kW kW
4TW32002-3

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
16
5 Capacity tables
5 - 3 Heating capacity tables
ERQ125AV1
Heating TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
Indoor air temp. °CWB
16.0 18.0 20.0 21.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI
°CDB °CWB kW kW kW kW kW kW kW kW kW kW kW kW
4TW32002-3
NOTES - ANMERKUNGEN - ƧƺƸƼǏDŽƸƼǃ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȎȏȇȋȄȖǿȌȇȞ - NOTLAR
1 The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen. die auftreten können.
 ƧDžǁƿ ƴǂƴƯƿNJ Ʋƿƴƽƴ ƴƿƴƶǂƯLJƸDžƴƼ ƺ ưDŽƺ DžƼƱ ƶƼƴ DŽdžƿƻƱƽƸǃ ǁdž ǁǂƸƲ ƿƴ ǂǁƽǎljǁdžƿ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
 DZǿȀȊȇȕǿ ȏǿȐȎȍȊȍȅȄȌȌǿȞ ȁȚȗȄ ȎȍȉǿȆȚȁǿȄȑ ȐȏȄȃȌȄȄ ȆȌǿȖȄȌȇȄ ȒȐȊȍȁȇȈ.ȉȍȑȍȏȚȄ ȋȍȂȒȑ ȌǿȐȑȒȎȇȑț.
 <XNDUÕGDNLWDEORPH\GDQDJHOHELOHFHNNRúXOODUÕQRUWDODPDGH÷erini göstermektedir.

• Air Handling Unit Connection • Heat pump 17
• Air Handling Unit Connection • ERQ-AV1
5 Capacity tables
5 - 3 Heating capacity tables
ERQ125AV1
Heating TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
Indoor air temp. °CWB
16.0 18.0 20.0 21.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI
°CDB °CWB kW kW kW kW kW kW kW kW kW kW kW kW
4TW32002-3

• Air Handling Unit Connection • ERQ-AV1
• Air Handling Unit Connection • Heat pump
18
5 Capacity tables
5 - 3 Heating capacity tables
ERQ140AV1
Heating TC: Total capacity; kW; PI: Power Input; kW (Comp. + Outdoor fan motor)
Combination %
kW
(Capacity index)
Outdoor
air temp.
Indoor air temp. °CWB
16.0 18.0 20.0 21.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI
°CDB °CWB kW kW kW kW kW kW kW kW kW kW kW kW
4TW32002-3
NOTES - ANMERKUNGEN - ƧƺƸƼǏDŽƸƼǃ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȎȏȇȋȄȖǿȌȇȞ - NOTLAR
1 The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen. die auftreten können.
 ƧDžǁƿ ƴǂƴƯƿNJ Ʋƿƴƽƴ ƴƿƴƶǂƯLJƸDžƴƼ ƺ ưDŽƺ DžƼƱ ƶƼƴ DŽdžƿƻƱƽƸǃ ǁdž ǁǂƸƲ ƿƴ ǂǁƽǎljǁdžƿ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
 DZǿȀȊȇȕǿ ȏǿȐȎȍȊȍȅȄȌȌǿȞ ȁȚȗȄ ȎȍȉǿȆȚȁǿȄȑ ȐȏȄȃȌȄȄ ȆȌǿȖȄȌȇȄ ȒȐȊȍȁȇȈ.ȉȍȑȍȏȚȄ ȋȍȂȒȑ ȌǿȐȑȒȎȇȑț.
 <XNDUÕGDNLWDEORPH\GDQDJHOHELOHFHNNRúXOODUÕQRUWDODPDGH÷erini göstermektedir.
