TECHNICAL MANUAL
Split Systems Air Conditioner
Ducted Blower H Series
FDN/FGN-H Series
— Cooling Only [50Hz] —
R410A
TM-5SBH-MSS-STA3
Supersede : TM-5SBH-MSS-STA2

Table of Contents
i
Table of Contents
Nomenclature......................................................................................................................1
Indoor ............................................................................................................................1
Outdoor..........................................................................................................................2
Product Line-Up.............................................................................................................3
Application Information .....................................................................................................5
Operating Range ...........................................................................................................5
Refrigerant Circuit Diagram ...........................................................................................6
Installation Guideline .....................................................................................................7
Sound Data........................................................................................................................15
Sound Pressure Level .................................................................................................15
Sound Power Level .....................................................................................................16
NC Curve.....................................................................................................................17
Selection Process.............................................................................................................24
Engineering & Physical Data...........................................................................................39
Performance Data.............................................................................................................43
Calculation Steps.........................................................................................................43
Performance Tables.....................................................................................................45
Outlines & Dimensions ....................................................................................................58
Wiring Diagrams ...............................................................................................................68
Service & Maintenance ....................................................................................................71
Troubleshooting ...............................................................................................................73

ii

Nomenclature
1
Nomenclature
Indoor
FD N 2002 HV1 4
Power Supply
V1: 220-240V/1Ph/50Hz
Y1: 380-415V/3Ph/50Hz
Product Series
H: H series
Capacity*
80: 80,000 Btu/hr
100: 100,000 Btu/hr
125: 125,000 Btu/hr
150: 150,000 Btu/hr
200: 200,000 Btu/hr
250: 250,000 Btu/hr
300: 300,000 Btu/hr
350: 350,000 Btu/hr
400: 400,000 Btu/hr
450: 450,000 Btu/hr
500: 500,000 Btu/hr
600: 600,000 Btu/hr
Model
FD: Ducted Blower (Ceiling mounted)
FG: Ducted Blower (Floor Mounted)
No of circuit
“ ” : 1 Circuit
“2” : 2 Circuits
“3” : 3 Circuits
“4” : 4 Circuits
Revision/Specication
Omitted: Original Version
Refrigerant:
N: R410A
Remark:
* : Capacity value under Nomenclature is an indication.
Please refer to Engineering and Physical Data for exact capacity value.
Market
“Blank”: Global Standard
4: Indonesia

Nomenclature
2
Outdoor
RC 100 E
HY1N 4
Power Supply
Y1: 380-415V/3Ph/50Hz
Specication
Omitted: Microchannel
E: E-coating Microchannel
Product Series
H: H series
Capacity*
80: 80,000 Btu/hr
100: 100,000 Btu/hr
125: 125,000 Btu/hr
150: 150,000 Btu/hr
Model
R: Modular Condensing Unit (Horizontal Discharge)
RC: Modular Condensing Unit (Vertical Discharge)
Revision/Specication
Omitted: Original Version
Refrigerant
N: R410A
Remark:
* : Capacity value under Nomenclature is an indication.
Please refer to Engineering and Physical Data for exact capacity value.
Market
“Blank”: Global Standard
4: Indonesia

Nomenclature
3
Product Line-Up
Indoor Unit
FDN/FGN-H
Nomenclature
Classication
Control Module Fin Handset Refrigerant Control Air Filter Air Discharge Orientation
L208A SB125_MR1 SQMB01 Hydrophilic Blue Coated BRC51A62 BRC51A64 BRC51D64 TXV R15 Synthetic Filter Horizontal & Convertible Horizontal & Not Convertible Vertical & Convertible Vertical & Not Convertible
COOLING
FDN80HV1(4) X X X X X X
FDN100HV1(4) X X X X X X
FDN125HY1(4) X X X X X X
FDN150HY1(4) X X X X X X
2FDN200HY1(4) X X X X X
2FGN250HY1(4) X X X X X
2FGN300HY1(4) X X X X X
3FGN300HY1(4) X X X X X
3FGN350HY1(4) X X X X X
4FGN400HY1(4) X X X X X
3FGN450HY1(4) X X X X X
4FGN500HY1(4) X X X X X
4FGN600HY1(4) X X X X X

Nomenclature
4
Outdoor Unit
RN/RCN-H
Nomenclature
Classication
Control Heat Exchanger Compressor Air Discharge Orientation
With Contactor With HP/LP Switch/Sensor PSV 2.0 Microchannel Microchannel (E-coating) Scroll Horizontal & Not Convertible Vertical & Convertible
COOLING
RN80HY1(4) X X X X X X
RCN100HY1(4) X X X X X X
RCN125HY1(4) X X X X X X
RCN150HY1(4) X X X X X X
RN80HEY1(4) X X X X X X
RCN100HEY1(4) X X X X X X
RCN125HEY1(4) X X X X X X
RCN150HEY1(4) X X X X X X

5
Application Information
Application Information
Operating Range
Ensure the operating temperature is in allowance range.
Cooling
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
DB (°C)
46
19
2314 Indoor WB (°C)
43
Cooling Operation Range
DB: Dry Bulb
WB: Wet Bulb

6
Application Information

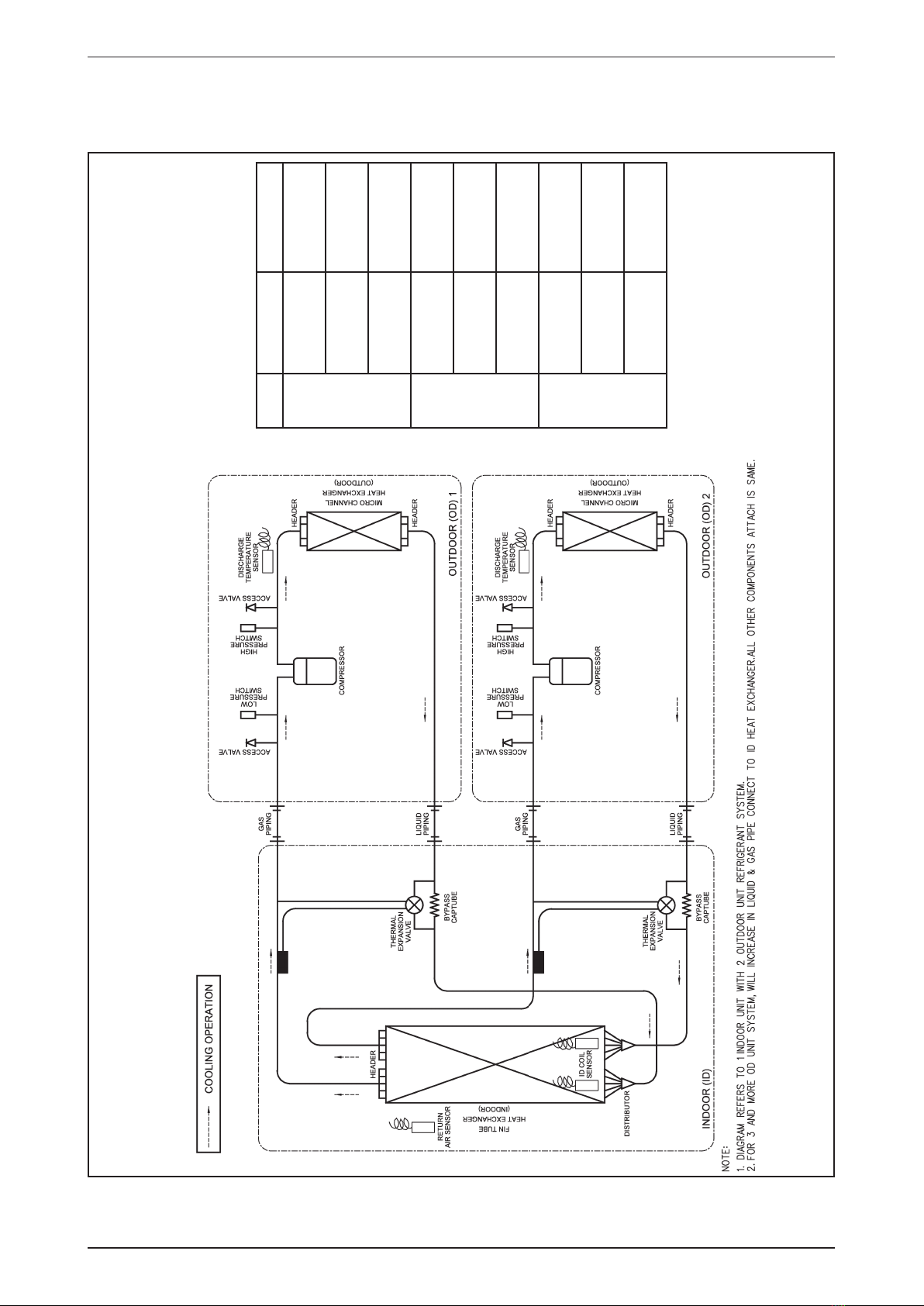

Refrigerant Circuit Diagram
Cooling Only
Outdoor
RCN100HY1 x 2 RCN125HY1 x 2 RCN150HY1 x 2 RCN150HY1 x 3 RCN100HY1 x 1 RCN125HY1 x 2 RCN150HY1 x 3 RCN100HY1 x 4 RCN125HY1 x 4 RCN150HY1 x 4
Indoor
2FDN200HY1 2FGN250HY1 2FGN300HY1 3FGN300HY1 3FGN350HY1 3FGN450HY1 4FGN400HY1 4FGN500HY1 4FGN600HY1
System
1 IDU
2 ODU
1 IDU
3 ODU
1 IDU
4 ODU

7
Application Information
Installation Guideline
INDOOR
PRELIMINARY SITE SURVEY
a) Electrical supply and installation is to conform to local authority’s (e.g. National Electricity Board) codes
and regulations.
b) Voltagesupplyuctuationmustnotexceed+/-10%ofratedvoltage.Electricitysupplylinemustbe
independentofweldingtransformerswhichcancausesupplyuctuation.
c) Ensure that the location is convenient for wiring and piping.
MOUNTING
a) For ceiling mounted models, locate a position where piping and ducting work can be kept to a minimum.
Ensure that overhead supports are strong enough to hold the unit’s weight. Position hanger rods and
check for alignment with the unit. Check that hangers are secure and that the base of fan-coil unit is level
in two horizontal directions.
DRAINAGE PIPE SIDE
PIPINGS
Do not use contaminated or damaged copper tubings. If pipings, evaporator or condenser are exposed or
hadbeenopenedfor15secondsormore,vacuumandpurgewitheldsuppliedrefrigerant.Generally,do
notremoveplastic/rubberplugs/capsfromttings,tubingsandcoilsuntilreadytoconnectsuctionorliquid
lineintottings.
OPERATIONAL CHECK
After all electrical wiring is completed and the system is charged with refrigerant, make sure unit is operating
properly. Check that:
a) Condenser fans are running, with warm air blowing off the condenser coil.
b) Evaporator blowers are running and discharging cool air.
c) Suction line inside condensing unit feels cool.
d) Liquidlineinsidecondensingunitfeelswarm.
ELECTRICAL CONNECTION
As wiring regulations differ from country to country, please refer to your LOCAL ELECTRICAL CODES for
eldwiringregulationsandensurethatthesearecompliedwith.Besides,observethefollowinggeneral
precautions:
a) Ensure that the rated voltage of the unit corresponds to that of the name plate before commencing wiring
work.
b) Provide a power outlet to be used exclusively for each unit. A power supply disconnect and a circuit
breaker for over-current protection should be provided in the exclusive line.
c) The unit must be GROUNDED to prevent possible hazard due to insulation failure.
d) Allwiringmustbermlyconnected.
e) Electrical wiring must not touch the refrigerant piping, compressor and any moving parts of the fan
motors.

8
Application Information

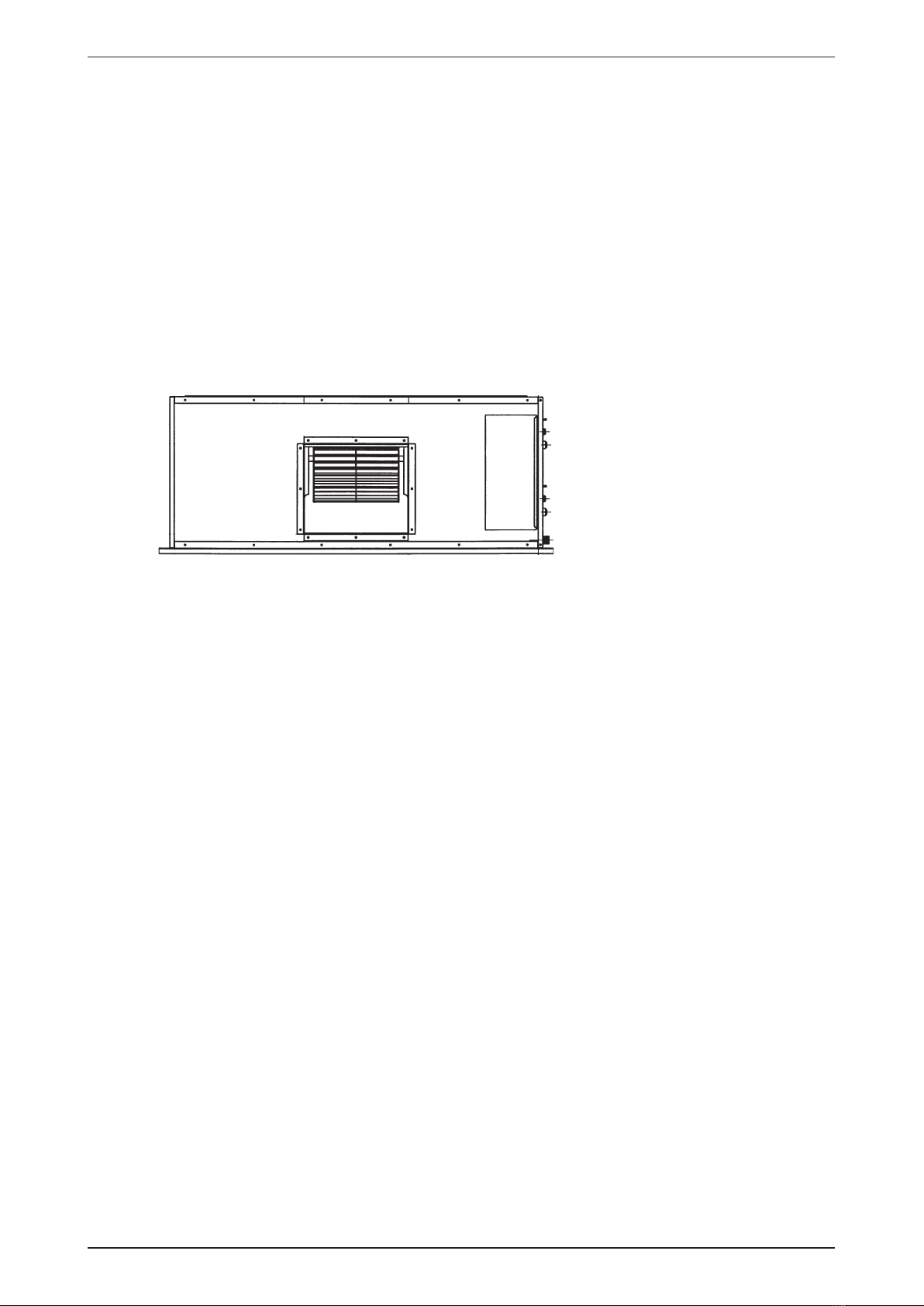

INDOOR CLEARANCE
Mounting
Ensure that the overhead supports are strong enough to hold the unit’s weight. Position hanger rods and
check for alignment with the unit. Check that hangers are secure and that the base of fan-coil unit is level in
thetwohorizontaldirections,takingintoaccountthegradientrecommendedfordrainageowasshown.
Checkthegradientrecommendedfordrainageowasfollow.
Provideclearanceforservicingandoptimalairowasshowninthediagram.
The indoor unit must be installed such that there is no short circuit of cool discharge with air discharge.
Respect the installation clearance.
Do not put the indoor unit where there is direct sunlight on unit. The location is suitable for piping and
drainage and it must be have a large distance between a door and unit.
10.0
A
Vertical air discharge (250H-600H)Horizontal air discharge (125H - 200H)
A
B
D
A
C
B
All dimensions in mm
*for free return of air
50mm
300mm
300mm*
500mm
300mm
Model FDN80/100HV1 FDN125/150HY1/
2FDN200HY1
2FGN250/300HY1
/3FGN350HY1
4FGN400/500/600HY1
/3FGN450HY1
A (mm) 800 800 800 800
B (mm) 800 800 800 800
C (mm) - - 800 800
D (mm) - - 1000 1500

9
Application Information
OUTDOOR

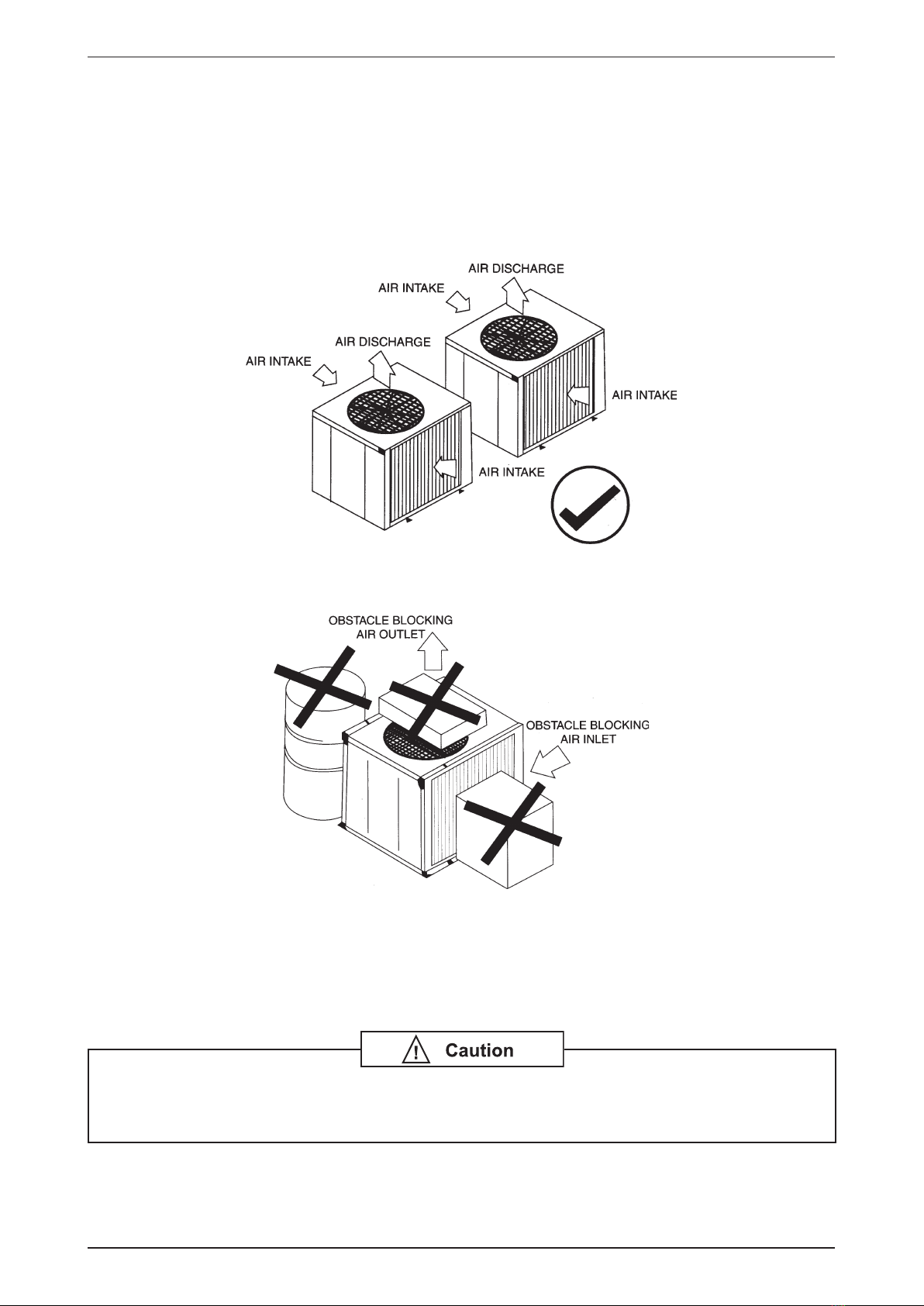

LOCATION FOR INSTALLATION OF THE CONDENSING UNITS
As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to
achievemaximumcoolingcapacity,thelocationselectedshouldfulllthefollowingrequirements:-
a) Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit
cannotbedrawninagain(asinthecaseofshortcircuitofhotdischargeair).Allowsufcientspacefor
maintenance around the unit.
b) Ensurethatthereisnoobstructionofairowintooroutoftheunit.Removeobstaclewhichblockair
intake or discharge.
c) The location must be well ventilated, so that the unit can draw and distribute plenty of air thus lowering
the condensing temperature.
d) A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
e) A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.
f) A place where the hot air discharge and operating sound level will not annoy the neighbours.
g) The location must not be susceptible to dust or oil mist.
If the condensing unit is operated in an atmosphere containing oils (including machine
oils), salt (coastal area), sulphide gas (near hot spring, oil renery plant), such as
substances may lead to failure of the unit.

10
Application Information
OUTDOOR CLEARANCE
PATTERN 1
TOP VIEW
300
300 600
1200
TOP VIEW
PATTERN 2
RN80HY1
RCN100/125/150HY1 VERTICAL RCN100/125/150HY1 HORIZONTAL
SERVICE PANEL
AIR DISCHARGE
DIRECTION
WALL / CEILING
AIR DISCHARGE GRILL
NOTE :
1) ALL DIMENSION ARE IN MM.
2) ALL DIMENSION MENTIONED ARE
MINIMUM DISTANCE REQUIRED.
UNLESS OTHERWISE SPECIFIED.
SINGLE UNIT
PATTERN 1 PATTERN 2
PATTERN 3
TOP VIEW TOP VIEW
FRONT VIEW
SIDE VIEW
600
300100
300
100
300
600
1500
<1500
1500
PATTERN 1
300
600 300
TOP VIEWTOP VIEW
1500
PATTERN 2
Unit Lifting
LEFT BY PALLET TRUCK/FOKLIFT
LEFT BY CRANE USING BELT
CONNECT TO 4 CORNER HOIST BRACKET
REMOVE THE TOP CRATE
Step 1 Step 2
a) By pallet truck / fork lift
b) By crane

11
Application Information
Cable Size
Cooling only
Model Unit FDN80HV1 FDN100HV1
RN80HY1 RCN100HY1
Voltage range**
Indoor 220-240V/1Ph/50Hz+
Outdoor 380-415V/3Ph/50Hz+N+
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
1.0
2.5
2.5
-
5.0
1.0
2.5
2.5
-
5.0
Interconnection cable size*
Number of conductors
mm21.0
4.0
1.0
4.0
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
6.0
32.0
32.0
16.0
32.0
40.0
Model Unit FDN125HY1 FDN150HY1 2FDN200HY1
RCN125HY1 RCN150HY1 RCN100HY1 x 2
Voltage range**
Indoor 380-415V/3Ph/50Hz+N+
Outdoor 380-415V/3Ph/50Hz+N+
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
1.0
4.0
4.0
3.0
5.0
1.0
10.0
10.0
3 .0
5.0
1.0
2.5
-
5.0
5.0
Interconnection cable size*
Number of conductors
mm21.0
4.0
1.0
4.0
1.0
1.0
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
4.0
40.0
40.0
6.0
50.0
50.0
10.0
32.0
-

12
Application Information
Model Unit 2FGN250HY1 2FGN300HY1 3FGN300HY1
RCN125HY1 x 2 RCN150HY1 x 2 RCN100HY1 x 3
Voltage range**
Indoor 380-415V/3Ph/50Hz+N+
Outdoor 380-415V/3Ph/50Hz+N+
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
1.0
4.0
-
5.0
5.0
1.0
10.0
-
5.0
5.0
1.0
2.5
-
5.0
5.0
Interconnection cable size*
Number of conductors
mm21.0
1.0
1.0
1.0
1.0
1.0
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
16.0
40.0
-
16.0
50.0
-
16.0
40.0
-
Model Unit
3FGN350HY1 3FGN350HY1 4FGN400HY1
RCN100HY1 RCN125HY1x 2 RCN100HY1 x 4
Voltage range**
Indoor 380-415V/3Ph/50Hz+N+
Outdoor 380-415V/3Ph/50Hz+N+
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
1.0
2.5
-
5.0
5.0
1.0
4.0
-
5.0
5.0
1.0
2.5
-
5.0
5.0
Interconnection cable size*
Number of conductors
mm21.0
1.0
1.0
1.0
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
16.0
32.0
-
16.0
40.0
-
20.0
32.0
-

13
Application Information
Model Unit 3FGN450HY1 4FGN500HY1 4FGN600HY1
RCN150HY1 x 3 RCN125HY1 x 4 RCN150HY1 x 4
Voltage range**
Indoor 380-415V/3Ph/50Hz+N+
Outdoor 380-415V/3Ph/50Hz+N+
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
2.5
10.0
-
5.0
5.0
4.0
4.0
-
5.0
5.0
4.0
10.0
-
5.0
5.0
Interconnection cable size*
Number of conductors
mm21.0
1.0
1.0
1.0
1.0
1.0
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
20.0
50.0
-
32.0
40.0
-
32.0
50.0
-
IMPORTANT:
* These values are for information only. They should be checked and selected to
comply with local and/or national codes and regulations.
They are also subject to the type of installation and size of conductors.
** The appropriate voltage range should be checked with label data on the unit.

14
Application Information
REFRIGERANT PIPING
Maximum Piping Length and Maximum Number of Bends
When the pipe length becomes too long, both the capacity and reliability will drop and as the number of
bendsincreases,systempipingresistancetotherefrigerantowincreases,thusloweringthecooling
capacity. As a result the compressor may become defective. Always choose the shortest path and follow the
recommendation as tabulated below:
Cooling Only Model
Outdoor RN80HY1/RCN100/125/150HY1
Maximum Allowable Length, m 75
Maximum Allowable Elevation, m 30
Equivalentlengthforvarioustting(meter)
Pipe Size L joint Trap bend
3/8” (OD 9.52mm) 0.18 1.30
1/2” (OD 12.70mm) 0.20 1.50
5/8” (OD 15.88mm) 0.25 2.00
3/4” (OD 19.05mm) 0.35 2.40
7/8” (OD 22.23mm) 0.40 3.00
1” (OD 25.40mm) 0.45 3.40
1 1/8” (OD 28.58mm) 0.50 3.70
1 3/8” (OD 34.92mm) 0.60 4.40
Notes:
1. Equivalentpipinglengthisobtainedwithactuallengthofgaspiping.
2. 90°bendofpipingisequivalenttoLjoint.
Bending must be carefully made so as not to crush the pipe.
Use a pipe bender to bend a pipe where possible.
Our guarantee on the performance of our air-conditioners is strictly revoked if the height
and/or length of the refrigerant piping system installed is beyond the limit above.
Additional Charge
For Brazed type, if the piping is less than 7.5m, follow the charge level on serial number sticker. When the
piping is more than 7.5m, use the table below.
R410A
LiquidPipeOD(in) Additional Charge (kg/m)
1/2’’ 0.08
5/8’’ 0.14
NOTE:
The additional refrigerant charge amount recommended is a guideline for long piping
application. The actual charge required may be different from the guideline due to different
application and variation in site condition.
CAUTION

15
Sound Data
Sound Data
Sound Pressure Level
Indoor
Model Speed 1/1 Octave Sound Pressure (dB, ref 20μPa) Overall
(dBA)
Noise
Criteria
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
FDN80HV1
High 57 48 50 45 46 40 29 53 47
Med 55 48 51 45 46 39 28 52 47
Low 60 47 50 44 45 38 27 51 46
FDN100HV1
High 64 54 52 48 48 42 34 55 50
Med 64 53 51 47 48 42 33 54 50
Low 64 52 50 45 48 41 32 53 50
FDN125HY1 High 53 52 53 46 43 39 28 53 49
FDN150HY1 High 54 54 56 48 45 41 32 55 53
2FDN200HY1 High 58 60 60 55 54 48 32 61 57
2FGN250HY1 High 62 57 59 59 57 52 42 63 58
2FGN300HY1/
3FGN300HY1 High 66 60 62 61 59 54 44 66 60
3FGN350HY1 High 67 60 62 62 59 54 44 66 61
4FGN400HY1 High 67 64 63 63 59 54 45 66 62
3FGN450HY1 High 68 64 65 63 60 55 46 68 62
4FGN500HY1 High 69 66 66 64 61 56 47 68 63
4FGN600HY1 High 70 68 68 66 62 57 48 70 65
Indoor Model Measuring Location
FDN80HV1
FDN100HV1
FDN125HY1
FDN150HY1
2FDN200HY1
2m discharge duct length
1m return duct length
UNIT
1.5m
Microphone position:
1.5m below centre of the unit.
(Tested with 2m length duct at the air discharge outlet and 1m length air return inlet)
Standard: JIS B 8615

16
Sound Data
Indoor Model Measuring Location
2FGN250HY1
2FGN300HY1
3FGN300HY1
3FGN350HY1
4FGN400HY1
3FGN450HY1
4FGN500HY1
4FGN600HY1
1m
2m discharge duct length
1m
UNIT
Free return duct
Microphone position:
1mawayfromeverysidepaneloftheunitand1mabovetheoorlevel.
(Tested with 2m length duct at the air discharge outlet only)
Standard: JIS B 8615
Sound Power Level
Model Speed 1/1 Octave Sound Power Level (dB) ref 1pW Overall
(dBA)
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
*FDN80HV1
High 68 67 70 69 64 62 54 73
Med 69 64 68 68 61 59 60 70
Low 66 62 66 63 58 56 46 67
*FDN100HV1
High 74 72 74 73 66 65 59 77
Med 73 70 73 71 64 62 55 75
Low 70 68 71 68 60 59 49 72
*FDN125HY1 High 75 76 78 70 69 62 58 78
*FDN150HY1 High 74 77 78 75 72 69 63 80
*2FDN200HY1 High 83 84 83 81 77 73 68 85
2FGN250HY1 High 85 86 85 83 79 75 70 87
2FGN300HY1/
3FGN300HY1 High 87 88 87 85 81 77 72 89
3FGN350HY1 High 90 91 90 87 84 80 75 92
4FGN400HY1 High 88 89 88 86 82 78 73 90
3FGN450HY1 High 91 92 91 89 85 81 76 93
4FGN500HY1 High 94 95 94 92 88 84 79 96
4FGN600HY1 High 87 88 87 85 81 77 72 89
*Remarks:Testwith5ftlengthdischargeduct,terminatedushwiththeinternalwallofreverberationroom.
