Daikin RE09JV2S User manual

REMOVAL
PROCEDURE
SERVICE MANUAL
9000 Btu/h Class
Outdoor Unit
Non-Inverter
Pair Type
Si01-982

Service Manual
Removal Procedure
Outdoor Unit
zCooling Only
RE09JV2S

Si01-982
Removal Procedure 1
Table of Contents
1. Removal of Outer Panels ........................................................................2
2. Removal of Outdoor Fan / Fan Motor .....................................................4
3. Removal of Electrical Components .........................................................7
4. Removal of Sound Blankets..................................................................12
5. Removal of Capillary Tube....................................................................13
6. Removal of Compressor ASSY.............................................................14

Removal of Outer Panels Si01-982
2Removal Procedure

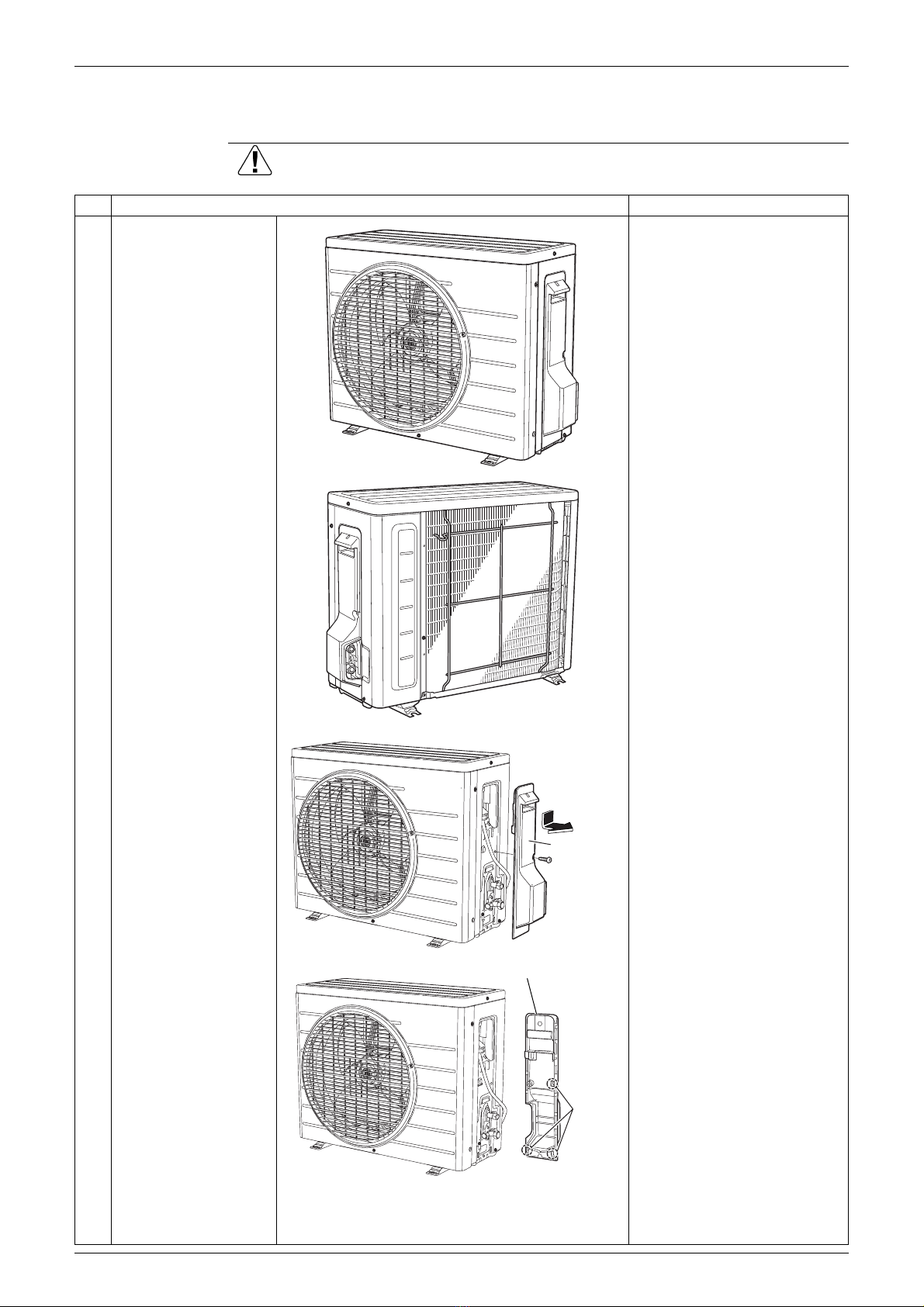

1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Appearance features
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
2Remove the screw of
the stop valve cover.
Pull down and remove
the stop valve cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 3 hooks.
(R10742)
(R10743)
(R15456)
Stop valve
cover
(R15457)
Shield plate
Hook

Si01-982 Removal of Outer Panels
Removal Procedure 3

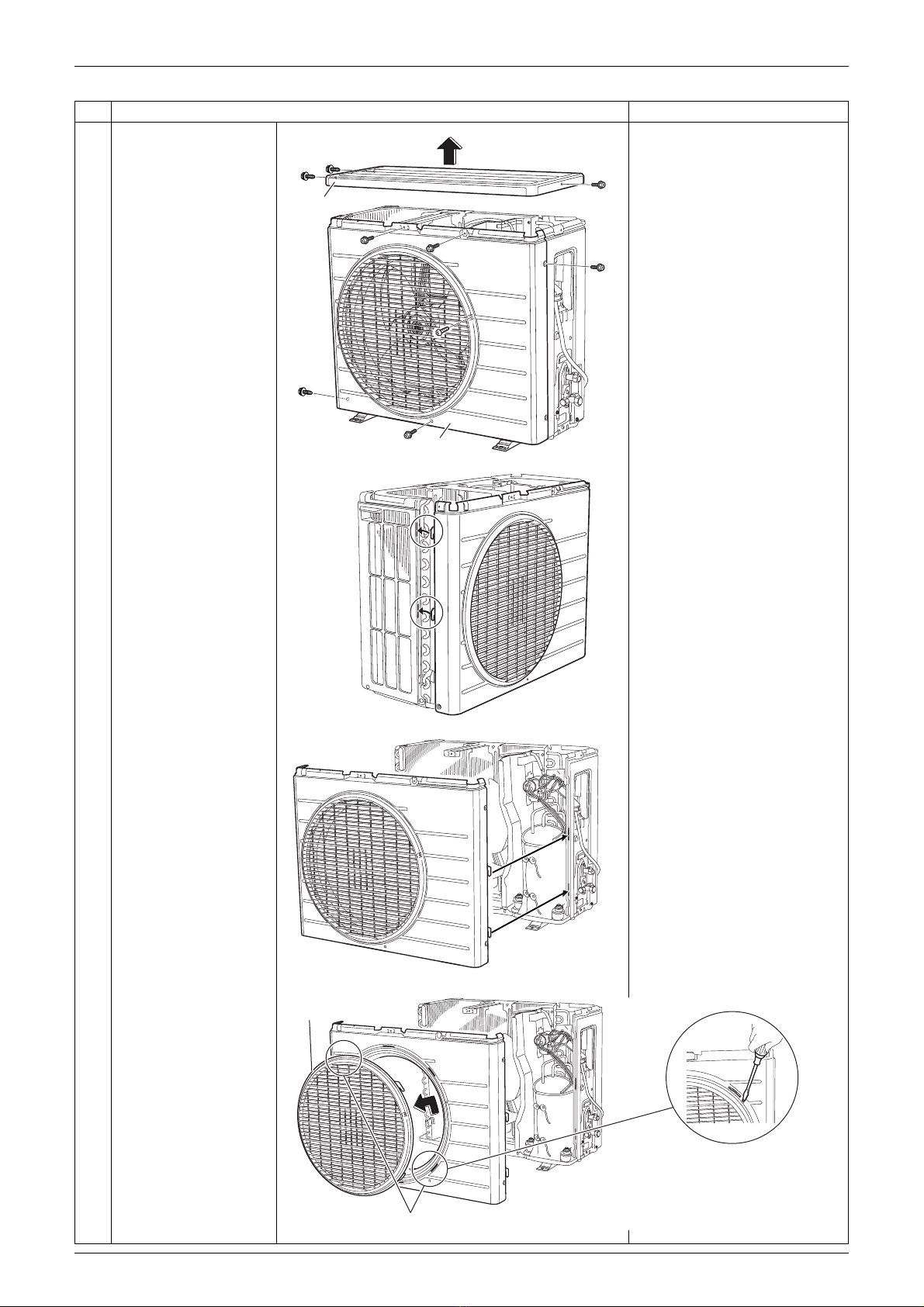

3Remove the 3 screws
(left: 2 screws, right: 1
screw) and lift the top
panel from the rear side
at first.
4Remove the 6 screws
of the front panel.
5Lift up the left side and
unfasten the hooks.
6Release the right side
hooks and remove the
front panel.
7The discharge grille has
2 projections to prevent
its rotation. Press the
projection from the rear
side and rotate the
discharge grille to
remove it.
Step Procedure Points
Top panel
Front panel
(R15458)
(R10450)
(R15216)
Projection (rear side) (R15217)
Discharge grille

Removal of Outdoor Fan / Fan Motor Si01-982
4Removal Procedure
2. Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Remove the nut of the
outdoor fan.
Nut size: M6
Align the mark of the
outdoor fan with the D-cut
section of the motor shaft
when reassembling.
2Remove the outdoor
fan.
3Cut the clamp.
(R15202)
Outdoor fan
10 mm
(R17447)
(R15218)
D-cut
Shaft
Clamp
(R15203)

Si01-982 Removal of Outdoor Fan / Fan Motor
Removal Procedure 5
4Pull out the terminal
(black) from the
terminal board X1M (2).
Terminal board (X1M)
Fan capacitor (C2R)
5Pull out the 2 terminals
(red, white) from the fan
capacitor (C2R).
6Release the fan motor
lead wire from the
groove.
7Remove the screw to
detach the fan motor
fixing frame.
Put the fan motor lead wire
through the back of the fan
motor when reassembling so
as not to be entangled with
the outdoor fan.
Step Procedure Points
(R15223)
Terminal board
Fan capacitor
(R17184)
to fan motor
upper: black
C2R
to fan motor:
white
(R17455)
to fan motor:
red
to terminal board
X1M (1_upper): red
(R15204)
Fan motor lead wire
(R15205)
Fan motor fixing frame
(R3249)
Lead wire Outdoor fan

Removal of Outdoor Fan / Fan Motor Si01-982
6Removal Procedure

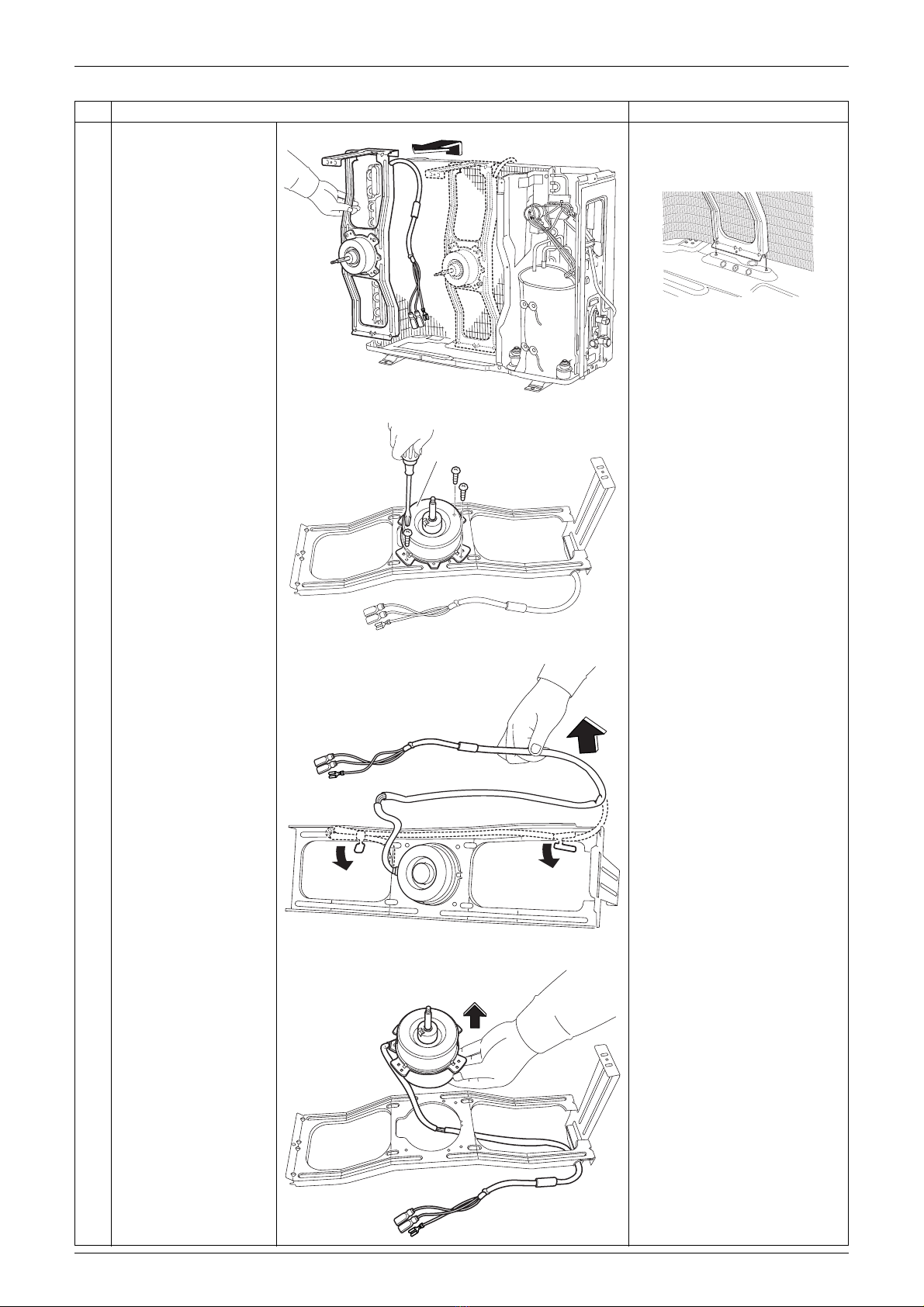

8Remove the fan motor
fixing frame.
When reassembling, fit the
lower hooks into the bottom
frame.
9Remove the 3 screws
and remove the fan
motor.
M4 × 16
10 Release the harness
from the hooks.
11 Remove the fan motor.
Step Procedure Points
(R15206)
(R10460)
(R10461)
Fan motor
(R15207)
(R15208)

Si01-982 Removal of Electrical Components
Removal Procedure 7

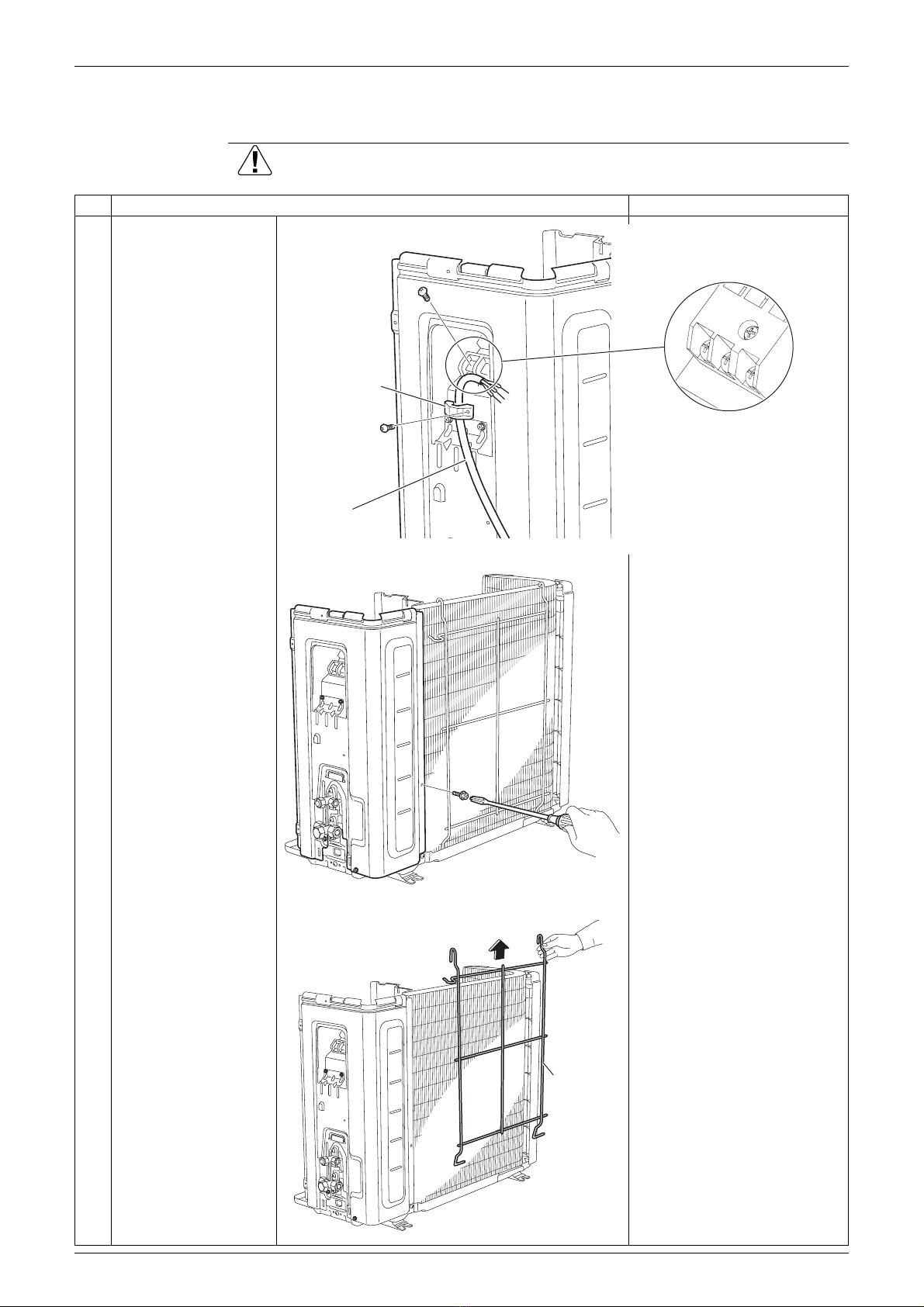

3. Removal of Electrical Components
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Remove the 3 screws
and disconnect the
connecting wire.
2Remove the screw and
remove the wire clamp.
3Remove the screw on
the rear side.
4Lift up the guard net
and remove it.
(R15220)
Wire clamp
Connecting wire
(R15219)
Guard net
(R15221)

Removal of Electrical Components Si01-982
8Removal Procedure
5Remove the 4 screws
on the right side.
6Unfasten the hook of
the right side panel.
When reassembling, make
sure to fit the hook.
7Remove the right side
panel.
Step Procedure Points
(R15222)
(R10467)
Right side panel
(R15209)

Si01-982 Removal of Electrical Components
Removal Procedure 9
8Remove the screw of
the terminal board.
9Detach the fixing plate.
10 Remove the screw of
the earth wire.
11 Cut the clamp.
Step Procedure Points
(R15210)
Terminal board
(R15211)
Fixing plate
(R17148)
Earth
wire
(R15213)
Clamp

Removal of Electrical Components Si01-982
10 Removal Procedure
12 Pull out the 3 terminals
from the compressor
capacitor (C1R).
Fan capacitor (C2R)
13 Pull out the terminal
(red) from the fan
capacitor (C2R).
14 Pull out the harnesses
from the terminal board.
Step Procedure Points
(R15225)
Compressor capacitor
(R16375)
C2R
to terminal board
X1M(1): red
(R15214)
Fan capacitor
(R16548)
Terminal board

Si01-982 Removal of Electrical Components
Removal Procedure 11
15 Remove the 2 screws
to loosen the capacitor
fixing band.
16 Remove the
compressor capacitor.
17
Step Procedure Points
(R15374)
Capacitor
fixing band
(R15357)
(R16832)
Earth wire
X1M
C1R
C2R
X1M (1): red
Compressor
(S terminal): yellow
Compressor
(R terminal): red
Lower
C2R: red
SECT. A-A
A
A
X1M
Upper
Compressor (C terminal): blue
Fan motor: black
Earth wire
(R17456)
X1M (1)
X1M (2)
X1M (Earth)
C1R: red
C1R: compressor capacitor
C2R: fan capacitor
Layout of the electrical
components

Removal of Sound Blankets Si01-982
12 Removal Procedure
4. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Untie the 2 strings and
open the sound blanket
(body).
Preparation
Remove the outer panels
according to the “Removal of
Outer Panels”.
Remove the terminal board
and fixing plate according to
the “Removal of Electrical
Components”.
2Remove the sound
blanket (body).
Since the piping ports on the
sound blanket are torn
easily, remove the sound
blanket carefully.
(R10479)
Sound blanket
(R10480)
(R10481)

Si01-982 Removal of Capillary Tube
Removal Procedure 13
5. Removal of Capillary Tube
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
Before working, make
sure that the refrigerant
gas is empty in the circuit.
Be sure to apply nitrogen
replacement when
heating up the brazed
part.
Warning
Be careful not to get yourself
burnt with the pipes and other
parts that are heated by the
gas brazing machine.
Warning
If the refrigerant gas leaks
during work, ventilate the
room. (If the refrigerant gas is
exposed to flames, toxic gas
may be generated.)
Caution
From the viewpoint of global
environment protection, do
not discharge the refrigerant
gas in the atmosphere. Make
sure to collect all the
refrigerant gas.
Cautions for restoration
1. Restore the piping by non-
oxidation brazing.
2. Avoid excessive heating.
(Keep below 120°C)
In case of difficulty with gas
brazing machine
1. Disconnect the brazed part
where is easy to disconnect
and restore.
2. Cut pipes on the main unit
with a tube cutter in order to
make it easy to disconnect.
1 Remove the putty. Heat
up the 2 brazed parts
and remove the
capillary tube.
Note:
Do not use a metal saw
for cutting pipes by all
means because the
sawdust comes into the
circuit.
When withdrawing the
pipes, be careful not to
pinch them firmly with
pliers. The pipes may get
deformed.
Provide a protective sheet
or a steel plate so that the
brazing flame cannot
influence peripheries.
Be careful so as not to
burn the compressor
terminals, the name plate,
the heat exchanger fin.
Brazed part
Capillary tube
(R18594)
Putty
(R18595)

Removal of Compressor ASSY Si01-982
14 Removal Procedure
6. Removal of Compressor ASSY
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

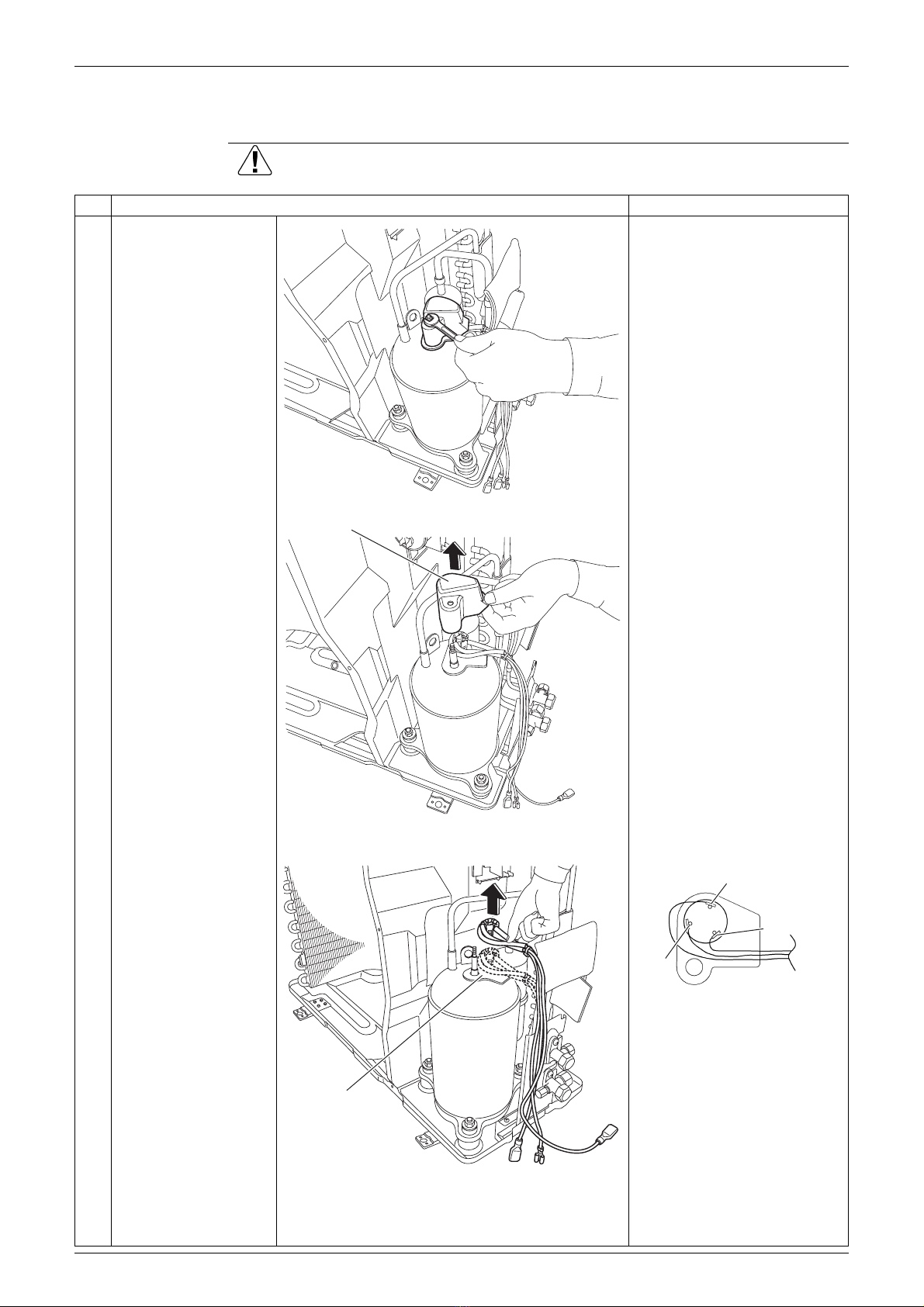

1Remove the nut.
2Remove the terminal
cover.
3Disconnect the
compressor lead wires.
S (W): yellow
C (U): blue
R (V): red
4Remove the gasket.
(R10482)
(R10483)
Terminal cover
(R17179)
Gasket
(R15375)
C (U)
R (V)
S (W)

Si01-982 Removal of Compressor ASSY
Removal Procedure 15
5Unscrew the 3 nuts of
the compressor. Warning
Be careful not to get yourself
burnt with the pipes and other
parts that are heated by the
gas brazing machine.
Warning
If the refrigerant gas leaks
during work, ventilate the
room. (If the refrigerant gas is
exposed to flames, toxic gas
may be generated.)
Warning
Since it may happen that the
refrigerant oil in the
compressor catches fire,
prepare wet cloth so as to
extinguish fire immediately.
Caution
From the viewpoint of global
environment protection, do
not discharge the refrigerant
gas in the atmosphere. Make
sure to collect all the
refrigerant gas.
Cautions for restoration
1. Restore the piping by non-
oxidation brazing.
2. Avoid excessive heating.
(Keep below 120°C)
In case of difficulty with gas
brazing machine
1. Disconnect the brazed part
where is easy to disconnect
and restore.
2. Cut pipes on the main unit
with a tube cutter in order to
make it easy to disconnect.
Before working, make
sure that the refrigerant
gas is empty in the circuit.
Be sure to apply nitrogen
replacement when
heating up the brazed
part.
6
7
Heat up the brazed part
of the discharge side
and disconnect.
Heat up the brazed part
of the suction side and
disconnect.
8Lift the compressor
ASSY up and remove it.
Note:
Do not use a metal saw
for cutting pipes by all
means because the
sawdust comes into the
circuit.
When withdrawing the
pipes, be careful not to
pinch them firmly with
pliers. The pipes may get
deformed.
Provide a protective sheet
or a steel plate so that the
brazing flame cannot
influence peripheries.
Be careful so as not to
burn the compressor
terminals, the name plate,
the heat exchanger fin.
Step Procedure Points
(R10485)
(R15201)
Suction
side
Discharge side
(R15470)
Compressor
ASSY

Revision History
Month / Year Version Revised contents
02 / 2013 Si01-982 First edition

Head Office:
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
Tokyo Office:
JR Shinagawa East Bldg., 2-18-1, Konan,
Minato-ku, Tokyo, 108-0075 Japan
http://www.daikin.com/global_ac/
All rights reserved
c
Warning
zDaikin products are manufactured for export to numerous countries throughout the world. Prior to
purchase, please confirm with your local authorised importer, distributor and/or retailer whether this
product conforms to the applicable standards, and is suitable for use, in the region where the product
will be used. This statement does not purport to exclude, restrict or modify the application of any local
legislation.
zAsk a qualified installer or contractor to install this product. Do not try to install the product yourself.
Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion.
zUse only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or
contractor to install those parts and accessories. Use of unauthorised parts and accessories or
improper installation of parts and accessories can result in water or refrigerant leakage, electrical
shock, fire or explosion.
zRead the User's Manual carefully before using this product. The User's Manual provides important
safety instructions and warnings. Be sure to follow these instructions and warnings.
If you have any enquiries, please contact your local importer, distributor and/or retailer.
Cautions on product corrosion
1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced.
2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided. If you need to install
the outdoor unit close to the sea shore, contact your local distributor.
Dealer
z
Specifications, designs and other content appearing in this brochure are current as of February 2013 but subject to change without notice.
Si01-982
02/2013 AK.B
