Daikin RZQ-DV1 User manual

technical data
Split
Sky Air
air conditioning systems
RZQ-DV1
EEDEN09-100

Split - Sky Air
EEDEN09-100 - 01/2009 Printed in Belgium by Goekint Graphics Copyright ©Daikin
Naamloze Vennootschap
Zandvoordestraat 300
B-8400 Ostend, Belgium
www.daikin.eu
BTW: BE 0412 120 336
RPR Oostende
Het ISO14001 assures an effective
environmental management system in order to
help protect human health and the
environment from potential impact of our
activities, products and services and to assist in
maintaining and improving the quality of the
environment.
Daikin Europe N.V. is approved by LRQA for its
Quality Management System in accordance
with the ISO9001 standard. ISO9001 pertains
to quality assurance regarding design,
development, manufacturing as well as to
services related to the product.
Daikin units comply with the European
regulations that guarantee the safety of the
product.
Daikin Europe N.V. participates in the Eurovent
Certification Programme for Air Conditioners
(AC), Liquid Chilling Packages (LCP) and Fan Coil
Units (FC); the certified data of certified models
are listed in the Eurovent Directory.
Daikin’s unique position as a man-
ufacturer of air conditioning equip-
ment, compressors and refrige-
rants has led to its close involve-
ment in environmental issues. For
several years Daikin has had the in-
tention to become a leader in the
provision of products that have
limited impact on the environ-
ment. This challenge demands the
eco design and development of a
wide range of products and an en-
ergy management system, result-
ing in energy conservation and a
reduction of waste.
“ The present publication is drawn up by way of information only
and does not constitute an offer binding upon Daikin Europe N.V..
Daikin Europe N.V. has compiled the content of this publication to
the best of its knowledge. No express or implied warranty is given
for the completeness, accuracy, reliability or fitness for particular pur-
pose of its content and the products and services presented therein.
Specifications are subject to change without prior notice. Daikin Eu-
rope N.V. explicitly rejects any liability for any direct or indirect dam-
age, In the broadest sense, arising from or related to the use and/or
interpretation of this publication. All content is copyrighted by Daikin
Europe N.V..”
EEDEN09- 100

technical data
Split
Sky Air
air conditioning systems
RZQ-DV1
EEDEN09-100

• Split Sky Air • Outdoor Units 4
• Outdoor Units • R-410A • RZQ-DV1
TABLE OF CONTENTS
RZQ-DV1
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Nominal Capacity and Nominal Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

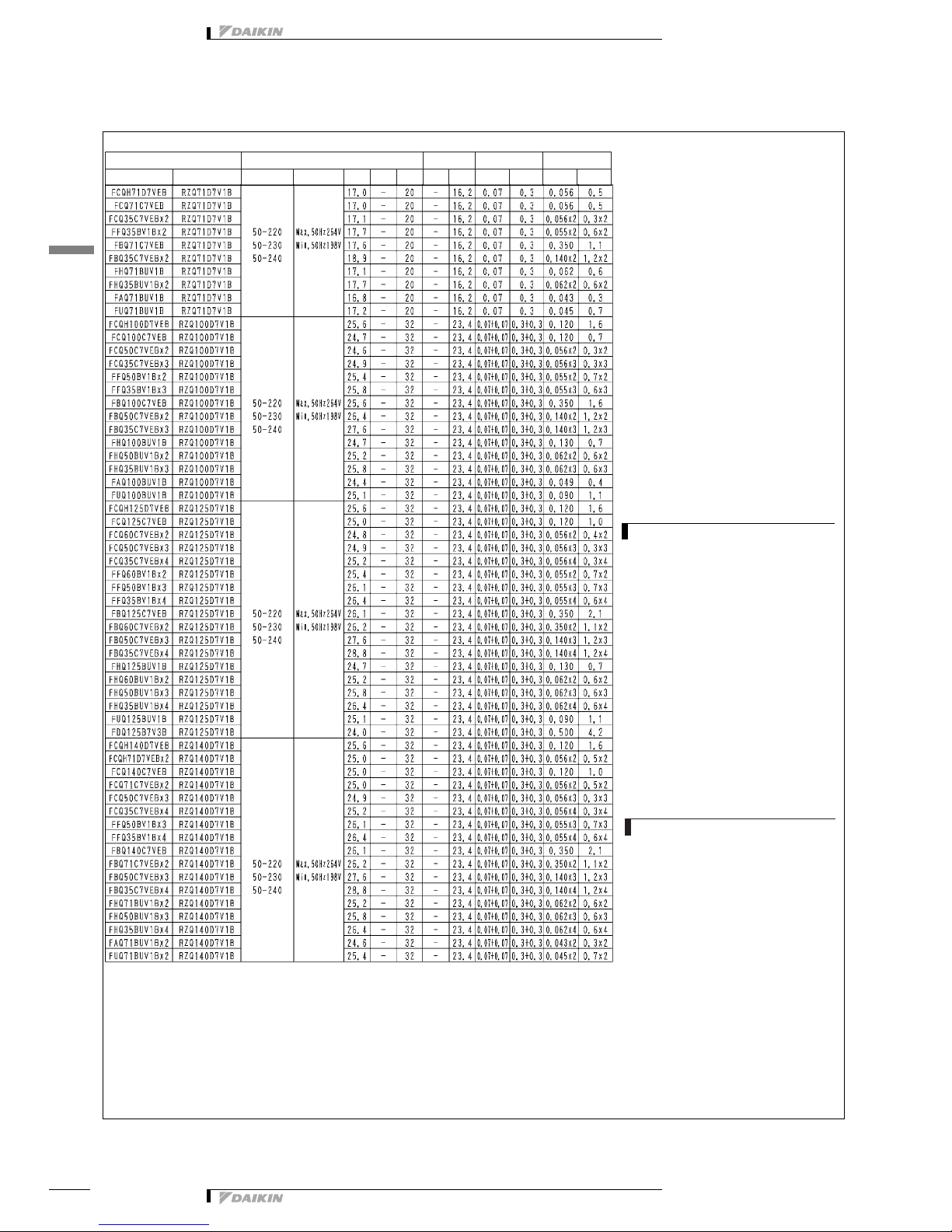

Combination table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

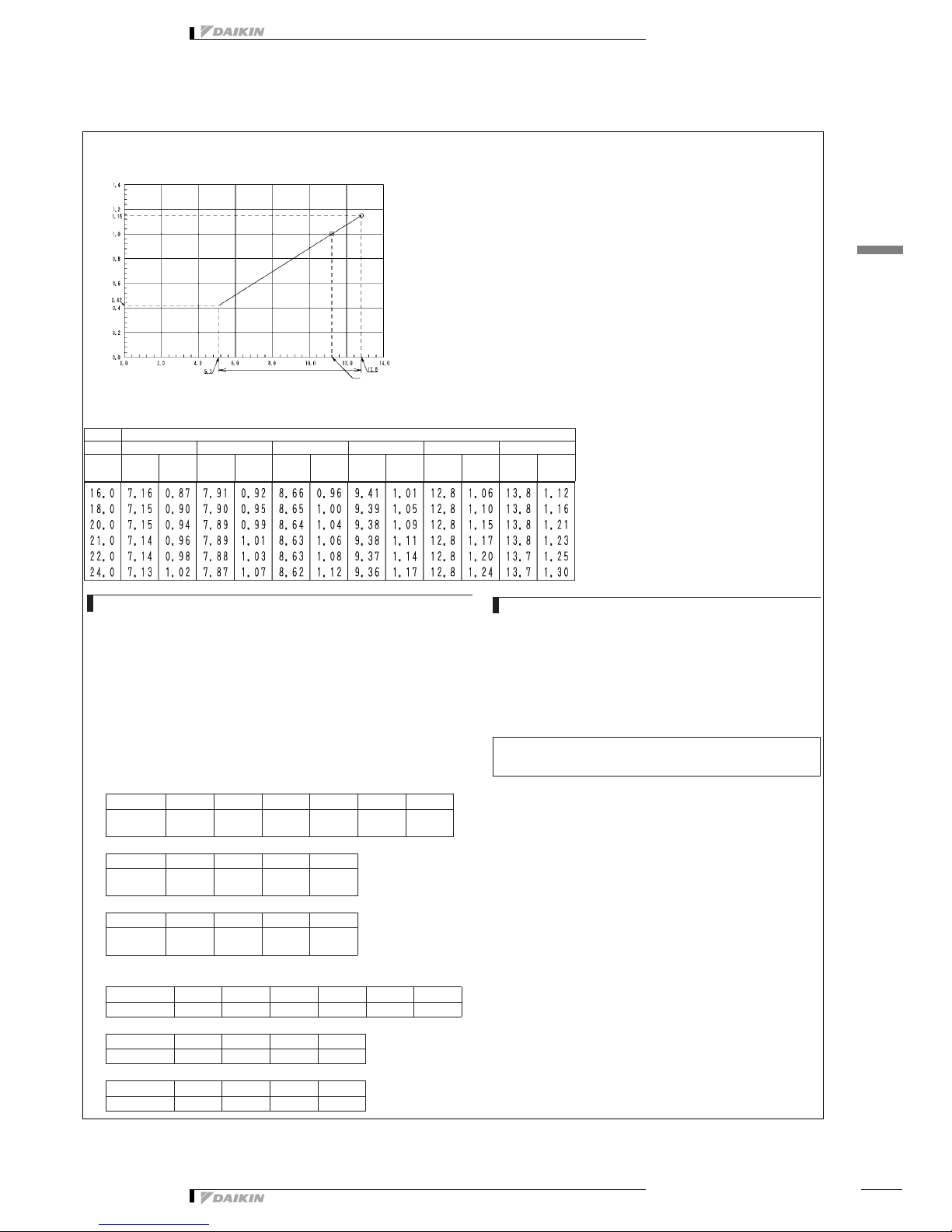

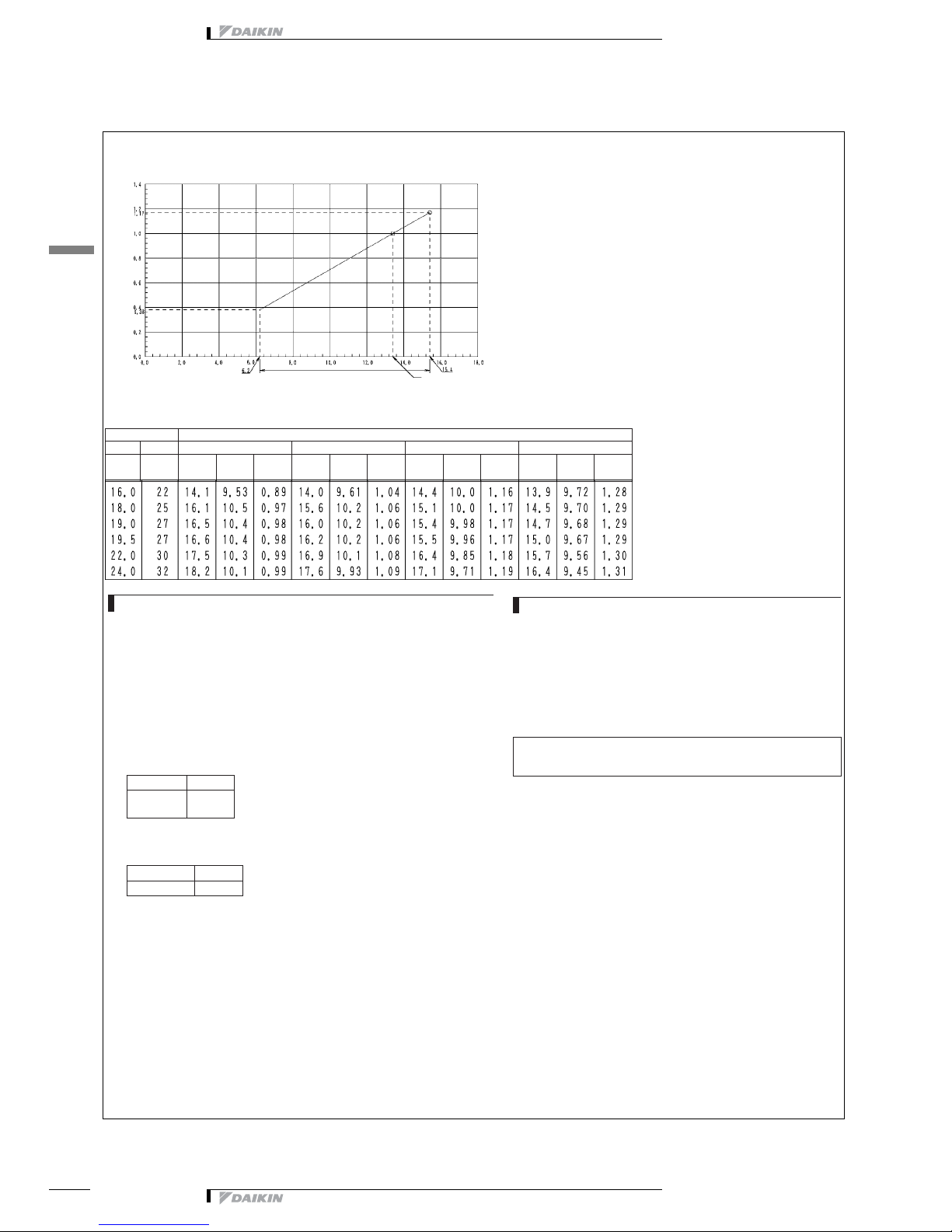

Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 24
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Sound power spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
10 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
11 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

• Outdoor Units • R-410A • RZQ-DV1
1
1
• Split Sky Air • Outdoor Units
5
1 Features
OutdoorUni SplitSky RZQ-DV1R-410A • Outdoor units for pair, twin, triple, double twin application
• The Sky Air Inverter is developed for use in shops, restaurants and
small offices. This innovative Daikin unit provides a more
comfortable environment and offers great savings in energy
consumption to shop and office owners.
• The use of inverter type outdoor units results in an air conditioning
system with a high energy efficiency and very low sound level
• An inverter driven compressor allows the capacity to be adjusted
precisely to match variations in room and outside temperatures.
• During start up, the room can be cooled down or heated very quickly.
Once the temperature in the room has reached its set point, the low
power operation starts to save energy.
• Daikin outdoor units are neat and sturdy and can be mounted easily
on a roof or terrace or simply placed against an outside wall.
• Outdoor units are fitted with either a swing or scroll compressor,
renowned for low noise and high energy efficiency
• A special acryl precoated fin for anti-corrosion treatment on the heat
exchanger ensures greater resistance against severe weather
conditions

3
1
2
• Split Sky Air • Outdoor Units 6
• Outdoor Units • R-410A • RZQ-DV1
2 Specifications
2-1 NOMINAL CAPACITY AND NOMINAL INPUT RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B
For combination
indoorunits+outdoor
units
Indoor Units FCQH71D7VEB FCQH100D7VEB FCQH125D7VEB FCQH140D7VEB
Cooling capacity Standard kW 7.1 10.0 12.5 14.0
Heating capacity Standard kW 8.0 11.2 14.0 16.0
Power Input Cooling Standard kW 1.88 2.50 3.48 4.36
Heating Standard kW 1.92 2.47 3.46 4.29
For combination
indoorunits+outdoor
units
EER Nominal 3.78 4.00 3.59 3.21
COP Nominal 4.16 4.53 4.05 3.73
Energy Label Cooling A
Heating A
Annual energy consumption kWh 940 1,250 1,740 2,180
Indoor Units FBQ71C7VEB FBQ100C7VEB FBQ125C7VEB FBQ140C7VEB
Cooling capacity Standard kW 7.1 10.0 12.5 13.4
Heating capacity Standard kW 8.0 11.2 14.0 15.0
Power Input Cooling Standard kW 2.09 2.70 3.59 4.45
Heating Standard kW 2.08 2.69 3.87 4.40
For combination
indoorunits+outdoor
units
EER Nominal 3.39 3.70 3.48 3.01
COP Nominal 3.85 4.16 3.62 3.41
EnergyLabelCooling AAAB
Heating AAAB
Annualenergy consumption kWh 1,047 1,351 1,796 2,226
Indoor Units FCQ71C7VEB FCQ100C7VEB FCQ125C7VEB FCQ140C7VEB
Cooling capacity Standard kW 7.1 10.0 12.5 14.0
Heating capacity Standard kW 8.0 11.2 14.0 16.0
Power Input Cooling Standard kW 2.11 2.64 3.70 5.11
Heating Standard kW 2.21 2.96 3.88 4.89
For combination
indoorunits+outdoor
units
EER Nominal 3.36 3.79 3.38 2.74
COP Nominal 3.62 3.78 3.61 3.27
Energy Label Cooling A A A D
Heating AAAC
Annualenergy consumption kWh 1,055 1,319 1,849 2,555
Indoor Units FHQ71BVV1B FHQ100BVV1B FHQ125BVV1B
Cooling capacity Standard kW 7.1 10.0 12.5
Heating capacity Standard kW 8.0 11.2 14.0
Power Input Cooling Standard kW 2.34 3.14 4.24
Heating Standard kW 2.58 3.43 4.28
For combination
indoorunits+outdoor
units
EER Nominal 3.03 3.18 2.95
COP Nominal 3.10 3.27 3.27
Energy Label Cooling B B C
Heating DCC
Annualenergy consumption kWh 1,172 1,572 2,119
Indoor Units FAQ71BVV1B FAQ100BVV1B FDQ125B8V3B9
Cooling capacity Standard kW 7.1 10.0 12.5
Heating capacity Standard kW 8.0 11.2 14.0
Power Input Cooling Standard kW 2.28 3.29 3.96
Heating Standard kW 2.33 3.21 3.61
For combination
indoorunits+outdoor
units
EER Nominal 3.11 3.04 3.16
COP Nominal 3.43 3.49 3.88
Energy Label Cooling B B B
Heating BBA
Annualenergy consumption kWh 1,141 1,645 1,978
Indoor Units FUQ71BVV1B FUQ100BVV1B FUQ125BVV1B
Cooling capacity Standard kW 7.1 10.0 12.5
Heating capacity Standard kW 8.0 11.2 14.0
Power Input Cooling Standard kW 2.21 2.97 3.96
Heating Standard kW 2.34 3.31 4.26

• Outdoor Units • R-410A • RZQ-DV1
1
2
• Split Sky Air • Outdoor Units
7
2 Specifications
For combination
indoorunits+outdoor
units
EER Nominal 3.21 3.37 3.16
COP Nominal 3.42 3.38 3.29
Energy Label Cooling A A B
Heating B C C
Annual energy consumption kWh 1,105 1,484 1,978
2-2 TECHNICAL SPECIFICATIONS RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B
Casing Colour Ivory White
Material Painted galvanised steel
Dimensions Unit Height mm 770 1,345 1,345 1,345
Width mm 900 900 900 900
Depth mm 320 320 320 320
Packing Height mm 900 1,524 1,524 1,524
Width mm 980 980 980 980
Depth mm 420 420 420 420
Weight Unit kg 67 109 109 109
Packed Unit kg 71 126 126 126
Heat Exchanger Dimensions Length mm 857 857 857 857
NrofRows 2222
Fin Pitch mm 1.4 1.4 1.4 1.4
Nr of Passes 8 10 10 10
Face Area m² 0.641 1.131 1.131 1.131
Nr of Stages 34 60 60 60
Tube type Hi-XSS(8)
Fin Type WF fin
Treatment Anti-corrosion treatment (PE)
Fan Type Propeller
Discharge direction Horizontal
Quantity 1222
Air Flow Rate
(nominal at 230V) Cooling m³/min 52 96 100 97
Heatingm³/min48909090
Motor Quantity 1222
Model KFD-325-70-8A Brushless DC Motor
MotorSpeed(nominal)Steps 8888
Cooling
(Standard)
rpm 800 800 850 830
Heating
(Standard)
rpm 745 760 760 760
Fan Motor Output W 70 70 70 70
Drive Direct drive
CompressorQuantity 1111
Motor Model 2YC63DXD JT100G-VD JT100G-VD JT100G-VD
Type Hermetically sealed
swing compressor Hermetically sealed scroll compressor
Motor Output W 1,700 2,200 2,200 2,200
Crankcase
Heater
W333333
Starting Method Inverter driven
Operation Range Cooling Min °CDB -15.0 -15.0 -15.0 -15.0
Max °CDB 50.0 50.0 50.0 50.0
Heating Min °CWB -20.0 -20.0 -20.0 -20.0
Max °CWB 15.5 15.5 15.5 15.5
Sound Level
(nominal) Cooling Sound Power dBA 64 65 67 68
SoundPressure
(Standard)
dBA48505151
Heating
SoundPressure
(Standard)
dBA50525353
Sound Level (Night
quiet) Sound Pressure dBA 43 45 45 46
2-1 NOMINAL CAPACITY AND NOMINAL INPUT RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B

3
1
2
• Split Sky Air • Outdoor Units 8
• Outdoor Units • R-410A • RZQ-DV1
2 Specifications
Refrigerant Type R-410A
Charge kg 2.75 3.95 3.95 3.95
Control Expansion valve (electronic type)
Nr of Circuits 1 1 1 1
Refrigerant Oil Type FVC50K Daphne FVC68D
ChargedVolume l 0.75 1.0 1.0 1.0
Piping connections Liquid (OD) Quantity 1 1 1 1
Type Flare connection
Diameter (OD) mm 9.52 9.52 9.52 9.52
Gas Quantity 1 1 1 1
Type Flare connection
Diameter (OD) mm 15.9 15.9 15.9 15.9
Drain Quantity 3 3 3 3
Type Hole
Diameter (OD) mm 26 26 26 26
Piping Length Minimum m 5 5 5 5
Maximum m 50 75 75 75
Equivalent m 70 95 95 95
Chargeless m 30 30 30 30
Additional Refrigerant Charge kg/m See installation manual 4PW48323-1
Installation height
difference Maximum m 30.0 30.0 30.0 30.0
Max. internunit level difference m 0.5 0.5 0.5 0.5
Heat Insulation Both liquid and gas pipes
Defrost Method Pressure equalising
Defrost Control Temperature
Capacity Control Method Inverter controlled
Safety Devices High pressure switch
Fan motor thermal protector
Fuse
Standard
Accessories Item Tie-wraps
Quantity 2 2 2 2
Item Installation manual
Quantity 1 1 1 1
Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor
temperature : 35°CDB, equivalent refrigerant piping : 5m, level difference : 0m.
Nominal heating capacities are based on: indoortemperature: 20°CDB; outdoor temperature:
7°CDB, 6°CWB; equivalent refrigerant piping length: 5m; level difference: 0m
2-3 ELECTRICAL SPECIFICATIONS RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B
Power Supply Name V1
Phase 1~
Frequency Hz 50 50 50 50
Voltage V 220-240
Voltage range Minimum V 198 198 198 198
Maximum V 264 264 264 264
Current Recomended fuses A 20 32 32 32
Wiring
connections For Power Supply Remark See installation manual 4PW48323-1
For connection
with indoor Remark See installation manual 4PW48323-1
Power Supply Intake Outdoor unit only
Notes See separate drawings for electrical data
(1) European/international technical standard setting the limitsfor harmonic currents produced by equipment
connected to public low-voltage system with input current > 16A smaller than or equal to 75A per phase.
(2) Short-circuit power
Power supply to the FDQ
indoor unit is separate
2-2 TECHNICAL SPECIFICATIONS RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B

• Outdoor Units • R-410A • RZQ-DV1
1
3
• Split Sky Air • Outdoor Units
9
3 Electrical data
3D063310
SYMBOLS
MCA : Min. Circuit Amps (A)
TOCA : Total Over Current Amps (A)
MFA : Max. Fuse Amps (A) (See note 7)
MSC : MSC means the max. current during the
starting of compressor. (A)
RLA : Rated Load Amps (A)
OFM : Outdoor Fan Motor (A)
IFM : Indoor Fan Motor
FLA : Full Load Amps
kW : Fan Motor Rated Output (kW)
RZQ71-140DV1
Unit combination Power supply Comp. OFM IFM
Indoor unit Outdoor unit Hz-volts Voltage range MCA TOCA MFA MSC RLA kW FLA kW FLA
NOTES
1 RLA is based on the following conditions:
Power supply: 50Hz - 230V
Cooling
Indoor temperature 27°CDB/19°CWB
Outdoor temperature 35°CDB
Heating
Indoor temperature 20.0°CDB
Outdoor temperature 7.0°CDB/6.0°CWB
2 TOCA means the total value of each OC set
3 Voltage range
Units are suitable for use on electrical systems where
voltage supplied to unit terminals is not below or
above listed operation range limits
4 Maximum allowable voltage unbalance between
phases is 2%
5 MCA represents maximum input current., MFA
represents capacity which may accept MCA
(next lower standard fuse rating, min.15A)
6 Select wire size based on the larger value of MCA or
TOCA
7 MFA is used to select the circuit breaker and the
ground fault circuit interrupter (earth leakage circuit
breaker)

3
1
4
• Split Sky Air • Outdoor Units 10
• Outdoor Units • R-410A • RZQ-DV1
4 Options
RZQ(S)71-140DV1
3TW26739-1F
Name of option
Kit name
RZQ71D7V1B RZQ100D7V1B RZQ125D7V1B RZQ140D7V1B
RZQS71D7V1B RZQS100D7V1B RZQS125D7V1B RZQS140D7V1B
- RZQ100B8W1B RZQ125B8W1B RZQ140B8W1B
Central drain plug EKDK04
Refrigerant branch piping
Twin KHRQ22M20TA (KHRQ58T): see note
Triple - KHRQ127H (KHRQ58H): see note
Double-twin - - KHRQ22M20TA (KHRQ58T): see note
(3x)
Demand adapter kit KRP58M51
NOTE
1 For RZQ100-140B8W1B in combination with FCQ35-71C, FCQH71C or FCQH71D use the refrigerant branch piping mentioned between brackets.

• Outdoor Units • R-410A • RZQ-DV1
1
5
• Split Sky Air • Outdoor Units
11
5 Capacity tables
5 - 1 Combination table
SKY-AIR Hi casette Thin cassette 2x2 cassette Duct (medium ESP) Ceiling suspended 4way ceiling Wall mounted High ESP duct Floor standing
3TW26739-2
SKY-AIR Hi casette Thin cassette 2x2 cassette Duct (medium ESP) Ceiling suspended 4way ceiling Wall mounted High ESP duct Floor standing
Multi Combination Possibilities P = Pair
2=Twin
3 = Triple
4 = Double twin
NOTES
1 Individual indoor capacities are not given because the combinations are for simultaneous operation
(=indoor units installed in same room).
2 When different indoor models are used in combination, designate the infrared remote controller that is
equipped with the most functions as the main unit.
3 Refnet kits that are necessary to install the combinations:
Twin: KHRQ22M20TA
Triple: KHRQ127H
Double twin: KHRQ22M20TA
Model name
Model name
9
9
E

3
1
5
• Split Sky Air • Outdoor Units 12
• Outdoor Units • R-410A • RZQ-DV1
5 Capacity tables
5 - 1 Combination table
SKY-AIR Hi casette Thin cassette 2x2 cassette Duct (medium ESP) Ceiling suspended 4way ceiling Wall mounted High ESP duct
3TW31679-3A
EDP Room Specifications
Possible combinations and standard capacity for twin, triple and double
twin operation
NOTES
1 Individual indoor capacities are not given because the combinations are for simultaneous operation (=indoor units installed
in same room).
2 When different indoor models are used in combination, designate the infrared remote controller that is equipped with the
most functions as the main unit.
In table above the indoor units are mentioned in order of the possible function (most funcitions are on FCQ, less functions
are on FAQ).
3 Refnet kits that are necessary to install the combinations:
Twin: KHRQ22M20TA
Triple: KHRQ127H
Double twin: KHRQ22M20TA
Multi Combination
Possibilities
Most popular for EDP
9

• Outdoor Units • R-410A • RZQ-DV1
1
5
• Split Sky Air • Outdoor Units
13
5 Capacity tables
5 - 2 Cooling capacity tables
RZQ71DV1
Cooling
Cooling capacity
Indoor Outdoor temp. (°CDB)
EWB EDB 25 30 35 40
(°C) (°C) TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
3D063304
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total cooling capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
4. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
5. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
6. The value contains less than 5% error acording to indoor unit type.
7. Air flow rate and BF are tabulated below.
(Pair)
Model FCQH71D FCQ71C FBQ71 FHQ71 FAQ71 FUQ71
AFR
(BF)
21
(0.17)
15.5
(0.19)
18
(0.08)
17
(0.10)
19
(0.08)
19
(0.07)
(Multi)
Model FCQ35Cx2 FFQ35x2 FBQ35Cx2 FHQ35x2
AFR
(BF)
10.5x2
(0.28x2)
10x2
(0.25x2)
15x2
(0.15x2)
13x2
(0.2x2)
8. Rated power input of each model is tabulated below.
(Pair)
Model FCQH71D FCQ71C FBQ71C FHQ71 FAQ71 FUQ71
Cooling 1.88 2.11 2.09 2.34 2.28 2.21
(Multi)
Model FCQ35Cx2 FFQ35x2 FBQ35x2 FHQ35x2
Cooling 2.59 2.61 2.57 2.66
Capacity range Rated point
Cooling capacity (kW)
Coefficient of power input. (-)

3
1
5
• Split Sky Air • Outdoor Units 14
• Outdoor Units • R-410A • RZQ-DV1
5 Capacity tables
5 - 2 Cooling capacity tables
RZQ100DV1
Cooling
Cooling capacity
Indoor Outdoor temp. (°CDB)
EWB EDB 25 30 35 40
(°C) (°C) TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
3D063306
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total cooling capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
4. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
5. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
6. The value contains less than 5% error acording to indoor unit type.
7. Air flow rate and BF are tabulated below.
(Pair)
Model FCQH100D FCQ100C FBQ100C FHQ100 FAQ100 FUQ100
AFR
(BF)
34
(0.17)
23.5
(0.16)
32
(0.13)
24
(0.14)
23
(0.10)
29
(0.07)
(Twin)
Model FCQ50Cx2 FFQ50x2 FBQ50Cx2 FHQ50x2
AFR
(BF)
12.5x2
(0.28x2)
12x2
(0.16x2)
16x2
(0.16x2)
13x2
(0.1x2)
(Triple)
Model FCQ35Cx3 FFQ35x3 FBQ35Cx3 FHQ35x3
AFR
(BF)
10.5x3
(0.28x3)
10x3
(0.25x3)
16x3
(0.15x3)
13x3
(0.2x3)
8. Rated power input of each model is tabulated below.
(Pair)
Model FCQH100D FCQ100C FBQ100C FHQ100 FAQ100 FUQ100
Cooling 2.50 2.64 2.70 3.14 3.29 2.97
(Twin)
Model FCQ50Cx2 FFQ50x2 FBQ50x2 FHQ50x2
Cooling 2.78 2.79 2.86 3.32
(Triple)
Model FCQ35Cx3 FFQ35x3 FBQ35x3 FHQ35x3
Cooling 2.78 2.79 2.86 3.32
Capacity range Rated point
Cooling capacity (kW)
Coefficient of power input. (-)

• Outdoor Units • R-410A • RZQ-DV1
1
5
• Split Sky Air • Outdoor Units
15
5 Capacity tables
5 - 2 Cooling capacity tables
RZQ125DV1
Cooling
Cooling capacity
Indoor Outdoor temp. (°CDB)
EWB EDB 25 30 35 40
(°C) (°C) TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
3D063307
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total cooling capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
4. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
5. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
6. The value contains less than 5% error acording to indoor unit type.
7. Air flow rate and BF are tabulated below.
(Pair)
Model FCQH125D FCQ125C FBQ125C FHQ125 FAQ125 FUQ125
AFR
(BF)
34
(0.19)
27.5
(0.19)
39
(0.16)
30
(0.13)
32
(0.13)
45
(0.25)
(Twin)
Model FCQ60Cx2 FFQ60x2 FBQ60Cx2 FHQ60x2
AFR
(BF)
13.5x2
(0.21x2)
15x2
(0.11x2)
18x2
(0.15x2)
17x2
(0.2x2)
(Triple)
Model FCQ50Cx3 FFQ50x3 FBQ50Cx3 FHQ50x3
AFR
(BF)
12.5x3
(0.21x3)
12x3
(0.16x3)
16x3
(0.16x3)
13x3
(0.1x3)
8. Rated power input of each model is tabulated below.
(Pair)
Model FCQH125D FCQ125C FBQ125C FHQ125 FAQ125 FUQ125
Cooling 3.48 3.70 3.59 4.24 3.96 3.96
(Twin)
Model FCQ60Cx2 FFQ60x2 FBQ60x2 FHQ60x2
Cooling 3.89 3.93 3.80 4.24
(Triple)
Model FCQ50Cx3 FFQ50x3 FBQ50x3 FHQ50x3
Cooling 3.89 3.93 3.80 4.24
Capacity range Rated point
Cooling capacity (kW)
Coefficient of power input. (-)
(Double Twin)
Model FCQ35Cx4 FFQ35x4 FBQ35Cx4 FHQ35x4
AFR
(BF)
10.5x4
(0.28x4)
10x4
(0.25x4)
16x4
(0.15x4)
13x4
(0.2x4)
(Double Twin)
Model FCQ35Cx4 FFQ35x4 FBQ35x4 FHQ35x4
Cooling 3.89 3.93 3.80 4.24

3
1
5
• Split Sky Air • Outdoor Units 16
• Outdoor Units • R-410A • RZQ-DV1
5 Capacity tables
5 - 2 Cooling capacity tables
RZQ140DV1
Cooling
Cooling capacity
Indoor Outdoor temp. (°CDB)
EWB EDB 25 30 35 40
(°C) (°C) TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
3D063305
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total cooling capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
4. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
5. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
6. The value contains less than 5% error acording to indoor unit type.
7. Air flow rate and BF are tabulated below.
(Pair)
Model FCQH140D FCQ140C
AFR
(BF)
34
(0.20)
27.5
(0.22)
(Twin)
Model FCQH71Dx2 FCQ71Cx2 FBQ71Cx2 FHQ71x2 FUQ71x2 FAQ71x2
AFR
(BF)
21x2
(0.17x2)
15.5x2
(0.19x2)
18x2
(0.08x2)
17x2
(0.1x2)
19x2
(0.07x2)
19x2
(0.08x2)
(Triple)
Model FCQ50Cx3 FFQ50x3 FBQ50Cx3 FHQ50x3
AFR
(BF)
12.5x3
(0.21x3)
12x3
(0.16x3)
16x3
(0.16x3)
13x3
(0.1x3)
8. Rated power input of each model is tabulated below.
(Pair)
Model FCQH140D FCQ140C
Cooling 4.36 5.11
(Twin)
Model FCQH71Dx2 FCQ71Cx2 FBQ71Cx2 FHQ71x2 FUQ71x2 FAQ71x2
Cooling 4.65 4.85 4.18 4.74 4.74 4.68
(Triple)
Model FCQ50Cx3 FFQ50x3 FBQ50x3 FHQ50x3
Cooling 4.85 4.63 4.18 4.74
Capacity range Rated point
Cooling capacity (kW)
Coefficient of power input. (-)
(Double Twin)
Model FCQ35Cx4 FFQ35x4 FBQ35Cx4 FHQ35x4
AFR
(BF)
10.5x4
(0.28x4)
10x4
(0.25x4)
16x4
(0.15x4)
13x4
(0.2x4)
(Double Twin)
Model FCQ35Cx4 FFQ35x4 FBQ35x4 FHQ35x4
Cooling 4.85 4.63 4.18 4.74

• Outdoor Units • R-410A • RZQ-DV1
1
5
• Split Sky Air • Outdoor Units
17
5 Capacity tables
5 - 2 Cooling capacity tables
RZQ140DV1
Cooling
Cooling capacity
Indoor Outdoor temp. (°CDB)
EWB EDB 25 30 35 40
(°C) (°C) TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
TC
(kW)
SHC
(kW)
CPI
(-)
3D063320
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total cooling capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
4. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
5. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
6. The value contains less than 5% error acording to indoor unit type.
7. Air flow rate and BF are tabulated below.
(Pair)
Model FBQ140C
AFR
(BF)
39
(0.14)
8. Rated power input of each model is tabulated below.
(Pair)
Model FBQ140C
Cooling 4.45
Capacity range Rated point
Cooling capacity (kW)
Coefficient of power input. (-)

3
1
5
• Split Sky Air • Outdoor Units 18
• Outdoor Units • R-410A • RZQ-DV1
5 Capacity tables
5 - 2 Cooling capacity tables
3TW26062-1
RZQ71-140DV1
Capacity (%)
Field piping length (m)
Cooling
Heating
Capacity in function of field piping length for non-inverter

• Outdoor Units • R-410A • RZQ-DV1
1
5
• Split Sky Air • Outdoor Units
19
5 Capacity tables
5 - 3 Heating capacity tables
RZQ71DV1
Heating
Heating capacity
Indoor Outdoor temp. (°CDB)
EDB -15 -10 -5 0 6 10
(°C) TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(-)
CPI
(-)
3D063304
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total heating capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. On the tables Qshow rated capacity and rated coefficient of power input.
4. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
5. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
6. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
7. The value contains less than 5% error acording to indoor unit type.
8. Heating capacity include the drop of frost formation.
9. Air flow rate and BF are tabulated below.
(Pair)
Model FCQH71C FCQ71C FBQ71 FHQ71 FAQ71 FVQ71
AFR
(BF)
21
(0.17)
15.5
(0.19)
18
(0.08)
17
(0.10)
19
(0.08)
19
(0.07)
(Multi)
Model FCQ35Cx2 FFQ35x2 FBQ35Cx2 FHQ35x2
AFR
(BF)
10.5x2
(0.28x2)
10x2
(0.25x2)
16x2
(0.15x2)
13x2
(0.2x2)
10. Rated power input of each model is tabulated below.
(Pair)
Model FCQH71D FCQ71C FBQ71 FHQ71 FAQ71 FUQ71
Heating 1.92 2.21 2.08 2.58 2.33 2.34
(Multi)
Model FCQ35Cx2 FFQ35x2 FBQ35Cx2 FHQ35x2
Heating 2.69 2.64 2.19 2.81
Capacity range Rated point
Heating capacity (kW)
Coefficient of power input. (-)

3
1
5
• Split Sky Air • Outdoor Units 20
• Outdoor Units • R-410A • RZQ-DV1
5 Capacity tables
5 - 3 Heating capacity tables
RZQ100DV1
Heating
Heating capacity
Indoor Outdoor temp. (°CDB)
EDB -15 -10 -5 0 6 10
(°C) TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(kW)
CPI
(-)
TC
(-)
CPI
(-)
3D063306
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total heating capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
(comp.+indoor+outdoor fan motor)
CPI: Coefficient of power input. (-)
Caution:
TC and SHC are shown by kW
NOTES
1. Ratings shown are net capacities which include a deduction for indoor fan motor heat
2. On the figure the mark jshow the max. at standard conditions.
On the figure the mark Qshow rated capacity and rated coefficient of power input.
However the max. capacity is not guaranteed, except at standard condition.
3. On the tables Qshow rated capacity and rated coefficient of power input.
4. SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
SHC* = 0.02 x AFR (m
3
/min.) x (1−BF) x (DB*−EDB)
Add SHC* to SHC.
5. Capacities are based on following conditions:
Outdoor air : 85 % RH. however, the condition on nominal capacity is 7° CDB/6° CWB (heating)
Corresponding refrigerant piping length : 5.0 m
Level difference : 0 m
6. Coefficient of power input is the percentage when the rated valve is defined as 1.00.
7. The value contains less than 5% error acording to indoor unit type.
8. Heating capacity include the drop of frost formation.
9. Air flow rate and BF are tabulated below.
(Pair)
Model FCQH100D FCQ100C FBQ100C FHQ100 FAQ100 FUQ100
AFR
(BF)
34
(0.17)
23.5
(0.16)
32
(0.13)
24
(0.14)
23
(0.10)
29
(0.07)
(Twin)
Model FCQ50Cx2 FFQ50x2 FBQ50Cx2 FHQ50x2
AFR
(BF)
12.5x2
(0.28x2)
12x2
(0.16x2)
16x2
(0.16x2)
13x2
(0.1x2)
(Triple)
Model FCQ35Cx3 FFQ35x3 FBQ35Cx3 FHQ35x3
AFR
(BF)
10.5x3
(0.28x3)
10x3
(0.25x3)
16x3
(0.15x3)
13x3
(0.2x3)
10. Rated power input of each model is tabulated below.
(Pair)
Model FCQH100D FCQ100C FBQ100C FHQ100 FAQ100 FUQ100
Heating 2.47 2.96 2.69 3.42 3.21 3.31
(Twin)
Model FCQ50Cx2 FFQ50x2 FBQ50x2 FHQ50x2
Heating 3.12 3.14 2.85 3.60
(Triple)
Model FCQ35Cx3 FFQ35x3 FBQ35x3 FHQ35x3
Heating 3.12 3.14 2.85 3.60
Capacity range Rated point
Heating capacity (kW)
Coefficient of power input. (-)
