Daikin WinterSpa RHR-C Series User manual

Heat Reclaim
TM-RHR-1214-A
TECHNICAL MANUAL

1. Model Name .......................................................................................................... 1
2. Features ................................................................................................................ 3
3. Specications........................................................................................................ 4
4. PerformanceCurve............................................................................................... 7
5. RefrigerantCycleDiagram .................................................................................... 9
6. OutlinesandDimensions..................................................................................... 10
7.WiringDiagram.................................................................................................... 12
8. SafetyPrecaution ............................................................................................... 17
9. Installation........................................................................................................... 21
10.Troubleshooting................................................................................................... 30
11. Exploded View & Part List ................................................................................... 32
Note:Installationandmaintenancearetobeperformedonlybyqualiedpersonnelwhoare
 familiarwithlocalcodesandregulations,andexperiencedwiththistypeofequipment.
Caution:Sharpedgesandcoilsurfacesareapotentialinjuryhazard.Avoidcontactwiththem.
Warning:Movingmachineryandelectricalpowerhazard.Maycauseseverepersonnel
 injuryordeath.Disconnectandlockoffpowerbeforeservicingequipment.
TableofContents

1
TM-RHR-1214-A
1. Model Name
Power Supply
V1 : Single Phase
Series
Capacity Index
10 : Based on Btu/hr
Type of Air-Conditioner
RHR : Single Split Condensing Unit
(Heat Reclaim)
RHR 10 C V1
C : C Series

2
TM-RHR-1214-A
Series
Capacity
068 : 68 Litre
Type of Air-Conditioner
YWS : Water Tank (WinterSpa)
B : B Series
YWS 068 B

3
TM-RHR-1214-A
2. Features
Energy-Efficient Water Heating System
DAIKIN’s WinterSpa series is a heat reclaim system which can reduce the electricity consumption of
a household. The design utilises the otherwise wasted condenser heat from air-conditioner system to
generate domestic hot water without extra energy consumption.
Flexible Connection to Air Conditioning System
The water tank can be connected from one to four condenser units, depending on the tank size.
Environmentally Friendly
By recycling the water energy of the air-conditioner, the DAIKIN WinterSpa actually helps to conserve
the environment.
Various Sizes - (DAIKIN WinterSpa Specifications)
The caters for individual needs and preferences, the DAIKIN WinterSpa water tank comes in various
sizes that can be installed indoor or outdoor, hidden or visible.
Easy Installation
There are vertical and horizontal water tanks. Installation is made easier in narrow and difficult space.
Weather Resistance
Built from highly durable material, the DAIKIN WinterSpa product is strong enough to withstand any
weather condition.
Optional Heating Element
If the air-conditional is not switch on, an optional backup electric coil can be installed in the tank to
provide unlimited hot water supply.
High Efficiency Heat Exchanger
The compact design of the 3-fold structure heat exchanger provides a large surface for better and more
efficient heat exchange.
The unique Hydrophilic slit fin has greatly improved the air flow and contact surfaces with the air, thus
boosting the cooling capacity.
Rotary Compressor
The ever popular rotary compressor is more energy efficient and has a higher output to weight ratio.
Self Diagnosis
This function is able to detect and diagnose any faults occurring in the system by blinking of the LED lights.
Simple and easy for troubleshooting.

4
TM-RHR-1214-A
3.Specications
RHR10CV1 RHR15CV1
WALL MOUNTED Btu/h 10,000 13,000
CEILING CASSETTE
Btu/h 10,000
10,000
13,000
CEILING EXPOSED-CB
CEILING EXPOSED-E
CEILING CONCEALED
Btu/h
Btu/h
Btu/h
-
-
13,000
12,000
13,000
V/Ph/Hz
COMPRESSOR TYPE
RUNNING CURRENT A 3.5 5.4
LOCKED ROTOR CURRENT A 20 25
INPUT POWER W 817 1218
PROTECTION DEVICE
POWER SOURCE V/Ph/Hz
FAN TYPE / DRIVE
BLADE MATERIAL
AIR FLOW cmm/cfm 740 900
DIAMETER mm/in
A 0.21 0.25
W48 56
MOTOR SPEED RPM 790 900
MATERIAL
ROW / FIN PER INCH 1 / 14 2 / 16
FACE AREA m²/ft² 0.328 / 3.50 0.312 / 3.36
HEIGHT mm
WIDTH mm
DEPTH mm
WEIGHT kg
SOUND PRESSURE LEVEL dBA 48 50
MATERIAL
TYPE
LIQUID mm/in
GAS
WATER
mm/in
mm/in
9.52 / 3/8 12.7 / 1/2
355 / 14
6.35 / 1/4
9.52 / 3/8
540
700
250
29
R 22 / CAPILLARY TUBE (OUTDOOR)
INDUCTION MOTOR
SEAMLESS INNER GROOVE COOPER
ALUMINIUM (SLIT FIN)
GALVANISED MILD STEEL
FLARE
220-240 / 1 / 50
ROTARY
220-240 / 1 / 50
OVERLOAD PROTECTION
PROPELLER / DIRECT
GLASS REINFORCED ACRYL STYRENE RESIN
COMPRESSOR
POWER SOURCE
FAN
TUBE MATERIAL
OUTDOOR UNIT MODEL
TOTAL COOLING CAPACITY
(DEPENDING ON INDOOR UNIT)
INPUT POWER
REFRIGERANT TYPE & CONTROL
DIMENSION
CASING
SIZE
RUNNING CURRENT
MOTOR TYPE
FIN
OUTDOOR UNIT
PIPE COIL
1)ALLSPECIFICATIONSARESUBJECTEDTOCHANGEBYTHEMANUFACTURERWITHOUTPRIORNOTICE.    
2)ALLUNITSAREBEINGTESTEDANDCOMPLYTOAHRI210/240.
3)NOMINALCOOLINGCAPACITYISBASEDONTHEFOLLOWINGCONDITION:OUTDOOR-35˚C,INDOOR-27˚CDB/19˚CWB.
4)WINTERSPAMUSTUSEGOVERNMENTTAPWATERFORWATERUSAGE,OTHERWISETHEWARRANTYWILLBEVOIDED.
Specication (R22)
WinterSpa - RHR-C Series

5
TM-RHR-1214-A
WinterSpa - RHR-C&B Series
RHR20CV1 RHR25CV1 RHR30BV1
WALL MOUNTED
CEILING CASSETTE
Btu/h
Btu/h
19,500 24,000 -
-
CEILING EXPOSED - E
CEILING EXPOSED - CB
Btu/h
Btu/h
20,000
20,000
20,000
25,000
25,000
25,000
30,000
CEILING CONCEALED Btu/h 20,000 25,000
30,000
30,000
V/Ph/Hz
COMPRESSOR TYPE
RUNNING CURRENT A 9.9 11.2 13.8
LOCKED ROTOR CURRENT A 56 67 66
INPUT POWER W 2009 2325 2670
PROTECTION DEVICE
POWER SOURCE V/Ph/Hz
FAN TYPE / DRIVE
BLADE MATERIAL
AIR FLOW cmm/cfm 1200 1400
DIAMETER mm/in
A 0.50 0.56 0.59
W110 133 140
MOTOR SPEED RPM 775 775 830
MATERIAL
2 / 16
FACE AREA m²/ft²
HEIGHT mm
WIDTH mm
DEPTH mm
WEIGHT kg
SOUND PRESSURE LEVEL dBA
MATERIAL
TYPE
LIQUID mm/in 6.35 / 1/4
GAS
WATER
mm/in
mm/in
R22/CAP.TUBE(INDOOR)
FLARE
9.52 / 3/8
15.88 / 5/8
9.52 / 3/8
R 22 / CAPILLARY TUBE (OUTDOOR)
GALVANISED MILD STEEL
SEAMLESS INNER GROOVE COOPER
ALUMINIUM (SLIT FIN)
2 / 14
0.514 / 5.53
651
855
328
43
51
753
855
328
53
52
646
840
330
58
56
REFRIGERANT TYPE & CONTROL
220-240 / 1 / 50
ROTARY
OVERLOAD PROTECTION
220-240 / 1 / 50
PROPELLER / DIRECT
GLASS REINFORCED ACRYL STYRENE RESIN
420 / 16.5
INDUCTION MOTOR
TUBE MATERIAL
FIN
DIMENSION
CASING
PIPE
SIZE
OUTDOOR UNIT MODEL
TOTAL COOLING CAPACITY
(DEPENDING ON INDOOR UNIT)
OUTDOOR UNIT
COMPRESSOR
POWER SOURCE
FAN
RUNNING CURRENT
INPUT POWER
MOTOR TYPE
COIL
ROW / FIN PER INCH
1200
1)ALLSPECIFICATIONSARESUBJECTEDTOCHANGEBYTHEMANUFACTURERWITHOUTPRIORNOTICE.    
2)ALLUNITSAREBEINGTESTEDANDCOMPLYTOAHRI210/240.
3)NOMINALCOOLINGCAPACITYISBASEDONTHEFOLLOWINGCONDITION:OUTDOOR-35˚C,INDOOR-27˚CDB/19˚CWB.
4)WINTERSPAMUSTUSEGOVERNMENTTAPWATERFORWATERUSAGE,OTHERWISETHEWARRANTYWILLBEVOIDED.

6
TM-RHR-1214-A
YWS068B YWS090B YWS114B
Litre 68 90 114
Imp.Gallon 15 20 25
mm 460 460 510
mm 730 880 1070
Empty Tank kg 23 28 49
Full Tank kg 91 119 163
-
-
kPa
-
-
Safety Relief Valve Setting Pressure bar
Safety Relief Valve Setting(Water) Temperature deg C
-
-
Capacity kW
Power Supply V/Ph/Hz
Temperature Setting deg C
Safety Limit Cut-off deg C
Insulation
Water Inlet / Outlet Connection
Refrigerant Inlet / Outlet Connection
TANK MODEL
60
Vertical/Horizontal
Stainless Steel
700
Oven Baked Powder Coated E.G Sheet
High Density Polyurethane
88
Tank Capacity
Unit Diameter
Unit Height (Tank Section Only)
Unit Weight
WinterSpa Tank Type
Inner Tank Construction
Maximum Water Pressure
Outer Casing
Backup Electric Heating Coil c/w
Thermostat (Optional)
1/2"BSPT
3/8"
240V / 1 Phase / 50Hz
7
99
3
YWS136B YWS180B YWS340B
Litre 136 182 341
Imp.Gallon 30 40 75
mm 510 510 610
mm 1250 1600 1930
Empty Tank kg 55 68 113
Full Tank kg 191 250 454
-
-
kPa
-
-
Safety Relief Valve Setting Pressure bar
Safety Relief Valve Setting(Water) Temperature deg C
-
-
Capacity kW
Power Supply V/Ph/Hz
Temperature Setting deg C
Safety Limit Cut-off deg C
Refrigerant Inlet / Outlet Connection 3/8"
Thermostat (Optional)
3
240V / 1 Phase / 50Hz
60
88
Insulation High Density Polyurethane
7
99
Water Inlet / Outlet Connection 3/4"BSPT 1"BSPT
Vertical/Horizontal
Inner Tank Construction Stainless Steel
Maximum Water Pressure 700
Outer Casing Oven Baked Powder Coated E.G Sheet
TANK MODEL
Tank Capacity
Unit Diameter
Unit Height (Tank Section Only)
Unit Weight
WinterSpa Tank Type
Tank Specications
*Checksacriceanodeandreplaceevery5year.
*Alltanksarecometogetherwithonetemperingvalve&onetemperaturepressurereliefvalve.
*Checksacriceanodeandreplaceevery5year.
*Alltanksarecometogetherwithonetemperingvalve&onetemperaturepressurereliefvalve.

7
TM-RHR-1214-A

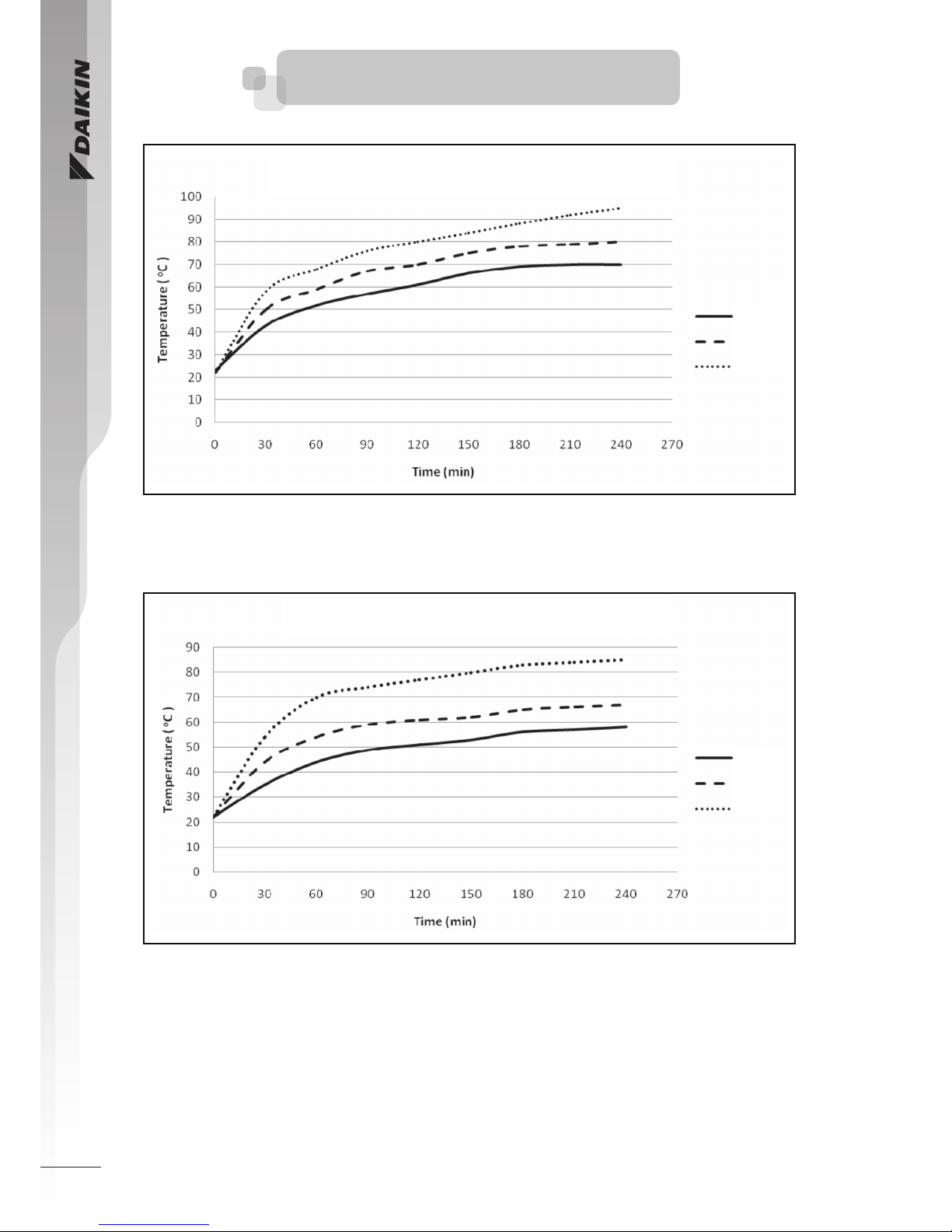

4.PerformanceCurve
Heating Time For YWS068B
Heating Time For YWS136B
RHR10CV1
RHR15CV1
RHR20CV1
RHR10CV1
RHR15CV1
RHR20CV1

8
TM-RHR-1214-A
Heat Loss Characteristic For YWS068B
0
10
20
30
40
50
60
70
80
90
0210906030
Time (hours)
Tem perature ( oC )
Heat Loss Characteristic For YWS136B
0
10
20
30
40
50
60
70
80
90
100
0210906030
Time (hours)
Tem perature ( oC )

9
TM-RHR-1214-A
5.RefrigerantCycleDiagram

10
TM-RHR-1214-A

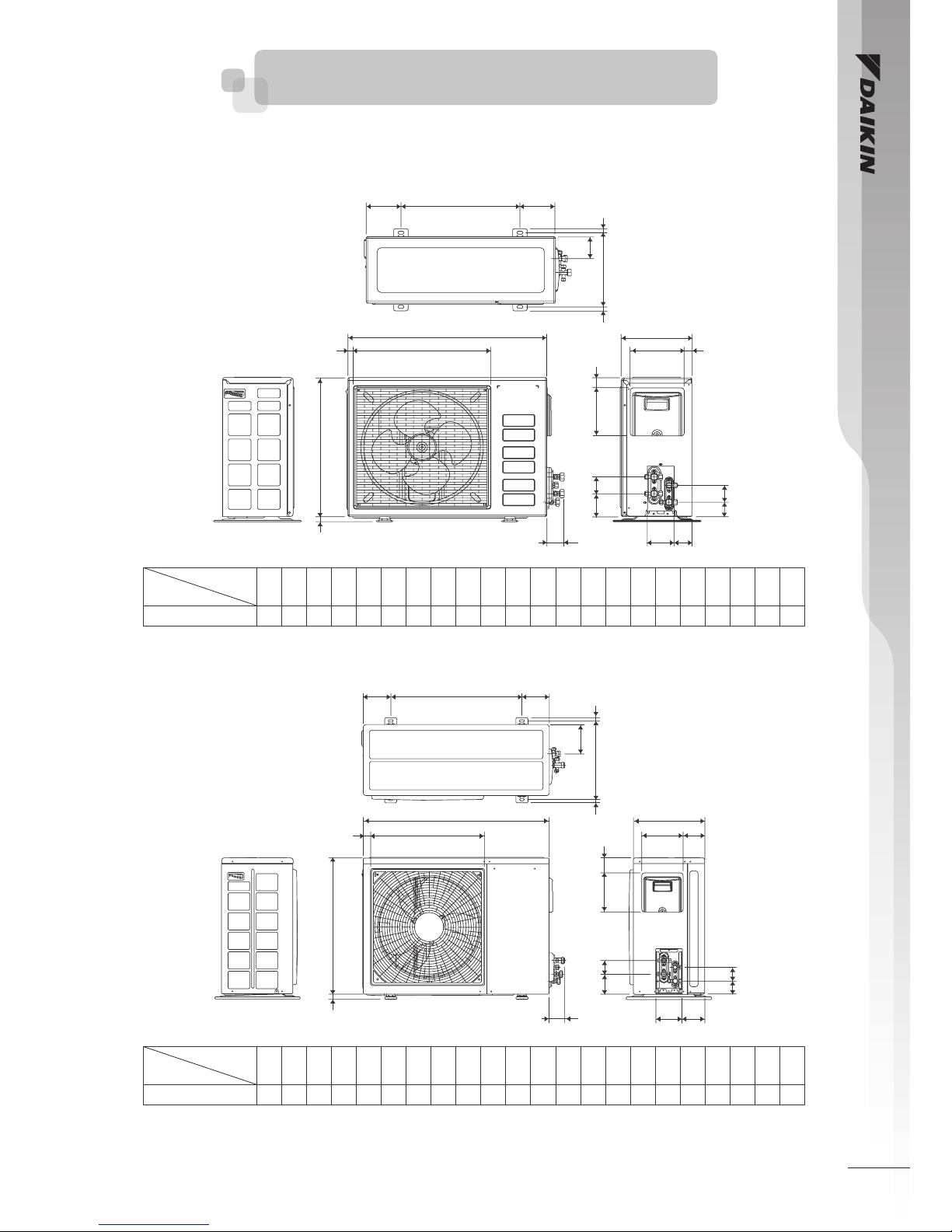

6.OutlineandDimension
K
AC
GH
T I J
U
V
FER S
D
O
BP
L L
NN
M
Q
Dimension
Model
Dimension
Model
RHR10/15CV1
RHR20CV1
A B C D E F G H I J K L M N O P Q R S T U V
700 521 250 478 180 37.5 190 28 94 64 440 130 81 15 21 19 278 86 63 60 54.5 63
A B C D E F G H I J K L M N O P Q R S T U V
855 628 328 520 10 70 190 100 120 105 603 126 135 15 34 23 362 92 63 71 60.5 63
Outdoor Unit
Model: RHR10/15CV1
Outdoor Unit
Model: RHR20CV1
All Dimensions are in mm
All Dimensions are in mm
K
AC
G H
D
TI J
O
L
N
M
Q
N
R
U V
S E F
B
P
L

11
TM-RHR-1214-A
Outdoor Unit
Model: RHR25CV1
Outdoor Unit
Model: RHR30BV1
K
A
T
D
O
L
C
G
I J
H
NN
F
E
VUSR
BP
M
Q
L
Dimension
Model
RHR25CV1
A B C D E F G H I J K L M N O P Q R S T U V
855 730 328 520 180 32 190 81 104 113 603 126 185 15 34 23 362 116 83 62 83 83
All dimensions are in mm
All dimensions are in mm
840 330
646
125.5 590.0 124.8 69.1

12
TM-RHR-1214-A

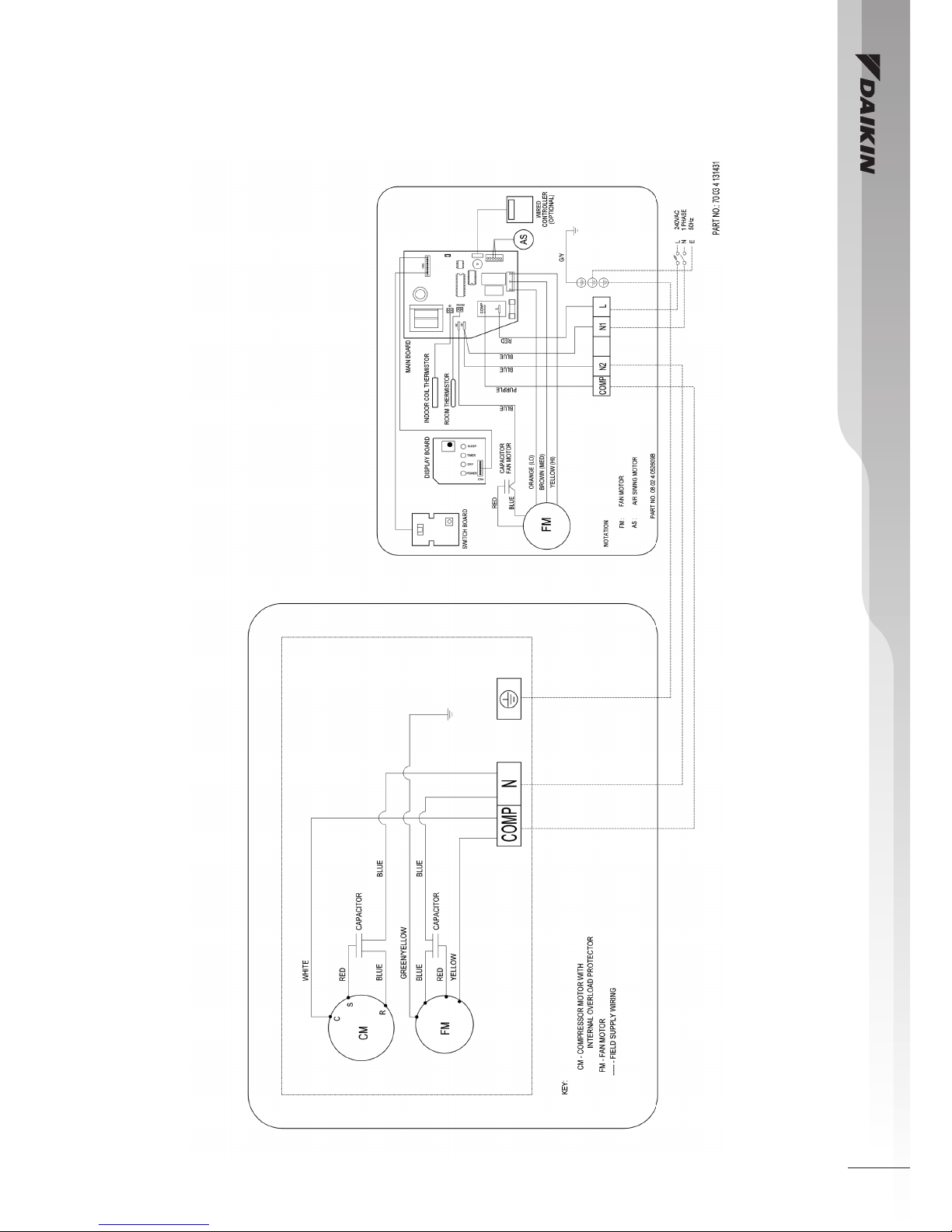

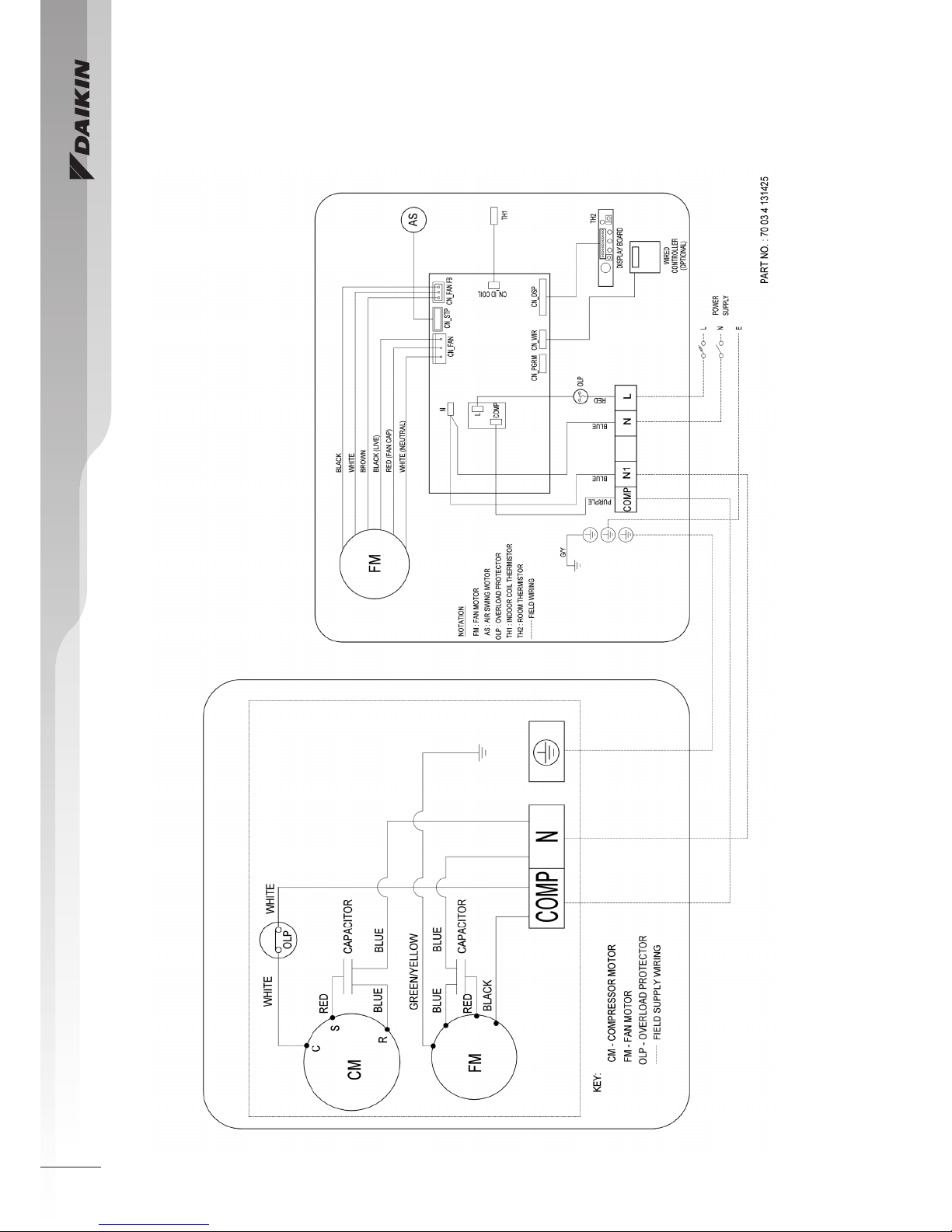

7.WiringDiagram
Indoor Unit
Outdoor Unit
Model : RHR10CV1

13
TM-RHR-1214-A
Model: RHR15CV1
Indoor Unit
Outdoor Unit

14
TM-RHR-1214-A

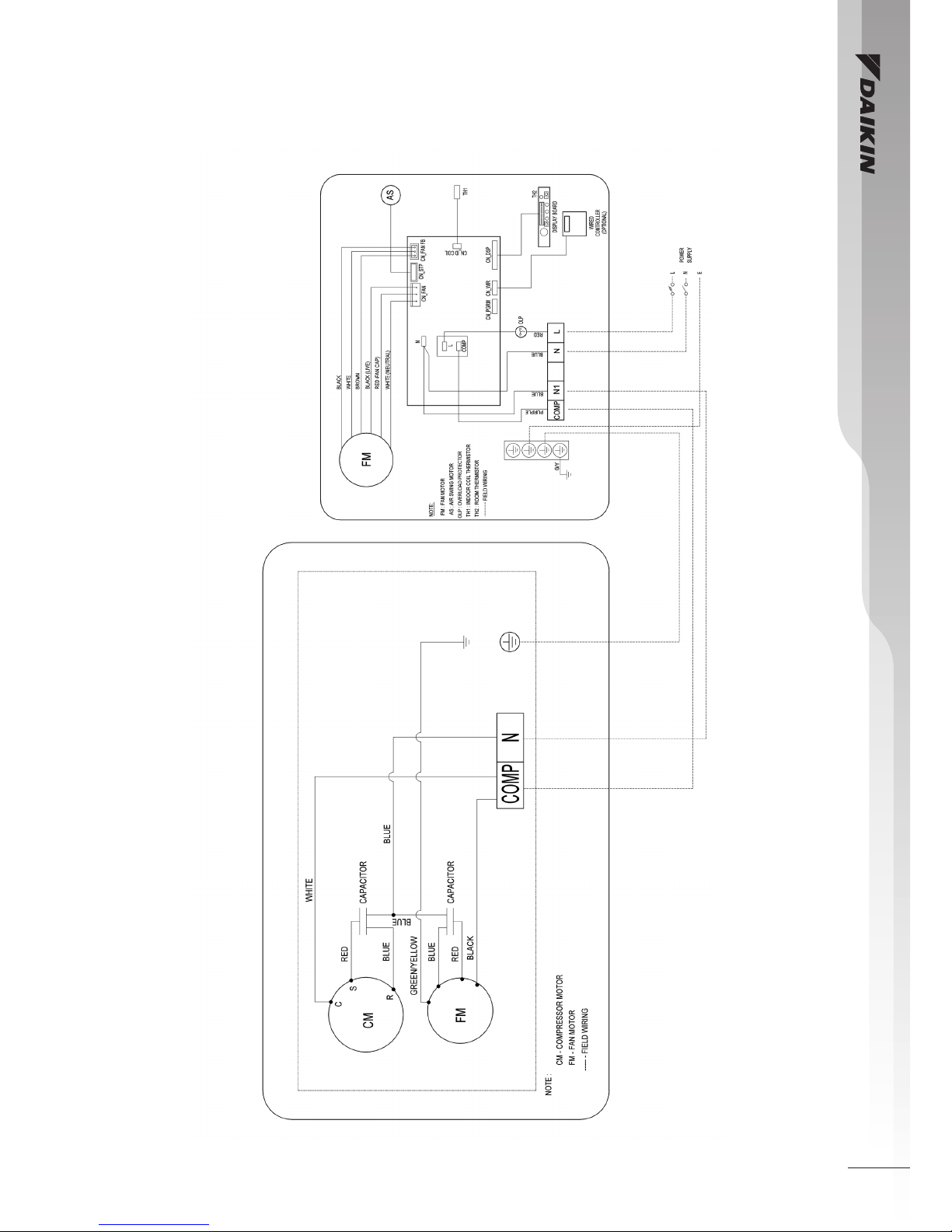

Model: RHR20CV1
Indoor Unit
Outdoor Unit

15
TM-RHR-1214-A
Model: RHR25CV1
Indoor Unit
Outdoor Unit

16
TM-RHR-1214-A

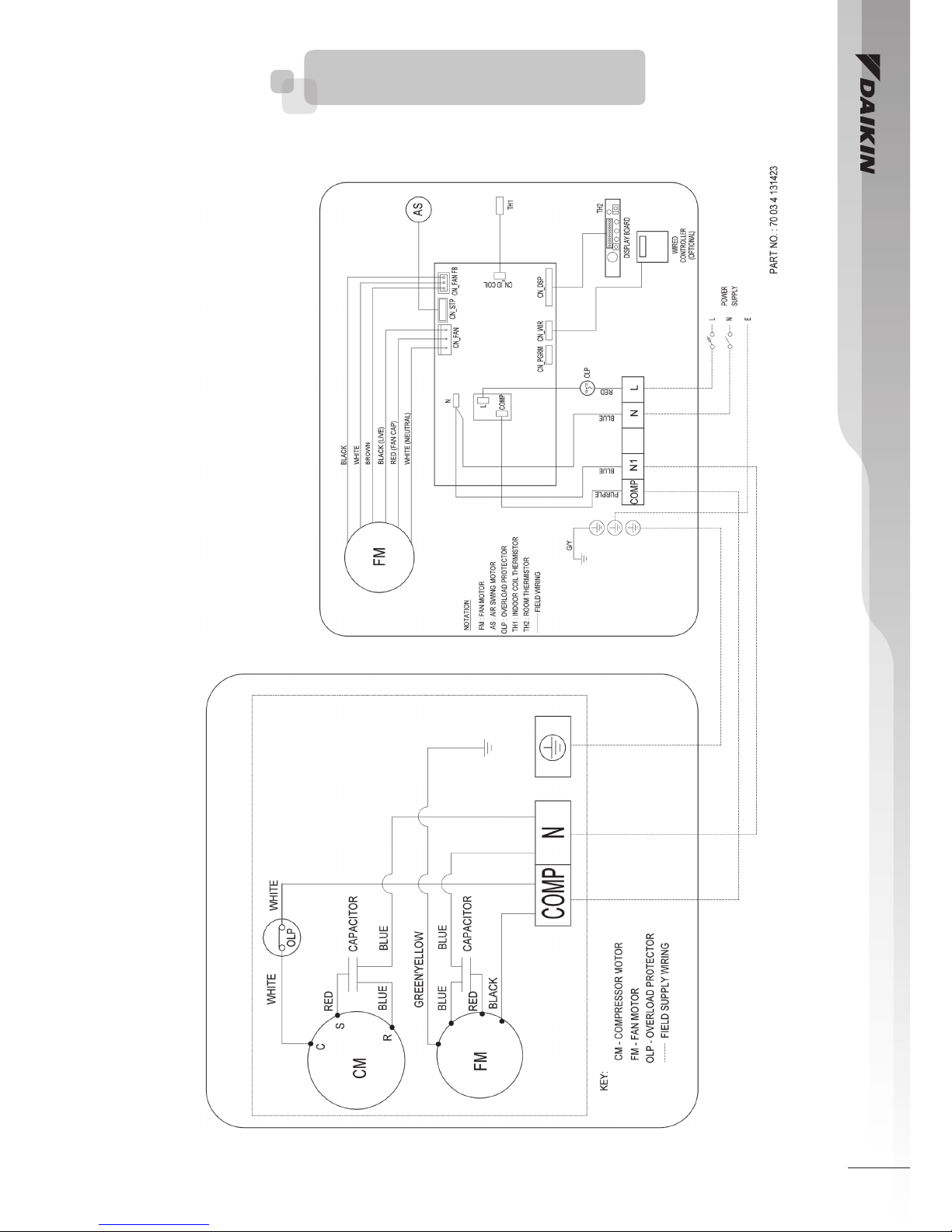

Model: RHR30BV1
Indoor Unit
Outdoor Unit

17
TM-RHR-1214-A
8.SafetyPrecautionBeforeInstallation
Warning: This sign indicates the possibility of causing death or serious injury.
Caution: This sign indicates the possibility of causing injury or damage to properties only.
- This unit must be installed by a qualified technician.
- All field wiring must accordance to the National Wiring Regulation.
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow Eart Earth
lartueNlartueNeulB
eviLeviLnworB
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
•The wire which is coloured green-and-yellow must be connected to the terminal in
the plug which is marked with the earth symbol or coloured green or green-and-yellow.
•The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
•The wire which is coloured brown must be connected to the terminal which is
marked with letter L or coloured red.
If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized
service/parts centers.
This unit is not provided with a plug, therefore the power supply wire must be connected by a
qualified chargemen.
.
Remove power plug or disconnect from the mains before servicing the appliance.
Note
Caution
Important
Warning
BEFORE OPERATING, PLEASE READ THE FOLLOWING “SAFETY PRECAUTIONS” CAREFULLY
Safety Precaution Before Installation
!
To prevent injury to the user or other people and properties damage, the following instructions must
be followed.
Incorrect operation due to ignoring of instruction will cause harm or damage, the seriousness is
classified by the following indications.

18
TM-RHR-1214-A
Symbol (with white background) denotes item that is PROHIBITED from doing.
Symbol (with black background) denotes item that is COMPULSORY to be carried out.
Caution
Please confirm the following important points when installation
•Grounding is necessary
It may cause electrical shock if grounding is not perfect.
•Do not install the unit where leakage of flammable gas may occur
In case of gas leaks and accumulates at the surrounding of the unit, it may
cause fire ignition.
Confirm drainage piping is connected properly
If it is not connected perfectly, it may cause water leakage and dampen the
furniture.
• Confirm the unit is switched off before install, service or maintain the unit
If it is not switched off, it may cause injury to the installer by any of the moving
part especially fan.
•Do not overcharge the unit
This unit is factory pre-charged. Over charge will cause over current or damage
to the compressor.
Refer to page 25 in case of top up charge is necessary.
•Confirm cover back the unit panel after servicing or installation
Unsecure panel will cause unit noisy.
!
•
