Daikin UAL-A Series Dimension Guide

Catalogue/Engineering Data
UAL-A Series Air Cooled Modular Chiller
Model: UAL160A5/UAL210A5
Refrigerant: R410A
Cooling Capacity: 56/72kW
ED-UAL-A5-1603
DAIKIN INDUSTRIES., LTD.

1
Contents
Model Series ............................................................................................................................................................2
Nomenclature...........................................................................................................................................................2
Features....................................................................................................................................................................2
Specications ..........................................................................................................................................................4
Dimensions..............................................................................................................................................................7
Performance Data....................................................................................................................................................8

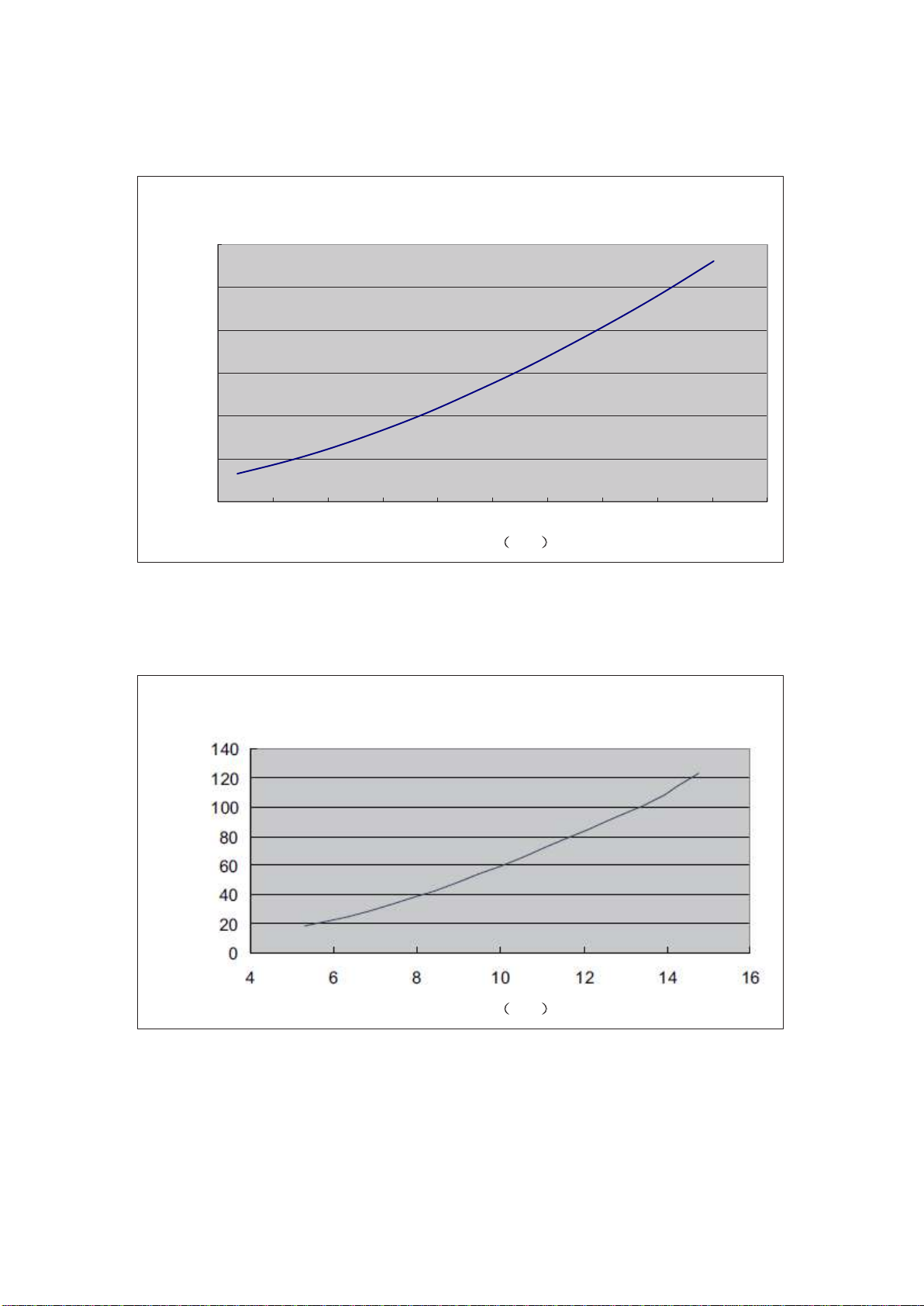

Water Pressure Drop Curve.................................................................................................................................. 11
Sound Data.............................................................................................................................................................12
Wiring Diagrams....................................................................................................................................................13
Installation..............................................................................................................................................................21
Water System Installation.....................................................................................................................................24
Commissioning and Operation............................................................................................................................30
Maintenance...........................................................................................................................................................31
Control System Instruction ..................................................................................................................................34
Wired Controller Instruction.................................................................................................................................37
Error Code..............................................................................................................................................................41
Note: Installation and maintenance are to be performed only by qualied personnel who are familiar with
local codes and regulations, and experienced with this type of equipment.
Caution:
Sharp edges and coil surfaces are a potential injury hazard. Avoid contact with them.
Warning: Moving machinery and electrical power hazard may cause severe personal injury or death.
Disconnect and lock off power before servicing equipment.
Literature No.: ED-UAL-A5-1603
Supersedes: ED-UALA5-1502

2
Model Series
Model Cooling Capacity Max Combination Qty
UAL160A5 56 kW 10
UAL210A5 72 kW 10
Nomenclature
Features
Environment-friendly Refrigerant
Daikin is committed to protecting the global ecosystem and has developed air-cooled chiller with R410A, a new
type of environment-friendly refrigerant. Without chlorine, the environment-friendly R410A causes no harm to the
ozonosphere ( ODP=0).
Easy Installation
UAL R410A series is designed to best facilitate user installation. The refrigerant system is made hermetic in the
factory. Customer do not need to connect any copper pioe or rell refrigerant or invest more money for complex
water systems.
Outstanding Performance
UAL R410A series features leading-edge scroll technology and name-brand accessories which are strictly tested
for high compatibility and reliability. Equipped with efcient scroll compressors and precise electronic expansion
valves, these units feature high EER, especially at partial load.
UAL 210 A R M 5 - P AA E
Function
Cooling capacity
Design series
Unit name Export
Power supply feature
Description of the unit
M: Master unit
C: Center unit
E: End unit Refrigerant code: R410A
P: 208-230V / 3Ph / 60Hz
R: 380V / 3Ph / 60Hz
Q: 460V / 3Ph / 60Hz

3
Flexible module combination
1~10 sets with different capacity can be combined at will to satisfy the load selection requirements of various
applications. The modular design of the unit allows the owner not to have to invest in the equipment at one
time, the owner can increase the investment at any time with the development. The number of modular and the
corresponding equipment greatly save the initial investment.
Compact Size
Moreover, UAL R410A series features compact size. UAL R410A can be lifted without large lifting tools and located
on the roof, balcony or any possible outdoor space.
Reliable Operation
UAL R410A series adopts modular design and one by one start, reducing the impact upon the grid when starting.
All units have undergone strict and long-term test, ensuring relable operation even under extreme cold conditions.
Units themselves, moreover, have multiple pretections. Then security of units is maximally guaranteed.
Low Sound Level
Thanks to the newly designed spiral blades, the outdoor units feature smooth air ow signicantly reducing the
turbulence and lowering the air ow sound level. Unique compressor sound-insulation design and fully hermetic
volute compressor minimizes the operation noise.
Intelligent Control System
UAL R410A features user-friendly intelligent control system. Micro chip and large-scaled LCD display are employed
to make the control swift and easy.
■ Group control (Optional): One single controller can control a group made up by one master unit and maximum 9
slave units.
■ BMS (Optional): UAL R410A provides interfaces for BMS. One serial port can support maximum 32 gateway and
one gateway can support one master unit and maximum 8 center units and one end unit.
Basic operating mode Fault alarm and protection
■ Cooling ■ More than 13 protection and fault alarm functions
■ Indoor controller lock
Parameter setting Memory function
■ Real time setting ■ Backup battery for realtime clock
■ Weekly timing on/off (one on/off per day) ■ Customized parameters preservation after power failure
■ Cooling water inlet temperature
Parameter display Other functions
■ Running status display ■ Error log inquiry
■ Setted inlet water temperature ■ Average compressor worn time
■ Actual inlet water temperature ■ Remote on/off
■ Timing point ■ Water system two-way valve control
NOTE:
■ THE LENGTH OF COMMUNICATION WIRE BETWEEN THE MASTER UNIT AND THE WIRED CONTROLLER IS 40M. THE LENGTH OF
COMMUNICATION WIRE ATTACHED TO THE SLAVE UNIT IS 5M.
■ THE MAIN BOARD OF THE UNIT PROVIDES AN INTERFACE FOR REMOTE CONTROL. BUT REMOTE CONTROLLERS ARE NOT
PROVIDED AND SHOULD BE INSTALLED ON SITE.

4
Specications
General Data
Model UAL160A5 UAL210A5
Nominal cooling capacity
208V~230V/3Ph/60Hz kW/
Btu/h
59/ 201365 72/ 245734
460V/3Ph/60Hz 59/ 201365 72/ 245734
380V/3Ph/60Hz 56/ 191127 72/ 245734
Rate cooling input power
208V~230V/3Ph/60Hz
kW
20.2 25
460V/3Ph/60Hz 20.2 25
380V/3Ph/60Hz 19.4 25
EER
208V~230V/3Ph/60Hz
Btu/h/W
12.2 9.83
460V/3Ph/60Hz 12.2 9.83
380V/3Ph/60Hz 9.8 9.83
Rated running current
208V~230V/3Ph/60Hz
A
64.1 81.5
460V/3Ph/60Hz 32.7 40
380V/3Ph/60Hz 39 50
Power supply 208V~230V/380V/460V/3Ph/60Hz
Refrigerant Type R410A
Charge kg 6.5 ×2 8.5 ×2
Water ow
208V~230V/3Ph/60Hz
m3/h
9.13 11.1
460V/3Ph/60Hz 9.13 11.1
380V/3Ph/60Hz 8.67 11.1
WPD (Water Pressure
Drop)
208V~230V/3Ph/60Hz
kPa
142 73
460V/3Ph/60Hz 142 73
380V/3Ph/60Hz 128 73
Unit dimensions
(L x W x H)
208V~230V/3Ph/60Hz
mm/in.
1820×1059×1853/72×42×73 2056×1140×2193/80.9×44.9×86.3
460V/3Ph/60Hz 1820×1059×1853/72×42×73 2056×1140×2193/80.9×44.9×86.3
380V/3Ph/60Hz 1820×1059×2012/72×42×79 2056×1140×2193/80.9×44.9×86.3
Packing dimensions
(L x W x H)
208V~230V/3Ph/60Hz
mm/in.
1820×1059×1853/72×42×73 2056×1140×2193/80.9×44.9×86.3
460V/3Ph/60Hz 1820×1059×1853/72×42×73 2056×1140×2193/80.9×44.9×86.3
380V/3Ph/60Hz 1820×1059×2012/72×42×79 2056×1140×2193/80.9×44.9×86.3
Net weight
208V~230V/3Ph/60Hz
kg/lb
615/1355 730/1609
460V/3Ph/60Hz 615/1355 730/1609
380V/3Ph/60Hz 640/1410 730/1609
Operating weight
208V~230V/3Ph/60Hz
kg/lb
630/1388 745/1642
460V/3Ph/60Hz 630/1388 745/1642
380V/3Ph/60Hz 655/1443 745/1642
Gross weight
208V~230V/3Ph/60Hz
kg/lb
616/1357 731/1611
460V/3Ph/60Hz 616/1357 731/1611
380V/3Ph/60Hz 641/1412 731/1611
NOTES:
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
NOMINAL COOLING CAPACITY IS BASED ON LEAVING WATER TEMPERATURE 6.7°C, AMBIENT TEMPERATURE 35°C AND 0.043 L/S
PER KW WATER FLOW.

5
Components Data
MODEL UAL160A5 UAL210A5
Evaporator
Type Brazed Plate Heat Exchanger Brazed Plate Heat Exchanger
Plate material Stainless steel Stainless steel
Nominal
water ow
208V~230V/3Ph/60Hz
m³/h
9.13 11.1
460V/3Ph/60Hz 9.13 11.1
380V/3Ph/60Hz 8.67 11.1
Water volume L 4 4
Piping connecting Inch 3 5
Unit water pressure drop kPa/ psi 29/4.21 46/6.67
Condenser coil tube
Material Copper Copper
Type Inner groove Inner groove
Outer dimeter mm 7.94 9.52
Fin
Material Aluminum Aluminum
Type White White
Rows 3 3
Fin per inch 16 16
Face area m2/ft23.5/37.7 2.77/29.8
Condenser fan
Type/ Drive Axial big vane and low noise
blower
Axial big vane and low noise
blower
Qty 2 2
Blade material Galvanized steel Galvanized steel
Motor poles 6 8
Air volume m3/ft324000/13900 26000/15058
Compressor Type Scroll compressor Scroll compressor
Qty 2 2
Refrigerant Type R410A R410A
Charge kg 6.5 ×2 8.5 ×2
Flow control EXV EXV
Numbers of circuits 2 2
Oil Model POE POE
Charge 3.3 ×2 3.3 ×2
Casing Colour RAL 7032 Pebble Grey RAL 7032 Pebble Grey
Material Electro-galvanized Mild Steel Electro-galvanized Mild Steel
Protection devices H/L pressure switch /Thermal
and current overload prtector
H/L pressure switch /Thermal
and current overload prtector
NOTE: ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

6
Electrical Data
Model UAL160A5 UAL210A5
Fan motor
Rated running current
208V~230V/3Ph/60Hz
A
4.5×2 6.5×2
460V/3Ph/60Hz 2.2×2 2.6×2
380V/3Ph/60Hz 4×2 4×2
Motor output W 1000×2 1000×2
Poles 6 8
Fan speed
208V~230V/3Ph/60Hz
RPM
910 910
460V/3Ph/60Hz 910 840
380V/3Ph/60Hz 690 690
Compressor
Rated running current
208V~230V/3Ph/60Hz
A
32.9 45.7
460V/3Ph/60Hz 17.9 19.2
380V/3Ph/60Hz 21.4 26.4
Locked rotor AMP (LRA)
208V~230V/3Ph/60Hz
A
267 304
460V/3Ph/60Hz 142 147
380V/3Ph/60Hz 160 168
IP/ Insulation grade IPX4/E IPX4/E
Unit operating current
208V~230V/3Ph/60Hz
A
64.1 81.5
460V/3Ph/60Hz 32.7 40
380V/3Ph/60Hz 39 50
Unit max running current
208V~230V/3Ph/60Hz
A
79.1 103
460V/3Ph/60Hz 38.6 50
380V/3Ph/60Hz 49.1 65
NOTES:
1. ALL SPECIFICTIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2. MAX RUNNING CURRENT IS TESTED UNDER BELOW CONDITION: COOLING OUTDOOR DRY-BULB TEMPERATURE 43°C, HEATING
DRY-BULB TEMPERATURE 21°C, WET-BULB TEMPERATURE 15.5°C.
3. THE RATED RUNNING CURRENT ARE TESTED AT THE HIGH SPEED AND LOW SPEED.
Safety Devices
Model UAL160A5 UAL210A5
Safety device
High pressure switch
Type PSW,H20PS B PSW,H20PS B
Open MPa 4.15 ± 0.1 4.15 ± 0.1
Close MPa 3.11 ± 0.1 3.11 ± 0.1
Low pressure switch
Type N/A N/A
Open MPa N/A N/A
Close MPa N/A N/A
Phase sequencer YES YES
Discharge temperature setting °C/°F 130/266 130/266
NOTE:
1. ALL SPECIFICTIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

7
Dimensions
Unit: mm
WATER IN WATER OUT
UAL
WATER IN
WATER OUT
UAL
UAL

8
Performance Data
Operating Range
UAL160A5/210A5
-10-10
1515
leaving water temperature℃
5 7.5 10 12.5 15 30 35 40 45 50
4040
Ambient temperature℃
20
25
35
30 operating limit
20
25
35
30
Cooling mode
5
48
10
7.5 1512.5
48
2121
0
-5
5
10
15
0
-5
5
10
15
Heating mode
3530
26
45
40 50
26
operating limit
Ambient temperature℃
leaving water temperature℃
Ambiet temperature ℃
Leaving water temperature ℃
Operating Limit
-10-10
1515
leaving water temperature℃
5 7.5 10 12.5 15 30 35 40 45 50
4040
Ambient temperature℃
20
25
35
30 operating limit
20
25
35
30
Cooling mode
5
48
10
7.5 1512.5
48
2121
0
-5
5
10
15
0
-5
5
10
15
Heating mode
3530
26
45
40 50
26
operating limit
Ambient temperature℃
leaving water temperature℃
Ambiet temperature ℃
Leaving water temperature ℃
Operating Limit
Cooling mode
Operating Limit
Ambient temperature °C
Leaving water temperature °C

9
Cooling capacity performance curve
Cooling capacity (UAL160A5)
Cooling power input (UAL160A5)
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.40
1.50
1.60
10 15 20 25 30 35 40 45 50
Ambient Temperature(℃)
Crrection Factor of Capacity
Leaving Water Temperature(
℃
)
5
6.7
9
12
15
g p
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
1.10
1.15
1.20
1.25
1.30
10 15 20 25 30 35 40 45 50
Ambient Temperature(℃)
Crrection Factor of Power
Leaving Water Temperature(
℃
)
5
6.7
9
12
15
g p

10
Cooling capacity (UAL210A5)
Cooling power input (UAL210A5)
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
1.10
1.15
1.20
1.25
1.30
10 15 20 25 30 35 40 45 50
Ambient Temperature(°C)
Crrection Factor of Capacity
5
6.7
9
12
15
Leaving Water Temperature (°C)
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
1.10
1.15
1.20
1.25
1.30
10 15 20 25 30 35 40 45 50
Ambient Temperature(°C)
Crrection Factor of Capacity
5
6.7
9
12
15
Leaving Water Temperature (°C)
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
1.10
1.15
1.20
1.25
1.30
10 15 20 25 30 35 40 45 50
Ambient Temperature(°C)
Crrection Factor of Capacity
5
6.7
9
12
15
Leaving Water Temperature (°C)

11
Water Pressure Drop Curve
UAL160A5
Water pressure drop curve
UAL160A5
UAL210A5
Notes:
1. Water pressure drop of the unit is tested by the plate heat exchanger and the supplied Y-type filter.
2. Water resistance of plate heat exchanger and Y-type filter is tested under condition of clean water; it may be incons
Sound Data
Acoustic Noise
0
50
100
150
200
250
300
4 5 6 7 8 9 10 11 12 13 14
Water pressure drop(kpa)
Water flow（m3/h）
Water Pressure Drop Chart
UAL210A5
Water pressure drop curve
UAL160A5
UAL210A5
Notes:
1. Water pressure drop of the unit is tested by the plate heat exchanger and the supplied Y-type filter.
2. Water resistance of plate heat exchanger and Y-type filter is tested under condition of clean water; it may be incons
Sound Data
Acoustic Noise
0
50
100
150
200
250
300
4 5 6 7 8 9 10 11 12 13 14
Water pressure drop(kpa)
Water flow
（
m3/h
）
Water Pressure Drop Chart
Water pressure drop curve
UAL160A5
UAL210A5
Notes:
1. Water pressure drop of the unit is tested by the plate heat exchanger and the supplied Y-type filter.
2. Water resistance of plate heat exchanger and Y-type filter is tested under condition of clean water; it may be incons
Sound Data
Acoustic Noise
0
50
100
150
200
250
300
4 5 6 7 8 9 10 11 12 13 14
Water pressure drop(kpa)
Water flow（m3/h）
Water Pressure Drop Chart
NOTES:
1) WATER PRESSURE DROP OF THE UNIT IS TESTED BY THE PLATE HEAT EXCHANGER AND THE SUPPLIED Y-TYPE FILTER.
2) WATER RESISTANCE OF PLATE HEAT EXCHANGER AND Y-TYPE FILTER IS TESTED UNDER CONDITION OF CLEAN WATER; IT
MAY BE INCONSISTENT WITH THAT SHOWN IN THE DIAGRAM DUE TO THE WATER QUALITY ON SITE.

12
Sound Data
Acoustic Noise
Model Octave Band Level (dB,ref20μPa) dB(A)
63Hz 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz Overall
UAL160A5
208V~230V/3Ph/60Hz 47.5 46.3 55.8 56.5 58.4 49.3 42.9 34.6 76.4
460V/3Ph/60Hz 52.1 47.4 55.6 60.7 62.8 55.6 49.4 41.3 76.4
380V/3Ph/60Hz 41.6 47.7 54.4 56.0 59.6 53.9 46.6 38.1 66.8
UAL210A5
208V~230V/3Ph/60Hz 43.26 55.21 63.27 63.24 65.18 61.53 54.61 47.55 69.9
460V/3Ph/60Hz 35.28 51.38 60.79 64.28 64.33 61.98 56.9 49.26 69.9
380V/3Ph/60Hz 51.2 55.2 61.6 63.4 64.7 61.2 57 50.5 69.5
TEST CONDITION: OCTAVE BAND LEVEL NOISE IS TESTED BASE ON 15DB(A) BACKGROUND NOISE SEMI-ANECHOIC ROOM.

13
Wiring Diagrams
208-230V/3Ph/60Hz

14

15

16
460V/3Ph/60Hz

17

18
380V/3Ph/60Hz

19
