Dake FORCE 40 Operating and maintenance manual

Dake Corporation Phone: [phone] www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417
DAKE 3-PHASE DURA PRESS
Models: Force 40, 70, 100
INSTRUCTIONAL MANUAL
*Force 40 shown. May be slight differences*
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow safety
instructions and labels could result in serious injury.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
1 REV122020
TABLE OF CONTENTS
DAKE STANDARD LIMITED WARRANTY................................................................... 2
RETURN & REFUND POLICY ...................................................................................... 4
SAFEGUARDING THE POINT OF OPERATION.......................................................... 5
SPECIFICATIONS ......................................................................................................... 6
SAFETY ......................................................................................................................... 7
Label Location:...................................................................................................... 7
SET UP .......................................................................................................................... 8
Handling & Transport ............................................................................................ 8
Placement ............................................................................................................. 9
Electrical Connection .......................................................................................... 10
Filling the Pump Unit........................................................................................... 11
Pump Rotation .................................................................................................... 11
Worktable Height Adjustment.............................................................................. 11
Priming the Pump................................................................................................ 12
OPERATION ................................................................................................................ 12
Operating Temperature....................................................................................... 13
MAINTENANCE........................................................................................................... 13
Changing Oil ....................................................................................................... 13
Filters .................................................................................................................. 13
TROUBLESHOOTING................................................................................................. 14
PARTS LIST ................................................................................................................ 16
Electrical Box Components ................................................................................. 16
Cylinder:.............................................................................................................. 17
Hydraulic Pumping Unit:...................................................................................... 18
ORDER INFORMATION .............................................................................................. 19
DEACTIVATING THE MACHINE ................................................................................ 19
DISMANTLING THE MACHINE .................................................................................. 19

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
2 REV122020
DAKE STANDARD LIMITED WARRANTY
Finished Machines
Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be
free from defects in material and workmanship under normal use and service within 1 year (12
months) from the delivery date to the end user.
Parts
Dake warrants to the original purchaser the component part manufactured or distributed by it to be
free from defects in material and workmanship under normal use and service within 30 days from the
delivery date to the end user.
The standard limited warranty includes the replacement of the defective component part at no cost to
the end user.
Sale of Service (Repairs)
Dake warrants to the original purchaser the component part repaired by Dake Corporation at the
manufacturing facility to be free from defects in material and workmanship under normal use and
service within 90 days from the return date to the end user, as it pertains to the repair work
completed. The standard limited warranty includes repair of the defective component part, at no cost
to the end user.
Warranty Process
Subject to the conditions hereinafter set forth, the manufacturer will repair or replace any portion of
the product that proves defective in materials or workmanship. The manufacturer retains the sole right
and option, after inspection, to determine whether to repair or replace defective equipment, parts or
components. The manufacturer will assume ownership of any defective parts replaced under this
warranty.
All requested warranty claims must be communicated to the distributor or representative responsible
for the sale. Once communication has been initiated, Dake Customer Service must be contacted for
approval:
Phone: [phone]
Email: customerserv[email protected]
When contacting Dake, please have the following information readily available:
- Model #
- Serial #
- Sales Order #
Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return
Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA
number must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA
will not be processed.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
3 REV122020
Warranty Exceptions:
The following conditions are not applicable to the standard limited warranty:
(a) Part installation or machine service was not completed by a certified professional, and is
not in accordance with applicable local codes, ordinances and good trade practices.
(b) Defects or malfunctions resulting from improper installation or failure to operate or maintain
the unit in accordance with the printed instructions provided.
(c) Defects or malfunctions resulting from abuse, accident, neglect or damage outside of
prepaid freight terms.
(d) Normal maintenance service or preventative maintenance, and the parts used in
connection with such service.
(e) Units and parts which have been altered or repaired, other than by the manufacturer or as
specifically authorized by the manufacturer.
(f) Alterations made to the machine that were not previously approved by the manufacturer, or
that are used for purposes other than the original design of the machine.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
4 REV122020
RETURN & REFUND POLICY
Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here
to help.
Returns
All Dake manufactured / distributed machines, parts and couplings include a 30-day return option.
These policies are valid from the date of final shipment to the end user.
To be eligible for a return, the item must be unused and in the same condition as received.
All requested warranty claims must be communicated to the distributor or representative responsible
for the sale. Once communication has been initiated, Dake Customer Service must be contacted for
approval:
Phone: [phone]
Email: customerser[email protected]
Once the return request has been approved by Customer Service, a representative will supply a
Return Material Authorization (RMA) number. The returned item must have the provided RMA
number clearly marked on the outside packaging. Any item received without an RMA number clearly
visible on the packaging will not be processed.
An RMA number can only be provided by the Dake Customer Service team and must be obtained
prior to the return shipment.
Refunds
Once the item has been received and inspected for damages, a representative will notify the
requestor referencing the provided RMA number.
If the return is approved, a refund will be issued to the original method of payment, less a 20%
restocking fee. The restocking fee may be waived if an order is placed at the time of return with like-
value merchandise.
Transportation costs are the responsibility of the end user and will not be credited upon return
approval.
Any item that is returned after the initial 30 days or has excessive/obvious use will not be considered
for a full refund.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
5 REV122020
SAFEGUARDING THE POINT OF OPERATION
ANSI B11.2 - Hydraulic Power Presses -
Safety Requirements for Construction, Care, and Use
It is important that Dake press users have a clear understanding of their responsibility involving the
care and use of their Dake hydraulic press, including point-of-operation safe guards. Dake strongly
recommends that Dake press users obtain a copy of the current American National Standard Institute
(ANSI) B11.2 standard, for a more complete understanding of their responsibilities.
ANSI B11.2 states the following, relative to point of operation safeguarding:
“Normally, only the employer (press user) can determine the requirements of the press productions
system components, including the dies and methods for feeding. Therefore, the employer is ultimately
responsible to designate and provide the point-of-operation safeguarding system.”
The standard also discusses additional responsibilities of the employer. Some of the key
responsibilities are:
•The employer is responsible for the safety, use, and care of the hydraulic power press production
system.
•The employer is responsible to consider the sources of hazards for all tasks to be implemented on
the hydraulic power press production system.
•The employer is required to eliminate, or control identified hazards in the scope of their work
activity.
•The employer is responsible for the training of personnel, caring for, inspecting, maintaining, and
operating hydraulic press production systems to ensure their competence.
•The employer is responsible to provide and ensure that point-of-operation safeguarding is used,
checked, maintained, and where applicable, adjusted on every production operation performed on
a press production system.
A complete and current copy of the ANSI B.11.2 standard can be obtained by contacting the
following:
American National Standards Institute
1430 Broadway
New York, NY 10018
AMT – The Association for Manufacturing Technology
7901 Westpark Drive
McLean, VA 22102

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
6 REV122020
Specifications
Model
Force 40
Force 70
Force 100
Number
972003
972004
972005-2
Capacity
40 tons
70 tons
100 tons
Horsepower
2
2
3
Voltage
220V/440V,
3-Phase
220V/440V,
3-Phase
220V/440V,
3-Phase
Width between
uprights 35” 35” 41”
Width between table
channels
8” 8” 10”
Min. ram to table
7”
7-1/4”
7-7/8”
Max. ram to table
32”
32”
35”
Ram Travel
19”
19”
19”
Height
88”
88”
90”
Base
63” x 37”
63” x 27”
75” x 33”
Weight
1,210 lbs
1,595 lbs
2,950 lbs
Ram advance speed
68 ipm
42 ipm
52 ipm
Pressing speed
7 ipm
4 ipm
3 ipm
In the space provided record the serial number and model number of the machine. This information is
only found on the black and gold Dake tag shown below. If contacting Dake this information must be
provided to assist in identifying the specific machine.
Serial No.
Model No.
Install Date:

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
7 REV122020
SAFETY
This is the safety alert symbol. When you see this symbol on your press be alert to the
potential for personal injury.
−Keeps safety labels in good condition and replace missing or damaged labels. If labels are
needed send a request to Dake.
Follow recommended precautions and safe operating practices. It is important that the
operator understand all safety instruction listed below in order to prevent damage to
themselves, others, or the machine.
−Employer is responsible to perform a hazard/PPE assessment before work activity.
Label Location:
Part No.
300168
Part No.
84935
Part No.
84399
Part No.
84487
Part No.
76462

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
8 REV122020
Additional Warnings:
•Operator must never place hands in the area of the ram during pressing operations.
•Do not use the press for pulling
•A machine not subject to maintenance and periodical structural inspection is a danger for the
operator and all persons working nearby.
•It is forbidden to tamper with, modify, or elaborate parts of the machine that alter its regular
operation.
•During the phases of maintenance requiring guards to be removed the machine must be
locked out according to local and state laws. Guards must be replaced after maintenance is
complete.
•This press is designed for one operator.
•All work requiring the piece to be pressed to be supported by the operator is forbidden.
•It is forbidden to press pieces whose dimensions or physical nature may explode or produce
splinters.
SET UP
Handling & Transport
•Total weight of the press plus packing materials is shown on the adhesive tabs places on the
packing and on the accompanying documents.
•Loading and unloading is to be done with lifting straps.
•Ensure the machines weight is not over the maximum capacity of the straps and that the
straps are in good condition.
•It is forbidden for things and/or persons to stand close to the machine, loading area, unloading
area, and means of transport during the loading and unloading operations.
•Do not make any sudden movements with the transportation device with the press lifted.
•Pay close attention during all handling processes that the press, in particular the hydraulic
power unit does not receive damage.
•Observe the in-house provisions concerning lifting and handling.
•It is forbidden to approach or pass under the press while it is lifted.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
9 REV122020
•Before handling the machine, it is necessary to use special lifting equipment whose maximum
lifting capacity is greater than the weight of the press. Press weight can be found in the
“Specifications” section of this manual.
•Lifting straps must be positioned as shown below.
The manufacturer is no responsible for damage to the machine while loading or unloading the press.
Placement
•Simple precautions are necessary for correctly positioning the press, always consider the safety
aspect not only in relation to the work carried out with the press but also to the dangers originated
by another machine in the workplace.
•Do not position on unstable or unlevel floor.
•The press needs to have 36” of clearance on the sides and 42” of clearance in the front and back.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
10 REV122020
Electrical Connection
Only a certified electrician that follows local and state laws is authorized to perform any
type of electrical connection on this press. The electrical power supply voltage must be made
in compliance with local and state laws.
−This machine is dual voltage 220V 3-phase / 440V 3-phase. The amp rating for voltages are in
the table below.
Voltage
Amp Rating
220V, 3-phase
6.8 amps
440V, 3-phase
3.4 amps
•For proper operation it is necessary to ensure constant voltage and must not exceed or be
lower than 5% of the rated value.
•Before making any electrical connections, confirm the voltage rating of the machine. There is a
black plastic box mounted on top of the reservoir with the rated valve.
•Be sure there is no power to the machine before checking the following
connections. It may be necessary to lock out the machine for proper power
disconnection.
•Remove the two mounting screws that hold this box in place. Under this box you will see one
of the following possibilities shown below. After confirming or changing the voltage to the
correct voltage mount the cover with the two screws. Now open the electrical panel on the
transformer to check if it is set to the correct output voltage.
•Any damage caused by a faulty electrical connection is not cover by warranty.
220V Connection
440V Connection

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
11 REV122020
Filling the Pump Unit
To fill the pumping unit, use exclusively the oils indicated in the table or equivalent. The
environmental conditions must be considered before purchasing oil. To transfer the oil from the
container to the tank use an external filler to prevent the introduction of foreign material or liquids at
the time of filling.
Amount of oil for each press:
40 Ton
10.5 Gallons
70 Ton
10.5 Gallons
100 Ton
15.5 Gallons
Pump Rotation
After making the electrical connections to the press it is necessary to make a visual check on the
direction of rotation of the electric motor.
Before checking the direction of the rotation of the pump, fill the reservoir with oil.
1. Unscrew the inspection cap.
2. Identify a reference point on the drive shaft.
3. Power up the motor for a maximum of 1-2 seconds.
4. Check that the rotation of the shaft in moving in the clockwise direction.
a. If the motor rotates in the wrong direction contact your electrician.
5. Screw down inspection cap.
Worktable Height Adjustment
To optimize use of the press it is necessary to set the worktable to a different height in relation to the
operation to be carried out on the press.
Before lifting the mobile table first check that:
•The eyebolts fixed to the worktable are fully tightened.
•The eyebolt support (nose piece) is properly screws onto the cylinder ram.
•The eyebolts fixed to the nose piece are fully tightened.
1. Hook chains to the respective eyebolts and lift the cylinder ram until the chains are set under
tension but, do not lift the table.
2. Check all chain connections to eyebolts to ensure a safe secure connection.
3. If secure, lift the table just above the desired table height.
4. Take the split pins off and then remove the table pins.
5. Insert the table pins to the desired work table height pin location then insert the split pins.
6. Slowly move the table down until it rests on the table pins.
7. Check to ensure the position and assembly of the pins are correct.
8. Unhook chains and leave them to hang in the downwards position.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
12 REV122020
Priming the Pump
Before starting the machine for the first time it is necessary to prime the pump.
1. Check that all the valves and distributors are in the rest position.
2. Jog the start button (electric motor), when the unit emits a dull sound with no jumps and the
sound of the pump is constant.
3. If the sound is uneven or bubbly there is air in the pump still. Repeat step 2 if this occurs.
4. The oil in the reservoir may fall on startup due to:
a. Absorption of volume by the cylinder.
b. Absorption of volume by the pumping unit.
c. Discharge of air bubbles remaining in the piping.
5. It may be necessary to top off the level of the oil to bring it back to the correct height. By
checking the level gauge, the level should be about half way up the gauge.
OPERATION
−Before starting any operations, make sure there are no other people in the immediate vicinity
of the area.
It is strictly forbidden to pass under the worktable.

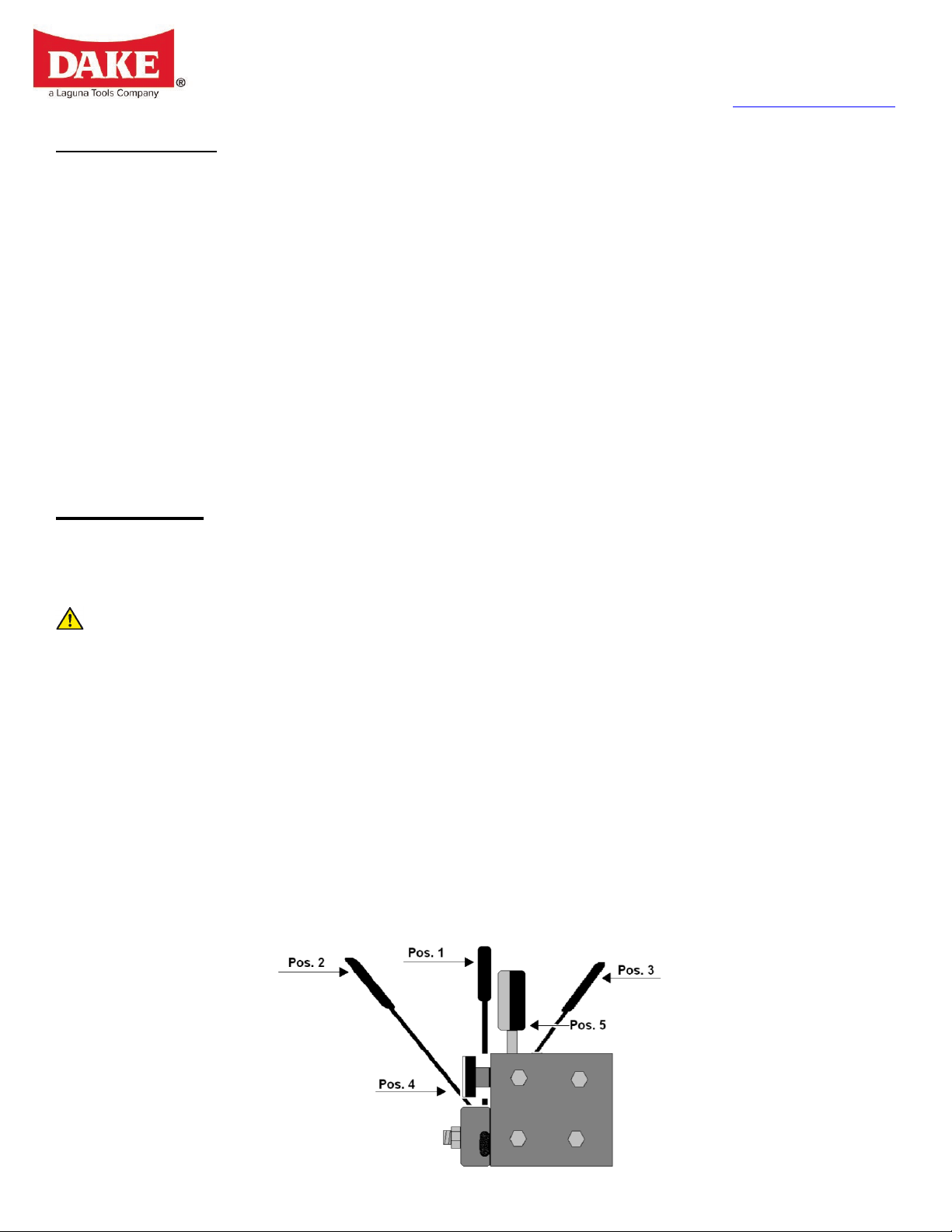

To operate the cylinder activate the master switch and then operate the distributor level.
•Pulling the lever towards the operator (Pos. 2) will lower the ram.
•Pushing the lever all the way away from the operator (Pos. 3) will raise the ram.
•Releasing the lever will return it to natural position (Pos. 1) and stop the ram’s movement.
With the hand wheel positioned on the side of the distributors (Pos. 4) it is possible to adjust the
operating pressure continually and therefor the pressing force of the cylinder. The pressure gauge
(Pos. 5) displays the pressure during working phases.
Adjustment of the maximum pressure must be increased gradually from a lower pressure until the
necessary capacity is reached to perform the operation at hand.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
13 REV122020
Operating Temperature
After the machine has been operating at full rate check that the oil temperature does not exceed
140°F. If it does exceed 140°F check that the oil used is not too viscous and replace with more
suitable oil if this is the case.
MAINTENANCE
Routine maintenance operation must be carried out by authorized and trained personnel.
All maintenance or cleaning operations must be done with the machine properly locked out in
accordance with OSHA regulations.
−Below is a table the normal times for maintenance work. In addition the work area and press
needs to be cleaned and cleared of material.
Operating
Hours
Check oil filter Check oil Change oil Change oil filter Change air filter
50
X
100
X
300
X
X
500
X
X
1000
X
X
X
1500
X
X
X
2000
X
X
X
Changing Oil
The oil will need to be routinely changed every 2000 operating hours or at least once a year. Empty
the until tank be arranging a container of adequate capacity to contain the quantity of old oil being
removed under the drainage plug at the bottom of the tank.
Remember to tighten the plug before refilling the tank with new clean, filtered oil.
Press Model
Oil required
40 ton
10.5 gallons
70 ton
10.5 gallons
100 ton
15.5 gallons
150 ton
22.5 gallons
Disposing of the oil will have to be done in conformity with local and state laws along with OSHA
regulations. Hydraulic oil is considered a special waste.
Filters
The filter must be frequently replaced during the first period of operating the press and them at
regular intervals of time to be defined according to the conditions of use and the environment where
the machine is located. After that replacement is needed every 500-600 hours.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
14 REV122020
TROUBLESHOOTING
SYMPTOM CAUSE SOLUTION
Cylinder moves slow
Air in pump Bleed the air
Air in circuit Bleed the air
Damaged cylinder gaskets
Replace cylinder gaskets
Damaged or worn pump Replace pump
Sequence valve jammed Recondition sequence valve
Delivery oil line is choked or
clogged
Check hydraulic lines
Piston will not move
Electric motor will not turn
Check motor
Piston gaskets are completely
damaged Replace piston gasket
Blocked distributor
Recondition distributor
Damaged pump
Recondition or replace pump
Cylinder leaks oil
Head gaskets are damaged or
worn
Replace head gaskets
Piston ram will not
build pressure
Lack of pressure from pump
Recondition pump
Pressure control valve is set low
Reset valve appropriately
Pump cavitation
Filter suction is clogged
Clean or replace
Oil is too viscous
Empty and refill with more suitable
oil
Foam forms in the
hydraulic fluid
Oil level is too low
Fill oil back up to correct level
Oil is unsuitable for the press
Replace with suitable oil
Fittings or joints letting air in
Tighten or replace fittings
Air is being discharged into circuit
Discharge air from system
Pumps deliver little
or no oil
Pump is worn or damaged Recondition or replace
Pump will not turn
Pump joint is undone or damaged
Check and/or replace
Unstable valves
Valve seat damage
Recondition or replace
Pressure not constant
Check pump or pressure relief
valve

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
15 REV122020
SYMPTOM CAUSE SOLUTION
Valve parts jammed Dirty hydraulic oil
Drain oil from system and replace
with new filtered oil
Piston moves
irregularly
Lack of pressure from pump
Recondition pump
Pressure adjustment valve is set
low
Reset valve appropriately
Translating cylinder is damaged
Check and/or recondition
Translating wheels or guides are
dirty or blocked
Clean and/or replace parts
Excessive wear on
parts
Oil containing abrasives
Drain and replace oil
Insufficient lubrication
Drain and replace with higher
quality oil
Too high of operating pressure
Lower the setting of the pressure
relief valve
Contaminants in oil not caught by
filter
Insufficient filtering. Replace oil
and filter

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
16 REV122020
PARTS LIST
Electrical Box Components:
Item Description 40 Ton 70 Ton 100 Ton
1
Contactor
2
Transformer
300842
300842
300842
3
Overload 220-volt
302187
302187
302187
3
Overload 440-volt
302189
302189
302188
3A3
N.O. Contact Block
302192
302192
302192
4
Relay
7230000
7230000
7230000
5
Fuse Block
300843
300843
300843
5B
Fuse 2 Amp
77523
77523
77523
6
Terminal Block Ground
6A
Terminal Block Black
On-Off Switch Body
302728
302728
302728
1
2
3
4
5
6

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
17 REV122020
Cylinder:
Item Description 40 Ton 70 Ton 100 Ton
1
Piston Gasket
300609
301195
301189
2
Piston O-Ring
300610
301196
301186
3
Head Guide Ring
300647
301197
301187
4
Head O-Ring
300648
301198
301188
5
Head Gasket
300649
301199
301185
6
Head Scraper
300650
301200
301184
7
Washer
8
Hose Fitting (Top)
300890
300890
300890
8A
Hose Fitting (Bottom)
301390
301390
301390
Gauge
301721
301720
301719
Gauge Adapter
301813
301813
301813
Hydraulic Hose A
300383
300383
Hydraulic Hose B
300382
300382
Eye Bolt
301880
301880
301880
Nose Piece Bolt
300793
300793
300793
Cylinder Bolts
w/ Jam Nut
303795
303797
303796
303797
301136
303797
Cylinder Fitting w/ Seal (B Port)
302957
301365
302957
301365
302957
301365
Repair Kit
716791
716790
716789
Complete Cylinder
300698
300642
SS100C00
4
1
2
3
5
6
7
8

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
18 REV122020
Hydraulic Pumping Unit:
Item Description 40 Ton 70 Ton 100 Ton
1
Complete Power Unit
300633
300633
79937
1
Tank Cover
301388
301388
301391
2
Electrical Cover
300388
300388
300388
3
Fill Cap
302055
302055
302055
4
Air Filter
300391
300635
300224
5
Drain Filter
300392
300392
300223
6
7
Back Motor Bearing
8*
Motor Rotor
301848
301848
9*
Driving Shaft
10
Front Motor Bearing
11*
Pump Motor
302200
302200
12
Blade
302056
302056
13
Pumping Bearing
14
Eccentric
15
Roller Bearing
16
High Pressure Pump Group
301115
301115
301115
Outlet Filter / bottom of pump
300393
300393
300394
Motor Windings with Shell
301848
301848
Drive Shaft Assembly
(Items: 8, 9, 11)
302200 302200

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
19 REV122020
Please contact factory for current prices.
ORDER INFORMATION
Parts are available for direct purchase from Dake or through a distributor. When placing a parts order,
you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
Factory in Grand Haven, MI.
DEACTIVATING THE MACHINE
If the machine is not going to be used for a long period of time it is recommended that you so the
following:
1. Disconnect the press from power sources.
2. Empty the unit of oil.
3. Protect it suitable so there is no dust, moisture or other foreign bodies that can damage the
machine.
DISMANTLING THE MACHINE
If the machine is not going to be used anymore it is recommended to make it inoperable by removing
the oil in the tank and eliminate oil remining in the cylinder, hydraulic lines, pump body, and valves.
When going for demolition the press must be treated as special waste, it must therefore to be split
into its homogenous parts. These must be separately disposed of in conformity with local and state
laws along with will all OSHA regulations.
