Dake TB-16 User manual

TB & SB Series Drill Presses
OWNERS MANUAL
BENCH AND FLOOR DRILL PRESS
TB-16 Series & SB-16-25-32-Series
FOR YOUR OWN SAFETYAND
OPTIMUM OPERATION READ
INSTRUCTION MANUAL BEFORE
OPERATING DRILL PRESS
RETAIN THIS MANUAL FOR
FURTHER REFERENCE

1
TABLE OF CONTENTS
•Model specifications page 2
•Electrical diagram page 2
•Voltage protection recommendations page 2
•Drill press installation page 3
•Safety points page 4
•Power warning page 5
•General safety instructions page 5-7
•Voltage warning and grounding instructions page 8
•Operation and set-up instructions page 10 –11
•Tooling removal page 12
•Work holding and machine maintenance page 12
•Speed adjustment and belt tensioning page 13

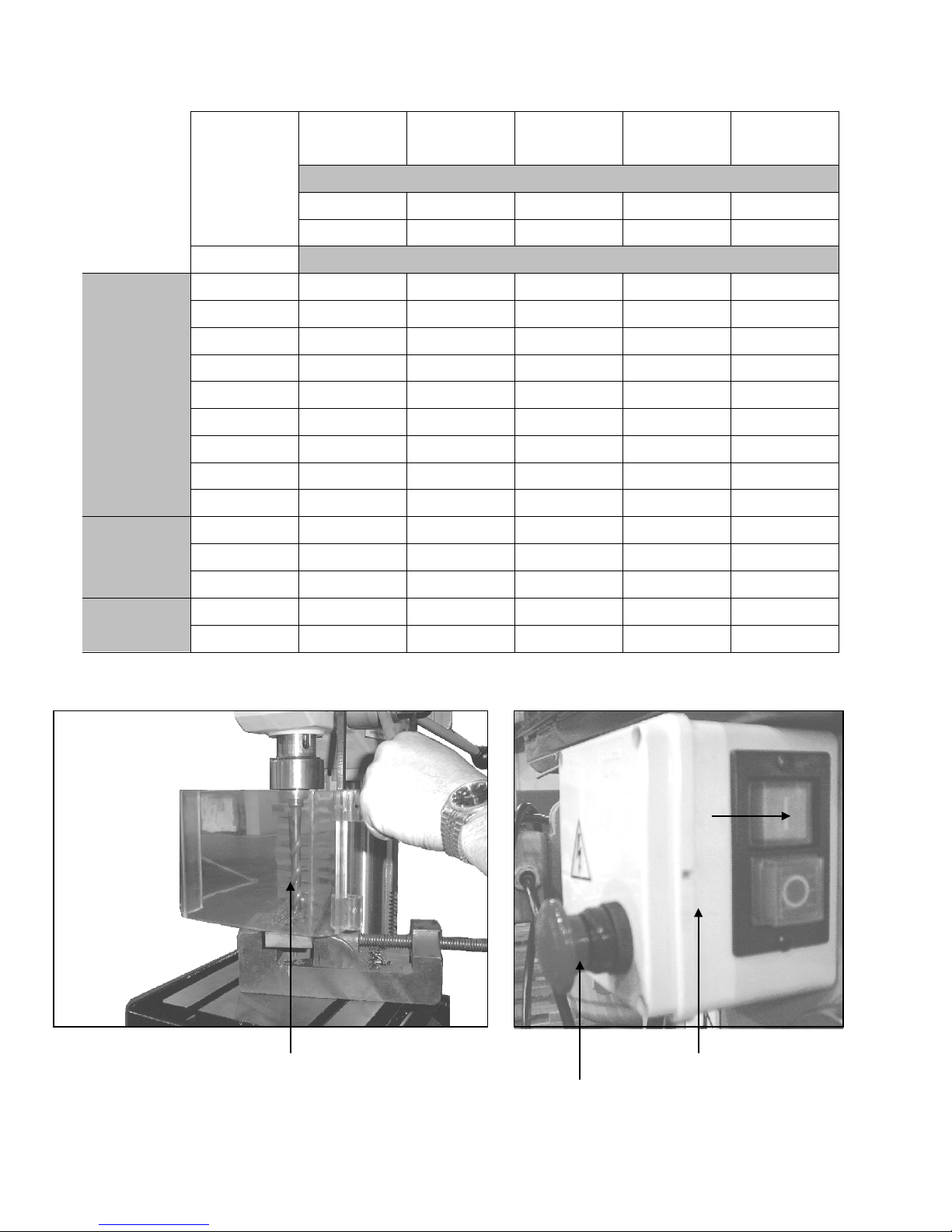

•Proper drill speeds for materials and bit diameter page 14
•Dake safety features page 14
•Exploded diagram TB / SB 16 page 15
•Parts list TB / SB 16 page 16
•Exploded diagram SB 25 / 32 page 17
•Parts list SB 25 / 32 page 18

2
MODEL AND SPECIFICATIONS
ELECTRICAL DIAGRAMS
CAUTION
20 AMP circuit breaker is recommended for the TB-16 and SB-16 models.
30 AMP circuit breaker is recommended for the SB-25 110 volt model.
Machine
Specifications:
Model TB-16
Model SB-16
Model SB-25
Model
SB-32
Drill Type Bench Floor Floor Floor
Max. Drill Capacity 5/8” 5/8” 1” 1-1/4”
Spindle Taper
MT2 MT2 MT3 MT4
Spindle Travel 3-1/8” 3-1/8” 5” 5-1/4”
Max. Work Diameter
14-1/8” 14-1/8” 18” 18”
Speeds (Step Pulley) 9 9 9 9
Spindle Speed Range 240-3400 240-3400 270-2000 270-2290
Column Diameter 3-1/8” 3-1/8” 3-5/8” 4”
Table
11-3/4 x 11-3/4” 11-3/4 x 11-3/4” 14 x 14” 15-3/4 x 15-3/4”
Base 17-3/4 x 12-1/8” 19-1/2 x 12-1/2” 23-1/2 x 15” 23-1/2 x 15”
Spindle to Table
16-1/2” 28-1/4” 28-1/4” 26-1/4”
Spindle to Base 25-1/2” 49” 49-1/8” 50”
Motor ½ HP ½ HP 1 HP 2 HP
Electrics CE CE CE CE
Voltage
120 Volt 120 Volt 220 V – 3 PH 220 V – 3 PH
Overall Height 42-1/2” 64” 71” 71”
Weight
155 lbs. 210 lbs. 397 lbs. 463 lbs.

3
1. UNCRATING AND INSTALLATION
CAUTION
INSTALLATION OF DRILL PRESS
MACHINE IS TOP HEAVY!
1. Location of the drill press should be in a well lit area with correct
power supply and that will not interfere with other machines or
operations.
2. Carefully uncrate machine from crate. Inspect all packing as not
to throw out any parts or manuals.
3. When transporting the machine please use caution. If using a
sling have someone steady the machine while transporting it.
4. Install your drill press on a sturdy level floor surface, or work
bench. (TB-16) The machine must be anchored to the floor or
workbench securely. Machine is top heavy.
5. Connect appropriate power to the machine. Make sure circuit
breakers are suitable for the machine. Consult local codes for
proper installation of machine. Always route power cables in a
safe manner away from traffic areas, damp areas, heat and
moving parts.
6. After installing the drill press, use the kerosene or degreasing
product to clean off the anti-rust oil which was applied at the
factory. Then wipe machined surfaces with a light coating of
lubricant oil. (Way oil)
7. Read rest of the owners manual before operating this machine.
Review and understand all safety instructions.

4
SAFETY POINTS
BEFORE USE, ALL SAFETY POINTS MUST BE READ AND UNDERSTOOD!
Before the DRILL PRESS is used,the instruction manual with this machine must be
read and understood. This manual offers safe operation instructions.
Offered below are safety instructions designed for the drill press and general
safety instructions that apply to most machinery.
Operation of the drill press incorrectly, or in a
dangerous fashion can result in serious injury
or death.
Operation of the drill press incorrectly, or in a
dangerous fashion can result in damage to
machine or it’s components and to the cutting
tool.
Instructions for safe drill press use.
Intend use:
The DRILL PRESS is designed to for drilling or boring operations. Caution is
required when operating the drill press because it can be dangerous due to
the high spindle rotation speed. Operation hazards such as entanglement,
shearing, ejection parts, etc. Guards such as pulley cover and chuck guard
must in place and working condition to prevent any hazard.
Please think about the safety warnings in the instruction manual before
operating the machine.

5
HIGH VOLTAGE
TURN OFF THE POWER
BEFORE SERVICE
2. FOR SAFE OPERATION
For your own safety read the instruction manual before operating
DRILL PRESS.
DANGER
3. GENERAL SAFETY INSTRUCTION
DANGER
GENERAL SAFETY
INSTRUCTION
1. SWITCH the POWER OFF before setting, inspecting
lubricating, cleaning or changing the drill bit.
2. Always wear the eye protection.
3. Do not wear gloves, necktie, necklaces, rings or loose
clothing.
4. To clamp work piece or brace against column to prevent
material rotation.
5. Use recommended speed for drill bit, and work piece
material.
1. Keep guards in place and in working order.
2. Remove adjusting key and wrenches. Be in the habit of
checking to see that keys and adjusting wrenches are
removed from tool before turning it on.
3. Keep work area clean. Cluttered areas and benches invite
accidents.
4. Do not use in dangerous environment. Do not use power
tools in damp or wet locations or expose them to rain. Keep
work area well lighted.
5. All visitors should be kept safe distance from work area.
6. Make workshop kid proof with padlocks, master switches, or
by removing starter key.
7. Do not force tool. It will do the job better and safer at the rate
for which it was not designed.

6
DANGER
GENERAL SAFETY
INSTRUCTION
Continued
8. Use the right tool. Do not force the tool, or use the machine to do a job for
which it was not designed.
9. Wear proper apparel. No loose clothing, gloves, necktie, rings or other jewelry
to get caught in moving parts. Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.
10. Always use safety glasses. Also use face or dust mask if cutting operation is
dusty.
11. Secure work. Use clamps or a vise to hold work. Do not hold part with hands.
12. Do not overreach. Keep proper footing and balance at all times.
13. Maintain tools with care. Keep tools sharp and clean for best and safest
performance.
14. Disconnect drill press from power before servicing, when changing
accessories such as bits, cutter …etc.
15. Reduce the risk of unintentional staring. Make sure switch is in off position
before plugging in.
16. Use recommended accessories. Consult the owner’s manual for
recommended accessories. The use of improper accessories may cause risk
of injury to persons.
17. Never stand on machine, or serious injury could occur.
18. Check for damaged parts. Before further use of the machine, a guard or other
part that is damaged should be replaced or repaired. Carefully check to
determine that it will operate properly and perform its intended function. Check
for alignment of moving parts, binding of moving parts., breakage of parts or
mountings and any other conditions that affect its operation.
19. Never leave tool running unattended. Turn power off. Do not leave machine
until it comes to a complete stop.

7
4. SAFETY INSTRUCTIONS FOR DRILL PRESS
CAUTION
SAFETY INSTRUCTIONS
FOR DRILL PRESS
1. Wear eye protection.
2. Do not wear gloves, necktie, rings or loose clothing.
3. Clamp work piece or brace against column to prevent rotation.
4. Use recommended speed for drill bits and sizes and work piece materials.
5. Be sure drill bit or cutter tool is securely locked in the chuck.
6. Be sure chuck key is removed from the chuck before turning on power.
7. Adjust the table or depth stop to avoid drilling into the table, shut off the
power. Remove the drill bit or cutting tool, and clean the table before leaving
the machine.
8. Do not operate until it is completely assembled and installed according to the
instructions.
9. If any port of your drill press is malfunctioning or has been damaged or
broken, do not operate until the part is properly repaired or replaced.
10. Never place your fingers in a position where they could contact the drill or
other cutting tool if the work piece should unexpectedly shift.
11. Never use your hand to hold on the object while drilling, always clamp the
object tight on the working table.
12. Never perform any operation by moving the head or table with respect to one
another. Do not switch machine on or start any operation before checking
that the head and table lock handle are clamped tight to column, and head
and table support collars are correctly positioned.
13. Before switching the power on be sure the belt cover is down and the bit is
installed properly in the chuck.
14. Lockout the motor switch when leaving the drill press. Don’t perform layout,
assembly or setup work on the table while the cutting tools rotating.

8
5. VOLTAGE WARNING
WARNING
6. GROUNDING INSTRUCTION
VOLTAGE
WARNING
1. Before connecting the machine to a power source (receptacle, outlet…
etc.) Know your incoming voltage supply. (220, 208 etc.)
2. A power source with voltage greater than that specified for the machine
can result in serous injury to the user, and machine damage.
3. Using a power source with voltage less than that of the machines rating
can damage the motor and other components.
4. If you are unsure of the voltage rating do not use the machine.
CAUTION
GROUNDING
INSTRUCTION
1. In the event of a malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.
This machine is equipped with an electric cord having an equipment
grounding conductor. The proper plug must be used with a matching
outlet that it is properly installed and grounded in accordance with all
local codes and ordinances.
2. For 120 volt models do not modify the plug provided. If it will not fit the
outlet, have the proper outlet installed by a qualified electrician.
3. Improper connection of the equipment grounding can result in a risk of
electric shock. The conductor with insulation having an outer surface that
is green with yellow stripes is equipment grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not connect the
equipment grounding conductor to a live terminal.
4. Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as whether the
machine is properly grounded.
5. It is not recommended to use an extension cord on this machine. If one
must be used, use only a grounded cord of proper size for machine and
length of run needed.
6. Repair or replace damaged or worn cords immediately.

9

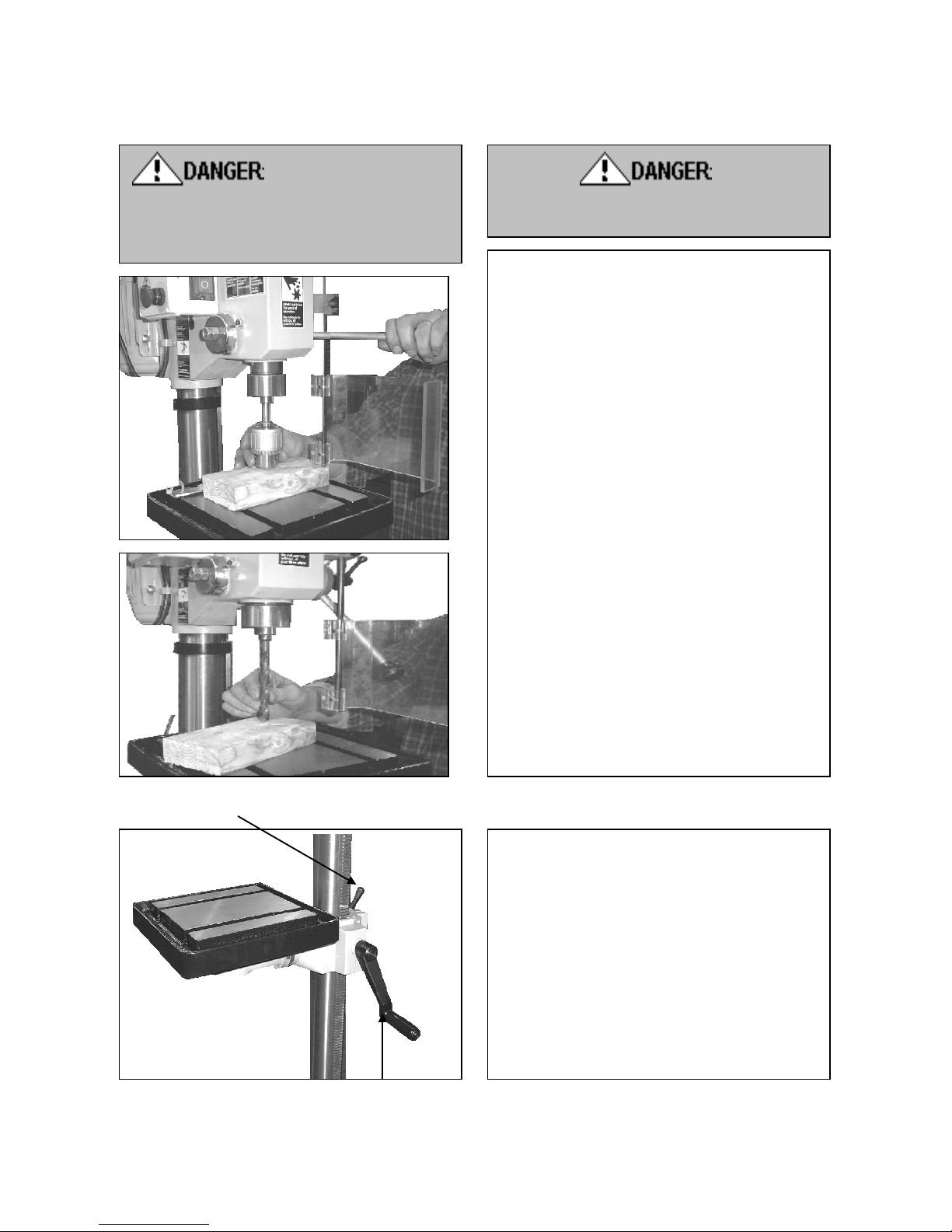

7. OPERATION (PROCEDURE) Drill / Chuck Installation:
To show greater detail
chuck guard is in the open position in POWER MUST BE OFF BEFORE
photos. CHUCK GUARD MUST IN MAKING ANY ADJUSTMENTS!
PLACE DURING OPERATION! TURN POWER OFF! Before inserting
drill bits, chucks or arbors, always clean
out spindle hole and taper hole with a
clean cloth.
Open chuck jaws completely by turning
attached chuck key counter-clockwise
until the jaws are fully opened.
To install the chuck to the arbor tightly,
slide the chuck into the taper forcing it
into the spindle with by hand. Place a
block of wood on the table then lower the
spindle to make contact with the wood
and press the chuck tightly into the
spindles taper.
Install a taper shaft drill bit into the taper
the same way as you would the chuck. If
an adaptor is used it must fit the taper
correctly and the bit must fit snug in the
adaptor.
Table lock Table height adjustment:
Table height adjustment is
accomplished by loosening the clamp
bolt then adjusting the table with the
bracket handle to desired height.After
table is at working height, retighten
the clamp bolt securely.
Note: Keep table adjustment rack
clean from debris. Never attempt to
move table with clamp bolt tightened.
Table handle

10
Table tilting adjustment:
Using an adjustable or box wrench
loosen table level lock bolt. Carefully tilt
the table to the degree needed, as read
on the angle index scale located on the
table rotation point. Retighten nut
securely.
Note: Never tilt table if any material or
fixturing is on it. Only make adjustments
when table is free of loose articles.
Table swing adjustment:
To swing the table up to 360 degrees,
loosen the clamp release bolt and swing
table to the desired position. After the
table is in the correct position tighten
clamp release bolt securely.
Note: Never swing table if any material or
fixturing is on it. Only make adjustments
when table is free of loose articles.
Feed depth adjustment:
Setting the feed depth adjustment is
done by loosening the clamp bolt on the
spindle depth index sleeve and rotating
it to the desired depth.
Retighten clamp bolt securely.
Note: Never make this or other
adjustments when machine is running.

11
TURN P POWER OFF!
Wait until machine has come to a
complete stop before proceeding with
speed change!
Speed adjustment:
Open the pulley cover to expose the
pulleys and drive belts.
Loosen the belt tension lock handles.
Choose the proper speed for the drilling
operation. Move the belt to the correct
step of the pulleys for the desired speed.
(See diagram on page 12) Push the
motor backwards until proper belt
tension is applied. (1/2” deflection as
shown below speed selection chart in
this manual) Retighten belt tension lock
handle. NOTE: If center pulley bracket
does not move freely, loosen spring
loaded bolts ½ - ¾ turns.
Installation of drill bits in the chuck:
A drill bit with a shaft of at least 1” long
should be used to allow correct chuck jaw
contact. If shaft length is under 1” do not
insert bit as far into the chuck where it
allows jaw contact with drill flutes.
Center drill bit into the chuck and tighten
the chuck securely with the chuck key.
Note: Always use sharp, straight bits.
Never use bits with turned down shafts.
Never exceed the maximum diameter bit
size for the machine.
Always wear appropriate clothing while
operating the drill press.
All guards and interlocks must be in place
when operating the machine.
Correct: Jaws Incorrect: Jaws
contact drill shaft contact drill flutes

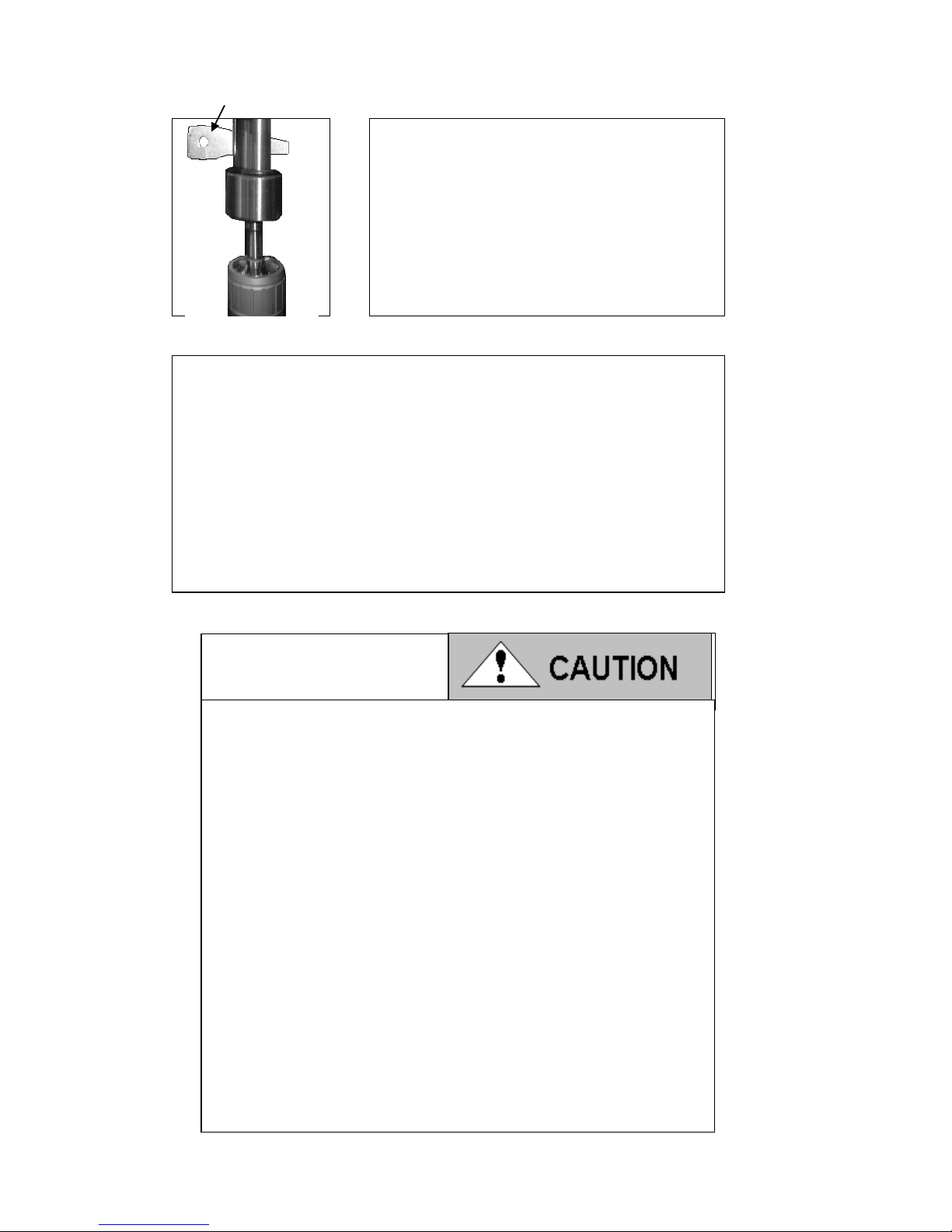

Wedge removal tool

12
Tooling removal:
Before removing the chuck or bit from the
machine, be sure the spindle has come to
a complete stop and power is off. If needed
rotate spindle by hand to align the spindle
and quill openings. Insert the wedge
removal tool, while supporting the tooling
tap the wedge to remove the tooling.
Work holding:
When drilling directly on table surface, it is recommended that a
piece of wood or plywood be clamped securely to table under the
work piece. This will minimize splintering or burring as drill breaks
through work. It will help minimize drill bit and table damage.
Clamp work piece to the table when ever possible. Table has “T”
slots that allow for many different clamping configurations.
When part cannot be affixed to the table a drill vise that is bolted to
the table must be used to hold work piece safely.
8. MAINTENANCE OF MACHINE
MAINTENANCE
SPEED ADJUSTMENT
1. On a regular basis blow out any dust that may accumulate inside
the motor. (Frequency depends on environment the machine is
in)
2. Acoat of automotive wax applied to the table and column will help
to keep the surface clean.
3. If the power cord is worn or cut, or damaged in any way, have it
replaced immediately.
4. All of the ball bearings are packed with grease at the factory. They
require no further lubrication.
5. Periodically lubricate the gear and rack table elevation
mechanism, the spindle splines and the rack (teeth on the quill).
6. After each use the machine should be cleaned. Weekly
lubrication of all sliding or moving parts with light weight or way oil
is recommended. For your own safely, turn switch “OFF” and
remove plug from power source outlet before maintaining or
lubricating your drill press.

13
MODEL
TB & SB 16 SB 25 SB 32
PULLEY STEPS RPMs RPMs RPMs
1 - 7 = 240 rpm = 270 rpm = 270 rpm
1 - 6 = 420 rpm = 400 rpm = 410 rpm
2 - 7 = 450 rpm = 450 rpm = 450 rpm
1 - 5 = 660 rpm = 550 rpm = 600 rpm
2 - 6 = 760 rpm = 660 rpm = 690 rpm
3 - 7 = 780 rpm = 720 rpm = 720 rpm
2 - 4 = 1980 rpm = 1270 rpm = 1410 rpm
3 - 5 = 2100 rpm = 1460 rpm = 1620 rpm
3 - 4 = 3400 rpm = 2000 rpm = 2290 rpm
BELT TENSION ADJUSTMENT
Proper belt tension is approx. 10 lbs. of pressure, or deflection of about 1/2 “

14
The proper drill speed for a given drill bit size is as on following table :
SAFETY FEATURES OF DAKE DRILL PRESSES
CHUCK / CHIP GUARD CE CERTIFIED ELECTRONICS
Membrane covered
On / Off push
buttons
FOR OPERATOR SAFETY, ALWAYS USE PROPER Low voltage, thermo protection
POSITIONED CHUCK GUARD. Emergency stop button.
Belt cover interlock
Material
Type Cast Steel Tool Steel Cast Iron Mild Steel Alum. & Copper
SURFACE FEET PER MINUTE
s.f.m.
s.f.m.
s.f.m.
s.f.m.
s.f.m.
Drill Dia. 40 60 80 100 200
Inch
REVOLUTIONS PER MINUTE
TB-
16
&
SB-16
1/16 2,445 3,665 4,890 6,110 12,225
1/8 1,220 1,835 2,445 3,055 6,110
3/16 815 1,220 1,630 2,035 4,075
1/4
610
915
1,220
1,530
3,055
5/16 490 735 980 1,220 2,445
3/8
405
610
815
1,020
2,035
7/16 350 525 700 870 1745
1/2 305 460 610 765 1,530
5/8 245 365 490 610 1,220
SB-25
3/4
205
305
405
510
1,020
7/8 174 261 348 435 762
1
153
229
306
382
668
SB-32 1-1/8 136 204 272 340 595
1-1/4 122 167 244 306 535

15

16
PARTS LIST for TB-16 / SB-16
Item
No. Description TB-16 SB-16 Item No. Description TB-16 SB-16
1 Base TB-16 301002 301001 25 Motor 300993 300993
2 Flange 301003 301004 26 Switch 301024 301024
3 Spring Washer (4x) 13mm 13mm 27 Spring & Cap Base 301025 301025
4 Screw 300999 300999 28 Motor Pulley 301026 301026
5 Column 301005 301006 29 Belt A28 301027 301027
6 Rack 301007 301007 30 Screw (4x) 300998 300998
7 Handle 301008 301008 31 Pulley Cover 301028 301028
8 Clamp Bolt 301009 301009 32 Insert Pulley Nut 301029 301029
9 Clamp Bolt 301010 301010 33 Spindle Pulley 301030 301030
10 Table Arm 301011 301011 34 Insert Pulley Shaft 301031 301031
11 Table Bracket 301012 301012 35 Middle Pulley 301032 301032
12 Worm 301056 301056 36 Screw & Spring (2x) 301033 301033
13 Collar 301013 301013 37 Belt A23 301093 301093
14 Feed Handle (3x) 301014 301014 38 Middle Pulley Shaft 301034 301034
15
15a Lock Handle Lock Screw 301070 302818 301070 302818 39 Bearing 6203Z 300987 300987
16 Feed Head 301016 301016 40 Bearing 6203Z 300987 300987
17 Spindle Scale 301017 301017 41 Table 301035 301035
18 Feed Shaft 301018 301018 42 Quill 1.85” 301036 301036
19 Belt Adjust Handle 301019 301019 43 Bearing 6003Z 300988 300988
20 Wing Bolt 301077 301077 44 Spindle 301037 301037
21 Road - B 301022 301022 45 Arbor 301038 301038
22 Motor Plate 301021 301021 46 Wedge 301039 301039
23 Road - A 301020 301020 47 Belt Cover Interlock
Switch 300992 300992
24 Head 301023 301023 48 Plexiglas Chuck
Guard 300997 300997
N/A Chuck 13mm 301870 301870
N/A Key 13mm 301968 301968

17

18
PARTS LIST for SB–25 / SB-32
Item
No. Description SB-25 SB-32 Item No. Description SB-25 SB-32
1 Base 301040 301041 27 Spring & Cap 301063 301064
2 Flange 301042 301043 28 Motor Pulley 301065 301065
3 Spring Washer (4x) 13 mm 13 mm 29 Belt 301066 301066
4 Screw 300999 300999 30 Screw (4x) 300998 300998
5 Column 301044 301045 31 Pulley Cover 301067 301068
6 Rack 301047 301046 32 Insert Pulley Nut 301085 301086
7 Handle 301048 301048 33 Spindle Pulley 301088 301087
8 Clamp Bolt 301049 301049 34 Insert Pulley Shaft 302218 302217
9 Clamp Bolt 301051 301051 35 Middle Pulley 301089 301090
10 Table Arm 301052 301053 36 Screw & Spring (2x) 301092 301092
11 Table Bracket 301055 301054 37 Belt 301093 301093
12 Worm 301056 301056 38 Middle Pulley Shaft 301094 301094
13 Collar 301057 301058 39 Bearing 6203Z 300987 300987
14 Feed Handle (3x) 301059 301059 40 Bearing 6203Z 300987 300987
15
15 a Lock Handle Lock Screw 301070 302818 301070 302818 41 Table 301095 301096
16 Feed Head 301069 301069 42 Quill
25 model 2.42”
32 model 2.98”
301098 301097
17 Spindle Scale 301071 301072
43
6025Z & 6206Z
(SB-25) Bearing 300990 300990
18 Feed Shaft 301073 301074 6006Z & 6208Z
(SB-32) Bearing 300989 300989
19 Belt Adjust Handle 301075 301076 44 Spindle 301099 301100
20 Wing Bolt 301077 301078 45 Arbor 301101 301102
21 Road - A 301079 301080 46 Seal N/A N/A
22 Motor Plate 301081 301081 47 Wedge 301104 301103
23 Road - B 301082 301083 48 Belt Cover Interlock
Switch 300992 300992
24 Head 301060 301084 49 Motor 300996 300994
25 Spring Base N/A N/A 50 Plexiglas Chuck
Guard 300995 300995
26 Switch 301061 301062 N/A Chuck 16mm 301966 301966
N/A Key 16mm 301967 301967
